Product Type	Stroller
Brand	Joycare
Model	Brio JC-1200
Recommended Age	6 to 36 months
Maximum Supported Weight	15 kg
Maximum Basket Weight	3 kg
Materials	Steel frame, plastic parts, fabric
Front Wheels	Swiveling with lock in fixed mode
Rear Wheels	Fixed with double tread brake
Brake	Brake pedal on rear wheels, simultaneous braking
Backrest	Adjustable from upright to sleeping position
Footrest	Adjustable via side buttons
Canopy	Adjustable with button, multiple positions
Restraint System	Adjustable 5-point safety harness
Frame Maintenance	Clean with a damp cloth without solvent; lubricate mechanisms with light oil if necessary
Fabric Parts Maintenance	Hand wash at max 30°C, do not wring, do not bleach, do not iron, do not dry clean, do not tumble dry
Usage	Do not use for jogging, rollerblading, stairs; always use the harness; never leave the child unattended
Folding	Compact fold by activating the central pedal and the red safety button
Accessories	Use only accessories approved by the manufacturer

Frequently Asked Questions - Brio JC-1200 Joycare

What is the recommended age for using the Brio JC-1200 stroller?

The stroller is suitable for children from 6 to 36 months.

What is the maximum weight supported by the stroller?

The maximum transportable weight is 15 kg.

How to install the front wheels?

Insert the pivot of the front wheel assembly into the stroller tube by pressing until you hear a click, indicating the wheels are properly installed.

How to use the stroller brake?

To lock the stroller, press the brake pedal on either rear wheel; both wheels brake simultaneously. To release the brake, lift the pedal.

How to adjust the stroller backrest?

Actuate the adjustment handle at the back of the backrest to select different positions, from upright to sleeping position. Ensure the handle clicks into place. To raise the backrest, simply lift it.

How to fold the stroller?

First close the canopy. Then lift the central pedal with your foot, and immediately push the red safety button. Finally, fold the stroller forward to the closed position.

How to clean the fabric parts of the stroller?

The fabric parts should be hand washed at a maximum temperature of 30°C. Do not wring, do not bleach, do not iron, do not dry clean, and do not tumble dry.

Can I add an extra mattress to the stroller?

No, it is forbidden to add any mattress not provided by the manufacturer. This could compromise the child's safety.

How to use the safety harness?

Adjust the straps by sliding the bands into the clips. To fasten the child, insert the hooks into the central buckle. To release the child, press the safety switch of the buckle inward.

What are the important safety tips for this stroller?

Never leave the child unattended, always use the harness, check that the locks are engaged before use, do not use if parts are missing or damaged, and do not hang weight on the handles or backrest.

USER MANUAL Brio JC-1200 Joycare

JC-1200/JC-1201/JC-1202

JC-1236/JC-1237/JC-1238/JC-1239

JC-1255 / JC-1256 / JC-1257 / JC-1258

BRIO

Manuale d'uso

Passeggino

User manual

Baby Stroller

Mechanical diagram showing a wheel and shaft assembly with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a small insect-like figure with an arrow pointing to it, surrounded by parallel lines (no text or symbols)

Technical diagram of a vehicle's seat and dashboard assembly (no text or labels)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Thank you for purchasing the stroller JOYCARE.

WARNING

IMPORTANT: Read the instructions carefully before use and keep them for future reference. The child's safety could be put at risk if the instructions are not followed.

WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN.

• This item is designed to carry one (1) child in the seat.
- Do not use this item for more occupants than the number established by the manufacturer.
- Never leave your child unattended.
- Pay attention to the child's presence when performing adjustments to the mechanism (handle, backrest).
- Always use the brake when you stop and during loading and unloading of the child.
- Assembly operations, item arrangement, cleaning and maintenance should be performed only by adults.
- Do not use this item if there are parts missing or broken.
- Ensure that all the locking devices are engaged before use.
- Do not put fingers in the mechanism.
- Do not use the item in the vicinity of stairs or steps, do not use near heat, open flames or dangerous objects within reach of the child's arms.
- Do not use accessories not approved by the manufacturer.
- Load the basket at a maximum of 3 kg.
• Take care to avoid absolutely that the child does not rise up on the stroller and on the safety bar.
• To avoid injury ensure that your child is kept away when unfolding and folding this product
- Do not let your child play with this product
• This product is not suitable for baby under 6 months of age
• Always use the restraint system
- Ensure that all the locking devices of the seat are correctly engaged before use
- This product is not suitable for running or skating
- Any load attached to the handle and or on the backrest and or the sides of the vehicle will affect the stability of the C
- Check periodically, or before use, the status of the product
- Use replacement parts supplied or approved by the manufacturer/distributor
NOTICE: do not add any pillows and/or mats

ITEM FEATURES

Baby stroller suitable for carrying children from 6 months to 36 months of age. The maximum weight that it can carry is 15 kg.

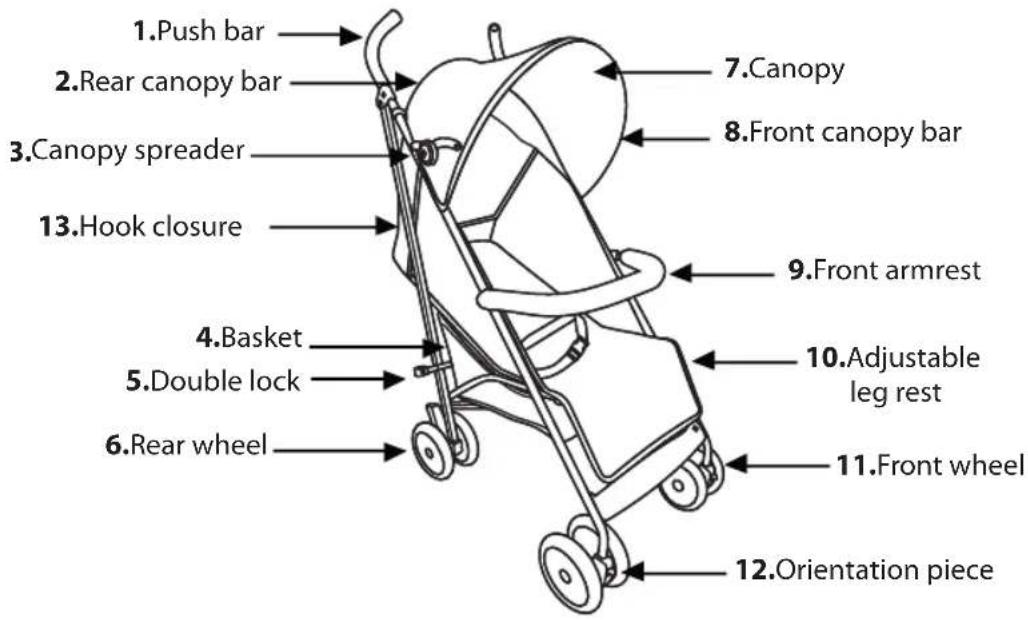

ITEM COMPONENTS

OPERATION MANUAL

Unpack the stroller

1 - install the rear: install the front wheel assemblies into front wheel shaft until a click sound is heard to indicate mounted in position. (Fig. 1A)

Install the rear wheel assemblies into rear wheel stand (brake handle facing backward) until a click sound is heard to indicate mounted in position. (Fig. 1B)

2 - Unfold the strolle: Unpack the stroller, let loose of folding hook and unfold the stroller (hold onto the push bar with two hands at the same time and lift upward), tread folding & unfolding pedal with foot till a click sound is heard to indicate mounted in position. (Fig 2A - 2B)

Diagram of a mechanical component with a circular base and arrow indicating rotation (no text or symbols)

3 - Brake: Tread rear wheel brake handle to brake and to release the brake, the operation is in a reverse way. (Fig 3)

4 - Front wheel orientation: Lift orientation piece upward to make front wheel oriented, easy for straight push and unlock in a reverse way. (Fig. 4)

Line drawing of an insect resting on grass or reeds, with no visible text or symbols

5 - Back rest adjustment: Hold onto the back rest adjusting piece and back rest can be adjusted upward and downward in different positions. (Fig 5)

Diagram of a vehicle's seat and dashboard with directional arrows indicating movement (no text or symbols)

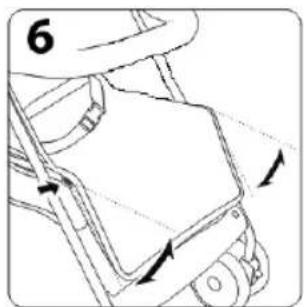

6 - Pedal adjustment: Press buttons on two sides of pedal with two hands, overturn downward, thus, the pedal can be put down. If you hold onto two sides and pull upward, the pedal can be propped up. (Fig. 6)

7 - Canopy : Fasten the push bar with canopy band seat and tie the bonding buckle to the push bar to mount the canopy. Pull upward the canopy spreader to fold the canopy and unfold the canopy by spreading the spreader downward. (Fig. 7)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

8 - Fold: Fold canopy, grip fold pull handle, lift upward, tread double lock pedal, then hold onto handlebar with hands, press forward and downward, thus, the stroller can be folded and finally buckle the fold hook and lock tightly. (Fig. 8)

9 - Use of safety belt:

Unbuckle: press safety buckle plug inward. Buckle: insert safety buckle plug into safety receptacle till it is clicked to be buckled up. (Fig. 9)

Note: Length of safety belt can be properly adjusted as per height requirement of child.

CLEANING AND MAINTENANCE

ITEM MAINTENANCE: protecting it against the weather: water, rain or snow; continued and prolonged exposure to sunlight could cause colour changes in many materials, keep this article in a dry place.

CLEANING THE FRAME: periodically clean the plastic parts with a damp cloth without using solvents or other similar products; keep all metal parts dry to prevent rust; keep all moving parts clean (regulatory mechanisms, the fitting parts, wheels ...) from dirt and sand and if necessary, lubricate them with light oil.

CLEANING THE FABRIC PARTS: brush the fabric parts to remove dust and wash it by hand at a maximum temperature of 30^ ; do not wring dry; do not use bleach; do not iron; do not dry clean; do not remove stains with solvents and do not tumble dry.

Wash by hand in cold water

Do not tumble dry

Do not dry clean

Do not iron

Do not bleach

All the instructions and drawings are based on the latest information available at the time of going to print and may be subject to change.
