Product type	Lightweight stroller
Brand	Joycare
Model	Burlone JC-1204
Unfolded dimensions (L x W x H)	Approx. 90 x 55 x 105 cm
Folded dimensions (L x W x H)	Approx. 30 x 55 x 70 cm
Weight	Approx. 9 kg
Maximum recommended load	15 kg (child)
Power supply	None (manual stroller)
Main functions	Compact fold, reclining backrest, 5-point safety harness, storage basket, adjustable canopy
Care and cleaning	Clean with soapy water, air dry. Do not use solvents.
Safety	Foot brake system, adjustable 5-point harness, removable protective bar
Spare parts and repairability	Parts available on request from the manufacturer or authorized dealers
General information	Complies with European safety standards EN 1888

Frequently Asked Questions - Burlone JC-1204 Joycare

How to fold the Burlone JC-1204 stroller?

To fold the Burlone JC-1204 stroller, lower the backrest, pull both side levers simultaneously, then push the handle forward until the stroller folds. Lock the folding system.

What is the maximum child weight?

The recommended maximum weight for the child is 15 kg. Do not exceed this load to avoid any risk of tipping.

How to adjust the backrest recline?

Use the strap or lever located at the back of the backrest to adjust the recline to multiple positions, up to the lying position for smaller children.

Is the safety harness adjustable?

Yes, the 5-point harness is height adjustable thanks to sliding attachments on the backrest. Make sure it is properly adjusted for the child's safety.

How to clean the stroller?

Clean the frame with a damp cloth and mild soap. Fabrics are washable by hand or machine at 30°C. Air dry. Do not use bleach or solvents.

Is the stroller suitable from birth?

Yes, the backrest can be reclined to a flat position, but it is recommended to use a bassinet or car seat for newborns, according to the manufacturer's specifications.

How to engage the brake?

To engage the brake, press the pedal located at the rear of the stroller. Check that it is properly engaged by trying to push the stroller forward.

Where to find spare parts?

Spare parts are available from Joycare customer service or authorized retailers. You can also check the official website to order.

Is the canopy removable?

Yes, the canopy is removable and height adjustable. To remove it, unclip the attachments on the sides of the frame.

How to maintain the wheels?

Regularly check the condition of the wheels and axles. Clean dirt with a damp cloth. If necessary, lightly lubricate the axles with silicone spray.

USER MANUAL Burlone JC-1204 Joycare

JC-1203/ JC-1204/ JC-1205/ JC-1206

JC-1230/ JC-1231/ JC-1232

JC-1244/ JC-1245/ JC-1246

BURLONE

Manuale d'uso

Passeggino

User manual

Baby Stroller

1A.

1B

JOYCARE®

3

3a

3b

4

4b

7.

7b.

Thank you for purchasing the stroller JOYCARE.

WARNING

IMPORTANT: keep these instructions for future reference.

• This item is designed to carry one (1) child in the seat.
- Do not use this item for more occupants than the number established by the manufacturer.
- Never leave your child unattended.
- Pay attention to the child's presence when performing adjustments to the mechanism (handle, backrest).
• Always use the brake when you stop and during loading and unloading of the child.
- Assembly operations, item arrangement, cleaning and maintenance should be performed only by adults.
- Do not use this item if there are parts missing or broken.
- Ensure that all the locking devices are engaged before use.
- Do not put fingers in the mechanism.
- Do not use the item in the vicinity of stairs or steps, do not use near heat, open flames or dangerous objects within reach of the child's arms.
- Do not use accessories not approved by the manufacturer.
- Load the basket at a maximum of 3 kg.
• Take care to avoid absolutely that the child does not rise up on the stroller and on the safety bar.
• To avoid injury ensure that your child is kept away when unfolding and folding this product
- Do not let your child play with this product
• This product is not suitable for baby under 6 months of age
• Always use the restraint system
- Ensure that all the locking devices of the seat are correctly engaged before use
• This product is not suitable for running or skating
- Any load attached to the handle and or on the backrest and or the sides of the vehicle will affect the stability of the C
- Check periodically, or before use, the status of the product
- Use replacement parts supplied or approved by the manufacturer/distributor
NOTICE: do not add any pillows and/or mats

ITEM FEATURES

Stroller suitable for carrying children from 6 months to 36 months of age. The maximum weight that it can carry is 15kg . When used for baby aged under 6 months, please adjust backrest to lowest position

ITEM COMPONENTS

HOW TO USE

Unpack the stroller

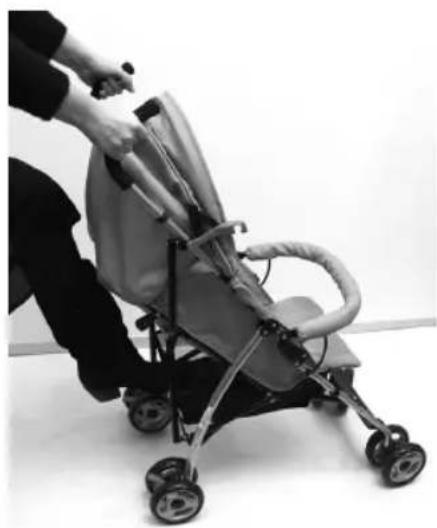

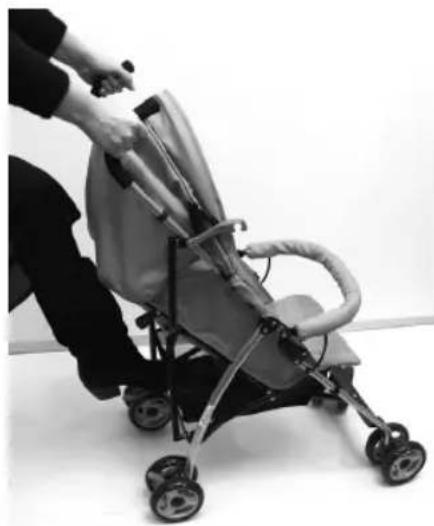

1 - Unfolding and Assembly: Unpack the folded baby stroller. Release the buckle to unfold the baby stroller. (Hold the pusher bar in one hand while hold the front wheel support in another hand and exert your strength to pull it upward to unfold it. Then use your foot to step down the lock-in prop.). (Fig.1 - 1A - 1B)

1. (Folding hook 6)

1A.

1B

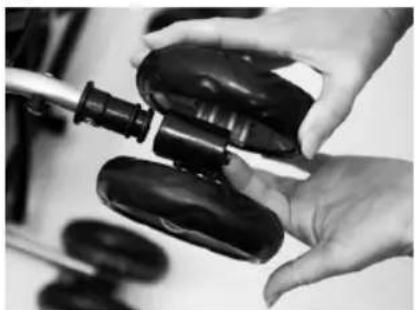

2 - Assembly of Front Wheel: As shown, insert the front wheel shaft bush into to the wheel connector till it is clicked to confirm the assembly well. (Fig. 2)

2.

3 - Assembly of Canopy: As shown, it is simple to turn the canopy forward or backward. (Fig. 3 - 3a - 3b)

3

3a

3b

OPERATING INSTRUCTIONS

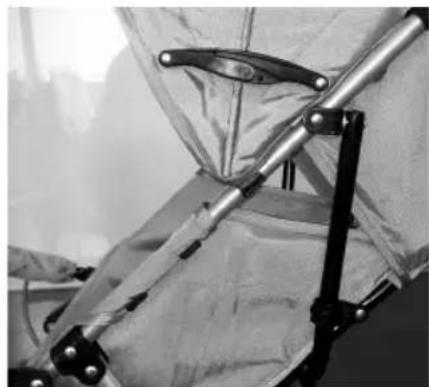

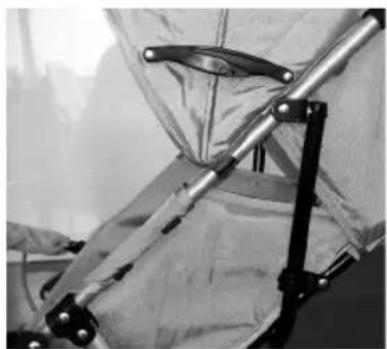

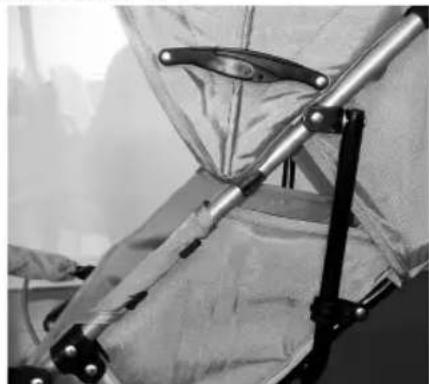

4 - Adjustment of Back Bar:

Seat position angle 95°: (Fig.4) Hold the back adjustment pieces on the main front bars. Reclined position angle 110°: (Fig.4b) Hold the back adjustment pieces on the back bars

4
4b

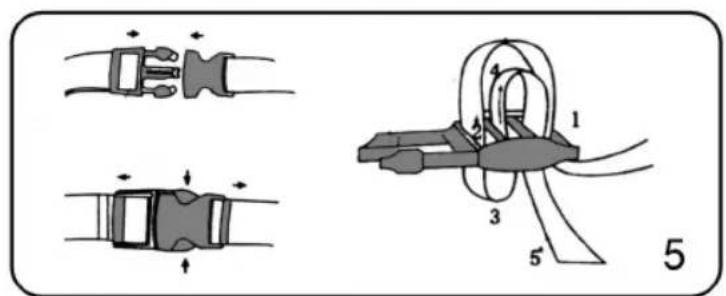

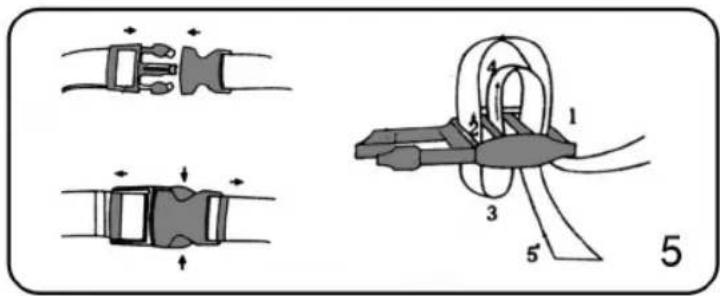

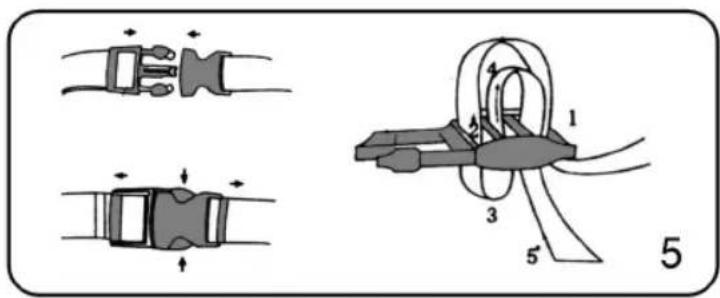

5 - Adjustment of Safety belt: As shown, insert the buckle plug into the buckle receptacle till it is clicked to be buckled up. Unbuckle: Just push the buckle plug inward and then outward to unbuckle it. For Shorter: Pull the top ring belt longer, then pull the tail belt longer and lock it. For Longer: Pull the top ring belt longer, then shorten the tail belt and lock it. (Fig. 5)

6 - Braking: As shown, to stop the baby stroller, just use your foot to step down the rear wheel brake bar. To push the baby stroller, just lift the brake bar. (Fig. 6)

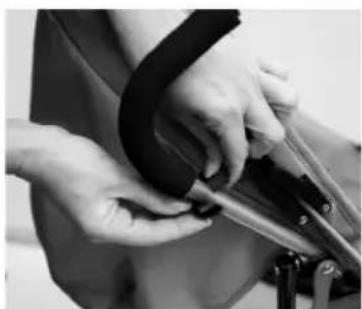

7 - Fold Up: Turn the canopy backward, push down the plastic red part of the safety lock, pull the folding lock piece downward and backward till the lock-in is released. (Fig.7)

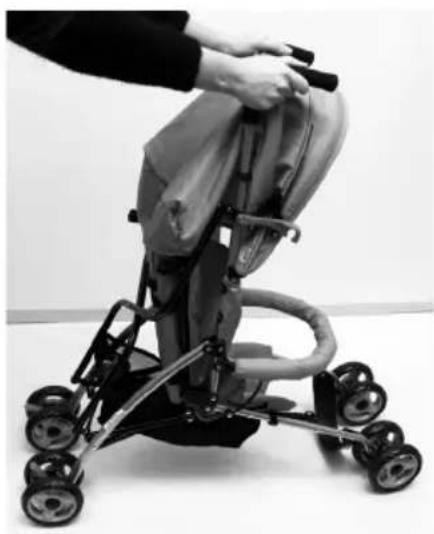

Use your two hands to hold the pusher bar forward and inward to gather it together. Now the baby stroller is folded up. Afterwards, hook the folding hook positively. (6) (Fig. 7b)

7.

7b.

CLEANING AND MAINTENANCE

ITEM MAINTENANCE: protecting it against the weather: water, rain or snow; continued and prolonged exposure to sunlight could cause colour changes in many materials, keep this article in a dry place.

CLEANING THE FRAME: periodically clean the plastic parts with a damp cloth without using solvents or other similar products; keep all metal parts dry to prevent rust; keep all moving parts clean (regulatory mechanisms, the fitting parts, wheels ...) from dirt and sand and if necessary, lubricate them with light oil.

CLEANING THE FABRIC PARTS: brush the fabric parts to remove dust and wash it by hand at a maximum temperature of 30° ; do not wring dry; do not use bleach; do not iron; do not dry clean; do not remove stains with solvents and do not tumble dry.

Wash by hand in cold water

Do not tumble dry

Do not dry clean

Do not iron

Do not bleach

All the instructions and drawings are based on the latest information available at the time of going to print and may be subject to change.

ES

1A.

1B

3

3a

3b

4

4b

7.

7b.

LIMPIEZA Y MANTENIMIENTO

1A.

1B

2

3
3a
3b

4b

4

7b.

NETTOYAGE ET ENTRETIEN

1A.

1B

1.

3
3a
3b

4
4b

1A.

1B

1.

2 - Nameščanje sprednjih koles: Sprednji kolesi namestite tako, da njun zatič vstavite v cev vozička in pritisnite, dokler ne slišite, da se zaskoči (to pomeni, da sta kolesi pravilno nameščeni). (Sl. 2)

3

3a

3b

4 - Nastavljanje naslonjala: S kavlji (2) nameščenimi na glavni okvir (Sl. 4) dobimo položaj za »sedenje« pod kotom 95°. S kavlji (2) nameščenimi na zadnji okvir (7) (Sl. 4b) dobimo naklon pod kotom 110°.

4

4b

7b.

ČIŠČENJE IN VZDRŽEVANJE
