Product Type	Stroller
Brand	Joycare
Model	JC-1239
Dimensions (open)	Approx. 90 x 60 x 100 cm (L x W x H)
Dimensions (folded)	Approx. 30 x 60 x 80 cm
Weight	Approx. 10 kg
Maximum Child Weight	Up to 15 kg (approx. 3 years)
Seat Recline	Multiple recline positions including fully flat
Canopy	Adjustable, with sun visor and peek-a-boo window
Safety Harness	5-point harness with adjustable straps
Brakes	Rear wheel parking brakes, foot-operated
Wheels	Front swivel wheels with suspension, rear wheels larger
Handlebar Height	Adjustable, approx. 90-110 cm
Folding Mechanism	One-hand compact fold, auto-lock when folded
Storage Basket	Large, accessible from rear
Power Source	None (manual operation)
Cleaning & Maintenance	Wipe frame with damp cloth; hand wash fabrics; store in dry place
Safety Standards	Complies with EN 1888-1:2018 (European safety standard)
Spare Parts & Repairability	Contact Joycare customer service or authorized dealers
Warranty	2 years (manufacturer warranty)

Frequently Asked Questions - JC-1239 Joycare

How do I assemble the Joycare JC-1239 stroller?

To assemble, remove from box, attach the wheels by aligning the axles and pressing until they click. Unfold the frame by lifting the handlebar until it locks. Attach the seat unit by clicking it onto the frame. Always refer to the manual for step-by-step instructions.

How do I fold the stroller?

First, remove the child and any items. Pull the folding trigger (usually a lever or button) located on the handlebar or frame. Push the handlebar forward while pressing the trigger until the stroller collapses. It will auto-lock when fully folded.

How do I clean the stroller?

Wipe the frame with a damp cloth and mild soap. The fabric parts (seat, canopy) are usually hand-washable in cold water. Avoid machine washing. Let all parts air dry completely before reassembly. Do not use bleach.

What is the maximum weight limit for the stroller?

The Joycare JC-1239 is designed for children up to 15 kg (approximately 3 years old). Do not exceed this limit to ensure safety and performance.

Can the seat recline?

Yes, the seat has multiple recline positions, including a flat position for newborns. Adjust by pressing the recline button or pulling the strap at the back of the seat.

Is the canopy adjustable?

Yes, the canopy is adjustable and provides sun protection. It includes a peek-a-boo window so you can check on your child. Some models may have an extendable sun visor.

How do I use the safety harness?

Place your child in the seat and fasten the 5-point harness by inserting the buckle tongues into the central buckle. Adjust the straps to fit snugly but comfortably. Always use the harness when the child is seated.

How do I lock the brakes?

To engage the parking brakes, step down on the brake lever located on the rear wheel axle. You will hear a click and the stroller will not move. To release, lift the lever. Always apply brakes when stopped.

Can I store the stroller folded?

Yes, the stroller can be stored folded in a dry place. Ensure it is clean and dry before storage. The auto-lock feature keeps it securely folded. You can also use a storage bag if available.

What should I do if a part is damaged or missing?

Contact Joycare customer service or your retailer. Provide the model number (JC-1239) and purchase details. They can arrange for spare parts or repairs under warranty. Do not use the stroller with broken parts.

USER MANUAL JC-1239 Joycare

JC-1200/JC-1201/JC-1202

JC-1236/JC-1237/JC-1238/JC-1239

BRIO

Manuale d'uso

Passeggino

User manual

Baby Stroller

Line drawing of a stroller with a wide-brimmed hat and wheels (no text or symbols)

Technical line drawing of a mechanical component with a circular base and arrow indicating rotation (no text or symbols)

Illustration of an insect interacting with bamboo stalks, no text or symbols present

Diagram of a vehicle's seat and dashboard with directional arrows indicating movement (no text or symbols)

Line drawing of a mechanical assembly with gears and rods (no text or symbols)

Thank you for purchasing the stroller JOYCARE.

WARNING

IMPORTANT: keep these instructions for future reference.

• This item is designed to carry one (1) child in the seat.
• Do not use this item for more occupants than the number established by the manufacturer.
• Never leave your child unattended.
• Pay attention to the child's presence when performing adjustments to the mechanism (handle, backrest).
  • Always use the brake when you stop and during loading and unloading of the child.
• Assembly operations, item arrangement, cleaning and maintenance should be performed only by adults.
• Do not use this item if there are parts missing or broken.
• Ensure that all the locking devices are engaged before use.
• Do not put fingers in the mechanism.
• Do not use the item in the vicinity of stairs or steps, do not use near heat, open flames or dangerous objects within reach of the child's arms.
• Do not use accessories not approved by the manufacturer.
• Load the basket at a maximum of 3 kg.
  • Take care to avoid absolutely that the child does not rise up on the stroller and on the safety bar.
  • To avoid injury ensure that your child is kept away when unfolding and folding this product
• Do not let your child play with this product
  • This product is not suitable for baby under 6 months of age
• Always use the restraint system
• Ensure that all the locking devices of the seat are correctly engaged before use
  • This product is not suitable for running or skating
• Any load attached to the handle and or on the backrest and or the sides of the vehicle will affect the

stability of the C

• Check periodically, or before use, the status of the product
• Use replacement parts supplied or approved by the manufacturer/distributor
  NOTICE: do not add any pillows and/or mats

ITEM FEATURES

Baby stroller suitable for carrying children from 6 months to 36 months of age. The maximum weight that it can carry is 15 kg. When used for baby aged under 6 months, please adjust backrest to lowest position

ITEM COMPONENTS

Line drawing of a stroller with a large canopy and wheels (no text or symbols)

• Double safety lock to guarantee safety of baby
  • Light, fashion and small size after folding
• Back rest with three adjustments of sitting, reclining and lying, quite comfortable for baby
• Adjustable leg rest, making baby legs spread freely
• Front and rear wheels with shock absorbing, for a comfortable sitting.
• Front armrest detachable

OPERATION MANUAL

Unpack the stroller

1 - install the rear: install the front wheel assemblies into front wheel shaft until a click sound is heard to indicate mounted in position. (Fig. 1A)

Install the rear wheel assemblies into rear wheel stand (brake handle facing backward) until a click sound is heard to indicate mounted in position. (Fig. 1B)

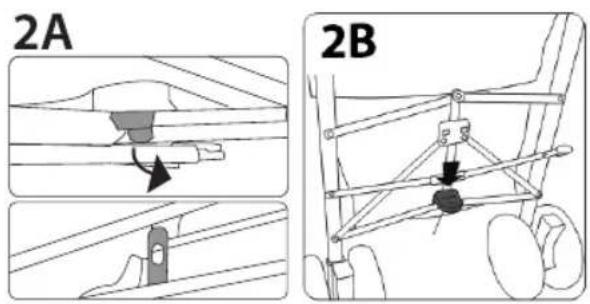

2 - Unfold the strolle: Unpack the stroller, let loose of folding hook and unfold the stroller (hold onto the push bar with two hands at the same time and lift upward), tread folding & unfolding pedal with foot till a click sound is heard to indicate mounted in position. (Fig 2A - 2B)

Technical line drawing of a mechanical component with a circular base and arrow indicating rotation (no text or symbols)

3 - Brake: Tread rear wheel brake handle to brake and to release the brake, the operation is in a reverse way. (Fig 3)

4 - Front wheel orientation: Lift orientation piece upward to make front wheel oriented, easy for straight push and unlock in a reverse way. (Fig. 4)

Illustration of an insect with wings and legs, showing body posture and wing structure (no text or symbols)

5 - Back rest adjustment: Hold onto the back rest adjusting piece and back rest can be adjusted upward and downward in three positions. (Fig 5)

Technical line drawing of a mechanical component with arrows indicating motion direction (no text or symbols)

6 - Pedal adjustment: Press buttons on two sides of pedal with two hands, overturn downward, thus, the pedal can be put down. If you hold onto two sides and pull upward, the pedal can be propped up. (Fig. 6)

7 - Canopy : Fasten the push bar with canopy band seat and tie the bonding buckle to the push bar to mount the canopy. Pull upward the canopy spreader to fold the canopy and unfold the canopy by spreading the spreader downward. (Fig. 7)

Technical line drawing of a mechanical assembly or vehicle component (no text or symbols visible)

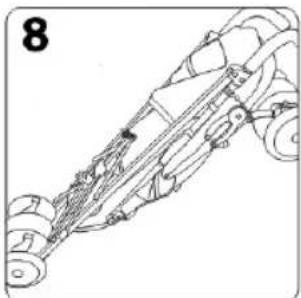

8 - Fold: Fold canopy, grip fold pull handle, lift upward, tread double lock pedal, then hold onto handlebar with hands, press forward and downward, thus, the stroller can be folded and finally buckle the fold hook and lock tightly. (Fig. 8)

9 - Use of safety belt:

Unbuckle: press safety buckle plug inward. Buckle: insert safety buckle plug into safety receptacle till it is clicked to be buckled up. (Fig. 9)

Note: Length of safety belt can be properly adjusted as per height requirement of child.

CLEANING AND MAINTENANCE

ITEM MAINTENANCE: protecting it against the weather: water, rain or snow; continued and prolonged exposure to sunlight could cause colour changes in many materials, keep this article in a dry place.

CLEANING THE FRAME: periodically clean the plastic parts with a damp cloth without using solvents or other similar products; keep all metal parts dry to prevent rust; keep all moving parts clean (regulatory mechanisms, the fitting parts, wheels ...) from dirt and sand and if necessary, lubricate them with light oil.

CLEANING THE FABRIC PARTS: brush the fabric parts to remove dust and wash it by hand at a maximum temperature of 30^irc ; do not wring dry; do not use bleach; do not iron; do not dry clean; do not remove stains with solvents and do not tumble dry.

Wash by hand in cold water

Do not tumble dry

Do not dry clean

Do not iron

Do not bleach

All the instructions and drawings are based on the latest information available at the time of going to print and may be subject to change.
