Product Type	LED Television
Brand	LG
Model	42LN5400
Screen Size (Diagonal)	42 inches (106 cm)
Screen Resolution	Full HD (1920 x 1080 pixels)
Backlight	LED
Weight (approx.)	12 kg (without stand)
Dimensions (with stand)	Approx. 97 x 62 x 22 cm (W x H x D)
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption (Standby)	Less than 0.5 W
Connectivity	HDMI (x2), USB, Component, Composite, SCART, Optical Out, Headphone
Main Functions	Digital TV (DTT), remote control, user guide, MHL, DivX HD, Dolby Digital Plus
VESA Wall Mount Compatibility	200 x 200 mm
Wall Mount Screws	M6 (4 screws)
Maintenance and Cleaning	Soft dry cloth; avoid chemicals
Safety	Detailed safety instructions in the manual; do not expose to humidity
Spare Parts and Repairability	LG technical support; parts available via authorized service center
General Information	User manual of 253 pages; multiple languages

Frequently Asked Questions - 42LN5400 LG

How to install the wall mount for the LG 42LN5400?

Use a VESA 200x200 mm compatible wall mount with M6 screws. Unplug the device before installation and follow the instructions in the installation manual provided with the mount.

What to do if the remote control does not work?

Check that the batteries are correctly inserted (+ and -) and not drained. Ensure no obstacle is between the remote and the TV sensor. Keep strong light sources away.

How to clean the TV screen?

Turn off and unplug the TV. Use a soft, dry, clean cloth to gently wipe the screen. For stubborn stains, slightly dampen the cloth with water or mild detergent, then immediately wipe with a dry cloth. Never use chemical or abrasive products.

Why is the image missing or of poor quality?

Check that the input source is correctly selected and that cables are properly connected. If using an antenna, reorient it. For HDMI connection, ensure you use a high-speed cable. Restart the TV and the device.

How to connect a USB device?

Plug the USB drive or hard disk into the TV's USB port. Use the remote to access the 'My Media' menu and select the file type (photo, music, video) to play. FAT32 and NTFS file systems are supported.

The TV turns off by itself, what to do?

Check the automatic sleep timer settings in the 'Time' menu. If no signal is received, the TV turns off after 15 minutes. Also ensure there is no overheating by leaving at least 10 cm of ventilation space around the TV.

Can I use 3D glasses with this model?

This model (42LN5400) is not 3D compatible. Only models LA61** and some others support 3D. Check the exact reference of your TV.

How to adjust brightness and contrast?

Press the SETTINGS button on the remote, then navigate to the 'Picture' menu. You can adjust brightness, contrast, color, sharpness, and other settings. Use the arrow keys to change the values.

What is the power consumption in standby?

Standby consumption is less than 0.5 W. To save more energy, unplug the TV completely if not used for an extended period.

How to get a copy of the manual in French?

The manual in French is available for free on notice-facile.com. You can download it in PDF format. If another language is needed, you can request a translation via the contact form on the site.

USER MANUAL 42LN5400 LG

Part number MFL67688515

(Revision number) (1301-REV00)

Total pages 252 pages

OWNER'S MANUAL

LED TV

*LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

LA61**

LN54**

LN53**

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand
A-4 Tidying cables

COMMON

LANGUAGE LIST

English
Deutsch
Francais
Italiano
Espanol
Portugues
Nederlandst
Eaynviká
Slovenscina

LANGUAGE

B-1 MAKING CONNECTIONS

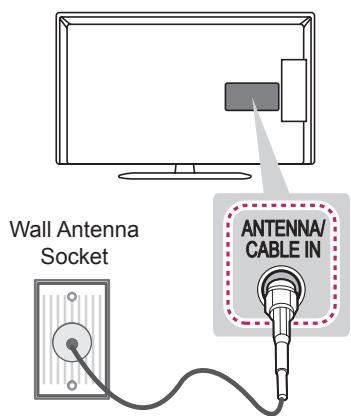

B-1 Antenna Connection

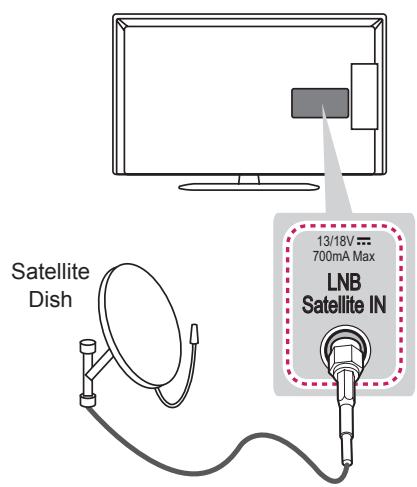

B-3 Satellite dish Connection
B-4 HDMI Connection
B-6 MHL Connection

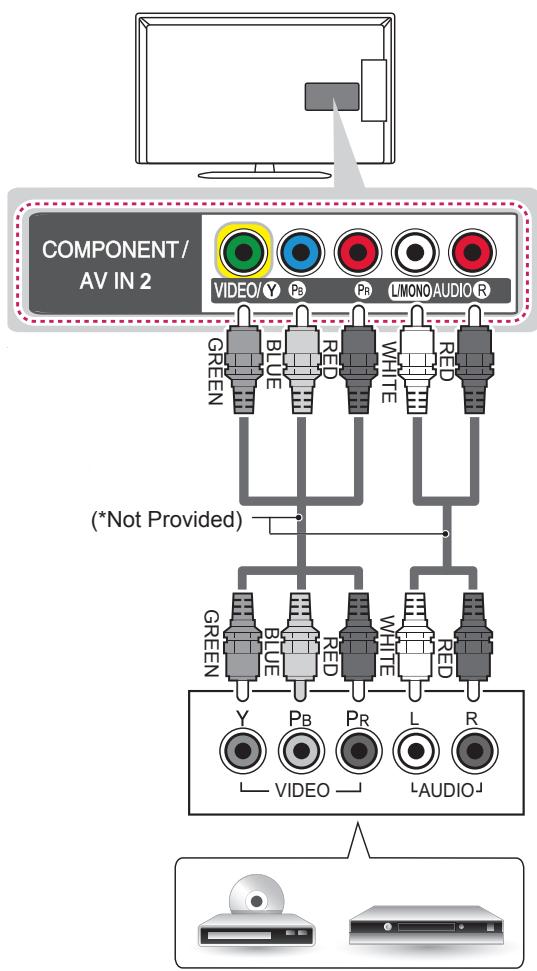

B-9 Component Connection

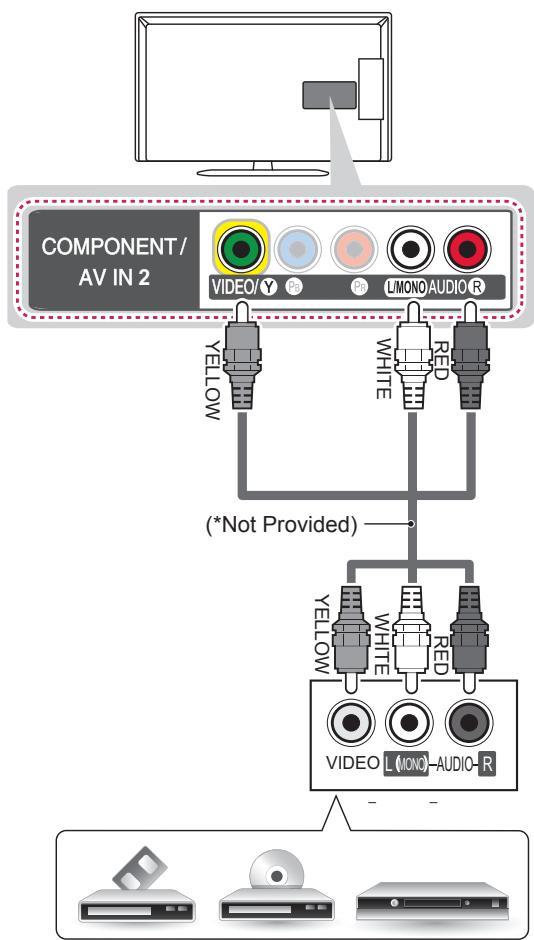

B-10 Composite Connection

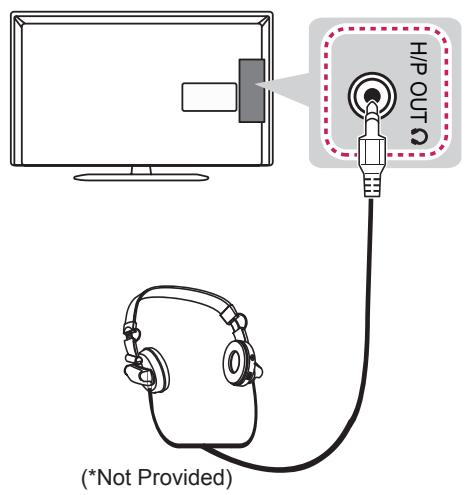

B-12 Headphone Connection
B-14 Audio Connection
B-14 - Digital optical audio connection
B-17 USB Connection
B-18 CI module Connection

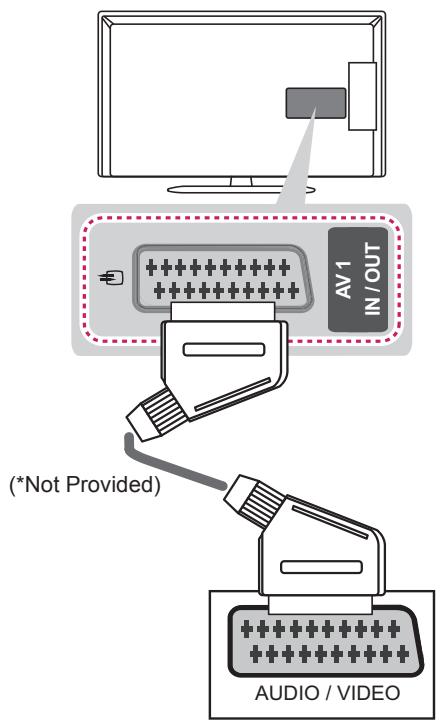

B-20 Euro Scart Connection

COMMON

SETTING UP THE TV

Image shown may differ from your TV.

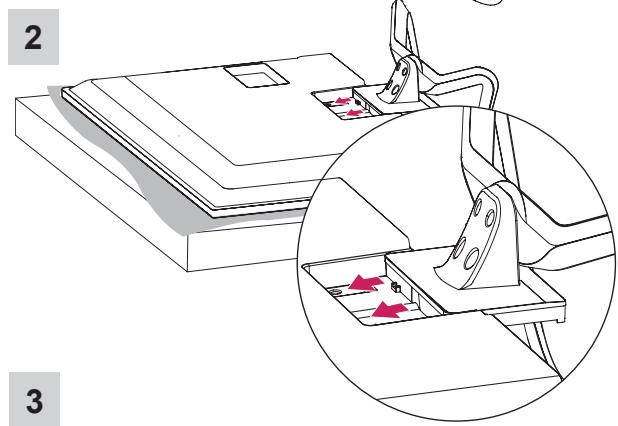

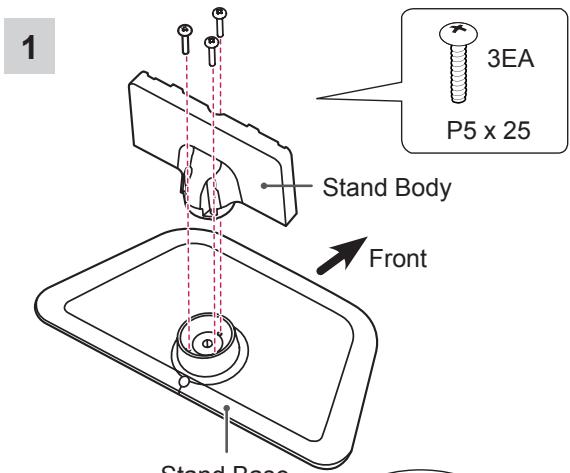

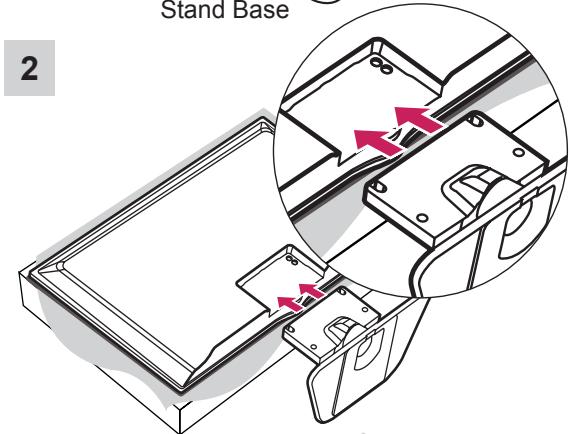

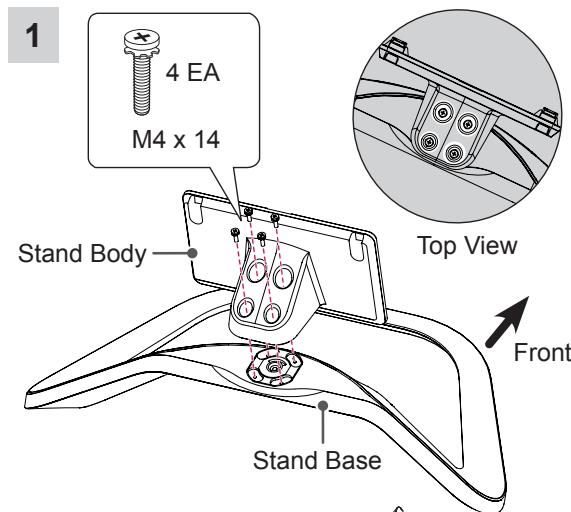

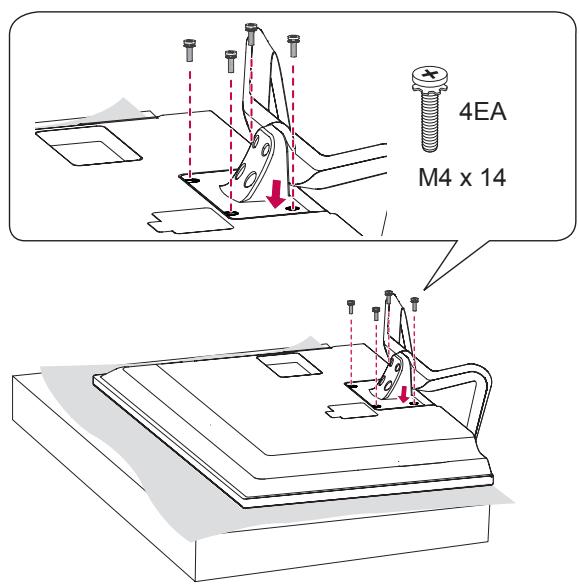

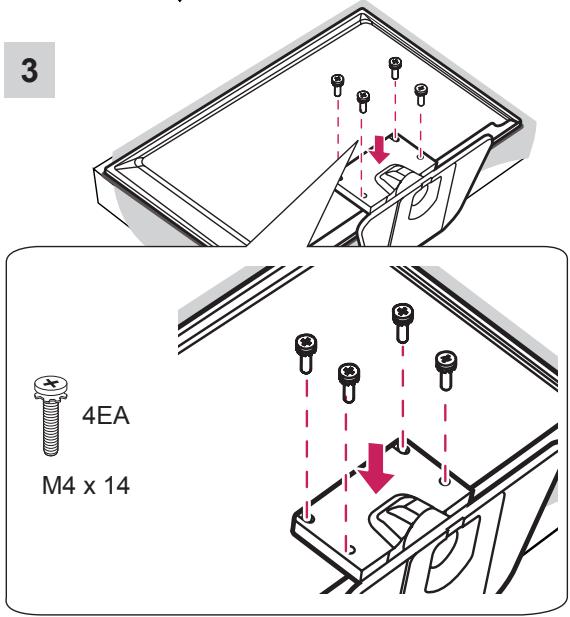

Attaching the stand

LA61**

LN54/53**

CAUTION

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
• Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

NOTE

• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

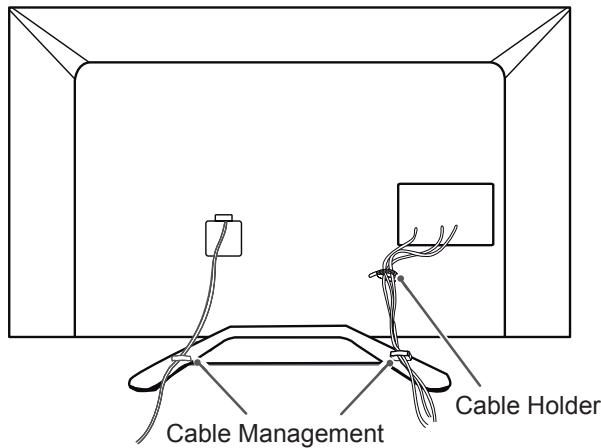

Tidying cables

(Only LA61**)

1 Use Cable Holder to neatly secure and position cables together.
2 Fix the Cable Management firmly to the TV.

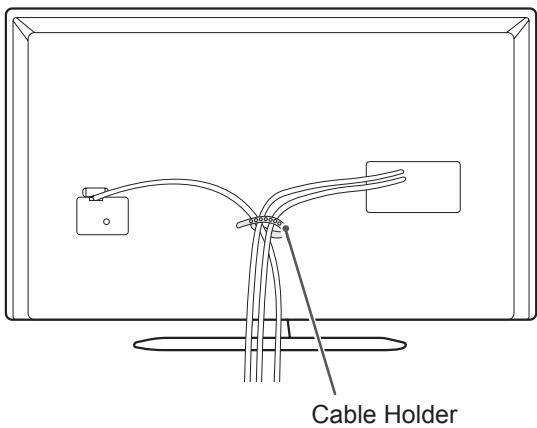

(Only LN54/53**)

1 Use Cable Holder to neatly secure and position cables together.

CAUTION

• Do not move the TV by holding the cable holder, as the cable holders may break, and injuries and damage to the TV may occur.

OWNER'S MANUAL

LED TV

*LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE NOTICE

4 SAFETY INSTRUCTIONS

10 -Viewing 3D Imaging (Only 3D models)

12 INSTALLATION PROCEDURE

12 ASSEMBLING AND PREPARING

12 Unpacking

14 Separate purchase

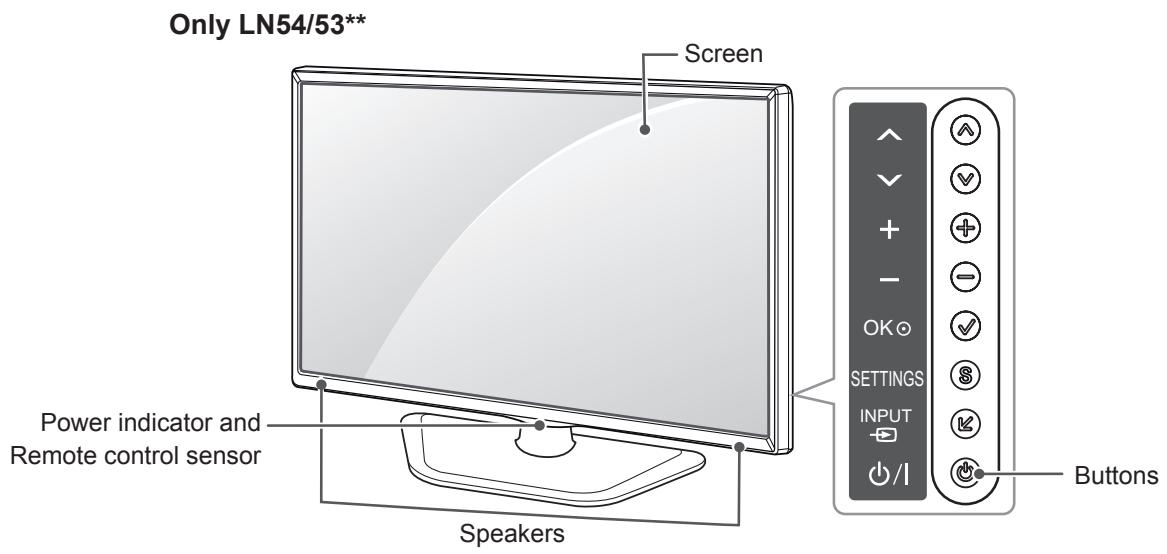

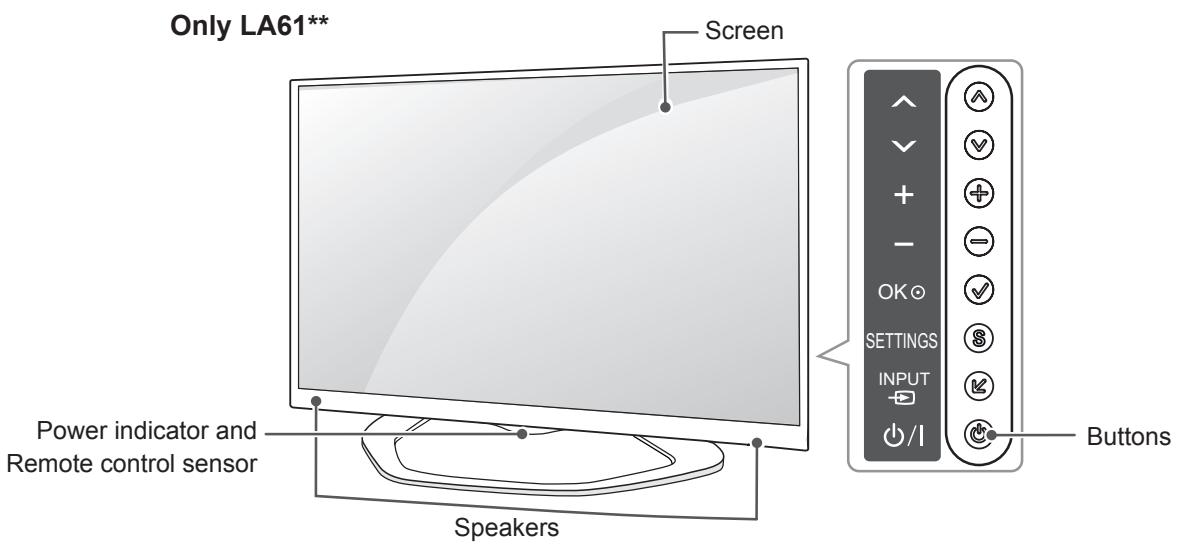

15 Parts and buttons

16 Lifting and moving the TV

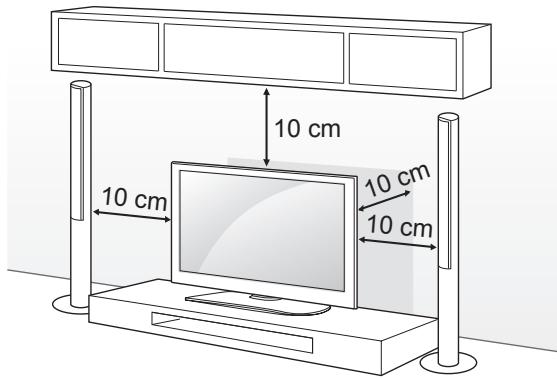

17 Mounting on a table

19 Mounting on a wall

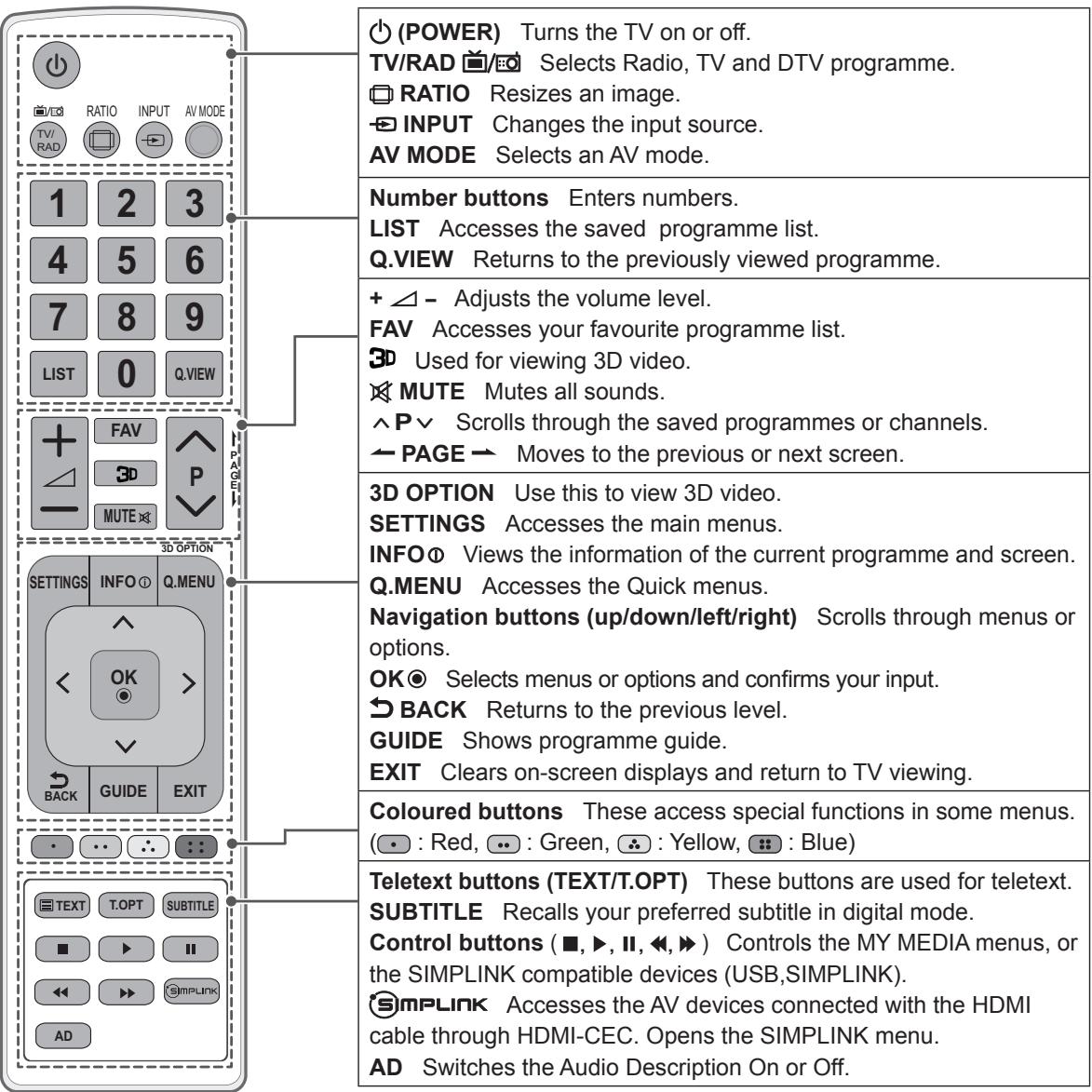

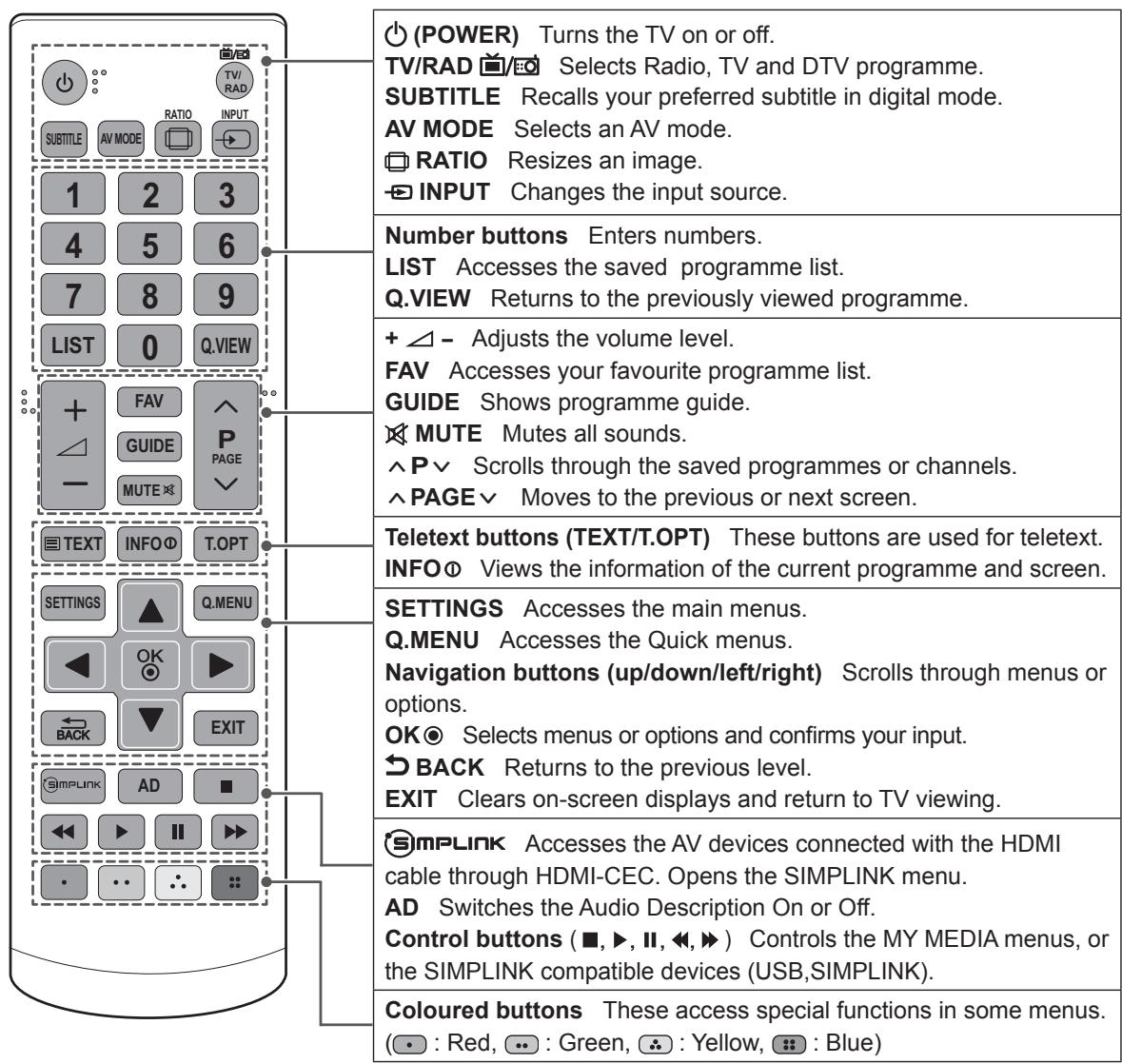

20 REMOTE CONTROL

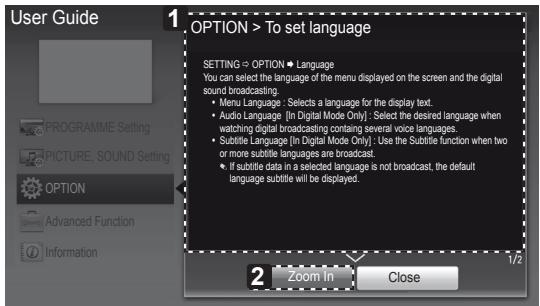

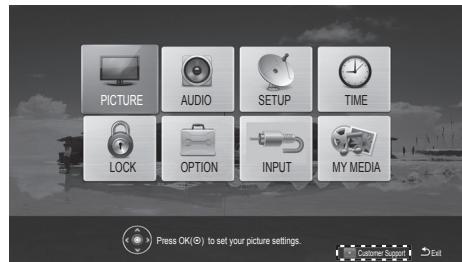

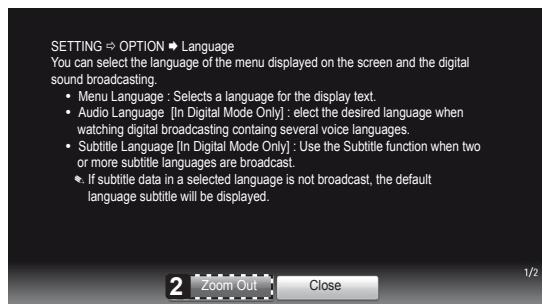

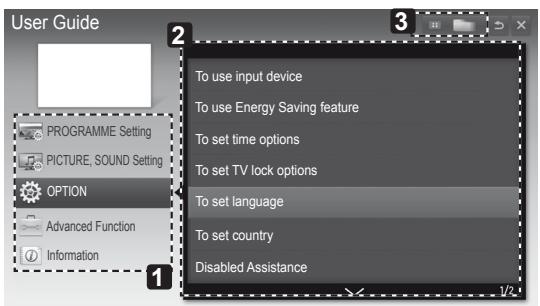

22 USING THE USER GUIDE

23 MAINTENANCE

23 Cleaning your TV

23 - Screen, frame, cabinet and stand

23 -Power cord

24 TROUBLESHOOTING

24 EXTERNAL CONTROL DEVICE SETUP

WARNING

• If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

• If you ignore the caution message, you may be slightly injured or the product may be damaged.

NOTE

• The note helps you understand and use the product safely. Please read the note carefully before using the product.

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

DOLBY

DIGITAL PLUS

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HD

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration.

"DivX Certified® to play DivX® video up to HD 1080p, including premium content."

"DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license."

"Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274"

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

Do not place the TV and remote control in the following environments: - A location exposed to direct sunlight - An area with high humidity such as a bathroom - Near any heat source such as stoves and other devices that produce heat - Near kitchen counters or humidifiers where they can easily be exposed to steam or oil - An area exposed to rain or wind - Near containers of water such as vases Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust. This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.

Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock/fire hazard.

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

Keep the packing anti-moisture material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to protect a child from eating them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local service centre. - The product has been impacted by shock - The product has been damaged - Foreign objects have entered the product - The product produced smoke or a strange smell This may result in fire or electric shock.

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

• Install the product where no radio wave occurs.
• There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.
• Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

• If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

• If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

• Only use the attachments / accessories specified by the manufacturer.

• When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

• We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

• Only use the specified type of battery.
  This could cause damage to the remote control.

• Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

• Batteries should not be exposed to excessive heat.eg keep away from direct Sunlight, open fireplace and electric heaters.

• Do not place non-rechargeable batteries in charging device.

• Make sure there are no objects between the remote control and its sensor.

• Signal from Remote Control can be interrupted due to external/internal lighting eg. Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

• When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.)It may cause mechanical failure or could give an electric shock.
Please follow the installation instructions below to prevent the product from overheating.- The distance between the product and the wall should be more than 10 cm.- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).- Do not install the product on a carpet or cushion.- Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.
Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.
Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
Prevent dust collecting on the power plug pins or outlet.This may cause a fire hazard.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.
Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.
When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discoloration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel.Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).
As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.
When unplugging the cable, grab the plug and unplug it, by pulling at the plug.Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.
When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables.The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.
	·When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.
	·Contact the service centre once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.
	·Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
	·If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.
	·The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
	·You may find different brightness and colour of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.
	·Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking. Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
·Generated Sound “Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product.

Viewing 3D Imaging (Only 3D models)

WARNING

Viewing Environment

Viewing Time
- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

• Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D contents.
• Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.
• 3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.
• If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.
• If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents.

Symptoms which require discontinuation or refraining from watching 3D contents

• Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

• When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides.

• Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

CAUTION

Viewing Environment

Viewing Distance

• Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.

Viewing Age

• Infants/Children

• Usage/ Viewing 3D contents for children under the age of 5 are prohibited.

• Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents.
• Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

Teenagers
- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contents for a long time when they are tired.
Elderly
- The elderly may perceive less 3D effect compared to the youth. Do not sit closer to the TV than the recommended distance.

Cautions when using the 3D glasses

• Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
• Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
• Using modified 3D glasses may cause eye strain or image distortion.
• Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
• The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

NOTE

• Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
• The available menus and options may differ from the input source or product model that you are using.
• New features may be added to this TV in the future.
• The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
• The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available.

You can use the TV network functions only when the network connection is made. (Depending on model)

ASSEMBLING AND PREPARED

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
• Any damage or injuries caused by using unapproved items are not covered by the warranty.
• Some models have a thin film attached on to the screen and this must not be removed.

NOTE

• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10mm thick and 18mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

^*A 10 mm

^*B 18 mm

Remote control, batteries (AAA) (See p. 20, 21)	Owner's manual
Power Cord	Cable holder Depending on model) (See p. A-4)
Cinema 3D Glasses The number of 3D glasses may differ depending on the model or country. (Only LA61**)	Stand Screws 8EA, M4 x 14 (Only LA61**) (See p. A-3)
Stand Screws 3EA, P5 x 25 4EA, M4 x 14 (Only LN54/53**) (See p. A-3)	Desk-mount Screw (2EA: Only LA61**) (1EA: Only LN54/53**) (See p. 18)
Desk-mount Cable 2EA (Only LA61**) (See p. 18)	Bracket Screw 2EA, M4 x 8 (Only 32/42LA61**) 2EA, P4 x 8 (Only 47LA61**) (See p. 18)
Stand Body / Stand Base (Only LA61**) (See p. A-3)	Stand Body / Stand Base (Only LN54/53**) (See p. A-3)

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification.

Contact your dealer to buy these items.

These devices only work with certain models.

AG-F***

Cinema 3D glasses

AG-F***DP

Dual play glasses

LG Audio Device

Compatibility	LA61**	LN54/53**
AG-F*** Cinema 3D glasses	·
AG-F***DP Dual play glasses	· (Depending on model)
LG Audio Device	·	·

The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

Parts and buttons

Button	Description
^✓	Scrolls through the saved programmes.
+ -	Adjusts the volume level.
OK◎	Selects the highlighted menu option or confirms an input.
SETTINGS	Accesses the main menu, or saves your input and exits the menus.
INPUT◎	Changes the input source.
◎/I	Turns the power on or off.

NOTE

• You can set the power indicator light to on or off by selecting OPTION in the main menus.

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.

• It is recommended to move the TV in the box or packing material that the TV originally came in.

• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• When transporting a large TV, there should be at least 2 people.

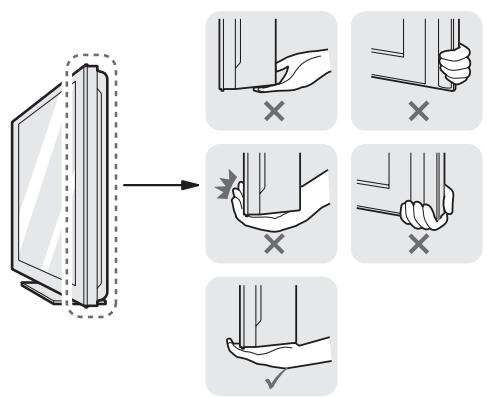

• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing/bending of frame chassis as it may damage screen.

Mounting on a table

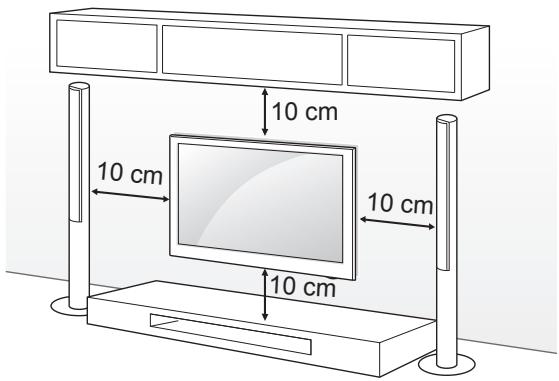

1 Lift and tilt the TV into its upright position on a table.
- Leave a 10cm (minimum) space from the wall for proper ventilation.

2 Connect the power cord to a wall outlet.

CAUTION

• Do not place the TV near or on sources of heat, as this may result in fire or other damage.

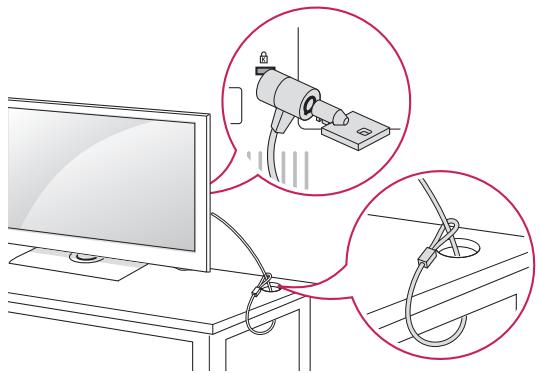

Using the Kensington security system

(Only LN54/53**)

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the TV and a table.

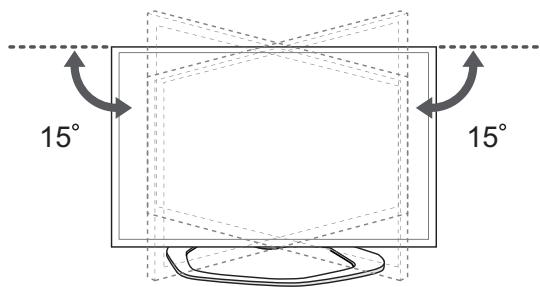

Adjusting the angle of the TV to suit view

(Only LA61**)

Swivel 15 degrees to the left or right and adjust the angle of the TV to suit your view.

CAUTION

• When adjusting the angle adof the product, watch out for your fingers.
  Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

Securing the TV to a table

Fix the TV to a table to prevent from tilting forward, damage, and potential injury.

To secure the TV to a table, insert and tighten the supplied screw on the rear of the stand. (Only LN54/53**)

(Only LA61**)

CAUTION

(Only LA61**)

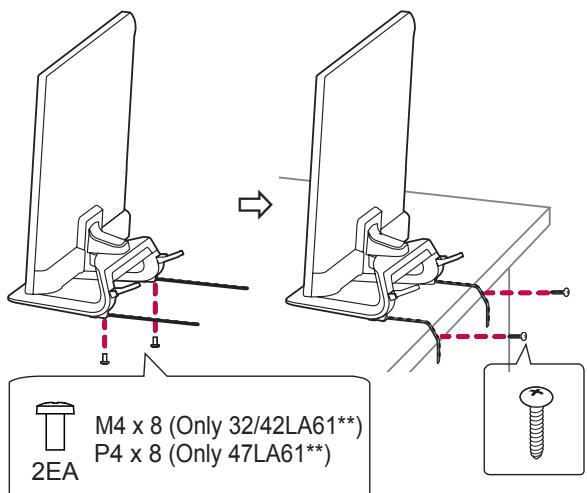

How to fix the TV to a table

1. Connect the Desk-mount Cables to the Stand Base using the Bracket Screws.
2. Fix the Desk-mount Cables to a table using the Desk-mount Screws.
3. Once the TV is fixed, move the table close to the wall. Children may go in, causing injuries.

WARNING

• To prevent TV from falling over, the TV should be securely attached to the floor/ wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

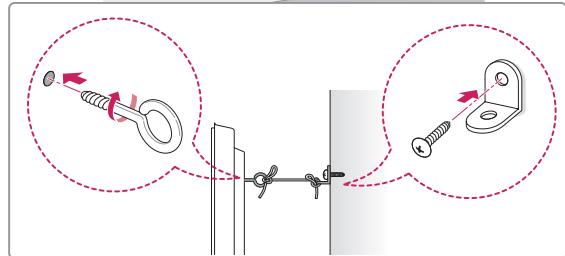

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

CAUTION

• Make sure that children do not climb on or hang on the TV.

NOTE

• Use a platform or cabinet that is strong and large enough to support the TV securely.
• Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel.

LG recommends that wall mounting be performed by a qualified professional installer.

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model	32LA61** 32LN54** 32LN53**	42LA61** 37LN54** 39LN54** 42LN54**
VESA (A x B)	200 x 100	200 x 200
Standard screw	M4	M6
Number of screws	4	4
Wall mount bracket	LSW130B	LSW230B
Model	47LA61** 47LN54** 50LN54**
VESA (A x B)	400 x 400
Standard screw	M6
Number of screws	4
Wall mount bracket	LSW430B

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Make sure to use the proper length.
• For more information, refer to the manual supplied with the wall mount.

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control.

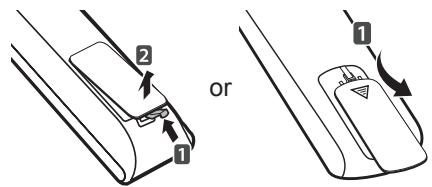

Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

CAUTION

• Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV.

(Only LA61**)

(Only LN54/53**)

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.

1 Press SETTINGS to access the main menus.
2 Press the RED button to access the Customer Support menus.
3 Press the Navigation buttons to scroll to User Guide and press OK.

1 Allows to select the category you want.
2 Allows to select the item you want. You can use / to move between pages.
3 Allows to browse the description of the function you want from the index.

1 Shows the description of the selected menu. You can use / to move between pages.
2Zooms in or out the screen.

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

• To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
• To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem	Solution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again. Check if there is any obstacle between the product and the remote control. Check if the batteries are still working and properly installed (⊕ to⊕,⊕ to⊕).
No image display and no sound is produced.	Check if the product is turned on. Check if the power cord is connected to a wall outlet. Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted. Check if the Auto sleep feature is activated in the Time settings. If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.
When connecting to the PC (HDMI), ‘No signal’ or ‘Invalid Format’ is displayed.	Turn the TV off/on using the remote control. Reconnect the HDMI cable. Restart the PC with the TV on.

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www/lg.com

BENUTZERHANDBUCH

LED TV

AG-F***
Ochiali 3D Cinema

AG-F***DP
Occhiali Dual play

Dispositivo audio LG

Compatibilità	LA61**	LN54/53**
AG-F*** Occhiali 3D Cinema	•
AG-F***DP Occhiali Dual play	• (in base al modello)
Dispositivo audio LG	•	•

22 XPHEH TOY OADHOY XPHES

23 ΣYNTHPHEH

PpOaIpeTikKa EeapTpHmuTa

(Eniioixia aon otnpipns)

Movrélo	32LA61** 32LN54** 32LN53**	42LA61** 37LN54** 39LN54** 42LN54**
VESA (A x B)	200 x 100	200 x 200
Kavovikń βíða	M4	M6
Apíθμóç βíðwv	4	4
Éntiöíxia βáση στήριξης	LSW130B	LSW230B
Movrélo	47LA61** 47LN54** 50LN54**
VESA (A x B)	400 x 400
Kavovikń βíða	M6
Apíθμóç βíðwv	4
Éntiöíxia βáση στήριξης	LSW430B

PPOZOXH

AIOOuvoTe TPOwTO KaIomega TOPOOOIaC KAI, OTN OUVexia, METAKIVnote n EYkataoTNOTE TNV TNLεópaon. DIAwpotIKá, UTIAPXeIKVIOUOS NLEKTPoTTAnxiac.
- Av éykaataohtəeTe TnV tnλeopaon Otnv opoyn n Εε Eπiklivn Toixo, Uπápxεi Kivduvoç va πeoi kai va πpokaléσι σoβapó tpaumatioó.

XpnaioutoiOnTe mia eYKEKpIeVn EITIOixia
baon otnpiGns LG kai eTIkoivwNToTe e
TOV TOTIKO AVTIPoosWTo n eEeIDikeuEv
TTPOOSNIKO.

Mny oivyete utepoia kTic bioc. Evextai va pokn0i zmu a tnv tnAopaon kai va akupw0e i yunon.
Xpnoiopoioite biockai eTITOxiesBaoeic otnpieng Tou IKAVOTIOIOUv To TPOTuTO VESA.Heyunon dEv kaLITTEI qmuie s npauatiaouc Toun opeilovtai oKakn xpO n OTo xPOn aKatalnnawv Eapntmuatwv.

ZHMEIΩ∑H

XpnoiopoToiHOte Tc BiOc TPO avaepovtai OTIC PPOBiaypaoc BIDwv TOU TTU VESA.
To KIT EITIOIXIAC OTnpiNGs TEPiAumBaveI EvxEpiio EYkataoans kai aTAPaITnTa Egaptmuata.
H EITIOIXIA BAO ON OTNPIENCS EVAI TPOAIPETIKN. MTOPEITE VA ayopaoete TPOOeTa Egaptmuata aTTOV TOTKO AVTTPOoWTo.
To mkoTowbiodwEvdoextai va diaapeei, avaloya Tnv EITIOixia bao n otnpiings. Bebaiwtheta oTI xpooiotoiite bioc To katalno kno
Γa TepioootepeS PAnpoopoe, avatpeTe OTo EvyEipio Tnou TApexTai Me Tnv EITIOxia Bao nO tnpiEnC.

THAEXEIPIETHPIO

Oi TEPIpyaepc oe auto To Exyeiipio baoizovtai ota koumtia tou nlexepiopniou.
Diaabe TPOOeKTIKA auto To Exyeiipio kai xpnaimuotoinote owotnyn tneopaon.

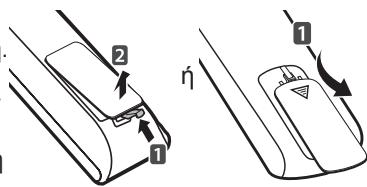

Tia va avTKATAOTNETE TIGTATAPIECS,avoiETo KALUmua TNS mTATAPIAc,
avTKATAOTNETE TIC mTATAPIECS (1,5 V AAA) avTIOTIOxWvTAc TA akpa kai ME Tnv
ETIKETA OTO EOATEPIKO TNS ΘKnCS KAI KEIOTE TO KALUmua TNS mTATAPIAc.
Tia va aqaipeoeTe TIG mTATAPIECS, EKTLEoTE Ta Bnmuata TOTOnETnONS ME Tnv avTHeTNI
osepá.

PPOZOXH

Mny ouvouzete naiies kai kaivoupyies mntapiecs, kaowc npapexi kivuvos balpha nso tnae xipotnpio.

XPHESH TOY OΔHΓOY XPHES

O Obyoc xpnoC oac eTTpEeI va aTOKTHoETe Eukoan TPOaon OTIG AETTOpeic TAnpoopiec TNS TnE-opaons.

This section on MAKING CONNECTIONS mainly uses diagrams for the 47LN5400 models.

Antenna Connection

English

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

NOTE

• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to improve the image quality.
• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
  Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC

Deutsch

Satellite dish Connection

(Only satellite models)

Nederlandsl

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).

Deutsch

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown.

NOTE

• It is recommended to use the TV with the HDMI connection for the best image quality.
• Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.
• High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
  Supported HDMI Audio format : Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k/88k/96k/176k/192k, DTS Not supported.)
• If you use DVI to HDMI cable for PC, you have to use external speaker for PC audio sound.

Deutsch

Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets.

NOTE

• Connect the mobile phone to the HDMI IN (MHL) 2 or HDMI IN 2 (MHL) port to view the phone screen on the TV.
• The MHL passive cable is needed to connect the TV and a mobile phone.
• This only works for the MHL-enabled phone.
• Some applications can be operated by the remote control.

• Remove the MHL passive cable from the TV when: - The MHL function is disabled

• Your mobile device is fully charged in standby mode

Deutsch

Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets.

NOTA

Component Connection

DVD/ Blu-Ray / HD Cable Box

English

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown.

NOTE

• If cables are not installed correctly, it could cause this image to display in black and white or with distorted colours.

Deutsch

Composite Connection

VCR/DVD/Blu-Ray / HD Cable Box

English

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown.

Deutsch

Headphone Connection

(Only LA61**)

English

Transmits the headphone signal from the TV to an external device. Connect the external device and the TV with the headphone as shown.

NOTE

• AUDIO menu items are disabled when connecting a headphone.
• When changing AV MODE with a headphone connected, the change is applied to video but not to audio.
• Optical Digital Audio Out is not available when connecting a headphone.
• Headphone impedance: 16 Ω
• Max audio output of headphone: 9mW to 15 mW
• Headphone jack size: 0.35 cm

Deutsch

You may use an optional external audio system instead of the built-in speaker.

Digital optical audio connection

Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown.

NOTE

• Do not look into the optical output port. Looking at the laser beam may damage your vision.
• Audio with ACP (Audio Copy Protection) function may block digital audio output.

Deutsch

Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the MY MEDIA menu to use various multimedia files.

Deutsch

View the encrypted (pay) services in digital TV mode. This feature is not available in all countries.

NOTE

• Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
• If the TV does not display any video and audio when Cl + CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

Deutsch

Euro Scart Connection

English

Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable as shown.

Current Type	Output Type
Digital TV	Digital TV
Analogue TV, AV	Analogue TV
Component
HDMI

1 TV Out : Outputs Analogue TV or Digital TV signals.

NOTE

• Any Euro scart cable used must be signal shielded.
• When watching digital TV in 3D imaging mode, only 2D out signals can be output through the SCART cable. (Only 3D models)

Deutsch

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
• Refer to the external equipment's manual for operating instructions.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.

Deutsch

Product specifications may be changed without prior notice due to upgrade of product functions.

MODELS		32LA61**	42LA61**	47LA61**
		32LA613S-ZA	42LA613S-ZA	47LA613S-ZA
		32LA613V-ZA	42LA613V-ZA	47LA613V-ZA
		32LA6130-ZB	42LA6130-ZB	47LA6130-ZB
		32LA6134-ZB	42LA6134-ZB	47LA6134-ZB
		32LA6136-ZB	42LA6136-ZB	47LA6136-ZB
		32LA613S-ZB	42LA613S-ZB	47LA613S-ZB
		32LA613V-ZB	42LA613V-ZB	47LA613V-ZB
		32LA613V-ZF	42LA613V-ZF	47LA613V-ZF
		32LA613V-ZG	42LA613V-ZG	47LA613V-ZG
		32LA6150-ZB	42LA6150-ZB	47LA6150-ZB
		32LA6154-ZB	42LA6154-ZB	47LA6154-ZB
		32LA6156-ZB	42LA6156-ZB	47LA6156-ZB
		32LA615S-ZA	42LA615S-ZA	47LA615S-ZA
		32LA615S-ZB	42LA615S-ZB	47LA615S-ZB
		32LA615V-ZA	42LA615V-ZA	47LA615V-ZA
		32LA615V-ZB	42LA615V-ZB	47LA615V-ZB
		32LA615V-ZE	42LA615V-ZE	47LA615V-ZE
		32LA615V-ZF	42LA615V-ZF	47LA615V-ZF
		32LA616V-ZG	42LA616V-ZG	47LA616V-ZG
Dimensions(W x H x D)	With stand (mm)	733 x 499 x 242	964 x 631 x 294	1076 x 695 x 327
	Without stand(mm)	733 x 444 x 78.0	964 x 573 x 78.0	1076 x 637 x 79.4
Weight	With stand (kg)	7.6	11.8	15.6
	Without stand (kg)	6.4	10.0	13.1
Power consumption		80 W	110 W	130 W
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
MODELS		32LN54**	37LN54**	39LN54**
		32LN5400-ZA	37LN5400-ZA	39LN5400-ZA
		32LN5403-ZA	37LN5403-ZA	39LN5403-ZA
		32LN5404-ZA	37LN5404-ZA	39LN5404-ZA
		32LN5405-ZA	37LN5405-ZA	39LN5405-ZA
		32LN5406-ZA	37LN5406-ZA	39LN5406-ZA
		32LN540B-ZA	37LN540B-ZA	39LN540B-ZA
		32LN540R-ZA	37LN540R-ZA	39LN540R-ZA
		32LN540S-ZA	37LN540S-ZA	39LN540S-ZA
		32LN540U-ZA	37LN540U-ZA	39LN540U-ZA
		32LN540U-ZB	37LN540U-ZB	39LN540U-ZB
		32LN541U-ZB	37LN541U-ZB	39LN541U-ZB
		32LN540V-ZA	37LN540V-ZA	39LN540V-ZA
		32LN541V-ZC	37LN541V-ZC	39LN541V-ZC
		32LN542V-ZD	37LN542V-ZD	39LN542V-ZD
Dimensions(W x H x D)	With stand (mm)	738 x 497 x 207	849 x 561 x 236	894 x 587 x 236
	Without stand(mm)	738 x 449 x 79.0	849 x 512 x 79.0	894 x 537 x 79.0
Weight	With stand (kg)	7.0	9.1	9.7
	Without stand (kg)	6.4	8.0	8.6
Power consumption		80 W	100 W	100W
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
MODELS		42LN54**	47LN54**	50LN54**
		42LN5400-ZA	47LN5400-ZA	50LN5400-ZA
		42LN5403-ZA	47LN5403-ZA	50LN5403-ZA
		42LN5404-ZA	47LN5404-ZA	50LN5404-ZA
		42LN5405-ZA	47LN5405-ZA	50LN5405-ZA
		42LN5406-ZA	47LN5406-ZA	50LN5406-ZA
		42LN540B-ZA	47LN540B-ZA	50LN540B-ZA
		42LN540R-ZA	47LN540R-ZA	50LN540R-ZA
		42LN540S-ZA	47LN540S-ZA	50LN540S-ZA
		42LN540U-ZA	47LN540U-ZA	50LN540U-ZA
		42LN540U-ZB	47LN540U-ZB	50LN540U-ZB
		42LN541U-ZB	47LN541U-ZB	50LN541U-ZB
		42LN540V-ZA	47LN540V-ZA	50LN540V-ZA
		42LN541V-ZC	47LN541V-ZC	50LN541V-ZC
		42LN542V-ZD	47LN542V-ZD	50LN542V-ZD
Dimensions(W x H x D)	With stand (mm)	968 x 629 x 236	1080 x 694 x 264	1136 x 727 x 264
	Without stand(mm)	968 x 579 x 79.0	1080 x 642 x 80.5	1136 x 673 x 82.1
Weight	With stand (kg)	10.7	14.5	15.6
	Without stand (kg)	9.6	13.1	14.2
Power consumption		110 W	130 W	140 W
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
MODELS		32LN53**
		32LN536B-ZA
		32LN536B-ZB
		32LN536B-ZG
		32LN536U-ZA
		32LN536U-ZB
		32LN536U-ZG
Dimensions(W x H x D)	With stand (mm)	738 x 497 x 207
	Without stand(mm)	738 x 449 x 79.0
Weight	With stand (kg)	7.0
	Without stand (kg)	6.4
Power consumption		80 W
Power requirement		AC 100-240 V~ 50 / 60 Hz

CI Module Size (W x H x D)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature	0 °C to 40 °C
	Operating Humidity	Less than 80 %
	Storage Temperature	-20 °C to 60 °C
	Storage Humidity	Less than 85 %

	Satellite Digital TV1	Digital TV2	Digital TV	Analogue TV
Television system	DVB-T	DVB-T/T2	DVB-T	PAL/SECAM B/G/D/K, PAL I/I', SECAM L/L'3
	DVB-C	DVB-C	DVB-C
	DVB-S/S2	DVB-S
Programme coverage	VHF, UHF C-Band, Ku-Band		VHF, UHF	VHF: E2 to E12, UHF : E21 to E69, CATV: S1 to S20, HYPER: S21 to S47
Maximum number of storable programmes	6,000		1,500
External antenna impedance	75 Ω

1 Only satellite models
2 Only DVB-T2 support models
3 Except for DVB-T2 support models

HDMI-DTV supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720x480	31.469	59.94
	31.5	60
720x576	31.25	50
1280x720	37.5	50
	44.96	59.94
	45	60
1920x1080	33.72	59.94
	33.75	60
	28.125	50
	26.97	23.97
	27	24
	33.716	29.976
	33.75	30.00
	56.25	50
	67.43	59.94
	67.5	60

HDMI-PC supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640x350	31.468	70.09
720x400	31.469	70.08
640x480	31.469	59.94
800x600	37.879	60.31
1024x768	48.363	60.00
1152x864	54.348	60.053
1360x768	47.712	60.015
1280x1024	63.981	60.020
1920x1080	67.5	60.00

Component port connecting information

Component ports on the TV	Y	PB	PR
Video output ports on DVD player	Y	PB	PR
	Y	B-Y	R-Y
	Y	Cb	Cr
	Y	Pb	Pr

Signal	Component
480i/576i	O
480p/576p	O
720p/1080i	O
1080p	O (50 Hz / 60 Hz only)

3D supported mode

(Only 3D models)

• Video, which is input as below media contents is switched into the 3D screen automatically.
• The method for 3D digital broadcast may differ depending on the signal environment. If video is not switched automatically into 3D, manually convert the settings to view 3D images.

Input	Signal	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Playable 3D video format
HDMI	720p	1280X720	37.5	50	Side by Side(half), Top and Bottom
			45	60
			75	50	Frame packing
			89.9 / 90	59.94 / 60
	1080i	1920X1080	28.125	50	Side by Side(half), Top and Bottom
			33.7	60
	1080p	1920X1080	27	24	Side by Side(half), Top and Bottom
			33.7	30
			53.95 / 54	23.98 / 24	Frame packing
			56.3	50	Side by Side(half), Top and Bottom
			67.5	60
DTV	720p	1280X720	37.5	50	Side by Side, Top and Bottom
	1080i	1920X1080	28.125	50
USB	1080p	1920X1080	33.75	30	Side by Side, Top and Bottom, MPO(Photo)
DLNA	1080p	1920X1080	33.75	30	Side by Side, Top and Bottom

LG

Life's Good

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

Please contact LG First.

If you have any inquiries or comments, please contact LG customer information centre.

LG Customer Information Centre

Country	LG Service	Country	LG Service
Österreich	0 810 144 131	Nederland	0900 543 5454
Belgie	015 200 255	Norge	800 187 40
Luxemburg	0032 15 200255	Polska	801 54 54 54
Бълария	07001 54 54	Portugal	808 78 54 54
Česká Rep.	810 555 810	România	031 228 3542
Danmark	8088 5758	Slovensko	0850 111 154
Suomi	0800 0 54 54	Espana	902 500 234
France	3220 dites LG ou tapez 54	Sverige	0770 54 54 54
Deutschland	01803 11 54 11	Schweiz	0848 543 543
Ельда	801 11 200 900, 210 4800 564	United Kingdom	0844 847 5454
		Russilia	8 800 200 7676
Magyarország	06 40 54 54 54	Eesti	800 9990
Éire	0818 27 6955	Уkraine	0 800 303 000
Italia	199600099	Казахстан	8 8000 805 805, 2255(GSM)
Белар csb	8 820 0071 1111
Latvija	80200201	Узбекстан	8 800 120 2222
Lietuva	880008081	Кырълістан	8 0000 710 005
