Product type	Wireless charger for mobile devices
Brand	IKEA
Model	NORDMÄRKE 304.855.00
Dimensions	Approx. 10 x 10 x 1 cm (3.9 x 3.9 x 0.4 inches)
Weight	Approx. 100 g (3.5 oz)
Input power	USB-C, 5V/2A or 9V/2A
Output power	Up to 10W (Qi standard)
Charging standard	Qi wireless charging
Compatible devices	Smartphones and other Qi-enabled devices
Charging distance	Up to 8 mm (0.3 inches)
LED indicator	LED ring shows charging status
Foreign object detection	Yes, automatic
Overheat protection	Yes
Overvoltage protection	Yes
Overcurrent protection	Yes
Material	Plastic and silicone pad
Color	White
Cable length	1.5 m (4.9 ft) USB-C cable included
Power adapter	Not included; use with a compatible USB-C adapter
Operating temperature	0°C to 40°C (32°F to 104°F)
Cleaning	Wipe with a dry cloth; unplug before cleaning
Warranty	2 years (subject to local regulations)
Repairability	Not serviceable by user; contact IKEA for support

Frequently Asked Questions - NORDMÄRKE 304.855.00 IKEA

What devices are compatible with the IKEA NORDMÄRKE charger?

The charger is compatible with any device that supports Qi wireless charging, including most modern smartphones (e.g., iPhone 8 and later, Samsung Galaxy S6 and later, Google Pixel, and others). Devices without built-in Qi can use a Qi receiver case or adapter.

How fast does the NORDMÄRKE charge?

It provides up to 10W of power for compatible Android devices and up to 7.5W for iPhones (limited by Apple). Actual speed depends on the device and whether the power adapter provides sufficient output (9V/2A recommended).

What does the LED light mean?

The LED ring around the pad indicates: Solid white - charging; Pulsating white - waiting for device placement; Flashing white - error or foreign object detected; Off - no power or device not recognized.

Can I use the charger through a phone case?

Yes, as long as the case is not thicker than 8 mm (0.3 inches) and does not contain metal, credit cards, or magnetic attachments. Very thick or metallic cases may interfere with charging.

Does the charger work with iPhone 12/13/14 MagSafe?

The NORDMÄRKE uses standard Qi technology, not MagSafe. It will charge iPhones wirelessly but does not snap on magnetically. MagSafe iPhones will charge at a lower speed (7.5W) via Qi.

Is the power adapter included?

No, the charger only includes a USB-C cable (1.5 m). You need a compatible USB-C power adapter (sold separately). IKEA recommends using a 5V/2A or, for faster charging, a 9V/2A adapter.

How do I clean the charger?

Unplug the charger and wipe it with a soft, dry cloth. Do not use water, cleaning agents, or abrasive materials. Keep the silicone pad free from dust and dirt.

What safety features does it have?

The charger includes foreign object detection, overheat protection, overvoltage protection, and overcurrent protection. If an object is detected between the pad and device, charging stops automatically.

What should I do if the charger stops working?

First, check the power adapter and cable. Try a different USB-C cable and adapter. Ensure your device is centered on the pad. If the LED is flashing, remove any metal objects. If none work, contact IKEA customer service or visit an IKEA store for replacement.

Is the charger repairable?

The NORDMÄRKE is not designed for user repair. Do not open the unit. If it malfunctions, return it to IKEA under warranty (2 years). Do not attempt to repair yourself.

USER MANUAL NORDMÄRKE 304.855.00 IKEA

Design and Quality IKEA of Sweden

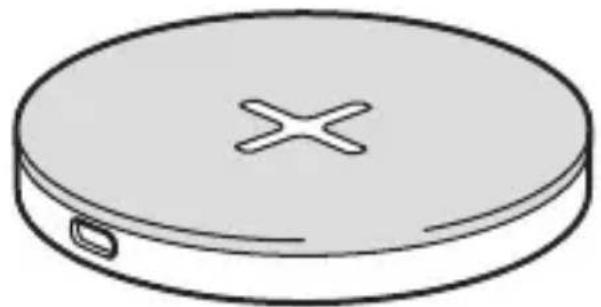

Simple line drawing of a circular object with a cross symbol on top and a small protrusion at the bottom (no text or symbols)

Battery icon with a lightning bolt symbol (no text or numbers)

Diagram showing two circular devices connected by a cable with arrows indicating motion, one with a cross symbol and the other with a star symbol (no text or labels)

English 6

Česky 10

Italiano 14

Magyar 18

Polski 22

Eesti 26

Latviešu 30

Lietuvių 34

Româna 38

Slovensky 42

Български 46

Hrvatski 50

Русский 54

Українська 58

Srpski 62

Slovenščina 66

70

Charger features

• USB power adapter (5V, 2A) and USB Type-C cable not included.
- Wirelessly charges Qi-compatible devices.
- Compatible with Qi 1.2.4BPP specification.
• Temperature and power monitor for safety.
• LED status indicator.

Instructions for use

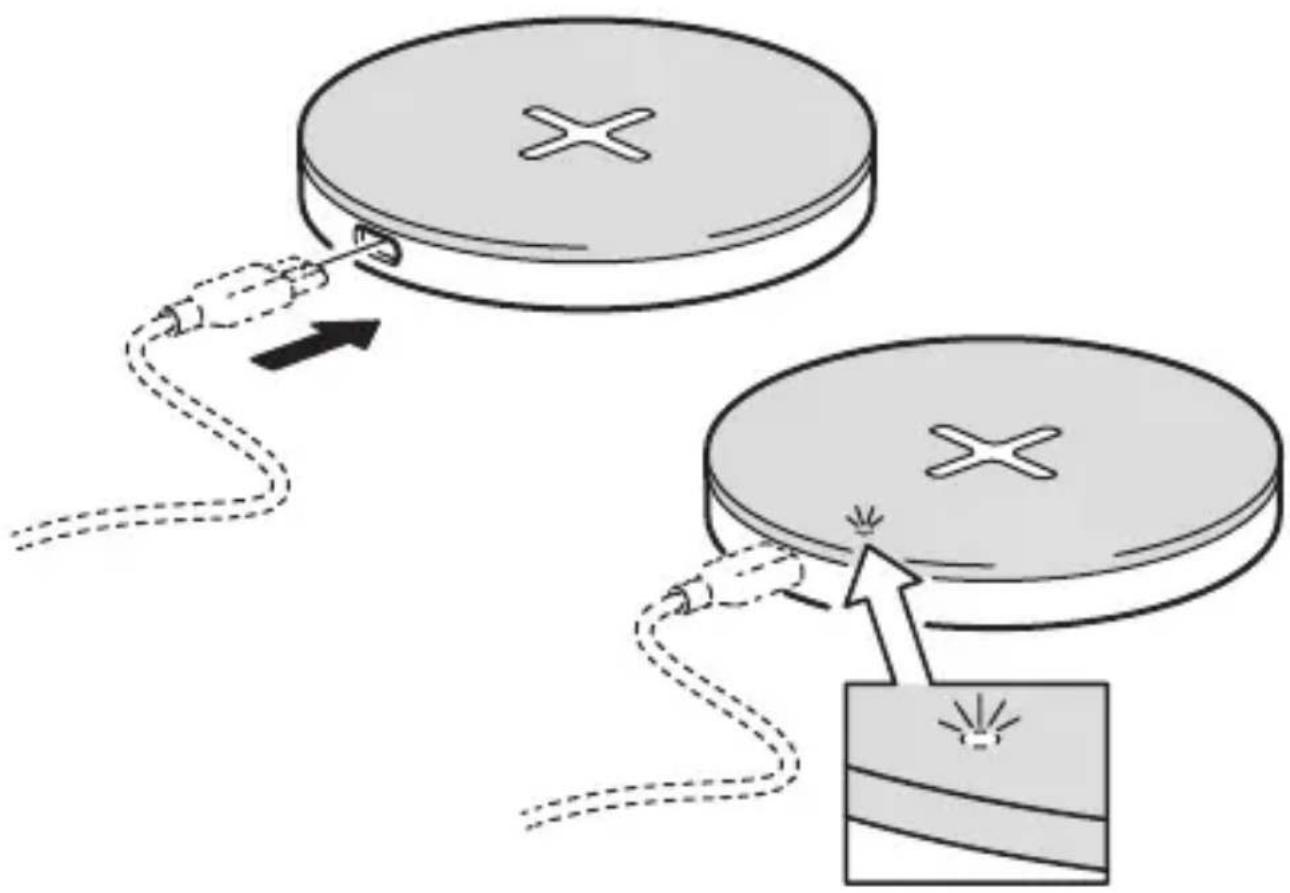

• Connect the USB cable to the power adapter and to NORDMÄRKE. Plug it into the wall socket.
• For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.
• If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.

2. Charging: LED on.

3. Charging completed: LED off.

4. Error: LED flashes.

Good to know

• USB cable length and quality influences charging speed and performance.
  • Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
• Charger storage temperature: -20°C to 25°C.
• Charger operating temperature: 0°C to 40°C.

Unplug the charger from the power source before cleaning and when it is not in use.

To clean the charger, wipe with a moist cloth.

Never submerge the charger in water.

Recommended precautionary measures and technical data: see the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-compatible.
• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
• Children should be supervised to ensure they do not play with the product.
• Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E2011 NORDMÄRKE

Input: 5V DC, 2A USB Type-C

Indoor use only

Operating frequency: 113 - 148 KHz

Output power: 33 dBμA/m at 3m

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The 'Qi' symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Producent: IKEA of Sweden AB

Adres: Box 702, SE-343 81 Älmhult, SZWECJA

Hoia need juhised alles.

TEHNILISED ANDMED

Tootja: IKEA of Sweden AB

Aadress: Box 702, SE-343 81 Älmhult, SWEDEN

RF IEDARBĪBAS INFORMĀCIJA

.Wireless Power Consortium 'Qi'

תְרָה REַבִיּוֹ

© Inter IKEA Systems B.V. 2020 AA-2241112-2
