Product Type	Wireless charger for mobile devices
Brand	IKEA
Model	NORDMÄRKE 804.841.07
Input	5.0V DC, 2.0A USB Type-C
Wireless Charging Standard	Qi 1.2.4BPP
Operating Frequency	110.3–148 kHz
Output Power (at 3m)	36 dBμA/m
LED Indicator	Power on: 3 sec; Charging: steady on; Complete: off; Error: flashing
Temperature Monitor	Yes, with power safety monitor
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 25°C
Indoor Use Only	Yes
RF Exposure Safety Distance	At least 10 cm
Cleaning	Wipe with damp cloth; do not submerge
Disposal	Recycle per local regulations (crossed-out wheeled bin)
Manufacturer	IKEA of Sweden AB
Address	Box 702, SE-343 81 Älmhult, SWEDEN
Power Adapter & USB Cable	Not included (5.0V, 2.0A USB Type-C required)
Compatible Devices	Qi-compatible devices
Charging Time	Varies by device battery capacity, charge level, age, and temperature

Frequently Asked Questions - NORDMÄRKE 804.841.07 IKEA

How do I charge my device wirelessly with NORDMÄRKE?

Connect the USB cable (not included) to a 5V/2A power adapter and to the charger. Plug into a wall socket. Place your Qi-compatible device on the plus sign (+) on the charger. The device must be centered over the plus sign for optimal charging. On some devices, you may need to enable wireless charging in settings.

What does the LED indicator mean?

When powered on, the LED lights up for 3 seconds. During charging, the LED stays on. When charging is complete, the LED turns off. If there is an error, the LED flashes.

Why is my device not charging?

Ensure your device is Qi-compatible. Check that it is placed correctly over the plus sign. If the battery is completely discharged, it may take a few minutes before charging starts. Also verify that the USB cable and power adapter are working and provide 5.0V/2.0A.

Can I use any USB cable and power adapter?

The charger requires a USB Type-C cable and a power adapter that outputs 5.0V DC, 2.0A. Using a different cable or adapter may affect charging speed and performance. Never use a damaged or faulty USB cable.

Is it safe to leave the charger on all the time?

The charger has built-in temperature and power monitoring for safety. However, unplug it when not in use to save energy and reduce risk. Clean only with a damp cloth and never submerge in water.

What are the operating conditions for the charger?

The charger is for indoor use only. Operating temperature is 0–40°C. Storage temperature is -20–25°C. Keep it away from moisture and extreme heat.

How far should I keep the charger from my body?

According to RF exposure regulations, maintain a distance of at least 10 cm from the device during normal operation.

Can I repair the charger myself?

No, do not attempt to repair this product yourself. Opening or removing covers may expose you to dangerous voltage or other risks. Contact IKEA for service.

How do I dispose of the charger?

The crossed-out wheeled bin symbol indicates that the charger should be disposed of separately from household waste. Recycle it according to local environmental regulations to reduce environmental impact.

Does the charger work with all phone cases?

The charger works with Qi-compatible devices. Very thick or metal cases may interfere with wireless charging. Remove such cases if charging is not optimal.

USER MANUAL NORDMÄRKE 804.841.07 IKEA

Design and Quality IKEA of Sweden

Simple line drawing of a circular object with a cross-shaped top and a small protrusion at the bottom (no text or symbols)

Battery icon with a lightning bolt symbol (no text or numbers)

Diagram showing two circular devices connected by a cable with arrows indicating motion, one with a cross symbol and the other with a star symbol (no text or labels)

English 6

Español 10

Português 14

中文 18

繁中 22

한국어 26

日本語 30

Bahasa Indonesia 34

Bahasa Malaysia 38

عربي 42

Ins 46

Tiếng Việt 50

Charger features

• USB power adapter (5.0V, 2.0A) and USB Type-C cable not included.
• Wirelessly charges Qi-compatible devices.
• Compatible with Qi 1.2.4BPP specification.
  • Temperature and power monitor for safety.
  • LED status indicator.

Instructions for use

• Connect the USB cable to the power adapter and to NORDMÄRKE. Plug it into the wall socket.

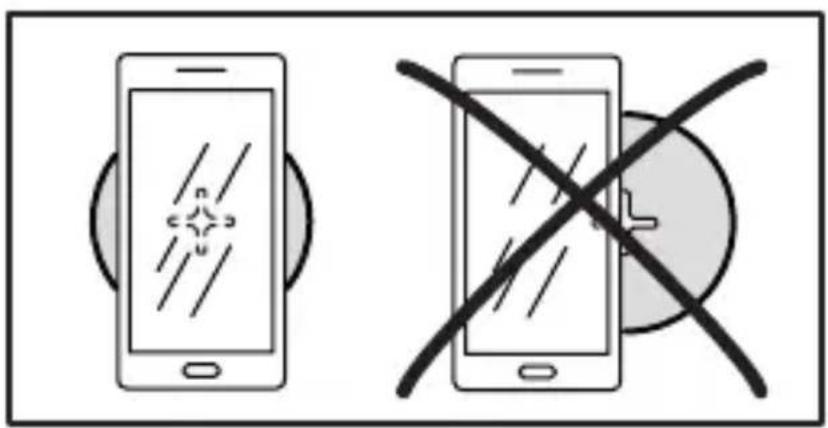

• For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.
• If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.

2. Charging: LED on.

3. Charging completed: LED off.

4. Error: LED flashes.

Good to know

• USB cable length and quality influences charging speed and performance.
  • Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
• Charger storage temperature: -20°C to 25°C.
• Charger operating temperature: 0°C to 40°C.
• Unplug the charger from the power source before cleaning and when it is not in use.
  • To clean the charger, wipe with a moist cloth.
• Never submerge the charger in water.
• Recommended precautionary measures and technical data: see the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-compatible.
• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
• Children should be supervised to ensure they do not play with the product.
• Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E2011 NORDMÄRKE

Input: 5.0V DC, 2.0A USB Type-C

Indoor use only

Operating frequency: 110.3KHz - 148 KHz

Output power: 36 dBμA/m at 3m

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The 'Qi' symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
