Product Type	Dishwasher
Brand	Midea
Model	HAMDWQP4260ISA
Dimensions (H x W x D)	435 mm x 420 mm x 435 mm
Capacity	22 place settings
Power Supply	110 V AC, 60 Hz, 10 A
Water Pressure Range	0.04 - 1.0 MPa
Programs	Intensive, Rapid, ECO, Glass, 12min (hot fruit wash), 6min (cold fruit wash)
Functions	Storage, Extra Dry, Delay (0-24h), Fruit Wash (Hot/Cold)
Energy Consumption	0.45 kWh (ECO program)
Water Consumption	5 L per cycle (ECO program)
Noise Level	Not specified in manual
Detergent Type	Dishwasher-specific detergent only
Rinse Aid	Required, specific for dishwashers
Salt Softener	Yes, adjustable consumption
Filter System	Two-stage: main filter and fine filter, clean weekly
Spray Arms	Removable for cleaning
Installation	Built-in or freestanding, requires proper earthing
Safety Features	Child lock not mentioned, but door interlock; electrical shock hazard warnings
Warranty	Not specified in manual
Manual Languages	English, Chinese, and others via translated versions

Frequently Asked Questions - HAMDWQP4260ISA MIDEA

How do I start a wash cycle?

Press the Power button to turn on the appliance, select a program using the Program button, then press the Start/Pause button. The dishwasher will begin after a short delay.

What programs are available?

The dishwasher offers Intensive, Rapid, ECO, Glass, Fruit Wash (12 min hot, 6 min cold). Refer to the wash cycle table for details.

Can I use regular dish soap?

No, only use detergent specifically designed for automatic dishwashers. Never use soap, laundry detergent, or hand washing detergent.

How do I clean the filters?

Turn off the dishwasher and unplug it. Remove the filter assembly by rotating and lifting. Rinse under running water, scrub if needed. Reassemble and replace. Clean weekly.

What does error code E1 mean?

Error E1 indicates a longer inlet time or low water pressure. Check that the water supply is connected and turned on, and that the inlet hose is not kinked.

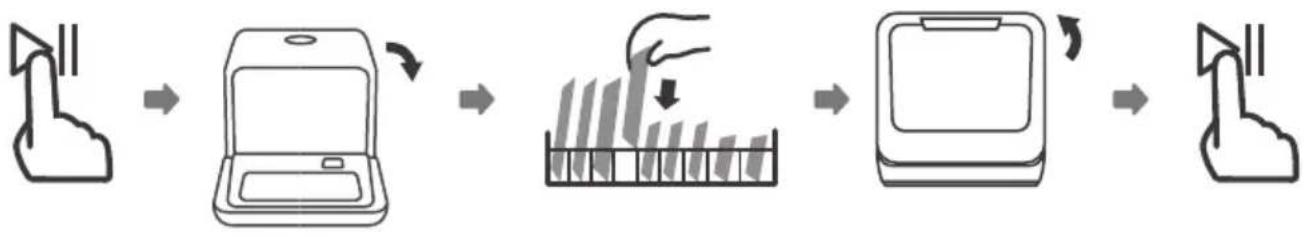

How do I add dishes after starting a cycle?

Press Start/Pause to pause, open the door slightly until spray arms stop, then fully open. Add dishes, close door, and press Start/Pause to resume.

Why are there white spots on my glasses?

White spots are usually caused by hard water or too much detergent. Use less detergent if you have soft water, and add rinse aid to improve drying.

How do I adjust the salt consumption?

The salt consumption setting can be adjusted via the control panel. Refer to the manual section 'Adjusting Salt Consumption' for specific steps.

Can I wash plastic items?

Only wash plastic items that are marked dishwasher safe. For unmarked items, check the manufacturer's recommendations. Avoid washing non-heat-resistant plastics.

What should I do if the dishwasher is not draining?

Check for a twisted or clogged drain hose. Ensure the filter is clean and the kitchen sink is draining properly. If the problem persists, contact a qualified service person.

USER MANUAL HAMDWQP4260ISA MIDEA

Line drawing of a flat-screen computer monitor with a blank screen and control buttons (no text or symbols)

具體操作方法見說明書的相應內容。

電源連接

電源為110V AC 60Hz

插座規格為10A 110V AC

Diagram showing a droplet falling into a container with an arrow indicating flow or movement (no text or symbols)

打開機門，將碗鍛入，然後加入洗滌劑

Line drawing of a kitchen sink with a spoon and a small object inserted, no text or symbols present

Line drawing of a hand pouring liquid into a small box with an electrical outlet (no text or symbols)

關閉機門，選擇程式，啟動洗碗機。

Simple line drawing of a rectangular device with two curved arrows indicating rotation or movement (no text or symbols)

Line drawing of a rectangular electronic device with a lid and control buttons (no text or symbols)

目錄

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

重要：

Architectural floor plan showing structural grid and elevation details (no text or labels)

警告

Diagram of a grid-based structure with vertical bars and curved arrows indicating rotation or movement (no text or symbols)

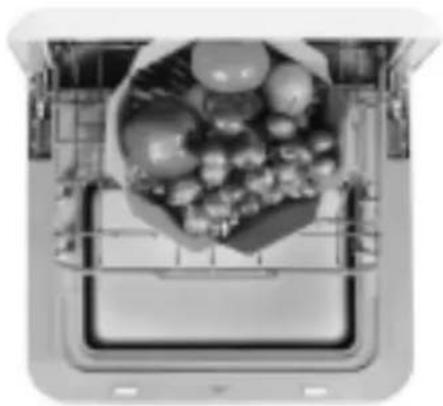

Top-down view of a kitchen appliance with a bowl of fresh vegetables (no text or symbols visible)

水果籃適於放置一定大小的水果

警告

- 務必使用洗碗機專用洗滌劑。

Line drawing of a laptop with a spoon and scattered dots, no text or symbols present

洗滌劑添加口（蔬果模式不得添加洗滌劑）

清洗功能表

- 清洗功餾束時

Line drawing of a car interior showing the intake tray, seatbelt, and dashboard (no text or symbols)

如何保持洗碗機的良好狀態

每次清洗後

Symbolic illustration of a hand with a lightning bolt and smoke trail (no text or numbers)

觸電危險

安裝洗碗機之前請斷開電源。

否則會導致觸電甚至死亡

- 安装準備

Line drawing of a hand holding a pipe fitting with a handle (no text or symbols)

- 排水管連接

Line drawing of a rectangular electronic device with a blank screen and control buttons (no text or symbols)

Please read the corresponding content on the instruction manual for detailed operating method.

Connected to power supplies

The power supply is 110 V AC 60 Hz

the specification of the socket is 10 A 110 V AC

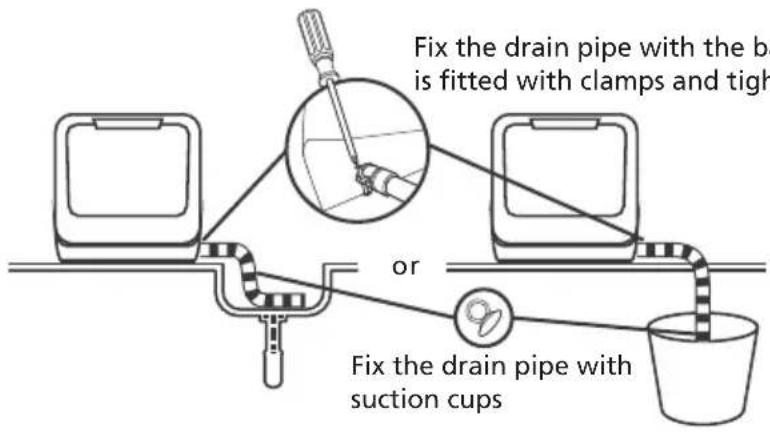

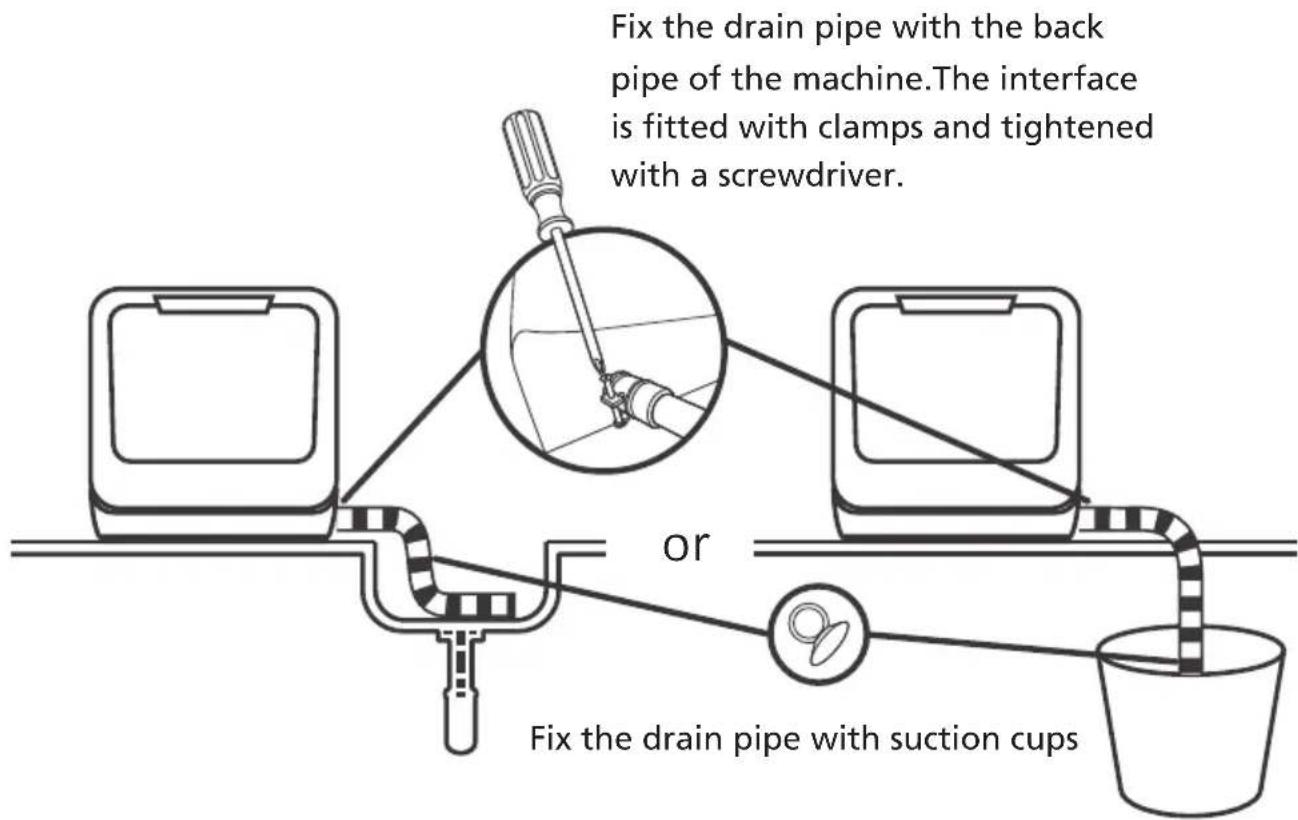

The connection of the drain pipe: Put end of the drain into a sink or bucket.

Fix the drain pipe with the back pipe of the machine. The interface is fitted with clamps and tightened with a screwdriver.

Remove the larger residue

Please remove the large residue before placing.

Diagram showing a mechanical or biological process with an arrow, a circular component, and a droplet on a surface (no text or symbols)

Open the door, placing the dishes and adding detergent

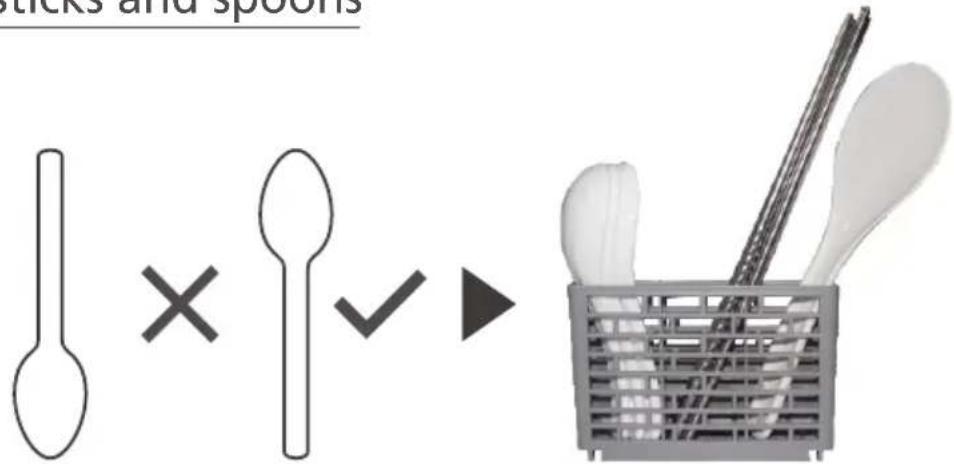

Placing order by size and from the two sides to the middle. All cutlery are suggested to be tilted to improve cleaning preformance.

The arm will be blocked with the improper placement of the cutlery and cleaning effect may not be ideal.

Should not place the cutlery in the right direction or may affect the cleaning preformance. Try to leave the dirty face towards the spray arm.

Line drawing of a kitchen sink with a spoon and a small object inserted, no text or symbols present

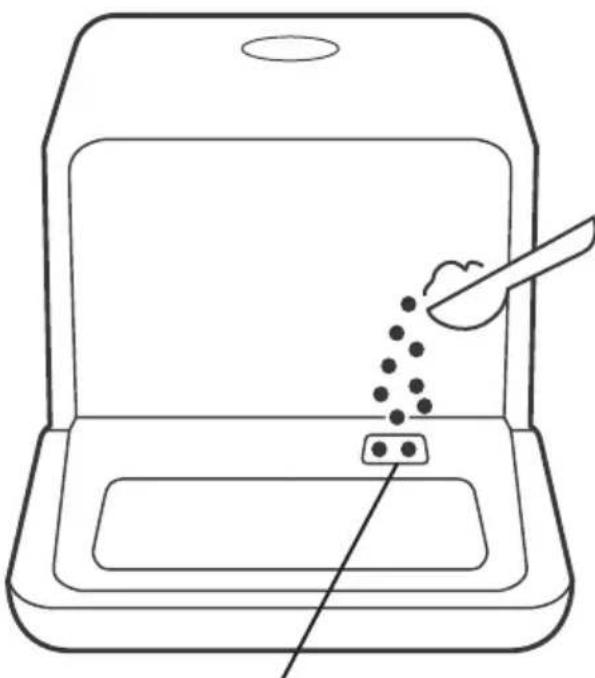

The palce to add the detergent (The program of friut should not add the detergent)

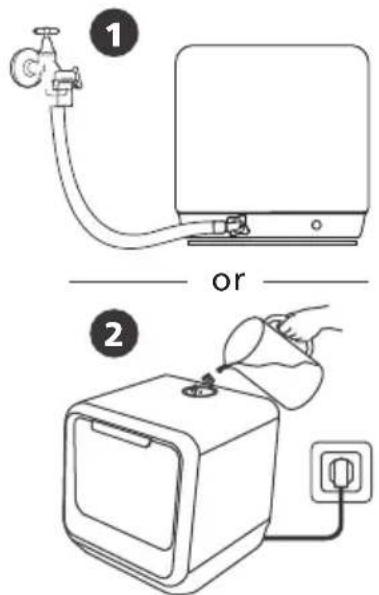

Add water into the dishwasher's tank

There are two ways to add water into the tank:

1 Connect inlet hose to the tap;
2 Open the cap and add water into the dishwasher's tank manually

There are two ways of prompting the tank that full of water.

1. Before starting:

When the tank is full of water, the machine will drip-drip-drip-drip-drip beeps.

2. After starting :

Water is not enough, lights on; Water is enough, lights is not on and the machine will drip-drip-drip-drip-drip beeps.

Close the door, select the program and start the dishwasher

Simple line drawing of a rectangular device with two curved arrows indicating rotation or movement (no text or symbols)

Line drawing of a flat-screen computer monitor with a scroll wheel and 'HPT' button (no text or symbols on the device itself)

CONTENTS

Please carefully read this manual before using the dishwasher, it will help you use and maintain the dishwasher properly.

01

02

03

04

05

06

07

5 IMPORTANT SAFETY INSTRUCTIONS

10 GETTING TO KNOW YOUR APPLIANCE

10 Dishwasher features

11 Control panel

12 USING YOUR DISHWASHER

12 Loading the salt into the softener

13 Adjusting Salt Consumption

14 Loading the dishwasher baskets

18 Filling the dispenser

20 PROGRAMMING THE DISHWASHER

20 Wash cycle table

21 Turning on the appliance

21 Change the programme

22 Forget to add a dish?

23 At the end of the wash cycle

24 MAINTENANCE AND CLEANING

24 Filter system

25 Caring for the dishwasher

28 INSTALLATION INSTRUCTION

28 Installation preparationnce

29 About Power Connection

30 Water Connection

30 Connection of drain hoses

31 TROUBLESHOOTING TIPS

31 Before calling for service

34 Error codes

35 Technical information

WANING

When using your dishwasher, follow the precautions listed below:

• This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.(For EN60335-1)

- This appliance is not intended for use by persons(including children)with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or instruction concerning use of the

• appliance by a person responsible for their safety. (For IEC60335-1)
• This appliance is for indoor use only, for household use only.

To protect against the risk of electrical shock, do not

• immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and maintaining the appliance.

Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.

Earthing instructions

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a earthing plug.

• The plug must be plugged into an appropriate outlet that is installed and earth ed in accordance with all local codes and ordinances.

• Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed.

- General use

• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
• When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;

2) Waiveing and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

- Check that the detergent powder is empty after completion of the wash cycle.

• Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items without mark, check the manufacturer's recommendations.
• Use only detergent additives designed for an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• Children should be supervised to ensure that they do not play with the appliance.
• The door should not be left open, since this could increase the risk of tripping.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
• The maximum number of pieces to be washed is 22.
• The maximum permissible inlet water pressure is
• 1MPa.

The minimum permissible inlet water pressure is 0.04MPa.

Disposal

- For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable.

Symbol of a trash bin crossed with no text or numbers, accompanied by a blank rectangular block below (no text or symbols present)

Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

- For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

IMPORTANT:

Before using this dishwasher for the first time and to get the best performance, read these instructions.

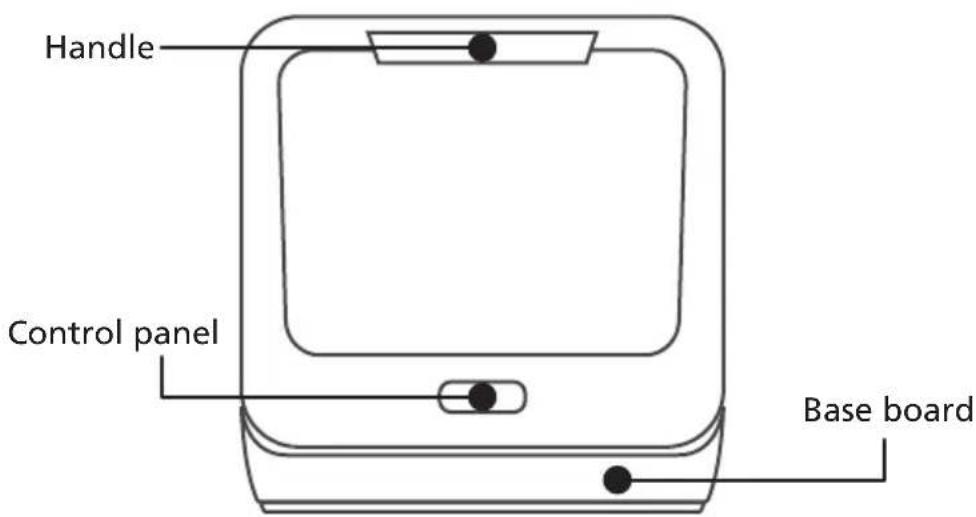

• Dishwasher features

Fruit basket Water bottle

• Control panel

1 Power	To turn on and off.
2 Program	Program Button: Press the button to select wash cycles P1(Intensive ) -P2 (Rapid ) .
3 Function	Storage Get rid of the smell, damp and mildew proofing.Extra dry To select the extra dry function.
4 Delay	To show the delay time 00~24h.
5 Fruit wash	Hot water : Suitable for washing fruit surfaces of a certain size, such as apple, grape, jujube.Cold water : Suitable for fruits with a weak surface, such as strawberries.
6 ECO	This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.
7 Glass	For lightly soiled loads, such as glasses, crystal and fine china.
8 Start/Pause	Press this button to start or pause the dishwasher, the process pilot lamp will be blinking when starting.
9 Display	Display the time, function and so on.

- Loading the dishwasher baskets

Recommendation

- Consider buying utensils which are identified as dishwasher-proof.

- Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from detergent manufacturers.

- For particular items, select a program with as low temperature as possible.

- To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

Suitability of use in the dishwasher Not suitable for use:

• Cutlery with wooden, horn, china or mother-of-pearl handles
• Plastic items that are not heat resistant
• Older cutlery with glued parts that are not temperature resistant
  • Bonded cutlery items or dishes
• Pewter or copper items
• Crystal glass
  • Steel items subject to rusting
• Wooden items
• Items made from synthetic fibres

Limited suitability:

• Some glasses can become dull after a large number of washes.
  • Silver and aluminium have a tendency to discolour during washing.
• Glazed patterns may fade if washed frequently.

Attention before or after loading the dishwasher baskets

(For the best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.) Scrape off any large food paritcles. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in following way:

Items such as cups, glasses, pots/pans, etc. are face downwards.
Curved items, or those with recesses, should be loaded at aslant so that water can run off.
All utensils are stacked securely and can not tip over.
All utensils are placed in the way that the spray arms can rotated freely during washing.

NOTE

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. with the opening facing downwards so that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
• To avoid damage to glasses, they must not be touched.

• Long bladed knives stored in an upright position are a potential hazard!

• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the basket.

• Please do not overload your dishwasher. This is important for good results and for reasonable energy consumption.

Loading basket

Position the dishes and cookware so that they will not get moved by the spray of water.

In order to clean the surface of the spray water column, it is necessary to place the stain on the inside.

Place the small holes at the bottom of the chopsticks basket with the bowl basket, then press it hardly to fix it on the bowl basket.

Architectural floor plan showing grid layout and two circular insets depicting structural details (no text or labels)

WARNING

Do not let any item extend through the bottom. Always load sharp utensils with the sharp point down!

Chopsticks and spoons

Height should below 25cm. Handle the tableware downward. Please be careful to scratch when place sharp cutlery.

* Knives and other sharp appliances must be packed in baskets and pointed down or horizontally placed.

How to use the basket

Pure diagram of a grid with directional arrows and curved lines, no text or symbols present

The bowl basket has an adjustable movable row. Adjust the adjustable row to achieve the best washing effect.

Top-down view of a kitchen sink with a bowl containing fresh tomatoes (no text or symbols visible)

The fruit basket is suitable for loading a certain size surface of fruit, such as apple, grape, jujube. Not suitable for fruits with fragile surface, such as strawberries.

Filling the dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes and utensils, which can leave spots and streaks.

WANING

- Only use detergent specifically for dishwashers.

Never use any other rinse aid and detergents. This will damage the appliance.

Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

• Conventional, alkaline detergents with caustic components.
• Low alkaline concentrated detergents with natural enzymes.

The use of Normal washing program in combination with concentrated detergent reduces pollution and is good for your dishes.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short Programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent

The detergent must be refilled before the start of each wash cycle following the instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent then conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Adding detergent

Line drawing of a laptop with a spoon and a small bowl, showing a cooking step (no text or symbols)

The palce to add the detergent (The program of friut should not add the detergent)

Wash cycle table

The table below shows which programmes are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programmes.

Program	Cycle Selection Information	Description Of Cycle	Detergent	Time (min)	Energy (Kwh)	Water (L)
Intensive	For lightly soiled loads that do not need excellent drying efficiency.	Wash(62 °C)RinseRinse(70 °CDrying)	6 g.	160 0.5		5
Rapid	A shorter wash for lightly soiled loads and quick wash.	Wash (45 °CRinseRinse (55°C)	6 g.	29 0.35		5
12min	Suitable for washing fruit surfaces of a certain size, such as apple, grape, jujube.Not suitable for fruits with a weak surface	Wash (36°C)Rinse	A little soda powder	12	0.15	5
6min	suitable for fruits with a weak surface, such as strawberries	Rinse	/	6 0.01		5
ECO(*En5 0242)	This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.	Wash (55 °C)RinseRinse (68 °CDrying)	6 g.	155 0.45		5
[W6Z2]Glass	For lightly soiled loads, such as glasses, crystal and fine china	Wash(50 °C)RinseRinse(65 °CDrying)	6 g.	85 0.4		5

NOTE

EN 50242: This program is the test cycle. The information for comparability test in accordance with EN 50242, are as follows: The power consumption of off-mode is 0.45W, left-on mode is 0.49W

• Turning on the appliance

Starting a wash cycle...

Draw out the basket(see the section entitled "Loading the Dishwasher").

Pour in the detergent (see the section "Fill the detergent").

Insert the plug into the socket. The power supply is 110 VAC 60 HZ, the specification of the socket is 10 A 110 V AC.

Press the power button to turn on the appliance,

Connect the inlet hose to the tap, make sure that the water supply is turned on to full pressure, or add water the the tank manually.

select a suitable program according to the "Wash cycle table";

If a program is selected, the response light will light. Then press the Start/ Pause button, the dishwasher begins to start.

NOTE

When you press the Start/Reset button to pause during washing, the program light will stop blinking and the dishwasher will mooing every minute unless you press the Start/Reset button to start.

• Change the programme

Premise: You can modify the washing program, If the dishwasher just worked for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water in this case, the cycle must be restarted.

Press St. Butto pause the machine when the door is closed,

Press Function Button more than three seconds the machine will be in stand by state, then you can change the program to the desired cycle setting (see the section entitled "Starting a wash program").

The Display window shows the state of the dishwasher:

a) Display window shows "--:" ----> stand by;
b) Display window shows "H:MM" and not blinking ----> pause;
c) Display window shows "H:MM" and blinking ----> run;
d) Display window shows "END" ----> end.

NOTE

If you open the door during washing, the machine will pause. When you and press the Start/Pause Button, the machine will keep on working after 10 seconds.

If your model has broken remember function, the machine will go on to finish the selected program after the power cut.

Forget to add a dish

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Press the Start/Pause button
2. Open the door a little to stop the washing.
3. After the spray arms stop working, you can open the door completely.
4. Add forgotten dishes.
5. Close the door.
   6 Press the tart/Pause button, the dishwasher will run.

• At the end of the Wash Cycle

When the working cycle has finished, the buzzer of dishwasher will sound 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid scald, the dishes and utensils are still hot and more susceptible to breakage. They will also dry better.

- Switch Off the Dishwasher

1. Switch off the dishwasher by pressing the ON/OFF button.
2. Turn off the water tap!

- Open the door carefully

Hot dishes are sensitive to knocks. The dishes should be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

- Unloading the dishwasher

It is normal that the dishwasher is wet inside.

WANING

It is dangerous to open the door when washing, because the hot water may scald you.

Filter system

WANING

• Never use the dishwasher without filters!
• Make sure the filter is properly assembled.

The performance may be affected and dishes and utensils could become damaged.

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle.

For best performance and results, the filter assembly must be cleaned regularly. For this reason, it is a good idea tore move the larger food particles trapping in the filter after each wash cycle by rinsing the filter and cup under running water. To remove the filter assembly, pull the cup handle in the upward direction.

Technical line drawing of a mechanical component with no visible text or symbols

B. Fine filter

This filter holds soil and food residues in the sump area and prevents it from being deposited on the dishes during wash cycle.

A. Main filter

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Step 1: Contrarotate the filter assembly, then lift it all up.

Step 2: Lift B up from A.

NOTE

If do it from step1 to step 2, the filter system will be removed; while if do it from Step 2 to Step 1, the filter system will be installed.

The entire filter assembly should be cleaned once a week.

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

WANING

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of dishwasher could be decreased.

• Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly. For the exterior use a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

WANING

• Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
• Abrasive agents or some paper towel should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

Protect against freezing

please take frost protection measures on the dishwasher in winter. Eadtime a washing cycles, please operate as follows.

1. Cut off electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and water valve (Use a pan to catch the water).
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE

If your dishwasher cannot work because of the ice, please contact authorised service person.

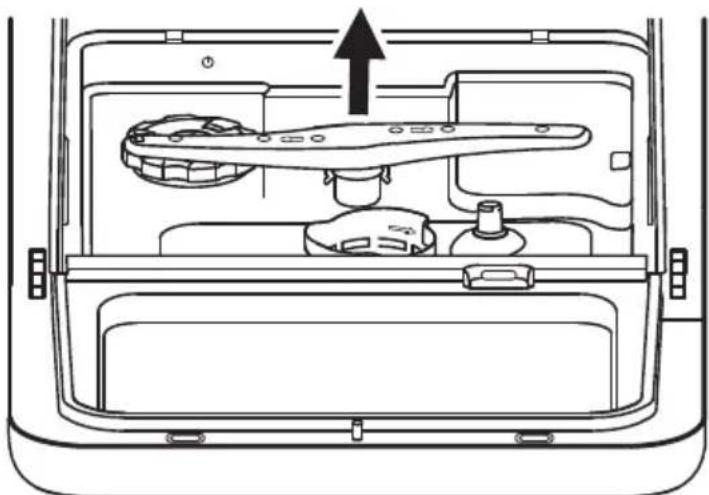

Cleaning the spray arms

The spray arms can be easily removed for periodic cleaning of the nozzles to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded.

Grasp the middle of the spray arm, pull it upwards to remove it. Wash the arms under a jet of running water and replace it carefully to its seat. After reassembly, check that the spray arms rotate freely. Otherwise, check that they have been installed correctly.

Line drawing of a car backrest with internal compartments and a directional arrow indicating motion (no text or symbols)

How to keep your dishwasher in shape

After every wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

Remove the plug

Before cleaning or performing maintenance, always remove the plug from the socket.

No solvents or abrasive cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a longtime

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

Moving the appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

WANING

Symbolic illustration of a hand with a lightning bolt and smoke, representing electrical hazard (no text or labels)

Electrical Shock Hazard

Disconnect electrical power before installing dishwasher.

Failure to do so could result in death or electrical shock.

Attention

The installation of the pipes and electrical equipments should be done by professionals.

• Installation preparation

The installation position of dishwasher should be near the existing water inlet tap and drain outlet and power socket.

One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher.

• Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

• About Power Connection

WANING

For personal safety:

• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

⚠ Ensure that proper earthing exists before use

• Water Connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

Please Note: If the supplied hose cloes not fit your tap, please contact your local plumbing supply center where adapters are available for purchase.

Illustration of hands holding a pipe fitting with a handle (no text or symbols)

- Connection of drain hoses

The connection of the drain pipe: Put end of the drain into a sink or bucket.

How to Drain Excess Water From Hoses

If the sink is more than 1000 mm higher than the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres, otherwise the cleaning effect of the dishwasher could be reduced.

• Before calling for service

Reviewing the charts on the following pages may save you from calling for service.

Problem Possible Causes What To Do
Dishwasher doesn't start	Fuse blown, or the circuit break tripped.	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket
	Error code:E1; Water pressure is low	Check that the water supply is connected properly and the water is turned on.
	Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
Water not pumped form dishwasher	Twisted or trapped drain hose.	Check the drain hose.
	Filter clogged.	Check coarse the filter.
	Kitchen sink clogged.	Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining, you may need a plumber rather than a serviceman for dishwashers.
Suds in the tub	Detergent is not used correctly Detergent overdue or mouldy	To avoid suds, use dishwasher's detergent If it happens, please open the dishwasher door for 20~30 minutes and let the suds evaporate. If there still have sunds, please add 1.5 liters of water in the inner tub, close the dishwasher door and run a strong operation of the water discharge until the suds is been cleared. Use the detergent within the period of validity.

Problem Possible Causes What To Do

	Spilled rinse-aid. Always wipe up rinse-aid spills immediately.
Stained tub interior Detergent with colourant may have been used.		Make sure that the detergent has no colourant.
White film on inside surface	Hard water minerals. To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise, it may cause foaming or suds.
There are rust stains on cutlery	The affected items are not corrosion resistant.	Avoid washing items that are not corrosion resistant in the dishwasher.
	A programme was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle.	Always run a wash programme without any crockery after adding salt. Do not select the Turbo function (if present).
	The lid of the softer is loose.	Check the softener lid is secure.
Knocking noise in the dishwasher	A spray arm is knocking against an item in a basket	Interrupt the programme and rearrange the items which are obstructing the spray arm.
Rattling noise in the dishwasher	Items of crockery are loose in the dishwasher.	Interrupt the programme and rearrange the items of crockery.
Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function. If in doubt, contact a qualified plumber.
The dishes are not clean	The dishes were not loaded correctly.	See notes in “Loading & unloading your dishwasher”.
	The programme was not powerful enough.	Select a more intensive programme.
Problem Possible Causes What To Do
The dishes are not clean.	Not enough detergent was dispensed.	Use more detergent, or change your detergent.
	Items are blocking the movement of the spray arms.	Rearrange the items so that the spray can rotate freely.
	The filter combination is not clean or is not correctly fitted in the base of washcabinet. This may cause the spray arm jets to get blocked.	Clean and/or fit the filter correctly. Clean the spray arm jets.
Cloudiness on glassware.	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.
White spots appear on dishes and glasses.	Hard water area can cause limescale deposits.	Add more detergent.
Black or grey marks on dishes	Aluminium utensils have rubbed against dishes	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser	Dishes block detergent dispenser	Re-loading the dishes properly.
The dishes are not drying	Improper loading Load the dishwasher as suggested in the directions.
	Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket.
Problem	Possible Causes What To Do
The dishes are not drying	Wrong program has been selected.	With a short programme, the washing temperature is lower, decreasing cleaning performance.Choose a programme with a long washing time.
	Use of cutlery with a low-quality coating.	Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

- Error codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
E1	Longer inlet time.	A flow meter, drain valve, or pump failure, it should be repaired by a qualified worker.
E3	Not reaching required temperature	Heating tube or thermistor anomaly, it should be repaired by a qualified worker.
E4	Overflow. Some element of dishwasher leaks .
E9	Touch button adhesion	Water or other material in the key area causes E9 or it should be repaired by a qualified worker.
Ed	Communication anomaly	It should be repaired by a qualified worker.
EF	Water tank float anomaly	It should be repaired by a qualified worker.

WANING

• If overflow occurs, turn off the main water supply before calling a service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Height	435mm
Width	420mm
Depth	435mm
Voltage connected Load	see rating label
Water pressure	0.04 - 1.0MPa
Power supply	see rating label
Pieces	22 pieces

Equipment name Dishwasher Type designation (Type) HAMDWQP42601SA PC
Unit	Restricted substances and its chemical symbols
	Lead(Pb)	Mercury(Hg)	Cadmium(Cd)	Hexavalent chromium( Cr^+6 )	Polybrominated biphenyls(PBB)	Polybrominated diphenyl ethers(PBDE)
Outer door	○	○	○	○	○	○
Handle	○	○	○	○	○	○
Wire	○	○	○	○	○	○
Shell	○	○	○	○	○	○
Inner door	○	○	○	○	○	○
Air breaker	○	○	○	○	○	○
Liner	○	○	○	○	○	○
Switch	○	○	○	○	○	○
Base	○	○	○	○	○	○
Sprayer arm assembly	○	○	○	○	○	○
Top panel ASM	○	○	○	○	○	○
Sump	○	○	○	○	○	○
Rack	○	○	○	○	○	○
Hose	○	○	○	○	○	○
Screw	○	○	○	○	○	○
Wash Pump	○	○	○	○	○	○
Heater	○	○	○	○	○	○
Computer board	Exceeding 0.1 wt %	○ ○	Exceeding 0.01 wt %
Power cord	Exceeding 0.1 wt %	○	○	○	○	○
Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.Note 3: The “-” indicates that the restricted substance corresponds to the exemption.
