Indigo IS-HB44K41 - Hand blender Scarlett - Free user manual and instructions

Product Type	Hand blender set with food processor attachments
Model	Indigo IS-HB44K41
Brand	Scarlett
Power Supply	220-240 V ~ 50/60 Hz (check rating label)
Motor Power	800 W (typical for this model)
Speed Settings	Variable speed selector, Pulse and Turbo modes
Attachments Included	Submersible blender, whisk with adapter, potato masher, chopping blade, slicing/chopping disc, dicer disc with attachment, stiff dough hook, 600 ml measuring jar, 2000 ml measuring jar, bowl, bowl drive, pusher
Bowl Capacity	2000 ml (main bowl)
Measuring Jar Capacity	600 ml and 2000 ml
Maximum Continuous Operation	1 minute, with at least 2 minutes rest
Material	Plastic housing, stainless steel blades
Weight	Approx. 1.5 kg (motor unit only)
Dimensions (Motor Unit)	Approx. 12 x 12 x 35 cm (H)
Cord Length	Approx. 1.2 m
Safety Features	Motor unit not immersible, sharp blade warning, overheat protection (automatic shut-off if overheated)
Cleaning	Hand wash only; do not immerse motor unit or use dishwasher
Applications	Blending, pureeing, whisking, chopping, dicing, slicing, mixing dough, mashing potatoes
Not Suitable For	Crushing ice, grinding coffee or hard spices
Warranty	Standard manufacturer warranty (check documentation)

Frequently Asked Questions - Indigo IS-HB44K41 Scarlett

Can I use the hand blender to crush ice?

Is the motor unit dishwasher safe?

What is the maximum operating time?

Can I blend hot liquids?

How do I attach the whisk?

How do I remove the chopping blade?

Can I use the dough hook for heavy dough?

What attachments are included with the Scarlett Indigo IS-HB44K41?

How do I use the dicer attachment?

Where can I find the user manual?

USER MANUAL Indigo IS-HB44K41 Scarlett

A faint blue curved line against a dark blue gradient background, resembling a stylized airplane or jet trail (no text or symbols visible)

SCARLETT™

INDIGO

INNOVATIONPROGRESSIVETECHNOLOGYSELECTION

MODERN FASHIONSTYLE

Product photo of a KNO brand blender with hand tools and whisk (no visible text or symbols)

PIs add month and year of production e.g. 08.2010 at this place

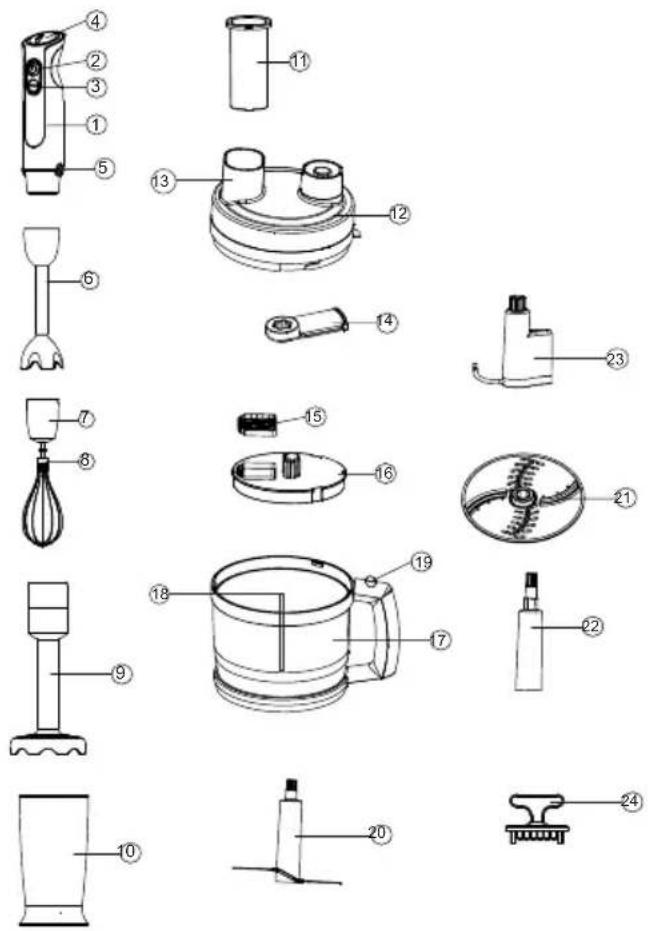

1. Motor unit

2. Pulse mode selection button

3. Turbo mode selection button

4. Speed selector

5. Attachment ejection buttons

6. Submersible blender

7. Whisking attachment adapter

8. Whisking attachment

9. Attachment for mashing boiled potatoes

10. Measuring jar (600 ml)

11. Pusher

12. Bowl drive

13. Feeding funnel

14. Blade attachment

15. Dicer attachment

16. Dicer disc

17. Measuring jar (2000 ml)

18. Bowl pin

19. Bowl drive lock button

20. Chopping blade

21. Slicing and chopping disc

22. Bowl shaft

23. Stiff dough attachment

24. Dicer attachment pusher

CZ POPIS

• Before connecting the appliance for the first time check that voltage indicated on the rating label corresponds to the mains voltage in your home.
• For home use only. Do not use for industrial purposes. Do not use the appliance for any other purposes than described in this instruction manual.
• Do not use outdoors.
• Always unplug the appliance from the power supply before cleaning and when not in use.
• To prevent risk of electric shock and fire, do not immerse the appliance in water or any other liquids. If it has happened DO NOT TOUCH the appliance, unplug it immediately and check in a service center.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not leave the appliance switched on when not in use.
• If the power cord is damaged it should be replaced by the manufacturer or authorized servicing center or qualified professional for safety reasons.
• Do not attempt to repair, adjust or replace parts in the appliance. Check and repair the malfunctioning appliance in the nearest service center only.
• Keep the cord away from sharp edges and hot surfaces.
• Do not pull, twist, or wrap the power cord around the appliance.
• Do not immerse the motor unit in any liquid or wash in a dishwasher.
• WARNING: The blades are extremely sharp and therefore dangerous. Handle with caution!

• WARNING: it is prohibited to overfill the unit or use it without ingredients. Do not exceed the continuous operating time.

• Never place hot ingredients into the processor (>70 °C).

• If the product has been exposed to temperatures below 0^ C for some time it should be kept at room temperature for at least 2 hours before turning it on.
• The manufacturer reserves the right to introduce minor changes into the product design without prior notice, unless such changes influence significantly the product safety, performance, and functions.

• Prior to initial use wash all removable parts with warm water with cleansing agent and dry up carefully. Wipe the outside of the motor base with moist tissue.
• It is strongly prohibited to immerse the motor base into any liquids and/or to clean it with water.

IMMERSION BLENDER

• This unit is ideal for making cream soups, sauces and dressings, baby food, and also for blending various cocktails.
• Insert the beater or a hook into the motor part till it clicks.
• Fit the attachment to the motor unit against the stop matching corresponding arrows.
• Immerse the blades into mixture before switching on to avoid ingredients spilling.
• To remove the beater, press the two knobs on the appliance simultaneously.

CHOPPING BLADE / CHOPPER

• Chopper is ideal for chopping greenery and vegetables, cheese, majority of nuts, dried fruits. Hard products, such as meat, onion, carrots, need to be cut before processing. Nutshells must be removed, meat must be separated from bones and tendons.
• The chopper is not suitable for crushing ice and chopping hard products, such as coffee grains, nutmegs.
• Caution! The chopping blade is very sharp! Hold the blade by the top plastic area only!
• Place the blade on the central finger in the jar.
• Add ingredients into the jar.

• Cover the jar with the drive.

• Turn the bowl drive aligning the lock with the handle slot. The bowl drive will secure.

• Place the motor base into the jar drive until tightened.
• While chopping, hold the motor base with one hand, accessory jar – with the other hand.
• When finished, remove the motor base first.
• Detach the bowl drive by pressing fixing knob of the drive and turning it counterclockwise.
• Then remove the jar drive.
• Remove the blade carefully.
• At this point you may remove chopped ingredients from the jar.

DISC FOR SLICING AND CHOPPING

• This disc is designed for slicing and chopping vegetables, such as cucumbers, carrots, potatoes, leeks and onions, as well as some varieties of cheese.
• Place the bowl shaft on the bowl pin.
• Place the slicing and chopping disc on the shaft.
• Put the drive on the bowl.
• Place the motor unit on the bowl drive.
• WARNING! Feed the food with pusher only, pressing it gently.

ACESSORY FOR WHISKING / LIQUID PRODUCTS BLENDING

- Use the whisk for creaming, eggbeating, desserts blending. Never use this accessory for kneading.

- While turning the attachment slightly, insert it into the adapter until it locks.

- Put the adapter connected with the attachment on the main unit until it clicks.

- Prior to start processing, immerse the whisk into the jar with ingredients.

- NOTE: Should the assembly is incorrect or incomplete, the processor will not operate.

DICER DISC

- This disc is designed for dicing cheese, meat, vegetables and other food products.

- Insert the dicer attachment into the attachment slot of the disc.

• Place the blade attachment on the top.
• Install the disc inside the bowl, so that its lips match the bowl slots.
• Put the drive on the bowl.
• Place the motor unit on the bowl drive.
• WARNING! Feed the food with pusher only, pressing it gently.
• The attachment is very sharp! Be careful during removal of the attachment from the disc. To remove the attachment, press it with the supplied pusher.

STIFF DOUGH ATTACHMENT

• This attachment is used for mixing stiff dough.
- Connect the attachment to the bowl axle.
- Place the bowl drive on the bowl and lock it.
- Place the motor unit on the bowl drive. The appliance is ready for operation.
• Mix the dough at maximum speed.

POTATO MASH COOKING ATTACHMENT

• Use this attachment for fast cooking of lump-free light potato mash.
• Connect the attachment to the main unit. For secure connection turn the attachment counter-clockwise to align the arrow drawn on the attachment with the lock icon on the main unit.
• Before you start, place the attachment into the bowl with boiled potatoes. Start operation with lower speed.
  NOTE: In order to obtain light and tasty potato mash add small amount of hot milk and dairy butter.
• After preparing puree remove and rinse blades of the attachment. Wipe dry and reinstall.
• To remove blades from the attachment, turn them clockwise. To replace the blades rotate them counterclockwise.

FOOD PROCESSOR USING

• Please make sure accessories are at their places before switching on.
• Plug-in device.

• Press and hold the Pulse button – food processor will operate while this button is pressed.

• To process liquid and hard ingredients together, use TURBO mode.

• By rotating speed switch you may select food processing speed.
• Do not remove any parts during operating.
• CAUTION: Do not operate continuously longer than 1 minute with less than 2 minutes intermission.

CLEANING AND CARE

• Switch off and unplug the appliance.
• Wash the accessories immediately and avoid soaking them in water for a long period; wash in warm sudsy water after each use. Dry all accessories with a clean soft cloth. Do not use a dishwashing machine.
• Wipe the housing with damp cloth.
• Do not use scouring pads, abrasive and harsh detergents.

STORAGE

• Be sure that the appliance is unplugged.
• Complete all requirements of Chapter CLEANING AND CARE.
• Keep the appliance in a dry clean place.

МЕРЫ БЕЗОПАСНОСТИ

NŮŽ NA MLETÍ / DRTIČ

GB FOOD PROCESSOR-BLENDER 4
