Product Type	Fridge-freezer
Brand	Becken
Model	BUF4869
Climate Class	SN (10–32 °C), N (16–32 °C), ST (16–38 °C), T (16–43 °C)
Refrigerant	R600a (isobutane)
Power Supply	220–240 V, 50 Hz
Control Type	Electronic with digital display
Temperature Setting Range	-14 °C to -24 °C (freezer compartment)
Super Freeze Function	Yes, activates at -24°C, automatically turns off after 52 hours
Door Alarm	Yes, sounds after 1 minute door open
Reversible Door	Yes, user-reversible (left or right opening)
Adjustable Feet	Yes, front leveling feet
Interior Light	Yes (not user-serviceable)
Automatic Defrost	Yes (freezer compartment)
Shelves	Glass shelf and wire shelves (multiple)
Drawers	Middle and lower drawers (2+ )
Door Handle	Included, requires assembly
Warranty	2 years
Installation Type	Freestanding (not built-in)
Control Panel Location	Inside freezer compartment
Display	Backlit icons (auto-off when doors closed)
Freezer Capacity	Suitable for freezing fresh food (with Super Freeze)
Defrost System	Automatic defrost cycle
Door Handle Material	Metal (supplied separately)
Climate Class Range	10 °C to 43 °C (depending on class)

Frequently Asked Questions - BUF4869 Becken

How do I set the freezer temperature?

Press the TEMP°C button repeatedly to cycle through the temperature settings. The temperatures range from -14°C to -24°C. The display will show the selected temperature.

How do I activate Super Freeze mode?

Press and hold the TEMP°C/Super freeze 3sec button for 3 seconds. The display will show '-24' and the Super Freeze indicator will light up. The mode automatically turns off after 52 hours.

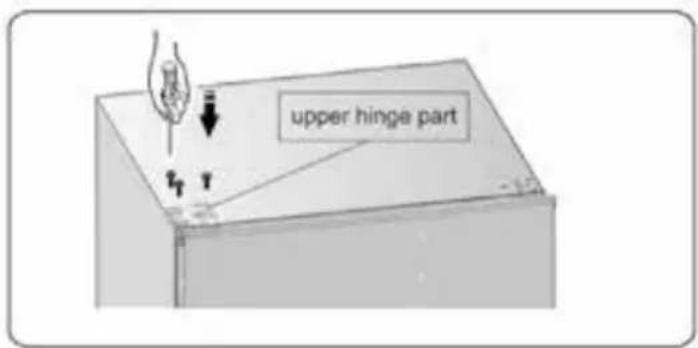

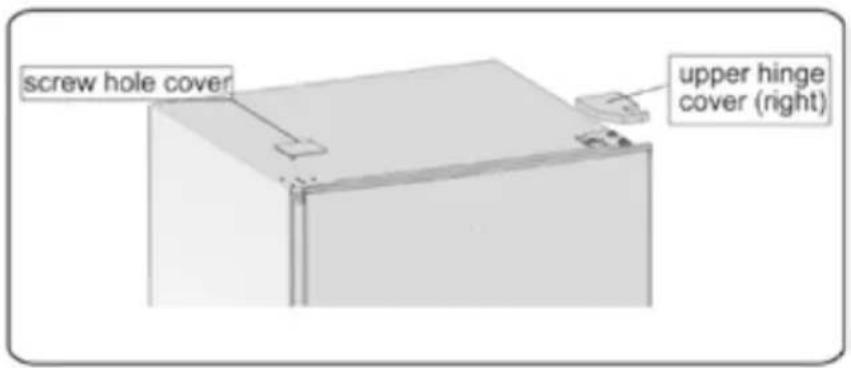

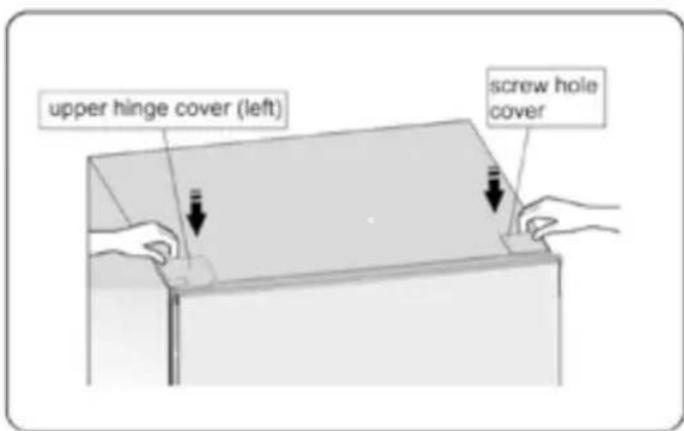

How can I reverse the door opening direction?

Unplug the appliance. Follow the step-by-step instructions in the manual, which involve removing the hinge covers, unscrewing hinges, transferring hinge parts to the opposite side, moving the door handle, and adjusting the leveling feet. A putty knife, screwdrivers, and wrenches are required.

Why is the door alarm sounding?

The door alarm sounds if the freezer door has been open for more than 1 minute. To stop the alarm, press the ALARM button or simply close the door.

How should I clean the interior of the refrigerator?

Unplug the appliance. Use a mild solution of bicarbonate of soda and warm water to wipe the interior. Rinse with warm water using a wrung-out sponge, then dry thoroughly before replacing shelves and drawers.

What should I do if the appliance is not working correctly?

Check that the power cord is plugged in properly and that the fuse or circuit breaker hasn't tripped. If the problem persists, contact the Customer Support Service. Do not attempt to repair the appliance yourself.

How do I defrost the freezer?

The appliance defrosts automatically, but if frost buildup occurs, remove all food, unplug the appliance, and leave the doors open. Ventilate the room to speed up melting. Once defrosted, clean and dry the interior before plugging back in.

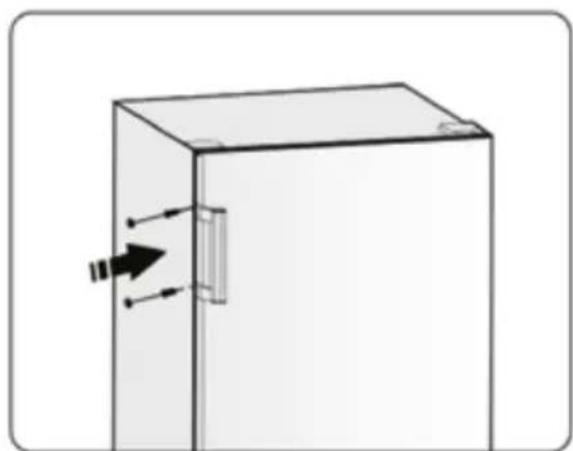

How do I install the door handle?

Take the handle and screws from the bag. Remove the handle covers, position the handle on the desired side of the door, fix it with screws, and then cover the screw holes with the covers.

What type of refrigerant does this appliance use and is it safe?

The refrigerant is R600a (isobutane), which is flammable. Do not damage the refrigerant circuit. In case of a leak, avoid flames and ventilate the room. Professional disposal is required.

How can I save energy with this refrigerator?

Keep the doors closed as much as possible. Place the appliance away from heat sources and direct sunlight. Do not set the temperature colder than necessary. Ensure proper ventilation around the appliance. Use the original shelf and drawer configuration for best efficiency.

USER MANUAL BUF4869 Becken

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 5
1.4. Cleaning 6
1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 16

2.1. Product Description 16
2.2. Product usage 17
2.3. Maintenance 30
2.4. Troubleshooting 32

3. POST-SALE SERVICE 34

4. ENVIRONMENTAL PROTECTION 35

BECKEN

1. SAFETY INSTRUCTIONS

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous.

To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

BECKEN

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning. To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life will be properly informed on its usage and safety notices.
• For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Safety for children and other vulnerable people

According to EN standard

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

According to IEC standard

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- Keep all packaging away from children as there is risk of suffocation.

- If you are discarding the appliance, remove the plug from the socket, cut the connection cable (as close to the appliance as possible) and remove the door to prevent playing children from suffering an electric shock or from closing themselves inside it.

- If this appliance, featuring a magnetic door seals, is to replace an older appliance with a spring lock (latch) on the door or lid, make sure you render the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

BECKEN

General safety

WARNING — This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
• WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, the Customer Support Service or similarly qualified persons in order to avoid a hazard.
• WARNING — Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING — Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING — Do not damage the refrigerant circuit.
• WARNING — Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame.

• WARNING — When positioning the appliance, ensure the supply cord is not trapped or damaged.

• WARNING — Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• WARNING — Food needs to be packed in bags before putting into the refrigerator to avoid the problem of cleaning the product design structure, which is not easy to do.
• The symbol ⚠ is a warning and indicates the refrigerant and insulation blowing gas are flammable.

WARNING: Risk of fire / flammable materials Replacing the lighting lamp

- WARNING — The lighting lamp must not be replaced by the user! If the lighting lamp is damaged, contact the Customer Support Service for assistance. This warning is only for refrigerators with a lighting lamp.

Refrigerant

- WARNING! During using, service and disposal the appliance, please pay attention to a similar symbol, which is located on rear of appliance (rear panel or compressor) There are flammable materials in refrigerant pipes and compressor. Please be far away fire source during using, service and disposal.

- The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility which is, nevertheless, flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit become damaged.

- The refrigerant (R600a) is flammable.

BECKEN

• WARNING — Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.
• Should the refrigerant circuit be damaged:

- Avoid starting flames and sources of ignition.

- Thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way.
• Any damage to the cord may cause a short-circuit, fire, and/or electric shock

Electrical safety

• The power cord must not be lengthened.
• Make sure the power plug is not pressed or damaged.
• A pressed or damaged power plug may overheat and cause a fire.
• Make sure that you can access the appliance main plug.
• Do not pull the main cable.
• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
• You must not operate the appliance without the interior lighting lamp cover.
• The refrigerator is only powered with power supply of single-phase alternating current of 220\~240V/50Hz. If there are voltage fluctuations in the user's district so large that the voltage exceeds the above scope, for safety reasons, make sure to apply an A.C.

Automatic voltage regulator of more than 350 W to the refrigerator. The refrigerator must be plugged in to a designated socket and not a common socket shared with other appliances. Its plug must match the socket with ground wire.

Daily use

• Do not store flammable gas or liquids in the appliance, there is a risk of an explosion.
• Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.).
• When unplugging, always pull the plug from the mains socket, not on the cable.
• Do not place hot items near the plastic components of this appliance.
• Do not place food products directly against the air outlet on the rear wall.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• The appliances manufacture storage recommendations should be strictly adhered to. Refer to REL relevant instructions for storage.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Frozen food can cause frost burns if consumed straight from the freezer compartment.
• Do not place the appliance under direct sunlight.

BECKEN

- Keep burning candles, lamps and other items with naked flames away from the appliance not to set the appliance on fire.

- The appliance is intended to keep food stuff and/or beverages in normal households; as explained in this instruction booklet, the appliance is heavy.

- Do not remove or touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

- Never use the base, drawers, doors etc. to stand on or as supports.

- Frozen food must not be refrozen once it has been thawed out.

- Do not consume ice popsicles or ice cubes straight from the freezer as these can cause freezer burn to the mouth and lips.

- To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.

Caution!

Care and cleaning

- Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

- Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers.

- Do not use a sharp objects instead of a plastic scraper to remove frost from the appliance.

Installation

Important!

- For electrical connection, carefully follow the instructions given in this manual. Unpack the appliance and check if there are damages on it.

- Do not connect the appliance if it is damaged. Report possible damages immediately to Worten. In that case, retain the packing.

- It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

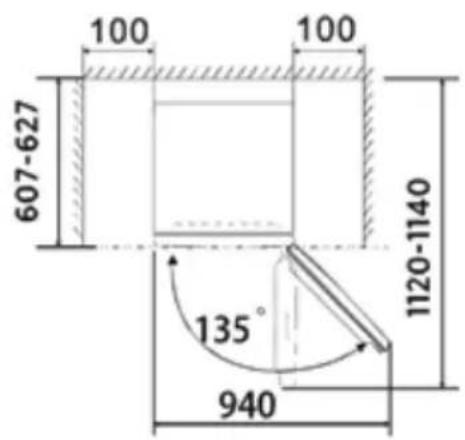

- There should be adequate air circulation around the appliance; lacking thereof will lead to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.

- Wherever possible, the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire. Follow the instructions relevant to installation.

- The appliance must not be located close to radiators or cookers.

- Make sure the mains plug is accessible after installation of the appliance.

Service

- Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician, a competent person or the Customer Support Service.

- This product must be serviced by an authorized Customer Support Service, and only genuine spare parts must be used.

- If the appliance is Frost Free.

BECKEN

- If the appliance contains freezer compartment.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for freezing fresh food.

Order	Compartments Type	Target storage temp. [°C]	Appropriate food
1 (***)*	Freezer <-18 Seafood (fish, shrimp, shell fish)
2	***-Freezer <-18 Seafood (fish, shrimp, shell fish)
3	**-Freezer <-12 Seafood (fish)	Seafood (fish)	shrimp, shell fish)freshwater products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
4 *-Freezer <-6 Seafood (fish, shrimp)	shell fish)freshwater products and meat products (recommended for 1 month, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
5 0-star	-6 ~ 0 Fresh pork, beef, fish, chicken,some packaged processed foods, etc. (Recommended to eat within the same day, preferably no later than 3 days). Partially encapsulated processed foods (non-freezable foods)

Note: please store different foods according to the compartments or target storage temperature of your purchased products.

- If the refrigerating appliance is left empty for long periods, switch off, clean, dry, and leave the door open to prevent mould developing within the appliance.

BECKEN

2. OPERATING INSTRUCTIONS

2.1. Product Description

View of the appliance

1. Control panel
2. Wind channel
3. Flap

4. Glass shelf
   5.Middle drawers

5. Middle wire shelves

6. Lower wire shelf

7. Lower drawer

8. Left adjustable foot

10.Rightadjustable foot

1. Door handle

Note!

- Due to constant development of our products, your refrigerator may be slightly different from this instruction manual, but its functions and usage remain the same.

• To get the best energy efficiency out of this product, position all shelves and drawers on their original position as show above.
• To remove a drawer, please turn the wire shelf under the drawer up and down 180 degrees to get the best energy efficiency.

Display controls

The control panel that controls the temperature inside the freezer compartment is located inside the freezer. Use your appliance according to the following control regulations. Your appliance has the corresponding functions and modes as the control panel showed in the picture below. When the appliance is powered on for the first time, the icons on the display panel will be backlit. When the doors are closed, the backlight will turn off.

2.2. Product usage

Installing the appliance

Before using the appliance for the first time, you should review the following tips.

Ventilating the appliance

In order to improve the cooling system's efficiency and save energy, it is necessary to maintain a good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator.

It is advisable to keep at least a 50-70mm space between the back of the appliance and the wall, at least 100 mm from its top, at last 100 mm between the sides and the walls and a clear space in front to allow the doors to open 135°. Please see the following diagrams.

BECKEN

Note:

This appliance performs well within the climate class from N to T showed in the table below. It may not work properly if left at a temperature above or below the indicated range for a long period.

Climate class Ambient temperature

SN +10 °C to +32 °C

N +16 °C to +32 °C

ST +16 °C to +38 °C

T +16 °C to +43 °C

• Place your appliance in a dry place to avoid high moisture.
• Keep the appliance out of direct sunlight, rain or frost. Place the appliance away from heat sources such as stoves, fires or heaters.

Levelling the appliance

• For sufficient levelling and air circulating in the lower rear section of the appliance, the feet may need to be adjusted.
• You can adjust them manually using a suitable spanner.
  • To allow the doors to self-close, tilt the top backwards about 10 mm.

Door handle installation

Take the handle and screws out of the bag, remove the handle covers from the handle, position the handle on the right side of door, fix it by screws and cover the handle covers.

Simple line drawing of a 3D rectangular box with an arrow indicating direction, no text or symbols present.

Reversing the door

The side at which the door opens can be changed, from the right side (as supplied) to the left side, if required.

Warning! When reversing the door, the appliance must not be connected to the mains. Make sure the plug is removed from the mains socket.

BECKEN

Tools required

Not provided
8 mm socket wrench Th	n-blade screwdriver Putty knife
Cross-shaped screwdriver	Monkey wrench 8 mm wrench
Additional parts (in the plastic bag)
Left Hinge Cover

Note: If required you may lay the refrigerator on its back in order to gain access to the base; you should rest it on a soft foam packaging or similar material to avoid damaging the refrigerator backboard. To reverse the door, the following steps are generally recommended.

1. Use a putty knife or thin-blade screwdriver to remove the screw hole cover, located at the top left corner of the refrigerator, and the upper hinge cover, located at the top right corner of the refrigerator.

[you can trust]

1. Unscrew the special flange self-tapping screws which are used for fixing the right upper hinge part with an 8 mm socket driver or spanner (please support the upper door with your hand when doing it).

1. Remove the upper hinge axis, transfer it to reversed side, tighten it securely and then put it in a safe place.

1. Remove the door from the lower hinge

NOTE: When removing the door, watch for washer(s) between the lower hinge and the bottom of the lower door that may stick to the door. Do not lose.

BECKEN

Illustration of a refrigerator with doors open and arrows indicating airflow or movement (no text or symbols)

1. Place it on a smooth surface with its panel upwards. Loose the screw ② and the stop block ①, install them on the left side and tighten securely.

1. Lay the refrigerator on a soft foam packaging or similar material. Remove both adjustable feet parts, and the lower hinge part by unscrewing the special flange self-tapping screws.

1. Replace the lower hinge part to the left side and fixing it with the special flange self-tapping screws. Replace the adjustable feet parts to another side and fixing it.

Line drawing of a printer with a hand holding a pen and arrows indicating motion (no text or symbols)

1. Transfer the door to the property position, adjust the lower hinge part, make the hinge axis into the lower hole of the door.

BECKEN

Illustration of a refrigerator with hands holding the door and a downward arrow indicating a drop (no text or symbols)

1. Transfer the upper hinge part and make the upper hinge axis into the upper hole of the door, and adjust the position of the door (please support the door with your hand when doing it), fixing the upper hinge part with the special flange self-tapping screws.

1. Install the screw hole cover on the top right corner of the refrigerator. Install the upper hinge cover (which is in the plastic bag) on the left corner. Put the other upper hinge cover into the plastic bag.

1. Move the handle from the left side of door to the right side.

Two identical white rectangular storage cabinets with directional arrows indicating movement, no text or symbols present.

Warning!

When changing the side at which the door opens, the appliance must not be connected to the mains. Remove the plug from the mains beforehand.

Controlling the temperature

Important! - For optimum food preservation, we recommend that, when you start your refrigerator for the first time, set the freezer temperature to -18^ . If you want to change the temperature, follow the instructions below.

NOTE: High temperature setting will accelerate food waste.

BECKEN

Caution!

When you set a temperature, you set an average temperature for the whole refrigerator compartment.

Temperatures inside the compartment may vary from the temperatures displayed on the panel, depending on how much food you store and where you place it. A high or low room temperature may also affect the actual temperature inside the appliance.

Mode

Super Freeze

Super Freeze will quickly lower the temperature within the freezer so food will freeze faster. This can lock in the vitamins and nutrients of fresh food and keep food fresh longer.

- Press “TEMP°C/Super freeze 3sec” button for 3 seconds to select the Super Freeze function. The screen will display “-24” and the indicator 🧑️ will be on.

- For the maximum amount of food to be frozen, several hours before placing fresh food in the freezer compartment, switch on the Super Freeze mode to prevent an unwanted temperature rise.

- If the freezing capacity according to the rating plate is to be used, switch on the Super Freeze mode 24 hours before the fresh products are placed in the freezer compartment. The Super Freeze mode will automatically stop after 52 h.

- To switch off the Super Freeze mode, press the “TEMP /Super freeze 3sec” button. If the Super Freeze mode is switched off, the super indicator ✪ will shut off simultaneity, and the appliance automatically switches to the temperature set prior to the Super Freeze mode

TEMP°C

- You can press the “TEMP°C/Super freeze 3sec” button to activate the mode to control the freezer temperature. When you press the

button continuously, the temperature will be set as the following sequence.

Door Alarm

- If the freezer door is open for longer than 1 minute, the door alarm will sound and the indicator will begin to flash.

- To stop the door alarm, press the "ALARM" button - the indicator will be on but it will stop flashing.

- To save energy, please avoid keeping the door open for a long time when using the appliance. The door alarm can be cleared by closing the door.

- To save energy, please avoid keeping the door open for a long time when using the appliance. The door alarm can be cleared by closing the door.

Using your appliance

This section tells you how to use most of the useful features. We recommend that you read through them carefully before using the appliance.

Using your freezer compartment

The freezer compartment is suitable to store food which need to be frozen, including meat, fish, ice cream, etc.

Caution! Make sure that bottles are not left in the freezer for longer than needed as freezing may cause them to break.

Shelves

• The shelves are suitable for storing food.

• To remove the wire shelf: lift up at the front and pull out.

BECKEN

Important!

In order to make the most of the volume of the frozen-food storage compartment, you can remove one or more drawers out of the appliance, according to your daily use.

To remove a drawer, please turn the wire shelf under the drawer up and down 180 degrees to get the best energy efficiency.

In order to save energy, do not take the bottom freezer drawer out.

Drawers

• The drawers can be used to store frozen food.
• To remove the drawer, pull it out levelled. To put it back in, till it up and slide it in.
• Proceed in the contrary order to position the drawer correctly.

Caution! Never close the freezer door when the shelves, flap, drawers are extended. This may damage both them and freezer door.

Caution! This refrigerating appliance is not intended to be used as a built-in appliance.

Helpful hints and tips

Energy saving tips

We recommend that you follow the tips below to save energy.

• Try to avoid keeping the door open for long periods in order to save energy.
• Make sure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker, etc.)
• Don't set the temperature colder than necessary.

• Don't store warm food or evaporating liquid in the appliance.

• Place the appliance in a well ventilated, humidity free, room. Please refer to the “Installing the appliance” chapter.

• If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration.

Hints for freezing

• When first starting-up or after a period out of use, let the appliance run at least 2 hours on the higher setting before putting food in the compartment.
• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.
• Wrap up the food in aluminium foil or polyethylene food wraps which are air tight.
• Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter.
• Iced products, if consumed immediately after removal from the freezer compartment, will probably cause frost burns to the skin.
• It is recommended to label and date each frozen package in order to keep track of the storage time.

Hints for storing frozen food

• Make sure that frozen food has been stored correctly by the food retailer.
• Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer.

BECKEN

Switching off your appliance

If the appliance needs to be switched off for an extended period, the following steps should be taken to prevent mould from forming on the appliance.

1. Remove all food.
2. Disconnect the mains plug from the mains socket.
3. Clean and dry the interior thoroughly.
4. Make sure that all the doors are wedged open slightly to allow air to circulate.

2.3. Maintenance

For hygienic reasons, the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months).

Warning!

The appliance should not be connected to the mains during cleaning. Before cleaning, switch the appliance off and remove the plug from the mains socket.

Exterior cleaning

Wipe the control panel with a clean, soft cloth.

• Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface.
• Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth.

Caution!

Don't use sharp objects as they are likely to scratch the surface.

Don't use thinner, car detergent, Clorox, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire.

Interior cleaning

You should clean the interior of the appliance regularly. It will be easier to clean when food stocks are low. Wipe the inside of the freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and drawers. Thoroughly dry all surfaces and removable parts before putting them back into place. Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or is kept open for too long. If the frost is too thick, choose a time when the freezer is nearly empty and proceed as follow:

1. Remove existing food and accessory baskets, unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the process.
2. When defrosting is completed, clean your freezer as described above.

Caution!

Do not use sharp objects to remove frost from the freezer compartment. Only after the interiors are completely dry should the appliance be switched back on and plugged back into the mains socket.

Door seals cleaning

Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.

Caution!

Only after the door seals are completely dry should the appliance be powered on.

Disposal of the appliance

It is prohibited to dispose of this appliance as household waste.

BECKEN

Packaging materials

Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it.

Before disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

2.4. Troubleshooting

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out the below easy checks before calling the Customer Support Service.

Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the below mentioned checks, contact a qualified electrician, the Customer Support Service or the local Worten where you purchased the product.

Problem Possible cause & Solution
Appliance is not working correctly.	Check whether the power cord is plugged into the power outlet properly.
	Check the fuse or circuit of your power supply, replace if necessary.
	It is normal that the freezer is not operating during the defrost cycle, or for a short time after the appliance is switched on to protect the compressor.
There are odours coming from the compartments.	The interior may need to be cleaned.
	Some food, containers or wrapping cause odours.
There is a noise coming from the appliance.	The sounds below are quite normal:Compressor running noises.Air movement noise from the small fan motor in the freezer compartment or other compartments.Popping noise during automatic defrosting.Clicking noise before the compressor starts.
	Other unusual noises are due to the reasons below and may need you to check and take action:The cabinet is not levelled.The back of appliance touches the wall.Bottles or containers fallen or rolling.
The motor runs continuously.	It is normal to frequently hear the sound of the motor; it will need to run more when in following circumstances:Temperature setting is set colder than necessaryLarge quantity of warm food has recently been stored within the appliance.The temperature outside the appliance is too high.Doors are kept open too long or too often.After your installing the appliance or it has been switched off for a long time.
A layer of frost occurs the compartment.	Check that the air outlets are not blocked by food and ensure food is placed within the appliance allowing sufficient ventilation. Ensure the door is fully closed. To remove the frost, please refer to the “Maintenance” chapter.
Temperature inside is too warm.	You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top.
Temperature inside is too cold.	Increase the temperature by following the “Display controls” chapter.
Doors don’t close easily.	Check whether the top of the refrigerator is tilted back by 10-15 mm to allow the doors to self-close, or if something inside is preventing the doors from closing.

BECKEN

Problem Possible cause & Solution
Water drips on the floor.	The water pan located at the rear bottom of the cabinet may not be properly levelled or the draining spout located underneath the top of the compressor depot may not be properly positioned to direct water into this pan or the waterspout is blocked. You may need to pull the refrigerator away from the wall to check the pan and spout.

3. POST-SALE SERVICE

Becken has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Estimado cliente:

Simple line drawing of a rectangular box with a side panel and directional arrows indicating movement (no text or symbols)

Diagram of a refrigerator with doors open and arrows indicating motion (no text or symbols)

Diagram of a printer or printer with a hand holding a pen and arrows indicating motion (no text or symbols)

Simple line drawing of a refrigerator with hands holding it and a downward arrow indicating cooling (no text or symbols)

Two identical white rectangular storage cabinets with directional arrows indicating movement, no text or symbols present.

[you can trust]

¡Atención!

Alarma de la puerta

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Caro(a) cliente,

Simple line drawing of a rectangular box with a side panel and directional arrows indicating movement (no text or symbols)

Inversão da porta

Diagram of a refrigerator with doors open and arrows indicating airflow or movement (no text or symbols)

Diagram of a printer or printer with a hand holding a pen and arrows indicating motion (no text or symbols)

Simple line drawing of a refrigerator with hands holding it and a downward arrow indicating cooling (no text or symbols)

Two identical white rectangular storage cabinets with directional arrows indicating movement, no text or symbols present.

[you can trust]

Aviso!

Alarme da porta

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

BECKEN

Importado, produzido e distribuido por: Importado, producido y distribuido por: Imported, produced and distributed by:
