Product Type	Fan Heater
Brand	Ardes
Model	AR1F20
Power Supply	220-240 V ~ 50 Hz
Power Consumption	2000 W (max)
Heating Element	PTC Ceramic
Heating Modes	Fan Only, Low Heat (1000W), High Heat (2000W)
Thermostat	Adjustable thermostat with auto shut-off
Oscillation	Yes, 70° wide-angle oscillation
Safety Features	Overheat protection, tip-over switch, cool-touch housing
Noise Level	≤ 45 dB
Room Coverage	Up to 20 m²
Dimensions (W x D x H)	20 x 15 x 25 cm
Weight	1.5 kg
Cord Length	1.5 m
Material	ABS plastic, fire-resistant
Color	White/Black
Display	LED indicator lights
Remote Control	Not included
Cleaning	Wipe with damp cloth; do not immerse in water
Maintenance	No user-serviceable parts; contact support for repairs
Certifications	CE, RoHS
Warranty	2 years

Frequently Asked Questions - AR1F20 ARDES

How do I turn on the Ardes AR1F20 heater?

Plug the heater into a power outlet and set the mode switch to one of the heat settings (Low or High). Use the thermostat dial to set the desired room temperature.

Can I use the heater in a bathroom?

The AR1F20 is not designed for bathroom use. It should be kept away from water and moisture to avoid electrical hazards. Only use in dry indoor areas.

Does the heater have a timer?

No, the AR1F20 does not include a built-in timer. It operates continuously until switched off or until the thermostat reaches the set temperature.

How do I clean the heater?

Ensure the heater is unplugged and cooled down. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or immerse the unit in water. The air intake can be cleaned with a vacuum brush attachment.

Why does the heater turn off by itself?

The heater has overheat protection and a tip-over switch. If it turns off automatically, check for blocked air vents or if the unit has been knocked over. Allow it to cool before restarting.

What is the maximum room size for this heater?

The AR1F20 is suitable for rooms up to 20 m² (approx. 215 sq ft). For larger rooms, performance may be reduced.

Can I leave the heater unattended?

While the heater has safety features, it is recommended to not leave it unattended for extended periods. Always turn it off when leaving the room or sleeping.

Is the heater energy efficient?

The heater uses PTC ceramic technology which heats quickly and efficiently. Using the thermostat to maintain a steady temperature can help save energy compared to running it at max power continuously.

What should I do if the remote control is lost?

The AR1F20 does not come with a remote control. All functions are operated manually via the controls on the unit.

How do I store the heater during summer?

Clean the heater thoroughly, ensure it is dry, and store it in a cool, dry place away from direct sunlight. Cover it to prevent dust accumulation.

USER MANUAL AR1F20 ARDES

Two electric cooktops with black and white surfaces, one showing a circular top and the other two with triangular indicator lights (no text or symbols visible)

Exterior view of a two-whe� electric stove with two circular burners and control knobs (no text or symbols visible)

INDICAZIONI PER IL PRIMO UTILIZZO.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

SMALTIMENTO

Attention : read this booklet carefully it contains important instructions for a safe installation, use and maintenance.

Important instructions to be kept for future reference.

This unit can be used by children aged 8 and above and individuals with reduced physical, sensory or mental capacity, or lack of experience or knowledge, if they are provided with adequate supervision or have received instructions regarding the use of safety equipment and that they under stand the risks related.

Children must not play with the unit.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the equipment and its cable out of reach of children younger than 8 years of age.

The surfaces are subject to heating up during use.

The appliance must never be operated by means of an external timer or with a separate remote control system.

If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer.

Do not let the appliance work without pots.

After removing the packaging, check the appliance for any signs of damage.

In case of visible damage, do not use it and contact a qualified technician.

Do not leave parts of the packaging within the reach of children.

This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.

Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.

Electrical safety of this appliance is assured only if it has been connected to an effective earthing system.

If the plug and socket are not compatible, have the socket replaced with a suitable type by skilled persons. Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.

Disconnect the appliance from the power supply socket whenever it is not in use.

Do not tug on the power cable or on the appliance itself to remove the plug from the socket.

The use of any electrical appliance requires that a number of basic rules are observed, namely:

- Never touch the appliance with wet or humid hands.

- Do not use the appliance when barefoot.

- Do not leave the appliance exposed to weathering (rain, sunlight).

- Do not subject it to rough handling.

In case of failure, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket.

In case of a breakdown or malfunctioning of the appliance, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

The appliance has been designed and manufactured to operate as a hotplate in the home. Any other use is considered inappropriate and dangerous.

Do not use the appliance out of doors.

During use, rest the appliance on a flat surface.

For safety reasons, the appliance should never be opened.

To prevent children from accidentally touching hot components, use the hot plate on surfaces that are at least 85 cm high.

Keep the appliance out of reach of children and the disabled since the plates reach high temperatures.

Do not leave the appliance on if not in use since overheating the cast iron plates could damage it.

Wait until the plates are absolutely cold before storing the appliance in its box.

Technical informations

GB

1 - Body
2 - Hotplate.
3 - Thermostat temperature for the hotplates

Technical data indicated on the appliance.

Exterior view of a two-whe� electric stove with two circular heat sinks and control knobs (no text or symbols visible)

Instructions for use

GB

INSTRUCTIONS FOR FIRST USE

Before using the device for the first time, operate it without pots for 5 minutes at the maximum temperature in a well-ventilated area to eliminate any odours and fumes due to possible residual traces from production on the internal parts of the device.

Use pots with a base of the same size as the plate.

Use flat-bottomed pots.

In order to save energy, one can switch off the hotplate a short time before completing cooking. The plate releases heat for several minutes after being

switched off.

The cooker is provided with thermostat for temperature setting.

Maintenance

GB

This appliance does not require any special maintenance.

Disconnect the plug from the socket and let the appliance cool down well before cleaning it.

In order to clean the appliance, use a soft or slight damp cloth.

Never use abrasives or chemical solvents.

NEVER IMMERSE THE APPLIANCE IN WATER.

Dry carefully the appliance before to put it back.

Periodically make sure the power cord is not cut or burnt since it is near to the hot plate. If the cable should have been damaged, do not use the appliance, remove the plug and contact an authorized after sales service centre.

Information for domestic electric hobs - Reg. (EU) No 66/2014
Supplier's name or trade mark ARDES
Model identification AR1F18
Type of hob electric
Number of cooking zones and/or areas	1
Heating technology -Cooking zone 1	solid plate
Symbol Value Unit
Diameter - Cooking zone 1 ∅ 10,5 cm
Energy consumption -Cooking zone 1	ECelectric cooking 194,9 Wh/kg
Energy consumption for the hob EC	electric hob 194,9 Wh/kg
Measurement and calculation methods	EN 60350-2:2013 + A11:2014

Information for domestic electric hobs - Reg. (EU) No 66/2014
Supplier's name or trade mark ARDES
Model identification AR1F19 - AR1F19B
Type of hob electric
Number of cooking zones and/or areas	1
Heating technology - Cooking zone 1	solid plate
Symbol Value Unit
Diameter - Cooking zone 1 ∅ 18,5 cm
Energy consumption - Cooking zone 1	ECelectric cooking 194,9 Wh/kg
Energy consumption for the hob EC	electric hob 194,9 Wh/kg
Measurement and calculation methods	EN 60350-2:2013 + A11:2014
Model identification AR1F20
Type of hob electric
Number of cooking zones and/or areas	2
Heating technology -Cooking zone 1	solid plate (left)
Heating technology -Cooking zone 2	solid plate (right)
Symbol Value Unit
Diameter - Cooking zone 1 ∅ 15,5 cm
Diameter - Cooking zone 2 ∅ 15,5 cm
Energy consumption -Cooking zone 1	EC_electric cooking 194,9 Wh/kg
Energy consumption -Cooking zone 2	EC_electric cooking 194,9 Wh/kg
Energy consumption for the hob EC	electric hob 194,9 Wh/kg
Measurement and calculation methods	EN 60350-2:2013 + A11:2014
Model identification AR1F21
Type of hob electric
Number of cooking zones and/or areas	2
Heating technology -Cooking zone 1	solid plate (left)
Heating technology -Cooking zone 2	solid plate (right)
Symbol Value Unit
Diameter - Cooking zone 1 ∅ 15,5 cm
Diameter - Cooking zone 2 ∅ 13,5 cm
Energy consumption -Cooking zone 1	EC_electric cooking 194,9 Wh/kg
Energy consumption -Cooking zone 2	EC_electric cooking 194,9 Wh/kg
Energy consumption for the hob EC	electric hob 194,9 Wh/kg
Measurement and calculation methods	EN 60350-2:2013 + A11:2014

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

- mishandled by unauthorized persons

- improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

PACKAGING

In order to respect the environment, packaging material must be disposed of properly in accordance with separate collection.

Check local regulations.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

DISPOSAL

USER INFORMATION

“Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)”, pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal”.

The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.

The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste.

For more details, please contact the appropriate local authority.

Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.

Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.

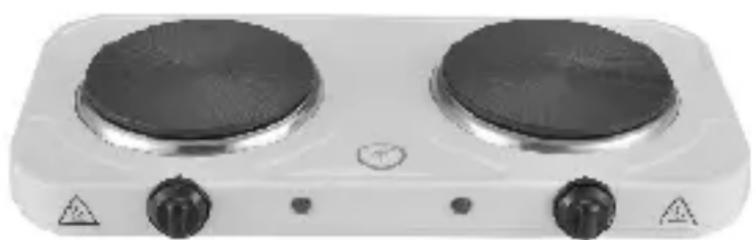

Exterior view of a two-whe� electric stove with two circular burners and control knobs (no text or symbols visible)

INDICATIONS POUR LA PREMIERE UTILISATION.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black bar below (no text or symbols)

MISE AU REBUT

INFORMATION UTILISATEUR

Exterior view of a two-whe� electric stove with two circular burners and control knobs (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

ENTSORGUNG

INFORMATION FÜR DEN BENUTZER

Exterior view of a two-whe� electric stove with two circular burners and control knobs (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black bar below (no text or labels)

ELIMINACIÓN

Two electric cooktop models shown from different angles, labeled 1 and 2 with no visible text or symbols on the devices themselves.

NAVODILA ZA UPORABO

SL

NAVODILA ZA PRVO UPORABO.

Symbol of a trash bin with crossed lines indicating no waste or restriction, accompanied by a solid black rectangle below (no text or labels)

ODSTRANJEVANJE

INFORMACIJA UPORABNIKOM

Exterior view of a two-whe� electric stove with two circular burners and control knobs (no text or symbols visible)

INSTRUKCE PRO PRVNÍ POUŽITÍ.

Exterior view of a two-whe� electric stove with two circular heat sinks and control knobs (no text or symbols visible)

INFORMÁCIE PRE PRVÉ POUŽITIE.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black bar below (no text or symbols)

LIKVIDÁCIA

INFORMÁCIE PRE POUŽÍVATEL'OV

Exterior view of a two-wheeled electrical stove with dual burners and control knobs (no text or symbols visible)

Instructiuni de folosire

RO

INDICATII PENTRU PRIMA UTILIZARE.

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

INFORMATII PENTRU UTILIZATORI
