Indigo IS-505 - Kettle Scarlett - Free user manual and instructions

Product Type	Electric Kettle
Brand	Scarlett
Model	Indigo IS-505
Capacity	1.7 Liters
Power	2200 W
Voltage	220-240 V ~ 50-60 Hz
Body Material	Heat-resistant glass
Color	Blue
Temperature Settings	70°C, 80°C, 85°C, 90°C, 100°C
Keep Warm Function	Yes, up to 120 minutes
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Overheat Protection	Yes
Water Level Indicator	Double-sided scale
Filter	Removable, washable
Cord Storage	Yes, in base
Lid	Push-button opening
Base	360° rotational, with cord storage
Dimensions (approx.)	22 x 18 x 25 cm
Weight (approx.)	1.2 kg

Frequently Asked Questions - Indigo IS-505 Scarlett

How do I use the different temperature settings?

After turning on the kettle, the indicator ‘100°C’ will blink. Press the temperature buttons to select the desired temperature (70°C for white tea, 80°C for green, 85°C for red, 90°C for oolong, 100°C for black). The selected indicator will blink then stay lit during boiling. The kettle turns off automatically when temperature is reached.

Can I use the kettle for other liquids besides water?

No, the kettle is designed only for heating water. Do not use it for milk, oil, or other liquids as it may cause damage or safety hazards.

How do I clean the kettle and remove limescale?

First, unplug and let cool. Clean the exterior with a soft damp cloth and dry. For limescale, use a commercial descaling agent or a mixture of water and vinegar. Run the solution through a boil cycle, then rinse thoroughly. The removable filter can be washed under running water with a soft brush.

What is the keep warm function and how do I activate it?

The keep warm function maintains the selected water temperature for up to 120 minutes. To activate, select your desired temperature, then press and hold the keep warm button for 3 seconds. The indicator stays lit during this time. To stop, press the button again or remove the kettle from the base.

Why does my kettle turn off before boiling?

If there is too little water (below MIN) or no water, the overheat protection activates and turns off the kettle automatically. Wait at least 10 minutes for it to cool, then refill with at least 0.25 liters of water before using again.

How do I properly fill the kettle?

Remove the kettle from the base, press the lid opening button, and pour water. Observe the water level scale – do not fill below MIN (0.25L) or above MAX (1.7L). Close the lid tightly before placing on base and switching on.

Is the filter replaceable? Where can I get a new one?

Yes, the filter is removable and can be cleaned or replaced. Contact Scarlett customer service or an authorized service center for spare parts. The filter prevents scale particles from entering your cup.

What should I do if the kettle doesn't turn on?

Check that the power cord is plugged in securely and the base is dry. Ensure the kettle is correctly placed on the base. If it still doesn't work, the overheat protection may have activated – let it cool for 10 minutes. If problem persists, contact service.

Can I leave the kettle unattended while boiling?

No, you should never leave the kettle unsupervised during use. Unplug after each use. The kettle has auto shut-off, but it's important to stay nearby in case of malfunction.

How should I store the kettle when not in use?

Unplug, let it cool, empty any water, and wrap the cord in the cord storage compartment under the base. Store in a dry, cool place away from heat sources.

USER MANUAL Indigo IS-505 Scarlett

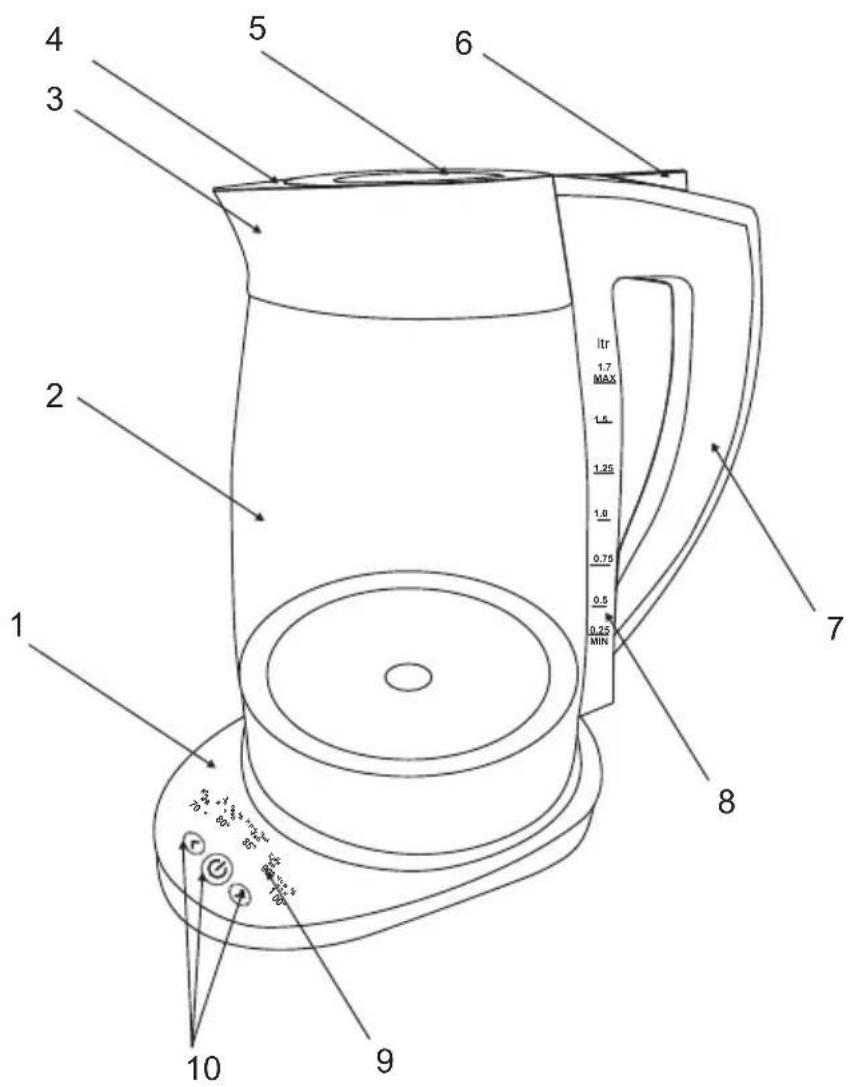

Blue glass Indigo water heater with digital display and control panel (no visible text or symbols on the device itself)

GB

1. Power base with cord storage compartment
2. Body made of heat-resistant glass
3. Nozzle
4. Removable filter
5. Lid
6. Lid opening button
7. Handle
8. Double-sided water level scale
9. Temperature indicators
10. Control buttons

RUS

Pls add month and year of production e.g. 08.2010 at this place

- Please read these operating instructions carefully before connecting your kettle to the power supply in order to avoid damage due to incorrect use.

- Before first switching on check that the voltage indicated on the rating label corresponds to the mains voltage in your house.

- Incorrect operation and improper handling can lead to malfunction of the appliance and injuries to the user.

- For home use only. Do not use for industrial purposes.

• Always unplug the appliance from the power supply when not in use.

- Keep the base unit away from water and protect from splashes.

- Do not immerse the unit, cord or plug in water or other liquids. If it has happened, remove the plug from the wall socket immediately, an expert should check the unit before using it again.

- Do not operate the appliance if the cord or the plug is damaged or if the appliance has been otherwise damaged. In such cases take the appliance to a qualified specialist for check up and/or repair if necessary.

- If the power cord is damaged it should be replaced by the manufacturer or authorized servicing center or qualified professional for safety reasons.

- Ensure that the cord does not hang over sharp edges and keep it away from hot surfaces.

- To disconnect appliance from the power supply pull it out by the plug only, not by the cord.

- Place the appliance on a dry stable non-hot surface, away from hot objects (e.g. hotplates); do not place under curtains and shelves.

- You should never leave the appliance not supervised during use.

- The oven should not be operated by persons (including children) with depressed physical, sensory or mental abilities or by persons who do not have the corresponding knowledge and experience if these persons are not supervised or instructed about the use of the oven by another person responsible for their safety.

• Children should be supervised and should not be permitted to play with the oven.

- Use the kettle only with the base unit supplied, and do not use the base unit for any other purposes.

- Never take the kettle off from its base unit while in operation. Switch the appliance off first.

- Close the lid properly before switching on. Otherwise, the appliance will not switch off automatically and the hot water may overflow.

- The kettle is for heating water only, not for any other purposes and liquids.

- If the product has been exposed to temperatures below 0^ C for some time it should be kept at room temperature for at least 2 hours before turning it on.

- The manufacturer reserves the right to introduce minor changes into the product design without prior notice, unless such changes influence significantly the product safety, performance, and functions.

2. BEFORE USING FOR THE FIRST TIME

- Remove all packing materials and sticker from the kettle.

- Fill the kettle with cool water up to the maximum level mark and boil it. Empty the kettle. Repeat this operation. The appliance is ready for use.

3. INSTRUCTION FOR USE

3.1.FILLING

- In order to fill the kettle with water take the kettle off its base, open the lid by pressing the lid opening button, pour in the water observing the water level scale.

• In order to avoid overheating the kettle do not pour in more than 0.25 liters of water (below "MIN" mark). Do not pour in more than 1.7 liters of water (above "MAX" mark), otherwise the water may overflow through the nozzle when it starts boiling.
• Close the lid tightly.

3.2.BOILING

• Place kettle with water on the power base.
• Plug the cord in the socket.
• Press 🎨 button to turn on the kettle.
• Light indicator "100°C" will start blinking; once the indicator stops blinking, the kettle will start boiling the water. Button "lnd indicator "100°C" will remain lit during the boiling.
• Once the water starts boiling, the indicator and the button will turn off, and the kettle will turn off automatically.

3.3. HEATING WATER UP TO CERTAIN TEMPERATURE

• The kettle has five temperature modes. Using these modes you may select the best temperature for brewing various types of tea and reveal their unique taste.
• Indicator "100°C" will start blinking once the kettle is turned on. You may select different temperature modes using buttons". The indicator showing the selected temperature will start blinking, and it will remain lit during the boiling.
• Once the water reaches the selected temperature level, the kettle will turn off automatically.
  • Recommended brewing temperatures:
• 70°C- white tea
• 80°C- green tea
• 85°C - red tea
• 90°C - oolong tea
• 100°C- black tea

• Temperature maintenance function allows maintaining the selected temperature for 120 minutes, and it helps you avoid additional boiling.
• Press "button.
• Using "buttons" select the desired temperature. The indicator reflecting the selected temperature will start blinking.
• To turn on the temperature maintenance function press "button and keep it pressed for 3 seconds.
• The temperature maintenance function will remain active for 120 minutes. The indicator reflecting the selected temperature will remain lit during this time.
• In order to terminate the temperature maintenance function press "button or remove the kettle from the power base.

3.5.TURNING OFF

• You may turn off the kettle independently by removing it from the base or by pressing " " button one more time.
• ATTENTION: Your kettle is equipped with overheating protection system. If there is too little or no water in the kettle, it will turn off automatically. If this happens you have to wait for at least 10 minutes until the kettle cools off. Then you may fill the kettle with water again.

3.6.SUBSEQUENT TURN-ON

- Wait 15-30 seconds after the kettle turns off; then you may turn it on again to boil the water.

4. CARE AND CLEANING

• Remove the plug from the socket and let the appliance cool down completely.
• Open the lid and pour out the water.
• Clean the outside of the kettle and the base unit with a soft damp cloth, then wipe with a dry cloth. Do not use any abrasive materials.

GB

INSTRUCTION MANUAL

- Remove scale regularly using special descaling agents available at the market.

4.1. FILTER CLEANING

• Remove the filter out of the kettle.
• Place it under a jet of water and rub gently any remaining elements with a soft brush (not included).
• Return the filter back to its place.

5. STORAGE

• The cord could be winded into a cord storage compartment provided in the base unit.
• Switch the appliance off, unplug it, and let it cool.
• Complete all requirements of CLEANING AND CARE section.
• Keep the appliance in a dry cool place.
