Product Type	Tablet
Brand	Wolder
Model	MiTab Evolution T1
Processor	Rockchip RK3066 1.5 GHz dual-core Cortex A9
RAM	1 GB DDR3
Storage	8 GB internal, expandable via microSD up to 32 GB
Display	7-inch TFT LCD, 1024x600 capacitive touch
Wi-Fi	IEEE 802.11 b/g/n
Bluetooth	V 3.0
Video Output	Mini HDMI Type C (1080p/720p)
Audio Output	3.5 mm headphone jack
USB	USB 2.0 high speed
Camera (Front)	0.3 MP
Camera (Rear)	2 MP
Speaker	1 x 1.5 W
Microphone	Built-in
Operating System	Android 4.1
Battery	Rechargeable Li-poly, DC 5V 2A adapter
Approximate Dimensions	190 x 120 x 10 mm
Approximate Weight	300 g

Frequently Asked Questions - MiTab Evolution T1 Wolder

How do I turn on the Wolder MiTab Evolution T1?

Press and hold the Power button until the screen lights up. Wait for the Home screen to appear.

How do I connect to a Wi-Fi network?

Go to Settings > Wireless & networks and turn on Wi-Fi. Select your network from the list and enter the password if required.

How do I increase storage on the tablet?

Insert a microSD card (up to 32 GB) into the TF-CARD slot. The card will be recognized automatically.

How do I connect the tablet to a TV?

Use a Mini HDMI to HDMI cable (Type A to Type C). Plug the small end into the tablet and the large end into the TV. Set the TV to the correct HDMI input.

How do I reset the tablet if it freezes?

Press the RESET button (located on the device) using a paperclip or similar tool. This will restart the system.

How do I take a screenshot?

Press and hold the Power button and Volume Down button simultaneously until you hear a shutter sound.

What is the battery life of the tablet?

Battery life varies: approximately 5 hours for music, 2.5 hours for video playback, and 3.5 hours for web browsing.

How do I transfer files from a computer?

Connect the tablet to your computer via USB. On the tablet, slide down the notification bar and tap USB connected, then select Turn on USB storage. You can now copy files.

How do I enable Bluetooth?

Go to Settings > Bluetooth and toggle the switch on. Make your device discoverable to pair with other devices.

The touch screen is not responding. What should I do?

Try cleaning the screen with a soft cloth. If the issue persists, perform a reset using the RESET button. If still not working, contact support.

USER MANUAL MiTab Evolution T1 Wolder

Manual de usuario

User's manual

Manual do utilizador

wolder

freedom to move

Índice

Índice....P1

Close-up of a green leaf with visible vein patterns, set against a blurred green background (no text or symbols)

Close-up of green leaf venation pattern with grid overlay and clock (no text or symbols)

Table of Contents.....P1

Features.....P2

Unit at a Glance ......P3

Getting Started.....P4-P5

About Applications.....P5-P6

Preinstalled Applications.....P6

Connect to a Wi-Fi network.....P7-P8

Bluetooth Connection ......P9

Optional Connections.....P10-P11

Specifications.....P11

Features

Browse the Web.

Visit your favorite websites

Check your e-mail

Keep in touch with friends and family

Watch YouTube™ videos

Browse the world's most popular video-sharing community

Read your favorite books

Download thousands of books with the included E-book reader *

Discover thousands of apps for Android ^TM

Games, applications, and more with marketplace(need for customer installed)

Connect to the Internet wirelessly

High-speed Wi-Fi 802.11 b/g/n networking

Enjoy your media library anywhere

Portable powerhouse plays popular music, video, and photo formats

microSD memory card reader

Increase your storage capacity (up to 32 GB supported)

Built-in camera

Convenient front-facing camera(0.3MP), rear 2MP

Automatic orientation detection

Read any way you want; the display adjusts automatically!

Reading books in the ePub format requires the included E-book reader application.

Requires optional HDMI cable

(Type A-to-Type C). 1080p HD video playback requires a video file encoded at 1080p.

Streaming video quality will be affected by the source, and the quality and condition of your network connection.

Unit at a Glance

1. POWER

Press to turn the unit on, or to turn the screen on or off.

Press and hold to access the Power Off menu.

2. Headphone

Audio output connection for headphones.

3.USB

Connect to a USB device or a computer to transfer data (e.g. music, videos, photos, files).

4.HDMI

Connect to a TV or other displays.

5.MIC

Use internal MIC to record voice.

6.DC IN 5V

Connect to an adapter or a computer to supply power.

7/8.VOL+ / VOL-

Press VOL+ to increase the volume level.

Press VOL- to decrease the volume level.

9. RESET

Press this button to reset the system when the device is halted.

10.TF-CARD

Load external TF-cards here.

11.CAMERA

Use it to take pictures or capture videos.

Getting Started

Turning the Tablet on or off

To turn the tablet on:

Press and hold the Power key until the LCD screen turns on. Wait until the Home screen appears; the tablet is now ready for use.

To turn the tablet off:

1. Press and hold the Power key until the Device Options menu appears.

1. Touch ok the screen to turn off the tablet.

Turning the Screen On or off (Standby)

When the tablet is on, you can turn off the screen to conserve battery power. Simply press the Power key once to turn the screen off. Press the Power key again to turn the screen back on.

To conserve battery power, the screen can be set to turn off automatically when the tablet is not in use (between 15 seconds and 30 minutes). This Screen timeout option can be found in the Display menu.

Getting Started Unlocking the Screen

When the screen turns off, you will have to unlock the screen

when you turn it back on.

To unlock the screen, drag the lock icon across the screen towards the lock icon.

About Applications

To open an application, touch the application icon on the home screen or in the Launcher where you can tap the icon right up on the home screen to get in.. Launcher screen:

The screen shown above is for illustrative purposes only. Reserves the right to modify and improve the final list of applications available on the tablet.

About Applications

Preinstalled Applications

Some applications have been installed on your tablet for your convenience.

These applications include:

Browse the web.

Perform simple mathematical operations.

Take pictures or videos with the frontfacing camera.

Check your e-mail.

Play music.

Access the Settings menu to adjust the tablet's options.

Preinstalled Applications

Installing Applications

You can also download an install additional applications from the device's applications marketplace, the web browser, or other sources.

The tablet must be set to allow installation of applications from non-Market sources. The Unknown sources option can be set in the Application settings menu.

Connect to a Wi-Fi network

The Notification bar displays icons that indicate your tablet's Wi-Fi status.

Notification that an open Wi-Fi network is in range.

Connected to a Wi-Fi network (waves indicate connection strength).

[no icon] There are no Wi-Fi networks in range, or the Wi-Fi radio is off.

1. Turn on the Wi-Fi radio if it is not already on. To turn on Wi-Fi:

a.Go to the Home screen: Press the Home key.

b.Open the Settings menu: tap the icon right up on the home screen to get into the launcher, then touch Settings icon.

c.Open the Wireless & networks menu: Slide the icon to ON status.

When Wi-Fi is on, the tablet will look for and display a list of available Wi-Fi networks.

If a network that you have connected to previously is found, the tablet will connect to it. If you don't see your network in the list, you can force the tablet to re-scan. To scan for networks, tap the Menu key, and then touch Scan.

Connect to a Wi-Fi network

2. Select an available Wi-Fi network to connect to:

In the same Wi-Fi settings menu above, touch a network in the list.

If the network is open, the tablet will prompt you to confirm connection to the network. Touch Connect to confirm.

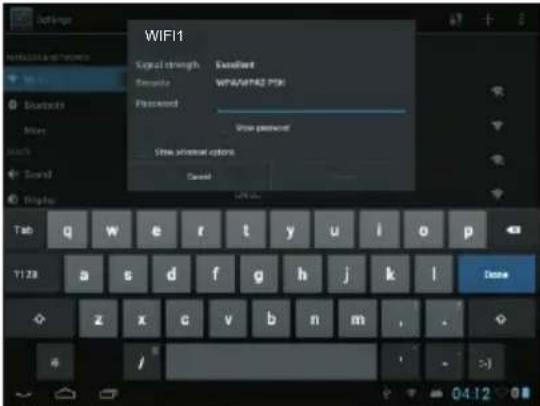

If the network is secured (as indicated by a Lock icon), the tablet will prompt you to enter a password or other credentials. Touch the Wireless password box to show the on-screen keyboard and then use it to enter the password. Touch Connect to confirm.

When you have successfully connected to a Wi-Fi network, the Notifications bar at the low of the screen will show a Wi-Fi signal indicator.

Close-up of a green leaf with visible vein patterns, no text or symbols present

To learn about how to add a Wi-Fi network when it is not in range or when the router is set to obscure the network name (SSID); or to configure advanced Wi-Fi options, please refer to the manual.

Bluetooth Connection

Functions of bluetooth:

1. You can exchange the files between two bluetooth device. You can exchange the files with other computers, mobile phones and PDA.
2. You can synchronously exchange pims data with mobile phones, PDA and laptop to support the bluetooth (data of outlook E-mail address).
3. You can exchange the electronic name card with mobile phones, PDA and laptop to 4. You can connect the keyboard, mouse and joystick to support the bluetooth.

Application of bluetooth

1. Setting procedure of entering into bluetooth: setting -> bluetooth setting, open the bluetooth equipment.
2. Name of equipment: you can randomly change the name of bluetooth for your MID by pressing Menu key.

3. Detectability: open this function by clicking the place for name of bluetooth, which indicates that your MID bluetooth can be searched by other bluetooth equipments, the default time for this opening is 120 seconds.

4. Scan and look for equipment: you can detect the equipment desired to be connected by utilizing this function.

5. Bluetooth: after the scan to look for the equipment, all bluetooth equipment searched by your MID can display under this function.

BlueZ: Click this and open the detectability function.

: Click this icon to search for the equipment.

Optional Connections

Connecting to a Computer

Connect the tablet to a computer to transfer files.

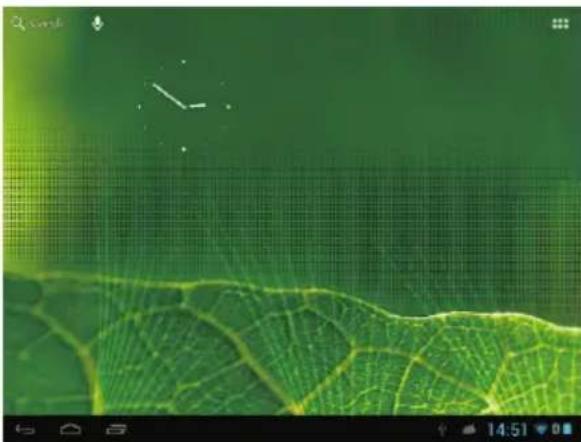

1. Connect your tablet to the computer.

With the included USB cable: Plug the small end of the cable into the USB 2.0 high speed connector of the tablet. Plug the large end of the cable into an available USB 2.0 high speed port on the computer.

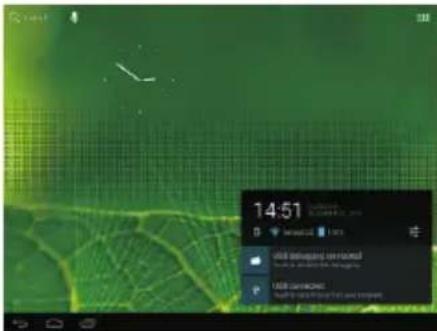

1. When your tablet is connected, slide up the USB icon right down on the screen and then touch icon USB connected.

Close-up of a green leaf with visible vein patterns, set against a blurred green background (no text or symbols)

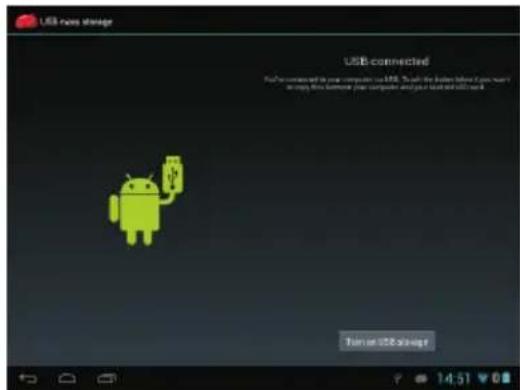

3. Mount the storage.

Touch button Turn on USB storage to mount the tablet's built-in storage. When it is mounted, you can copy files to or from your tablet.

Optional Connections Connecting to a Computer

To connect the tablet to the TV:

1. Plug the small end of the HDMI cable into the mini HDMI connector on the tablet.
2. Plug the large end of the HDMI cable into the HDMI port on the TV.
3. Turn on the TV, and set its display mode to the HDMI port that the tablet is connected to.

If you need help setting the display mode of the TV, please refer to the documentation provided by the TV manufacturer. If there is no sound from the tablet on your TV, you may need to set the HDMI switch settings, on the TV.

Specifications

Processor	ROCKCHIP RK3066 1.5GHz(dual-Cortex A9)
RAM	1GB DDR3
Storage	8 GB(option) flash built-in; micro SD card slot (max.32GB supported)
Display	7"TFT LCD(1024x600), Capacitive touch screen
Wi-Fi Networking	IEEE 802.11 b/g/n
Bluetooth	V 3.0
Video Output	Mini HDMI type C(1080p and 720p supported)
Audio Output	3.5mm headphone
PC Interface	USB 2.0 high speed
Additional Features	Built-in microphoneFront facing camera(0.3MP)Rear camera(2MP)1x1.5W speaker
Operating System	Android^TM 4.1
Power	Rechargeable Li-poly battery powerAdapter(DC 5V, 2A)
Playback Time (hours)	5 hours music, 2. 5 hours video, 3. 5 hours web browsing

Music was tested with a 128 kbps MP3 file; video was tested with a 1920x1080 MPEG-4/AVC file; browsing was tested with the screen brightness set to default. Actual playback results may vary.

DECLARATION OF CONFORMITY

GLOBAL WOLDER GROUP S.L, Polígono Industrial de Barros n°29, 39408 Barros, Cantabria. España, certifies that this product, referenced as Mitab Evolution T1, complies with the provisions of the Directive 99/05/CE about Radio Equipment and Telecommunications Terminal (R&TTE), and the Directive 2004/108/CEE of Electromagnetic Compatibility standards in accordance to harmonized standards.

Índice

Índice....P1

Close-up of a green leaf with visible vein patterns, set against a blurred dark background (no text or symbols)

Close-up of a green leaf with visible vein patterns, set against a blurred green background (no text or symbols)

1. Preparar o armazenamento.
