TV-LED1912D - Television QFX - Free user manual and instructions

Product Type	LED TV
Screen Size	19 inches
Display Resolution	1366 x 768 (HD)
Aspect Ratio	16:9
Brightness	200 cd/m²
Contrast Ratio	1000:1 (typical)
Viewing Angle	170° horizontal / 160° vertical
Refresh Rate	60 Hz
Connectivity	HDMI, USB, VGA, AV composite, RF antenna, 3.5mm audio out
Audio Output	2 x 3W speakers
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	≤30W (standby <0.5W)
Dimensions (without stand)	440 x 270 x 60 mm
Weight (without stand)	2.5 kg
VESA Mount Pattern	100 x 100 mm
Tuner	ATSC (NTSC optional) – region dependent
Remote Control Included	Yes
Wall Mountable	Yes (VESA 100x100)
Clean with	Soft dry cloth, mild cleaner if needed
Repairability	Spare parts available via QFX service center
Safety Certifications	FCC, UL, CE (depending on region)

Frequently Asked Questions - TV-LED1912D QFX

How do I connect my QFX TV-LED1912D to a cable box?

Use an HDMI cable for best quality. Connect one end to the HDMI output of your cable box and the other to any HDMI port on the TV. Then select the corresponding HDMI input using the Source button on the remote.

Why is there no sound from my TV?

Check that the volume is not muted and is turned up. Also verify that the audio cables are connected correctly. If using external speakers, ensure they are powered on. Try pressing the Mute button on the remote to unmute.

Can I mount this TV on the wall?

Yes, the TV has a VESA 100x100 mm mounting pattern. Use a compatible wall mount bracket. Make sure to secure the mount to wall studs and follow the instructions provided with the mount.

What is the screen resolution of the TV-LED1912D?

The screen resolution is 1366 x 768 pixels, which is HD (720p). It provides clear and sharp images for most content.

How do I change the input source?

Press the Source or Input button on the remote control. A list of available inputs (HDMI1, HDMI2, VGA, AV, USB, TV) will appear. Use the arrow keys to select the desired source and press OK.

The remote control is not working. What should I do?

First, replace the batteries with new ones. Make sure the batteries are inserted correctly (polarity). Also ensure there are no obstacles between the remote and the TV sensor. If it still doesn't work, try resetting the TV by unplugging it for 30 seconds.

How do I clean the TV screen?

Use a soft, dry microfiber cloth to gently wipe the screen. For stubborn smudges, slightly dampen the cloth with water or a mild screen cleaner. Never spray liquid directly on the screen; apply to cloth first.

Does this TV have a USB port for playing media?

Yes, there is a USB port that supports playback of photo, music, and video files from USB drives. Compatible formats include JPEG, MP3, MP4, AVI, and MKV (check manual for full list).

What is the power consumption of the TV?

The typical power consumption is less than 30 watts during operation. In standby mode, it consumes less than 0.5 watts.

How can I get spare parts or repair service?

Contact QFX customer support or visit their official website to locate an authorized service center. Parts such as the remote control, power board, and screen may be available for purchase.

USER MANUAL TV-LED1912D QFX

18.5" Full Color LED TV

with Multimedia Player

MODEL NO.: TV-LED1912D

Black-and-white photo of a soccer player kicking a ball on a grass field, with spectators in the background (no visible text or symbols)

INSTRUCTION MANUAL

IMPORTANT INSTRUCTIONS

Safety information

CAUTION:

DVD/VIDEO CD/CD PLAYER IS A CLASS 1 LASER PRODUCT. HOWEVER THIS DVD/VIDEO CD/CD PLAYER USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD/VIDEO CD/CD PLAYER CORRECTLY AS INSTRUCTED.

WHEN THIS DVD/VIDEO CD/CD PLAYER IS PLUGGED TO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOENTER INTO THE INSIDE OF THIS PLAYER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

• TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE THIS PLUG WITH AN EXTENSION CORD. RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
• TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION - LASER RADIATION WHEN OPEN, DO NOT STARE INTO BEAM. VENTILATION WARNING - THE NORMAL VENTILATION OF THE PRODUCT SHALL NOT BE IMPEDED FOR INTENDED USE.

The lightning flash and arrow head within the triangle is a warning sign alerting you of “dangerous voltage” inside the product.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product.

Always follow basic safety precautions when using electrical products, especially when children are present.

WARNING: To avoid the risk of electrical shock, make sure the product is unplugged from the electrical outlet before relocating, servicing, or cleaning it.

Read all instructions before using

I Do not use this product near water.
I Install the product in accordance with the operating instructions.
Do not set the product near heat sources, such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit the product.
I Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
I Unplug the product during lightning storms or when unused for long periods of time.
The product shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the product.
I Do not place in or expose the product to direct sunlight, extreme heat, humid or dusty locations.
I Never operate this product if it has a damaged power cord or plug, do not work properly, has been dropped, damaged, or exposed to moisture, water, or other liquids.
Do not attempt to examine or repair this product yourself; take the product to a service center for inspection and repair.
I Keep magnetic objects such as speakers, at a distance from the player.

LASER SAFETY

This set employs an optical laser beam system in the CD mechanism designed with built-in safeguards. Do not attempt to disassemble. Exposure to this invisible laser light beam may be harmful to the human eye. This is a Class-1 laser product. Use of controls, adjustments or procedures other than those specified herein may result in hazardous laser light beam exposure. This compact disc player should not be adjusted or repaired by anyone except qualified service personnel. The laser mechanism in the set corresponds to the stylus (needle) of a record player. Although this product uses a laser pick-up lens, it is completely safe when operated according to directions.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications. Such modifications could void the user's authority to operate the equipment.

1) Operate turning controls and switches as instructed in the manual.
2) Before turning on the power for the first time, make sure that the power cord is properly installed.
3) Store your discs in a cool area to avoid damage from heat.

Battery Handling and Usage

• Keep batteries away from children and pets. Only adults should handle batteries.
  ● Never throw batteries into a fire or expose them to fire or other heat sources.
  ● Follow the battery manufacture satiety and usage instructions.

DISC Handling and Maintenance

Handling precautions

Hold the disc by the edges so the surface will not be soiled with fingerprints. Fingerprints, dirt and scratches can cause skipping and distortion.
Do not write on the label side with a ball-point pen or other writing utensils.
Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids.
1 Be careful not to drop or bend the disc.
Do not install more than 1 disc on the disc compartment.
Do not try to close the disc cover when the disc is not installed properly.
1 Be sure to store the disc in its exclusive case when not in use.

If the surface is soiled

Wipe gently with a soft, damp (water only) cloth.

When wiping discs, always move the cloth from the center hole toward the outside, which will not cause distortion. (If you wipe the discs using a circular motion, circular scratches are likely to occur, which will cause distortion.)

If the disc is brought from a cold to a warm environment moisture may form on the disc

Wipe this moisture off with a soft, dry, lint-free cloth before using the disc.

Improper disc storage

You can damage discs if you store them in the following places:

Areas exposed to direct sunlight
1 Humid or dusty areas
Areas directly exposed to a heat outlet or heating appliance

Maintenance

1 Be sure to disconnect the AC adaptor before maintaining the player.
1 Wipe the player with a dry, soft cloth.
If the surfaces are extremely dirty, wipe clean with a cloth which has been dipped in low concentration soap-and-water solution and wrung out thoroughly, and then wipe again with a dry cloth.
Never use alcohol, benzine, thinner, cleaning fluid or other chemicals. And do not use compressed air to remove dust.

ACCESSORIES

Simple line drawing of a device connected to two cables, one with connectors and the other with three leads (no text or symbols)

Desktop AC adaptor and power cord ....1

Instruction manual ....1

Black remote control with control buttons and a keypad, enclosed in a circle (no text or symbols visible)

Remote control with battery ....1

Simple line drawing of a handheld device with a coiled cable and connector, enclosed in a circle (no text or symbols)

Car cord ....1

All the pictures in this instruction manual are just for your reference, specification should refer to actual accessories.

TABLE OF CONTENTS

GETTING STARTED

IMPORTANT INSTRUCTIONS....1-3

ACCESSORIES....4

FEATURES....6

GENERAL PARTS....7

REMOTE CONTROL....8-9

REMOTE CONTROL PREPARATION....10

BASIC CONNECTION....11-13

OPERATIONS

BASIC OPERATIONS....14-26

Compatible DVD with playback control....14-21

TV....22-26

MAIN MENU....27-37

TV MODE....27-36

PC MODE....36-37

FOR REFERENCE

MAINTENANCE....38

SPECIFICATIONS....38

TROUBLESHOOTING....39-40

REGION CODE SETTING....40

FEATURES

18.5" TFT DISPLAY

This player has a built-in 18.5" TFT display window to provide clear vision and low radiation.

WITH BUILT-IN DVD PLAYER

SUPPORT AUTO TV SCANNING

SUPPORT DIGITAL BROADCASTING RECEPTION

SUPPORT ELECTRONIC PROGRAM GUIDE

SUPPORT USB MULTIMEDIA PLAYBACK

NOTE: Both of TV and DVD modes can support USB multimedia playback.

SUPPORT MULTI-LANGUAGE ON SCREEN DISPLAY

SUPPORT FULL FUNCTION REMOTE CONTROL

SUPPORT PC AUDIO, ANT, VGA, VIDEO, AUDIO R/L, HDMI AND YPBPR INPUT

WITH HEADPHONES AND COAXIAL OUTPUT JACK

WITH EXTERNAL ANTENNA JACK

WITH BUILT-IN SPEAKERS

WITH WEAK SIGNAL ENHANCEMENT FUNCTION

WITH NOISE REDUCTION FUNCTION

GENERAL PARTS

MAIN UNIT

1. TFT display screen
2. Remote control sensor
3. Power indicator- In standby mode the indicator light will display red color; when switching on the unit the indicator light will display blue color.
4. Stand holder
5. SOURCE button- To select the input source.
6. MENU button- To enter menu setting page.
7. CH-button-To select previous channel or move down.
8. CH+ button- To select next channel or move up.
9. VOL- button- To decrease the volume level or move left.
10. VOL+ button- To increase the volume level or move right.
11. POWER button- To switch ON/OFF the TV.

12. Disk slot-To insert a disk according to the silk screen on the left of this slot.

13. ▲ - To open or close the disc compartment.

14. ▶ - To play or pause playing.

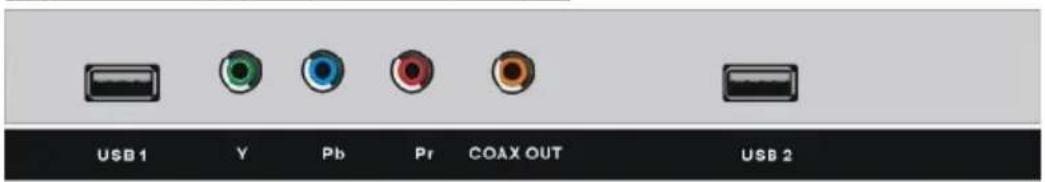

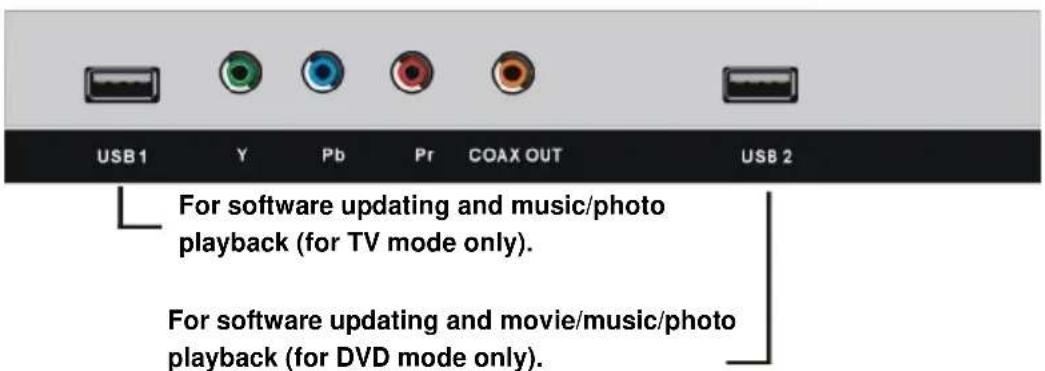

15. USB1 slot- For multimedia playback in TV mode.
16. Y Pb Pr input jack
17. COAX OUT jack
18. USB2 slot- For multimedia playback in DVD mode.
19. HEADPHONES output jack
20. PC AUDIO input jack

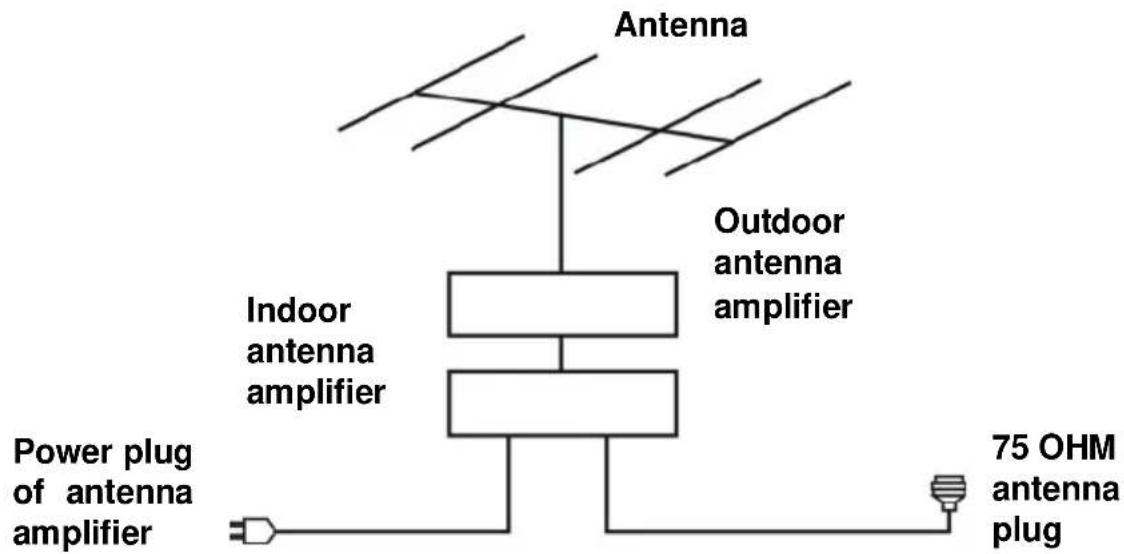

21. ANT input jack- To connect the antenna.
22. VGA input jack
23. VIDEO input jack
24. AUDIO L/R- To connect the audio output jack of DVD or VCR.

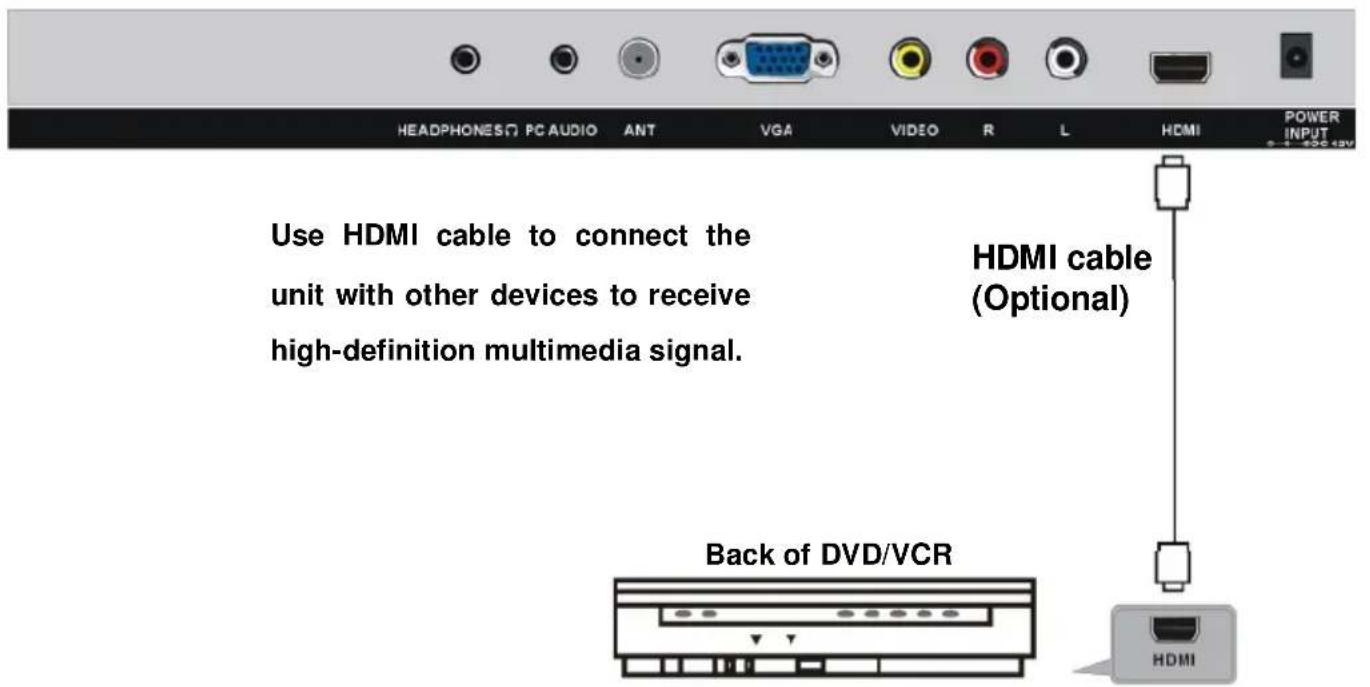

25. HDMI input jack
26. POWER input

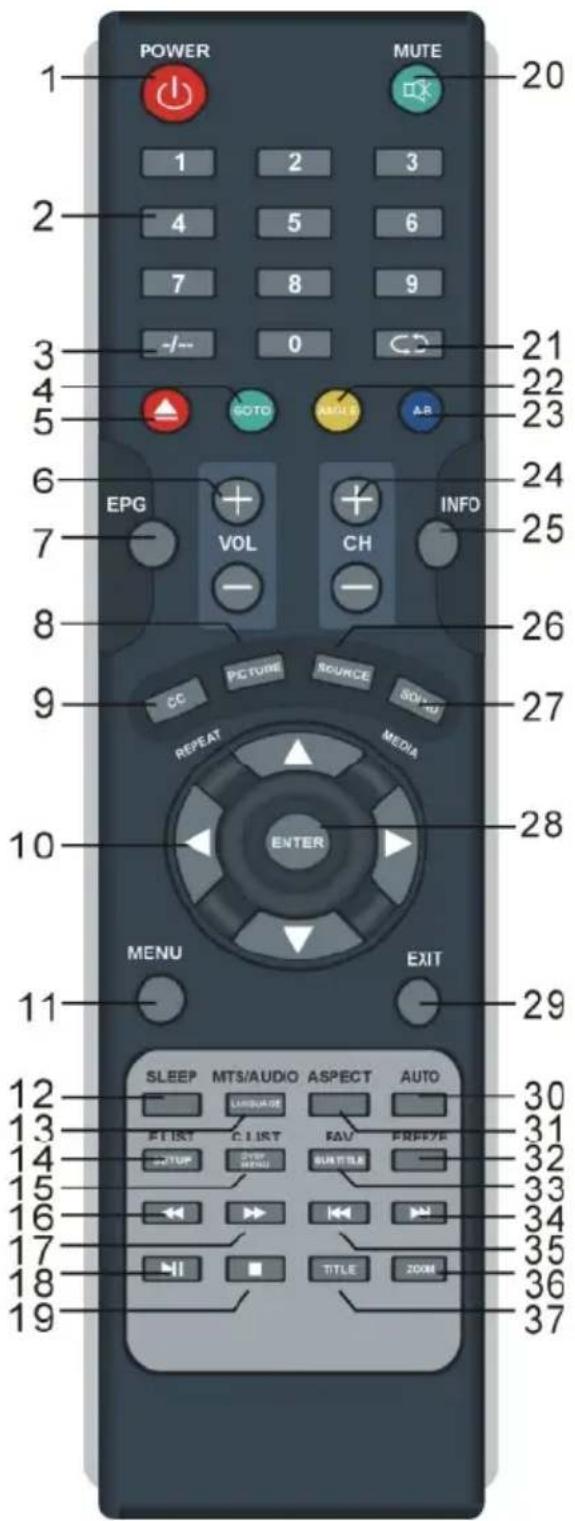

REMOTE CONTROL

1. POWER: To set the unit in standby mode; press it again to switch it on.
2. NUMBERIC BUTTONS (0-9): To input the number information, such as channel number and so on.
3. -/--: To select additional channels (digital) being broadcast by the same station. For example, to select channel "15-3", press "1" and "5", then press "-/--" and "3".
4. GREEN button / GOTO: To play from a certain point in DVD mode.
5. RED button / ▲ : To open or close the disc compartment in DVD mode.
6. VOL +/-: Press VOL+ button to increase the volume, or press VOL- button to decrease the volume.
7. EPG: To display electronic program guide information.
8. PICTURE: To switch the picture mode.
9. CC / REPEAT: To set CC function On or Off in TV mode; to repeat playing chapter or title (for DVD) or track for (VCD/CD)
10. Navigation buttons: Press ▲/▼/◄/► buttons to move up/down/left/right.
11. MENU: To display the main menu. Press it again to return to previous menu page.
12. SLEEP: To select desired Sleep Timer.
13. MTS/AUDIO / LANGUAGE: To select desired soundtrack in TV mode; to select desired soundtrack language for DVD mode.

14. F.LIST / SETUP: To display the favorite channels list page in TV mode; to enter setup menu page in DVD mode.

15. C.LIST / DVD MENU: To display available channels list page in TV mode; to return to the root menu (for DVD) or turn on/off the PBC (for VCD).

16. ◀: To move fast backward.

17. ▶▶ : To move fast forward.

1. ▶I : To play or pause playing.
2. ■ : To stop playing.
3. MUTE: To mute the sound.
4. CD: To return to previous channel or input source.
5. YELLOW button / ANGLE: To display the angle and change angle in DVD mode.
6. BLUE button / A-B: To repeat playing between two specific points (A-B).
7. CH+/-: Press CH+ button to play next channel, or press CH- button to play previous channel.
8. INFO: To display current program information.
9. SOURCE: To switch the input source.
10. SOUND / MEDIA: To switch the sound mode in TV mode; to switch the unit between DISC/USB in DVD mode.
11. ENTER: To confirm a selection.
12. EXIT: To exit menu page.
13. AUTO: To adjust the screen automatically (in PC mode).
14. ASPECT: To select desired displaying mode.
15. FREEZE: To hold the picture during normal playing.
16. FAV / SUBTITLE: To label current program as a favorite one or not in TV mode; to select desired subtitle.
17. ▶: To play next chapter.
18. : To play previous chapter.
19. ZOOM: To enlarge/shrink the pictures in DVD mode.
20. TITLE: To display the title of current played disc.

REMOTE CONTROL PREPARATION

BATTERY INSTALLATION

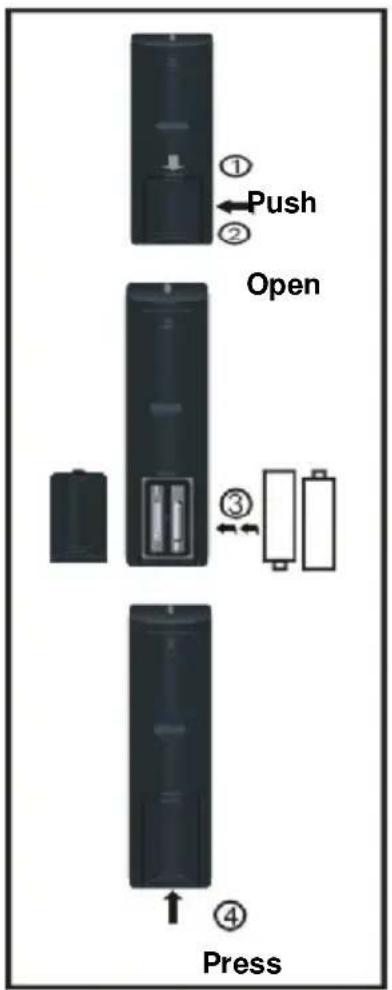

Install the batteries as the following pictures. Be sure + and - terminals are positioned as indicated in the battery compartment (Fig1).

SERVICE LIFE OF BATTERIES

• The batteries normally last for one year although this depends on how often the remote control is used.
• If the remote control fails to work even when it is operated near the player, replace the batteries.
• Use two size AAA dry batteries.

NOTE:

• Do not drop, step on or otherwise impact the remote control. This may damage the parts or lead to malfunction.
• If the remote control is not going to be used for a long time, remove the batteries.

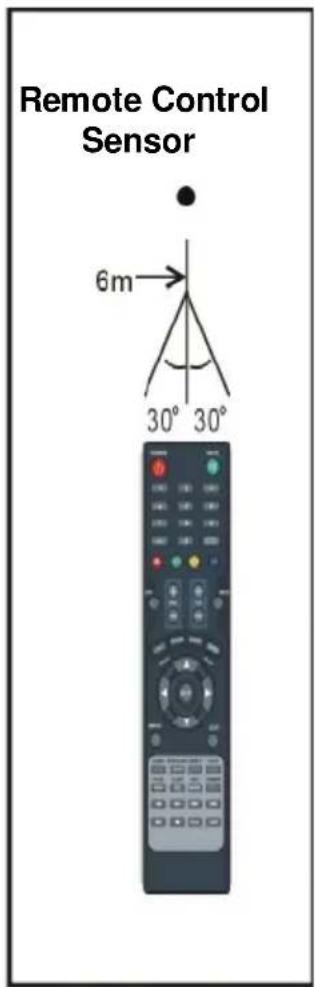

Point the remote control from no more than about 6m from the remote control sensor and within about 60° of the front of the player(Fig2).

NOTES:

• The operating distance may vary according to the brightness of the room.
• Do not point bright light at remote control sensor.
• Do not place objects between the Remote control and the remote control sensor.
• Do not use this remote control while simultaneously operating the remote control of any other equipments.

Fig1

Fig2

BASIC CONNECTION

• Ensure all the cables are disconnected from the main unit before connecting to AC power source by AC power adaptor.
• Read through the instructions before connecting other equipments.

CONNECTING TO AC POWER SOURCE

CONNECT EXTERNAL ANTENNA TO UNIT

Install external antenna into antenna jack for best picture.

PC/VGA CONNECTION

COMPOSITE AV CONNECTION

COAXIAL OUT CONNECTION

Use coaxial cable to connect the unit with amplifier or other audio decoding devices for coaxial audio signal output.

HDMI CONNECTION

YPbPr CONNECTION

CONNECTING TO USB MEMORY DEVICE

MAKE SURE ALL THE EQUIPMENTS AND AC ADAPTOR ARE CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE BEFORE KINDS OF OPERATIONS.

BASIC OPERATIONS

- Press POWER button on the top of this unit to POWER ON the unit (indicator light displays in blue), press it again to POWER OFF the unit (indicator light displays in red). Or press POWER button on remote control to POWER ON the unit (indicator light displays in blue), press it again to STANDBY mode (indicator light displays in red).

Compatible DVD with playback control

- Press SOURCE button on unit top or remote control to set the unit in DVD mode.

1. Basic play

1. Make sure the disc compartment has no disc. Place a disc into the disc compartment. Hold the disc without touching either of its surfaces, position it with the readable (mirror) side facing towards you, then the disc will automatically enter into the disc compartment; or you can press
   ▲ button on remote control or the left side of this unit to enter the disc into the disc compartment.
2. Once the disc is in the disc compartment, the player starts to read the disc immediately.
3. When a menu screen appears on the unit, move the navigation buttons or press the number buttons to select preferred track number, then press ENTER button to confirm.
4. To stop playing and return to the menu screen, press TITLE or DVD/MENU button.

2. Stopping play

Press ■ (STOP) button to stop playing.

NOTE: When player is stopped, the player records the point where STOP was pressed (RESUME function). Press ▶ (PLAY) button again, playback will resume from this point. When the tray is taken out or ■ (STOP) is pressed again, the RESUME function will be cleared.

3. Skipping ahead or back

Skipping ahead

During playback, press ▶ button to skip the next chapter (DVD) or a track (Video CD/CD).

Skipping back

During playing, press ◀◀ button to skip the previous chapter (DVD) or track (Video CD/CD).

4. Fast forward/Fast backward

During playback, press ▶ button or ◀ button to fast forward/backward.

Press ▶ (PLAY) button to resume normal play.

5. Pause/play

During playback, press ▶ button to pause playing, press it again to resume normal playback.

6. MUSIC playback

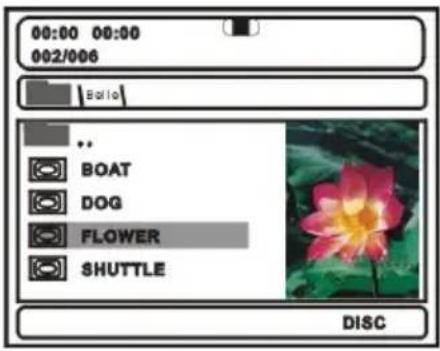

1. Insert the disc containing the files in MUSIC format to be played and after a few seconds, the screen of the monitor will show all the folders on the disc.
2. Select the folder you want to play by the navigation buttons and press the ENTER button to confirm.
3. The files in this folder are displayed and select the desired song by navigation buttons, then press the ▶ (PLAY) or ENTER button to start playback.
4. Press ▶▶ or ◀◀ button to turn the current menu page to the next or previous menu page.

5. Press CC (REPEAT) button on remote control to change play mode.

6. SHUFFLE: all the files will be randomly sorted and played by the order.

7. RANDOM: randomly select any file to play.
8. SINGLE: play one file only.
9. REPEAT ONE: repeat one file.
10. REPEAT FOLDER: all the files in the folder will be played repeatedly.
11. FOLDER: all the files in the folder will be played.

7. MOVIE playback

1. Insert the disc containing movie files to be played and after a few seconds, the screen of the monitor will show all the folders on the disc.
2. Select the folder you want to play by the navigation buttons and press the ENTER button to confirm.

1. The files in this folder are displayed and select the desired file by navigation buttons, then press the ▶(PLAY) or ENTER button to start playback.
2. Press ▶▶ or ◀◀ button, the player will play the next or previous file.
3. Press CC (REPEAT) button to change play mode.

- SHUFFLE: all the files will be randomly sorted and played by the order.

• RANDOM: randomly select any file to play.
• SINGLE: play one file only.
• REPEAT ONE: repeat one file.
• REPEAT FOLDER: all the files in the folder will be played repeatedly.

• FOLDER: all the files in the folder will be played.

• Press DVD/MENU button to return to play list page.

8. JPEG playback

For JPEG picture CD, select the folder you want to play by the navigation buttons and press ENTER button to confirm. The files in this folder are displayed and select your pictures by using the up/down navigation buttons and press ENTER button to start playback. Thumbnail of picture will be displayed while you scrolling across the file name.

Once a folder and file is selected, the picture is loaded onto the screen.

A dark brown cat sitting on a surface with faint white streaks above (no text or symbols visible)

NOTE: The time to load and display picture depends on the file size of the pictures.

During playback, press DVD/MENU button to return to folder selection or press ■ (STOP) button to enter preview mode.

Press CC (REPEAT) button to change play mode.

• SHUFFLE: all the files will be randomly sorted and played by the order.
• RANDOM: randomly select any file to play.
• SINGLE: play one file only.
• REPEAT ONE: repeat one file.
• REPEAT FOLDER: all the files in the folder will be played repeatedly.
• FOLDER: all the files in the folder will be played.

Skip to next/previous picture

Press ▶▶ button to skip to the next picture or press ◀◀ button to skip to the previous picture. If no key is pressed for 5 seconds, it will skip to next picture automatically.

Rotating pictures

• Press RIGHT navigation button to rotate the picture clockwise.
• Press LEFT navigation button to rotate the picture counterclockwise.

Flipping pictures

Press UP navigation button to flip the picture vertically. Press DOWN navigation button to flip the picture horizontally.

Four-panel image showing a cat in different poses, each with a triangular transformation arrow (no text or symbols)

Picture Shrink/Zoom

Press ZOOM button repeatedly to enlarge or shrink picture to 50%, 75%, 100%, 125%, 150% and 200%.

Two brown cats sitting together on a wooden surface, with a 'ZOOM' text overlay (no other symbols or text)

If the picture is enlarged, you may press navigation buttons to pan across other portions of the picture.

Two identical photos showing a dark, textured object against a dark background with faint white streaks (no text or symbols visible)

9. Enjoying Video CD with playback control

1. When playing VCD 2.0 with PBC, the player will show the VCD version.

1. Press DVD/MENU button on remote control repeatedly to set PBC ON or OFF.
2. Press numeric buttons to select corresponding track.

Example : Track 9, press 0 and 9, several seconds later, it will automatically switch to track 9.

Track 15, press 1 and 5, several seconds later, it will automatically switch to track 15.

1. Press ▶ button or ◀ button, the player will play the next or previous track.

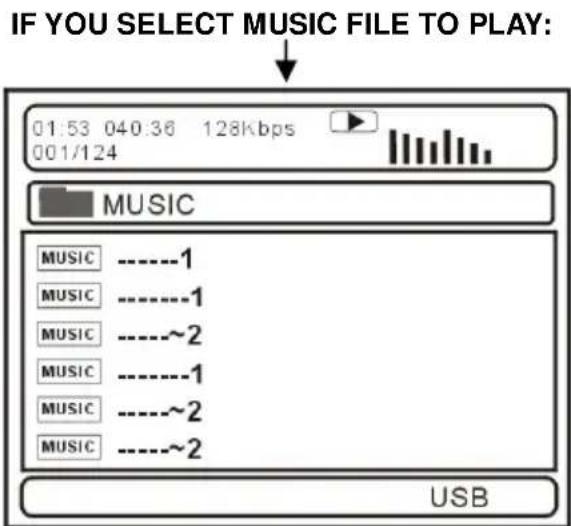

10. Compatible with USB playback

1. Insert USB containing the files in music, picture or movie format to be played.
2. Press SOUND (MEDIA) button to switch the unit to USB mode.
3. After several seconds, all the folders in the USB will display on monitor screen.
4. Select a folder you want to play using the navigation buttons and press the ENTER button to confirm.
5. The files in this folder are displayed and select the desired file by navigation buttons, then press the ENTER button to start to play.

1. Press ▶▶ or ◀◀ button to turn the current menu page to the next or previous menu page.
2. Press CC (REPEAT) button to select repeat playing mode.

- SHUFFLE: all the files will be randomly sorted and played by the order.

- RANDOM: randomly select any file to play.

- SINGLE: play one file only.

- REPEAT ONE: repeat one file.

- REPEAT FOLDER: all the files in the folder will be played repeatedly.

- FOLDER: all the files in the folder will be played.

11. Viewing from different angle (Compatible with DVD only)

Some DVD discs may contain scenes which have been shot simultaneously from a number of different angles. For these discs, the same scene can be viewed from each of these different angles using the YELLOW (ANGLE) button.

12. Repeat play

Press CC (REPEAT) button during playback, it will repeat play one chapter or one title (for DVD disc), or repeat play track (for VCD/CD).

DVD DISC

REPEAT CHAPTER

REPEAT TITLE

REPEAT ALL

VCD/CD DISC (In the PBC OFF mode)

REPEAT TRACK

REPEAT DISC

A-B repeat play

Repeating sections between two specific points (A-B repeat)

1. Press BLUE (A-B) button during playback at the point where repeat play is to be started (A).
2. Press BLUE (A-B) button at the point where repeat play is to be ended (B). Repeat play of the selection between points A and B starts.
3. Press BLUE (A-B) button once again to return to normal play.

13. GOTO

Press GREEN (GOTO) button continuously to select the item you want to set and enter a time number, chapter number, track number, etc. Accordingly, the disc will be played from the selected point.

14. Change subtitle language (Compatible with DVD only)

It is possible to change the subtitle language to a different language from the one selected at the initial settings.( This operation works only with discs on which multiple subtitle languages are recorded)

1. Press FAV (SUBTITLE) button during

play, the screen will display the current language.

1. Press FAV (SUBTITLE) button again to change language or turn off.

NOTE: When no subtitles are recorded, press this button will not work.

CHANGING SUBTITLE LANGUAGE

15. ZOOM play

This function allows you to enjoy a motion picture.

Press ZOOM button when playing, the screen shows:

Press navigation button to scroll across the enlarged picture.

16. Changing audio soundtrack language (DVD/VCD/CD disc)

It is possible to change the audio soundtrack language to a different language from the one selected at the initial settings (This operation works only with discs on which multiple audio soundtrack languages are recorded).

Press MTS/AUDIO (LANGUAGE) button while playing DVD disc the screen will display the number of current soundtrack languages, pressing the button again will change the language.
1 Pressing MTS/AUDIO (LANGUAGE) button while playing VCD/CD disc will change audio output mode: LEFT-MONO, RIGHT-MONO, MIX-MONO and STEREO soundtrack.

NOTE: When no soundtrack languages are recorded, pressing this button will not work. When the power is turned on or the disc is removed, the language heard is the one selected at the initial settings.

17. Initial settings

Once the initial programming is entered it is retained in memory until changed, the player can always be operated under the same conditions.

Common procedure for initial settings

• Press SETUP button on remote control.
• Use the navigation buttons to select preferred item, and press ENTER button, each screen for setting the value is displayed. Then move the navigation buttons to set the item and press ENTER button to confirm the settings.
• Press SETUP button to close setup menu.
• Use LEFT or RIGHT navigation button to switch to another main setup item. Then press RIGHT navigation button or ENTER button to enter submenu page; press LEFT navigation button to return to previous menu page.

1. GENERAL SETUP

1.1 TV DISPLAY - It is for selecting TV output mode.

Options: NORMAL/PS: Pan & scan mode

NORMAL/ LB: Letter box mode

WIDE: 16:9 wide screen mode

1.2 ANGLE MARK - It is used to select whether or not the multi-angle icon is display on screen when a Multi-angle disc is playing.

Options: ON: Icon will be displayed

OFF: Icon will be turned off

1.3 OSD LANG - It is used to choose the desired language for different user. In this player, you can choose English or other languages.

1.4 CAPTIONS - It is used to switch the caption ON/OFF when playing disc.

1.5 SCREEN SAVER - When the player is not in use for 5 minutes, screen saver will display on the screen.

Options: ON: Screen saver is enabled OFF: Screen saver is disabled

1.6 DEFAULT - It is used to reset to factory settings.

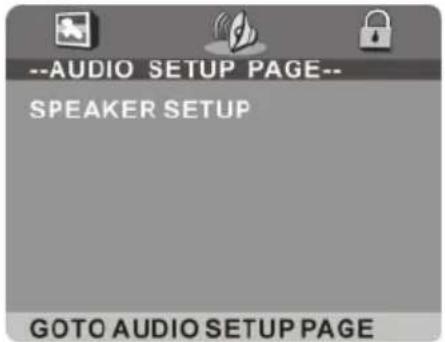

2. AUDIO SETUP

SPEAKER SETUP - It is used to set the speaker output levels.

Options: LT/RT-Left/Right mix mode

STEREO - Select this option if you don't have a 2.1 channel amplifier.

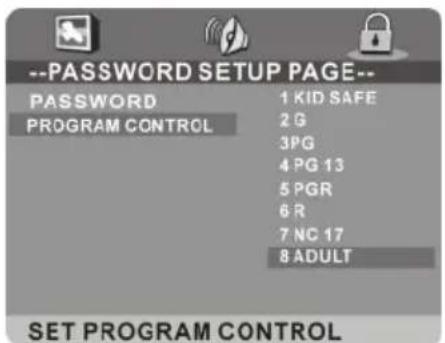

3. PASSWORD SETUP

3.1 PASSWORD- It is used to change the password, and the procedure of changing password is described as followings:

Enter old password in the OLD PASSWORD row

Enter new password in the NEW PASSWORD row

Enter the new password again in the CONFIRM PWD row

Press ENTER button on the screen to return to the Password Setup Page, then the Password has been changed.

NOTE: The original password is 136900, you can change it, but you should write it down and keep it safe. If you forget the password, please use the original password: 136900.

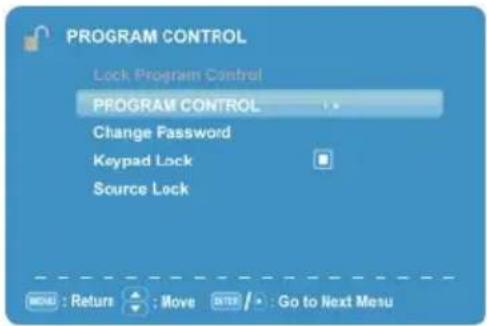

3.2 PROGRAM CONTROL - This setting allows certain people to view certain discs, which may be especially useful to forbid children from viewing some unbefitting discs. Scroll down the alternatives by moving UP or DOWN navigation button, press ENTER button and enter the password which you has set before, then you have set a Program Control. There are eight different settings from KID SAFE to ADULT which you can choose.

TV

- Press SOURCE button on unit top or remote control to set the unit in TV mode.

SELECT WANTED PROGRAM

1. Press CH+ button to play next channel.
2. Press CH- button to play previous channel.
3. Press numeric buttons on the remote control directly to select wanted program.
   Example : Track 9, press "9", three seconds later it will turn to track 9 automatically, or press ENTER button to confirm directly.

Track 12, press "1" and "2", three seconds later it will turn to track 12 automatically, or press ENTER button to confirm directly.

NOTE : If one frequency dot has more than one channel, for example, track 15-3, press "1" and "5", then press "-/--" and "3", three seconds later it will turn to track 15-3 automatically, or press ENTER button to confirm directly.

VOLUME CONTROL

- Press VOL+ or VOL- to adjust the level of current volume. Available range: 0-100.

MUTE CONTROL

- Press MUTE button to mute the sound, press it again to turn on the sound.

NOTE: When the unit is in MUTE mode, press VOL+ button will turn on the sound and turn it up; press VOL- button will keep the unit silence.

SOURCE SETTING

• Press SOURCE button on remote control to display the sources list.
• Press UP or DOWN navigation button to select desired input source, then press ENTER button to confirm selection.
• Or press SOURCE button on unit top repeatedly to select desired input source.
  Available options: TV, AV, YPbPr, HDMI, PC, Media, DVD.

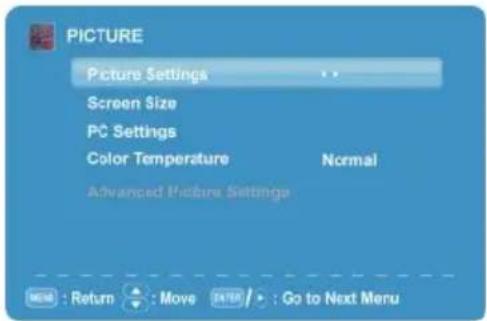

PICTURE MODE

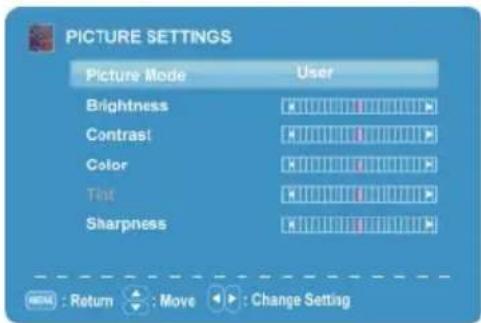

- Press PICTURE button on remote control repeatedly to select desired picture mode. Available options: User, Dynamic, Standard, Movie.

SOUND MODE

- Press SOUND button on remote control repeatedly to select desired sound mode. Available options: User, Dynamic, Standard, Soft.

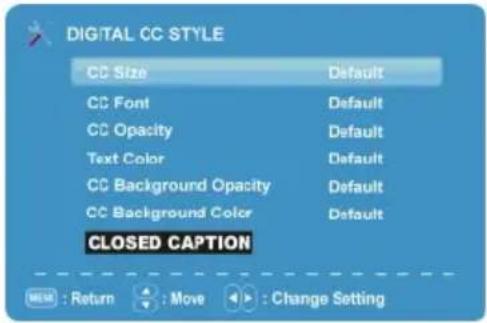

CLOSED CAPTION

- Press CC button on remote control repeatedly to set the CLOSED CAPTION function On or Off.

SLEEP TIME SETTING

- Press SLEEP button on remote control repeatedly to select desired sleep time. Available options: Off, 15min, 30min, 60min, 90min, 120min.

VIDEO SIZE SETTING

- Press ASPECT button on remote control repeatedly to select desired video size Available options: Normal, Wide, Cinema, Zoom.

MTS/AUDIO SETTING

• Press MTS/AUDIO button on remote control to enter Sound menu page, then use UP or DOWN navigation button to select desired option. Options: Mono, Stereo, SAP.
  (Not available in all channels)
• Or press MTS/AUDIO button on remote control to display Digital Sound language. (Not available in all channels)

INFORMATION DISPLAY

- Press INFO button on remote control to display information of current program.

EPG(ELECTRONIC PROGRAM GUIDE)

• Press EPG button on remote control to enter into Electronic Program Guide menu page. (Not available in all channels)
• Press LEFT or RIGHT navigation button to view previous or next page.

FAVOURITE LIST

- Press F.LIST button on remote control to enter FAVORITE LIST menu page.

• Press navigation buttons to select desired channel.
• Press ENTER button to confirm selection.

NOTE: During normal playing, press FAV button on remote control to label current program as a favorite one or not.

CHANNEL LIST

- Press C.LIST button on remote control to enter CHANNEL LIST menu page.

• Press navigation buttons to select desired channel.
• Press ENTER button to confirm selection.

FREEZE FUNCTION

- During normal playing, press FREEZE button on remote control to hold the picture, and press it again to resume normal playing.

MUSIC PLAYBACK

• Before following operations, insert a USB memory device first.
• Press SOURCE button on unit top or remote control to set the unit in Media mode.

1. Press LEFT or RIGHT navigation button to select Music item.
2. Press ENTER button to enter it, then use navigation buttons to select the music file that want to play.
3. Use navigation buttons to select which song to play, then repeat the second step to play desired song.
4. Press EXIT button to return to previous menu.

PHOTO PLAYBACK

1. Press LEFT or RIGHT navigation button to select Photo item.
2. Press ENTER button to enter it, then use navigation buttons to select the photo file that want to play.
3. Press ENTER button and below icon will appear on the screen.

3.1 Open

• Select this item, then press ENTER button to open selected file.
• Press navigation buttons to select which photo to play.
• Press ENTER button to play the selected photo, then press UP/DOWN navigation buttons to rotate the photo clockwise/counterclockwise 90, 180, 270 degrees; press LEFT/RIGHT navigation buttons to play previous/next photo.
• Press ENTER button to view the photo in full screen.
• Press navigation buttons to move up/down/left/right.

3.2 Thumbnail

• Select this item, then press ENTER button to play all the photos in thumbnail mode.
• Press UP or DOWN navigation button to view previous or next page.
• Press ENTER button, and a yellow frame will appear on the first photo, then press navigation buttons to select which photo to play.

3.3 Slideshow

- Select this item, then press ENTER button to play the photos in slide show mode.

Media Setting

- Press LEFT or RIGHT navigation button to select Media Setting item.

1. Slideshow Interval

Available options: 1s, 5s, 10s.

2. Slideshow Effect

Available options: Off, Wipe Right, Wipe Left, Wipe Up, Wipe Down, Comb Side, Comb UpDown, Checker, Mosaic, Fade, Blind Right, Blind Left, Blind Up, Blind Down, Box In, Box Out, Slide in Right, Slide in Left, Slide in Up, Slide in Down.

3. Slideshow Repeat

Available options: On, Off.

4. Music Play Mode

Available options: Once, Play All, Random.

5. Music Play Repeat

Available options: On, Off.

6. Music Auto Play

Available options: On, Off.

NowPlaying

• Press LEFT or RIGHT navigation button to select NowPlaying item.
• Press ENTER button to enter below menu page.

- Press LEFT or RIGHT navigation button to select wanted option.

MAIN MENU

● The unit contains different setting menus. Once the initial programming is entered, it will be remained in the memory until change, and the unit can always be operated under the same conditions.
● The settings will be remained in the memory until the settings are changed, even after setting the player to standby mode.

Common procedure for initial settings

• Press MENU button on unit top or remote control to display the main menu.
• Press LEFT or RIGHT navigation button to select wanted item.
• Press ENTER or RIGHT navigation button to enter submenu page.
• Press UP or DOWN navigation button to select the option that want to adjust.
• Press LEFT or RIGHT navigation button to adjust selected option to desired value. Then press ENTER button to confirm the selection.
• Press MENU button to return to previous menu page.
• Press EXIT button to exit menu page.

TV MODE

- Press SOURCE button on unit top or remote control to set the unit in TV mode. Then the screen will display below menu page, if first time using:

- Menu Language

• Press UP or DOWN navigation button to select Menu Language item.
• Press LEFT or RIGHT navigation button to select wanted language.

- Signal Type

• Press UP or DOWN navigation button to select Signal Type item.
• Press LEFT or RIGHT navigation button to select wanted Signal Type.

● Auto Channel Search

• Press UP or DOWN navigation button to select Auto Channel Search item.
• Press ENTER button to start channel searching.

1. PICTURE

1.1 Picture Settings

1.11 Picture Mode

Available options: User, Dynamic, Standard, Movie.

1.12 Brightness

The value of Brightness can be adjusted from 0-100.

1.13 Contrast

The value of Contrast can be adjusted from 0-100.

1.14 Color

The value of Color can be adjusted from 0-100.

1.15 Tint

The value of Tint can be adjusted from -50 to 50. (Only available for certain TV system)

1.16 Sharpness

The value of Sharpness can be adjusted from 0-100.

NOTE: If the value of Brightness, Contrast, Color, Tint, and Sharpness is adjustable only when the Picture Mode is set as User.

1.2 Screen Size

Available options: Normal, Wide, Cinema, Zoom.

1.3 PC Settings

NOTE: This item is available only in PC mode.

1.4 Color Temperature

Available options: Normal, Warm, Cool.

1.5 Advanced Picture Settings

1.51 Dynamic Contrast

Available options: Off, Low, Medium, High.

1.52 Film Mode

This item is used to set the Film Mode function On or Off.

1.53 Noise Reduction

Available options: Off, Low, Medium, High.

1.54 MPEG Noise Reduction

Available options: Off, Low, Medium, High.

2. SOUND

2.1 Sound Settings

2.11 Sound Mode

Available options: User, Dynamic, Standard, Soft.

2.12 Bass

The value of Bass can be adjusted from -15 to 15.

2.13 Treble

The value of Treble can be adjusted from -15 to 15.

2.14 Balance

The value of Balance can be adjusted from -25 to 25.

NOTE: The value of Bass, Treble, and Balance is adjustable only when the Sound Mode is set as User.

2.2 Surround Mode

- Press ENTER button to enable or disable this item.

2.3 AVL

- Press ENTER button to enable or disable this item.

2.4 Analog Sound

Available options: Mono, Stereo, SAP.

2.5 Digital Sound

Available options: English, French, Spanish.

2.6 Digital Audio Output

Available options: Off, PCM, Raw.

2.7 Equalizer Settings

• Available modes: User, Off, Rock, Pop, Jazz.
• The value of each column is adjustable only in User mode, and each column can be adjusted from -12 to 12.

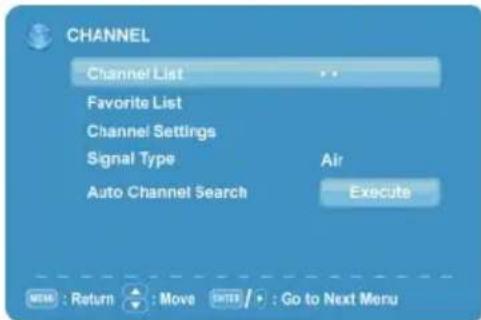

3. CHANNEL

3.1 Channel List

• Press ENTER button to enter CHANNEL LIST menu page.
• Press navigation buttons to select desired channel.
• Press ENTER button to confirm selection.

3.2 Favorite List

• Press ENTER button to enter FAVORITE LIST menu page.
• Press navigation buttons to select desired channel.
• Press ENTER button to confirm selection.

3.3 Channel Settings

• Press navigation buttons to move the cursor on a certain item.
• Press ENTER button to confirm selection.

3.4 Signal Type

Available options: Air, Cable.

3.5 Auto Channel Search

• Press UP or DOWN navigation button to select this item.
• Press ENTER button to start automatic channel searching.

4. PROGRAM CONTROL

- Input the password to enter PROGRAM CONTROL menu page.

NOTE: The factory default password is 0000.

4.1 PROGRAM CONTROL

4.11 US Program Control

• Press UP or DOWN navigation button to select wanted item.
• Press ENTER or RIGHT navigation button to enter submenu page.
• Press ENTER button to lock or unlock selected rating.

4.12 Canada Program Control

• Press UP or DOWN navigation button to select wanted item.
• Press ENTER or RIGHT navigation button to enter submenu page.
• Press ENTER button to lock or unlock selected rating.

4.13 Block Unrated Show

- Press ENTER button to enable or disable this item.

4.14 Downloadable Rating

- Press ENTER button to enter it, and download the new rating according to the instructions.

4.15 Clear Downloadable Data

- This item is used to delete the new rating that downloaded.

NOTE: The Downloadable Rating and Clear Downloadable Data items are available only when new rating is available.

4.2 Change Password

- Press the number buttons on remote control to input the 4 digits password of each item.

NOTES: - Once an item has been finished, the cursor will turn to next item automatically.

- When all of Old PIN, New PIN and Confirm have been input, the unit will save the new password automatically, and return to previous menu page.

4.3 Keypad Lock

- Press ENTER button to enable or disable this item.

4.4 Source Lock

- Press UP or DOWN navigation button to select the input source that want to lock.

- Press ENTER button to lock or unlock selected input source.

NOTES: Once a certain input source has been locked, below message will appear on the

screen:

Then press ENTER button to enter TEMPORARY UNBLOCK menu page, and input the password by pressing number buttons on remote control to unlock current source.

5. SETUP

5.1 Closed Caption

5.11 Caption Display

Available options: On/Off.

5.12 Analog Caption Type

Available options: CC1, CC2, CC3, CC4, TEXT1, TEXT2, TEXT3, TEXT4.

5.13 Digital Caption Type

Available options: Service1, Service2, Service3, Service4, Service5, Service6.

5.14 Digital CC Preset

Available options: Default, Custom

5.15 Digital CC Style

- This item is available only when the Digital CC Preset item is selected Custom.

CC Size

Available options: Default, Small, Standard, Large.

CC Font

Available options: Default, Style1, Style2, Style3, Style4, Style5, Style6, Style7.

CC Opacity

Available options: Default, Solid, Flashing, Translucent, Transparent.

Text Color

Available options: Default, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan.

CC Background Opacity

Available options: Default, Solid, Flashing, Translucent, Transparent.

CC Background Color

Available options: Default, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan.

5.2 Menu Language

Available options: English, French, Spanish.

5.3 Clock

5.31 Time Zone

- Press LEFT or RIGHT navigation button to select wanted option.

5.32 Auto Clock

- Press ENTER button to enable or disable this item.

5.33 Setup Time

• Press UP or Down navigation button to select this item.
• Press ENTER button repeatedly to move the cursor on Year/Month/Day/Hour/Minute/Second
• Press LEFT or RIGHT button to adjust selected item.

5.34 Day of Week

- This item is not user adjustable.

5.35 Daylight Saving Time

• This item is available only when the Auto Clock is enabled.
• Press ENTER button to enable or disable this item.

6. OTHERS

6.1 Blue Back

- Press ENTER button to enable or disable this item.

6.2 No Signal Power Off

- Press ENTER button to enable or disable this item.

6.3 No Operation Power Off

- Press ENTER button to enable or disable this item.

6.4 All Reset

- Press ENTER button to resume factory reset.

NOTE: Once this function is executed, the TV system will also be reset.

6.5 Audio Only

- Press ENTER button to set the unit with audio on only.

NOTE: Once this function is executed, hold on the POWER button on unit top or remote control for about 3 seconds to resume normal playing.

AV/YPbPr/HDMI/MEDIA/DVD MODE

• Press SOURCE button on unit top or remote control to select desired input source.
• For PICTURE, SOUND, SETUP and OTHERS menus, please refer to the menu operations in TV mode.

PC MODE

• Press SOURCE button on unit top or remote control to set the unit in PC mode.
• Select PICTURE item and press ENTER button to enter below menu page:

• The Picture Settings, Screen Size, and Color Temperature menus are the same with those of TV mode.

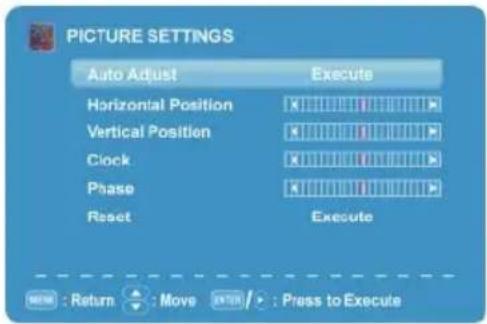

• Select PC Settings item and press ENTER button to enter below menu page:

1. Auto Adjust

- Press ENTER button to adjust the screen automatically.

2. Horizontal Position

Available range: -15 to 15.

3. Vertical Position

Available range: -15 to 15.

4. Clock

Available range: -30 to 30.

5. Phase

Available range: 0-63.

6. Reset

• Press ENTER button to reset above items.
• Except Analog Sound and Digital Sound menus are invalid, the SOUND menu is the same with that of TV mode.
• The SETUP and OTHERS menus are the same with those of TV mode.

MAINTENACE

• Be sure to press POWER button to set the player to the standby mode and disconnect the AC adaptor before maintaining the player.
  ● Wipe the player with a dry, soft cloth.
• If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.
  ● Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. And do not use compressed air to remove dust.

SPECIFICATIONS

Display Device	18.5 inch LED TV
Resolution	0.3(H)×0.3(V)mm
Pixel Pitch	1366×768
Luminance	16.7M
Contrast Ratio	1000:1
Aspect Ratio	250 cd/m2
Response Time	5.5 ms
Viewing Angle	170(H)/160(V)
Visible Range	409.8(H)×230.4(V)
Lamp Life	50,000 Hrs
MULTIMEDIA PLAYBACK FORMAT (TV MODE)	Music: MP3 compatible
	Photo: JPG compatible
MULTIMEDIA PLAYBACK FORMAT (DVD MODE)	Movie: MPEG1, MPEG2, MPEG4 compatible
	Music: MP3 compatible
	Photo: JPEG compatible
Supported discs	DVD/CD/CDR/CDRW/DVD-R/DVD+R/DVD-RW/DVD+RW/VCD/SVCD
POWER SOURCE	AC adaptor(normal DC 12 V --- 3A)
POWER CONSUMPTION	≤36W
OPERATION TEMPERATURE	-5°C to 45°C
MEASUREMENT	465(L)×160(W)×345(H)mm –「With stand holder」
WEIGHT	Appox. 3040g –「With stand holder」

Specifications are subject change without notice.

GENERAL TROUBLESHOOTING

Check the following points before assuming malfunctions of this unit:

Symptom[COMMON]	Remedy
No power.	Insert the AC adaptor securely into the power outlet.
No picture.	Ensure that the equipment is connected properly.
● No sound.● Distorted sound.	● Ensure that the equipment is connected properly.● Ensure that the input setting for the TV and stereo system are correct.● Adjust the master volume to a suitable volume by pressing VOL+/VOL- button.
No operations can be performed with the remote control unit.	● Check the batteries are installed with the correct polarities.● The batteries are exhausted: replace them with new ones.● Point remote control at the remote control sensor and operate it again.● Operate the remote control unit at a distance of no more than 6m from the remote control sensor.● Remove the obstacles between the remote control and remote control sensor.
No key operation (by the main unit and/or the remote control unit) is effective.	Disconnect the power adaptor and then reconnect it.(The player may not be operating properly due to lightning, static electricity or some other factors.)
Symptom[TV]	Remedy
No or poor picture.	● Adjust antenna or use an external antenna.● Relocate the unit near a window (if inside a building).● Move units away from this product that causes interference.● Do Auto Tuning again.● Try another channel.
No sound or poor sound.	● Check the audio settings.● Press MUTE button on remote control to cancel mute function.● Unplug the headphone.
Noise or other interface.	Electronic equipment near the unit is causing interface. Relocate the unit or move the equipment.
Symptom [DVD]	Remedy
Play does not start even when title is selected.	Confirm the region code setting is right.
Audio soundtrack and/or subtitle language is not the initial settings.	If the audio soundtrack and/or subtitle language does not exist on the disc, the language selected at the initial settings will not be seen/heard.
No subtitles.	Subtitles appear only with discs which contain them.Subtitles are cleared from the TV monitor, Perform the steps display the subtitles.

To be continued

GENERAL TROUBLESHOOTING

Alternative audio soundtrack (or subtitle) languages fail to be selected.	● An alternative language is not selected with discs which do not contain more than one language. ● In the case of some discs, the alternative language can not be selected by operating the LANGUAGE or SUBTITLE button. Try selecting it from the DVD menu if one is available.
Angle cannot be changed.	This function is dependent on software availability. Even if a disc has a number of angles recorded, these angles may be recorded for specific scenes only.
The password for rating level has been forgotten.	Please contact your local sales dealer.
Symptom [Video CD]	Remedy
No menu play.	This function works only for Video CDs with playback control.
Symptom [USB]	Remedy
My player does not recognize my USB key or my external hard disk when plugged to the DVD player's USB slot.	Would you please refer first to the instructions describing how to use USB devices with this machine.-If the problem still occurs: This machine has been tested with the majority of the market's Flash memory-based devices (USB keys and MP3 players) and hard disks (Music/ Movie players with HDD).-However, this machine may not be compatible with certain devices, in particular external self-powered hard disks.

Region code setting

Region coding: All DVD discs are coded by the sales territory. Please note the player is set to region 1 coding by the factory which cannot be changed. This is in compliance with the DVD patent requirements.

The region number for this DVD player is

QFX

Black CRT monitor displaying a soccer player kicking a ball on a grass field, with spectators in the background (no visible text or symbols)

Simple line drawing of a device connected to two cables, one with a plug and cable, the other with three leads (no text or symbols)

Black remote control with multiple function keys and a circular frame (no text or symbols)

Simple line drawing of a handheld device with a cord and cable, enclosed in a circle (no text or symbols)

Cable para Auto ....1

A dark brown object sitting on a surface with a faint, blurred background (no visible text or symbols)

Four-panel image showing a person in a seated pose with abstract background patterns, no text or symbols present.

Two brown cats sitting together on a wooden table, with a blurred background showing faint patterns (no text or symbols visible)

Two side-by-side images showing a close-up of a dark object with visible texture and angles, alongside a geometric star-like pattern (no text or symbols)

Opciones disponibles, Apagado, Wipe Right, Wipe Left, Wipe Up, Wipe Down, Comb Side, CombUpDown, Checker, Mosaic, Fade, Blind Right, Blind Left, Blind Up, Blind Down, Box In, Box Out, Slide in Right, Slide in Left, Slide in Up, Slide in Down.

- Idioma de Menú

1.11 Modo de Imagen

5.1 Subtítulos

5.31 Zona Horaria

6.1 Fondo Azul

1. Auto Ajustar
