USER MANUAL 8757 AVANTI SEB

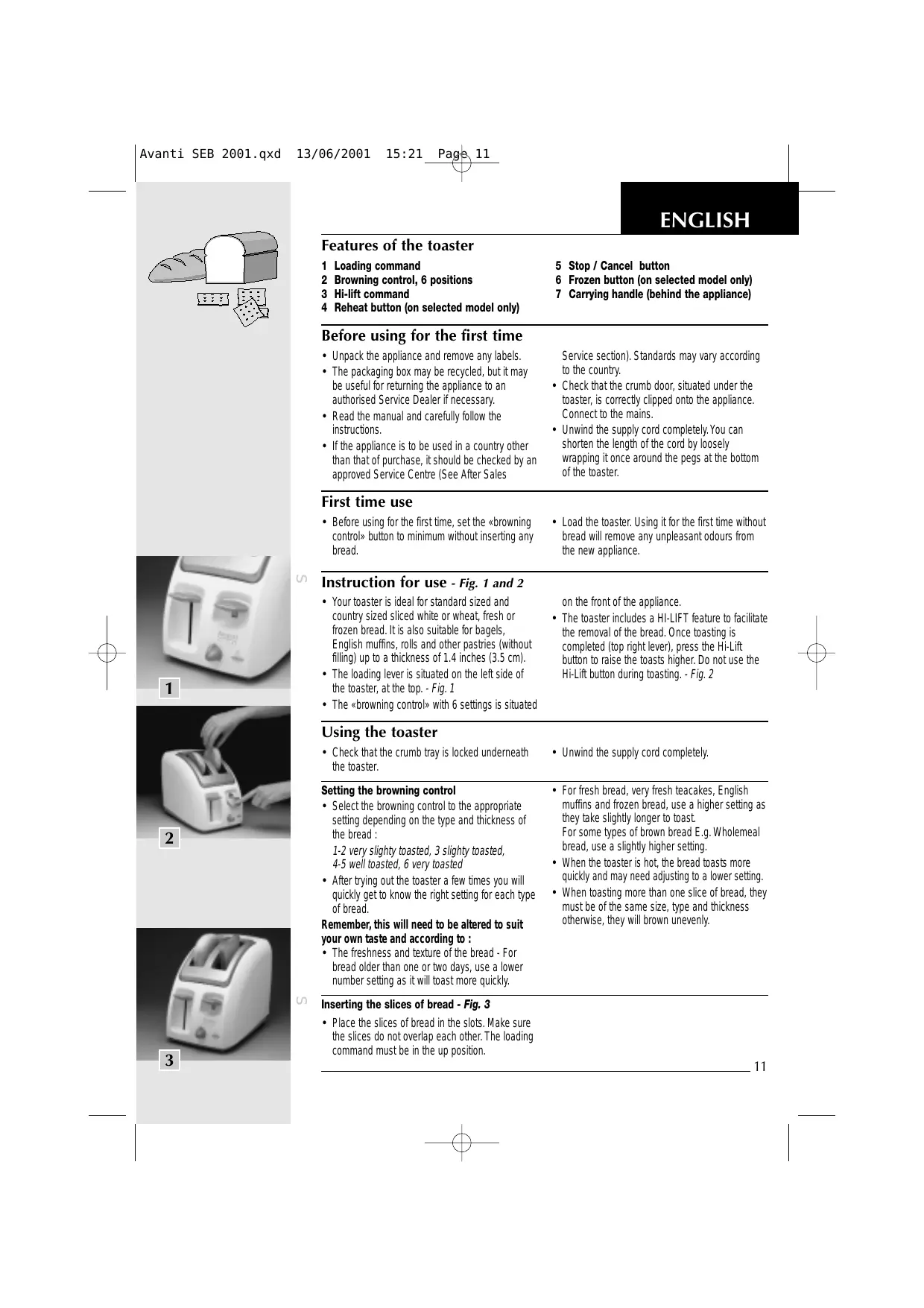

Loading command Browning control, 6 positions Hi-lift command Reheat button (on selected model only) 5 Stop / Cancel button 6 Frozen button (on selected model only) 7 Carrying handle (behind the appliance) Before using for the first time

• Unpack the appliance and remove any labels.
• The packaging box may be recycled, but it may be useful for returning the appliance to an authorised Service Dealer if necessary.
• Read the manual and carefully follow the instructions.
• If the appliance is to be used in a country other than that of purchase, it should be checked by an approved Service Centre (See After Sales Service section). Standards may vary according to the country.
• Check that the crumb door, situated under the toaster, is correctly clipped onto the appliance. Connect to the mains.
• Unwind the supply cord completely. You can shorten the length of the cord by loosely wrapping it once around the pegs at the bottom of the toaster. First time use
• Before using for the first time, set the «browning control» button to minimum without inserting any bread.

• Load the toaster. Using it for the first time without bread will remove any unpleasant odours from the new appliance.

Instruction for use - Fig. 1 and 2

• Your toaster is ideal for standard sized and country sized sliced white or wheat, fresh or frozen bread. It is also suitable for bagels, English muffins, rolls and other pastries (without filling) up to a thickness of 1.4 inches (3.5 cm).
• The loading lever is situated on the left side of the toaster, at the top. - Fig. 1
• The «browning control» with 6 settings is situated

on the front of the appliance.

• The toaster includes a HI-LIFT feature to facilitate the removal of the bread. Once toasting is completed (top right lever), press the Hi-Lift button to raise the toasts higher. Do not use the Hi-Lift button during toasting. - Fig. 2 Using the toaster

• Check that the crumb tray is locked underneath the toaster.

• Unwind the supply cord completely. Setting the browning control
• Select the browning control to the appropriate setting depending on the type and thickness of the bread : 1-2 very slighty toasted, 3 slighty toasted, 4-5 well toasted, 6 very toasted
• After trying out the toaster a few times you will quickly get to know the right setting for each type of bread. Remember, this will need to be altered to suit your own taste and according to :
• The freshness and texture of the bread - For bread older than one or two days, use a lower number setting as it will toast more quickly.

• For fresh bread, very fresh teacakes, English muffins and frozen bread, use a higher setting as they take slightly longer to toast. For some types of brown bread E.g. Wholemeal bread, use a slightly higher setting.
• When the toaster is hot, the bread toasts more quickly and may need adjusting to a lower setting.
• When toasting more than one slice of bread, they must be of the same size, type and thickness otherwise, they will brown unevenly.

Inserting the slices of bread - Fig. 3

• Place the slices of bread in the slots. Make sure the slices do not overlap each other. The loading command must be in the up position.

Avanti SEB 2001.qxd 13/06/2001 15:21 Page 12 Making toast

• To load the toaster, press down the loading command until it locks in position, toasting begins. The metal grills will automatically adjust to the thickness of the slices.
• On electronic models, the loading lever can only be locked in the lower position when the appliance is plugged in. Stopping the toasting process
• Once toasted, the operating control is automatically unlocked, the slices of bread Interrupting toasting process
• The toaster has a «STOP / CANCEL» s function. So that you can interrupt the toasting process at any time by pressing the «STOP / CANCEL» button. The bread will automatically pop up. (For example, if you realise that the settings are not properly adjusted or if you think the bread is sufficiently toasted).
• If the bread jams in the slots and the elements do not switch off, remove the plug from the wall come up and the toaster stops working. outlet and wait for the appliance to cool down. Then carefully remove the bread from the toaster slot, taking care not to touch the heating elements.
• When toasting currant buns or teacakes, remove any loose currants from the bread before placing them in the toaster. Loose currants may fall into the appliance and damage the toaster.

«Deluxe» model • Specific function - Fig. 4 Reheat

• To reheat toast (fixed, short time) lower the bread into the toaster and press the «reheat» button.
• The toaster will heat up independently from the setting of the browning control (1 and 6).

• After extended use, crumbs or dust may block the locking system. To correct this, simply press down the loading command several times successively to lock it and please refer to maintenance and cleaning tips. Frozen
• To toast bread straight from the freezer, select the browning level desired on the dial from 1 to 6. Lower the bread into the toaster, and press the «frozen» button. Stop / Cancel
• To stop the toaster at any time or cancel the other functions, press the «STOP / CANCEL» s button.

• At the end of the cycle, the bread will pop up automatically and the toaster switches off.

• The appropriate toasting time will be automatically selected.
• At the end of the cycle, the bread will pop up and the toaster switches off.

• The bread pops up, the toaster switches off. Avanti SEB 2001.qxd 13/06/2001 15:21 Page 13

Bread roll toaster accessories

Description : 1 Bread roll holder (sold separately) 2 Loading command

3 Browning control 6 positions Instructions for use :

• Unwind the power cord to its fullest extent and connect.
• Insert the bread roll holder (fore-back clips).
• Set toasting time (button 3) to desired position (1 to 3 max.).
• Lay the buns, bread rolls or croissants directly on the bread holder.
• Press down the loading command located to the left of the appliance.

• Never place bread rolls or croissants directly on the upper aperture of the appliance.
• Never use the appliance to warm up or defrost frozen food trays.

• The bread rolls (croissants, etc.) will be ready when the lever has risen.
• After use, allow the toaster to cool and disconnect the appliance. Once the bread roll holder has cooled, attach to rear of the appliance.

• Never warm up bread rolls, croissants, etc., and toast bread at the same time.

Maintenance and cleaning - Fig. 6, 7 and 8

• To clean the toaster, unclip, open the crumb door and wipe it clean. Also turn the appliance upside down and shake out any pieces of bread that may be stuck between the grills. (We recommend that your clean the crumb door regularly). - Fig. 6
• Never insert any hard object into the bread slot as this could damage the heating elements.
• To clean the exterior and the cord, wipe it down with a damp cloth. Let it dry before using it again.

• Do not use scouring powders, abrasive pads, wire or steel wool, oven cleaners or bleach.
• Never wrap the cord around the outside of the appliance during or after use. A cord storage is located under the appliance. - Fig. 7
• To move the toaster, a carrying handle is located behind the appliance. - Fig. 8

• This toaster complies with the safety rules and conditions in effect, and with the following directives

• Always plug the toaster into an earthed socket

• Electromagnetic Compatibility Directive 89/336/CEE modified by Directives 92/31/CEE and 93/68/CEE.

• Do not let the cord hang and keep out of reach of children. Do not leave the cord in contact with the warm parts of the appliance.

• Low Voltage Directive 73/23/CEE modified by Directive 93/68CEE.

• Do not disconnect the appliance by pulling on the cord.

• Given the many standards in effect, if this toaster is used in a country other than the country where it was purchased, have it verified by an approved service centre*.

• Use extension cords which are in good condition, with an earthed connection, and with a minimum rating of 10A.

• Check that the electricity supply voltage corresponds to the voltage indicated on the device (ac current only).

• In order to avoid electric shock, do not immerse the cord, the plug or the toaster in water or any other liquid.

• Check that the electricity installation is sufficient to supply the power required by this appliance.

• Do not use metal ustensils in the toasting mechanism, which could cause short circuits or electric shock. When using electrical appliances, basic safety precautions should always be followed including the following :
• Read all instructions and keep this «User’s Guide».
• Do not let the toaster operate unattended, particularly when toasting for the first time or when changing settings.
• Keep out of reach of children.
• The toaster must always be upright when plugged in and unplugged.
• Do not move the toaster when it is in operation.
• Use a stable work top, away from any contact with water
• Keep this toaster away from sources of heat (gas, electric burner, heated oven).
• Always unplug the toaster and let it cool before any cleaning.
• After every cleaning, check that the crumb door is correctly clipped onto the appliance.
• Do not try and toast very thick slices of bread which could block the toasting mechanism.
• If the bread jams in the slots after toasting and the elements do not swich off, disconnect the plug quickly from the wall socket and wait for the appliance to cool down before attempting to remove the bread.
• Do not put paper, cardboard or plastic in, on or under the toaster.
• Do not place bread, buns, croissants or other pastries directly on top of the toaster because a bread-warmer accessory is available on some models only.
• Never use the toaster for toasting bread and re-heating pastries/croissants at the same time.
• Never place a plate, paper, aluminium foil on the roll warmer. Do not use it for cooking or de-frosting frozen food.

• Do not use this appliance if : - The toaster or cord is faulty - It has fallen or shows visible damage or operating problems In any of these cases, the appliance must be sent to the nearest approved aftersales service centre* in order to avoid any risks.
• Do not use outdoors. This appliance is for household use only
• Do not use this appliance as a source of heat.
• Bread can burn. Therefore, do not use this appliance near any flammable materials such as curtains, under shelving or wall cupboards, etc.
• Do not cover this appliance while in use.
• If flames were to arise from parts of the toaster, never attempt to extinguish them with water. Unplug the appliance and smother the flames with a damp cloth.
• Do not store inflammable products near or under the place where the toaster is stored.
• Do not use accessories which have not been recommended by the manufacturer or accessories from any other brand of toaster.
• This product has been designed for domestic use only. Any professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• For your personal safety, do not dismantle the toaster yourself. Use the services of an approved service centre*. *(see enclosed list) Keep these instructions for future reference Avanti SEB 2001.qxd 13/06/2001 15:21 Page 15 Wiring Instructions (for U.K. only)

WARNING : All appliances must be earthed

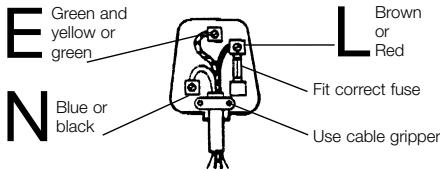

Important : The wires in this lead are coloured in accordance with the following codes : Brown Green and Green and Yellow : Earth yellow or Red green Brown : Live Fit correct fuse Blue : Neutral Blue or

• Connect the Green/Yellow wire to the terminal in the plug marked «E» or by the earth symbol or coloured Green or coloured Green and Yellow.
• Connect the Brown wire to the terminal in the plug marked «L» or coloured Red. About your factory fitted plug

• Connect the Blue wire to the terminal in the plug marked «N» or coloured Black.
• A 13 amp fuse should be fitted when the appliance is connected to a BS 1363A plug.
• Seek professional advice if you are unsure of the correct procedure for the above. (for U.K. only - supplied with selected models)

• The cord is already fitted with a plug incorporating an appropriate fuse. If the plug does not fit your socket outlet, see paragraph below. Should you need to replace the fuse in the plug supplied an appropriately rated approved BS 1362 fuse must be used (refer to wiring instructions for fuse rating).
• If the plug supplied does not fit your socket outlet, it should be removed from the mains lead and disposed of safely. The flexible cord insulation should be stripped back as appropriate and a suitable alternative plug fitted. The replacement plug must be equipped with an appropriate fuse.
• If the plug has external access to the fuse (nonrewirable type plug) please note that the fuse cover is an important part of the plug. Please ensure that it is always refitted correctly. If you lose this cover please do not use the plug. You may contact Tefal UK Limited for a replacement. Customer relations helpline
• For help and advice please call our customer relations team on : - 0845 602 1454 - UK (calls charged at local rate) - (01) 412 3000 - Ireland
