Product Type	Surge Protector Power Strip
Brand	CyberPower
Model	CSB604 (also CSB606/CSB606W)
Number of Outlets	6 Standard Outlets
Surge Protection Rating	900 Joules
Electrical Rating	125 V / 15 A / 1875 W
UL Clamping Voltage	UL 1449 3rd / 500 V (H-N, H-G, N-G)
Maximum Surge Current	15,000 A (H-N, H-G, N-G)
Response Time	Less than 1 nanosecond
Attenuation	Up to 32 dB
Circuit Breaker	Resettable 15 Amp
EMI/RFI Filtration	150 kHz to 100 MHz
Power Source	Standard grounding wall receptacle (120V)
Usage Location	Indoors only, dry locations
Certifications	FCC Part 15 Class B
Technical Support	Toll-Free: 1-877-297-6937
Safety Warning	Contains BPA and styrene (California Prop 65)

Frequently Asked Questions - CSB604 CyberPower

How do I reset the surge protector after an overload?

Ensure the overload condition is removed from connected equipment. Then, turn the ON/OFF switch back to the RESET (ON) position. The circuit breaker will automatically switch off during an overload.

What should I do if the ON/OFF switch turns off?

The 15 Amp circuit breaker may have tripped due to an overload. Examine your connected equipment and remove the device causing the overload. Then, turn the ON/OFF switch back to RESET.

Can I plug the surge protector into an extension cord?

No, do not use extension cords to connect equipment to the surge protector. Plug the surge protector directly into a standard grounding wall receptacle.

Is it safe to use this surge protector with aquarium equipment?

No, do not use with any aquarium equipment due to risk of electric shock from water exposure.

What is the maximum current rating of the CSB604?

The maximum current rating is 15 Amps at 125 Volts, corresponding to 1875 Watts.

Does this surge protector provide protection even after the circuit breaker trips?

No, when the circuit breaker trips, power to the outlets is cut off. The surge protection is also disabled until the breaker is reset. However, the unit maintains unprotected power to the load after its internal useful life, but surge protection may be lost.

Can I use this surge protector for medical equipment?

No, do not use for medical or life support equipment. This device is not designed for such critical applications.

What does the UL clamping voltage mean?

The UL clamping voltage is the voltage level at which the surge protector begins to divert surge current. For the CSB604, it is 500 V for all modes (H-N, H-G, N-G) per UL 1449 3rd edition.

How do I get technical support for my CyberPower surge protector?

You can visit CyberPowerSystems.com/support or call toll-free 1-877-297-6937 for technical assistance.

What is the purpose of the EMI/RFI filtration?

The EMI/RFI filtration reduces electromagnetic and radio frequency interference from 150 kHz to 100 MHz, helping to clean the power supplied to connected equipment.

USER MANUAL CSB604 CyberPower

CSB604/CSB606/CSB606W

USER MANUAL

Cyber Power Systems (USA), Inc.
4241 12th Avenue East, Suite 400 | Shakopee, MN 55379
CyberPowerSystems.com

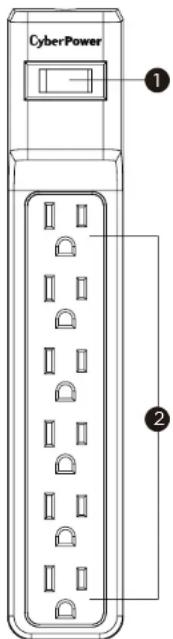

FEATURES

1. ON/OFF Reset Control Switch and Circuit Breaker

Controls power to all outlets. The switch is also a 15 A breaker. When an overload occurs, it will automatically switch off. To resume operation, ensure the overload condition is removed and reset the surge protector by switching the unit ON.

2. Six Standard Outlets

SURGE PROTECTOR INSTRUCTIONS

1. Set power switch into the "OFF" position. Plug the surge protector into a standard grounding wall receptacle by fully inserting the plug and ensure that there are no exposed conductors.
2. Make sure electronic equipment is turned off before plugging into the surge protector outlets. Do not use extension cords to connect equipment to the surge protector.
3. Set the power switch into the "RESET" position. The surge protector will now be providing power and surge protection.
4. Connected equipment can now be turned on.

SPECIFICATIONS

Model Number: CSB604/CSB606/CSB606W

Outlets: 6 Standard Outlets

Surge Protection: 900 Joules

Electrical Rating: 125 V / 15 A / 1875 W

UL Clamping Voltage: UL 1449 3rd / 500 V

(H-N, H-G, N-G)

3 AC Lines Protected: H-N: 15,000 A,

H-G: 15,000 A,

N-G: 15,000 A

Response Time: Less than 1 nanosecond

Attenuation: Up to 32 dB

Circuit Breaker: Resettable 15 Amp

EMI/RFI Filtration: 150 kHz to 100 MHz

△WARNING: This product can expose you to chemicals including bisphenol A (BPA) and styrene (ABS), which is known to the State of California to cause reproductive harm and cancer. For more information, go to www.P65Warnings.ca.gov.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK:

Use only in dry locations and only indoors.

DO NOT plug into another relocatable power tap.

DO NOT "daisy chain" surge protectors.

DO NOT use with any aquarium equipment

DO NOT use if properly grounded outlets are not available.

DO NOT install this device if there is less than 10 meters (30 feet) of wire between

the electrical outlet and electrical service panel.

DO NOT use for medical or life support equipment. This device features an internal

useful life, but it will maintain unprotected power to the load.

TROUBLESHOOTING

If the ON/OFF is switched OFF, the 15 Amp circuit breaker may have tripped. Examine your connected equipment and remove the device that is overloading the circuit. Then, turn the ON/OFF switch back to RESET.

FOR MORE INFORMATION

Visit CyberPowerSystems.com for more information regarding:

• Product information and certifications

• Product warranty

• Connected equipment guarantee

TECHNICAL SUPPORT

Visit: CyberPowerSystems.com/support

Toll-Free: 1-877-297-6937

© 2022 Cyber Power Systems (USA), Inc. All rights reserved.

All other trademarks are the property of their respective owners.

CONFORMANCE APPROVALS

This device complies with Part 15 of the FCC Rules

Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generated, close, and can't have been frequently charged and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

+ Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver. - General the equipment into an pellet on a circuit different from

that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
