| Product Type | Gas Detector (Carbon Monoxide) |
| Brand | Vemer |
| Model | CO Sensor (VE207700) |
| Power Supply | From control unit SRG or SRG.4 |
| Current Consumption | 40 mA at 6.5 V |
| Connection | Terminals: C (common), S (signal), A (power supply), 2.5 mm² |
| Calibration Gas | Carbon monoxide |
| Calibration Level | 200 ppm CO |
| Max Cable Length | 50 m |
| Housing Material | Self-extinguishing plastic |
| Protection Rating | IP30 |
| Operating Temperature | 0 °C to +50 °C |
| Humidity | ≤90% RH (non-condensing) |
| Mounting | Wall-mounted, vertical position |
| Positioning Height | Approximately 1.5 m from floor |
| Lifespan | 5 years from installation |
| Compliance | 2006/95/EC (LVD), 89/336/EEC (EMC) |
| Annual Check | Recommended at least once a year |
| Replacement Interval | After 5 years |
Frequently Asked Questions - CO Sensor Vemer
User questions about CO Sensor Vemer
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Gas detector in PDF format for free! Find your manual CO Sensor - Vemer and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CO Sensor by Vemer.
USER MANUAL CO Sensor Vemer

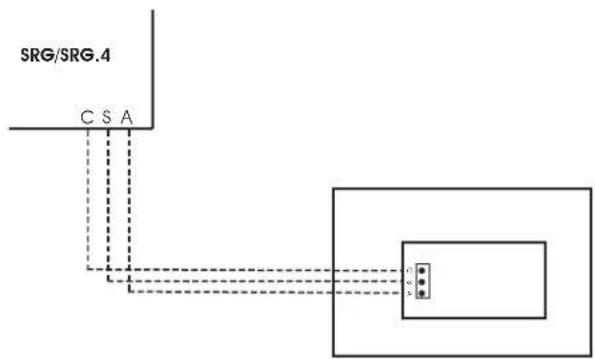

Connection diagrams

■ CH4 Sensor. CO Sensor and LPG Sensor are probes for the detection of methane gas, carbon monoxide and LPG to be connected to SRG and SRC.4 control units to create systems for detecting gas in areas such as boiler rooms, warehouses, etc.
It is wall-mounted in a vertical position using screws and plastic plugs.
SAFETY WARNINGS
During installation and operation of the instrument, comply with the following instructions:
1) The device must be installed by a competent person
2) Before removing the cover, make sure that power is NOT provided to the device
3) Before accessing the terminals, make sure that the electrical leads are not live
4) Install the detector in the correct position (see "Installation")
5) Do not power on the device if any part of it is damaged
Code Model Description
VE205100 CH4 SENSOR Methane detection sensor
VE206900 LPG SENSOR LPG sensor
VE207700 CO SENSOR Carbon monoxide sensor
TECHNICAL CHARACTERISTICS
• Power supply: from the control unit SRG or SRG.4
- Current input (at 6.5V): 40mA
- Connection: terminals of 2.5mm ^2 C (common), S (signal), A (power supply)
• Models and calibration:
- Methane gas: CH4 Sensor, (default) 10% LIE of methane
- LPG: LPG Sensor, (default) 12% LIE of isobutene
- Carbon monoxide: CO Sensor, (default) 200ppm of carbon monoxide
• Max. length of connection: 50 m
- Container: in self-extinguishing plastic material
• Fastened to wall using screws and plastic plugs
• Protection: IP30
• Operating temperature: 0 ÷ +50^
• Humidity: ≤90% R.H. without condensation
INSTALLATION
LPG, CO and CH4 Sensors are designed to be wall-mounted (vertically), using screws and plastic plugs. To proceed with installation, open the container by unscrewing the screw located on the lower side. Make sure not to damage the sensor and not to touch the calibration devices.
POSITIONING
The correct installation of the probe is essential to proper operation of the system. Therefore, it must be installed:
• In areas with circulation of natural air;
- In areas that are not subject to dust or dirt that may render the sensor inoperative;
• Near jets of water, intake grilles, openings, etc.
- At an adequate distance from users of gas so as to prevent the system from intervening improperly due to functional leakage.
Also, positioning depends on the type of gas to be detected, specifically:
- CH4 Sensor: Methane gas – at top, about 20-30 cm from the ceiling
• LPG Sensor: LPG - at bottom, about 20-30 cm from the floor
• CO Sensor: carbon monoxide – about 1.5 m from the floor
For new systems, the probe must be installed as late as possible, so that typical construction site activities do not damage the detector.
CONNECTIONS
Normal electrical cables can be used for connections. In any case, when installation is in places that are strongly exposed to electromagnetic disturbances, it is advisable to use shielded cables. The detection system must always be in operation. Therefore, the electrical power supply of the detector must not include switches or other devices that may accidentally shut it off. The average lifespan of the probes is 5 years from the date of installation. Therefore, at the end of that time they will need to be replaced.
Note. Make sure you check operation at least once a year, and in any case whenever there is an extended period of disuse or in the event of replacement. Any tampering may compromise correct operation of the system.
REFERENCE STANDARDS
Compliance with Community Directives:
2006/95/EC (low voltage)
89/336/EEC mod. from 92/31/EEC and from 93/68/EEC (E.M.C.)
is declared with reference to the following standards:
