Product type	Range hood
Brand	Amica
Model	KH 17129-4 E
Dimensions (LxPxH)	90 x 50 x 60 cm
Net weight	12 kg
Supply voltage	220-240 V
Frequency	50 Hz
Motor power	150 W
Maximum airflow	650 m³/h
Maximum noise level	65 dB(A)
Number of speeds	3
Control type	Mechanical push buttons
Lighting	LED, 2 x 1.5 W
Filter type	Aluminum grease filter
Active carbon filter	Optional (ref. F005)
Evacuation mode	Extraction or recirculation
Duct diameter	150 mm
Material	Brushed stainless steel
Color	Stainless steel
Energy class	A+
Filter maintenance	Clean grease filters every 2 months
Carbon filter replacement	Every 6 months
Safety	Automatic motor shut-off in case of overheating
Spare parts available	Filters, LED bulbs, remote control (depending on model)
Warranty	2 years

Frequently Asked Questions - KH 17129-4 E AMICA

How to install the KH 17129-4 E range hood?

Installation must be carried out by a professional. Mount the hood on the wall above the cooktop, maintaining a minimum distance of 65 cm for an electric stove and 75 cm for a gas stove. Connect the exhaust duct (diameter 150 mm) or install a carbon filter for recirculation mode.

How to clean the grease filters?

The aluminum grease filters can be cleaned in the dishwasher (low temperature cycle) or by hand with hot water and detergent. Let them dry before reinstalling. Clean them every 2 months or more often with heavy use.

How to replace the carbon filter?

The carbon filter is located behind the grease filter. Unclip the old one and insert the new one (ref. F005). It should be replaced approximately every 6 months. Do not wash or regenerate the carbon filter.

What to do if the hood does not turn on?

Check that the hood is plugged in and the fuse is not tripped. If the lighting does not work, replace the LED bulbs (ref. LED001). If the motor does not start, contact customer service.

The hood makes an abnormal noise, what to do?

Excessive noise may be due to a clogged filter or blocked exhaust duct. Clean the filters and check the duct. If the noise persists, the motor may be defective: call a technician.

How to use the hood in recirculation mode?

For use without external evacuation, install an active carbon filter (sold separately). The carbon filter purifies the air before recirculating it into the room. Be sure to change the filter regularly.

What is the safety distance between the hood and the cooktop?

For an electric stove, the minimum distance is 65 cm; for a gas stove, 75 cm. Respect these distances to avoid fire risk and ensure good suction.

How to adjust the suction speed?

The hood has 3 speeds: use speed 1 for gentle cooking, speed 2 for normal cooking, and speed 3 for strong odors or steam. Operate the push buttons on the control panel.

Can the hood be used without the grease filter?

No, the grease filter is mandatory to protect the motor from greasy residues. Use without filter may damage the hood and void the warranty.

Where to find spare parts?

Spare parts are available from Amica customer service or on the official website. Common references: grease filter (ref. F100), carbon filter (ref. F005), LED bulb (ref. LED001). Consult the manual for more details.

USER MANUAL KH 17129-4 E AMICA

Kitchen extractor hood / kaminhaube /

Simple line drawing of a kitchen chimney with steam rising (no text or symbols)

KH 17128-3 E / KH 17129-4 E /

KH 17829 E

EN- Table of contents

NOTES ON SAFETY 7

UNPACKING 10

DISPOSAL OF OLD APPLIANCE 10

OPERATION 11

COOKER HOOD CONTROLS 11

OFF-TIMER 11

BRIGHTNESS ADJUSTMENT 12

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 13

CLEANING AND MAINTENANCE 14

MAINTENANCE 14

GREASE FILTER 14

ACTIVATED CHARCOAL FILTER 14

LIGHT 14

WARRANTY AND AFTER SALES SERVICE 15

WARRANTY 15

GARANTIE, NACHVERKAUF-SERVICE 26

GARANTIE 26

CS- Obsah

BEZPEČNOSTNÍ POKYNY 28

VYBALENI 31

LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ 31

OBSLUHA 32

OVLÁDÁNÍ ODSAVAČE 32

ČASOVAČ (OPOŽDĚNÉ VYPNUTÍ DIGESTOŘE) 32

DIMMER (REGULACE INTENZITY OSVĚTLENÍ) 33

JINÉ DÜLEŽITÉ INFORMACE O OBSLUZE ODSAVAČE 34

ČISTĚNÍ A ÚDRŽBA 35

ÚDRŽBA 35

PROTITUKOVÝ FILTR 35

UHLÍKOVÝ FILTR 35

OSVĚTLENÍ 35

ZÁRUKA, POPRODEJNÍ SERVIS 36

ZÁRUKA 36

SK- Obsah

BEZPEČNOSTNÉ POKYNY POUŽÍVANIA 38

ROZBALENIE

LIKVIDÁCIA ZARIADENÍ 42

POUŽÍVANIE 43

OVLÁDANIE ODSÁVAČA 43

ČASOVAČ (ONESKORENÉ VYPNUTIE ODSÁVANIA) 43

STMIEVAČ (NASTAVENIE INTENZITY OSVETLENIA) 44

INÉ DÔLEŽITÉ INFORMÁCIE TÝKAJÚCE SA POUŽÍVANIA ODSÁVAČA 45

ČISTENIE A ÚDRŽBA 46

KONZERVÁCIA

PROTITUKOVÝ FILTER 46

UHLÍKOVÝ FILTER 46

OSVETLENIE

ZÁRUKA, POPREDAJNÝ SERVIS 47

ZÁRUKA

42

46

46

47

From now on, your daily housework will be easier than ever before. Your appliance Air exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.
• The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.
• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of ∅ 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode.
• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).
• The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.
• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the

wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

• For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).
• Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

- When cooking on fat, supervise the pans constantly, because overheated fat can ignite.

- Unplug the appliance before any cleaning, replacing the filter or repair work.

- Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable.

- Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter)

- Do not lean on the hood.

- The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)..Failure to adhere to the rules concerning cleaning the hood and replacing filters results in a fire risk.

- If the power cord is damaged it should be replaced by a specialised service centre.

- Ensure that it is possible to disconnect the ap-

pliance from the mains by removing the plug or switching off the bi-polar switch.

• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.
• Particular attention should be paid not to allow unaccompanied children to use the appliance.
• Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.
• Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.
• Do not operate your kitchen hood without the aluminium grease filters.
• It is strictly forbidden to cook dishes under on an open flame (flambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.
• Hanging kitchen hoods operate only in air circulation / odour absorber mode
• WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Cooker hood controls

Control Panel is shown in Figure 4, for reference it is also shown below:

The control panel is equipped with touch controls: Control functions are described below:

1. Touch the ① sensor to turn the appliance on or off. The fan will operate at the last selected speed.
2. Slider display indicates fan speed. Slide your finger on the slider to smoothly adjust fan speed.
3. The L sensor turns light on/off
4. T is the Off-Timer (see below for details).
5. Clean the filter indicator

Note: There are 9 fan speeds and highest speed is indicated by the entire length of the slider bar.

Off-Timer

Use Off-Timer to turn off the hood after a specified time. Use Off-Timer to filter the fumes out of the air after cooking. Delays of 5, 10 or 15 minutes are available. To activate the Off-Timer at any time, touch the T sensor once and the slider bars will flash. Then, adjust the slider length to select the delay:

Slider bar length Delay time [min]
3	5
6	10
10 15

Touch T to confirm the selected Off-Timer delay. Flashing T indicates that the Off-Timer has been enabled. Touch T again to cancel the Off-Timer.

Indication to clean the aluminium filters

When the indicator is on, you need to clean the aluminium filters.

To acknowledge the indication, touch and hold T for approximately 2 seconds.

Note: Clean the filter indication will be displayed after approximately 110 hours of fan operation.

Eco Boost

When operating at the highest speed, the appliance will eventually reduce the fan speed down to 6. The time until fan speed is reduced depends on the initial fan speed.

StandBy

The appliance will deactivate about 20 seconds after you turn off the fan and the light. Some sensors will be dimmed or turned off. Touch any sensor to activate the appliance.

Brightness adjustment

Use this function to adjust brightness. To adjust brightness, touch and hold the L sensor for about 2 seconds. The lighting brightness will change

Other important information concerning the operation of the hood

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120 mm, and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

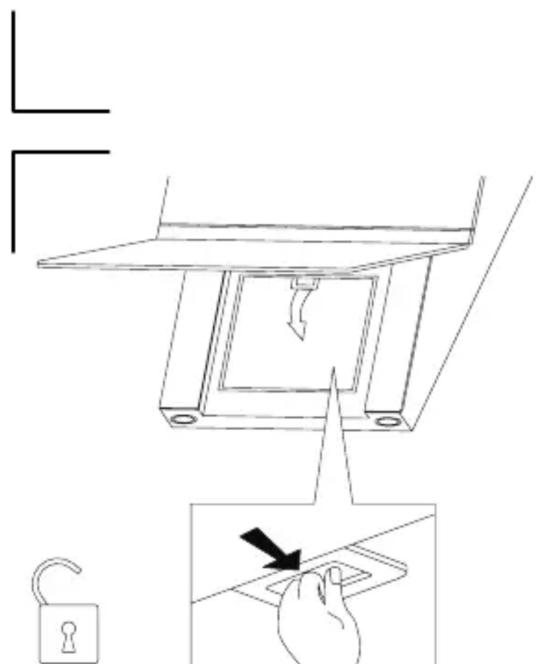

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated. Charcoal filter is not suitable for washing or regeneration and should be replaced at least once every two months or more frequently if the appliance is used intensively.

Dismantling of charcoal filter is shown on Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details how to replace lights. If there is no such figure in this manual, please contact authorised service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. Repairs should be carried out by a qualified technician only.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

GARANTIE, NACHVERKAUFSERVICE

Garantie

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Uređaj je za vrijeme transporta za- štićen od oštećenja. Nakon vađenja uređaja iz pakiranja molimo Vas da elemente ambalaže uklonite na način koji ne ugrožava okoliš.

Svi materijali korišteni za pakiranje nisu štetni za okoliš, 100% materijala je prikladno za rečikliranje, stoga su označeni odgovarajućim simbolom.

Pozor! Elemente pakiranja (polietilenske vrećice, komadići stiropora itd.) prilikom uklanjanja amba-laze držati daleko od djece.

ZBRINJAVANJE POTROŠENIH UREĐAJA

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Ovaj uređaj je označen u skladu s europskom uredbom 2012/19/EU.

Oznaka na proizvodu pokazuje da ovaj proizvod nakon njegovog životnog vijeka ne može biti tretiran kao obični kućanski otpad.

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

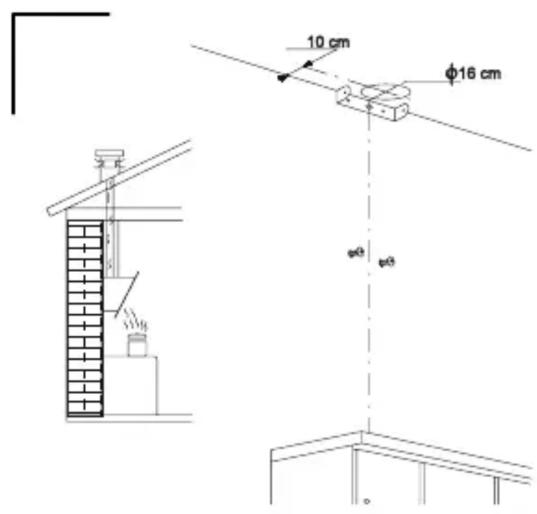

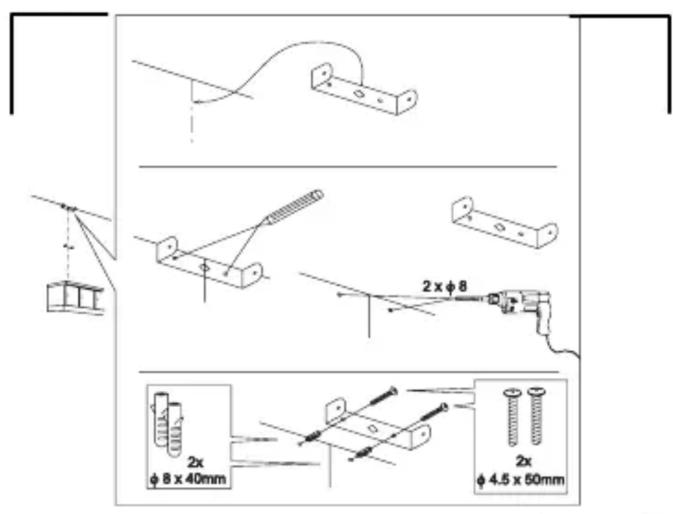

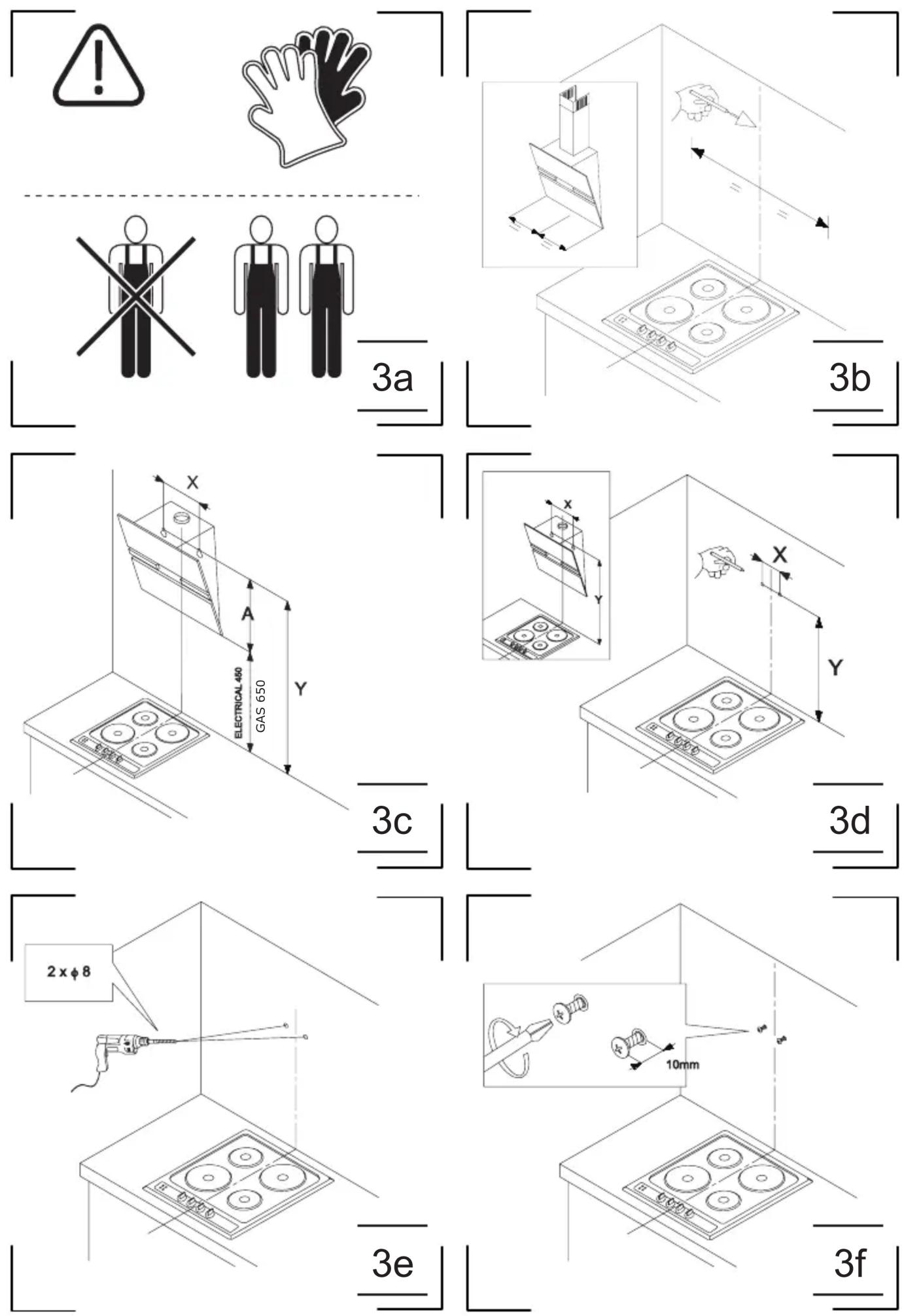

3h

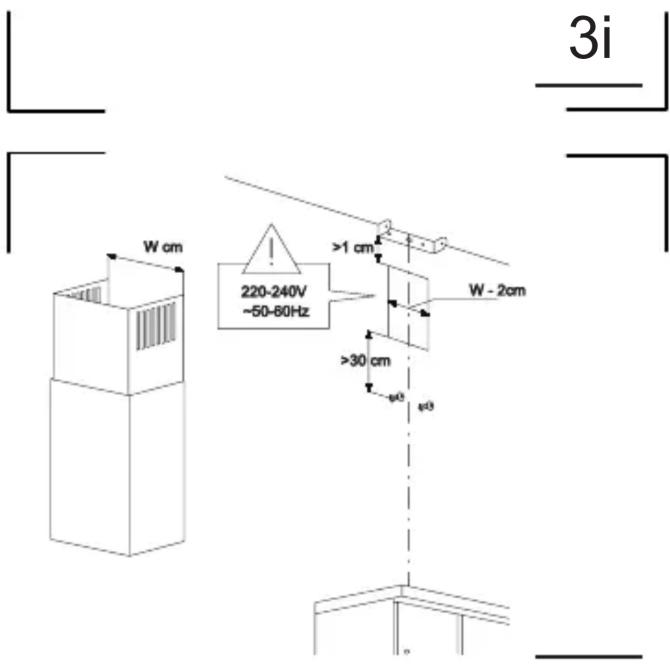

3j

Technical line drawing of a mechanical assembly with an open lock and a hand pressing a component (no text or symbols)

31

3k

4

Diagram of a solar panel array with one highlighted (no text or symbols)

Isometric line drawing of a grid-patterned panel or tray structure (no text or symbols)

Diagram showing a grid structure being lifted by a red arrow, with no text or symbols present.

5

7

6

Amica S.A.
