Product Type	Digital Terrestrial Receiver
Brand	Samsung
Model	DTB-S500F
Dimensions (W x H x D)	270 mm x 200 mm x 45 mm
Weight	1.2 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	Low (typical less than 15W)
Tuner Frequency Range	50 - 860 MHz
Demodulation	OFDM (DVB-T), 2K/8K FFT
Video Decoding	MPEG-2 MP@ML
Audio Decoding	MPEG-1 Layer I & II
Number of Programmable Channels	400
A/V Outputs	2 SCART (TV, VCR), RCA (Video, Audio L/R), SPDIF (optical)
RF Loop Through	Yes (male connector for analog receiver)
RS-232 Port	Yes (for software upgrade via PC)
Modem	Built-in (for PPV and subscription info)
Accessories Included	Remote control, 2x AAA batteries, modem cable, SCART cable, user manual
Cleaning Instructions	Disconnect from mains, use damp cloth with water only (no solvents)
Safety Precautions	Keep away from liquids, ensure ventilation, do not overload outlets, refer servicing to qualified agent
Repair and Servicing	Do not attempt self-repair; contact qualified service agent (warranty void if opened)

Frequently Asked Questions - DTB-S500F SAMSUNG

How do I set up my Samsung DTB-S500F for the first time?

Connect the antenna to RF IN and the TV to TV SCART or RCA. Plug in the power and press MENU. Go to Installation > Auto Scanning to search for channels. The default PIN is 0000.

What should I do if there is no picture on the screen?

Check that the receiver is not in Standby mode. Ensure the SCART or RCA cable is securely connected. Verify the TV is set to the correct input source. Also check if the antenna is properly connected.

Why is there no sound?

Check the audio cable connections. Press VOL+ to increase volume. Press the MUTE key to ensure it is not muted. Also check the audio settings in the menu (e.g., Language Selection for soundtrack).

How can I reset the PIN code if I forget it?

The factory default PIN is 0000. If you changed it and forgot, you must contact your dealer or service provider. There is no user reset method.

How do I set parental locks on specific channels?

Press MENU, go to Parental Lock (enter PIN), select Set Channel Lock. Use the arrow keys to choose a channel and press RED to lock it. Press OK to confirm. Locked channels require the PIN to view.

Why does the remote control not work?

Check that the batteries are inserted correctly (+/-) and have charge. Point the remote directly at the receiver's Infrared Sensor. Remove any obstructions. If still not working, replace the batteries.

How can I improve poor picture quality?

Check the signal strength in Installation > Manual Scanning. Ensure the antenna is properly aligned towards a digital transmitter. Use an antenna with a built-in booster if signal is weak. Also check cable connections.

How do I perform a software upgrade?

Go to System Setup > Software Upgrade. The receiver can download new software via a broadcaster's channel. Follow on-screen instructions. Do not turn off the receiver during the process. All settings will be reset to defaults.

What is the correct way to clean the device?

Always disconnect the receiver from the power outlet before cleaning. Use a soft cloth lightly dampened with water. Do not use solvents or abrasive cleaners. Avoid getting liquids inside the device.

How should I dispose of the receiver?

Do not dispose of with household waste. Follow local regulations for electronic waste. The product is marked with the WEEE symbol. Contact your local council or retailer for recycling options.

USER MANUAL DTB-S500F SAMSUNG

DIGITAL TERRESTRIAL RECEIVER

SAMSUNG

MF68-00345A

Instructions for use

Instructions for use ....GB

Instructions for use

GB

DIGITAL TERRESTRIAL RECEIVER

SAFETY INSTRUCTIONS

This STB has been manufactured to satisfy international safety standards. Please read the following recommended safety precautions carefully.

MAINS SUPPLY: A C 100-240V\~, 50/60Hz

OVERLOADING: Do not overload wall outlets, extension cords or adapters as this can result in fire or electrical shock.

LIQUIDS: Keep liquids away from the STB.

CLEANING: Before cleaning, disconnect the STB from the wall socket. Use a cloth lightly dampened with water (no solvents) to clean the exterior.

VENTILATION: Do not block the STB ventilation holes. Ensure that free airflow is maintained around the STB. Never store the STB where it is exposed to direct sunlight or near heating equipment e.g. a radiator. Never stack other electronic equipment on top of the STB. Place the STB at least 30mm from the wall.

ATTACHMENTS: Do not use any attachment that is not recommended by the manufacturer; it may cause a hazard or damage the equipment.

CONNECTION TO THE CABLE TV SIGNAL AND TV:

Connect all components before plugging any power cords into the wall outlet. Always turn off the STB, TV and other components before you connect or disconnect any cables.

SERVICING: Do not attempt to service this product yourself. Any attempt to do so will make the warranty invalid. Refer all servicing to a qualified service agent.

LIGHTNING: If the STB is installed in an area subject to intense lightning activity, protection devices for the STB mains connector and modem telephone line are essential. The individual manufacturer's instruction for safeguarding other equipment, such as TV set, Hi-Fi, etc., connected to the STB must also be followed during lightning storms.

GROUNDING: Terrestrial cable MUST BE EARTHED. The grounding system must comply with SABS 061.

SAFETY INSTRUCTIONS

WARNING!

1. Follow these directions in order not to damage the power cord or plug.

• Do not modify or process the power cord or plug arbitrarily.
• Do not bend or twist the power cord too much.
  ● Make sure to disconnect the power cord with holding the plug.
• Separate heat appliances from the power cord as distance as possible in order to prevent the cover from being melted.

2. Failure to follow one of them may cause electrical shock.

• Do not open the main body.
• Do not insert metals or inflammable objects inside the product.
• Do not touch the power plug with a wet hand.
• Disconnect the power cord in case of lightning.
• Do not cover the receiver's ventilation openings with items such as newspapers, clothes etc.
• Do not place the receiver on top of household appliances that emit heat.

3. Do not use the product when it is out of order. If you continue to use the product with a defect, it can cause a serious damage to the product. Make sure to contact your local product distributor when the product is out of order.

CONTENT

Safety Instructions 2

General Features....5

Connecting Your STB 6

Description 8

Front Panel 8

Rear Panel 9

Remote Control Unit 10

Basic Functions....12

Operating The Receiver 15

Main Menu 15

1. Installation .... 15 1.1 Select Country.... 16

1.2 Auto Scanning 16

1.3 Manual Scanning 17

1.4 Reset to Factory Defaults 17

1. Channel Organising 18

2.1 Delete Frequency 18

2.2 Delete Channel 18

2.3 Delete All Channels 18

2.4 Move & Edit Channel 19

1. Parental Lock 20

3.1 Set Channel Lock....20

3.2 Change PIN Code 21

3.3 Set Modem Lock 21

1. System Setup 22

4.1 Language Selection 22

4.2 OSD Setting....22

4.3 Media Settings....23

4.4 Time & Timer Setting 23

4.5 System Information 24

4.6 Software Upgrade 24

4.7 MHP App Control 24

4.8 Modem Setup 25

4.9 Auto Operation Setting....25

Troubleshooting 26

Disposal 26

Technical Specifications 27

GENERAL FEATURES

1. USER SECTION

▶ 400 PROGRAMMABLE CHANNELS
▶ SOFTWARE DOWNLOAD VIA PC
ADVANCED ELECTRONIC PROGRAM GUIDE
MULTI LANGUAGE SUPPORTED FOR OSD
TELETEXT (VBI) SUPPORTED WITH MULTI LANGUAGE
FULL FUNCTION INFRARED REMOTE CONTROL UNIT
▶ AUTO AND MANUAL SCAN FACILITY
▶ CHANNEL ORGANIZING (PROGRAMMABLE)
- LOW POWER CONSUMPTION
▶ AUTO UPDATED EPG

2. TUNER SECTION

50-860 MHz WIDE BAND TUNER
RF LOOP-THROUGH OUTPUT (MALE) FOR ANALOG RECEIVER

3. VIDEO SECTION

DVB-T COMPLIANT
MPEG-2 VIDEO (MP@ML)
▶ SUPPORTS ASPECT RATIO 4:3 (NORMAL) AND
16:9 (WIDE SCREEN)
FFT: 2K OR 8K
2SCART. RCA

4. AUDIO SECTION

MPEG 1 AUDIO LAYER I & II
MONO, DUAL, STEREO AND JOINT STEREO AUDIO MODE
32, 44.1, AND 48 KHz SAMPLING FREQUENCIES
VOLUME CONTROL AND MUTE FUNCTION THROUGH REMOTE CONTROL UNIT
SPDIF DIGITAL AUDIO OUTPUT

CONNECTING YOUR STB

1. LOCATION OF THE RECEIVER

Your RECEIVER should be placed under proper ventilation.

Don't put in completely enclosed cabinet that will restrict the flow of air, resulting in overheating.

The location should be safeguarded from direct sunlight, excess moisture, rough handling or household pets.

Avoid stacking other electronic components on the top of the receiver.

The location should be safely accessible by the cable from your antenna system.

2. CONNECTING THE RECEIVER WITH AERIALS

You can connect the receiver to the following type of aerials:

- Use a standard outdoor roof aerial intended for receiving channels between VHF and UHF.

- Because many older roof-mounted aerials may only receive a limited number of channels, it is difficult or impossible to receive digital channels transmitted on higher frequencies. If so, you may replace the roof aerial.

- Some outdoor aerials are directed towards an analog transmitter. The aerial must be directed towards a digital TV transmitter.

- It is not desirable to use indoor or window mounted aerials, as it will be difficult or impossible to receive digital channels.

3. CONNECTING THE RECEIVER TO TV

To connect the receiver with your television, you can use SCART Cable or RCA cable. In the case of connecting your TV through SCART cable, connect the SCART connector marked TV to the respective SCART port on the TV.

4. CONNECTING YOUR VCR

To connect a VCR, the receiver has been provided with SCART at the rear marked "VCR". Using a SCART connector, the VCR can be connected to the receiver.

5. CONNECTING YOUR ANALOG RECEIVER

This Receiver compatible with analog signal, So don't need any other extra connection except Digital connection.

6. CONNECTING EXTERNAL AUDIO / HI-FI SYSTEM

To connect any external Audio Hi-Fi system, the receiver has been provided with two RCA connectors at the back of the receiver, marked with AUDIO L and R respectively to connect the left and right Audio.

7. CONNECTING DIGITAL AUDIO SYSTEM

Connect a fiber optic cable between SPDIF on the receiver and OPTICAL on the Digital Audio System.

······

CONNECTING YOUR STB

······

Connecting Figure

Note: In some region, the digital terrestrial signal may be weak. So you'd better use the antenna in which the booster was built, for watching the weak signal channels.

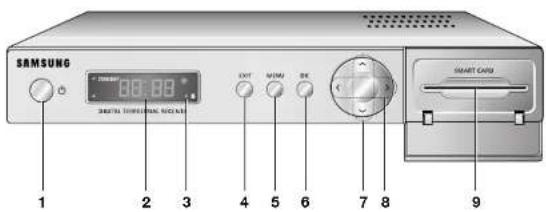

DESCRIPTION

1. This key is used to turn the receiver on and off (Standby).
   2.7 Segment Display This LED display will show the current channel number. While the receiver is in Standby mode, the display will show the current time.
2. Infrared Sensor This is to receive the IR commands from the Remote Control Unit.

3. EXIT This is for exiting a menu or returning to the previous menu or exiting some banners.

4. MENU This is for opening up the menu or returning to the previous menu.

5. OK This is for entering and confirming any data to the receiver in the menu system. This key is for selecting the item.

6. ∧, ∨These keys are used to change the channels.
7. <, >These keys are used to increase and decrease the volume level manually.
8. Card Slot Slot for smartcard.

Rear PanelFront Panel

1. MODEM Modem is a terminal which shares a line with a phone using splitter. It is used for handling PPV and transferring subscription information.
2. RF OUT This is used to connect to your TV via RF cable.
3. RF IN Use to connect a terrestrial antenna.
4. TV This is used to connect to your TV.
5. VCR This is used to connect to your VCR.
6. VIDEO, AUDIO L/R These RCA connectors are for connecting any external video and audio.
7. SPDIF Output for connection to a digital amplifier.
8. RS-232 This is used to connect your receiver to a computer for reading and loading data information.

Remote Control Unit

Note: When inserting batteries, make sure that the polarity(-/-) is correct.

1. POWER Puts the STB in stand-by mode (no signal to TV). Button's color is gray.

2. 0-9 Numeric key Enter numeric value and to select the channel directly by entering number on the Service list.

3. TEXT This key is used to select the teletext mode.

4. BACK This key is used in the MHP Application.

5. MUTE This key is used to toggle between normal & muted audio.

6. EXIT Exit a menu or return to the previous menu.

7. VOL+/VOL- These keys are used to increase or decrease the volume.

8. CH+/CH- These keys are used to change channels.

9. Color key (RED, GREEN, YELLOW, BLUE)

Used to select special operation for the STB.

1. Arrow Key Move the highlight bar for the MHP Application.

OK Enter and confirm any data to the receiver in the menu system.

1. APP This key is the hard key for accessing the SAMSUNG application manager.

2. LIST Press while viewing TV and a list of channels is displayed.

3. MENU This key is used to open up the menu or return to the previous menu.

4. "i" Button is the "Now and Next Information" Key.

5. EPG Electronic Program Guide button displays the TV/Radio Program guide.

6. TV/RADIO Toggle between the TV and Radio channel.

7. ALT This key is used to select the soundtrack/videotrack list for the current service.

8. SUB Reserved.

BASIC FUNCTIONS

1. Display Screen

Before you can view the television program, you must perform the installation. Therefore you will see only menu images at first.

After the television channels have been programmed, you will see the following picture (banner) each time you switch channels:

- Press the i key in view mode.

You will also see this picture each time you change channels.

When you press TV/RADIO key on the Remote Control Unit, TV and Radio program are toggled.

Detailed program information

- Press the i key twice while you are viewing a program.

First you will see the banner described above.

After pressing the i key a second time you will receive detailed program information for current program can be displayed on another banner, if there is more information.

When this information is more than one page, CH+/CH- can be used for page up and down.

Notes: This service depends on service provider.

2. Volume Control

To control the volume level :

• Press the VOL+ or VOL- keys to adjust the volume level.
• Press the MUTE key to turn to silence mode.
• Press the MUTE key again or VOL+ or VOL- keys in order to cancel the mute function.

GB-12

BASIC FUNCTIONS

3. Select Soundtrack

• Press the ALT key to see the soundtrack list.
• Press the ▲ / ▼ and OK keys to select one.

4. Select Videotrack

• Press the ALT key twice to see the videotrack list.
• Press the ▲ / ▼ and OK keys to select one.

5. Service List

• Press the LIST key while you are viewing a program.
• Select list by pressing the TV/RADIO.
  The icon ➕ behind the channel name symbolizes scrambled channel, and the icon ➕ behind the channel name symbolizes parental locked channel.
• Select the channel by pressing the ▲ / ▼ and press the CH+/CH- for moving up or down pages on the lists.
• Press the OK key to watch that channel.

GB-13

BASIC FUNCTIONS

6. Program Information

EPG-Electronic Program Guide

The electronic program guide gives you a channel list for the channels.

Note: 1. This service depends on service provider. 2. After receiver recognized the GMT-time from the signal which takes few seconds, it can display correct EPG information.

- Press the EPG key while you are viewing a program.

This function is displayed on the screen by using only time.

● RED key : Red key is for moving back to the previous date.

● GREEN key : Green key is for moving to the next coming date.

- i key : This key is used to watch the program information, if there is more information than one page. Use the CH+/CH- keys to move up and down pages.

●◀/▶ key : Use to display the program list by 30 minutes per block.

Time interval can be adjusted by press keys as followings on EPG screen:

1 Key: 1 hour and 30 minutes 2 key: 30 minutes 3 key: 15 minutes

- Select the channel by pressing the ▲/▼ keys and press the OK key to watch this channel.

After installing your antenna system and STB with appropriate connectors.

- Plug in the AC main power and switch on the receiver. - Press the MENU key to bring up the main menu.

The following on screen display will appear:

The sub menu topics will be displayed. For the sub-menus Installation, Channel Organization and Parental Lock, you need the PIN Code.

1. Installation

This menu consists of 4 sub-menus: Select Country, Auto Scanning, Manual Scanning and Reset to Factory Defaults.

- Select "Installation" in the main menu mode to select the sub menu.

- Enter the PIN Code. If you have not entered your own PIN Code then the PIN Code 0000 applies, which was set at the factory.

1.1 Select Country

To tune-in new channels, the STB has been provided with the option "Select Country".

Select the country where broadcasting services are provided. After selecting the "Select Country" from the Installation Monu, the following screen will be displayed:

• Select the country which you are in.
  You can select the value of ITALY, SPAIN, SWEDEN, UK, USER, BELGIUM, GERMAN, FINLAND, or FRANCE by using ◄/▶ key.

● After select option, press the OK key to choose the nation of broadcasting area to be served.

If you don't want to save the changed, press EXIT key without OK key pressed.

Note: If national code is changed, all of saved programs will be deleted.

1.2 Auto Scanning

The sub menu "Auto Scanning" will enable download of the channels automatically from the preprogrammed load.

To download channels automatically:

• You can select the specified frequency between Start Frequency and End Frequency.

- Press the OK key.

Auto Scanning menu will be displayed.

All the channels in the list will be automatically downloaded.

1.3 Manual Scanning

To tune-in new channels and weak signals, the STB has been provided with the option "Manual Scanning" where the channel data can be entered by the user.

After selecting the "Manual Scanning" from the installation Menu, the following screen will be displayed:

- Select the Channel Number.

You can select the specified channel you want to find.

The followings are defined as a default, but optionally you can choose it.

Signal Status bar shows you if it is valid.

● Input the frequency of the channel you want to find.

- Select the bandwidth.

You can select the value of 6, 7 or 8 MHz.

- Select the Guard Interval Mode.

You can select the value of Auto, 1/32, 1/16, 1/8, or 1/4.

- Select the FFT (Fast Fourier Transform) Mode.

The value of AUTO, 2K and 8K is settings automatically.

● After select option, press the OK key to start the scanning process.

1.4 Reset to Factory Defaults

This is to restore the factory set values in case the user has encountered some problems after changing any values of channel data and others which may be in error.

At the request window, if you press the OK key, the receiver will be reset to factory default settings automatically.

Sinks: This cause your previous settings to be deleted!

2. Channel Organising

The "Channel Organising" menu has four functions: The "Channel Organising" menu is used to delete the Frequencies and Channels or move&edit channel as you want.

- Enter the PIN Code.

If you have not entered your own PIN Code 0000 applies, which was set at the factory.

2.1 Delete Frequency

• Select the desired frequency list you want to delete by pressing the RED key.
• Press the OK key for confirmation.
  Note: This feature doesn't delete frequency itself but deletes the list of channels registered for frequency.

2.2 Delete Channel

• Select the desired channel you want to delete by pressing the RED key.
• Press the OK key for confirmation.

2.3 Delete All Channels

At the request window, press the OK key to delete all channels and press the EXIT key to exit.

2.4 Move & Edit Channel

• Select the TV/RADIO/Interactive list with ◀/▶ keys.
• Select the TV/RADIO/Interactive list with ▲ / ▼ or CH+/CH-keys.
• Select channel by pressing the RED key.
• Press the ▲ / ▼ keys to change the position of the channel you want, and CH+/CH- for moving up or down pages on list. Press the OK key for confirmation.
• If you want to return the channel to the initial position, do not press the OK key but press the BLUE key.

To edit Channel Name

• Select the TV/RADIO/Interactive list with ◀/▶ keys.
• Select a channel list to move to other location with
  ▲ / ▼ or CH+/CH- keys.
• Press the GREEN key.
  Font Table will be displayed.
• Select desired character with ▶/▶, ▲/▼ and then press the OK key to paste character to the string.
  Note: CH-key: Backspace for deleting previous character.
• Press the MENU key and then press the OK key to save the set data.

This "Parental Lock" feature sets viewing restrictions and prevents unauthorized access to your STB through the PIN (Personal Identification Number), which is a 4 digit number. (The factory preset PIN Code : 0000)

On selecting this menu, you will have three options: to set lock for any desired channel and to change your PIN Code and to Set Modem Lock.

- Enter PIN Code.

If you have not entered your own PIN Code then the PIN Code 0000 applies, which was set at the factory.

3.1 Set Channel Lock

• Select the channel by pressing the ◀/▶ or ▲ /▼ keys.
• Select the channel lock by pressing the RED key.
• Press the OK key for confirmation.

Whenever you need to view the locked channel, you will have to enter the PIN Code at the request window.

After entering PIN Code to able to access a parental locked channel, it will work on all parental locked channels.

It means that you can access all parental locked channels with entering PIN Code on any parental locked channel successfully.

To cancel the lock :

- Press the RED key again in order to cancel the lock.

3.2 Change PIN Code

To change the PIN Code, select the second option "Change PIN Code".

This will take you to the following menu:

In this option, you need to enter the current PIN Code at the first cursor, and at the second cursor enter the desired PIN Code.

To confirm, you need to enter the new PIN Code again.

Please remember the PIN Code should be a 4 digit numerical value.

THE FACTORY PRESET PIN CODE: 0000.

Notes: If you forget the PIN Code, contact your dealer or service provider. Once you change password, please do not forget and keep well.

3.3 Set Modem Lock

To block watching the paid service, e.g. PPV(Pay Per View) service, select the third option, "Set Modem Lock".

You can select Lock or Unlock in Modem Parental Lock Menu.

• Select Lock, this will make you block to watch paid-service.
• Select Unlock, this will make you free to watch paid-service.

4. System Setup

This option enables you to change the factory preset system settings as per your requirements.

4.1 Language Selection

The "Language Selection" option allows the user to select the desired language of the OSD, Soundtrack, Teletext, and EPG.

• To accommodate user from different regions speaking different languages, OSD languages are available 5 languages. (English, Deutsch, Français, Italiano, and Español provided currently)
• To select the desired language menu, press the ◀/▶ keys to change language and press the OK key.
• The OSD, Soundtrack, Teletext, or EPG language will vary according to the selected language.

4.2 OSD Setting

You can set the OSD transparency and the display(banner) time.

• Select OSD Transparency level. The OSD Transparency level from 0 to 100%. Setting is made with the numeric keys, ◀/▶ keys or CH+/CH- keys.

- Set the display duration of the information(banner) box displayed in the screen.

The time ranges from 0.5 to 60.0 seconds. Setting is made with the numeric keys, ◀/▶ keys to be decrement/increment of 0.5sec and CH+/CH- keys 1sec.

4.3 Media Settings

You can set the various media settings you want. Place the cursor on this sub menu and press the OK key.

• Press the ▲ / ▼ keys to move the sub items and press the ◀ / ▶ keys to select the option.
• Press the OK key to confirm.
• Press the MENU/EXIT keys to exit the menu.
• Select the TV system: PAL or SECAM.
• Select the TV Aspect Ratio according to your TV: STANDARD 4:3 ratio or WIDE SCREEN 16:9 ratio type.
• Select the Aspect Ratio Conversion :
  None, Letter Box or Pan & Scan.
• Select the Video Signal Type
  Composite or Composite+RGB
  ● RF Channel : Off or K21 CH - K69 CH
  ● Broadcasting System : B/G, I, D/K

4.4 Time & Timer Setting

Various time modes can be set, such as current local time, switch on/off time.

The exact local present time can be adjusted by using the GMT.

• Place the cursor on this sub menu and press the OK key.
• Press the ◀/▶ keys to change the Local time in Time Zone. The local time will be changed according to your location.

GMT is referred to the standard time of Greenwich. This cannot be changed.

• Press the ◄/▶ keys to choose Event Repetition you want to reserve: Once, Daily, Every Sunday, Every Monday, Every Tuesday, Every Wednesday, Every Thursday, Every Friday and Every Saturday.
• Insert the preferable Switch on/off time by the Numerical (0-9) keys and ◀/▶ keys. Press the ◀/▶ keys to choose a switch time you want to reserve.
• Select program to set the event program by pressing the ◀/▶ and Numerical (0\~9) keys.

4.5 System Information

If you have to contact your service provider or a service center they might ask for information available from this menu. Place the cursor on this sub menu and press the OK key. The following will be the on-screen display.

4.6 Software Upgrade

You can download and upgrade the system software of the receiver through a specific channel through a specific channel designated by the broadcaster. The Broadcaster will provide you with more information about that. If you select to download a new software version, all your previous settings, access code and favorite channels etc. will be erased! Downloading may take a While 'During downloading' don't turn off the receiver.

4.7 MHP App Control

If you want to change the display mode of MHP application, please follow the instruction below.

• Select Auto Start or Not Allowed in Auto Start Control mode with the ◀/▶ keys.
• Select On/Off in show Application List mode with the ◀/▶ keys.
• Press the GREEN key to edit contents in Phone Number, User Name and Password.
• Insert value by the Numerical (0\~9) and ◀/▶ keys in DNS.
• Press 'OK' to save MHP App Control.

Notes: Exit without OK key makes MHP App Control unchanged.

4.8 Modem Setup

If you want to setup Modem, please follow the instruction below.

- Select Tone or Pulse in Dial Method.

• Select the 'Carrier Wait Time' ranged in 1\~255 seconds with the ◀/▶ keys or numeric keys.
• Select the 'Carrier Present Time' ranged in 0.1\~25.5 seconds with the ◀/▶ keys or numeric keys.
• Select the 'Carrier Loss Time' ranged in 0.1\~25.5 seconds with the ◀/▶ keys or numeric keys.
• Select Blank, 0, # or 9 in Prefix by using ▶/▶ keys, to specify your pre-dialing key for phone extension.
• Press 'OK' to save Modem configuration if modified.

Sits: Exit without OK key makes Modem Setup unchanged.

4.9 Auto Operation Setting

You can set the parameters for searching new channels and upgrading new software.

• Select YES or NO in Standby Mode and Operate Mode by using ◀/▶ keys.
• Insert the preferable time by the Numerical (0\~9), CH+/CH-and ◀/▶ keys.
• Press the ◄/▶ keys to choose Repetition you want to reserve: Daily, Every Sunday, Every Monday, Every Tuesday, Every Wednesday, Every Thursday, Every Friday and Every Saturday.

Notes: If YES in Standby Mode (with selecting NO in Operate Mode or Aborting the operation in progress in Operate Mode), the receiver automatically starts auto operation in Standby Mode after 45 minutes for new software and 1 hour for new channels from entering the standby mode.

TROUBLESHOOTINGS

In some region, the digital terrestrial signal may be weak.

So you'd better use the antenna in which the booster was built, for watching the weak signal channels.

You can download and upgrade the system software of the receiver through a specific channel through a specific channel designated by the broadcaster. The Distributor will provide you with more information about that.

Problem	Possible cause	Solution of the problem
No display LED on the front panel; No power supply	Power cord not plugged in correctly	Power cord plug in correctly
No pictures on the screen	Receiver in Standby mode; Start not connected lightly to video output of television; incorrect channel or video output selected on television	Set receiver to "On"; Check connection and correct; Check channel and video output and correct (TV instruction manus)
No sound	Audio cord connected incorrectly; Loudness level = 0; Mutual active	Check connection and correct; Increase loudness on television set; Press the MULTI key
Remote Control does not operate directly	Incorrect operation; Batteries dead or inserted incorrectly	Point remote control towards the Receiver. Replace batteries or insert correctly
Poor picture quality	Signal strength too low	Check the signal strength in the "Installation" menu, correct alignment of your antenna.
On-Screen Error Message "Searching for signal"	Antenna cable not connected or not light; Incorrect position of the antenna;	Check connection and correct; Check position and correct; Check the signal strength in the "Installation" menu
On-Screen Error Message "Channel data does not exist."	Receiver not yet set	Scanning of in "Installation" menu

DISPOSAL

The device, packaging material (e.g. Styrofoam) and the batteries must never be disposed of with household refuse. Please obtain appropriate information about the regulations in your community, and dispose of all refuse in accordance with regulations at the separate locations provided.

TECHNICAL SPECIFICATIONS

Power supply

Type: SMPS

Input voltage

AC 100-240V-, 50/60Hz

Fuse rating : 250V T1.6AH

Demodulator

DEMODULATION : OFDM DEMODULATION (DVB-T)

MODE:2K/8K

CODE RATE : Viterbi Convolutional

Code Rate - 1/2,2/3,3/4,5/6,7/8

Tuner

Freq. Range : 50\~860 MHz

Input signal level: -20 \~ -78 dBm

Channel selection : PLL frequency synthesizer

Input impedance : 75 Ω unbalanced

Connector type : Din type female(RF in/RF out)

Video decoder

System decoding : MPEG 2 ISO/IEC 13818

(Transport Stream)

Profile and level: MPEG 2 MP@ML (4:2:2)

Data rate : 1 - 15 Mb/s

Video formats :

4:3 (normal) & 16:9 (widescreen)

Picture resolution :

720(H) × 576(V) × 50 fields/sec

Audio Decoder

System decoding : MPEG 1 ISO/IEC 11172\~3 layer I & II

Audio mode :

single channel, dual channel, stereo,

joint stereo

Sampling frequency :

32, 44.1, 48, 96 KHz

Note: The specification of the STB may be changed without notice in advance.

TECHNICAL SPECIFICATIONS

MEMO

RF modulator

Modulator output : CH 21-69 (preset to CH 21)

Video type : PAL BG, I, D/K (preset to PAL BG)

UHF output level : 70±5 dBμV

Output connector : IEC male

Ant. O/P connector : IEC female

Tuning method : PLL frequency synthesizer

Default Channel : Disabled

A/V output

TV SCART : VIDEO (CVBS, RGB), AUDIO R&L

VCR SCART: VIDEO (CVBS), AUDIO R&L

SPDIF : Digital Audio Output

Physical Specification

Size (W x H x D) : 270 mm x 200 mm x 45 mm

Weight(Net) : 1.2 kg

Operating Temperature : 0 °C to +45 °C

Storage Temperature : -10 °C to +70 °C

Etc

Accessories : RCU, User's Manual, 2Batteries(AAA),

Modern cable, Scart Cable

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
