Product Type	Built-in Gas Hob (Domino)
Brand	Brandt
Model	TG1089XC
Number of Burners	1 (Ultra Hi-Speed Wok Burner)
Gas Type	Town Gas (TG)
Nominal Heat Rating	5.0 kW
Working Pressure	1 kPa (with external governor Beckley 2300)
Injector Diameter	3.3 mm
Ignition	Electronic ignition (DC 1.5V battery)
Safety Features	Flame failure device, glass crack warning, anti-overheat
Top Plate Material	6 mm Tempered Glass (Black)
Glass Dimensions (W x D)	510 x 300 mm
Cut-out Dimensions (W x D)	477 x 265 mm
Base Tray Dimensions (W x D)	472 x 260 mm
Tray Depth	45 mm
Clearance Below Tray	53 mm to non-combustible material
Net Weight	7.6 kg
Gas Connection	1/2" BSP screw, with external governor
Battery	1.5V "D" size
Installation	Must be installed by registered gas installer; worktop ≥30 mm thick, heat-resistant
Cleaning	Warm soapy water; avoid abrasive powders; do not wash burner caps in dishwasher
Compatible Utensils	Wok and large pans; central placement; max diameter 200 mm to avoid overhang
Ventilation	Minimum 2 m³/hr per kW of gas energy required; keep air vents open
Warranty	Refer to service center; registration recommended

Frequently Asked Questions - TG1089XC BRANDT

How do I ignite the burner?

Depress the control knob and turn it a quarter turn anti-clockwise. The electronic ignition will spark. Adjust the knob to desired flame setting.

What should I do if the burner does not ignite?

Check that the gas supply is on at the meter. Inspect the electrode metal tip for obstructions. Ensure the battery is installed correctly and has power. If using a DC version, replace the 1.5V D battery if needed.

How do I replace the battery?

Open the battery holder cover flap, remove the old battery, and insert a new 1.5V 'D' size battery, noting correct polarity. Close the cover flap.

Can I use this hob with a wok?

Yes, the TG1089XC is specifically designed for wok cooking with an ultra hi-speed burner. Use the wok support supplied or recommended by the manufacturer.

What type of gas does this hob use?

It is pre-set for Town Gas (TG). Check the data plate to confirm suitability for your gas supply. An external gas governor (Beckley 2300, working pressure 1 kPa) is required.

How should I clean the glass top?

Allow the hob to cool. Clean with a cloth and warm soapy water. Avoid abrasive powders or pastes; use only mild abrasives if necessary. Do not allow water to enter the control knob holes.

What safety features does this hob have?

It includes a flame failure device that cuts off gas if the flame extinguishes. The tempered glass is high-resistance but not unbreakable; stop use immediately if a crack appears.

Can I install the hob myself?

No. Installation and servicing must be carried out by a registered gas installer in accordance with local regulations. Improper installation can be dangerous.

What utensils are suitable?

Use pans placed centrally on the burner support. Avoid utensils larger than 200 mm diameter to prevent overhang. Do not use wok stands that enclose the burner.

What should I do if the glass cracks?

Stop using the appliance immediately. Contact the after-sales service or a registered gas installer. Do not attempt to repair the glass yourself.

USER MANUAL TG1089XC BRANDT

Installation must be in accordance with manufacturers' instruction, relevant Gas Fitting Regulations, AGA Installation Code for Gas Burning Appliances and Equipment and any codes and regulations.

These instructions should be read carefully prior to initial use and retained in a safe place in order that full advantage can be taken of the features of your DOMINO

① ANY SERVICING OF THE DOMINO & INSTALLATION MUST BE CARRIED OUT BY A REGISTERED GAS INSTALLER.
i YOUR HOB IS DELIVERED PRE-SET FOR TOWN GAS USE

INSTALLATION INSTRUCTIONS

DATA PLATE DETAILS:

The data plate is located on the front side of the tray.

According to the Gas Safety Regulations of Hong Kong, any gas installation works including the installation of appliances and connection tubing, must be undertaken by registered gas installers who are registered for that appropriate classes and be employed by registered gas contractors.

CHECK THAT THE DATA PLATE SHOWS THAT THE APPLIANCE IS SUITABLE FOR THE AVAILABLE GAS SUPPLY.

1. Before installing the appliance check that the location provides the required clearances from combustible materials and if necessary provide protection to adjacent surfaces as required by the regulations. Make provision for the gas supply to be connected in the position shown in Diagram A.

Diagram A Diagram B

Tray Dimensions (unit in mm)

Cut out (unit in mm)

1. Cut the opening in the bench top to the dimensions shown in diagram B. The hob must be built into the worktop of a support cupboard. This worktop must be at least 3 cm thick and heat-resistant or else coated with a heat resistant material. (Refer Diagram C.) A side-clearance of at least 30 cm should be left to the right and left of the hob. A tall cupboard or partition too close to the hob would hinder free movement of kitchen utensils. If a horizontal partition is put under the hob, it must be placed between 10 and 15 cm from the bottom of the worktop. In any case, do not keep any sprays or pressurized containers in the compartment, which could be just under the hob. Place the hob unit into the opening in the worktop by carefully pulling it onwards you. Put the burners, caps and pan grates back into position.

Diagram C

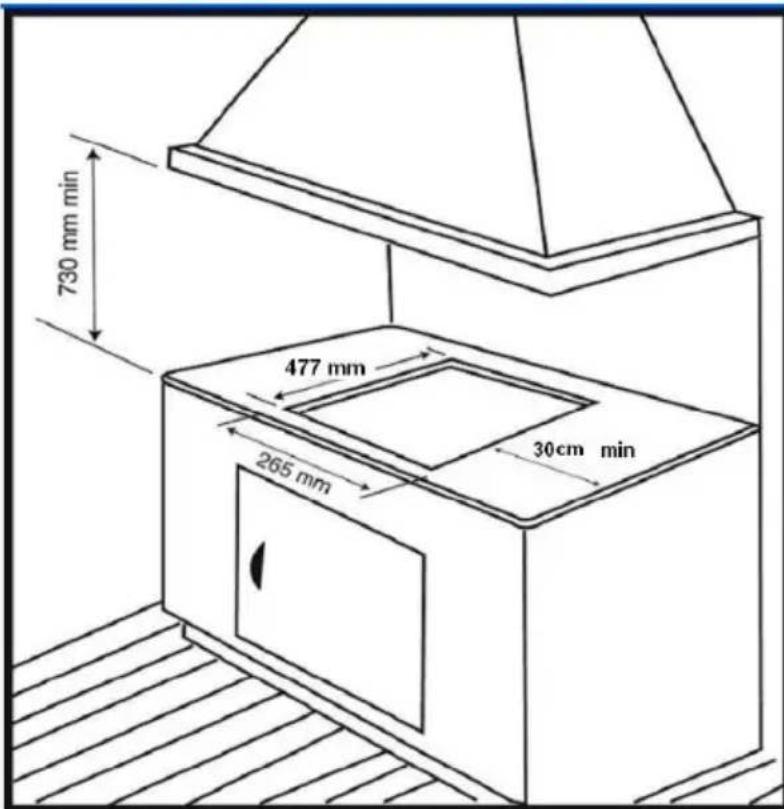

Overall dimension description

If clearance between side and rear walls and periphery of the burner is less than 150mm, the wall must be protected with a non-combustible material. The protection must extend a minimum distance of 450mm above the burner. Horizontal surfaces less than 730mm vertically above the Domino must also be protected.

① Keep all natural air-vents open or have a mechanical ventilation system installed (a mechanically ventilated hood). - Prolonged, intensive use of the hob may require extra ventilation; by opening a window for example or producing more efficient ventilation by increasing the power of the existing mechanical ventilation (a minimum air input 2m3/hr per kW of gas energy is required)

For example: 5.0kW (total power) X2 = 10m3 / h minimum flow rate required

1. Install the Domino in the cut-out (See diagram B).

2. The gas connection to the external gas governor is 1/2"BSP. Please ensure sealing gasket/washer is in place while connecting to gas supply pipe.

1. Test the appliance:

2. Depress the control knob and turn to full flame setting.

3. The burner will ignite. Adjust control knob to desired setting. Normally, no adjustment should be necessary.

4. If any problems occur, refer to the fault isolation chart.

5. Instruct the user to keep the users instructions manual.

If the above test does not produce satisfactory results, the agent's service department should be consulted for more specialized assistance.

1. The Domino is fitted with the flame failure device that cuts off the gas supply when burner flame extinguishes suddenly or abnormally in order to avoid the gas leakage.

2. Room Ventilation

When installing built-in gas hob on top of stove cabinet, please check that there is provision for ventilation at the cabinet to ensure proper operation of the gas hob.

1. Gas Connection

According to the Gas Safety Regulations of Hong Kong, any gas installation works including the installation of appliances and connection tubing, must be undertaken by registered gas installers who are registered for that appropriate classes and be employed by registered gas contractors.

1. Town Gas Connection

Use approved gas tubing bearing EMSD approval marking (such as: 機電工程署批准 EMSD APPROVAL GTXXXX) for connection to appliances, or other appropriate methods accepted by EMSD. The appliance shall be connected with external gas governor (brand: Beckley, model 2300, working pressure 1kPa).

OPERATING INSTRUCTIONS

The Domino is unique in its burner design and layout. It is fitted with the ultra hi-speed burner. This model is specifically designed for WOK COOKING. It delivers up to one and a half times the flame heat and spreads compared to normal hi-speed burners. Burner retain normal simmer cooking facilities. The widely spaced positioning of TG1089XC allows for the use of large woks.

IGNITION

This Domino is equipped with electronic ignition and is operated by depressing the control knob and turning it a quarter turn anti-clockwise.

CONTROLS

The Domino has the control knob, which is situated, at the front of the glass plate. A large and small flame graphic on the glass plate next to the control knob indicates the “full on” and “pre-set” simmer positions.

BURNER OPERATION

1. Depress the control knob anti-clockwise to the FULL-ON position.
2. When the burner has ignited, adjust the control knob to the required setting. Flame adjustment is achieved by rotating the control knob further in an anti-clockwise fashion towards the pre-set simmer position.
3. If the burner flame accidentally goes out, the gas continues to exit for a few moments before the safety device activates. Turn the control knob to the off position and do not attempt ignition for at least 1 minute, thereby letting the gas disperse, which could otherwise be a danger.

BATTERY REPLACEMENT

1. Open the battery holder cover flap
2. Remove old battery
3. Replace with new 1.5 Volt "D" size battery noting correct polarity
4. Close cover flap

CLEANING

- Allow the Domino to cool before attempting to dismantle or clean it. The glass plate is best cleaned with a cloth, using warm soapy water. Use of abrasive powders and pastes should be avoided as far as possible, but when necessary use only a mild abrasive. For removal of hardened grease, very fine steel wool, wetted and liberally soaped, can be used.

• Caustic solutions, washing soda, aerosol spray cleaners, bleach and some biological cleaners are detrimental to some surface finishes and care must be taken not to apply them to the burner bodies and caps.
• Do not wash burner caps in a dishwasher
• For ease of cleaning, remove spillage from the bowls as soon as possible. Control knobs may be pulled off for cleaning beneath them, but take care not to allow water to enter the holes in the glass plate.
• When re-assembling the spillage bowl always ensure that it is correctly located over the spark electrode. Care should be taken to keep the electrode clean and avoid damage to the porcelain insulator when removing the spillage bowl during cleaning.

HINTS ON THE USE OF THE DOMINO

Utensils should always be placed centrally on the pan supports and over the burners.

Flames, which extend beyond the bottom of utensils are wasteful and can damage or overheat handles. Large diameter utensils (greater than 200mm in diameter) must not be allowed to protrude beyond the perimeter of the Domino, as this could cause overheating or damage to the adjacent bench.

Do not place anything, e.g. flame tamer, asbestos mat, between pan and pan support as serious damage to the appliances may result.

Do not remove the pan support and enclose the burner with a wok stand as this will concentrate the flame and deflect the heat onto the Domino.

Do not use large pots or heavy weights, which can bend the pan, support or deflect the flame onto the Domino.

Locate pan centrally over burner so that it is stable and does not overhang the appliance.

Use only wok support supplied or recommended by the manufacturer of the appliance.

SAFETY HINTS

Always turn pan handles to the side or back of the Domino – not out into the kitchen where they can easily be knocked.

Do not wear loose fitting garments while the burners are in operation, due to the possibility of fabric ignition, which may result in personal injury.

RECOGNISING ABNORMAL OPERATION

In the event of any failure, before calling your service agent,

Please check the following:

NO IGNITION: Check if anything is obstructing the electrode metal tip.

NO GAS: Check that the gas is turned on at the mains meter.

BURNER FLAME

NOT BURNING EVENLY: Check the burner head is sitting evenly and that the slots in the burner head are not obstructed.

In the event that you are not satisfied with the Domino, the distributor in your region should be consulted.

IMPORTANT:

① ANY SERVICING TO THIS APPLIANCE MUST BE CARRIED OUT BY A REGISTERED GAS INSTALLER

The glass top is high resistant but not totally unbreakable: avoid any bumps with saucepan.

① SHOULD A CRACK APPEAR ON THE GLASS, PLEASE STOP USING YOUR APPLIANCE IMMEDIATELY AND CONTACT YOUR AFTER-SALES SERVICE.

ANY SERVICING TO THIS APPLIANCE MUST BE CARRIED OUT BY A REGISTERED GAS INSTALLER

D.C. Battery pack

Check the data label affixed to your unit to ensure the correct model has been supplied.

Design and specification may change due to product improvement. No prior notice will be given.

If there are any queries, please feel free to contact our service center.

Please refer to the English version of this manual as the standards.

WARNING:

- Do not spray aerosols in the vicinity of this Domino while it is in operation.

- Some propellant gases can break down when heated and produce corrosive vapors, which will attack some materials.

- Do not store any flammable materials, sprays or pressurized containers inside the stove cabinet.

- The silicone rubber gasket should not be removed under any circumstances. In the event that any protective rubber gasket is dropped off or damaged, the consumer should cease forthwith the use of the unit until it is duly rectified.

- Do not store articles within 50mm of the bottom of the Domino casing.

- Do not touch spark igniter while lighting the burner.

- The appliance shall not be used as a space heater.

- The panel of this built-in hob is made of tempered glass which is safer than normal glass for this application. However, the following safety precautions for using built-in hob with glass top panel should also be noted in order to prevent the glass top panel from breaking :

1. Clean the burner assembly frequently to maintain a clear gas passage on the flame distributor. Clean and tidy up the flame distributor after spillage of food and liquid once the burner assembly cooled down.

2. Turn off the gas appliance immediately if abnormal noise propagates from the gas appliance and contact gas supply company or gas hob importer for inspection.

3. Do not use oversized utensils for cooking.

4. Do not impact the glass surface with hard objects or place heavy objects on the glass surface.

SERVICING INSTRUCTIONS

(For registered gas installer only!) MINOR ADJUSTMENTS

Access to By Pass Screw

• Light the burner and turn to minimum setting (marked small flame).
• The flame should be stable on minimum setting and should not extinguish when passing from maximum setting to low setting.
• If adjustment is necessary, remove the control knob by pulling upward. The bypass screw is accessible via the control knob spindle. Turn the bypass screw anti-clockwise to increase the turndown rate.

Access to manifold, gas taps and burner assembly

• Remove glass hob and control knobs.
• To remove gas cocks. Unscrew the locking nut (between cock and burner). Remove screws, the cock can now be removed from the manifold. If access to the barrel is required, remove two screws, which retain spindle to body. If lubricating the mechanism use Regosine Moly LM or other approved grease.

FAULT ISOLATION CHART (For registered gas installer only!)

FAULT	CAUSES	REMEDY
Burner will not light	1. Air in gas line2. Blockage in line3. Ignition not sparking4. Flame failure device faulty5. Check the battery (applicable to DC version)	1. Purge gas line2. Trace back and clear3. Check lead and electrode4. Replace thermocouple and test5. Replace the battery
Burner lights back to injector	1. Excessive lint up of burner mixing tube2. Excessive gas pressure	1. Remove and clean burner2. Check gas pressure.
Burner has explosive ignition	1. Excessive gas pressure	1. Check gas pressure.
Igniter not sparking	1. Electrode gap2. Igniter connections	1. Check gap, adjust if not between 4-5mm2. Check connections to igniter, replace if faulty.

In case you have any problem or enquiry, please contact the after service team of the

SPECIFICATION TABLE

Items	Unit	Model no
	-	TG1089XC
Ignition type	-	DC 1.5V battery
Top plate material	-	6mm tempered glass
Glass color	-	Black
Glass shape	-	Rectangular
No. of burner	-	1
Gas type	-	TG
Nominal heat rating	kW	5
Injector diameter	mm	3.3
Safety cut-off	-	yes
Working pressure	kPa	1
Gas inlet connection	inch	screw - 1/2 BSP
Tray depth	mm	45
Clearance from base tray of domino to its non-combustible material underneath	mm	53
Base tray dimension	W x D mm	472 x 260
Glass top dimension	W x D mm	510 x 300
Cut-off dimension	W x D mm	477 x 265
Net weight	kg	7.6
External gas governor: Beckley (TG only)	model	Beckley 2300
External gas governor working pressure	kPa	1

Brandt
