Product Type	Wet cutting machine for cellular concrete blocks, bricks, and concrete blocks
Brand	Zipper
Model	ZI-ZSM600
Power Supply	400 V, 3-phase, 50 Hz (with neutral and PE)
Electrical Protection	Residual current circuit breaker required; short-circuit fuse in supply line
Connection Cable	Type H07RN (WDE282), cross-section according to load
Permissible Relative Humidity	Max. 70%
Operating Temperature	+5°C to +40°C
Storage Temperature	-20°C to +50°C
Water Cooling	Yes, with on/off switch and adjustable flow valve
Water Pump	Integrated, with filter; must not run dry
Safety Devices	Emergency stop button, saw blade guard, V-belt cover, protective markings
Intended Use	Wet cutting of cellular concrete blocks, bricks, and concrete blocks
Prohibited Use	Dry cutting, cutting metal or wood, modification of safety devices
Operator Requirements	One person; physical and mental fitness; knowledge of manual
Cutting Height Adjustment	Via locking screw
Blade Change	Left-hand thread nut; wear gloves; observe rotation direction
Maintenance Interval	Daily: clean machine and filter; weekly: check locking screw; monthly: check nuts/screws; semiannual: check V-belts
Cleaning	Damp cloth with mild detergent after each use
Disposal	Follow national regulations; do not dispose in residual waste

Frequently Asked Questions - ZI-ZSM600 Zipper

What is the intended use of the Zipper ZI-ZSM600?

The machine is designed exclusively for wet cutting of cellular concrete blocks, bricks, and concrete blocks within technical limits. Any other use, such as dry cutting or cutting metal, is prohibited and voids the warranty.

What safety precautions should I take before operating?

Always wear protective equipment (eye protection, hearing protection, safety shoes, gloves for tool handling). Check that all guards are in place, the emergency stop works, and the saw blade is undamaged. Ensure the area is clean and well-lit. Do not operate if tired or under influence.

How does the water cooling system work?

The machine has an integrated water pump with an ON/OFF switch and an adjustable flow valve. Fill the water basin so the filter is covered. The saw blade must be cooled with water on both sides during the entire cutting process to prevent overheating. Run the pump before starting cutting.

What should I do if the saw blade rotates in the wrong direction?

If the rotation direction does not match the arrow on the blade, swap two conductive phases (e.g., L1 and L2) at the connection plug. Ensure the machine is disconnected before doing this.

How do I change the saw blade?

Disconnect power. Remove the saw blade guard (three star screws). Loosen the nut (left-hand thread!) with an open-end wrench. Remove outer flange and old blade. Install new blade with correct rotation direction, reassemble outer flange and nut, and reinstall guard. Always wear protective gloves.

Why is the water pump not delivering water?

Check that the water basin has enough water to cover the filter. Inspect the filter for clogging and clean if necessary. Ensure the water hose is not kinked and the valve is open. Also verify the pump is switched on.

What are the electrical requirements?

The machine requires a 400 V, 3-phase, 50 Hz supply with neutral and protective earth (5-wire connection). Use a CEE plug with appropriate coupling. The supply must be protected by a residual current circuit breaker. Permissible voltage deviation: ±5%.

How often should I perform maintenance?

Before each use: check saw blade. After use: clean machine, rinse water pump, drain water basin, clean filter. Weekly: check locking screw for tightness, clean/lubricate guide rails. Monthly: check nuts/bolts. Semiannually: check V-belt condition and tension.

Can I use the machine without water?

No. The machine is designed exclusively for wet cutting. Operating without water will overheat the saw blade, cause premature wear, and may damage the blade or machine. Always ensure sufficient water flow during cutting.

What should I do if the machine does not start?

First, check that the emergency stop button is not pressed (turn clockwise to release). Then inspect the cable connection and fuses on the main supply. Also verify that all three phases are present. If the problem persists, consult a qualified electrician.

USER MANUAL ZI-ZSM600 Zipper

1 INHALT / INDEX

1 INHALT / INDEX 2

12.1 Intended use of the machine....24

12.1.1 Technical Restrictions 24

12.12 Prohibited applications / Dangerous misuse....24

12.2 User Requirements 24

12.3 Safety devices 25

12.4 General safety instructions....25

12.5 Electrical safety 26

12.6 Special safety instructions for this machine 26

12.7 Hazard warnings....26

12.7.1 Residual risks....26

12.7.2 Hazardous situations....27

13 TRANSPORT....27

13.1 Lifting the machine from a transport pallet....28

14 ASSEMBLY....28

14.1 Preparation....28

14.1.1 Checking delivery content....28

14.1.2 Requirements for the installation site 28

14.2 Assembly....29

14.3 Electrical connection 29

14.3.1 Setting up a 400 V machine....30

15 OPERATION....30

15.1 Operation instructions....30

15.2 Handling 31

15.2.1 Switch the machine on and off 31

15.2.2 Water cooling 31

15.23 Set the cutting height....32

15.24 Cutting....32

16 CLEANING, MAINTENANCE, STORAGE, DISPOSAL 33

16.1 Cleaning 33

16.2 Maintenance....33

16.2.1 Maintenance plan....34

16.2.2 Assembly / change saw blade 34

16.2.3 Clean the filter 35

16.2.4 Clean the brick carrier cart rails....35

16.2.5 Tension / change of V-belt 35

16.3 Storage 36

16.4 Disposal 37

17 TROUBLESHOOTING....37

18 SCHALTPLAN / WIRING DIAGRAM....38

19 ERSATZTEILE / SPARE PARTS 39

EN CE-Conformal! - This product complies with the EC-directives.

EN READ THE MANUAL! Read the user and maintenance carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.

EN ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.

EN Stop and pull out the power plug before any break and engine maintenance!

EN Wear protective equipment!

EN Warning of crush injuries!

EN Hand injuries because of belt drive!

EN Missing or non-readable security stickers have to be replaced immediately.

3 TECHNIK/TECHNICS

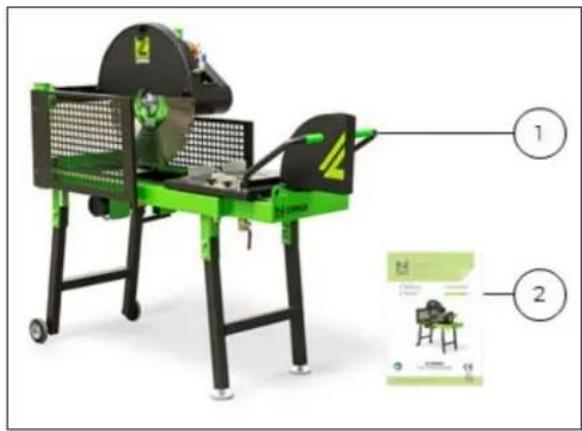

3.1 Lieferumfang / Delivery content

	Beschreibung / description		Beschreibung / description
1	Sägeblattschutz / saw blade guard	10	Sägeblattschutz am Rolltisch / saw blade guard at brick carrier cart
2	Motor / motor	11	Auslassventil / discharge valve
3	EIN Schalter (Maschine) / ON switch (machine)	12	Tischbeine / table feet
4	AUS Schalter (Maschine) / OFF switch (machine)	13	Stellfuß / adjustable foot
5	Not-Halt Schalter / Emergency Stop button	14	Rolltisch / brick carrier cart
6	EIN-AUS Schalter (Wasserpumpe) / ON-OFF switch (water pump)	15	Grundgestell / frame
7	Säge-Bewässerungsventil / saw irrigation valve	16	Wasserpumpe / water pump
8	Keilriemenabdeckung / V-belt cover	17	Rad / wheel
9	Sägeblatt / saw blade

1. Höhe Werkstück

Welle.

This manual contains information and important notes for safe commissioning and handling of the brick cutting machine ZI-ZSM600, hereinafter referred to as “machine” in this document.

This manual is part of the machine and must not be removed. Save it for later reference and if you let other people use the machine, add this manual to the machine.

Please pay special attention to the chapter Safety!

Before first use read this manual carefully. It eases the correct use of the machine and prevents misunderstanding and damages of machine.

Due to the constant further development of our products, illustrations and contents may differ slightly. If you notice any errors, please inform us.

We reserve the right to make technical changes!

Check the goods immediately after receipt and make a note of any complaints on the consignment note when the delivery person takes them over!

Transport damage must be reported separately to us within 24 hours.

ZIPPER MASCHINEN GmbH cannot accept any liability for transport damage not noted.

Copyright

© 2022

This documentation is protected by copyright. All rights reserved! In particular the reprint, the translation and the removal of photos and illustrations will be prosecuted.

The place of jurisdiction is the regional court Linz or the court responsible for 4707 Schlüsslberg is valid.

Customer Service Address

This section contains information and important notes on the safe commissioning and handling of the machine.

For your safety, read this manual carefully before commissioning. This will enable you to handle the machine safely and thus prevent misunderstandings as well as personal injury and damage to property. Pay special attention to the symbols and pictograms used on the machine as well as the safety information and danger warnings!

12.1 Intended use of the machine

The machine is intended exclusively for the following activities:

For wet cutting of cellular concrete blocks, bricks and concrete blocks within technical limits.

NOTE

ZIPPER MASCHINEN assumes no responsibility or warranty for any other use or use beyond this and for any resulting damage to property or injury.

12.1 Technical Restrictions

The machine is designed for the work under the following conditions:

Relative humidity: max. 70 %

Temperature (for operation): +5°C to +40°C

Temperature (Storage, Transport): -20° C to +50° C

12.1.2 Prohibited applications / Dangerous misuse

• Operating the machine without adequate physical and mental fitness.
• Operating the machine without knowledge of the manual.
• Modifying the machine design.
• Operating the machine outside the technical limits specified in this manual.
• Removing of the safety markings attached to the machine.
• Modifying, circumventing or disabling the safety devices of the machine.

The non-intended use or the disregard of the explanations and instructions described in this manual will result in the expiration of all warranty claims and compensation claims for damages against ZIPPER MASCHINEN GmbH.

12.2 User Requirements

The machine is designed to be operated by one person. The prerequisites for operating the machine are physical and mental fitness as well as knowledge and understanding of the operating instructions. Persons who, due to their physical, sensory or mental capabilities, inexperience or lack of knowledge, are unable to operate the machine safely must not use the machine without supervision or instruction by a responsible person.

Please note that locally applicable laws and regulations determine the minimum age of the operator and may restrict the use of this machine!

Work on electrical components or equipment may only be carried out by a qualified electrician or under the guidance and supervision of a qualified electrician.

Put on your personal protective equipment before working on the machine.

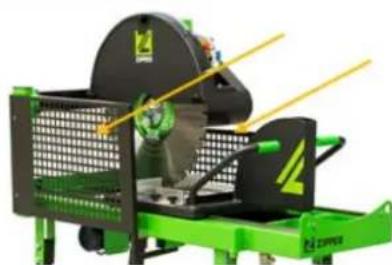

12.3 Safety devices

The machine is equipped with the following safety devices:

12.4 General safety instructions

To avoid malfunctions, damage and health impairments when working with the machine, the following points must be observed in addition to the general rules for safe working:

- Check the machine for completeness and function before starting. Only use the machine if the separating and other non-separating protective devices required for machining have are fitted.

• Make sure that the guards are in good working order and properly maintained.

- Select a level, vibration-free surface as the installation area.

- Ensure sufficient space around the machine!

- Ensure sufficient lighting conditions at the workplace to avoid stroboscopic effects.

- Ensure a clean working environment.

- Keep the area around the machine free of obstacles (e.g. dust, cut parts, etc.).

- Only use tools that are in perfect condition and free of cracks and other defects (e.g. deformations).

- Remove tool keys and other adjustment tools before switching on the machine.

• Check the machine's connections for strength before each use.

- Never leave the running machine unattended. Switch off the machine before leaving the working area and secure it against unintentional or unauthorised recommissioning.

- The machine may only be operated, maintained or repaired by persons who are familiar and who have been informed about the dangers arising from this work.

• Ensure that unauthorized persons keep a safety distance from the machine and keep children away from the machine.
  • Always work with care and the necessary caution and never use excessive force.
• Do not overload the machine!
• Hide long hair under hair protection.
• Wear close fitting protective work clothing and suitable protective equipment (eye protection, ear protection, safety helmet, safety-shoes, and work gloves only when handling tools).
  • Never wear loose jewellery, loose clothing or accessories (e.g. tie, scarf).
• Do not work on the machine if it is tired, not concentrated or under the influence of medication, alcohol or drugs!
• Shut down the machine and disconnect it from the power supply, before adjustment, changeover, cleaning, maintenance or repair work, etc. Before starting work on the machine, wait until all tools or machine parts have come to a complete standstill and secure the machine against unintentional restart.
• Warning signs and/or stickers on the machine that are illegible or have been removed must be replaced immediately!

12.5 Electrical safety

• Make sure that the machine is grounded.
• Only use suitable extension cables.
• A damaged or tangled cable increases the risk of electric shock. Handle the cable with care.

Never use the cable to carry, pull or disconnect the power tool. Keep the cable away from heat, oil, sharp edges or moving parts.

• Proper plugs and outlets reduce the risk of electric shock.
- Water entry into the machine increases the risk of electric shock. Do not expose the machine to rain or moisture.
- The machine may only be used if the power supply is protected by a residual current circuit breaker.
• Use the machine only when the ON-OFF switch is in good working order.
• Before connecting the machine always make sure that it is switches off.

12.6 Special safety instructions for this machine

• Ensure that the saw blade is cooled with water during the entire cutting process.
• Do not reach into the operating area of the saw blade while the machine is in use.
• Replace damaged or deformed saw blades immediately, they cannot be repaired. Use gloves for this purpose.
• Excessive noise can cause hearing damage or temporary / permanent loss of hearing. Wear a hearing protector certified according to health and safety regulations to limit exposure to noise.

12.7 Hazard warnings

127.1 Residual risks

Despite intended use, certain residual risk factors remain.

• Hazard due to contact with the saw blade

Risk of injury to fingers and hands due to the rotating saw blade if the workpiece is guided incorrectly.

• Hazard due to defective saw blade

Regularly check the condition of the saw blade.

• Risk of injury due to flying objects

Small objects can be caught by the saw blade and catapulted towards the user! Therefore, regularly clean the work surface. Ensure that no tools or other loose objects are left on the work surface.

• Hazard of severe injuries due to material kick-back
• Hazard due to unintentional start-up of the machine

The power plug must be removed from the socket-outlet prior to any check or action carried out at the machine!

• Hazard due to machine defects

If one or more parts of the machine are defective, the use of the machine is prohibited. Defective parts must be replaced immediately. Only replacement parts which have been approved by the manufacturer may be used. It is prohibited to make any changes to the machine.

• Hearing damage if the necessary hearing protection is not used

1272 Hazardous situations

Due to the structure and construction of the machine, hazardous situations may occur which are identified in these operating instructions as follows:

DANGER

A safety instruction designed in this way indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Such a safety instruction indicates a potentially hazardous situation which, if not avoided, may result in serious injury or even death.

CAUTION

A safety instruction designed in this way indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

A safety note designed in this way indicates a potentially dangerous situation which, if not avoided, may result in property damage.

Regardless of all safety regulations, your common sense and your appropriate technical aptitude/training are and remain the most important safety factor in the error-free operation of the machine. Safe working depends on you!

13 TRANSPORT

If you transport the machine with a vehicle, ensure that the load is secured appropriately!

Transport the machine in its packaging to the place of installation. To manoeuvre the machine in the packaging, a pallet truck, forklift truck with the appropriate lifting force and a fork of at least 1200 mm length can be used. The specifications can be found in the chapter Technical data. For proper transport, also observe the instructions and information on the transport packaging regarding centre of gravity, lifting points, weight, means of transport to be used as well as the prescribed transport position etc. Ensure that the selected lifting equipment (crane, forklift, pallet truck, load sling, etc.) is in perfect condition.

Lifting and transporting the machine may only be carried out by qualified personnel with appropriate training for the lifting equipment used.

WARNING

Risk of injury from suspended or unsecured load!

Damaged or insufficiently strong hoists and load slings can result in serious injury or even death.

Before use, therefore, check hoists and load slings for adequate load-bearing capacity and perfect condition. Secure the loads carefully. Never stand under suspended loads!

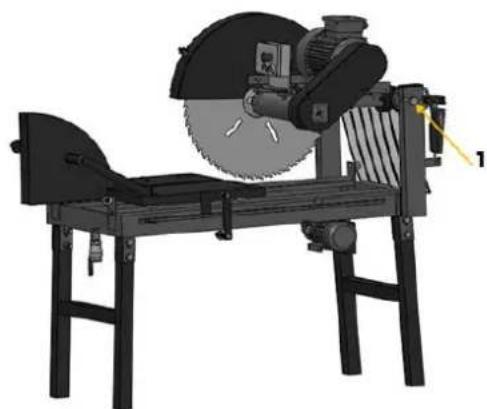

13.1 Lifting the machine from a transport pallet

• Hang the hoist on the transport attachment points (1) of the machine.
  • Make sure that the weight is evenly distributed.
• Carefully lift the machine from the transport pallet.
• Avoid jerky movements and ensure that the machine is appropriately secured!

14 ASSEMBLY

14.1 Preparation

14.1.1 Checking delivery content

Check the delivery immediately for transport damage and missing parts. Report any damage or missing parts to your dealer or the shipping company immediately. Visible transport damage must also be noted immediately on the delivery note in accordance with the provisions of the warranty, otherwise the goods are deemed to have been properly accepted.

14.12 Requirements for the installation site

The selected installation site must ensure a suitable connection to the electrical mains and must provide a water connection. Observe the safety requirements and the dimensions of the machine.

Place the machine on a level, solid surface. The chosen installation site of the machine must comply with the local safety regulations as well as the ergonomic requirements for a workplace with sufficient lighting conditions.

NOTE

The floor at the installation site must be able to bear the load of the machine!

When dimensioning the required space, take into account that the operation, maintenance and repair of the machine must be possible without restrictions at all times.

14.2 Assembly

WARNING

Handling the machine with the mains supply intact can result in serious injury or death. Therefore, do not connect the machine to the power supply before completing the assembly.

The machine has been disassembled for transport and must be reassembled before use. Follow the instructions below and establish the electrical connection.

NOTICE: The machine is heavy! Lifting equipment used for lifting may only be used by qualified personnel with appropriate training.

1. Assembly table feet

• To lift the machine, use the four eyelets (1) at the corners of the machine.
• Carefully lift the machine and unfold the table feet.
• Fix each table foot with a screw (2) and tighten the nut.

NOTICE: One screw and nut per side is already mounted.

14.3 Electrical connection

WARNING

Dangerous electrical voltage!

→ The machine may only be connected to the mains supply and the associated checks carried out by a qualified electrician or under the instruction and supervision of a qualified electrician!

• Check, whether the neutral connection and the protective grounding function properly.
• Check, whether the supply voltage and the frequency correspond to the specifications of the machine.

NOTICE

Deviation of the supply voltage and frequency

A deviation from the value of the supply voltage of ± 5% is permissible. A short-circuit fuse must be provided in the power supply system of the machine!

• Use a supply cable of type H07RN (WDE282) or take the required cross-section of the supply cable from a current carrying capacity table. Pay attention to the measures for protection against mechanical damage.
  • Make sure that the power source is protected by a residual current circuit breaker.
• Connect the device only to a properly grounded outlet.
• When using an extension cable, make sure that the dimension matches the connected load of the machine. The connection power can be found in the technical data, the correlation of cable cross-section and cable lengths can be found in the technical literature or obtain information from a specialist electrician.
  • A damaged cable must be replaced immediately.

14.3.1 Setting up a 400 V machine

• The grounding conductor is yellow-green.
- Connect the supply cable to the corresponding terminals in the input box (L1, L2, L3, N and PE), see the figure below.

Plug connection 400V:	5-wire:withN-conductor
	If a CEE plug (1) is available, the connection to the mains is made through an appropriately powered CEE coupling (L1, L2, L3, N and PE).
	After the electrical connection, check the correct running direction (rotation direction of the saw blade matches with the orientation of the arrow on the saw blade). If the machine runs in the wrong direction, swap two conductive phases, egg. L1 and L2, at the connection plug.

15 OPERATION

Only operate the machine when it is in a perfect condition. Before each operation, a visual inspection of the machine must be carried out. Safety devices and operating elements must be checked carefully. Check screw connections for damage and tight fit.

15.1 Operation instructions

Observe the following items prior to each start-up of the machine:

• Check the saw blade for proper condition and tight fit. Replace damaged or worn saw blades immediately.
• Check the locking screw for height adjustment of the saw blade for tightness.
  • Fill the water basin with clean, cold water.
  • The filter must be completely covered with water in the basin.
  • Ensure that the water hose is not kinked at any position and the water flow valve is opened.

15.2 Handling

15.21 Switch the machine on and off

• Operation of the green ON-switch (1): Machine is started.
• Operation of the red OFF-switch (2): Machine is stopped.
• Emergency Stop button (3): In case of emergency, press the red cap to switch off the machine immediately.
• Release the Emergency Stop button by turning right.

NOTICE: After turning on the machine, wait until the saw blade has reached the maximum speed and the water pump delivers water to the saw blade. Only then start working.

NOTICE: The saw blade is still running after the machine has been turned off. There is a risk of injury.

1522 Water cooling

- Operation of the turn switch (1): The water cooling of the saw blade is started or stopped.

- Fill sufficient water into the basin so that the filter (1) is always covered with water.

NOTICE: Take care that water pump never runs dry.

- The rotating saw blade must be sufficiently cooled with water at both sides.

NOTICE: Insufficient water supply can lead to overheating of the saw blade and to early wear or defect of the saw blade.

Therefore, pay attention that the outlet opening of the water hose at the saw blade guard is not clogged.

- The supplied water quantity can be regulated by the water flow valve (2).

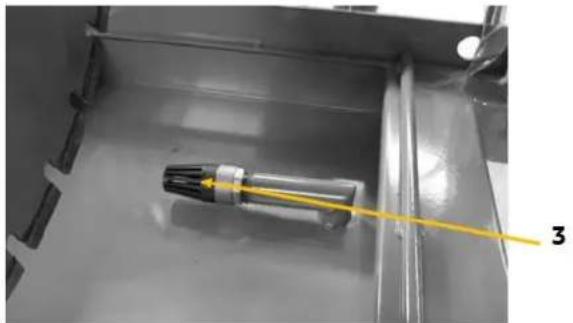

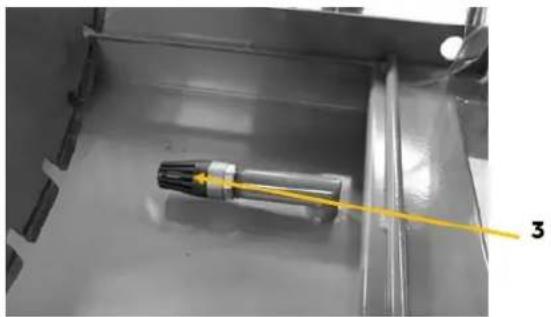

- After operation drain the water basin by opening the valve (3) located at the underside of the machine.

1523 Set the cutting height

• The cutting height can be adjusted with the locking screw (1).
• Loosen the locking screw (1).
  • After setting the correct cutting height, re-tighten the locking screw (1).

1524 Cutting

1. Workpiece height

NOTICE: Pay attention to the correct height of the workpiece.

The max. height of the workpiece is indicated in the technical data.

• Take care that the workpiece does NOT come into contact with the flange (1).

2. Workpiece fixation

NOTICE: The workpiece must be fixed on the brick carrier cart so that it CANNOT slip.

• This is done by placing the workpiece against the cross fence (1) of the brick carrier cart.
• Move the adjustable cross and parallel fences (2) towards the workpiece and fix them with the star screws (3).
• Under no circumstances position the workpiece (4) on the brick carrier cart as illustrated on the left.
• The workpiece should be moved to the saw blade evenly and at a constant speed.

1	Cutting Trolley	2	Material to be cut
3	Fixing Parts	4	Saw

Example of correct use of the machine with regard to workpiece clamping:

Workpiece securely fixed on sliding carriage

Workpiece height / width / length < max. cutting capacity

16 CLEANING, MAINTENANCE, STORAGE, DISPOSAL

WARNING

Danger due to electrical voltage!

Handling the machine with connected power supply may result in serious injury or death.

→ Always disconnect the machine from the power supply before maintenance or repair work and secure it against unintentional reconnection.

16.1 Cleaning

Regular cleaning guarantees the long service life of your machine and is a prerequisite for its safe operation.

NOTICE

Incorrect cleaning products can attack the finish of the machine. Do not use any solvents, nitro thinners or other cleaning products that could damage the machine's finish.

Observe the specifications and instructions of the cleaning agent manufacturer.

- Therefore, clean the machine after each use and remove any dust and other deposits with a damp cloth and, if necessary, with a mild detergent.

16.2 Maintenance

The machine is low-maintenance and only a few parts need to be serviced. Malfunctions or defects that could affect your safety must be repaired immediately!

• Before each operation, check the perfect condition of the safety devices.
- Regularly check the perfect and legible condition of the warning and safety labels of the machine.
• Use only proper and suitable tools.
• Use only original spare parts recommended by the manufacturer.

1621 Maintenance plan

The type and degree of machine wear depends to a large extent on the operating conditions. The following intervals apply when the machine is used within the technical limits:

Interval	Components	Action
Before usage	Saw blade	Check for damage and replace if necessary
After usage	Maschine	Clean
	Water pump	Rinse the water pump sufficiently with fresh water to remove deposited sediments!
	Water basin	Drain and clean the water basin
	Filter	Clean the filter
	V-belt system	Clean if necessary
Once a week	Locking screw for height adjustment of the saw blade	Check for tight fit
	Guide rails of the brick carrier cart	Check and cleanLubricate with Oil (HLP46)
Once a month	Nuts, screws	Check for tight fit
Semiannual	V-belt	Check its condition and tension; replace it if necessary

1622 Assembly / change saw blade

CAUTION

Risk of injury! Wear protective gloves when changing the saw blade.

• Loosen the three star screws (1) and remove the saw blade guard (2).
• Loosen the nut (6) with an open-end wrench and remove it.
  NOTICE: Attention left-hand thread!
• Remove the outer flange (5) and the old saw blade (4) from the shaft. The mounting flange (3) remains on the shaft.
• Put a new saw blade (4) onto the shaft.
  NOTICE: Pay attention to the rotation direction of the saw blade.
• Reassemble the outer flange (5) and retighten the nut (6).
• Reinstall the saw blade guard (2) using the star screws (1).

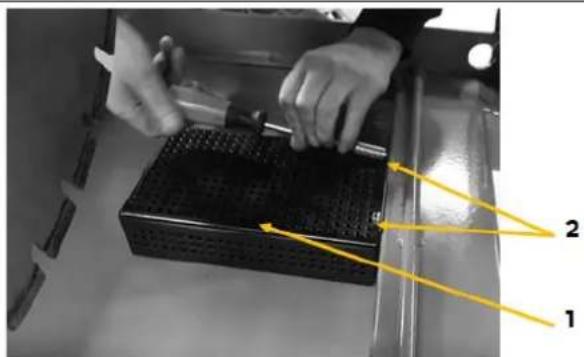

1623 Clean the filter

- The filter, especially the filter screen (1), must be cleaned regularly to remove accumulated sediments, etc. - To do this, loosen the screws (2) to dismantle and clean the outer filter (1).

- Then clean the inner filter (3).

1624 Clean the brick carrier cart rails

- Remove dirt and debris from the guide rails (1).

1625 Tension / change of V-belt

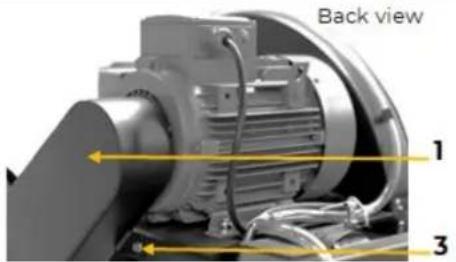

- Loosen the two screws (2, 3) of the V-belt cover (1) and remove the V-belt cover.

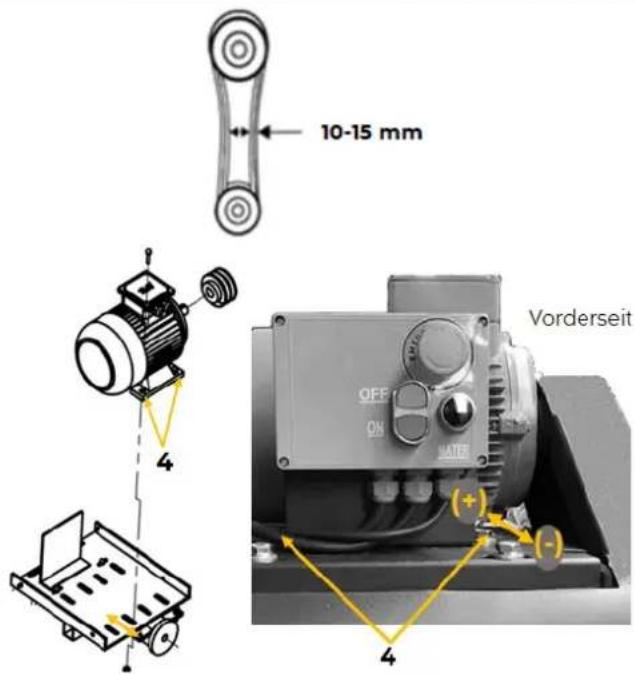

Check the V-belt tension:

Use thumb pressure to check the flexibility of the V-belt.

If this is within approx. 10-15mm no action is necessary. If the flexibility is higher, the V-belt must be retightened (V-belt tensioning) or replaced.

Tensioning

• Loosen the four screws (4) that fix the motor.
• Push the motor in direction (+), to increase the V-belt tension.
  • Retighten the four screws (4).
• Check V-belt tension.
• If the belt tension is correct, reinstall the V-belt cover (1) and fix it with the screws (2, 3). Otherwise readjust the belt tension.

Change

• Loosen the four screws (4).
• Push the motor in direction (-), to decrease the V-belt tension.
• Pull the old V-belts from the pulley and replace with new ones.
  • Tension the V-belts.
• Check the V-belt tension.
• If the belt tension is correct, reinstall the V-belt cover (1) and fix it with the screws (2, 3). Otherwise readjust the belt tension.

NOTICES: Always change both V-belts at the same time, never replace a single belt!

16.3 Storage

Store the machine in a dry, frost-proof and lockable place when not in use. Make sure that unauthorised persons and especially children do not have access to the machine.

NOTICE

Improper storage can damage and destroy important components. Only store packed or already unpacked parts under the intended ambient conditions!

16.4 Disposal

Observe the national waste disposal regulations. Never dispose of the machine, machine components or operating equipment in the residual waste. If necessary, contact your local authorities for information regarding available disposal options.

If you purchase a new machine or equivalent equipment from your specialist dealer, he is obliged in certain countries to dispose of your old machine properly.

17 TROUBLESHOOTING

WARNING

Danger due to electrical voltage!

Handling the machine with connected power supply may result in serious injury or death.

→ Always disconnect the machine from the power supply before maintenance or repair work and secure it against unintentional reconnection.

Many possible sources of error can be eliminated in advance if the machine is properly connected to the mains.

If you are unable to carry out the necessary repairs properly and/or do not have the required training, always consult a specialist to solve the problem.

Trouble	Possible cause	Solution
Wrong rotation direction of the saw blade	The conductive phases at the connection plug and the socket do not match	Swap two conductive phases, egg. L1 and L2, at the connection plug.
Machine does not start	Disconnection in the cable connectionA missing phase may come to the electrical network to which the machine is connectedE-Stop button may be pressed	Check the cable connectionCheck the fuses on main supplyCheck the button. If it is pressed release it by turning it.
Although the water pump is switched on, water is not conveyed	Water cooling failure	Check that there is enough water in the basin to cover the filter.Check whether the filter is clogged and clean if necessary.
Unusual noises during operation	Strong noise emission while cutting	Check the saw blade for wear or damage.Change the saw blade if necessary.

18 SCHALTPLAN / WIRING DIAGRAM

19 ERSATZTEILE / SPARE PARTS

(EN) With original ZIPPER spare parts you use parts that are attuned to each other shorten the installation time and elongate your products lifespan.

NOTE

The installation of parts other than original spare parts leads to the loss of the guarantee! Therefore: When replacing components/parts, only use spare parts recommended by the manufacturer.

Order the spare parts directly on our homepage – category SPARE PARTS or contact our customer service

• via our Homepage – category SERVICE/NEWS - SPARE PARTS REQUEST,
• by e-mail to [e-mail].

Always state the machine type, spare part number and designation. To prevent misunderstandings, we recommend that you add a copy of the spare parts drawing with the spare parts order, on which the required spare parts are clearly marked, especially when not using the online-spare-part catalogue.

NO	PART'S NAME
1	TROLLEY
2	HANDLING
3	HGH15 LINEER WHEEL
4	M4x20 BOLT
5	STOPPER
6	M10x25 BOLT
7	SCREW

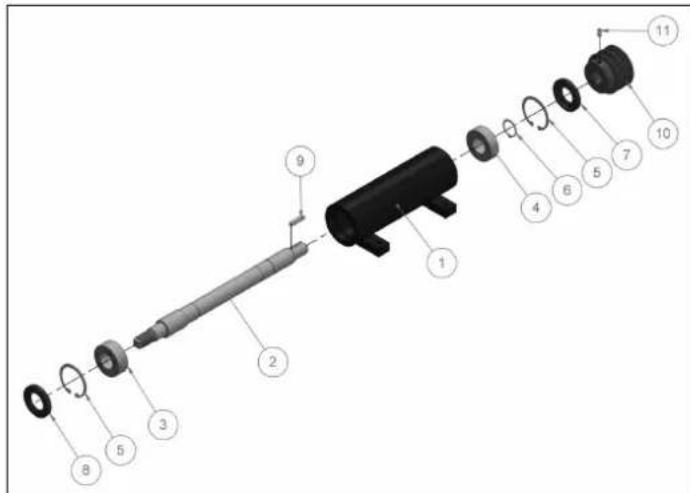

Motorwelle / motor shaft

NO	PART'S NAME
1	TROLLEY
2	HANDLING
3	HGH15 LINEER WHEEL
4	M4x20 BOLT
5	STOPPER
6	M10x25 BOLT
7	SCREW

EU-KONFORMITÄTSERKLÄRUNG / CE-CERTIFICATE OF CONFORMITY

CE

Inverkehrbringer / Distributor

Z.I.P.P.E.R ^® Maschinen GmbH

AT-4707 Schlüsslberg, Gewerbepark 8

Tel.: [phone]

www.zipper-maschinen.at

[e-mail]

Bezeichnung / Name

Company ZIPPER Maschinen GmbH grants for mechanical and electrical components a warranty period of 2 years for amateur use; and warranty period of 1 year for professional use, starting with the purchase of the final consumer. In case of defects during this period, which are not excluded by paragraph 3, ZIPPER will repair or replace the machine at its own discretion.

2.) Report:

In order to check the legitimacy of warranty claims, the final consumer must contact his dealer. The dealer has to report in written form the occurred defect to ZIPPER. If the warranty claim is legitimate, ZIPPER will pick up the defective machine from the dealer. Returned shippings by dealers which have not been coordinated with ZIPPER, will not be accepted and refused.

3.) Regulations:

a) Warranty claims will only be accepted, when a copy of the original invoice or cash voucher from the trading partner of ZIPPER is enclosed to the machine. The warranty claim expires if the accessories belonging to the machine are missing.
b) The warranty does not include free checking, maintenance, inspection or service works on the machine. Defects due to incorrect usage of the final consumer or his dealer will not be accepted as warranty claims either. Some examples: usage of wrong fuel, frost damages in water tanks, leaving fuel in the tank during the winter, etc.
c) Defects on wear parts are excluded, e.g. carbon brushes, collection bags, knives, cylinders, cutting blades, clutches, sealings, wheels, saw blades, splitting crosses, riving knives, riving knife extensions, hydraulic oils, oil/air/fuel filters, chains, spark plugs, sliding blocks, etc.
d) Also excluded are damages on the machine caused by incorrect or inappropriate usage, if it was used for a purpose which the machine is not supposed to, ignoring the user manual, force majeure, repairs or technical manipulations by not authorized workshops or by the customer himself, usage of non-original ZIPPER spare parts or accessories.
e) After inspection by our qualified personnel, resulted costs (like freight charges) and expenses for not legitimated warranty claims will be charged to the final customer or dealer.
f) In case of defective machines outside the warranty period, we will only repair after advance payment or dealer's invoice according to the cost estimate (incl. freight costs) of ZIPPER.
g) Warranty claims can only be granted for customers of an authorized ZIPPER dealer who directly purchased the machine from ZIPPER. These claims are not transferable in case of multiple sales of the machine.

4.) Claims for compensation and other liabilities:

The liability of company ZIPPER is limited to the value of goods in all cases. Claims for compensation because of poor performance, lacks, damages or loss of earnings due to defects during the warranty period will not be accepted. ZIPPER insists on its right to subsequent improvement of the machine.

SERVICE

After Guarantee and warranty expiration specialist repair shops can perform maintenance and repair jobs. But we are still at your service as well with spare parts and/or product service. Place your spare part/repair service cost inquiry by

• Mail to [e-mail].
• Or use the online complaint order formula provided on our homepage – category service/news.

(EN) We monitor the quality of our delivered products in the frame of a Quality Management policy.

Your opinion is essential for further product development and product choice. Please let us know about your:

• Impressions and suggestions for improvement.
• Experiences that may be useful for other users and for product design
• Experiences with malfunctions that occur in specific operation modes

We would like to ask you to note down your experiences and observations and send them to us via E-Mail or by post:
