USER MANUAL BFS3264BX BRANDT

Line drawing of a refrigerator interior showing shelves and doors (no text or symbols)

Notizen

DE

Line drawing of an refrigerator interior showing door, drawer, and shelf with arrows indicating movement (no text or symbols)

Clearit

Diagram of a server rack with a hand pointing to a cable, showing internal components and wiring (no text or symbols)

Diagram of a computer monitor with an arrow pointing to the screen (no text or symbols present)

Line drawing of a hand opening a microwave oven with a cloth inside (no text or symbols)

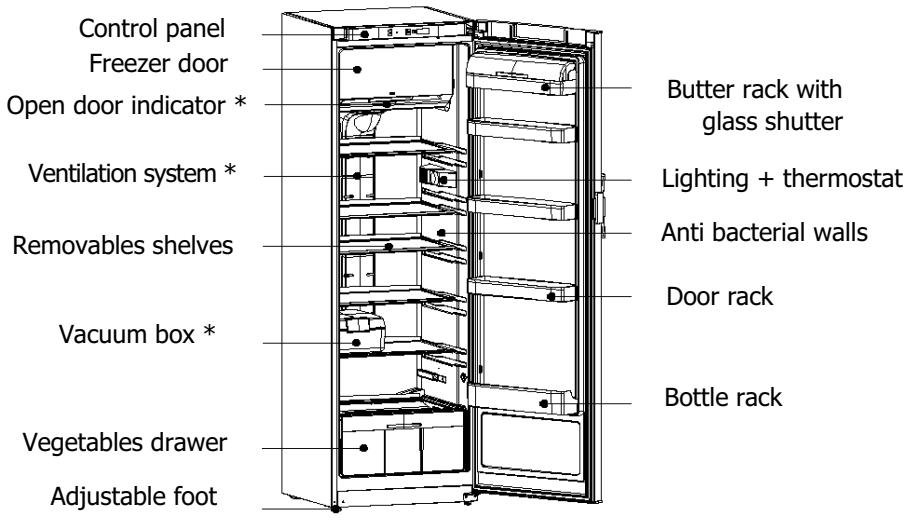

Technical line drawing of an open refrigerator with multiple shelves and doors (no text or labels)

Diagram of a mechanical component with an arrow indicating force or direction, showing internal components and water level (no text or symbols)

Line drawing of a hand holding a small cylindrical object with a rectangular body (no text or symbols)

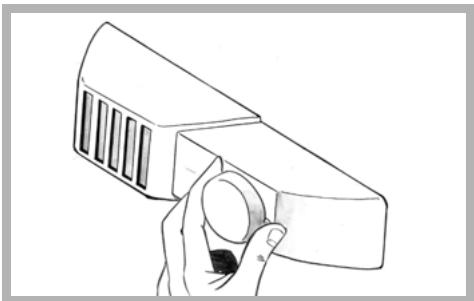

Temperatureinstellung

Diagram of a battery stack with an electric shock device above it, showing no text or symbols.

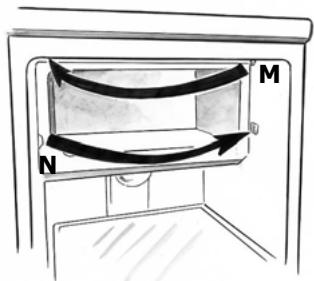

Diagram of a refrigerator interior with curved arrows indicating motion or movement (no text or symbols)

Abb. R10

Illustration of a hand opening a door with an inset showing a close-up of the door handle (no text or symbols)

Abb. R11

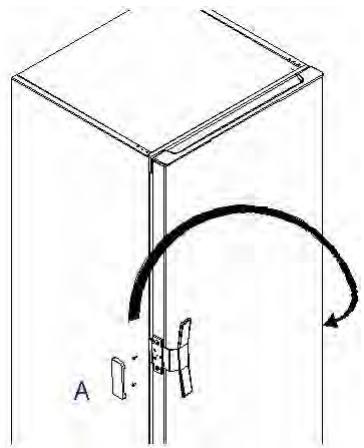

A

Diagram showing a hand holding a device with a curved arrow indicating rotational motion, labeled with 'H' and directional arrows.

Abb. R8

Illustration of a hand holding a device with arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a vertical cylindrical device with internal cooling fins and mounting base (no text or symbols)

Any maintenance on your equipment should be undertaken by:

• either your dealer,
• or another qualified mechanic who is an authorized agent for the brand appliances.

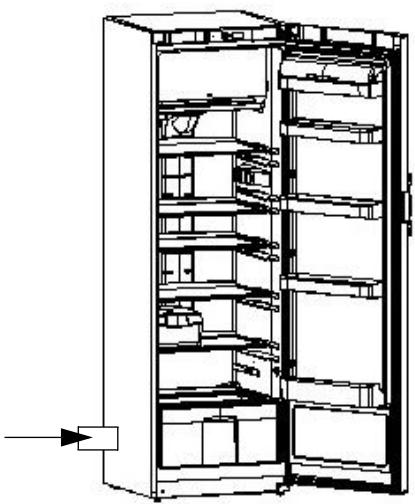

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

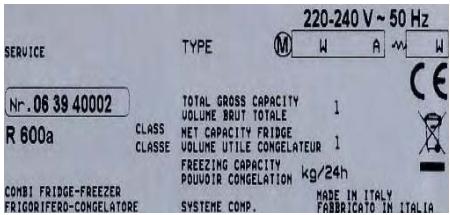

220-240 V ~ 50 Hz SERVICE TYPE M W A M W Nr. 06 39 40002 R 600a CLASS CLASSE TOTAL GROSS CAPACITY VOLUME BRUT TOTALE NET CAPACITY FRIDGE VOLUME UTILE CONGELATEUR FREEZING CAPACITY POUOIR CONGELATION kg/24h COMBI FRIDGE-FREEZER FRIGORIFERO-CONGELATORE SYSTEME COMP. MADE IN ITALY FABRICATO IN ITALIA

Technical line drawing of a multi-level refrigerator cabinet with internal shelves and doors (no text or labels)

RR4200075-00

Noises, inconveniences or minor breakdowns

EN

PROBLEM	ADVICE
Frost forms inside your appliance	- be careful not to open your appliance's door too often, and not to leave it open.
The external walls are warm	- this is quite normal. It stops condensation forming on the outside of your appliance.
Drops of water appear on your appliance's external wall	- When your home's heating is not on (for example in spring and autumn) and the ambient air is humid,some condensation may form on your appliance's outside walls. This is not dangerous at all and your appliance continues to operate quite correctly.
Droplets of water or ice forms on the appliance's rear wall	- this is quite normal. This is a particularly cold and damp area of the appliance and droplets of water and frost can form here when your appliance is operating normally. This frost is regularly eliminated during your refrigerators automatic defrosting cycles.
Certains foods do not freeze completely	- this is quite normal for food that contains a lot of sugar,fat or alcohol not to freeze completely and to remain partially soft (ice cream, fruit juice,etc.)
Droplets stagnate at the back of the appliance	- check that the drain hole is not blocked. If it is, release it with a stick or a metal wire as shown in the section in "Ongoing maintenance of your appliance".
Frozen meat has white streaks	- check that your machine's thermostat is correctly set and is not at too low a temperature (see the section on "Setting your refrigerator's temperature").- check that you haven't kept this meat too long in the freezer using the table you will find in the "Food Freezing Guide" section.
The door is difficult to open	- it is normal for the door to offer some resistance to being opened,particularly when you have just shut it: a slight underpressure forms in your appliance to ensure the door seals perfectly. All you have to do is wait a few seconds before re-opening
The light inside the refrigerator is out	- check that the thermostat is not in the position 0.- check that your appliance is connected to the electrical supply.- check that the circuit-breaker for your house has not cut out and that the fuse has not blown or been unscrewed.- check that the bulb has not burnt out, and refer to the section "changing the light bulb".

Noises, inconveniences or minor breakdowns

EN

Normal operating noises

So that the selected temperature remains constant, your appliance regularly switches off its motor. The resultant noises are quite normal operating noises. They reduce automatically as soon as your refrigerator reaches the desired temperature. These noises are as follows:

NOISE	CAUSE
Buzzing	Coming from the motor.This buzzing may briefly be louder when the motor starts.
Gargling or slight buzzing	Coming from circulation of the refrigerant in your refrigerator's pipes.
Clicks	These can always be heard when the thermostat turns the motor on or off.
Slight background noise	If your appliance is fitted with a fan (depending on the model),the air circulating inside your appliance makes a slight background noise.

Inconveniences or minor breakdowns

Certain problems may appear when you are using your appliance. Before calling the after-sales service, use the guide below to see if you can resolve the problem yourself:

PROBLEM	ADVICE
Unusual noises	- check the adjustment of the feet of your appliance and its stability.- check that it is not touching a wall.- check that all the movable parts(trays,racks,etc..)are securely in place.- check that the bottles or containers you have placed in your appliance are not touching each other.
The refrigerator does not get cold enough	- ccheck that the thermostat is correctly set as indicated in the section on "Adjusting your refrigerator's temperature".- if you have put a large amount of food in your refrigerator at one time,ensure that you readjust the thermostat as shown in the section on "Adjusting your refrigerator's temperature".- be careful not to open your appliance's door too often,and not to leave it open.
Your appliance does not get cold at all	- ccheck that the thermostat is not in the 0 position.- check that your appliance is connected to the electrical supply.- check that the circuit-breaker for your house has not cut out and that the fuse has not blown or been unscrewed.

Ongoing maintenance of your appliance

EN

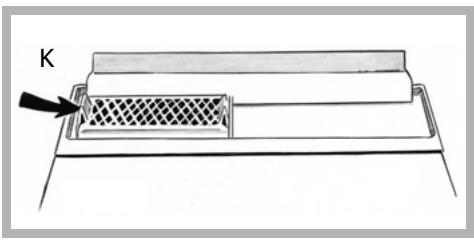

Humidity filter

Under the vegetable tray's glass shelf, there is a filter, which controls the level of humidity, keeping it at the optimum level for preserving such foodstuffs.

To clean this filter: remove the top of the compartment, remove the lid and then remove the "K" filter and wash it under running water.

Diagram of a device with a gridded grille and labeled component 'K' (no text or symbols beyond label)

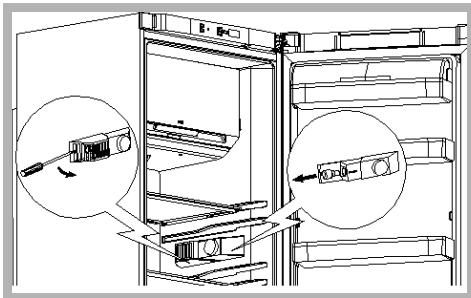

Changing the light bulb

⚠️ Disconnect your appliance

• Unscrew the screw holding the interior light in place
• Remove the interior light and replace the bulb with another of the same type (15 WATTS max.). Refit the interior light and screw it in place.

Line drawing of an refrigerator interior showing door, shelves, and drawer with zoomed-in insets (no text or symbols)

Clearit

To keep your appliance in good working order, we recommend that you use Clearit household products.

Professional expertise for the general public

Clearit offers you professional products and adapted solutions for the daily upkeep of your household and kitchen appliances.

You may find them in conventional retail outlets, along with a complete line of by-products and consumables.

Ongoing maintenance of your appliance

EN

⚠️ Disconnect your appliance prior to performing any maintenance operation. Grasp the plug directly, instead of pulling on the power cable.

Cleaning your appliance

⚠️ We recommend that you clean and disinfect your appliance regularly for improved hygiene and to keep your food completely safe.

Remove all the food from the freezer. Place it in isothermic bags or wrap it in newspaper and store it in a cool place.

Clean your appliance inside and out with a bicarbonate of soda solution (1 dessertspoon of bicarbonate to 4 litres of water). Do not use alcohol, scouring powder or detergents, which could damage the surfaces.

Do not use a high-pressure steam cleaner. The very hot steam could damage the surfaces and the electrical circuits; you would expose yourself to a risk of electrocution.

Rinse with water, dry with a cloth.

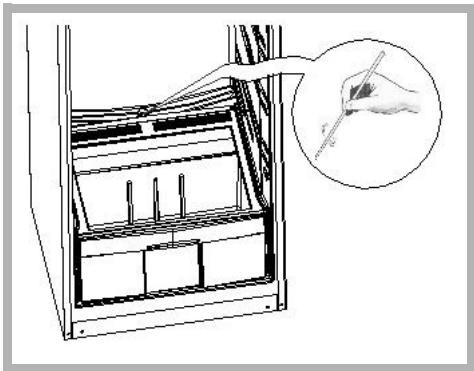

Periodically check that the drain hole for the defrosting water is not blocked and clean it with a stick as shown in the Drawing.

Technical line drawing of a mechanical assembly with a magnified inset showing a hand holding a tool (no text or symbols present)

Don't forget to clean the condenser from time to time: this is at the back of the appliance (see the section on "Description of your appliance"). Use a dry paintbrush to do this or, better yet, your vacuum cleaner.

Reconnect your appliance, and adjust the refrigerator's thermostat if necessary, as shown in the section on.

Wait 3 or 4 hours before placing the food back in your appliance.

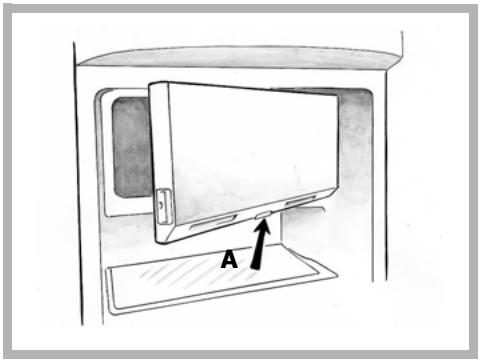

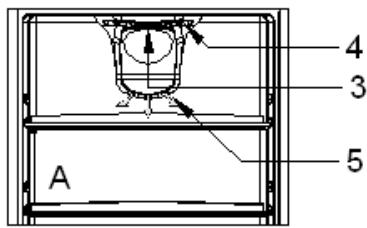

Open door indicator (depending on the model)

EN

Your appliance may be fitted with an open door indicator. When the freezer compartment door is not properly closed, a red strip (A) appears in the middle of the door. When the door is closed correctly, the strip disappears and the door remains totally white.

A

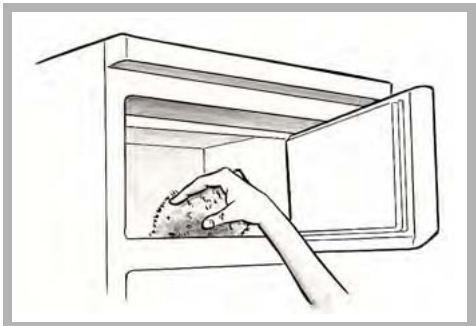

Automatic defrosting of your freezer

Defrost your freezer when a layer of frost and ice 5-6mm thick has formed inside your freezer. This thickness of ice prevents your freezer from operating correctly, reduces its efficiency and causes it to consume more energy.

Remove all the food from the freezer. Place it in isothermic bags or wrap it in newspaper and store it in a cool place.

Switch off your appliance.

Keep the door to the freezer section open

Place a pan of hot water on a small plank of wood or a placemat to isolate it and place them both inside your freezer to speed up the defrosting process.

Wipe over the freezer compartment with a sponge.

Line drawing of a hand opening a microwave oven with a cloth inside (no text or symbols)

⚠️ Never use a heater, hairdryer or any other electrical appliance nor any knives or other metal objects to speed up defrosting: you could damage your appliance irremediably.

Clean your freezer before resetting the temperature as shown in the section on "Setting your refrigerator's temperature" and replacing the food (see the section on "Cleaning your appliance").

Arranging food in your freezer

EN

Do not put fresh food next to food that has already been frozen to avoid causing the frozen food to warm up.

The maximum weight of food that you can freeze over 24 hours is shown on the information plate (inside your appliance's refrigerator section near the bottom of the left-hand wall) under the heading: "CAPACITE DE CONGELATION/FREEZING CAPACITY (kg/24h)".

Defrosting food

You can defrost food in five different ways:

• By putting them in your appliance's refrigerator section for several hours
• By leaving them to defrost gently at ambient temperature
• In a conventional oven at a very low temperature (40/50°C)
• In a microwave oven
• By cooking them immediately

Defrosting them in the refrigerator is the slowest but safest method.

⚠️ Never refreeze food once it has defrosted, even partially, without cooking it first. ⚠️ We would advise you not to place any items you have just taken out of the freezer straight into your mouth (ice cream, ice cubes, etc.): they will be at a very low temperature and you risk frostbite. Avoid touching frozen or deep-frozen food with wet hands; you may stick to the food. We recommend that you only defrost food for immediate use.

Food freezing guide

EN

Fruits

Fruit must be covered with sugar or syrup, as appropriate. The amount of sugar to use is around 250g for 1 kilo of fruit. Syrups are used in varying percentages; these are prepared by boiling sugared water. The various concentrations are as follows:

• 30% solution, 450g of sugar per litre of water
• 40% solution, 650g of sugar per litre of water
• 50% solution, 800g of sugar per litre of water

So that the fruit's colour does not change, place it in lemon juice before covering it with sugar or pour lemon juice into the syrup. The receptacles for the fruit to be frozen must remain in the refrigerator for one hour before being re-inserted into the freezer. The fruit must be completely covered in syrup.

Product	Valid for	Preparation
Apricots	8 months	Wash, pit and cover with 30% syrup
Pineapple	10 months	Peel, slice and cover with 50% syrup
Oranges		Peel, slice and cover with 30% syrup
Cherries		Wash, pit and cover with sugar or 30% syrup
Strawberries	12 months	Wash, remove the stalk and cover with sugar
Melon		Peel, slice, de-seed and cover with 30% syrup
Peaches	8 months	Peel, pit, slice and cover in 50% syrup
Grapefruit	12 months	Peel, slice and cover in 30% syrup
Juice from citrus fruits	10 months	Press, remove the pips and sweeten to taste
Plums	12 months	Wash, pit and cover in sugar or 50% syrup
Grapes		De-seed, wash and cover in sugar or 30% syrup
Bilberries, blackberries, blackcurrants,raspberries red currants	10 months	Wash, remove the stalk and cover with sugar

Bread

This can be kept for 2 months. Defrost in an oven set to 50°C, switching it on after inserting the bread.

Butter and cheese

Freeze butter and cheese by dividing them up into pieces for weekly consumption.

Butter and hard cheese (e.g. Parmesan) can be kept for 8 months, other cheese 4 months. They must be defrosted in the refrigerator, keeping an eye on the condensation that forms on these products.

Food freezing guide

EN

Cooked food

The length of time you can store cooked dishes reduces if you use bacon or smoked ham to season dishes.

Product	Valid for	Preparatory cooking
Sauce with meat juices	3 months	half-cooked
Tomato sauce		just-cooked
Minestrone with vegetables	2 months	no pasta
Lasagne	4 months	half-cooked
Roasts	2 months	just-cooked
Calf's leg	1 months	half-cooked
Meat in sauce	3 months
Stewed game	2 months	just-cooked
Boiled fish,grilled/baked fish	2 months	half-cooked
Sweet peppers,aubergines,courgettes stuffed with meat
Sautéed mushrooms with garlic and parsley,ratatouille
Steamed spinach
Pizza	6 months	just-cooked

Put them directly on the hob or in the oven without defrosting them.

Vegetables

We recommend that you blanch the vegetables with steam so that they do not lose their vitamins and mineral salts in the cooking water. You therefore do not need to wait until they are dry before freezing them, just until they cool down.

Product	Valid for	Preparation	Blanching time
Asparagus	12months	Wash and remove the strings	2 minutes
Cabbage,cauliflower	6 months	Clean an cut into pieces	2 minutes (1)
Artichokes	12months	Remove the external leaves	6 minutes (1)
Beans		Shell	3 minutes
Green beans		Wash and remove the ends	4 minutes
Mushrooms		Clean	2 minutes (1)
Aubergines		Wash and slice	4 minutes (2)
Sweet peppers (3)		Wash slice and remove the seeds	do not blanch
Peas,Tomatoes (3)		Shell and freeze immediately, laying them in a single layer and then wrapping them
Parsley,basil	8 months	Wash
Spinach	12months		2 minutes
Mixed vegetables for minestrone (céleri, carrots, chard,leeks, etc.)		Wash, cut into pieces and divide up into portions. Do not add potatoes terre: they go black.	do not blanch

(1) Add a little vinegar or lemon juice to the cooking water (slightly acid water).
(2) Pickle in brine before cooking.
(3) During defrosting, these vegetables reduce to a mush because they contain enormous amounts of water.
We recommend that you defrost them only if you wish to eat them coked.

In general, vegetables are better if they are cooked directly, without being frozen. Reduce the cooking time, taking into account the blanching time before freezing.

Food freezing guide

EN

Fresh meat

Product	Valid for
Lamb,small pieces	8 months
Roast pork	5 months
Pork ribs	4 months
Boiled beef,roast beef	10 months
Beef steak,entrecotes,in sauce,roast veal	8 months
Veal steaks,cutlets	10 months
Minces meat	4 months
Giblets,offal	3 months
Sausages	2 months

We recommend that you defrost meat completely before cooking it so as to avoid the exterior cooking quicker than the interior, except in the case of small breadcrumbed items, which can be sautéed directly over a low to medium heat, and boiled meats.

Farmyard animals

Prepare them plucked/skinned, gutted, cut into pieces if necessary, washed and rinsed.

Product	Valid for
Duck	4 months
Rabbit	6 months
Boiling fowl	7 months
Goose	4 months
Chicken	10 months
Turkey	6 months
Giblets,offal	3 months

Game

Prepare it plucked/skinned, gutted, cut into pieces if necessary, washed and rinsed.

Product	Valid for
Wild duck,woodcock,pheasant	8 months
Hare	6 months
Partridge,quail	8 months

Fish

Product	Valid for	Preparation
Carp	2 months	Descale, gut and remove the head. Wash, rinse and freeze
Pike
Turbot
Salmon
Mackerel
Tench
Trout
Sea bream	3 months	Descale, gut, remove the head and place in cold salty water for 30 seconds, rinse and freeze.
Sole

Frozen and deep-frozen food

EN

Your domestic appliance enables you to freeze food: it lowers its core temperature rapidly and you can therefore keep it longer.

Deep-freezing is an industrial process that is quicker and more intense that domestic freezing. The products you purchase from the shops are deep-frozen.

Preparing food for freezing

⚠️ Freezing does not sterilise. It is therefore important to observe some simple hygiene rules when preparing your food for freezing: wash your hands before you touch the food and clean the kitchen tools you have just used before using them again.

Only freeze fresh, good quality food. Refer to the table "Food Freezing Guide" to know which products you can freeze and how long you can keep them.

Blanch fruit and vegetables before freezing them to preserve their colour, smell, taste and vitamins: plunge them in boiling water for a few moments.

Divide the food you wish to freeze into small individual portions corresponding to one meal each. Small portions freeze quicker at their core.

Pack the food hermetically so that they do not lose their flavour or dry up. Use plastic bags, polyethylene film, aluminium foil or special freezer containers for this.

If you are using plastic bags, compress them to eliminate the air before sealing them hermetically.

Do not place bottles or jars containing liquids in the freezer unless they are only two-thirds full: freezing causes liquids to expand, which can cause the container to explode.

Note on each package:

• The freezing date
• The consume-by date
• The type of food contained
• The number of portions contained

If you are purchasing deep-frozen food, pick it up last when you are shopping.

Check that:

• The packaging isn't damaged
• They are not covered in a layer of frost (which means that they have partially defrosted)

Pack them in an isothermic bag or in newspaper. Transport them quickly and store them immediately.

Comply with the maximum storage dates shown on the pack. Your appliance has a **** freezer compartment: this enables you to keep deep-frozen food in an optimal manner.

Arranging food in your refrigerator

EN

Leave a space between the food items to allow the air to circulate freely and avoid different products contaminating each other.

Do not put packages and food in contact with the wall at the back of the appliance: this is a particularly cold and damp area of the appliance and water droplets and frost condense there as part of your refrigerator's normal operation.

"Cold Zone" symbols

The coldest area, indicated by the logo opposite, is designed for delicate, sensitive and highly perishable food: meat, poultry, fish, cooked meats, prepared dishes, ready-made salads, egg or cream-based dishes and pastries, fresh pasta, pastry, pizza/quiches, fresh produce and raw milk cheese, ready-to-use vegetables sold in plastic bags and, more generally, any fresh product whose consume-by date is linked to its storage at a temperature of +4^ or below.

Automatic defrosting

The defrosts of your appliance fully automatically. The water created by defrosting flows to a collection tank situated over the motor. The heat the motor releases evaporates the contents of this tank.

It is quite normal for droplets of water or frost to appear on the wall at the back of your refrigerator. This is a particularly cold and damp area in your appliance and water droplets and frost condense out as part of your appliance's normal operation. This frost is removed regularly during your refrigerator's automatic defrosting phases.

Preparing food for the refrigerator

EN

Before placing food in your appliance:

Carefully wrap fresh foods: they will then keep their flavour, colour, humidity content and freshness. You also avoid the taste of some foods contaminating the taste of others. Only vegetables, fruit and salad vegetables can be stored in the vegetable compartment without being packed.

Let hot dishes and drinks cool down outside the appliance.

Remove the cardboard packs from around yoghurt pots.

Check the consume-by dates on the products you have bought. You should not exceed these.

Arranging food in your refrigerator

The temperature inside your refrigerator is not uniform. Some areas are colder than others and you must store your food in the appropriate areas according to their type to ensure that they can be kept safely.

Butter Cream dessert, cheese, yoghurts, crème fraîche, saucs, eggs

Mixed or regulated cold (depending on the model)

EN

This guide to installing and using your fridge-freezer is applicable to several models. Your appliance is equipped with one or other of these functions. You can check very quickly by comparing your refrigerator to the illustrations on this page.

Your appliance is equipped with a cold air ventilation system:

• Mixed cold (A): the fan mixes the air providing greater temperature homogeneity and avoiding condensation forming on the glass shelves.
• Regulated cold (B): a distribution column directs the air to every level, providing a very homogeneous temperature and avoiding any condensation forming on the shelves.

Apart from these everyday advantages, we recommend that you use the fan:

• When the climatic conditions are extreme (e.g. a heat wave).
• If you have just placed a large amount of food in your appliance's.

To start the fan:

• Appliance without electronics: press the ON button (Drawing C)
• Appliance with electronics: this function is initiated by electronic system on the control panel (See the symbols table in the section "Switching on and adjusting the appliance").

The fan does not operate continuously. When it starts up depends on the refrigerator's internal temperature. It is therefore quite normal for the fan not to operate sometimes when the Start button has been correctly pressed.

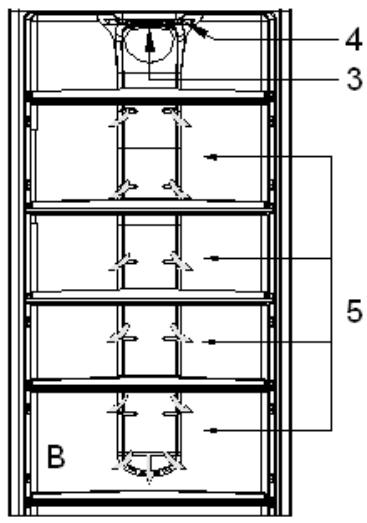

4 3 5 A

4 3 5 B

Diagram showing a mechanical component with a lightning bolt and two separate views of a water tank (no text or symbols)

A. Model with mixed cold
B. Model with regulated cold
C. Detail of the Start/Stop button
3. Start/Stop button
4. Air suction
5. Air distribution

Setting your refrigerator's temperature

EN

Hand holding a small cylindrical object with a rectangular body, possibly a device or tool (no text or symbols visible)

Setting the temperature

To adjust the temperature, set the thermostat knob on one of the surrounding figures. Position 1 corresponds to the least cold setting: the higher the number, the colder the temperature setting. When the thermostat is in position 0, your refrigerator is off.

When putting your appliance into service, set the thermostat to a medium position.

The appliance is always powered.

⚠️ Prolonged opening of the door will cause the internal temperature to rise.

⚠️ Your refrigerator's internal temperature is closely linked to the ambient temperature, how frequently the door is opened and the amount and temperature of the food you have put in your refrigerator.

Temperature indicator and "Cold Zone" symbols

You will find the symbol opposite in your refrigerator. It clearly shows the location of your appliance's coldest zone: the temperature here is +4°C or less. A temperature indicator here enables you to check that your refrigerator is working correctly :

To set

Correct
Drawing 1 - Temperature indicator

Electrical connection

EN

For your own safety, you must comply with the instructions given below.

The electrical installation must comply with Standard NF C *15-100, in particular concerning the Earth.

Three-core flex 3x2.5 mm ^4 , 230V single-phase connected to:

• A 20A single-phase 230V-50Hz supply
• An ELCB and an individual fuse (10 or 16A depending on the model)

We cannot be held responsible for any incident caused by faulty electrical installation.

Recommendations for the electrical installation of your appliance:

• Do not use extension leads, adaptors, or socket strips.
• Always make sure your circuit is earthed.
• The socket must always remain accessible, yet be out of the reach of children.
  ⚠️ If you have any doubts, contact your installer.

Your appliance is compliant with European Directives CEE/73/23 (low voltage directive), CEE/89/336 (electromagnetic compatibility) and CEE/96/57 (energy efficiency) as well as their modifications.

⚠️ If the appliance has been delivered to your home in a horizontal position, stand it upright and then wait 2 hours before plugging it in. A small amount of oil may have flowed into the refrigeration circuit, and you must allow time for this to flow back towards the motor before connecting the appliance. Failure to do so may damage the appliance.
Carry out an initial cleaning operation (see the section on "Installing your appliance") before connecting your appliance to the electrical supply. Disconnect your appliance prior to performing any maintenance operation. Grasp the plug directly, instead of pulling on the power cable.
⚠ "In case of damage, the supply cord must be replaced by the technical assistance service or a person with a similar title, in order to prevent any risk."

Installation standards

EN

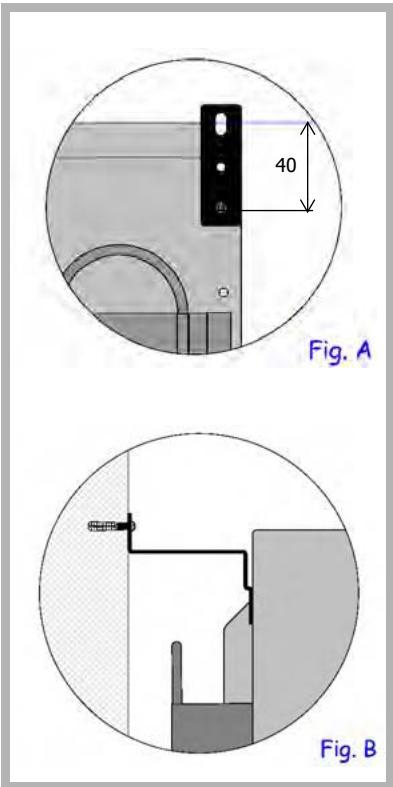

Warning!

- For appliances approximately 180cm in height:

to ensure your appliance's stability and prevent it from possibly toppling over, you must use the anti-toppling clamps supplied with the accessories. Figures A and B show how to install these clamps: they must be fixed in the corners on the back of the appliance using the screws supplied with the accessories and also fixed to the wall, behind the refrigerator using a wall fixing specially selected by the user to suit the type of wall (e.g. an expanding plug).

40 Fig. A Fig. B

Installing your appliance

EN

⚠️ Your appliance must be installed in compliance with the instructions given in this "Operating and installation instructions manual" in order to keep your food under optimum conditions and with optimal energy consumption.

• The appliance should be installed in a dry, well-ventilated room.
• Avoid balconies, verandas, and patios: the excessive heat in summer and the cold in winter could prevent your appliance from functioning properly, or may even damage it.
• Do not place your appliance near a heat source such as an oven or radiator.
• Your appliance has been designed for optimum functioning at a certain ambient temperature; it is designed for a particular "climate class". This climate class is clearly indicated on the identification plate situated on the inside of your appliance, low down on the left wall. Outside of this temperature range, the performance of your appliance may be reduced.

Climate Class	Ambient temperature
N	+16°C to +32°C
N-ST	+16°C to +38°C
N-T	+16°C to +43°C
SN	+10°C to +32°C
SN-ST	+10°C to +38°C
SN-T	+10°C to +43°C
ST	+18°C to +38°C
T	+18°C to +43°C

• Maintain a minimum distance between your appliance and the other units: 3 to 5 cm at the sides, or 10 cm if your appliance is close to a wall, and 10 cm above to ensure good circulation of air all around the appliance.

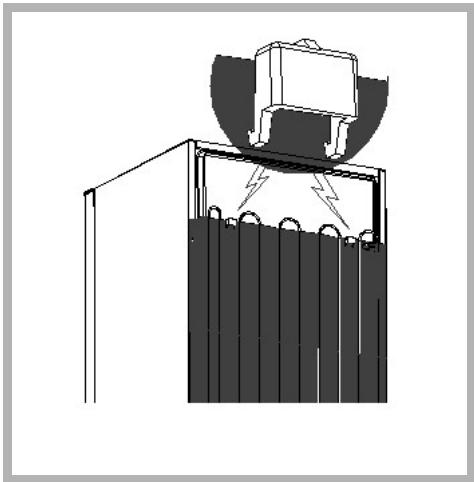

• Position the appliance at a suitable distance from the wall using the spacers provided in the accessories packet. The spacers should be mounted on the back of the appliance (see Drawing).

Diagram of a battery storage or lifting mechanism with a load device above it (no text or symbols present)

Once you have installed your appliance, adjust its feet so that it is tilting backwards slightly: this helps the door to close correctly.
Before placing any food in your appliance, clean it inside and out with a bicarbonate of soda solution (1 dessertspoon of bicarbonate to 4 litres of water). Do not use alcohol, scouring powder or detergents, which could damage the surfaces. See the section on "Cleaning your Appliance".

Reversing the direction the door opens

EN

When the door is ready, prepare the freezer compartment:

• Carefully remove the top pivot M from the eight-hand side of the freezer compartment (Drawing R9).
• Insert it in the left-hand housing (Drawing R9).
• Proceed in the same way with the compartment's stop N; unscrew it from its original position on the left.
• Fit it into its housing on the right-hand side and screw it in place.

You can now re-attach the freezer compartment's door:

• Carefully insert the door into the pivot (Drawing R10)
• Fit the bottom hinge in its housing and screw in screw G (Drawing R10) to fix it.
• Close the compartment door.
• Close the appliance's door.

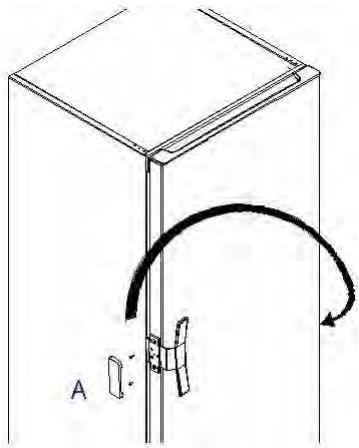

Handle reversibility

• If present, remove the plastic cover (A) (drawing R11).
• Unscrew the handle from the left side and reposition it on the right.
• Using the handle as reference, drill fastening holes (2.5 mm in diameter).
• Attach the handle using self-tapping screws.
• If the door already has holes on both sides:
• Before repositioning it on the right, remove the hole plugs.
• Attach the handle and insert the hole plugs on the left.

Drawing R9

M N

Drawing R10

Illustration of a hand inserting a device into a tray, with an inset showing a close-up of the component (no text or symbols present)

Drawing R11

A

Reversing the direction the door opens

EN

Reversibility of the freezer's door

The appliance's door must sometimes be reversed to meet certain particular ergonomic requirements. The door normally opens on the left (hinge on the right); if you wish to open the door on the right, you must alter the direction in which it opens by following the instructions below.

To ensure correct installation, please carefully follow the instructions and perform the following operation in the sequence indicated:

• Open the appliance's door completely.

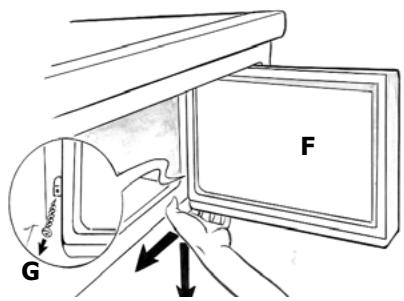

• Open the freezer compartment's door F (Drawing R6).
• Unscrew the fixing screw G from the bottom hinge (Drawing R6).
• Carefully pull the bottom part of the door towards you to remove the bottom hinge from its housing (Drawing R6).
• Extricate the door from the top pin's housing (Drawing R6).
• To prepare the door, unscrew the door stop H (on the left-hand side) (Drawing R7).
• Remove the hinge L from the bottom pin on the right-hand side (Drawing R8).
• Move the hinge L over to the left-hand side (Drawing R8).
• Move the stop H to the right-hand side and screw it into its housing (Drawing R8).

Drawing R6

F G

Drawing R7

Diagram showing a hand holding a device with a curved arrow indicating rotational motion, labeled with 'H' and directional arrows.

Drawing R8

Illustration of a hand holding a device with arrows indicating rotation or movement (no text or symbols)

Reversing the direction the door opens

EN

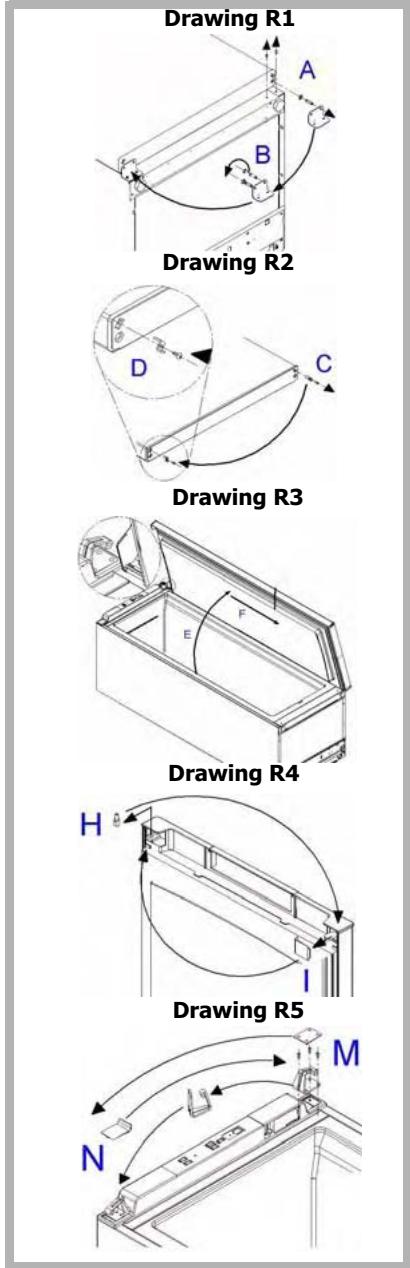

The doors normally open to the left (hinges on the right); if you wish to open the door to the right, you can modify the direction in which it opens by following the instructions below. To ensure correct installation, please scrupulously follow the directions and the sequence of operations below:

1. Gently lay the appliance on its back.
2. Unscrew the bottom screw (A) and remove it from the door. (drawing R1).
3. Remove the hinge pin (keep the plastic spacers inserted on the pin).
4. Screw the pin in the left hole (B) of the hinge and insert the plastic spacers.
5. Unscrew the screw and remove the door rotation stop plate (C), turn it and insert it in the left slot on the bottom of the door, making the shorter part protrude. Block the plate with the screw (D) (drawing R2).
6. Open the door at a 45 degree angle (E) and, gently pushing it toward the bottom (F), remove the top hinge pin (drawing R3).
7. Remove the top pin on the left (H) (drawing R4).
8. Remove the plate from the upper right hand part of the door (I) and insert it in the slot on the left.
9. Insert the pin in the hole in the niche on the right on the top of the door.
10. Remove the plate covering the top hinge and un-screw the hinge (M) (drawing R5).
11. Remove the plate covering the left part of the top, rotate it and insert it in the slot where you removed the hinge (N).
12. Position and fasten the hinge in the upper left part of the appliance and insert the cover plate.
13. Insert the door in the left hinge, holding it open at a 45 degree angle and close the door.
14. Insert the bottom hinge in the door using the spacers and fasten it with the screws.
15. Stand up the appliance.

Wait two hours before restarting your appliance.

Drawing R1 A B Drawing R2 D C Drawing R3 E F Drawing R4 H I Drawing R5 M N

Control panel Freezer door Open door indicator * Ventilation system * Removables shelves Vacuum box * Vegetables drawer Adjustable foot Butter rack with glass shutter Lighting + thermostat Anti bacterial walls Door rack Bottle rack

* depending on the model

Technical line drawing of a vertical cylindrical heating element with internal cooling fins and mounting base (no text or symbols)

This guide to installing and using your fridge-freezer is applicable to several models. There may be slight differences between your appliance's details and features and those described here.

Condenser

Water collection tank Motor

Respecting the environment and saving energy

EN

To reduce your appliance's electrical consumption:

• Install it in a suitable place (see "Installation of your appliance" section).
• Leave the door open as little as possible. Do not place food that is still hot in your refrigerator or freezer, particularly in the case of soups or dishes that release a lot of steam.
• Ensure that you appliance operates optimally by not allowing too much frost to build up in the freezer (de-frost it when the frost is more than 5-6 mm thick) and clean its condenser periodically (See the "Ongoing maintenance of your appliance" section).
• Periodically check the door seal and make sure that the door close firmly. If they do not, lease contact our After-sales service.

In compliance with the latest legislation concerning environmental protection, your appliance does not contain any CFCs. Instead it uses a gas called R600a. The exact type of refrigerant used in your appliance is also clearly indicated on the identification plate inside your appliance's refrigerator section, low down on the left-hand wall.

R600a is a non-polluting gas that does not harm the ozone layer and whose contribution to the greenhouse effect is virtually zero.

ENVIRONMENTAL PROTECTION

This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.

Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate that in countries that are a members of the European Union the used appliances should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic

Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.

We thank you doing your part to protect the environment.

BIOCARE - anti-bacterial walls

This is a specific coating on the lining of your refrigerator consisting of silver ions, which prevent bacteria from developing.

The anti-bacterial coating does not require any particular treatment and remains active throughout your appliance's operating life.

However, you must clean your appliance regularly. See the section on "Cleaning your appliance".

Safety instructions

EN

This appliance is intended for domestic use only. It has been designed for preserving and freezing food.

The following instructions are for your own safety and should be observed without fail. We can neither be held responsible, nor uphold the guarantee in case of failure to observe these recommendations, which may lead to material damage or physical injury.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- Your appliance must be installed, fixed if necessary and used in compliance with the instructions in this operating and installation instructions manual in order to avoid any damage and/or danger due to any lack of stability or faulty installation.

⚠️ If the appliance has been delivered to your home in a horizontal position, stand it upright and then wait 2 hours before plugging it in. A small amount of oil may have flowed into the refrigeration circuit, and you must allow time for this to flow back towards the motor before connecting the appliance. Failure to do so may damage the appliance.

- If you appliance is fitted with castors, please remember that they are only designed to assist in small movements. Do not use them for longer journeys.

- Carry out an initial cleaning operation (see the section on "Installing your appliance") before connecting your appliance to the electrical supply. Disconnect your appliance prior to performing any maintenance operation. Grasp the plug directly, instead of pulling on the power cable.

- Do not place bottles or jars containing liquids in the freezer unless they are only two-thirds full: freezing causes liquids to expand, which can cause the container to explode.

- Do not use any other method than those we recommend in this manual for speeding up defrosting.

- Do not use electrical equipment inside compartments designed for preserving frozen food unless the manufacturer recommends otherwise.

- Do not let children play with the appliance and keep your pets well away from it.

- Worn out appliances must be rendered unusable. Unplug and cut the electric cable flush with the appliance. Render the door catch unusable or, better still, remove the door, so as to ensure that no child or animal risks being shut inside whilst playing.

- If a problem arises that you are unable to resolve using the advice given (see the "Noise, inconveniences, minor breakdowns" section), please contact an official after-sales service or a qualified professional.

Your appliance's refrigeration circuit is filled with isobutane refrigerant (R600a), a natural, non-polluting gas that is, however, inflammable. Ensure that none of the components in your appliance's refrigeration circuit have been damaged during transport or installation. If you detect any damage, keep your appliance away from flames or any type of source of heat or combustion and ventilate it location.

Brandt

Dear Customer,

You have just acquired a BRANDT fridge-freezer and we would like to thank you.

We have invested all our dedication and know-how in this appliance so that it would best meet your needs. With innovation and performance, we designed it to be always easy to use.

In the BRANDT product range, you will also find a wide choice of dishwasher, washing machine and dryer, freezers, cooker range and oven, cooking hobs and ventilation hoods, that you can coordinate with your new BRANDT fridge-freezer.

Visit our website www.brandt.com where you will find all of our products, as well as useful and complementary information.

BRANDT

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning:

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

www.brandt.com

Contents

EN

1 Safety and the environment

• Safety instructions.... 30
• Respecting the environment and saving energy.... 31
  • BIOCARE - anti-bacterial walls 31

2 Description of your appliance

3 How to carry out your initial installation

• Reversing the direction the door opens 33
• Installing your appliance.... 36
• Installation standards 37
• Electrical connection.... 38

4 Starting and setting the appliance

• Setting your refrigerator's temperature.... 39
• Mixed or regulated cold (depending on the model) 40
  • Preparing food for the refrigerator 41
• Arranging food in your refrigerator.... 41
  • Automatic defrosting 42

5 How to use your freezer

• Frozen and deep-frozen food 43
  • Preparing food for freezing 43
• Food freezing guide.... 44
• Arranging food in your freezer 47
  • Defrosting food 47
• Open door indicator (depending on the model) 48
  • Automatic defrosting of your freezer 48

6 Ongoing maintenance of your appliance

• Cleaning your appliance.... 49
  • Humidity filter 50
• Changing the light bulb 50
• Clearit.... 50

7 Noises, inconveniences and minor breakdowns

• Normal operating noises.... 51
• Inconveniences or minor breakdowns 51

This guide to installing and using your fridge-freezer is applicable to several models. There may be slight differences between your appliance's details and features and those described here.

As you read through the guide, you will come across the following symbols, to warn you of:

⚠️ Safety precautions that must be observed

Danger of a gas bursting into flame

An electrical danger

i Important information and advice

Service après-vente

FR

Technical line drawing of a multi-level refrigerator cabinet with shelves and doors (no text or labels)

Line drawing of an refrigerator interior showing door, shelves, and drawer with zoomed-in insets (no text or symbols)

Clearit

Line drawing of a cabinet interior with a hand pointing to a section, and an inset showing a hand holding a pen (no text or symbols present)

Diagram of a computer monitor with an arrow pointing to the screen (no text or symbols present)

Line drawing of a hand opening a cabinet with a lid partially visible (no text or symbols)

Diagram showing a mechanical component with a lightning bolt and two views of a tank or tank (no text or symbols present)

Line drawing of a hand holding a small cylindrical object with a rectangular body (no text or symbols)

Diagram of a battery stack with an electrical component above it, showing lightning bolt and circuit lines (no text or symbols)

Illustration of a hand inserting a tray into a cabinet with an inset showing a mechanical component (no text or symbols)

Dessin R11

A

Diagram showing a hand holding a device with a curved arrow indicating rotational motion, labeled with 'H' and directional arrows.

Dessin R8

Illustration of a hand holding a device with arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a vertical cylindrical device with internal cooling fins and mounting base (no text or symbols)
