THOR 1400 W - Washing machine WALTHAM - Free user manual and instructions

Brand	Waltham
Model	THOR 1400 W
Product Type	Freestanding Washing Machine
Spin Speed	1400 rpm
Capacity	8 kg
Energy Class	A+++
Dimensions (H x W x D)	85 cm x 60 cm x 54 cm
Weight	67 kg
Power Supply	220-240 V, 50 Hz
Rated Power	2000 W
Functions	Cotton, Synthetics, Delicates, Wool, Quick Wash, Eco, Rinse & Spin, Spin Only
Control Type	Electronic
Display	LED
Water Consumption	45 L per cycle
Noise Level (Wash/Spin)	58 dB / 76 dB
Safety Features	Child Lock, Overheating Protection, Overflow Protection
Spare Parts Availability	Door seal, belt, motor, pump, control board
Maintenance	Clean filter regularly, descale every 3 months, check drum for objects
Repairability Index	8.5 / 10
Installation	Freestanding, water supply and drain required

Frequently Asked Questions - THOR 1400 W WALTHAM

How do I start a quick wash cycle on the THOR 1400 W?

Press the Quick Wash button on the control panel and then press Start. The cycle will complete in about 30 minutes.

What should I do if the machine does not drain water?

Check the drain pump filter for blockages first. Clean it by removing the filter cover, pulling out the filter, and rinsing it under water. Also ensure the drain hose is not kinked.

How can I clean the detergent drawer?

Remove the detergent drawer by pressing the release clip and pulling it out. Wash it with warm water and a soft brush, then dry and reinsert.

What is the maximum load capacity for a cotton cycle?

The maximum load for a Cotton cycle is 8 kg of dry laundry. Overloading may reduce washing performance.

How do I activate the child lock?

Press and hold the Child Lock button for 3 seconds until the icon lights up. To deactivate, repeat the same process.

Why does my machine vibrate excessively during spin?

Ensure the machine is level on the floor and that all transport bolts have been removed. Also check that the load is evenly distributed in the drum.

What does the E10 error code mean?

The E10 error code indicates a water supply problem. Check that the water taps are open, the inlet hose is not kinked, and the water pressure is sufficient.

How often should I descale the washing machine?

It is recommended to descale every 3 months using a descaling agent or a cycle with citric acid to prevent limescale buildup.

Can I wash delicate fabrics in the THOR 1400 W?

Yes, select the Delicates program which uses gentle action and lower spin speeds to protect sensitive fabrics.

Where can I find spare parts for my machine?

Spare parts such as door seals, belts, and pumps can be ordered online from authorized Waltham distributors or through the official support website.

USER MANUAL THOR 1400 W WALTHAM

Abstract black-and-white graphic with curved arrow and circular symbol (no text or symbols)

Fig. 1

Close-up of a black mechanical component with a circular hole and a separate arrow-shaped object (no text or symbols visible)

Fig. 2

Simple black-and-white illustration of a circle and an arrow on a surface (no text or symbols)

Fig. 3

REGLAGE DES PIEDS

Close-up of a mechanical component with a curved arrow indicating direction (no visible text or symbols)

Fig.4

Close-up of a mechanical component with a black base and metallic top, no visible text or symbols

Fig.5

RACCORDEMENT ELECTRIQUE

Close-up of a car's front wheel and side gear assembly (no visible text or symbols)

Illustration of a hand holding a tool with three floating objects above, set against a textured wall (no text or symbols)

Fig. 7

RACCORDEMENT DU TUYAU DE VIDANGE

Line drawing of a washing machine with a side sink and a hand inserting a pipe into it (no text or symbols)

Fig. 8

Diagram showing a car interior with a camera and a hand interacting with a vehicle (no text or symbols present)

Fig. 10

Illustration of a hand holding a pen and a small cylindrical object, both without any text or symbols.

Fig.11

FILTRE DE POMPE DE VIDANGE

Line drawing of a hand holding a small object, possibly a tool or component, with no visible text or symbols.

Fig. 12

Line drawing of a hand adjusting a mechanical component with a ring (no text or symbols)

Fig. 13

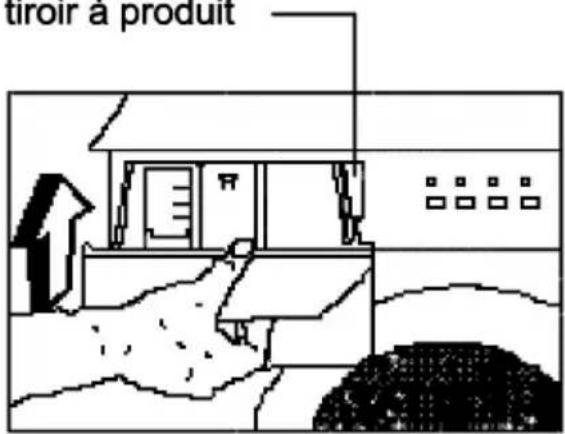

BAC A PRODUITS

Diagram showing a hand pressing down on a wall with control panel and icons (no text or symbols)

Fig 14
