LUNA 1200 WAV - Washing machine WALTHAM - Free user manual and instructions
Find the device manual for free LUNA 1200 WAV WALTHAM in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Front-loading washing machine |
| Brand | WALTHAM |
| Model | LUNA 1200 WAV |
| Capacity (kg) | 7.5 |
| Maximum Spin Speed (rpm) | 1200 |
| Energy Class | A++ |
| Power Consumption (kWh/cycle) | 0.78 |
| Water Consumption (L/cycle) | 45 |
| Dimensions (H x W x D cm) | 85 x 60 x 65 |
| Weight (kg) | 72 |
| Noise Level Washing/Spinning (dB) | 56 / 74 |
| Number of Programs | 15 |
| Key Programs | Cotton, Synthetics, Delicates, Quick 15', Wool, Sports |
| Features | Delay start, Child lock, AquaStop, Foam control, Unbalanced load detection |
| Display | LED digital display |
| Drum Material | Stainless steel |
| Power Supply | 220-240 V ~ 50 Hz, 10 A |
| Warranty (years) | 2 |
Frequently Asked Questions - LUNA 1200 WAV WALTHAM
How do I install the washing machine?

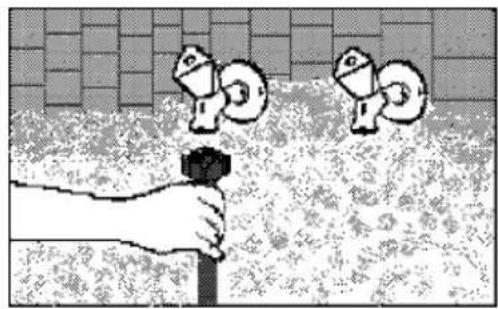

Remove all transport bolts and packaging. Level the machine using the adjustable feet. Connect the inlet hose to a water supply with a pressure of 0.1-1 MPa, and attach the drain hose to a suitable drain. Ensure the electrical plug fits a grounded socket. Refer to the installation guide in the manual for detailed steps.
What is the maximum load capacity?
The maximum load capacity is 7.5 kg for cotton programs. For synthetic and delicate items, reduce the load to 3 kg and 2 kg respectively to avoid overloading.
How can I change the spin speed?
Select the desired program, then press the Spin Speed button repeatedly to cycle through available speeds. You can also select No Spin or Rinse Hold options. The maximum speed is 1200 rpm.
What does the error code E10 mean?
Error code E10 indicates a water supply issue. Check that the water tap is fully open, the inlet hose is not kinked, and the filter at the hose connection is clean. Restart the cycle after resolving the issue.

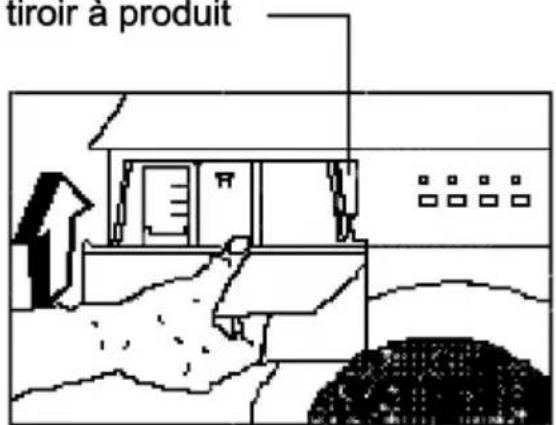

How often should I clean the detergent drawer?
Clean the detergent drawer every 2-3 months. Remove the drawer by pressing the release lever, wash it under warm water, and use a brush to remove deposits in the compartment. Wipe dry before reinserting.
Can I use a delay start timer?
Yes, you can delay the start of a cycle by up to 24 hours. Load the machine, select a program, then press the Delay Start button to set the desired delay in hours. The display will show the remaining time until start.
Why is the machine vibrating excessively?
Excessive vibration is usually due to unbalanced loads or unstable installation. Ensure the machine is level on a solid floor, and redistribute heavy items (like bedding) evenly. Also check that transport bolts are removed.
How do I activate the child lock?
Press and hold the Child Lock button (usually marked with a padlock icon) for 3 seconds to activate. The display will show a lock symbol. Repeat the same to deactivate. The child lock prevents accidental button presses during a cycle.
What type of detergent should I use?
Use low-sudsing detergents suitable for front-loading machines. For different fabrics, choose specialized detergents (e.g., color, delicate, wool). Do not use too much detergent; follow the manufacturer's dosage instructions to avoid foam issues.

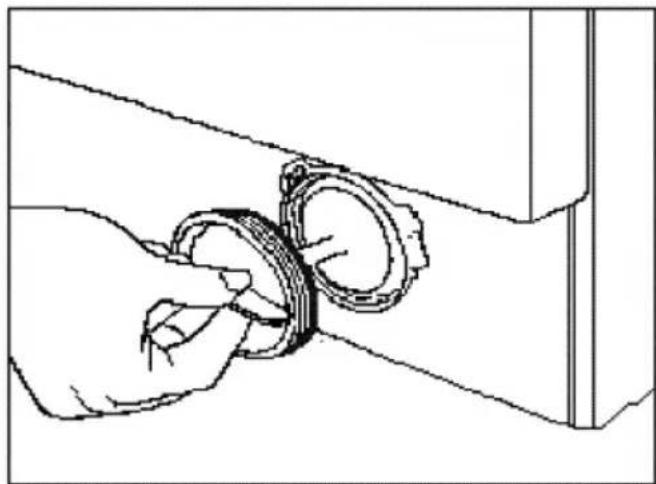

How can I clean the drain pump filter?
Turn off the machine and unplug it. Open the lower access panel (use a coin if needed). Place a shallow container to catch water, then unscrew the filter cap counterclockwise. Remove any lint or objects, clean the filter under water, and reinsert it securely. Close the panel.
