| Product type | Refrigerator-freezer |
| Brand | BRANDT |
| Model | BFC2302NX |
| Power supply | 220-240 V, grounded outlet |
| Refrigerant | R600A |
| Interior lighting | Bulb E14, 220-240 V, 15/25 W |
| Charcoal filter | Yes, replacement recommended every 6 months |
| Door reversibility | Yes, possible |
| Fast cooling function refrigerator | Yes (6 hours) |
| Fast cooling function freezer | Yes (52 hours) |
| Holiday function | On some models |
| Winter function | Model e only |
| Open door alarm | Yes (after 2 minutes) |
| High temperature alarm | Yes, can be disabled |
| Interior cleaning instructions | Baking soda, damp sponge |
| Exterior cleaning instructions | Vacuum back grille once a year |
| Safety | Do not use electrical appliances inside; keep ventilation grilles clear |
| Rest before plugging in | 2 hours in upright position |
| Minimum rear clearance | 25 mm |
Frequently Asked Questions - BFC2302NX BRANDT
User questions about BFC2302NX BRANDT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Refrigerator in PDF format for free! Find your manual BFC2302NX - BRANDT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BFC2302NX by BRANDT.
USER MANUAL BFC2302NX BRANDT
ES MANUAL DE INSTRUCCIONES FR MANUEL D'UTILISATION EN INSTRUCTION MANUAL IT MANUALE DI ISTRUZIONI DE BEDIENUNGSANLEITUNG DA BRUGSVEJLEDNING PL INSTRUKCJA OBSŁUGI CS NÁVOD K OBSLUZE INSTALACE PRÁČKY HU HASZNÁLATI ÚTMUTATÓ SK NÁVOD NA INŠTALÁCIU A OBSLUHU PRÁČKY ET KASUTUSJUHEND ES MANUAL DE INSTRUCCIONES GL MANUAL DE INSTRUCIÓNS PT MANUAL DE INSTRUÇÕES RU РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ NL INSTRUCTIEHANDLEIDING AR دليل
Very important: Read this manual carefully before using your refrigerator.
This manual is designed with texts corresponding to drawings.
Identification
Identify the model of your refrigerator ("a", "b", "c", "d", "e", "f", "g") by comparing the control panel with the illustrations.
Installation
1.1 Unpacking. Remove all the protective packaging elements. 1.2 Location. Stand the refrigerator away from sources of heat and protect it from direct sunlight to reduce its consumption.
Do not install the refrigerator in the open air or exposed to rain.
The air must circulate around the rear of the refrigerator. Leave a space of 25 mm between the back of the refrigerator and the wall. Do not block the space between the refrigerator and the floor or the ceiling.
Level the refrigerator to prevent vibration and noise. Bear in mind that if the refrigerator is placed against the wall or a kitchen unit, some noise may occur.
Also check the trays are placed correctly, and place containers separately to prevent vibration.
1.3 Mains connection. Leave the refrigerator to stand for at least 2 hours in vertical position before plugging it in. Check the data on the reference plate (220-240V with earth connection) (1.3.1, 1.3.2).
Do not use adapters or extension leads.
Ensure the cable is not touching the motor or trapped underneath it.
1.4 Changing the door opening direction.
Unplug the refrigerator from the mains and empty the contents of the inner door.
Remove the screws from the lower hinge and
remove the hinge, holding the freezer door in place to prevent it from falling onto the floor (1.4.1, 1.4.2). Remove the freezer door (1.4.3).
Use a screwdriver to remove the embellisher from the central hinge (1.4.4). Remove the screws from the central hinge and remove the hinge, holding the refrigerator door in place to prevent it from falling onto the floor (1.4.5, 1.4.6). Remove the refrigerator door (1.4.7).
Remove the shaft from the upper hinge and place it in the same position on the opposite side (1.4.8).
Remove the locking devices from the doors and turn them around, placing the refrigerator lock on the freezer door and vice versa (1.4.9). Replace the embellishers on both doors.
Using a screwdriver, remove the embellishers from the middle and lower part of the refrigerator and place them on the opposite side (1.4.10).
Fit the refrigerator door in place, slotting it onto the upper hinge (1.4.11). Push the door upwards without releasing it and fit the central hinge (1.4.12).
Remove the lower hinge and change its position (1.4.13).
Fit the freezer door in place, slotting it onto the central hinge (1.4.14). Push the door upwards without releasing it and fit the lower hinge (1.4.15).
Operation

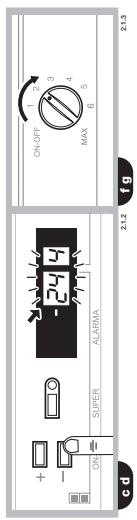

2.1 Switching on the refrigerator. Press ON-OFF (2.1.1). Press + , — until a digit appears on the display (2.1.2), or turn the dial (2.1.3). 2.2 Selecting the compartment. On models a b c d , the refrigerator compartment and the freezer compartment work
separately. On models e f g , the two compartments work together

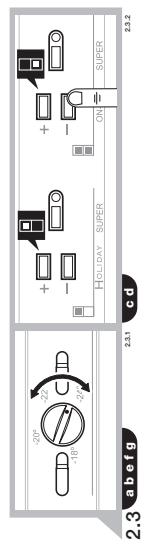

2.3 Temperature selection. Turn the dial (2.3.1) or press the +, - buttons of the freezer compartment, followed by those of the refrigerator compartment (2.3.2).

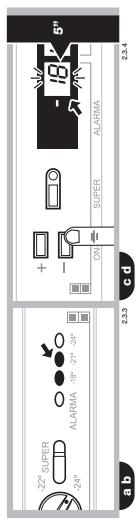

When you have selected the temperature, you can find out the real temperature in the compartment by observing the indicator lights (2.3.3), or by holding down the + or - buttons of the desired compartment for 5 seconds. The temperature in the compartment will flash on the display (2.3.4).
Recommendation: The recommended temperature for the refrigerator compartment is 4 and for the freezer compartment it is -19 for already frozen food, and -24 if you wish to freeze food.
Remember that the temperature inside the appliance depends on the room temperature, where the refrigerator is located and how often you open the door.

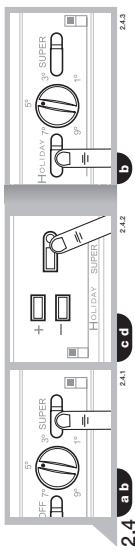

2.4 Refrigerator functions.
Quick cool function: This function activates the refrigerator at a cooler temperature for 6 hours. It is recommended to activate it when you place a large amount of food in the refrigerator.
To enable and disable this function: Press SUPER (2.4.1, 2.4.2). Models e f g do not have this function.
Holiday function: The holiday function is very useful when you will not be using the refrigerator for a long period of time but you wish to keep food in the freezer. With this function, your refrigerator will consume very little power and bad smells will not be generated inside it. Models acefg do not have this function.
Warning: The refrigerator door must be kept closed when this function is in use.
To enable and disable this function: Press HOLIDAY (2.4.3), or the +, - buttons of the refrigerator compartment until H appears on the display (2.4.4). To disable the function, repeat this operation.

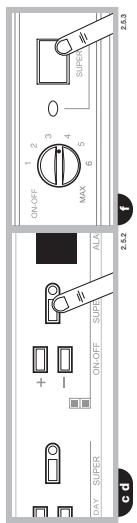

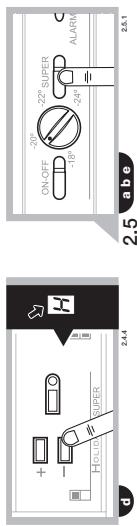

2.5 Freezer functions.
Quick cool function: This function activates the freezer at a cooler temperature for 52 hours. It is recommended to activate it 24 hours before placing a large amount of food in the freezer. On model , it should be deactivated 24 hours later.

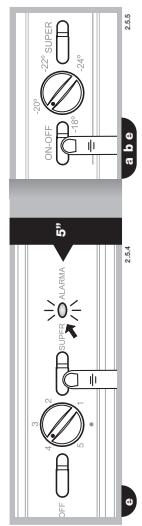

To enable and disable this function: Press SUPER (2.5.1, 2.5.2, 2.5.3). Model g does not have this function.
Winter function: Models only. Use this function if you notice that the freezer is becoming warmer. Hold down the SUPER button for 5 seconds until the orange pilot light begins to flash (2.5.4). The refrigerator light will remain on at half power so that the compressor functions for longer. When the freezer has reached the right temperature, switch off the winter function by holding down the SUPER button for 5 seconds again.

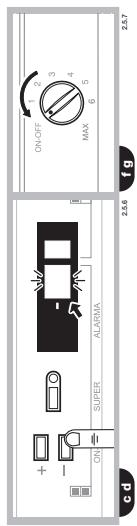

Switching the freezer on and off: Press the ON-OFF button of the freezer compartment (2.5.5). Press the + or - button until no temperature appears on the display (2.5.6), or turn the dial to ON-OFF (2.5.7). When the freezer is switched off the refrigerator compartment will also switch off.
2.6 Recommendations for use.
- Do not open the doors for any longer than necessary, and do not place hot food in the refrigerator. This will ensure a more efficient use of your refrigerator and will avoid excess power consumption.
- If your refrigerator is NO FROST type, do not obstruct the ventilation grilles, and leave space between the food for the air to circulate.
- Do not place bottles of fizzy drinks or glass bottles containing liquids in the freezer, as they may burst.
- Place food in sealed containers to prevent it from drying up.
- Do not consume ice cream or food that is very cold as this can cause burns.
3
Maintenance and cleaning
3.1 Cleaning the inside of the refrigerator. Use a sponge or a dish cloth soaked in water with bicarbonate of soda to clean the inside of the refrigerator, to prevent bad smells from forming.
Never use steam cleaning machines, solvents or abrasive detergents.
3.2 Cleaning the outside of the refrigerator. Do not use steam cleaning machines to
It is recommended to clean the rear grille with a vacuum cleaner once a year.

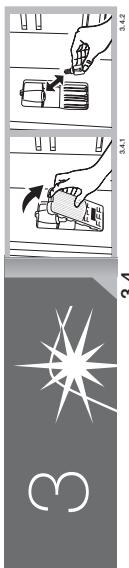

3.3 Cleaning the accessories. The accessories are not dishwasher-safe. Wash them by hand, using a sponge or a dish cloth. 3.4 Changing the light. If the light bulb blows: Unplug the refrigerator. Press the tab to remove the light cover (3.4.1, 3.4.3) and remove the blown bulb (3.4.2, 3.4.4). Replace it by another bulb with the same screw type, E14, 220-240V, 15/25W, or as indicated on the light fitting. 3.5 Changing the carbon filter. Your refrigerator may be equipped with a carbon filter to absorb the unpleasant smells generated by some foods and to retain the microorganisms (fungus and bacteria) in the circulating air.

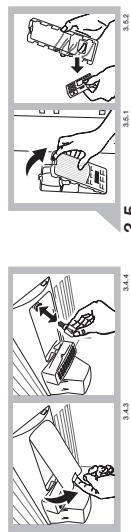

The filter maintains its properties for a limited time of 6 months. When this time has elapsed, the filter should be changed and a new one fitted. The filter location depends on the model.

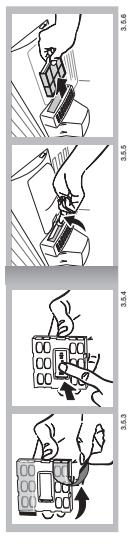

To change the filter: Press the tab and remove the cover (3.5.1, 3.5.5). Remove the used filter (3.5.2, 3.5.6).
If the filter needs activating: Remove the seals (3.5.3) and press the BIOFILTER display until you hear a slight click (3.5.4). In a few seconds the duration scale will begin to change colour. Fit the filter in its original location.
Keep used filters and spares out of reach of children; as swallowing large amounts of this substance can be dangerous.
Do not wet the filter as it will lose all its properties.
4
Diagnostics

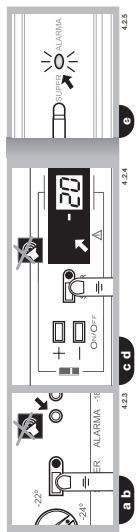

4.1 Door open. If you leave the door open for longer than 2 minutes, an alarm will sound and the refrigerator light will switch off. The alarm will stop when you close the door.
4.2 The freezer is not cold enough
- If the freezer temperature is abnormally warm, an alarm light will come on (4.2.1, 4.2.2) and an intermittent beep will sound. Press SUPER (4.2.3, 4.2.4) to switch off the beeper manually.
- Model e only. If the winter function is activated, the alarm light will flash. To deactivate it, see (2.5.4).
- When you switch on the appliance for the first time, the alarm light will be activated, although the alarm beeper will not sound.
4.3 Electricity cuts
Open the refrigerator doors as infrequently as possible. When the electricity returns, check whether the frozen food has thawed.
4.4 Normal refrigerator noise
Your refrigerator may make some noise on functioning. Do not worry about the following noises, as they are normal.
- The refrigerant gas may cause a bubbling noise as it circulates around the refrigerator circuits.
- The compressor may make a buzzing noise or a slight tapping sound, particularly on start-up.
- Expansion and contraction of the materials used may cause tapping or crackling noises.
- The air moving the freezer fan may generate slight background noise.
Do not attempt to repair the refrigerator yourself. Call the technical assistance service.
Safety
- Keep the ventilation grilles free from any obstructions.
- Take care not to damage the refrigeration circuit.
- Do not use electrical appliances inside the refrigerator, unless they are of a type recommended by the manufacturer.
- Do not use mechanical devices or any other means to speed up the defrosting process, unless recommended by the manufacturer.
- This appliance is not designed for use by people (including children) whose physical, sensorial or mental capacities are impaired, or who lack sufficient experience or knowledge, unless they are supervised or have been instructed in the use of the appliance by a person responsible for their safety. Children must be supervised to ensure they do not play with the appliance.
- If the supply cable is damaged, it must be replaced by the manufacturer, the after-sales service or similar qualified staff to prevent hazard.
The environment
This refrigerator was designed with environmental conservation in mind.
The appliance operates with coolant R600A, which does not damage the environment.
Respect the environment. Use the recommended temperatures for each compartment. They will depend on the mode you need for efficient use of your refrigerator.
Disconnect the refrigerator or set it to holiday mode when you will not be using it for a prolonged period. You will reduce power consumption and save energy.
Avoid leaving the doors open more time than necessary. It causes an increase in power use.

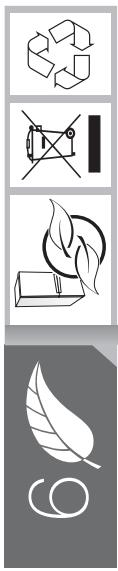

Waste management of electrical and electronic appliances.
The symbol indicates that the appliance must not be disposed of in traditional bins for domestic waste.
Deliver your refrigerator to a special collection centre.
Recycling domestic appliances prevents negative impacts on health and the environment and helps save energy and resources.
For more information, contact your local authorities or the establishment where you purchased your refrigerator.
The manual is arranged in such a way that the text information is linked to the corresponding figures.
Identification
Determine which model of refrigerator you have ("a", "b", "c", "d", "e", "f", "g"). To do this, compare your control panel with the illustrations.
Installation
1.1. Unpacking. Remove all protective elements. 1.2. Location. To reduce electricity consumption, the refrigerator should be installed away from heat sources in a specially designated place, protected from direct sunlight.
The refrigerator should not be installed under an open sky or in a place where water jets may fall on it.
When installing the appliance, leave space for air circulation at the back. Between the base of the appliance and the rear wall there should be a gap of at least 25 mm. Do not obstruct the space between the refrigerator and the floor, as well as between the refrigerator and the ceiling of the room.
To avoid vibration and noise during operation, the appliance must be adjusted so that it is not tilted. Pay attention to the fact that when the refrigerator is placed near a wall or furniture, during its operation there may be increased noise.
When choosing, it is also necessary to check the correct installation of the drawers, and when placing them in the refrigerator, make sure that individual items do not touch each other.
1.3. Connecting the appliance to the mains. Before connecting the appliance to the mains, it must be left in a vertical position for at least 2 hours. Check that the electrical parameters of the mains correspond to the data indicated on the rating plate (from 220 to 240 V with earthing) (1.3.1, 1.3.2).
The use of adapters (extension cords) and multiple sockets is not allowed.
Make sure that the power cord does not touch the appliance and is not pinched.
1.4. Changing the door opening side. Disconnect the appliance from the mains and remove all accessories from the inside of the door.
Unscrew the lower hinge and remove it, supporting the door so that it does not fall (1.4.1, 1.4.2). Remove the door of the freezer compartment (1.4.3).
Using a screwdriver, remove the decorative cover of the central hinge (1.4.4). Unscrew the screws of the central hinge and remove it, supporting the door so that it does not fall (1.4.5, 1.4.6). Remove the door of the refrigerator compartment (1.4.7).
Remove the upper hinge and install it in a similar position on the opposite side (1.4.8).
Remove the automatic door closing devices, and turn them so that the device for the refrigerator compartment becomes the device for the freezer compartment and vice versa (1.4.9). Install the decorative covers on both doors.
Using a screwdriver, remove the decorative covers of the central hinge and the lower part of the refrigerator body and install them on the opposite side (1.4.10).
Install the door of the refrigerator compartment by inserting it into the upper hinge (1.4.11). Without letting go of the door, press it upwards and install the central hinge (1.4.12).
Remove the lower hinge pins (1.4.13).
Install the door of the freezer compartment by inserting it into the central hinge (1.4.14). Without letting go of the door, press it upwards and install the lower hinge (1.4.15).
Operating instructions
2.1 Switching on the refrigerator. Press ON-OFF (2.1.1). Press + or - until the desired value appears on the display (2.1.2). Alternatively, turn the knob (2.1.3). 2.2 Selecting the compartment. In models abcd, the refrigerator compartment and the freezer compartment operate independently. In models efg, both compartments operate in a linked manner. 2.3 Setting the temperature. Turn the knob (2.3.1) or press the buttons + or - first for the freezer compartment and then for the refrigerator compartment (2.3.2).
To set the required temperature, you can check the actual temperature in the compartment by looking at the light indicators (2.3.3) or by pressing and holding the + or - button for the required compartment. The compartment temperature will be displayed (2.3.4).
Recommendation. For the refrigerator compartment, a temperature of 4°C is recommended, and for the freezer compartment -19°C (for already frozen products). If you need to freeze fresh products, it is recommended to set a temperature level of -24°C.
Remember that the temperature inside the refrigerator compartments depends on the ambient temperature, the location of the appliance, and the frequency of door openings.
2.4 Operating modes of the refrigerator compartment
Fast cooling mode. When this mode is activated, the refrigerator compartment will maintain a lower temperature for 6 hours. The use of this mode is recommended when placing a large quantity of products in the refrigerator compartment.
Switching on and off: Press SUPER (2.4.1, 2.4.2). In models with the letter 'f', this mode is not provided.
Holiday mode. Holiday mode is useful when the refrigerator will not be used for a long period, but you want to freeze
products in the freezer compartment. In this mode, the refrigerator consumes very little electricity, and no ice forms inside. In models with the letter 'f', this mode is not provided.
Attention. When using this mode, the refrigerator door must be closed.
Switching on and off: Press HOLIDAY (2.4.3), or press the + and - buttons of the refrigerator compartment simultaneously and hold them until the display shows 'H' (2.4.4). To switch off, repeat the procedure.
2.5 Operating modes of the freezer compartment
Fast freezing mode. When this mode is activated, the freezer compartment will maintain a lower temperature for 52 hours. This mode is recommended to be switched on 24 hours before placing a large quantity of products in the freezer compartment. In model f, this mode must be switched off after 24 hours.
Switching on and off: Press SUPER (2.5.1, 2.5.2, 2.5.3). In models with the letter 'f', this mode is not provided.
Winter mode. Available only in models with the letter 'e'. This mode should be used if the room where the refrigerator is located is cold. Press and hold SUPER for 5 seconds until the orange indicator starts flashing (2.5.4). The refrigerator lighting will be constantly on at reduced power so that the compressor runs longer. When the required temperature is reached in the refrigerator, switch off Winter mode by pressing and holding SUPER again for 5 seconds.
Switching the freezer compartment on and off. Press ON-OFF for the freezer compartment (2.5.5). Press the + or - button and hold it until the temperature display disappears (2.5.6), or turn the knob to the ON-OFF position (2.5.7). After switching off the freezer compartment, the refrigerator compartment also switches off.
2.6 Recommendations for operation.
Do not keep the doors open longer than necessary, and do not place hot food in the refrigerator. This will allow the refrigerator to
operate more efficiently, and you will reduce electricity consumption.
- If your refrigerator is equipped with a frost function, do not block the ventilation openings and leave some space between products, allowing air to circulate between them. Do not place carbonated drinks or glass bottles with liquid in the freezer compartment, as they may burst. To prevent products from drying out, place them in the refrigerator in sealed containers. Do not consume very cold ice cream or heavily frozen products, as this may cause mouth burns.
3 Cleaning and maintenance
3.1 Cleaning the interior. To clean the interior, use a sponge or cloth dampened with a weak soda solution to remove stubborn odors. It is strictly forbidden to use steam cleaners, solvents, or abrasive cleaning agents for cleaning. 3.2 Cleaning the exterior. It is forbidden to use steam cleaners or abrasive sponges. It is recommended to wipe the exterior with a vacuum cleaner attachment. 3.3 Cleaning the accessories. It is forbidden to wash the accessories in dishwashers. It is recommended to hand wash with a sponge or cloth. 3.4 Replacing the lamp. If the lamp no longer lights, the following steps must be taken. Disconnect the refrigerator from the power supply. Remove the cover, located on the side (3.4.1, 3.4.3), and pull out the faulty lamp (3.4.2, 3.4.4). Replace it with a new lamp of the same type and size (E14, 220-240 V, 15/25 W) in accordance with the lighting instructions. 3.5 Replacing the charcoal filter. In the refrigerator
Russian
there may be a charcoal filter that absorbs foreign odors produced by some products and traps microorganisms (fungi, bacteria) from the circulating air.
The properties of the filter are maintained for a certain time, about 6 months. After this period, it is recommended to replace the filter. The location of the filter depends on the model.
Procedure for replacing the filter. Press the "tab" and remove the cover (3.5.1, 3.5.5). Pull out the old filter (3.5.2, 3.5.6).
If the filter needs to be restored, remove the protective caps (3.5.3) and press the BIOFILTER until a slight click (3.5.4). After a few seconds, the filter indicator will begin to color. Install the filter in its original position.
Used and replacement filters must be stored out of the reach of children. Ingestion of significant amounts of filter material can be dangerous. Do not allow the filter to get wet, as it may lose its properties.
4 Control functions of the refrigerator
4.1 Opening the door. If the door remains open for more than 2 minutes, the refrigerator will emit an audible signal, and the lighting of the refrigerator compartment will turn off. After closing the door, the signal will stop.
4.2 Insufficient cooling in the freezer compartment
- If the temperature in the freezer compartment is abnormally high, the audible alarm is triggered (4.2.1, 4.2.2) and, in turn, the audible alarm is intermittent. To stop the audible alarm manually, press the SUPER button (4.2.3, 4.2.4). This is only available in models with the "Winter" mode. If the "Winter" mode is enabled, the alarm will sound. See section 2.5.4 for the order of enabling it. When the appliance is switched on, the light indicator turns on, but no audible signal is emitted.
4.3 Disconnecting the appliance from the power supply
Open the refrigerator doors as rarely as possible. After the voltage in the network has been restored, check whether the products have thawed.
4.4 Normal operating sounds of the refrigerator
During operation, the refrigerator may produce sounds that are considered normal operation, due to the operation of the compressor.
3.1
1
3.1.1, 3.1.3 (204-220)
4.1
1
(2.4.1, 1.4.1)
(3.4.1)
5.4.1) 2
(7.4.1) a 6.4.1
:
19 4
- 24 ① 25 ≤ x ≤ 27 ②
1 1
4.2
:
a 6
(2.4.2, 1.4.2)
efg
∴ A( 1,0) .B( -3/4,√34)
Therefore, sin Δ = BP/PC = sqrt(1/2)
0 5
24 15
biinl: jiu will ic gill, jiu wll
(3.5.2, 2.5.2, 1.5.2) SUPER
aalldolglge gjoo
:
jIbdi Iiaie aaiialoia Jai
jill bcil 1234567890
jaii jaii jaii jaii jaii jaii jaii Super
Jaa 4aall aaiy Jaaia ydi (4.5.2)
aJzal aagall yIooie, Jgbi jaoj dai jlll 1
jna biaically Jaaill jc glll alil
5 Super
: aai 1
-5+1+111111(5.5.2)222all gall ON-OFF biai
(6.5.2)
all 7.5.2 ON-OFFa
- therefore small small
Juaui 6.2
a 1
ailllll lglssllg clllllll jia jia jia jia jai
. 1
jai jall gall, jiai iaiii ci Jao
aillil 1
. 2.3
cuiiui jiuui ciuiui Jiaui
.
aill 8o y aill l aill gell 5ll
a. a.150≤11 a. a.150≤a.150≤a.150≤
alssall 3.3
4.3
(4.4.3,2.4.3) 1200000000000000000000000000000000000000000000000
E14,220-240,15/25,
5.3
J 1
4.4
J 1
Therefore, the area of triangle BCA equals the area of triangle COD plus the area of triangle BDO minus the area of triangle BOC.
j 1
Joo Joo Joo Joo Joo Joo Joo Joo Joo Joo
aaii aiaaai 1joo j
jusitall jutillal jiaisall
aill llll
aill. boll 6
ydsill yaaan aayd 0
. 111 bala gl abalall
1
R600A
jll jai
Lgic gaiiall ayiall oJyall Jaiinl
jll Jaiinl lnnnnae 1
J 1
alall pali jai jai jai jai jai jai jai jai
- IDENTIFICATION
- INSTALLATION
- OPERATION
- REFRIGERATOR FUNCTIONS
- FREEZER FUNCTIONS
- RECOMMENDATIONS FOR USE
- MAINTENANCE AND CLEANING
- DIAGNOSTICS
- THE FREEZER IS NOT COLD ENOUGH
- ELECTRICITY CUTS
- NORMAL REFRIGERATOR NOISE
- SAFETY
- THE ENVIRONMENT
- THIS REFRIGERATOR WAS DESIGNED WITH ENVIRONMENTAL CONSERVATION IN MIND
- WASTE MANAGEMENT OF ELECTRICAL AND ELECTRONIC APPLIANCES
- OPERATING INSTRUCTIONS
- CLEANING AND MAINTENANCE
- RUSSIAN
- CONTROL FUNCTIONS OF THE REFRIGERATOR
- INSUFFICIENT COOLING IN THE FREEZER COMPARTMENT
- DISCONNECTING THE APPLIANCE FROM THE POWER SUPPLY
- NORMAL OPERATING SOUNDS OF THE REFRIGERATOR
Brand : BRANDT
Model : BFC2302NX
Category : Refrigerator
