BAMP-700-A - Support & Base BRIGMTON - Free user manual and instructions

Product Type	Wireless Bluetooth Speaker with Microphone
Model	BAMP-700-A
Brand	Brigmton
Dimensions (Approx.)	280 x 100 x 150 mm
Weight (Approx.)	1.2 kg
Power Supply	Built-in 2000 mAh Lithium Battery; USB Charging 5V 1A
Battery Life	Up to 5 hours (normal use)
Bluetooth Version	Not specified (supports A2DP)
Bluetooth Range	Approximately 10 meters
Supported Audio Formats	MP3, WMA, WAV, APE, FLAC
Speaker Output Power	Not specified (estimated 10W RMS)
Frequency Response	Not specified (typical 20Hz-20kHz)
Connectivity	Bluetooth, Micro SD Card, USB (PC), AUX (3.5mm), FM Radio
Microphone	Built-in hands-free microphone
Display	LED display (shows time, channel, song number)
Card Reader Function	Yes (via USB connection to computer)
Charging Time	Not specified (estimated 2-3 hours)
Operating Modes	Bluetooth, Micro SD, PC USB, AUX, FM Radio
Safety Precautions	Keep away from water/heat; adjust volume to safe level; charge every 3 months if unused
Maintenance	Wipe with dry cloth; do not use abrasive cleaners
Included Accessories	USB cable, 3.5mm audio cable, battery (installed), user manual
Spare Parts Availability	Not specified; contact manufacturer or importer
Compliance	EMC Directive, EN 300328, EN 301489, EN 62479, EN60950

Frequently Asked Questions - BAMP-700-A BRIGMTON

How do I pair the speaker with my phone via Bluetooth?

Press the M button to enter Bluetooth mode. The LED display will show 'BL'. On your phone, search for Bluetooth devices and select 'BAMP-700'. If prompted, enter the pairing code '0000'. The speaker will voice 'paired' when connected.

Why won't the speaker connect to my Bluetooth device?

Ensure your device supports A2DP stereo audio transmission. If it does, turn on the A2DP stereo mode on your device. Also, make sure the speaker is in Bluetooth mode and not connected to another device.

How do I play music from a Micro SD card?

Insert a Micro SD card into the slot. The speaker will automatically switch to memory card mode and start playing. Supported formats: MP3, WMA, WAV, APE, FLAC. Use high bitrate files (e.g., 320kbps) for best quality.

The Micro SD card is not working. What should I do?

Check that the card is in good condition and the audio files are in supported formats (MP3/WMA/WAV/APE/FLAC). If the problem persists, format the card to FAT32 file system.

How do I use the AUX input?

Connect the speaker to your audio source using the included 3.5mm audio cable. Press the M button to select AUX mode (the speaker will voice 'Aux'). The speaker will then play audio from the source. Use the button to play/mute.

How do I use the FM radio?

Press the M button repeatedly until you enter FM mode (the speaker will voice 'FM'). Use the previous/next buttons to scan channels. The display shows the current FM channel.

How do I charge the speaker?

Connect the speaker to a 5V 1A USB adaptor using the included USB cable. The indicator light will flash slowly while charging and turn solid blue when fully charged. Use a branded adaptor for safety.

Why is the speaker volume low or distorted?

Low battery can affect sound quality. Charge the speaker fully. If using AUX mode, ensure the speaker is charged. Also, check that the volume on your source device is turned up.

Can I use the speaker as a card reader for my computer?

Yes. With a Micro SD card inserted and the speaker powered on, connect the speaker to your computer via USB. Long press the play/pause button to power off the speaker. The display will show 'Hdd', and the computer will recognize the SD card for reading/writing.

How do I answer a phone call using the speaker?

When a call comes in while connected via Bluetooth, the speaker will ring and show 'CALL'. Press the play button (▶) to answer, and press it again to end the call.

USER MANUAL BAMP-700-A BRIGMTON

Two black BRIGMTN-branded sound speakers with digital display, no visible text or symbols on device body

BAMP-700-N-A-R

ALTAVOZ BLUETOOTH-MICRO SD- MICRÓFONO

USO DEL DISPOSITIVO

Illustration of a battery pack with a small battery and two charging terminals (no text or symbols)

Line drawing of a rectangular electronic device with internal components and a control panel (no text or symbols)

Two black BRIGMTN-branded audio speakers with digital display, no visible text or symbols on device body

BAMP-700-N-A-R

BLUETOOTH SPEAKER-MICROSD-MICROPHONE

IMPORTANT SAFETY INSTRUCTIONS

• Keep speaker away from water and other liquids.
• Keep speaker away from any source of heat.
• Adjust the volume to a suitable level so as to avoid damaging your hearing, or the unit itself.
• If does not use this speaker for long time, please charge at lease once within three month, in order to prevent the lithium battery from causing and damaging because of excessive consumption.

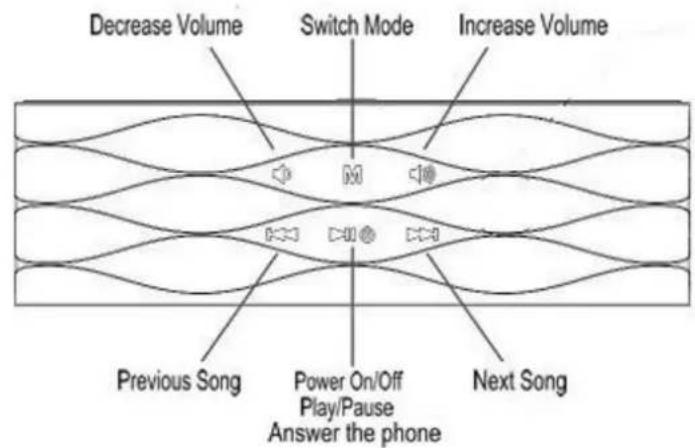

SLOT AND KEYS

QUICK START

Please follow below picture to install the battery, please do not anti-access the battery polarity. And do use the included battery for working.

Line drawing of a battery pack with a small battery and two buttons, no text or symbols present

INSTRUCTIONS

POWER ON/OFF: Long press the button and hold for 2 seconds to power on the speaker, the Working Indicator Light will be on. Long press the button to power off the speaker.

Please not take out the battery and using the USB adaptor to charge the speaker for better sound quality, as the output of the speaker is large.

VOLUME ADJUSTMENT: Short press the buttons to decrease / increase the volume gradually. Long press the buttons to decrease / increase the volume continuously.

SONG/FM CHANNEL SWITCHING: Under music playing mode, short press the /▶▶ buttons to switch to the previous / next song.

Under FM mode, short press the buttons to switch to the previous / next channel.

FAST REVERSE/FAST FORWARD: Under Micro SD card music playing mode, long press the buttons for fast reverse/fast forward.

PAUSE/PLAY - MUTE / PLAY: Under the mode of Micro SD card music playing, PC USB, Bluetooth, short press the button for pause/play.

Under the mode of AUX, FM, short press the button for mute/play.

BLUETOOTH: Press the M button to enter the Bluetooth mode, the LED display will show the icon "BL". Now please turn on the Bluetooth function of your mobile/other devices. And start to search for Bluetooth devices, the "BAMP-700" will be found, please connect it. The mobile may remind you to input the pairing code. The speaker's default pairing code is "0000". (The speaker will voice "paired" when connecting).

Please turn on the mobile or other devices' music player, and speaker will play the selected music.

Under pairing, when phone call comes in, the speaker will ring and the display will show "CALL". Please short press the ▶ button to answer the phone, re-press the ▶ button to end up the phone.

MICRO SD CARD MUSIC PLAYING: Inserting the Micro SD Card into the speaker to enter the memory card mode, the speaker will play the Micro SD card music directly. (Speaker will voice memory card). The LED display will show the playing time of the current song.

The speaker support music format at WAV, MP3, WMA, APE, FLAC. Please using the bigger bit rate music for better music enjoyment (for example bit rate at 320kbps)

Please Note: The speaker support to select the music by the songs' numbers. Please double press the buttons and hold it. The display will show the song's number. Please select your needed song's number to play.

AUX IN: Use the 3.5mm audio cable included to connect the speaker to an audio source (PC, MP3/MP4, mobile phone). Short press the M button to enter "AUX IN" mode (the speaker will voice Aux). The speaker will play the music from the audio source. And short press the button to play/mute the music.

Please Note: Low battery will affect the music sound quality, please charge the speaker by adaptor (5V 1A) under Aux in mode.

PC USB: Please use the USB cable included to connect the speaker to the computer, short press the M button to enter the PC USB Mode(speaker will voice PC), which will work as a computer speaker. The first time to use this function, computer will automatically identify the speaker and install the driver for it.

FM RADIO: Press the M button to the FM mode (the speaker will voice FM), The display will show the FM channel, press the buttons for previous/next channel.

CARD READER: Power on the speaker(with Micro SD card), Please use the USB cable included to connect the speaker to the computer, and long press the ▶ button to power off the speaker. The speaker will enter the card reader mode, and the display will show "Hdd". Then the Micro SD card can be read and written on the computer directly.

CHARGING: The speaker with the 2000 mAh lithium battery, can working for 5 hours in the normal status. If low capacity, the indicator light at the back will flash quickly. And the speaker will decrease the volume automatically in order to protect the battery when low capacity. Please charge the battery by USB adaptor immediately.

Under charging, the indicator light will flash slowly, when fully charge, the indicator light will stop flashing in blue.

Please use the branded good quality 5V 1A adaptor to charge the battery. You can use the Smartphone's adaptor for charging.

TROUBLESHOOTING

1. What should I do if the speaker can not pair with the Bluetooth device and play music accordingly? Please check the specification/ the manual of the Bluetooth device (your mobile or computer), and see if the device can support the A2DP stereo audio transmission. If yes, please turn on the A2DP stereo mode.

2. What should I do if the Micro SD card can not work?

(1) Ensure that the Micro SD card is in good condition. Also check that the audio files are the correct formats - MP3/WMA/WAV/APE/FLAC.
(2) Beside the above case, the problem maybe the compatibility of the Micro SD card.

We recommend you formatting the Micro SD Card to FAT32 file formats.

1. What should I do if the PC USB function could not work?

(1) Connect the speaker to the computer via the USB cable included, and enter the PC USB mode. And then play the video/ audio from the computer.
(2) If it could not work, it may be the problem that the sound card of the speaker is incompatible with the computer. Please try to click the device manager--- click the Voice video and games controller---right click the USB Audio device---click the uninstall. Then please switch the speaker to PC USB mode again. The computer will automatically update the USB sound card drive to achieve the compatibility

Features can be change without notice.

I.R.P., S.L.

SANTA CLARA DE CUBA NAVE 5

SEVILLA

ESPAÑA

DECLARATION OF CONFORMITY

I.R.P., SL declare under our responsibility that the equipment meets the requirements indicated in the following directives:

EMC DIRECTIVES

ETSI EN 300 328 V1.7.1 (2006-10)

ETSI EN 301 489-1 V1.9.2 (2011-09)

ETSI EN 301 489-17 V2.2.1 (2012-09)

EN 62479: 2010

EN60950-1: 2006+A11:2009+A1:2010+A12:2011

Description of apparatus:

BRIGMTON Model BAMP-700-N-A-R

Wireless Speaker

Importer: I.R.P., SL

Address: Avenida Santa Clara de Cuba 5, 41007, Sevilla.
