Product Type	Multi-card reader with 3-port USB Hub (A type)
Brand	Soyntec
Model	Nexoos 660 Smart Combo Silver Dots
Memory Card Compatibility	SD/SDHC/SDXC/MMC/RS MMC/MS/MS PRO DUO/Micro SD (no adapter)/M2/XD/CF I/II
Smart Card Compatibility	Electronic ID cards, cryptographic smart cards, SIM cards (Windows OS required)
USB Hub	3 ports USB 2.0 (A type), backwards compatible with USB 1.1/1.0
Connection Interface	USB 2.0 High Speed
Operating Systems Supported	Windows 2000/ME/XP/Vista/7, Mac OS X, Linux
Smart Card Standards	ISO-7816, CCID, PC/SC, CSP Microsoft, API PKCS#11, EMV 2000 Level 1, T=0 & T=1
Simultaneous Card Reading	Yes (CBO technology)
LED Indicator	Yes, for power/activity status
Power Consumption	500 mA (max)
Software Included	SIM Editor for mobile SIM card management; driver CD
Warranty	36 months
Dimensions (Approx.)	120 x 60 x 20 mm
Weight (Approx.)	100 g
Maintenance	Keep dry and clean; avoid exposure to liquids or extreme temperatures
Safety Features	Overcurrent protection; supports secure applications (digital signature, online banking)
Spare Parts & Reparability	Not user-serviceable; contact Soyntec support or distributor for repairs
Included Accessories	Card reader with 3-port hub, user manual, software CD

Frequently Asked Questions - Nexoos 660 Soyntec

How do I install the Nexoos 660 on Windows 7?

For Windows 7, after connecting the reader, it may appear as eHome Infrared Receiver. Go to Device Manager, right-click it, select 'Update Driver', then 'Browse my computer' and choose 'Let me pick from a list of device drivers'. Select USB Composite Device and follow the prompts to update. The reader will then be recognized as Microsoft Usbccid Smartcard Reader.

Can I use the Nexoos 660 with my electronic ID card?

Yes, the reader supports electronic ID cards and cryptographic smart cards. You must first install the card reader drivers from the included CD or website, then install the specific software for your ID card (provided by your card issuer).

How do I read and edit my mobile phone's SIM card?

Insert the SIM card into the dedicated slot on the reader. Install the SIM Editor software from the CD or website. Launch the program, enter the SIM card's PIN, and you can view/edit contacts, SMS, and make backups.

What memory card formats are supported?

The Nexoos 660 supports SD/SDHC/SDXC, MMC (including RS MMC), Memory Stick (MS, MS PRO, MS DUO, etc.), Micro SD (no adapter needed), M2, xD, and CompactFlash (CF I/II). Check the manual for a full list.

Does the reader work on Mac OS X?

Yes, for Mac OS X 10.3 or later. Download and install the MAC OS X driver from the Soyntec website (www.soyntec.com) before connecting the reader.

What is the maximum power consumption?

The maximum power consumption is 500 mA. It is powered via the USB port; no external power supply needed.

Can I use multiple memory cards at the same time?

Yes, thanks to CBO technology, the reader can read and write several cards simultaneously. However, you need to ensure the computer recognizes each card as a separate drive.

How do I update the driver for the card reader?

Visit the Soyntec support site (support.soyntec.com) and select your product. Download the latest drivers for your operating system and install them after uninstalling old drivers if necessary.

Is the reader compatible with Linux?

Yes. Copy the file libccid_Info.plist from the 'Linux driver' folder on the CD or from the website to the /etc folder, replacing the existing file. Then restart your computer.

What should I do if the reader is not detected?

Check that the USB cable is securely connected and the USB port is working. Try a different port. If using Windows 7, apply the driver workaround (see FAQ 1). Also ensure the correct drivers are installed. If still not detected, contact Soyntec support at [e-mail].

USER MANUAL Nexoos 660 Soyntec

Enjoy the advanced features of this technological product that we have developed with maximum guarantees for you.

Nexoos 660

Smart Combo Silver Dots

Card Reader All in 1 + HUB USB

1. INTRODUCTION

Soyntec ^® thanks you for purchasing your Nexoos ^™ 660 Smart Combo, Silver Dots. We wish you enjoy using it.

Soyntec® Multi-card reader Nexoos™ 660 Smart Combo is a Multi-card reader compatible with most memory cards in the market including electronic ID card, Smart cards and SIM. It meets all the standards to use with your electronic ID card and any smart card, supports multiple security applications such as personal identification, digital signature, bank operations on-line, etc.. With the “SIM Editor” program, you can also read and edit information of SIM cards of mobile phone and make backup of your agenda comfortably from any computer. Moreover, the integration of 3-port USB Hub (A type) offers better performance to your computer.

We suggest you read this user manual to enjoy this product with the best performance and in a safe way.

2. FEATURES

Multi-card reader compatible with: SD/SDHC/SDXC/MMC/RS MMC/MS/MS PRO DUO/Micro SD (without additional adaptor)/M2/XD/CF I/II.
Compatible with electronic ID card and smart cards.
▶ Hub USB2.0 with 3 ports (A type).
Supports multiple security applications such as personal identification, digital signature, bank operations on-line, etc.
Compatible with SIM card of Mobile phone (OS Windows required).
▶ Technology CBO: reading and writing of several cards simultaneously.
Compatible with following standards of Smart Card Reader:

ISO-7816 / CCID / PC/SC / CSP Microsoft / API PKCS#11 / EMV 2000 level 1 / Asynchronous cards based on protocol T=0 & T=1.

USB 2.0 High speed connection.
▶ Compatible with USB 1.1/1.0.
▶ LED status indicator.
Compact design.
Compatible with Windows2000 / ME / XP / Vista / Windows 7/Mac OS X /Linux.
▶ Maximum power consumption: 500mA.

3. PRODUCT CONTENTS

▶ 1 multi-card reader + Hub USB with 3 ports (A type).

▶ 1 User Manual.

▶ 1 CD of software.

4. COMPATIBLE WITH

1. SD / SDHC/SDXC / EXTREME SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO /SD ELITE PRO / HS SD / MMC / MMC 4.0 / HS MMC / MMC micro (adaptor required) / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile / MMC Plus / MMC 4.2.

2. MS / MS PRO/ MS DUO/ MS PRO DUO/ MS MG PRO/ MS MG/ MS MG DUO / MS MG PRO DUO/ EXTREME MS PRO/ MS SELECT/ EXTREME III MS PRO/ ULTRA II MS PRO/ HS MS MG PRO/ HS MS MG PRO DUO/ HS MS PRO/ HS MS PRO DUO/ MS ROM /MSHG

3. Micro SD/T-Flash

4. M2

5. XD / XD 1.21

6. CF I/II

7. SMART CARD (Electronic ID card and cryptographic cards)

8. SIM card of Mobile phone.

5. INSTALLATION

Be reminded that you should have a personal computer (Intel – from Pentium III – or similar technology) and a free USB port to connect the card reader Nexoos™ 660 Smart Combo Silver Dots.

In order to guarantee the correct function of card reader Nexoos™ 660 with the cryptographic cards, you should firstly install the drivers of card reader. After that, you should install the correspondent software and documentation to the cryptographic card that you are going to use, which should be provided by the supplier of the card.

Installation of the driver of Nexoos™ 660 and "SIM Editor":

5.1. WINDOWS 2000, ME, XP, VISTA, WINDOWS 7

5.1.1. "Windows Driver / SIM Editor":

You should install the software “Windows Driver / SIM Editor” included in the CD or download this software from our website: www.soyntec.com. In this step the driver for Smart Card and the software “SIM EDITOR” will be installed, which enable you to read and edit your information of SIM card of mobile phone comfortably from any PC (Editing agenda, SMS and making backup of agenda).

Important note for operation system Windows 7 :

Like many card readers for Smart Card in the market, our card reader Nexoos™ 660 uses a chip that was designed before the availability of Microsoft Windows 7, for this reason, the system doesn't detect correctly the card reader and the card reader appears as Infrared Receiver.

This does not affect the proper function of card reader, however, it can be tweak to work on Windows 7 by following the simple steps as indicated below:

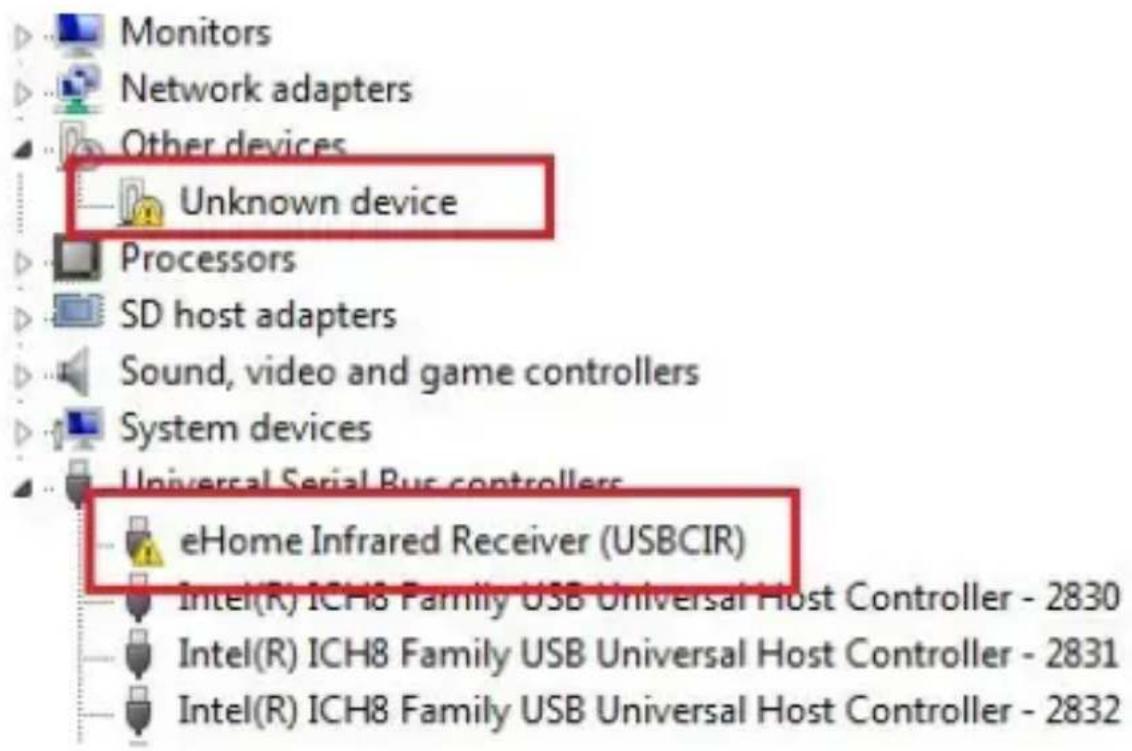

To configure the setting in Windows 7: get into Device manager → double click on “eHome Infrared Receiver” → Driver → Update Driver → Browse my computer for driver software → Let me pick from a list of device drivers on my computer.

In the next Window choose: “USB Composite Device” and click on “Next”. As the final step, it shows “Windows has successfully updated your driver software” and click on “Close”.

After this process, go back to Device manager, our card reader already appears as "Microsoft Usbccid Smartcard Reader"

5.1.2. SIM Editor:

With “SIM Editor” program, you can read and edit data of your SIM card of mobile phone comfortably from any PC (for editing agenda, SMS and make backup of agenda).

Once installed this program, the icon “SimEdit” will appear in your desktop, to use it, you should connect the card reader with your PC and insert your SIM card in the correspondent slot of card reader, then double click the icon to open the program.

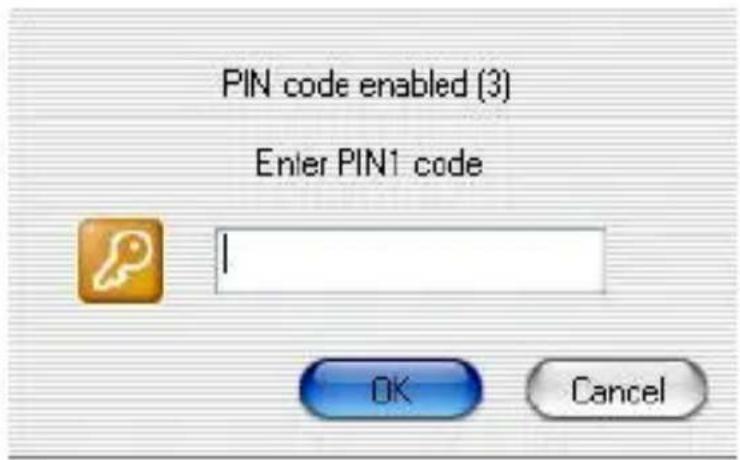

The PIN number which associated with your SIM card will be required to continue with the program.

Click on the button "Si" and introduce your PIN number.

Once introduced correctly your PIN number, you can start to enjoy “SIM Editor” to edit your data, SMS and make backup of your agenda with the useful and intuitive menu of this program.

5.2. MAC OS X 10.3 OR LATER VERSIONS.

Please download and install "MAC OS X driver" from our website: www.soyntec.com

5.3. LINUX.

Please copy the file “libccid_Info.plist” from folder “Linux driver”, which is included inside the CD or you can download and copy this file from our website: www.soyntec.com, then paste this file in the folder “etc” in your Linux to replace the current one, as the last step, restart your computer.

6. SPECIAL GUARANTEE

Soyntec guarantees that your product does not have any material, design or manufacture defect and provides 36 month guarantee.

Guarantee procedure

Visit the Support section at http://support.soyntec.com and select your product to view the FAQ (Frequently Asked Questions). The solution to your problem is very likely to have been already published there. You will also be able to download user manuals, user guides, drivers and updates.

If you can not find an appropriate solution in the Support section, you may send us your enquiry or warranty service request using this mail: [e-mail]

You may also reach by phone at the warranty service number 902 294 294. Make sure to have your purchase receipt or invoice and the product's serial number at hand when you call.

▶ Alternatively, you may prefer to contact the distributor from which you purchased the product, presenting them the receipt or invoice. Specifications are subject to change without notice.

© 2010 by Soyntec. All rights reserved.

Trademarks

All company, brand and product names are trademarks or registered trademarks of their respective companies.

CE

7. AGREEMENT DECLARATION

We declare under our own exclusive responsibility the product agreement:

Soyntec Nexoos™ 660 Smart Combo Silver Dots

Manufacturing country: China

Which concern this agreement, with the norm(s) or other(s) formative(s) document(s).

In accord with the disposition of the Directive 93/68/CEE, from the European Parliament and the Counsel from 22nd July 1993, transposed to the Spanish legislation through the Real Decree 1950/1995, from 1st December 1995.

SOYNTEC
