Product Type	Car Radio with Cassette Player, RDS, and CD Changer Control
Dimensions (W x H x D)	178 mm x 50 mm x 150 mm
Weight	1.6 kg
Power Supply	DC 12 V (11–16 V), negative ground
Maximum Power Output	50 W x 4 (at 4 Ω)
Continuous Power Output (DIN)	22 W x 4 (at 4 Ω)
Speaker Impedance	4–8 Ω
FM Frequency Range	87.5–108 MHz
MW Frequency Range	531–1602 kHz
LW Frequency Range	153–279 kHz
Cassette Tape Speed	4.76 cm/s
Wow and Flutter	0.12 % (WRMS)
Signal-to-Noise Ratio (Cassette)	52 dB (Dolby off), 62 dB (Dolby B NR on)
RDS Functions	AF, TA, TP, PTY, EON, Emergency Announcement
CD Changer Compatibility	Optional Panasonic changers (CX-DP9061EN, etc.)
Audio Controls	Bass, Treble, Balance, Fader, Subwoofer volume & LPF
Display Features	Spectrum Analyzer (6 patterns), Clock, Dimmer (3 levels)
Security	Removable face plate, security indicator, panel removal alarm
Remote Control	Supplied with lithium battery (CR2025)
Fuse Rating	15 A
Maintenance	Clean with soft cloth; never use benzine or thinner

Frequently Asked Questions - CQ-FX721P PANASONIC

What should I do if the unit has no power?

Check the car ignition switch (must be ACC or ON), ensure all cables are correctly connected (especially battery, accessory, and ground leads), and verify the fuse (15A) is not blown. If the fuse is blown, contact an authorized Panasonic service center.

Why is there no sound from the speakers?

Ensure MUTE is not activated (press [MUTE] to turn off). Check that the volume is not set to 0. Verify speaker connections and that the speaker impedance is 4–8 Ω. If using an external amplifier, confirm it is powered and connected properly.

How do I reset the preset stations?

To manually store a station, tune to the desired frequency, press and hold [P-SET∧] or [P-SET∨] for more than 2 seconds until the preset number blinks, then select a number and hold again to store. To auto-store strong stations, press and hold [BAND] for more than 2 seconds in the desired band.

Why is the tape sound quality poor?

Dirty tape heads are a common cause. Clean the heads with a cleaning tape or have them serviced. Also ensure Dolby B NR is set correctly for the tape type (ON for Dolby tapes, OFF otherwise). For metal tapes, activate Metal Tape Mode by pressing and holding [P·SET∧] for more than 2 seconds.

How do I set the clock manually?

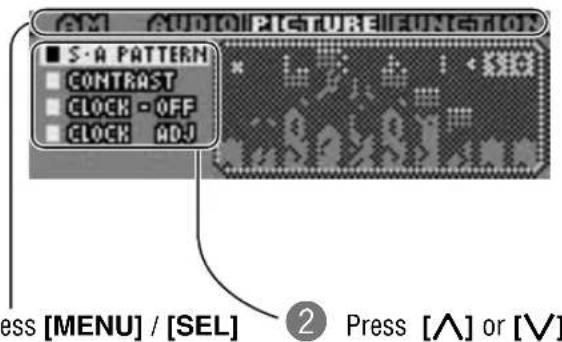

Press [MENU]/[SEL] to enter the PICTURE menu, select CLOCK ADJ, then use [TUNE<] or [TUNE>] to switch between hour and minute, and [P-SET∧] or [P-SET∨] to adjust. Finally press [BAND] to set. If RDS CT service is available, the clock adjusts automatically.

What does the error message 'ERROR' on the cassette player mean?

'ERROR' appears when there is a tape mechanism problem. After 5 seconds, 'PLEASE ELECT' will show. Open the panel and press [▲] to eject the cassette. Check the tape for damage or tangles, then reinsert. If the error persists, consult a service center.

Can I connect two CD changers?

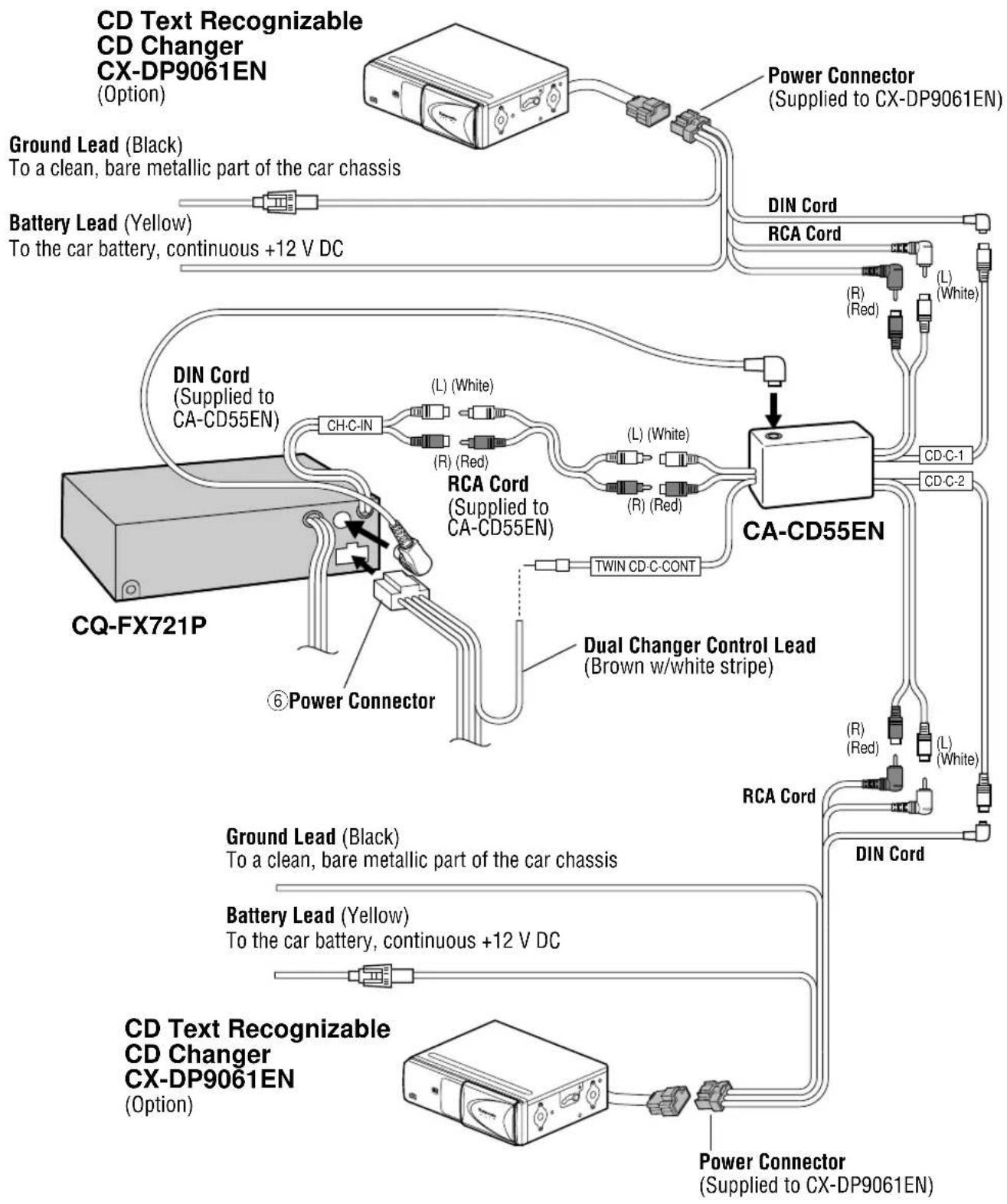

Yes, using the optional dual CD changer selector (CA-CD55EN). Connect the two changers and select between them by pressing [BAND] in CD changer mode. Note that each changer must have a loaded magazine.

How do I activate the security function?

Press [MENU]/[SEL] to enter the FUNCTION menu, select S-LED, and set it to ON. The security indicator will blink when the face plate is removed, and the panel removal alarm will sound when the power is turned off.

Why does the display show 'NO DISC' when I select CD changer?

This means no CDs are loaded in the magazine. Insert CDs into the magazine and load it into the changer. Also ensure the changer is properly connected and powered.

How do I adjust the subwoofer volume and crossover?

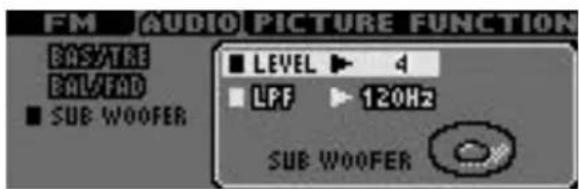

Press [MENU]/[SEL] to enter the AUDIO menu, select SUB WOOFER, then press [BAND]. Use [P·SET∧]/[P·SET∨] to choose LEVEL (volume) or LPF (low-pass filter). Adjust with [TUNE<] (80 Hz) or [TUNE>] (120 Hz) for LPF, and [TUNE>]/[TUNE<] for volume. Press [BAND] to confirm.

USER MANUAL CQ-FX721P PANASONIC

Panasonic welcomes you to their constantly growing family of electronic products owners.

We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components, and assembled by people who are proud of the reputation their work has built for our company. We know this product will bring you many hours of enjoyment, and after you discover the quality, value and reliability we have built into it, you too will be proud to be a member of our family.

Precautions

Volume Level

For your driving safety, keep the volume level low enough to be aware of road and traffic conditions.

Car Washing

To avoid electrical shorts which may cause fire, or other damage, do not expose this Product (including the speakers and tape) to water or excessive moisture.

Car Ventilation

If your car is parked for several hours in direct sunlight, the temperature inside the car may become very high. It is advisable to drive the car and give the interior a chance to cool down before switching the unit on.

Power Supply

This Product is designed to be used in a car having a 12-Volt negative ground battery system.

Tape Mechanism

Keep magnets, screwdrivers and other metallic objects away from the tape mechanism and tape head.

Service

This Product is made of precision parts. Do not attempt to disassemble or adjust any parts. For repair, please consult your nearest authorized Panasonic Service Center.

Note: The preset memory is cleared to return to the original factory setting when the power connector or battery is disconnected.

Components

1. Operating Instructions .... 1
2. Supplied Hardware....1set (→ page 30)
3. Warranty Card....1

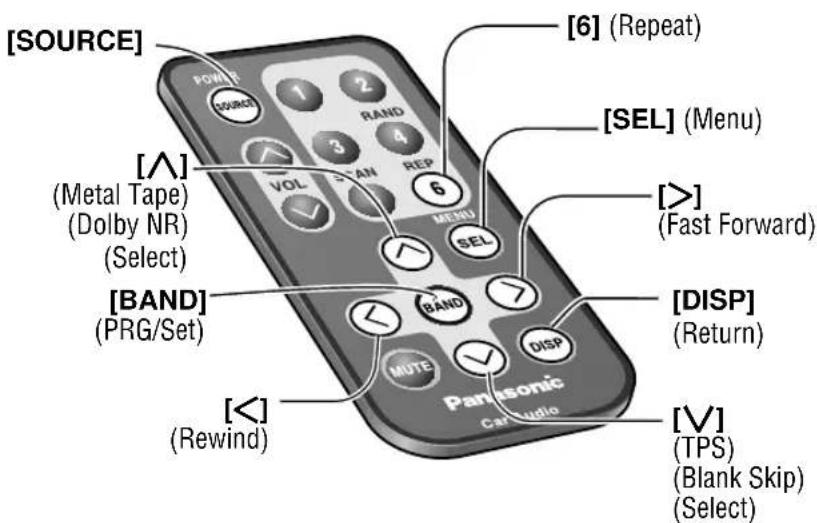

Remote Control Preparation

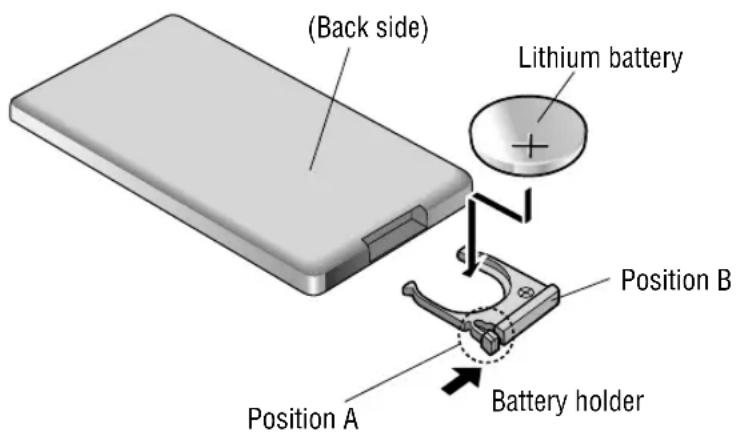

Battery Installation

1. Remove the battery holder.
   Pull the holder out at position B while pushing position A as indicated.
2. Install the battery on the battery holder.
   Place the battery in the holder with its (+) side upwards as shown.
3. Insert the battery holder.
   Push in the battery holder back into its original position.

Battery Notes

Remove and dispose of an old battery immediately.

Battery Information:

● Battery Type: Panasonic lithium battery (CR2025) (Included)
● Battery Life: Approximately 6 months under normal use (at room temperature)

Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire. Battery leakage may damage the unit.

• Do not disassemble or short the battery. Do not throw a battery into a fire.
• Keep batteries away from children to avoid the risk of accidents.
• Follow local regulations when disposing of batteries.

General

Note : When you use this unit for the first time, a demonstration message appears on the display. To cancel this display, press [DISP].

Turn the key in the ignition until the accessory indicator lights.

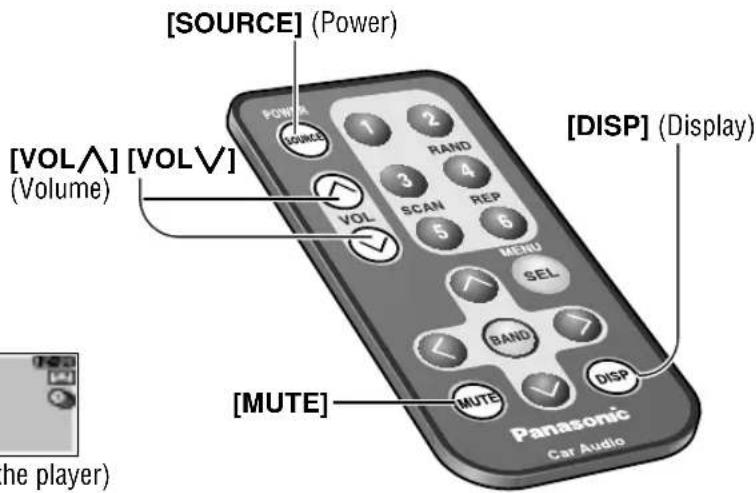

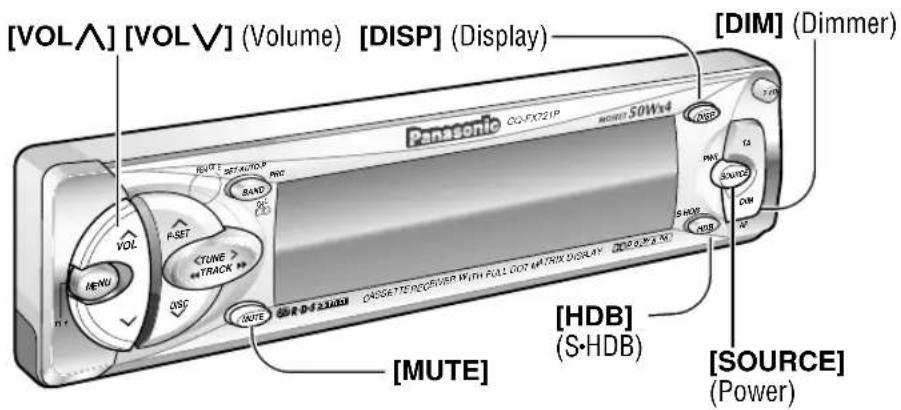

Power

ON : Press [SOURCE].

OFF : Press [SOURCE] again and hold for more than 1 second.

A security message is displayed, and the warning alarm that reminds you to take the panel off.

(When S-LED is set to ON → page 28)

Note: When ACC selection is set to ON, security message and warning alarm are performed after turning off the ignition key. (→page 28 about ACC selection)

Source

Press [SOURCE] to change the source.

Radio Cassette Tape

(When AUX-IN setting is set to ON) (→page 28)

(When a cassette is in the player)

(When a CD changer is connected and magazine is in the changer)

Volume

Setting Range : 0 to 40

Note : The sound level for each source is stored in memory.

(For radio, one volume setting for AM, one volume setting for all FMs)

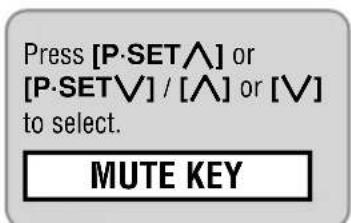

Mute/ATT (Attenuation)

MUTE/ATT ON : Press [MUTE].

MUTE/ATT OFF : Press again.

Decreasing volume range depends on setting.

(MUTE/ATT setting → page 28)

: No sound

: Decrease the volume to 1/10 of previous level.

Dimmer

Press [DIM] on the main unit to change the dimmer level.

Super High Definition Bass (S•HDB)

Especially for rock music, the bass-sound will be more powerful.

Press [HDB] on the main unit to change the Super High Definition Bass on.


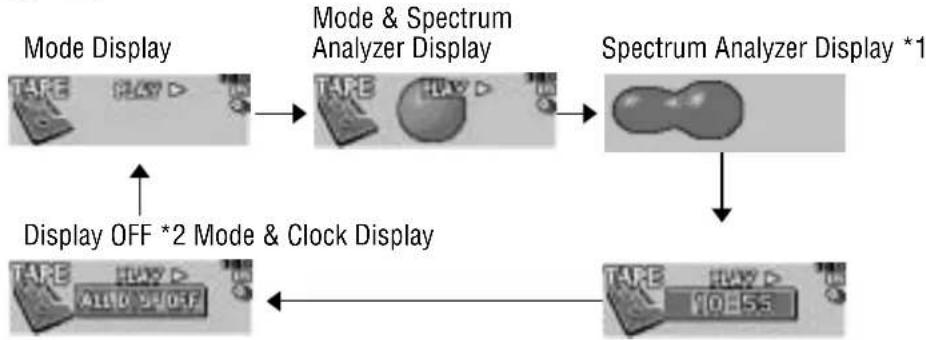

Display Change

When Power is ON

Press [DISP].

Notes :

• Set the Spectrum Analyzer pattern in a separate procedure. (→ page 26)
• “NO CT” is displayed before adjusting the clock. (Adjustment → page 26)

*1 If you press a button, the Mode & Spectrum Analyzer Display appears for 5 seconds.
*2 If you press a button, the light is turned on, the Mode Display appears, and the light is turned off approximately 5 seconds later.

Active Indicator Display

Press and hold [DISP] for more than 2 seconds. Indicators which are not displayed on Mode Display are displayed.

AUDIO Indicator

Press [DISP] again to cancel.

When Power is OFF (when ACC Selection is set to ON)

Press [DISP].

Note : See page 28 about ACC Selection setting.

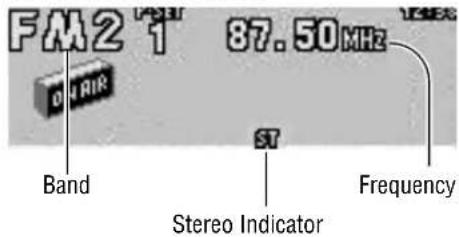

Radio Mode Display

Note: The stereo indicator lights during reception of an FM stereo broadcast.

1 Radio Mode

Press [SOURCE] to select the radio mode.

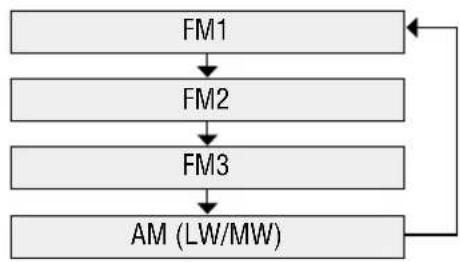

2 Band Press IB

Press [BAND].

3 Tuning

[TUNE>] / [>]: Up

[TUNE<] / [<]: Down

Press and hold [TUNE>] or [TUNE<] /

[>] or [<] for more than 0.5 seconds, then release. Seeking will start.

Mono/Local Selection

① Press [MENU] / [SEL] during radio (FM or AM) mode.
② Press [P-SET∧] or [P-SET∨] / [∧] or [∨] to select MONO or LOCAL. (in AM mode, only LOCAL can be selected.)
③ Press [BAND] to switch on or off in turn.

MONO ON : Noise is significantly decreased when weak signals are received from an FM broadcast station.

LOCAL ON : In seek tuning, only strong stations are detected.

LOCAL OFF: Relatively weak stations are picked up.

FM Menu Display

AM Menu Display

Notes:

• If no keys have been pressed for more than 15 seconds, the display returns to the previous one after changing to the menu display.
• Press [DISP] to return to the regular mode.

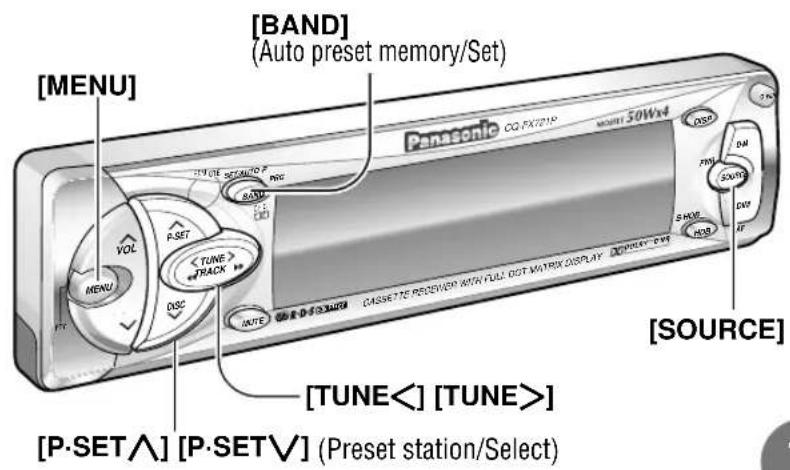

One-touch Selection of a Preset Station

Up to 6 stations can be stored in each of the FM1, FM2, FM3 and AM (LW/MW) band selections.

Manual Preset Memory

Manually save a station in the preset memory.

Select a band and frequency (step 1, 2 and 3 on the previous page)

①Press and hold [P-SET∧] or [P-SET∨]/[∧] or [∨] for more than 2 seconds until the preset number blinks.
② Press [P-SET∧] or [P-SET∨] / [∧] or [∨] to select a preset number.
③ Press and hold [P·SET∧] or [P·SET∨] / [∧] or [∨] for more than 2 seconds to memorize.

The display blinks once, and a receiving station is saved in the memory.

Note: Frequency setting can be performed even after selecting a preset number.

Entering numbers directly from the remote control

Select a band and frequency (step 1, 2 and 3 on the previous page) Press and hold [1] to [6] on the remote control for more than 2 seconds.

Auto Preset Memory

Automatically save strong stations in the preset memory.

Select a band (step ①, ② on the previous page)

Press and hold [BAND] for more than 2 seconds.

Scanning

• The 6 strongest available stations will be automatically saved in the memory under preset numbers 1 to 6.
• Once set, the preset stations are sequentially scanned for 5 seconds each.
• To stop the scanning, press [P-SET ] or [P-SET ] / [ ] or [ ]. (Pressing [1] to [6] on the remote control also can stop the scanning.)

Note: New stations are overwritten on existing saved stations after following this procedure.

Preset Station Calling

Select a band (step ①, ② on the previous page)

Press [P-SET ] or [P-SET ] / [ ] or [ ] to select the preset number for tuning in the preset station.

Entering numbers directly from the remote control

Press [1] to [6] on the remote control.

RDS Basics

Some FM stations are broadcasting added data compatible with RDS. This radio set offers convenient functions using such data.

RDS service availability varies with areas. Please understand if RDS service is not available in your area, the following service is not available, either. This chapter explains the summary and operation regarding RDS.

The following functions are available when receiving RDS stations.

Program Service Name (PS) Display

The name of station is displayed.

Alternative Frequency (AF)

When reception is poor, an RDS station broadcasting the same program is tuned in automatically.

Best Station

Best Station Research is automatically activated to store the station with the best reception for each preset button.

Traffic Program (TP)

Some RDS FM stations periodically provide traffic information.

The program which broadcast the traffic information is called Traffic Program (TP).

Traffic Announcement (TA)

Radio announcements on traffic conditions.

Clock Time (CT) Service

When receiving an RDS station, the CT (Clock Time) service automatically adjusts the time.

"-- : --" is displayed in areas where CT service is not available. (→Page 26 for Clock Adjustment)

Program Type (PTY) Display

RDS FM stations provide a program type identification signal.

Example: news, rock, classical music, etc.

Alternative Frequency (AF)

Alternative Frequency (AF) mode

Press and hold [DIM] on the main unit for more than 2 seconds to switch the AF mode on or off.

Default : AF ON

Auto Preset Memory

When AF ON is selected, only RDS stations will be memorized automatically.

(→ Page 13 for auto preset memory)

* New stations are overwritten on existing saved stations after following this procedure.

AF Level and REG Mode

① Press [MENU] / [SEL] to display the menu.
② Press [P·SET∧] or [P·SET∨] / [∧] or [∨] to select an item.

FM Menu Display

AF Level

Press [BAND] to change the AF level.

Region (REG) Mode

Changes the selection range of AF and PI Seek.

Press [BAND] to switch on or off in turn.

Note: When REG mode is switched from ON to OFF or vice versa, AF mode turns on automatically.

Program Identification (PI) Seek

(Only for remote control)

If Best Station does not work properly and reception is poor when tuning in a preset station, press the same preset number button again. PI Seek will search an AF station with good reception.

PI SEEK

CQ-FX721P

Traffic Announcement (TA)

Traffic Announcement (TA) mode

Press [TA] on the main unit to switch the TA mode on or off.

Searches for and tunes into traffic information broadcasts automatically when set to TA on.
    C["When TA is on"]

When Traffic Information is received

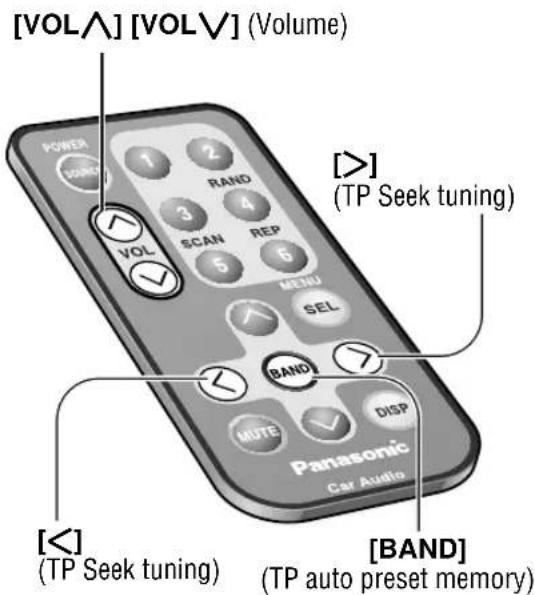

TP Seek Tuning

When TA ON is selected, only traffic program will be searced.

Press and hold [TUNE<] or

[TUNE>] / [<] or [>] for more than 0.5 seconds, then release. Seeking will start.

TP Auto Preset Memory

When TA ON is selected, only traffic program will be memorized automatically.

Press and hold [BAND] for more than 2 seconds.

* New stations are overwritten on existing saved stations after following this procedure.

TA Volume Set

While listening to an FM station (including a traffic information announcement), press and hold [TA] for more than 2 seconds to store the volume level as the TA Volume level.

Muting in TA mode

To listen to only traffic information announcements. While listening to an FM station which is not currently broadcasting traffic information, press VOLV to set the volume to 0. The traffic information announcement will be output at the TA volume level.

TA Standby Mode

When set to TA ON with the unit in another mode (Cassette tape, CD changer, etc.) it will automatically switch to radio mode and output the traffic information.

When the traffic information has finished, the unit will return to the previous mode.

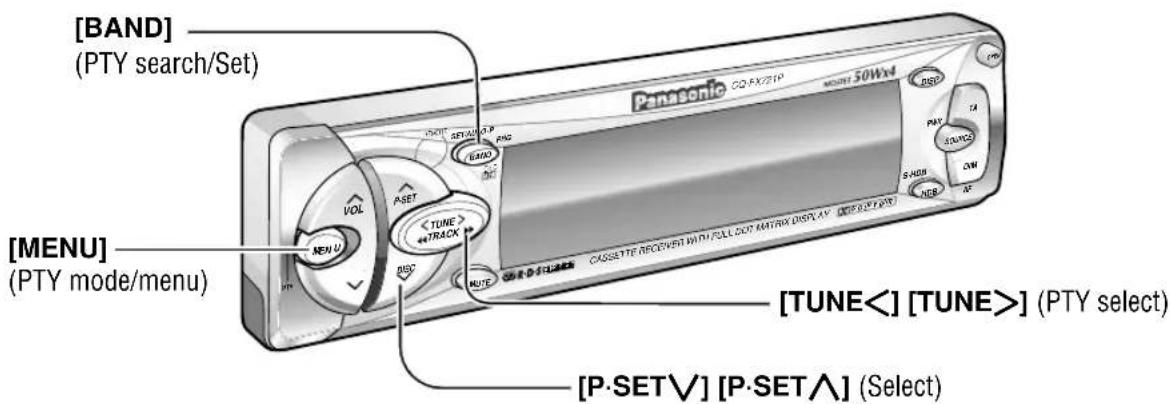

Program Type (PTY) Reception

Program Type (PTY) mode

Press and hold [MENU] / [SEL] for more than 2 seconds to switch the PTY display mode on or off.

PTY Selection

① Press [TUNE>] / [>] to change the program type as shown on the right. ([TUNE<] / [<]: opposite direction)
② Select the desired program and press [BAND]. Seek will start to tune in to a station broadcasting the selected program type.

SPEECH	→	MUSIC	→	NEWS	→	AFFAIRS	→
INFO	→	SPORT	→	EDUCATE	→	DRAMA	→
CULTURE	→	SCIENCE	→	VARIED	→	POP M	→
ROCK M	→	EASY M	→	LIGHT M	→	CLASSICS	→
OTHER M	→	WEATHER	→	FINANCE	→	CHILDREN	→
SOCIAL	→	RELIGION	→	PHONE IN	→	TRAVEL	→
LEISURE	→	JAZZ	→	COUNTRY	→	NATION M	→
OLDIES	→	FOLK M	→	DOCUMENT	→	SPEECH

Note: When there is no corresponding program type, "NONE" is displayed for 2 seconds.

PTY Language Selection

① Press [MENU] / [SEL] to display the DISPLAY LANGUAGE menu and press [BAND].

② Press [P-SET∧] or [P-SET∨] / [∧] or [∨] to select the PTY display language, and press [BAND].

Program Type (PTY) Reception

PTY Preset Call

Program types are stored in memory under preset memory number 1 to 6 as shown in the table on the next page. To select the desired program type, press [P-SET ] or [P-SET ] / [ ] or [V].

PTY Preset Change

① Select the desired program type by using PTY Selection or PTY Preset Call.
② Press and hold [P·SET∧] or [P·SET∨] / [∧] or [∨] for more than 2 seconds to select the preset memory mode.
③ Press [P-SET∧] or [P-SET∨] / [∧] or [∨] to select the desired preset number.
4 Press and hold [P-SET ] or [P-SET ] / [ ] or [ ] for more than 2 seconds to memorize.

* On the remote control, press and hold the preset buttons for more than 2 seconds.

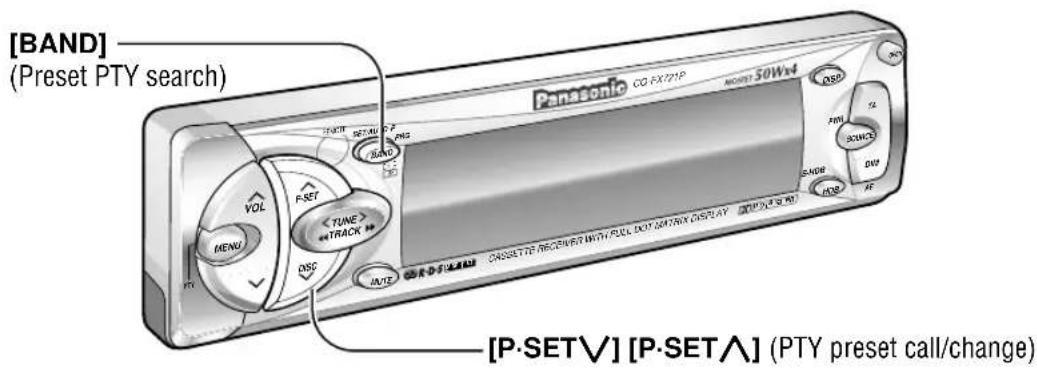

Preset PTY Search

① Select a program type by PTY preset call. ② Press [BAND] to tune in the desired program type station.

PTY SEARCH

Note: When there is no corresponding program type, "NONE" is displayed for 2 seconds.

Program Type (PTY) Reception

PTY Preset (Default)

Preset No. Program Type When PTY search is activated, these program type is receivable.
1 NEWS NEWS
2 SPEECH	AFFAIRS, INFO, EDUCATE,	DRAMA, CULTURE, SCIENCE, VARIED,WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN,TRAVEL, LEISURE, DOCUMENT
3 SPORT	SPORT
4 POP M	POP M
5 CLASSICS	CLASSICS
6 MUSIC	ROCK M, EASY M, LIGHT M,	OTHER M, JAZZ, COUNTRY, NATION M,OLDIES, FOLK M

Other RDS functions

Enhanced Other Network (EON)

When EON data is received, the EON indicator lights and the TA and AF functions are expanded as follows.

TA: Traffic information from the current and other network stations can be received.

AF : The frequency list of preset RDS stations is updated by EON data.

EON enables the radio to make fuller use of RDS information. It constantly updates the AF list of preset stations, including that currently tuned in to. For example, if you preset a station far from home, you will later be able to receive the same station at an alternative frequency, or any other station serving the same program. EON also keeps track of locally available TP stations for quick reception.

Emergency Announcement Reception

When an emergency announcement is broadcast, the unit is automatically switched to receiving that broadcast.

(Even when in Cassette tape mode, CD changer mode, etc.). During receiving the emergency announcement,

"ALARM" blinks on the display.

Cassette Player

To Stop and Eject the cassette
Press [▲].

Direct play setting from remote control when the menu is not displayed
Press [6] (Repeat) on the remote control. Press again to cancel.

Open the Front Panel

Press [OPEN] on the front panel.

Cassette Insert

Playback starts. Close the front panel.

Notes :

• Do not insert a cassette when indicator lights.
• Loading a cassette when the power is off allows the power to be turned on. (When ACC Selection is set to ON → page 28)
• Ejecting the cassette when the unit is in the cassette mode allows the mode returns to the previous one.

Cassette Player Mode Display

When a cassette is in the player

Press [SOURCE] to select the cassette player mode and playback starts.

Playing Side Change

Press [BAND] to reverse.

Fast forward and Rewind

[TRACK▶▶] / [>]: Fast forward

[TRACK◀◀] / [<]: Rewind

Press [BAND] to resume the tape play.

Dolby Noise Reduction

• Press [P·SET∧] / [∧] to set the Dolby B NR mode.
• Press [P·SET∧] / [∧] again to cancel.

Metal Tape Mode

• Press and hold [P·SET ^∧ ] / [ ^∧ ] for more than 2 seconds when playing metal or chromium dioxide (CrO _2 ) tapes.
• Press and hold [P·SET∧] / [∧] again to cancel.

Cautions:

• To avoid damaging the front panel, do not push it down or place objects on it while it is open.
• Do not pinch your finger or hand in the front panel. Do not insert foreign matter into the cassette slot.

Tape Program Search (TPS)

① Press [P·SETV] / [V] to activate the Tape Program Search mode.
② To select a desired program, press [▶▶] or [◀◀] corresponding times to go forward (up to 9) or backward (up to 8).
③Press [P-SETV] / [V] again to cancel.

Blank Skip

• Press and hold [P·SETV] / [V] for more than 2 seconds to skip unrecorded portions longer than 15 seconds on the tape.
• Press and hold [P-SETV] / [V] again to cancel.

Note: The blank skip does not work when an unrecorded portion of a tape is less than 15 seconds.

Notes:

The TPS mode may not work correctly in the following cases. This, however, does not mean that the unit is defective.

• There is an interval less than 3 seconds or having a high level of noise or hum between programs.
• There is particularly low-level passage during the program.

Cassette Tape Mode Setting

① Press [MENU] / [SEL] during cassette playing.
② Press [P· SET] or [P· SETV]/[] or [V] to select an item.
③ Press [BAND] to switch on or off in turn.

Cassette Menu Display

• If no keys have been pressed for more than 15 seconds, the display returns to the previous one after changing to the menu display.
• Press [DISP] to return to the regular mode.

Play Settings


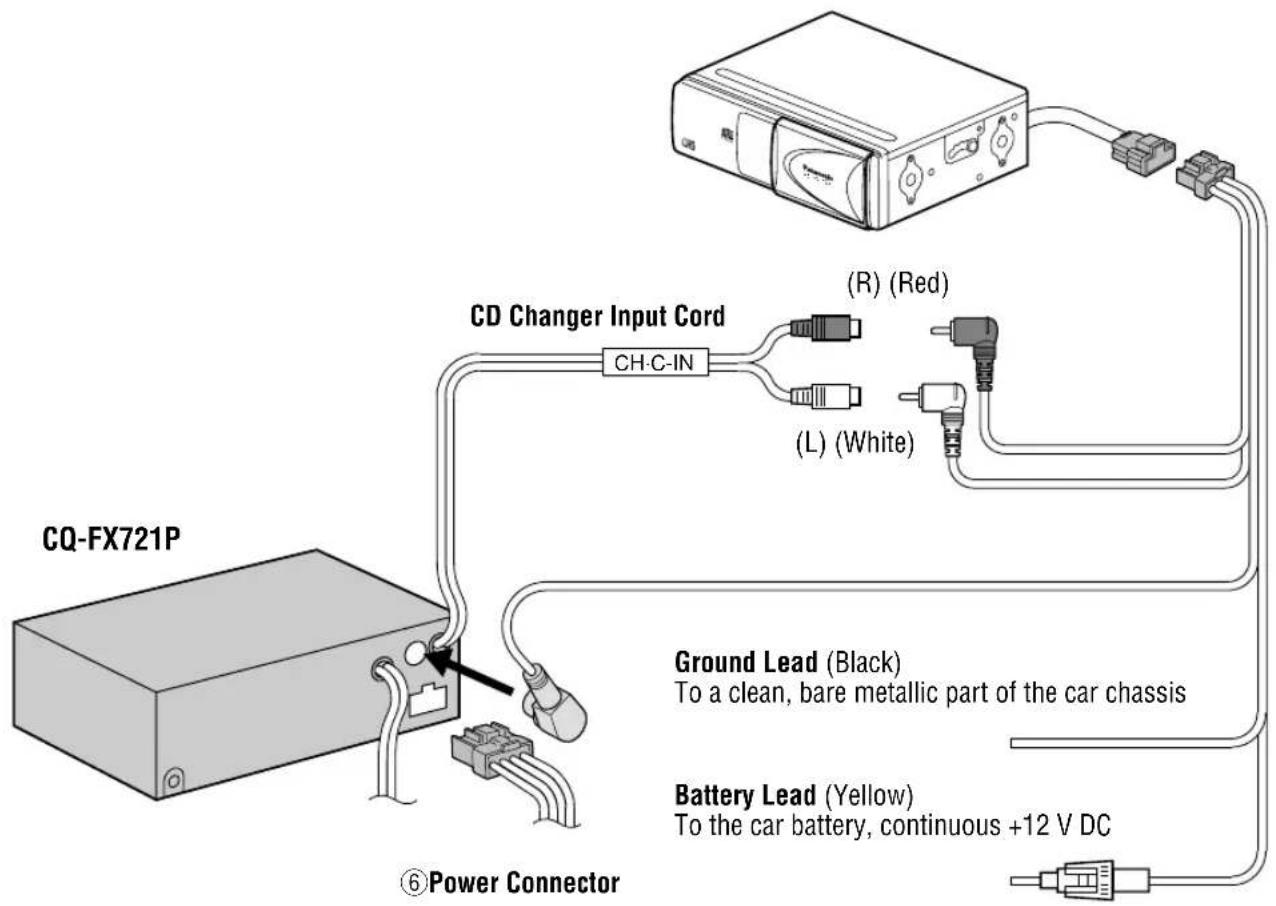

CD Changer Control

CD changer functions are designed for optional Panasonic CD changer unit.

Connect the CD changer, and load a magazine.

When the unit is connected with a CD text reconfigizable CD changer (CX-DP9061EN, for example), CD text appears on the display.

Notes :

• Loading a magazine when the power is off allows the power to be turned on. (When ACC Selection is set to ON → page 28)
• Ejecting the magazine when the unit is in the CD changer mode allows the mode returns to the previous one.

CD Changer Mode Display

CD Changer Mode

Press [SOURCE] to select the CD changer mode and play back starts

Note : Load a magazine with CDs when "NO DISC" is displayed.

Disc Selection

[DISC∧] / [∧] : Next disc. [DISC∨] / [∨] : Previous disc.

Track Selection

[TRACK▶▶] / [>] : Next track. [TRACK◀◀] / [<] : Beginning of the current track. Previous track (Press twice)

Track Search

Press and hold. [TRACK▶▶] / [>] : Fast forward [TRACK◀◀] / [<] : Fast reverse

CD Changer Selection

Preparation: Connect another CD changer by using an optional dual CD changer selector (CA-CD55EN).

Press [BAND] to select CD changer 1 or CD changer 2.

When CD changer 2 is selected.

Note: This selection is not possible when there is no magazine in the CD changer.

CD Changer Mode Setting

① Press [MENU] / [SEL] during CD changer playing.
② Press [P-SET∧] or [P-SET∨] / [∧] or [∨] to select an item.
③ Press [BAND] to switch on or off in turn.

CD Changer Menu Display

Notes:

• If no keys have been pressed for more than 15 seconds, the display returns to the previous one after changing to the menu display.
• Press [DISP] to return to the regular mode.

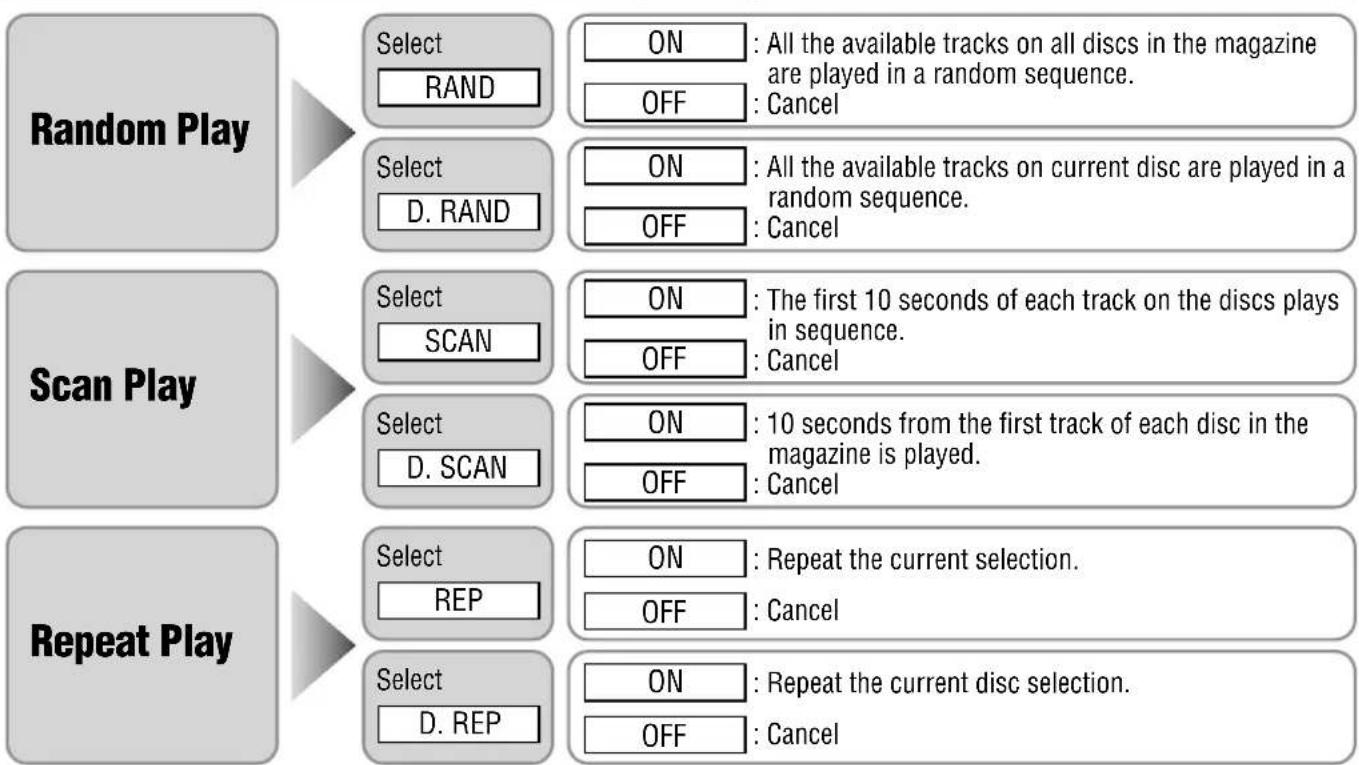

Play Settings

Title Information

When the unit is connected with a CD text recognizable CD changer (CX-DP9061EN, for example), CD text appears on the display.

Direct play setting from remote control when the menu is not displayed

Press [4] (Random) / [5] (Scan) / [6] (Repeat) on the remote control. Press again to cancel. Press and hold [4] (Disc Random) / [5] (Disc Scan) / [6] (Disc Repeat) for more than 2 seconds on the remote control. Press and hold again for more than 2 seconds to cancel.

Audio Setting – AUDIO Menu

Bass and Treble

Turn the bass/treble level up or down

Default : level 0

Setting range: -12 to +12 (in 3 dB step)

Balance and Fader

You can adjust the sound balance among the front, rear, right and left speakers.

Default : L/R(Balance) : Center FRONT/REAR(Fader) : Center Setting range : 15 levels each

Sub-Woofer Volume

Default : 4 Setting range :0 to 8

Sub-Woofer Low Pass Filter

Select the upper limit frequency of the sound from Sub-woofer

Default : 120 Hz Frequency : 80 Hz or 120 Hz

Press [MENU] / [SEL] to select AUDIO.

Press [P-SET∧] or [P-SET∨] / [∧] or [∨] to select

BAS/TRE

Press [BAND] to set.

Press [P·SET∧] or [P·SET∨] / [∧] or [∨] to select.

BAL/FAD

Press [BAND] to set.

Press [P-SET∧] or [P-SET∨] / [∧] or [∨] to select.

SUB WOOFER

Press [BAND] to set.

Notes:

• If no keys have been pressed for more than 15 seconds, the display returns to the previous one after changing to the menu display.
• Press [DISP] to return to the regular mode.

3 Press [∧], [∨], [<] or [>], and press [BAND].

① [TUNE>]/[>]
or [TUNE<] / [<]
: Select "BAS" (Bass) or "TRE"(Treble)
② [P-SET∧] / [∧] : Enhanced
[P-SETV] / [V] : Decrease
③ Press [BAND] to set.

L/R (Balance)

[TUNE>] / [>]: Right enhanced

[TUNE<] / [<]: Left enhanced

FRONT/REAR (Fader)

[P-SET∧] / [∧] : Front enhanced

[P-SETV] / [V] : Rear enhanced

Press [BAND] to set.

① [P·SET∧] / [∧]
or [P-SETV] / [V]: Select "LEVEL"
② [TUNE>] / [>]: Enhanced
[TUNE<] / [<]: Decrease
③ Press [BAND] to set.

① [P-SET∧] / [∧]
or [P-SETV] / [V]: Select "LPF"
② [TUNE<] / [<]: No more than 80 Hz
[TUNE>] / [>]: No more than 120 Hz
③ Press [BAND] to set.

Display Setting – PICTURE Menu

PICTURE Menu Display

Spectrum Analyzer Display Pattern

Default : Pattern A Variety : 6 types

Contrast

Allows you to adjust the display contrasts for better viewing.

Default : Level 3 Setting range : Level 1 to Level 5

Clock Display

Default : ON (Not adjusted. “--:--” will appear.)

Clock Adjustment

When receiving an RDS station, the clock time (CT) service automatically adjusts the time. (→page 14) If CT service is not available, adjust the clock.

Default : Not adjusted. "0:00"

Press [MENU] / [SEL] to select PICTURE.

Current Source

AUDIO


FUNCTION

Press [P·SET∧] or [P·SET∨] / [∧] or [∨] to select.

S-A PATTERN

Press [BAND] to set.

Press [P·SET∧] or [P·SET∨] / [∧] or [∨] to select.

CONTRAST

Press [BAND] to set.

Press [P-SET∧] or [P-SET∨] / [∧] or [∨] to select.

CLOCK

Press [P·SET∧] or [P·SET∨] / [∧] or [∨] to select.

CLOCK ADJ

Press [BAND] to set.

3 Press [∧], [∨], [<] or [>], and press [BAND].

Notes:

• If no keys have been pressed for more than 15 seconds, the display returns to the previous one after changing to the menu display.
• Press [DISP] to return to the regular mode.

[TUNE>] or [TUNE<] / [>] or [<] to change.

A : Display showing a cube that continues to change
B : Display showing a globe that continues to change
C : Display showing a flower or doll pattern

Press [BAND] to set.

D : Display showing a bird flapping its wings
E : Display showing the image of a circuit
STD : Standard spectrum analyzer display (9 band)

Note: Switch the screen display to have the Spectrum Analyzer Display. (→ page 11)

[TUNE>] / [>]: Level up

[TUNE<] / [<]: Level down

Press [BAND] to set.

Press [BAND] to switch on or off in turn.

ON : Clock display ON
OFF : Clock display OFF

Hour / Minute Switch

[TUNE<] / [<]: The hour display

[TUNE>] / [>]: The minute display

Hour / Minute Adjustment

[P-SET∧] / [∧] : Put forward hour/minute.

[P-SETV] / [V]: Put back hour/minute.

Press [BAND] to set.

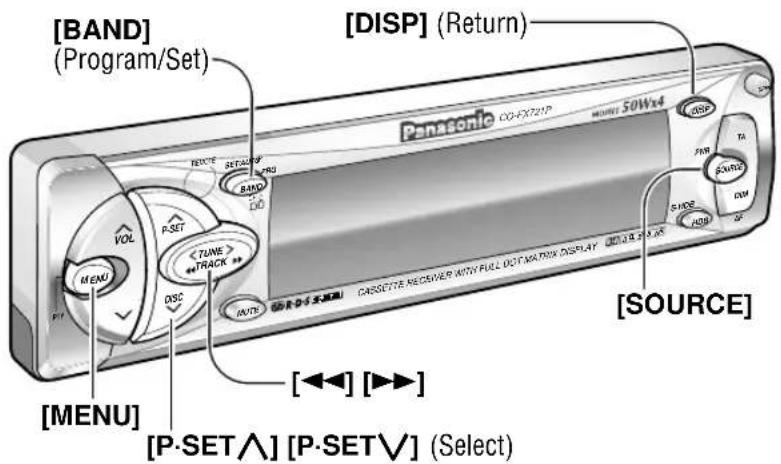

Function Setting – FUNCTION Menu

FUNCTION Menu Display

1 Press [MENU] / [SEL].

2 Press [ʌ] or [V].

Mute/ATT (Attenuation)

Decreasing range by pressing [MUTE] button can be selected.

Default : Mute

External Mute

Allows you to mute the current source while your navigation system provides voice guidance or car telephone conversation is in progress.

Default : Lv 0

Excluding AUX-IN from Source Selection

Default : ON

Security Function

The security indicator blinks while the removable face plate is removed from this unit.

Default : ON

ACC Selection

If your car has ACC, turn it ON. Otherwise, turn it off.

Default : OFF

Notes:

• If no keys have been pressed for more than 15 seconds, the display returns to the previous one after changing to the menu display.
• Press [DISP] to return to the regular mode.

3 Press [BAND].

Press [BAND] to switch between mute or attenuation in turn.

MUTE : No sound ATT : Decrease to 1/10

Press [BAND] to change the volume level of the sound source as shown.

Lv 0 : No sound Lv 1 : Decrease to 1/30 Lv 2 : Decrease to 1/10 OFF : Unchanged

Note: The setting state of the External Mute is displayed when the voice guidance or car telephone is used (except when the setting state is OFF).

Press [BAND] to activate the function or inactivate it in turn.

ON : External input (AUX-IN) is selectable as a source. OFF : External input (AUX-IN) is not selectable as a source.

With AUX-IN set to OFF, AUX-IN will not be selected when [SOURCE] is pressed.(→ page 10)

Press [BAND] to activate the function or inactivate it in turn.

ON : Security function is active. OFF : Security function is inactive.

Security Function

When the power is turned off (at ACC OFF setting)

When the key in the ignition is turned OFF (at ACC ON setting)

● Security message will be displayed.
● The panel removal alarm will be active.

When the front panel is removed.

- The security indicator blinks. (→ page 33)

Press [BAND] to switch the ACC on or off in turn.

ON : ACC provided OFF : ACC not provided

ACC ON

• The power turns on automatically by inserting a cassette tape to this player or a CD magazine to a CD changer.
  ● The clock is displayed even while the power is off.
• The demonstration is displayed when the power is turned on by pressing and holding [SOURCE] for 4 seconds.

Preparation

• Before installation, check the radio operation with antenna and speakers.
• Disconnect the cable from the negative (−) battery terminal (see caution below).
• Unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30°.

Caution: Do not disconnect the battery terminals of a car with trip or navigational computer since all user settings stored in memory will be lost. Instead take extra care with installing the unit to prevent shorts.

Dashboard Installation

Installation Opening

The unit can be installed in any dashboard having an

opening as shown at right. The dashboard should be 4.5 mm - 6 mm thick in order to be able to support the unit.

Installation Precautions

This product should be installed by a professional installer, if possible.

In case of difficulty, please consult your nearest authorized Panasonic Service Center.

1. This system is to be used only in a 12-volt, DC battery system (car) with negative ground.
2. Follow the electrical connections carefully (→Page 34). Failure to do so may result in damage to the unit.
3. Connect the power lead (red) after all other connections are made.
4. Be sure to connect the battery lead (yellow) to the positive terminal (+) of the battery or fuse block (BAT) terminal.
5. Insulate all exposed wires to prevent short circuiting.
6. Secure all loose wires after installing the unit.
7. Please carefully read the operating and installation instructions of the respective equipment before connecting it to this unit.

Supplied Hardware

No.	Item	Diagram	Q'ty
1	Mounting Collar		1
2	Mounting Bolt (5 mmø)		1
3	Tapping Screw 1
4	Rear Support Strap 1
5	Hex. Nut 1
6	Power Connector		1
7	Removable Face Plate Case		1
8	Trim Plate		1
9	Remote Control Unit		1
10	Lithium Battery (CR2025)		1

(a) Using the Rear Support Strap (Option)

(b) Using the Rubber Cushion (Option)

• We strongly recommend that you wear gloves for installation work to protect yourself from injuries.
• When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure your hands and fingers.

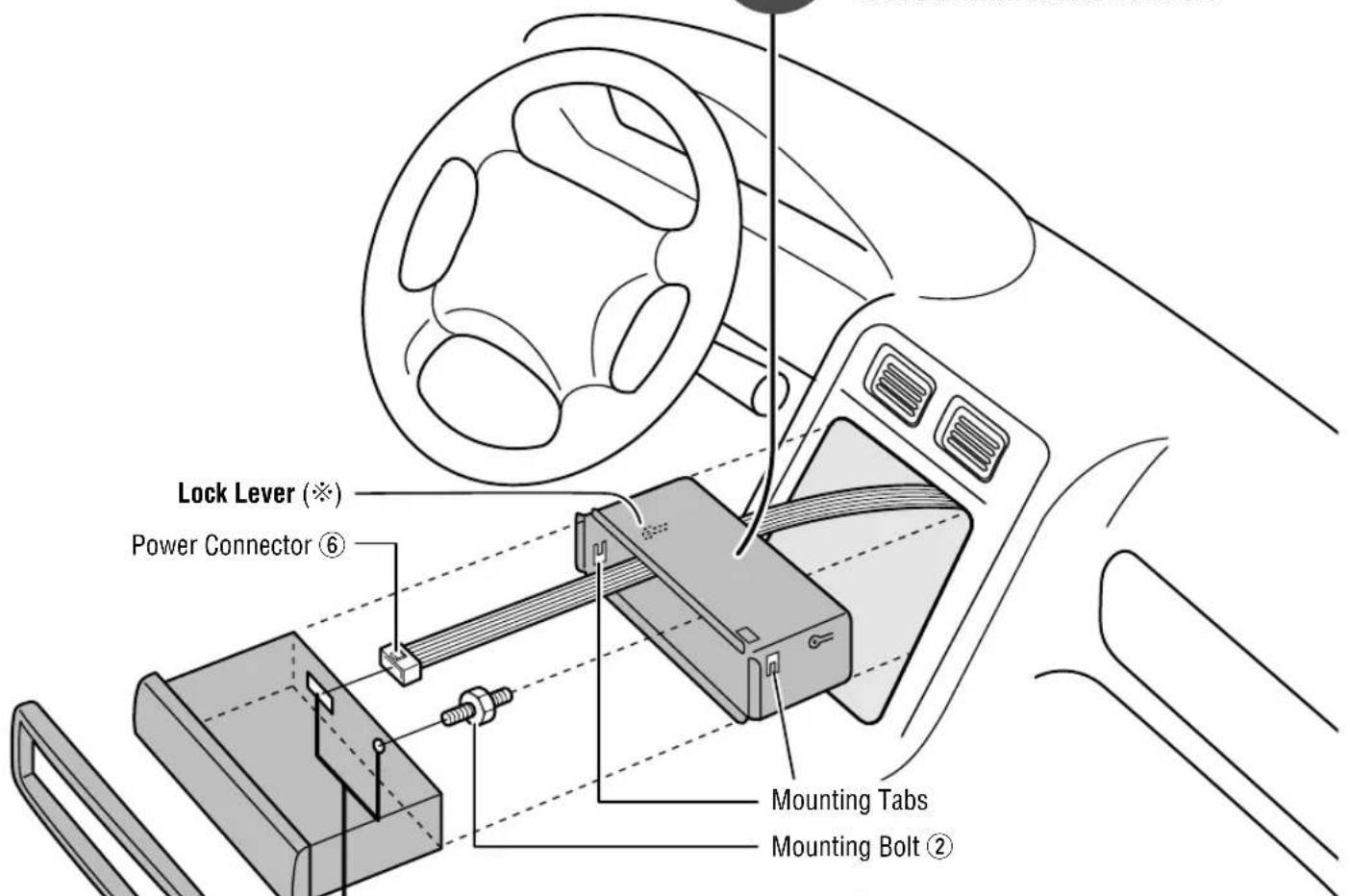

First complete the electrical connections, and then check them for correctness.(→Page 34)

1

Insert Mounting Collar ① into the dashboard, and bend the mounting tabs out with a screwdriver.

2

Secure the rear of the unit.

After fixing Mounting Bolt ② and Power Connector ⑥, fix the rear of the unit to the car body by either method (a) or (b) shown on the previous page.

3

Insert Trim Plate ⑧.

4

After installation reconnect the negative (−) battery terminal.

Make sure that the lock lever (※) is flush with the mounting collar (not projecting outward).

Illustration of a hand using a tool to press down a battery component with a magnified view (no text or symbols)

To Remove the Unit

Switch off the power of the unit.

1 Remove the removable face plate.

① Press [OPEN]. The removable face plate will be opened.
② Push the face plate to either the right or left.
③ Pull it out toward you.

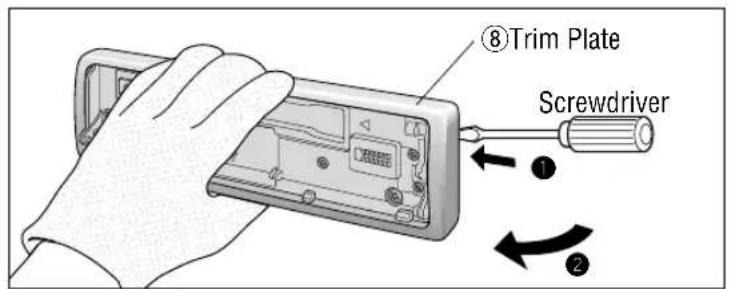

2 Remove the Trim Plate ⑧ with a screwdriver.

3 Pull out the unit while pushing down the lock lever with a screwdriver.

4 Remove the unit pulling with both hands.

Anti-Theft System

This unit is equipped with a removable face plate. Removing this face plate makes the radio totally inoperable. The security indicator will blink.

Place Removable Face Plate into Case

① Switch off the power of the unit.
② Remove the removable face plate. (→Page 32)
③ Gently press the bottom of the case and open the cover. Place the face plate into the case and take it with you when you leave the car.

Install Removable Face Plate

① Fit the face plate with its right or left hole on one of the pins provided on the main unit.
② Fit the other hold on the other pin applying slight pressure.
③ Move the face plate up and down a few times to make sure it is secure. Then close the front panel and press down the right side of the face plate until it clicks into plate.

Security Indicator

The security indicator blinks when the removable face plate is removed from the unit.

Activate the security function in the FUNCTION menu display. (→page 28)

Panel Removal Alarm

This alarm sounds to warn you not to forget to remove the panel before leaving your car. This function is activated when the security indicator is on.

Cautions:

• This face plate is not waterproof. Do not expose it to water or excessive moisture.
• Do not remove the face plate while driving your car.
• Do not place the face plate on the dashboard or nearby areas where the temperature rises to high levels.
• Do not touch the contacts on the face plate or on the main unit, since this may result in poor electrical contacts.
• If dirt or other foreign substances get on the contacts, wipe them off with clean and dry cloth.
• To avoid damaging the front panel, do not push it down or place objects on it while it is open.

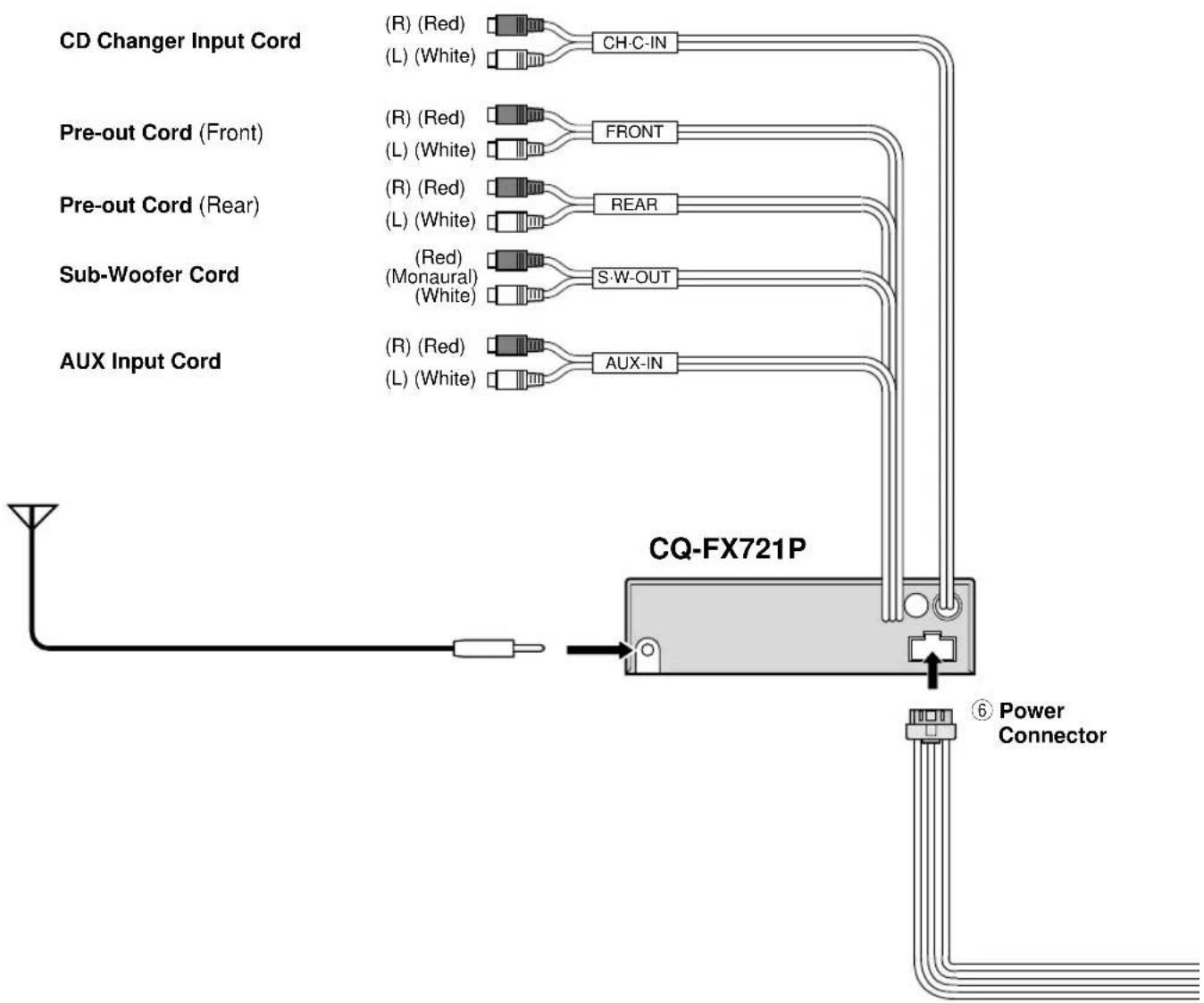

Electrical Connections

Cautions:

● This unit is designed for use in a car having a 12-volt negative ground battery system.
- To prevent damage to the unit, be sure to follow the connection diagram below.
- Strip about 5 mm of the lead ends for connection (only non-ISO connector cords).
- Do not insert the power connector into the unit until the wiring is completed.
- Be sure to insulate any exposed wires to prevent short circuiting with the car chassis. Bundle all cables, and prevent cable terminals from touching any metal parts.

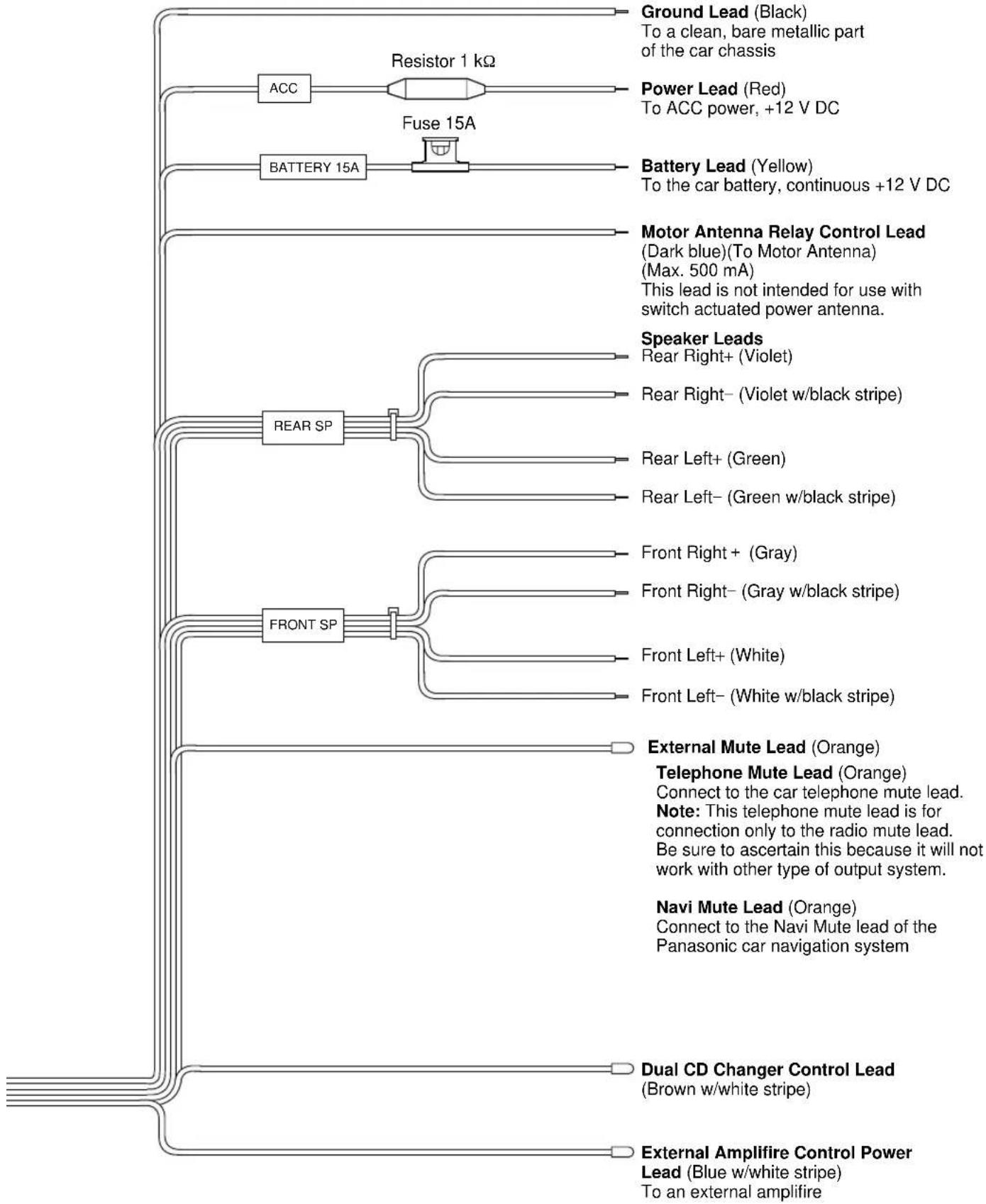

Cable Wiring Diagram

Electrical Connections (continued)

• This unit can be connected to an optional CD changer (CX-DP9061/DP9060EN, CX-DP88N, CX-DP801/DP803EN or CX-DP601EN) and optional extension cord.
• For details consult your nearest authorized Panasonic Dealer.
• For connection to a CD changer, refer to the operating instructions of the CD changer (CX-DP9061/DP9060EN, CX-DP88N, CX-DP801/DP803EN or CX-DP601EN).

Example : Connection with CD changer CX-DP9061EN (Option)

System Upgrade Example 1: Nine Speakers and CD changer

Combination: CX-DP9061EN, CY-M9054EN, CY-M7052EN

Electrical Connections (continued)

System Upgrade Example 2: Connection with two CD Changers

Combination: CD Changer (CX-DP9061EN)

Note: The dual changer control unit (CA-CD55EN) is necessary.

Caution: Please follow the instructions given below. Failure to do so will cause damage to the unit and speakers.

• Use ungrounded speaker only.
• The maximum speaker output should be 50 W or more. (If used with the optional power amplifier, the speaker output should be higher than the maximum amplifier output.)
  ● The speaker impedance should be 4 - 8 Ω.
• This unit uses the BTCL circuit, so each speaker should be connected separately using parallel vinyl insulated cords.
• The speaker cords and the power amplifier unit should be kept away (about 30 cm apart) from the antenna and antenna extension cord.

- Never connect the speaker cord to the body of the car.

- Do not use a 3-wire type speaker system having a common earth lead.

- Do not connect more than one speaker to one set of speaker leads.

Fuse

Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or connecting the unit directly without a fuse, could cause fire or damage to the unit.

If the replacement fuse fails, contact your nearest authorized Panasonic Service Center.

Maintenance

Your product is designed and manufactured to ensure the minimum of maintenance. Use a soft cloth for routine exterior cleaning. Never use benzine, thinner, or other solvents.

Notes on Cassette Tape

Tape Slack:

Use a pencil or similar object to take up the slack as shown. If a loose tape is used, this may result in the tape becoming tangled in the rotating parts of the unit.

Note: To maintain your cassette player in top condition, avoid using tapes that are longer than 90 minutes (C-90).

Preliminary Steps

Check and take steps as described in the tables below.

If You Suspect Something Wrong

Immediately switch power off.

Disconnect the power cable and check that there is neither smoke nor heat from the unit before asking for repairs. Never try to repair the unit yourself because it is dangerous to do so.

Cautions:

• Do not use the unit if it malfunctions or something is wrong.
• Do not use the unit in an irregular condition, for example, without sound, or with smoke or foul smell, which can cause ignition or electric shock. Immediately stop using the unit and call the store where you purchased it.

Common

Problem Possible cause / Possible solution

No power

Car's engine switch is not on.

→Turn your car's ignition switch to ACC or ON.

Cables are not correctly connected.

→Connect cables correctly.

Battery cable is not correctly connected.

→Connect the battery cable to the terminal that is always live.

Accessory cable is not correctly connected.

→Connect the accessory cable to your car's ACC source.

Grounding wire is not correctly connected.

→Connect the grounding wire to a metal part of your car.

Fuse is burnt.

→Call the store where you purchased the unit, or your nearest Panasonic Service Center and ask for fuse replacement.

No sound

Mute is set to ON.

→Set it to OFF.

Cables are not correctly connected.

→Connect cables correctly.

Condensation (dew)

→Wait for a while before use.

Only sound, no display

The display is set to the No Display mode.

→Press [DISP] to change the display.

Noise

A mobile phone is used near the unit.

→Keep the mobile phone away from the unit.

Buttons unusable (each source operation)

Menu mode is displayed.

→Press [DISP] to return to the regular mode.

Troubleshooting (continued)

Radio

Problem Possible cause / Possible solution

Much noise in FM stereo and monaural broadcasts

Station is too far, or signals are too weak. →Select other stations of higher signal level.

The radio antenna is not extended enough. → Extend the radio antenna enough.

Preset station is reset

Battery cable is not correctly connected. →Connect the battery cable to the terminal that is always live.

■ Cassette Tape Player

Problem Possible cause / Possible solution

Tape sound quality is poor.

Heads are dirty. → Clean heads. (Ask a service representative for advice.)

Poor quality tape. →Use better quartity tape.

High tones are improperly emphasized.

Dolby B NR tape plays with Dolby B NR off. →Set Dolby B NR to ON.

Metal type tape plays with normal mode. →Change Nomal mode to Metal mode.

Reproduction of high tones is poor.

Non-Dolby B NR tape plays with Dolby B NR on → Set Dolby B NR to OFF.

Normal type tape plays with Metal mode → Change Metal mode to Normal mode.

Heads are magnetized. →Demagnetize heads.(Ask a service representative for advice.)

No sound

Blank tape is inserted into the unit. →Insert recorded tape into the unit.

Wow and flutter is very high.

Tape running mechanism is dirty or out of order. → Clean tape running mechanism, or repair it. (Ask a service representative for advice.)

Sound Setting

Problem Possible cause / Possible solution

No sound from left, right, front, or rear speaker

Left and right balance, or front and rear balance is off on one side.

→Adjust BAL/FAD as appropriate.

Cables are not correctly connected.

→Connect the cables correctly.

Left and right sounds are reversed in stereo listening.

The right speaker lead is connected to the left speaker and the left speaker lead to the right speaker.

→Connect the speaker leads to the correct one.

■ Remote Control

Problem Possible cause / Possible solution

Buttons are invalid for operation.

Battery polarities (+) (−) are reversed.

→Insert the batteries correctly.

Wrong battery

→Check the battery.

Battery have run down.

→Replace the battery.

Remote control is in the wrong direction.

→Direct the remote controller at REMOTE (sensor) on the panel.

Product Service

If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Service Center. The product should be serviced only by a qualified technician.

Troubleshooting (continued)

Error Display Messages

■ Cassette Tape Player

Display Possible cause / Possible solution

Changer

Display Possible cause / Possible solution

Note:

Displays and the steps to be taken for errors vary in part from changer to changer. For details, refer to the Operating Instructions for the changer used.

General	FM Stereo Radio
Power Supply : DC 12 V (11 V - 16 V), TestVoltage 14.4 V, Negative GroundTone Controls : Bass; ±12 dB at 100 HzTreble; ±12 dB at 10 kHzCurrent Consumption : Less than 2.5 A (tape mode, 0.5 W 4-Speaker)Maximum Power Output : 50 W x 4 (at 4 Ω)Power Output : 22 W x 4 (DIN45 324, at 4 Ω)Speaker Impedance : 4 - 8 ΩPre-Amp Output Voltage : 5 V (CD changer mode)Pre-Amp Output Impedance : 200 ΩSub-Woofer Output Voltage : 5 VDimensions : 178(W) x 50(H) x 150(D) mmWeight : 1.6 kg	Frequency Range : 87.5 - 108 MHzUsable Sensitivity : 6 dB/μV (S/N 30 dB)Stereo Separation : 35 dB (at 1 kHz)
	MW Radio
	Frequency Range : 531 - 1,602 kHzUsable Sensitivity : 28 dB/μV (S/N 20 dB)
	LW Radio
	Frequency Range : 153 - 279 kHzUsable Sensitivity : 32 dB/μV (S/N 20 dB)
	Cassette Player
	Reproduction System : 4-track, 2-program stereoTape Speed : 4.76 cm/sec.FF/REW Time : Less than 110 sec. (C-60)Frequency Response : 30 - 17,000 Hz (normal)30 - 18,000 Hz (metal)Wow and Flutter : 0.12 % (WRMS)Signal to Noise Ratio : 52 dB (Dolby off)62 dB (Dolby B NR on)

Note: Specifications and design are subject to modification without notice due to improvements.

Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "DOLBY" and the double-D symbol □□ are trademarks of Dolby Laboratories Licensing Corporation.
