USER MANUAL CQ-HX1083W PANASONIC

Front Panel Setting [FACE]

3 SET ① [MENU] Passcode RTN FACE SET ②

Lights during menu play setting.

Lights during FACE mode.

Menu

s [MENU].

or

[<] or [>] to select

"FACE

[SET].

Select Select FACE

Submenu

or

[<] or [>].

[SET]

COLOR

RTN EXIT RIN 7COLOR EXIT OR

Set

[Unreadable]

[∨] or [∧].

[RET] (RETURN) [MENU] [&] (^) (se) [<<] (>) (submonu) [SET] [DISP] (display) Panasonic 1-7456

Note:

• Press EXIT /[MENU]/[DISP] (display) to return
  to the regular mode
• Press RTN/[RET] (RETURN) to return to the previous display.

Direct Operation

In the case of remote control, as an alternative to performing operations from the menu, the operations can be performed directly using the buttons shown below.

[FACE] Panasonic L31-4000

CQ-HX1083/1003W

CQ-HX1083/1003W

Audio Settings [AUDIO]

③ SET ① [MENU] RTN AUDIO SET1 ②

MENU

Lights during menu play setting.

AUDIO

Lights during AUDIO mode.

-

Menu

① Press [MENU].

② Press or

[<] or [>] to select

"AUDIO".

③ Press SET/[SET].

Submenu

① Press or /

[<] or [>].

② Press | SET|[SET].

S·HDB (Super High Definition Bass)

With music genres like rock music, the

bass-sound will be more powerful.

Default: S·HDB OFF

Setting range: S·HDB OFF. BOOM, TIGHT

Bass and Treble

You can adjust the bass and treble sound.

Default: BAS (bass) 0 dB

TRE (treble) 0 dB

Setting range: -12 dB to +12 dB (by 2 dB)

Balance and Fader

You can adjust the sound balance among

the front, rear, right and left speakers.

Default: BAL (balance) CNT (center)

FAD (tader) CNT (center)

Setting range: 15 levels each

Subwoofer Level

You can change the subwoofer volume level.

Default: 0 dB

Setting range: -∞(subwoofer mute),

-6 dB to +6 dB (by 2 dB)

Subwoofer Low Pass Filter

Select the upper limit frequency of the

sound from subwoofer.

Default: 120 Hz

Setting range: 120 Hz/80 Hz

-

-

[Non-Text]

[Non-Text]

[Non-Text]

▶

▶

F

广力云智慧零售收银系统

[Non-Text]

▶

-

。

[Non-Text]

[Non-Text]

-

-

广力云

[Non-Text]

▶

▶

F

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

11

5

m = 311

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

-

-

[Non-Text]

[Non-Text]

[Non-Text]

(五)

-

-

m = 311

[Non-Text]

[Non-Text]

A

-

。

[Non-Text]

[Non-Text]

A

V

[Non-Text]

[Non-Text]

▶

7

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

11

01

-

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

m = 311

V

[Non-Text]

[Non-Text]

[Non-Text]

▶

7

-

[Non-Text]

[Non-Text]

-

-

。

[Non-Text]

[Non-Text]

A

-

F

[Non-Text]

[Non-Text]

A

-

。

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

•

11

-

Picture (Display) Settings [PICTURE]

MENU

Lights during menu play setting.


Lights during PICTURE mode.

1

Menu

① Press [MENU].

② Press ← or → /

[<] or [>] to select

"PICTURE"

③ Press SET/[SET].

2 Submenu

① Press ← or /

[<] or [> ]

② Press | SET | [SET].

Dimmer (display brightness setting range)

The brightness of just the display area of the front panel changes.

Default: DIMMER 3

Setting range: DIMMER 1 to 3

Spectrum Analyzer (S·A) Display Pattern

Default: KEY

Variety: KEY, PATTERN 1 to 5

Contrast

Allows you to adjust the display contrasts for better viewing.

Default: CONT 3

Setting range: CONT 1 to 5

Select

CQ-HX1083/1003W

Set

Press

[Unreadable]

or

A

V]0

[^]

[RET] (RETURN)

[MENU] [<1>] (menu/submenu) [∨][^] [set] [SET] [DISP] (display) Panasonic Go 5.0k

DIMMER 3

Bright

DIMMER 2

Medium

DIMMER 1

Dark

Note:

- Press EXIT /[MENU]/[DISP] (display) to return to the regular mode.

- Press RTN/[RET] (RETURN) to return to the previous display.

- Press Spectrum Analyzer display on S-A setting to return to the previous display.

KEY

S.A off (regular display)

PATTERN1

S.A1

PATTERN2

S.A2

PATTERN3

S·A 3

PATTERN4

S.A4

PATTERN5

S.A5

CONT 5

Level up

CONT 4

↑

CONT 5

1

CONT. 1

↓

(1) 2017年1月1日

LORI GATH

Direct Operation

In the case of remote control, as an alternative to performing operations from the menu, the operations can be performed directly using the buttons shown below.

[S-A] (spectrum analyzer) [DIM] (DIMMER) Panasonic 12.4.26.00

CQ-HX1083/1003W

Function Settings [FUNCTION]

③ SET ① [MENU] RINFUNCTION SET

MENU

Lights during menu play setting.

FUNC.

Lights during FUNCTION mode.

1 Menu

① Press [MENU].

② Press « or » /

[<] or [>] to select

"FUNCTION"

③ Press SET/[SET]

2 Submenu

① Press < or > /

[<] or [>].

② Press SET/[SET].

Mute/Attenuation

You can select MUTE or ATTENUATION

when [MUTE]/sMTESed.

Default: KEY: MUTE

Setting range: KEY: MUTE, KEY: ATT

Button Operation Sound

Enable or disable the beep or button operation.

Default: BEEP ON

Security Function

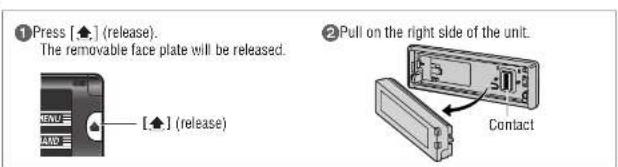

The security indicator (LED) blinks when the

removable face plate is removed from the unit.

Default: SLED ON

Display Setting

You can select display pattern on the unit off.

Default: BLACK

Setting range: DEMO, CLOCK, BLACK

The image is too blurry to recognize any text content.

4

7

-

▶

-

▶

▶

-

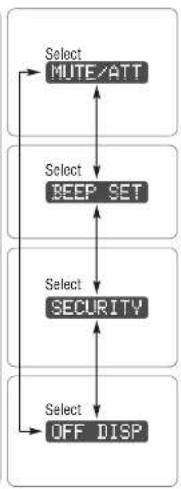

Select

3 Set

Press ▼ or ▲ /[∨] or [∧].

[RET] (RETURN)

[DISP] (display)

[MENU] [<] [>] (menu/submenu) [∨][^] (set) [SET] Panasonic Set To Use

KEY: MUTE No sound.

KEY:ATT

Decrease the volume by 10 steps. (attenuation)

BEEP ON

Operation sound (beep) is on.

BEEP OFF

Operation sound (beep) is off.

SLED ON

Security function is active.

SLED OFF

Security function is non-active.

BLACK

Black display

DEMO

Demonstration display

CLOCK

Clock display is on.

Note:

- Press EXIT /[MENU]/[DISP] (display) to return

to the regular mode

- Press RTN/[RET] (RETURN) to return to the pre-

vious display.

Security function

When the key in the ignition is turned OFF.

● Security message will be displayed.

PANEL!

●The panel removable alarm will be active.

When the removable face plate is removed.

●The security indicator blinks. (page 61)

CQ-HX1083/1003W

CQ-HX1083/1003W

Troubleshooting

Preliminary Steps

Check and take steps as described in the tables below.

If You Suspect Something Wrong

Immediately switch power off.

Disconnect the power connector and check that there is neither smoke nor heat from the unit before asking for repairs. Never try to repair the unit by yourself because it is dangerous to do so.

Troubleshooting Tips

Common

Trouble

No power.

No sound.

Noise.

The display shows demonstration message.

The power goes off suddenly without apparent reason.

Cause/Step

Car's engine switch is not on.

→Turn your car's ignition switch to ACC or ON.

Cables are not correctly connected.

→Connect cables correctly.

→Connect the battery cable to the terminal that is always active.

→Connect the accessory cable to your car's ACC source.

→Connect the grounding wire to a metal part of the car.

Fuse is burnt.

→Call the store where you purchased the unit, or your nearest Service station and ask for fuse replacement.

Mute is set to ON.

→Set it to OFF.

Cables are not correctly connected.

→Connect cables correctly.

Condensation (dew).

→Wait for a while before use.

A mobile phone is used near the unit.

→Keep the mobile phone away from the unit.

The unit's grounding wire is not connected securely.

→Check the metal areas of the car body (chassis), and connect the grounding wire more securely.

Demonstration mode is ON.

→Press [DISP] (display) to cancel demonstration mode.

The safety devices has been triggered by some apparent reason.

→Call the store where you purchased the unit, or your nearest Service station.

CQ-HX1083/1003W

The model CQ-HX1003W does not support MP3/WMA playback.

□Radio

Trouble Cause/Step

Too much noise in FM stereo and monaural (AM) broadcasts.

Preset station is reset.

Station is too far, or signals are too weak.

→Select other stations of higher signal level.

The antenna control lead is not connected correctly.

→If there is a motor antenna in the car, connect the antenna control lead to the motor antenna lead that is installed in the car correctly.

The ground connection of the radio antenna is not secure enough.

→Check the ground connection of the mounted base part of the antenna, and tighten up the screw.

The radio antenna is not extended enough.

→Fully extend the radio antenna.

Battery cable is not correctly connected.

→Connect the battery cable to the terminal that is always active.

□CD/MP3/WMA C CQ-HX1083W

Trouble Cause/Step

Disc is in the CD compartment but no sound is made, or disc is ejected automatically.

Disc is upside down.

→Place disc in the correct direction with the label side up.

- Disc is dirty.

- Disc has scratches.

→Clean disc, referring to the section on "Notes on CD/CD Media (CD-ROM, CD-R, CD-RW)".

A disc that has data other than CD-DA or MP3/WMA type is played.

→Discs that have CD-DA or MP3/WMA type data should be used.

The unit may not successfully play back a CD-R/RW that is made in combination of writing software, a CD recorder (CD-R/RW drive) and a disc which are incompatible one another. Refer to instructions for the concerned devices for details.

- Disc is dirty.

- Disc has scratches.

→Clean disc, referring to the section on "Notes on CD/CD Media (CD-ROM, CD-R, CD-RW)".

The unit may not successfully play back a CD-R/RW that is made in combination of writing software, a CD recorder (CD-R/RW drive) and a disc which are incompatible one another. Refer to instructions for the concerned devices for details.

CQ-HX1083/1003W

Troubleshooting (Continued)

□CD/MP3/WMA (Continued)
Trouble Cause/Step

Sound skips due to vibration.	Mounting angle is over 30°.→Adjust mounting angle to less than 30°.
	Instable mounting.→Mount the unit securely with the mounting parts, referring to the section on installation.
Disc is not ejected.	Disc is defective.Mechanical trouble.Press [OPEN] to open the panel and press [▲] (eject). If normal operation is not restored, call the store where you purchased the unit or the nearest Service station to ask for repairs.
CD text is not displayed normally.	Disc is dirty.Disc has scratches.Clean disc, referring to the section on “Notes on CD/CD Media (CD-ROM, CD-R, CD-RW)”.
Time is counted but no sound comes out.	The first track of a mix mode disc was reproduced. (Mix mode is a format in which data except music is recorded on the first track and music data is recorded on other than the first track in a session.)→Play back music data recorded on other than the first track.
No playback.	The disc does not conform to any of the file systems supported by this player.-Insert a disc that conforms to the file systems (ISO 9660 Level 1, Level 2, Jollet, Romeo or Apple Extension to ISO 9660).
	The MP3 file is missing the “.mp3” file name extension.-Make sure to add the “.mp3” extension to each MP3 file name.
	The WMA file is missing the “.wma” file name extension.-Make sure to add the “.wma” extension to each WMA file name.
It takes too long for playback to start.	The folders and files recorded on the disc are layered too much.-As checking of files takes longer in this case, do not record any unnecessary folders or files other than MP3/WMA on the disc.

□CD/MP3/WMA (Continued)
Trouble Cause/Step

Poor recording quality, sound skipping.	The recording quality differs depending on the encoding software used, and on settings such as the bit rate. Set the bit rate within the range specified in the specifications chart (page 65). The suggested bit rate for MP3 is "128 kbps or more", "fixed." For WMA, the suggested rate is "64 kbps or more", "fixed".
	High-speed writing was executed when MP3/WMA data was recorded on the disc.→Decrease writing speed as low as possible.
Files are not played in the desired order.	Files or folders are not recorded in the desired playback order.→Some writing software lets you specify the recording order by adding a prefix in the range of "01" "99", etc. to the file name. For details, refer to the user manual of your writing software.
Folder/file name is not displayed correctly.	The disc does not conform to the file systems supported by this player.→Insert a disc that conforms to the file systems (ISO 9660 Level 1, Level 2, Joliet, Romeo or Apple Extension to ISO 9660).
	There may be a problem with your writing software or CD recorder (CD-R/RW drive). For details, refer to the user manual of your writing software.
File playing time is not displayed correctly.	You ran the file in fast forward or fast reverse during playback or turned off the ignition switch of the car during playback.→Playing another file will return the file playing time to normal.
	You played a VBR (Variable Bit Rate) format file.→The file playing time of VBR (Variable Bit Rate) format MP3 file is sometimes displayed incorrectly.

Sound Setting
Trouble Cause/Step

No sound from left, right, front or rear speakers.	Left and right balance, or front and rear balance is off on one side.→Adjust balance/fader setting as appropriate.
	Cables are not correctly connected.→Connect the cables correctly.
Left and right sounds are reversed in stereo listening.	The speaker wires are reversed between right and left.→Connect the speaker wires to the correct ones.

Troubleshooting (Continued)

Remote Control Unit

Trouble Cause/Step

Buttons are invalid for operation.

Battery polarities are reversed. →Insert the battery correctly.

Wrong the battery. →Check the battery.

The battery has run down. →Replace the battery.

Remote control unit is in the wrong direction. →Direct the remote control at sensor on the front panel.

Error Display Messages

□CD/MP3/WMA □CQ-HX1083W

CQ-HX1003W

Display Cause/Step

- Disc is dirty, or is upside down. - A disc that has data other than CD-DA or MP3/WMA type is loaded. - Check the disc.

Disc has scratches. →Check the disc.

No operation by some cause. →If normal operation is not restored, call the store where you purchased the unit or the nearest Service station to ask for repairs.

When there is no MP3/WMA files in the specified folder during direct MP3/WMA folder selection. →Select another folder which contains MP3/WMA files.

The player cannot read the file you are trying to play for some reason. (File recorded in an unsupported file system, compression scheme, data format, file name extension, damaged data, etc.)
=Select a file that the player can read. Confirm the type of data recorded on the disc. Create a new disc if necessary.

An attempt has been made to play a copy-protected WMA file. Play WMA files which are not copy-protected.

CQ-HX1083/1003W

□CD Changer

Display Cause/Step

- Disc is dirty, or is upside down. - A disc other than a music CD (CD-DA type) is loaded. →Check the disc. (The changer automatically switches to the next disc.)

Disc has scratches. →Check the disc. (The changer automatically switches to the next disc.)

No operation by some cause. —If normal operation is not restored, call the store where you purchased the unit or the nearest Service station to ask for repairs. The display continues if you cannot switch off the power.

No disc is in the changer (magazine). →Insert discs into the changer (magazine).

The changer has become disconnected from the main unit in the changer mode. →Verify that correct connections have been made.

Note:

- For details, refer to operating instructions for the changer used.

CQ-HX1083/1003W

Troubleshooting (Continued) Maintenance

If the Unit does not Operate Properly

Diagram of a device rear panel showing internal components and ports (no text or labels)

Reset switch

Push a thin, unbreakable object into this hole to press the reset switch.

- After a reset, the unit reverts to its initial state. Note that any information or settings stored in the unit's memory will be lost.

Caution:

- Press the reset switch if pressing any of the other buttons has no effect.

Maintenance

Your product is designed and manufactured to ensure a minimum of maintenance. Use a dry, soft cloth for routine exterior cleaning. Never use benzine, thinner or other solvents.

Product Servicing

If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Service station. The product should be serviced only by a qualified technician.

Replacing the Fuse

Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or connecting the unit directly without a fuse, could cause fire or damage to the unit.

If the replacement fuse lails, contact your nearest Panasonic Service station for service.

Clean Touch Panel by Wiping Lightly with a Soft Cloth

Before cleaning, turn off in the ignition or remove the front panel.

- When the top surface of the touch panel has become dirty, use the included wiping cloth to wipe the surface thoroughly. Under no circumstances should detergents or other such cleaning substances be used for this purpose.

- Do not allow the top surface of the touch panel to be caught by your fingernails or any hard objects. If you do so, you may damage or break the glass on the top surface of the touch panel.

Illustration of a hand cleaning a smartphone screen (no text or symbols)

Notes on CD-Rs/RWs

- You may have trouble playing back some CD-R/RW discs recorded on CD recorders (CD-R/RW drives), either due to their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.

- CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs. Leaving them inside a car for extended periods may damage them and make playback impossible.

- The unit may not successfully play back a CD-R/RW that was made by the combination of writing software, a CD recorder (CD-R/RW drive) and a disc if they are incompatible one another.

- This player cannot play the CD-R/RW discs if the session is not closed.

- This player cannot play the CD-R/RW discs which contains other than CD-DA (or MP3/WMA data CO-HX1083W).

- Be sure to observe the instructions of CD-R/RW disc for handling it.

Notes on CD/CD Media (CD-ROM, CD-R, CD-RW)

If you use commercial CDs, they must have either of these labels below.

How to hold the disc

• Do not touch the underside of the disc.
• Do not scratch the disc.
• Do not bend disc.
• When not in use, keep the disc in the case.

Label side

Do not use irregular shaped discs.

Do not leave discs on the following places:

• Direct sunlight
• Near car heaters
  ◆Dirty, dusty and damp areas
• Seats and dashboards

Disc cleaning

Use a dry, soft cloth to wipe from the center outward.

Do not attach any seals or labels to your discs.

Do not write on the disc label in a heavy pen or ballpoint pen stroke.

CQ-HX1083/1003W

CQ-HX1083/1003W

Installation Guide

WARNING

This installation information is designed for experienced installers and is not intended for non-technical individuals. It does not contain warnings or cautions of potential dangers involved in attempting to install this product.

Any attempt to install this product in a motor car by anyone other than qualified installer could cause damage to the electrical system and could result in serious personal injury or death.

Installation Hardware

No.	Item Diagram Q'ly
1	Mounting collar		1
2	Hex. nut (5 mm )		1
3	Rear support strap		1
4	Tapping screw(5 mm ×16 mm)		1
5	Mounting bolt (5 mm )		1
6	Power connector		1
7	Trim plate		1
8	Mounting spring (R)		1
9	Mounting spring (L)		1
10	Flat-head screw(5 mm ×6 mm)		2
11	Lock cancel plate		2

Overview

This product should be installed by a professional. However, if you plan to install this product yourself, your first step is to decide where to install it.

The instructions in these pages will guide you through the remaining steps:

(Please refer to the "WARNING" statement above.)

●Identify and label the car wires.
- Connect the car wires to the wires of the power connector.
● Install the unit in the dashboard
- Check the operation of the unit.
If you encounter problems, please consult your nearest professional installer.

Caution:

This unit operates with a 12 V DC negative ground auto battery system only. Do not attempt to use it in any other system. Doing so could cause serious damage.

Before you begin installation, look for the items which are packed with your unit.

• Panasonic Service station List for Service Directory ...Keep for future reference in case the product needs servicing.
• Installation Hardware...Needed for in-dash installation.

Required Tools

You'll need a screwdriver, a 1.5 V AA battery, and the following:

□Dashboard Specifications

□Identify All Leads

The first step in installation is to identify all the car wires you'll use when hooking up your sound system.

As you identify each wire, we suggest that you label it using masking tape and a permanent marker. This will help avoid confusion when making connections later.

Note:

- Do not connect the power connector to the stereo unit until you have made all connections. If there are no plastic caps on the stereo hooking wires, insulate all exposed leads with electrical tape until you are ready to use them. Identify the leads in the following order.

Power Lead

If your car has a radio or is pre-wired for one: Cut the connector wires one at a time from the plug (leaving the leads as long as possible) so that you can work with individual leads.

Turn the ignition on to the accessory position, and ground one lead of the test bulb to the chassis.

Touch the other lead of the test bulb to each of the exposed wires from the cut radio connector plug. Touch one wire at a time until you find the outlet that causes the test bulb to light.

Now turn the ignition off and then on. If the bulb also turns off and on, that outlet is the car power lead. If your car is not wired for an audio unit:

Go to the fuse block and find the fuse port for radio (RADIO), accessory (ACC), or ignition (IGN).

Battery Lead

If your stereo unit has a yellow lead, you will need to locate the car's battery lead. Otherwise you may ignore this procedure. (The yellow battery lead provides continuous power to maintain a clock, memory storage, or other function.)

If your car has a radio or is pre-wired for one: With the ignition and headlights off, identify the car battery lead by grounding one lead of the test bulb to the chassis and checking the remaining exposed wires from the cut radio connector plug.

If your car is not wired for an audio unit: Go to the fuse block and find the fuse port for the battery, usually marked BAT.

Speakers

Identify the car speaker leads. There are two leads for each speaker which are usually color coded.

A handy way to identify the speaker leads and the speaker they are connected with is to test the leads using a 1.5 V AA battery as follows.

Hold one lead against one pole of the battery and stroke the other lead across the other pole. You will hear a scraping sound in one of the speakers if you are holding a speaker lead.

If not, keep testing different lead combinations until you have located all the speaker leads. When you label them, include the speaker location for each.

Antenna Motor

If your car is equipped with an automatic power antenna, identify the car motor antenna lead by connecting one bulb tester lead to the car battery lead and touching the remaining exposed wires from the cut radio connector plug one at a time. You will hear the antenna motor activate when you touch the correct wire.

Antenna

The antenna lead is a thick, black wire with a metal plug at the end.

□Connect All Leads

Now that you have identified all the wires in the car, you are ready to begin connecting them to the stereo unit wires. The wiring diagram (page 62) shows the proper connections and color coding of the leads.

We strongly recommend that you test the unit before making a final installation.

You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape to cover all exposed wires.

Important:

- Connect the red power lead last, after you have made and insulated all other connections.

Ground

Connect the black ground lead of the power connector to the metal car chassis.

CQ-HX1083/1003W

CQ-HX1083/1003W

Installation Guide (Continued)

Speakers

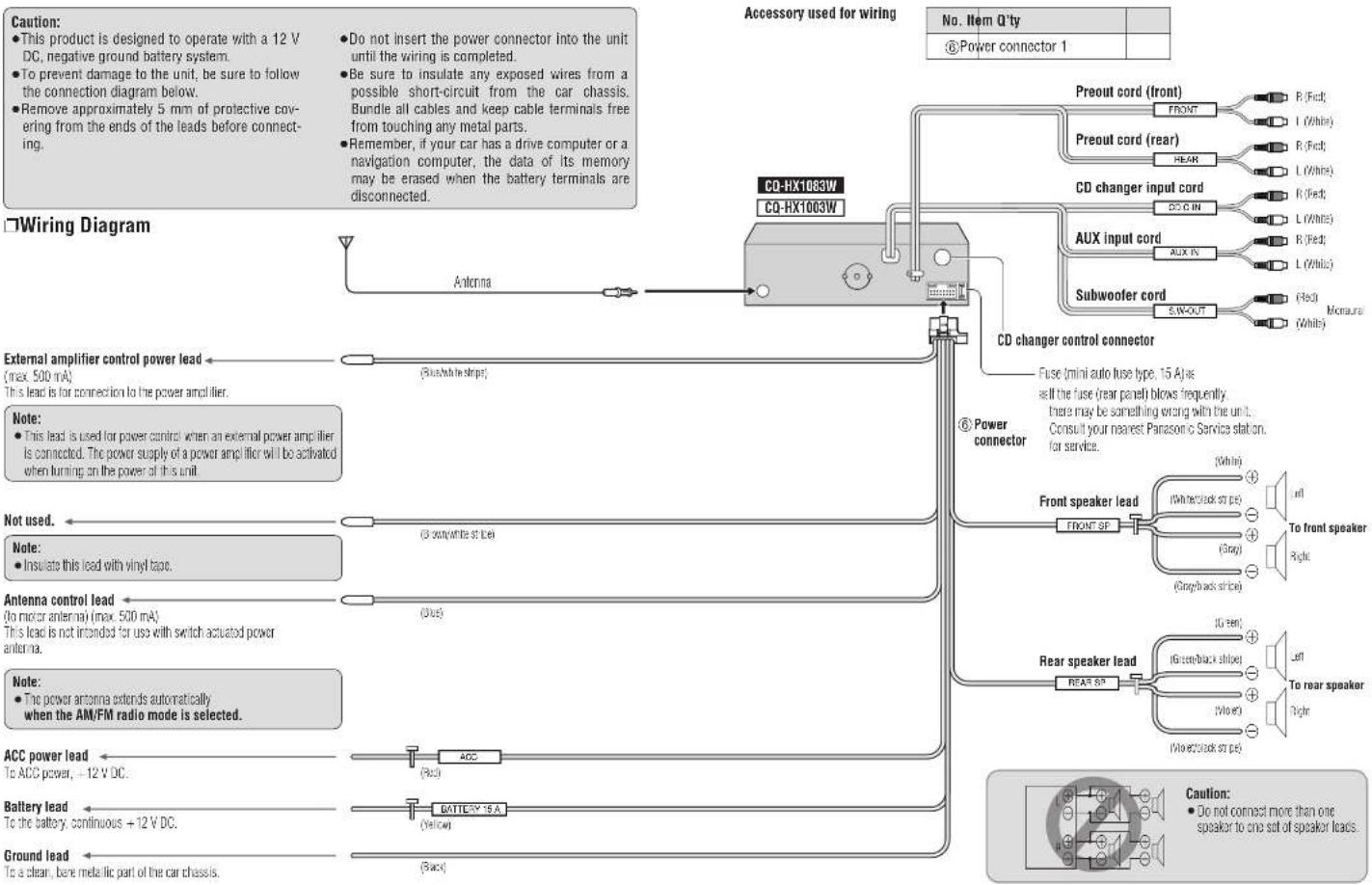

Connect the speaker wires. See the wiring diagram (page 62) for the proper hookups. Follow the diagram carefully to avoid damaging the speakers and the stereo unit.

The speakers used must be able to handle more than 50 W of audio power. If using an optional audio amplifier, the speakers should be able to handle the maximum amplifier output power. Speakers with low input ratings can be damaged. Speaker impedance should measure 4–8 Ω, which is typically marked on most speakers. Lower or higher impedance speakers will affect output and can cause both speaker and stereo unit damage.

Motor Antenna

Connect the car motor antenna lead to the dark blue motor antenna relay control lead.

(Do not confuse the antenna lead with blue/white stripe lead for a power amplifier.)

Battery

Connect the yellow battery lead to the correct radio wire or to the battery fuse port on the fuse block.

Antenna

Connect the antenna by plugging the antenna lead into the antenna receptacle.

Equipment

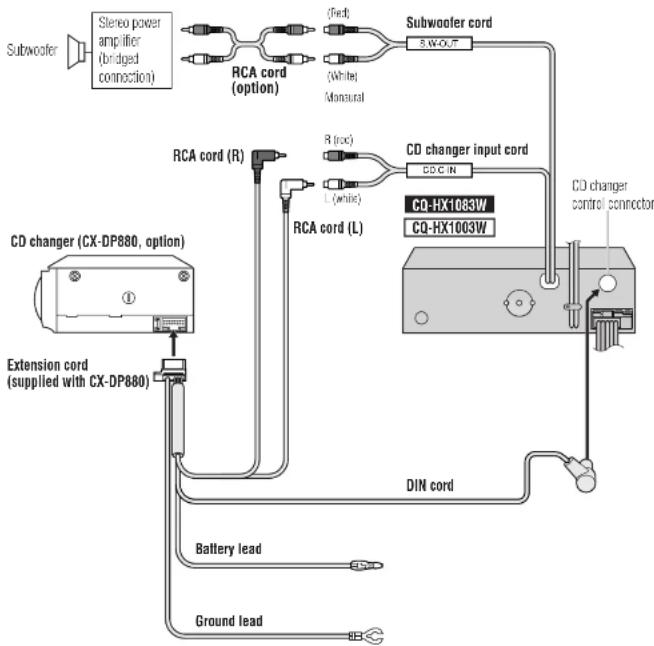

Connect any optional equipment such as an amplifier, according to the instructions furnished with the equipment. Leave about 30 cm of distance between the speaker leads/amplifier unit and the antenna/antenna extension cord. Read the operating and installation instructions of any equipment you will connect to this unit.

Power

Connect the red power lead to the correct car radio wire or to the appropriate fuse port on the fuse block.

If the stereo unit functions properly with all these connections made, disconnect the wires and proceed to the final installation.

Final Installation

Lead Connections

Connect all wires, making sure that each connection is insulated and secure. Bundle all loose wires and fasten them with tape so they will not fall down later. Now insert the stereo unit into the mounting collar.

Congratulations! After making a few final checks, you're ready to enjoy your new auto stereo system.

Final Checks

1. Make sure that all wires are properly connected and insulated.
2. Make sure that the stereo unit is securely held in the mounting collar.
3. Turn on the ignition to check the unit for proper operation.

If you have difficulties, consult your nearest authorized professional installer for assistance.

□Preparation

• We strongly recommend that you wear gloves for installation work to protect yourself from injuries.

• When bending the mounting tabs of the mounting collar with a screwdriver, be careful not to injure your hands and fingers.

• Disconnect the cable from the negative ⊙ battery terminal (see caution below).

• Unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30°.

Caution:

- Do not disconnect the battery terminals of a car with a trip or navigational computer since all user settings stored in memory will be lost. Instead take extra care with installing the unit to prevent shorts.

Dashboard Installation Installation Opening

This unit can be installed in any dashboard having an opening as shown above. The dashboard should be 4.75 mm - 5.56 mm thick in order to be able to support the unit.

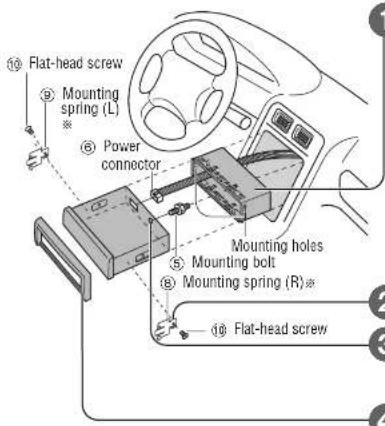

□Installation Procedures

First complete the electrical connections, and then check them for correctness. (page 62)

The included mounting collar ① is designed specifically for this unit. Do not use it to attach any other model.

⑩ Flat-head screw ⑤ Mounting spring (L) ⑥ Power connector Mounting holes ⑤ Mounting bolt ⑧ Mounting spring (R) ⑲ Flat-head screw

Insert mounting collar ① into the dashboard, and bend the mounting tabs out with a screwdriver.

The tabs to be bent vary depending on the car. To securely install the unit, fully bend a number of the tabs so that there is no rattling.

Example:

Attach the mounting springs ⑧, ⑨ to the unit.

Secure the rear of the unit.

After fixing mounting bolt ⑤ and power connector ⑥, fix the rear of the unit to the car body by either method (a) or (b) shown below.

Insert trim plate ⑦.

After installation, reconnect the negative ⊖ battery terminal.

Engage the mounting springs (※) In the mounting holes of the mounting collar ① firmly.

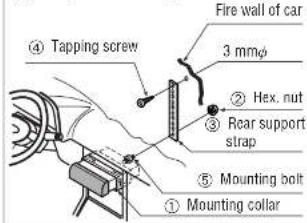

(a) Using the rear support strap ③

Fire wall of car 3 mmφ ④ Tapping screw ② Hex. nut ③ Rear support strap ⑤ Mounting bolt ① Mounting collar

(b) Using the rubber cushion (option)

Rubber cushion (option) Rear support bracket (provided on the car)

① Mounting collar ⑤ Mounting bolt

CQ-HX1083/1003W

CQ-HX1083/1003W

Installation Guide (Continued)

Remove the Unit

Switch off the power of the unit.

1
Remove the removable face plate.

2

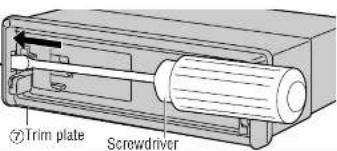

Remove the trim plate ⑦ with a screwdriver.
- First remove one side, then the other.
① Fit the screwdriver into the hole of the trim plate.

Insert the screwdriver until "click" is heard.

⑦Trim plate Screwdriver

Remove the unit with a lock cancel plate ⑪.

3
① Insert the lock cancel plates ⑪ along the grooves on both sides of the main unit until "click" is heard.

Pull out the unit while pushing the plates further inside.

⑪Lock cancel plate

Diagram of an electronic device rear panel with ports and connectors (no text or labels)

4
Remove the unit pulling with both hands.

CQ-HX1083/1003W

Anti-Theft System

This unit is equipped with a removable face plate. Removing this face plate makes the radio totally in-operable. The security indicator will blink.

Place the Removable Face Plate into Case

① Switch off the power of the unit.
②Remove the removable face plate. (page 60)
③ Gently press the bottom of the case and open the cover. Place the face plate into the case and take it with you when you leave the car.

Note:

• Be sure to keep the front panel with the removable face plate case (included) when it has been detached from the main unit.
• Take care not to drop the front panel when it has been detached from the main unit. Also take care not to bump the top surface of the touch panel into anything. If you do so, you may break the glass on the top surface of the touch panel.

Install Removable Face Plate

① Slide the left side of the removable face plate in place.
②Press the right end of removable face plate until "click" is heard.

Security Indicator

The security indicator blinks when the removable face plate is removed from the unit.
The function is activated when the security function is on. (page 46)

Panel Removal Alarm

This alarm sounds to warn you not to forget to remove the panel before leaving your car.

The function is activated when the security function is on. (page 46)

Caution:

• This face plate is not waterproof. Do not expose it to water or excessive moisture.
• Do not remove the face plate while driving your car.
• Do not place the face plate on the dashboard or nearby areas where the temperature rises to high level.

Removable face plate case

Contact ① ②

Security indicator

• Do not touch the contacts on the face plate or on the main unit, since this may result in poor electrical contacts.
• If dirt or other foreign substances get on the contacts, wipe them off with a clean and dry cloth.
• To avoid damaging the front panel, do not push it down or place objects on it while it is open.

CQ-HX1083/1003W

Electrical Connections

    M["Co-HX1003W"] --> N["Preout cord (front)"]
    M --> O["Preout cord (rear)"]
    M --> P["CD changer input cord"]
    M --> Q["AUX input cord"]
    M --> R["Subwoofer cord"]

    S["CD changer control connector"] --> T["Fuse (mini auto fuse type, 15 A) as self the fuse (rear panel) blows frequently, there may be something wrong with the unit. Consult your nearest Panasonic Service station, for service."]

    U["Front speaker lead"] --> V["Front SP"]
    U --> W["Rear speaker lead"]

    X["To front speaker"] --> Y["To back side"]

    Z["To rear speaker"] --> AA["To back side"]

    AB["Power connector"] --> AC["Front speaker lead"]
    AB --> AD["Rear speaker lead"]

    AE["Accessory used for wiring"] --> AF["No. Item Qty"]
    AE --> AG["Power connector 1"]

    AH["External amplifier control power lead"] --> AI["(Blue/White strips)"]
    AH --> AJ["(Blue)"]
    AH --> AK["(Blue)"]

    AL["Power connector"] --> AM["(White/Black strip)"]
    AL --> AN["(Gray)"]
    AL --> AO["(Gray/back stripe)"]

    AP["Power connector"] --> AQ["(White/Black strip)"]
    AP --> AR["(Gray)"]
    AP --> AS["(Gray/back stripe)"]

    AT["Accessory used for wiring"] --> AU["No. Item Qty"]
    AT --> AV["Power connector 1"]

    AW["Accessory used for wiring"] --> AX["No. Item Qty"]
    AW --> AY["Power connector 1"]

    AZ["Accessory used for wiring"] --> BA["No. Item Qty"]
    AZ --> BB["Power connector 1"]

    BC["Accessory used for wiring"] --> BD["No. Item Qty"]
    BC --> BE["Power connector 1"]

    BF["Accessory used for wiring"] --> BG["No. Item Qty"]
    BF --> BH["Power connector 1"]

    BI["Wiring Diagram"] --> BJ["External amplifier control power lead (max. 500 mA)"]
    BI --> BK["Not used."]
    BI --> BL["Antenna control lead (no motor antenna) (max. 500 mA)"]
    BI --> BM["Note: Insulate this lead with vinyl tape."]
    BI --> BN["Note: The power antenna extends automatically when the AM/FM radio mode is selected."]

    BO["Accessory used for wiring"] --> BP["No. Item Qty"]
    BO --> BQ["Power connector 1"]

    BR["Accessory used for wiring"] --> BS["No. Item Qty"]
    BR --> BT["Power connector 1"]

    BU["Accessory used for wiring"] --> BV["No. Item Qty"]
    BU --> BW["Power connector 1"]

    BX["Accessory used for wiring"] --> BY["No. Item Qty"]
    BX --> BZ["Power connector 1"]

    CA["Accessory used for wiring"] --> CB["No. Item Qty"]
    CA --> CC["Power connector 1"]

    DA["Accessory used for wiring"] --> DB["No. Item Qty"]
    DA --> DC["Power connector 1"]

    DD["Accessory used for wiring"] --> DE["No. Item Qty"]
    DD --> DF["Power connector 1"]

    DG["Wiring Diagram"] --> DH["External amplifier control power lead (max. 500 mA)"]
    DG --> DI["Not used."]
    DG --> DJ["Antenna control lead (no motor antenna) (max. 500 mA)"]
    DG --> DK["Note: Insulate this lead with vinyl tape."]

    DE --> DL["Antenna control lead (to motor antenna) (max. 500 mA)"]
    DE --> DW["(Blue)"]
    DE --> DX["(Blue)"]

    DB --> DY["Antenna control lead (to motor antenna) (max. 500 mA)"]
    DB --> DY
    DY --> DY
    DY --> DY

CQ-HX1083/1003W

Electrical Connections (Continued)

□Upgrading the System

Example Combination
- CD changer (CX-DP880, option)
● Stereo power amplifier (option)

Note:

- For wiring, carefully read the operating instructions for the devices connected.

Subwoofer Stereo power amplifier (bridged connection) RCA cord (option) (Fed) (White) Monaural Subwoofer cord 5.W-OUT RCA cord (R) R (roc) L (white) RCA cord (L) CD changer input cord CDC IN CD HX1083W CQ-HX1003W CD changer control connector CD changer (CX-DP880, option) Extension cord (supplied with CX-DP880) DIN cord Battery lead Ground lead

Specifications

□General

Power supply: 12 V DC (10.8 V-16 V),

test voltage 14.4 V, neg-

ative ground

Current consumption: Less than 2.2 A

(CD play mode:

0.5 W×4 channels)

Maximum power output: 50 W×4 channels at

1 kHz, volume control

maximum

Tone adjustment range:

Bass: ±12 dB at 120 Hz

Treble: ±12 dB at 10 kHz

Suitable Speaker

impedance: 4–8 Ω

Preamp output voltage: 5.0 V (CD play mode)

1 kHz, 0 dB)

Subwoofer output voltage: 5.0 V

Preamp output impedance: 60 Ω

Subwoofer output

impedance: 60 Ω

Dimensions (W×H×D): 178×50×155 mm

Weight: 1.7 kg

□FM Stereo Radio

Frequency range: 87.50 MHz–108.00 MHz

Usable sensitivity: 6 dB/μV (S/N 30 dB)

Stereo separation: 30 dB (at 1 kHz)

□AM Radio

Frequency range: 531 kHz 1 602 kHz

Usable sensitivity: 28 dB/μV (S/N 20 dB)

□CD Player

Sampling frequency: 8 times oversampling

Error correction system: Panasonic super decod-

ing algorithm

Pick-up type: Astigma 3-beam

Light source: Semiconductor laser

Wave length: 780 nm

Frequency response: 20 Hz–20 kHz (±1 dB)

Signal/noise ratio: 95 dB

Total harmonic distortion: 0.02 % (1 kHz)

Wow and flutter: Below measurable limits

CQ-HX1083W

MP3:

Bit rate:

MPEG 1 audio layer 3: 32 k—320 kbps

MPEG 2 audio layer 3: 8 k—160 kbps

Sampling frequency:

MPEG 1 audio layer 3: 32, 44.1, 48 kHz

MPEG 2 audio layer 3: 16, 22.05, 24 kHz

WMA:

Bit rate: 64 k–192 kbps

Sampling frequency: 32 kHz–48 kHz

Note:

- Specifications and the design are subject to modification without notice due to improvements in technology.

CQ-HX1083/1003W

CQ-HX1083/1003W
