USER MANUAL System K9 G-TECHNOLOGY

Gtech AirRAM K9

Model number: AR30

OPERATING MANUAL

IMPORTANT SAFEGUARDS:

IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

Do not use in rain or leave outdoors whilst raining.

WARNING: Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury:

Personal Safety:

• Store indoors in a dry place out of the reach of children.
  • Always use responsibly. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Don't let children play with the appliance; supervise children using or maintaining the appliance.
• Use only manufacturer's recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those recommended, may present a risk of personal injury.
  • Take extra care when cleaning stairs.
• Keep the appliance and accessories away from hot surfaces.
• Do not block the appliances openings or hinder air flow; keep openings free of any objects including dust, lint, clothing, fingers (and all parts of the body).
  • Particularly keep hair away from openings and moving parts.

Electrical safety:

• Only use batteries and chargers supplied by Gtech.
• Never modify the charger in any way.
• The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack; never use the charger with another appliance or attempt to charge this product with another charger.

- Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases the risk of fire and electric shock.

- Do not abuse the charger cord.

- Never carry the charger by the cord.

- Do not pull the cord to disconnect from a socket; grasp the plug and pull to disconnect.

- Don't wrap the cord around the charger when storing.

- Keep the charger cord away from hot surfaces and sharp edges.

- The supply cord cannot be replaced. If the cord is damaged the charger should be discarded and replaced.

- Do not handle the charger or the appliance with wet hands.

- Do not store or charge the appliance outdoors.

- The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.

- Ensure the Multi is off before connecting or disconnecting the motorised brush bar.

Battery safety:

- This appliance includes Li-Ion batteries; do not incinerate batteries or expose to high temperatures, as they may explode.

- Liquid ejected from the battery may cause irritation or burns.

• In an emergency situation contact professional help immediately!
- Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets on the skin wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations.
- Shorting the battery terminals may cause burns or fire.
- When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.
- When you dispose of the appliance remove the battery and dispose of the battery safely in accordance with local regulations.

Service:

• Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary.
• Do not use the appliance if any part is damaged or defective.
• Repairs should be carried out by a service agent or a suitably qualified person in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous.
• Never modify the appliance in any way as this may increase the risk of personal injury.
• Only use replacement parts or accessories provided or recommended by Gtech.

Intended use:

• This appliance has been designed for domestic dry vacuum cleaning only.
• Do not pick up liquids or use on wet surfaces.
• Do not pick up anything that is flammable, burning or smoking.

• Use only as described in this manual.

• Don't use on concrete, tarmacadam or other rough surfaces.

• The brush bar may damage certain floor surfaces. Before vacuuming flooring, rugs or carpets, check the flooring manufacturer's recommended cleaning instructions.
• May damage delicate fabrics or upholstery. Care should be taken on loose-weave carpets and coverings or where there are loose threads. If in doubt please test on an inconspicuous area first.
• The Gtech AirRAM has been designed to clean a wide variety of floor surfaces without the need to change settings. However some surfaces such as delicate loose-pile rugs or carpets, tasselled rug edges or damaged carpets with exposed threads are not suitable for cleaning with a rotary brush.
• The AirRAM and Multi have a constantly rotating brush bar. Never leave the cleaning head in one spot for an extended period of time as this may damage the floor surface.

WARNING:

• Do not use water, solvents, or polishes to clean the outside of the appliance; wipe clean with a dry cloth.
• Never immerse the unit in water and do not clean in a dish washer.
• Never use the appliance without the filter fitted.
• Ensure the battery is removed before changing tools.

Portrait of a smiling man in a striped shirt (no text or symbols visible)

Thank you for choosing the Gtech K9 System

"I started Gtech to create sensible, easy to use products that do a great job. Your opinion is important to us and we'll use your feedback to improve our products and services, and to let other people know what it's like to be part of the Gtech family."

Nick Grey – Inventor, owner of Gtech

Make a note of both your product's serial number codes for future reference. You can find this on the underside of the AirRAM K9 and the underside of the Multi K9 once the battery has been removed.

What's in the box

4

AirRAM: Assembly

Diagram of a car interior showing a valve mechanism with green directional arrows indicating movement (no text or symbols present)

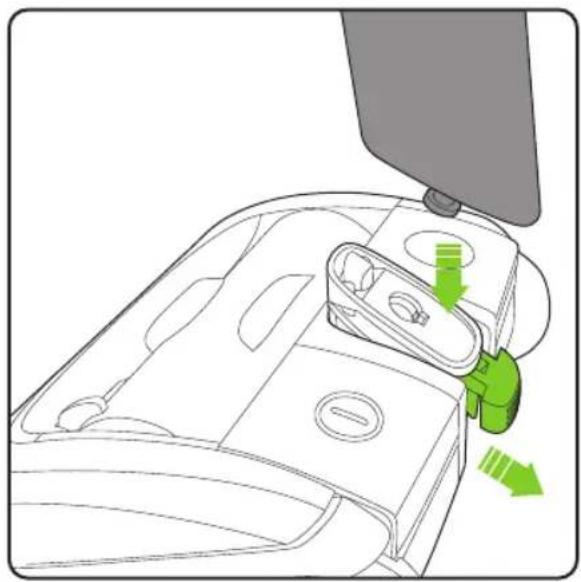

To attach the lower handle to the head assembly, insert the metal pin on the lower handle into the hole located on the pivot yoke. Make sure the green locking clip is pulled out to allow the lower handle to fit.

Illustration of a hand using a green tool to adjust a component on a mechanical part (no text or symbols visible)

Ensure the lower handle is sitting completely flush against the yoke. Then push the green locking clip into the back of the head.

Technical line drawing of a mechanical component with a green highlighted section (no text or symbols)

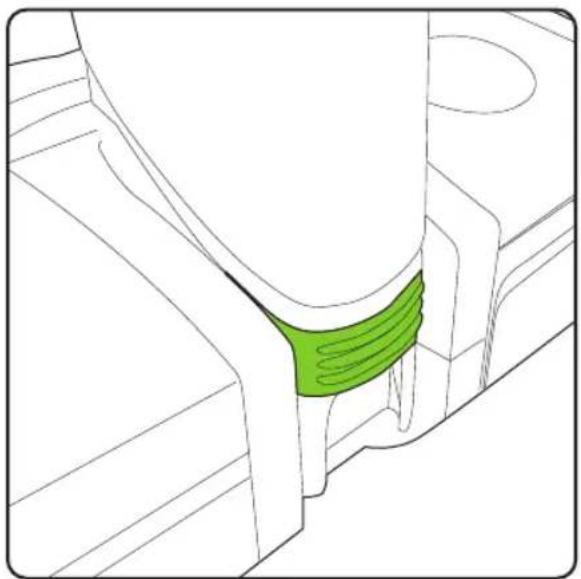

The green locking clip, when correctly fitted, will click and hold the lower handle in place. Should the handle assembly need to be removed the clip can be pulled out to unlock the lower handle.

The green locking clip remains permanently attached to the head assembly.

Line drawing of a hand gripping a tool, with a green arrow indicating the downward motion (no text or symbols)

Insert the upper handle into the lower handle. You will need to press the button on the upper handle to fit it in. Once it slides down you will hear it click into place.

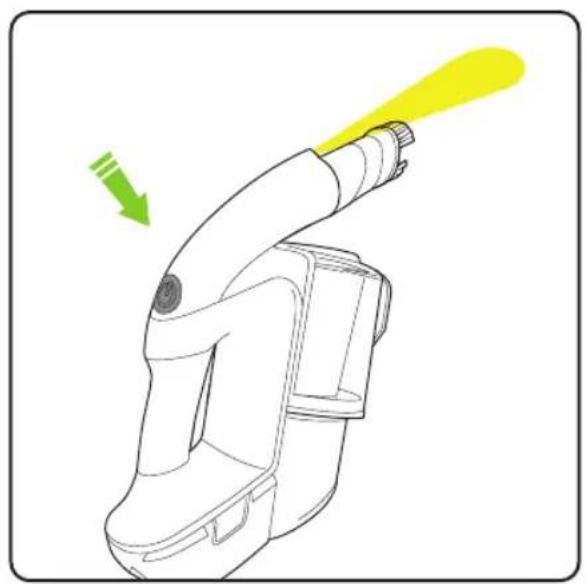

Installing scented cartridge

Illustration of hands using a green plastic container to add material, with a green arrow indicating direction (no text or symbols)

Slide the filter and inner shroud out of the filter housing.

Illustration of hands using a green filter tool to press or install a cylindrical object, with a green arrow indicating the process (no text or symbols present)

Remove the filter from the inner shroud, by twisting and pulling.

Diagram of a test tube with liquid and a green downward arrow indicating a drop or reduction (no text or symbols)

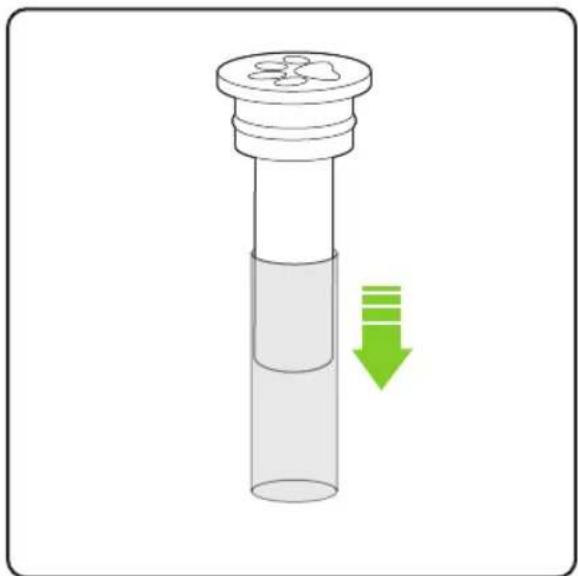

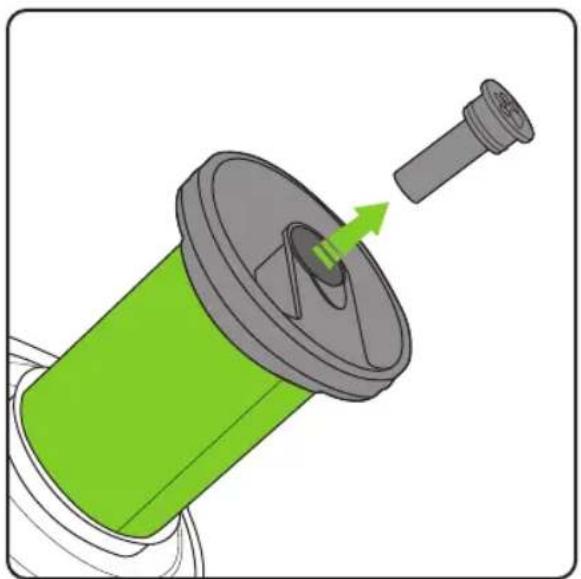

Remove the scented cartridge from its box then slide the plastic sleeve off.
Please refer to page 14 for scented cartridge health warnings.

Illustration of a hand using a handheld tool to adjust or install a component, with a green arrow indicating the action (no text or symbols present)

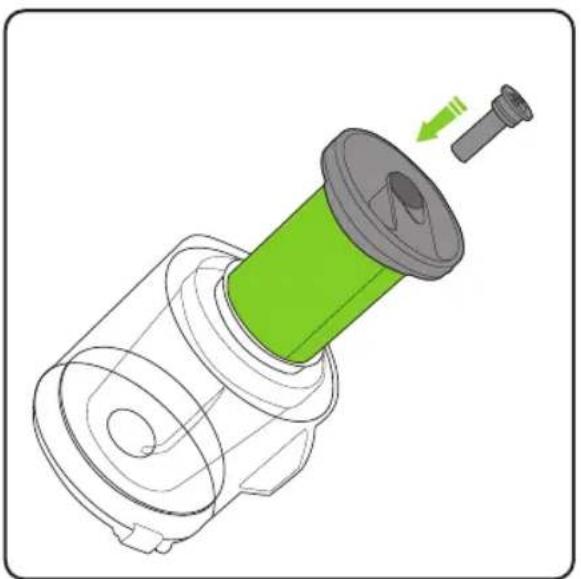

Slide scented cartridge into the end of the shroud. Replace filter and return to filter housing.

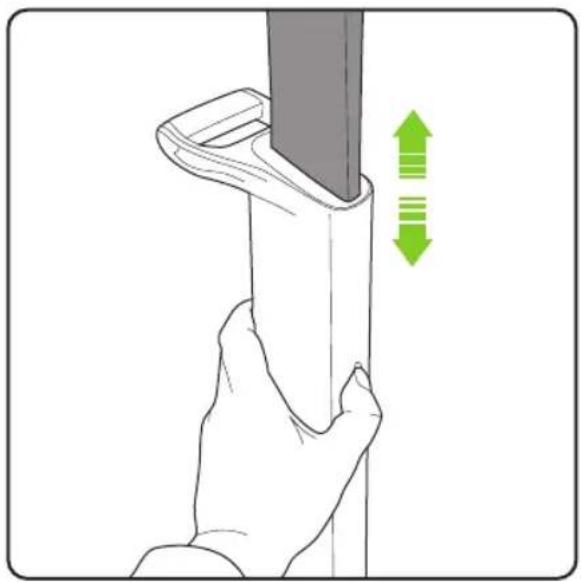

Storage

Illustration of a hand holding a cylindrical object with a green double-headed arrow indicating vertical motion (no text or symbols)

To stow or extend the upper handle simply press the button on the lower handle to unlock the upper handle.

The upper handle will now slide up or down depending on required position.

The upper handle can be set in two positions: Lowered for storage and raised for use. To lower the handle, release the upper button. To raise the handle from the stored position, release the lower button.

Operation

Line drawing of a hand pressing down on a device with green directional arrows indicating rotation (no text or symbols)

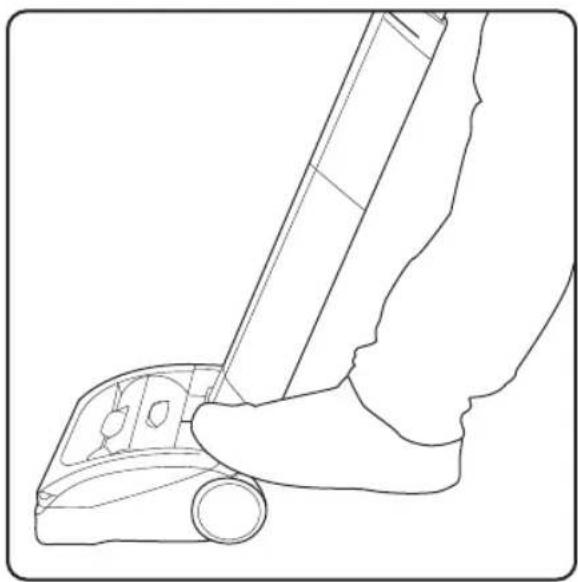

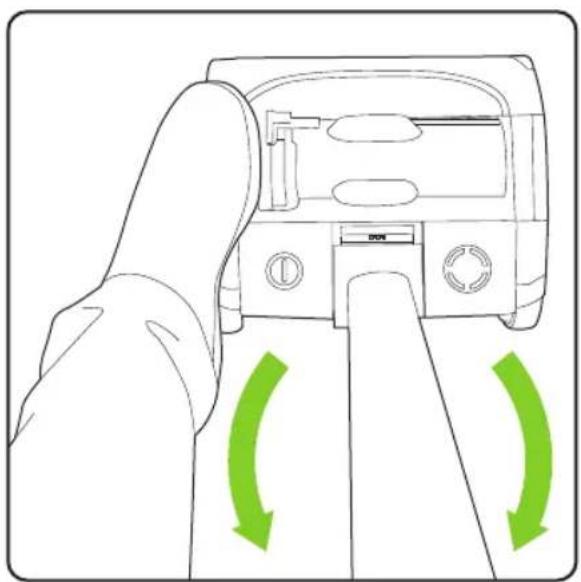

Without pressing the power button, place your foot on the left side of the AirRAM K9 head and pull the handle back.

Diagram of a car interior with a highlighted circular component (no text or symbols)

The power button is located on the left hand side of the AirRAM K9 head assembly.

Line drawing of a hand using a tool to lift a small object (no text or symbols)

Press the power button with your foot to turn the AirRAM K9 on.

Battery charging

Circular icon with a green arc and light rays, no text or symbols present

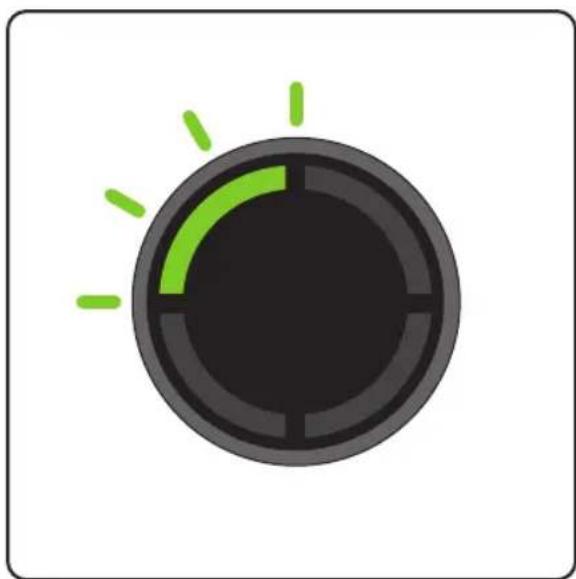

When the state of charge indicator starts to flash one green LED, recharge the battery.

Illustration of hands holding a small mechanical component with a green upward arrow indicating motion (no text or symbols)

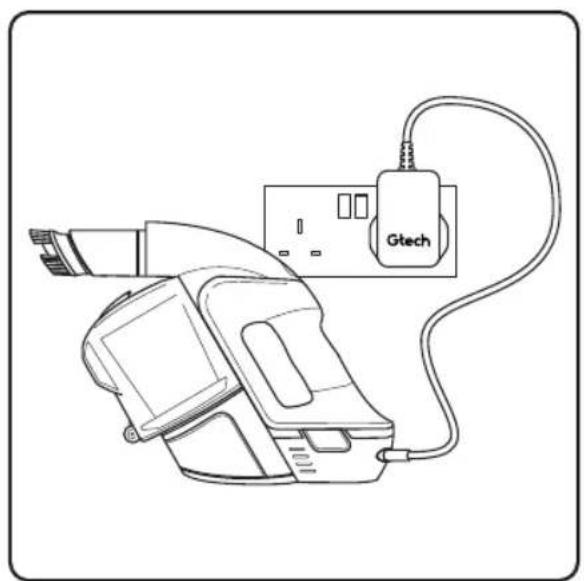

The battery can be charged whilst it's in the AirRAM K9, or when it's off the product. To remove the battery, squeeze the latch underneath and pull upwards.

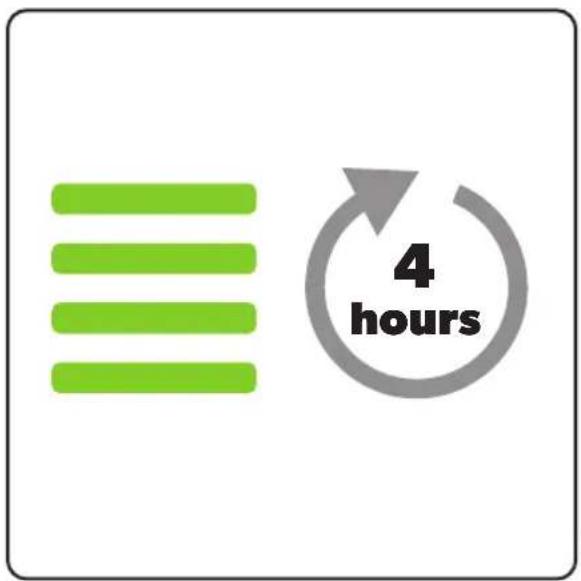

Plug the charger into the mains and connect it to the battery. Switch on at the mains. The battery can be charged from flat in 4 hours. The state of charge indicator will show 4 solid green lights when it is charged.

It is OK to charge for 1 hour for a burst of cleaning.

Illustration of hands holding a small mechanical component with a green arrow indicating downward motion (no text or symbols)

Replace the battery by sliding it down into the head assembly. It will click into place.

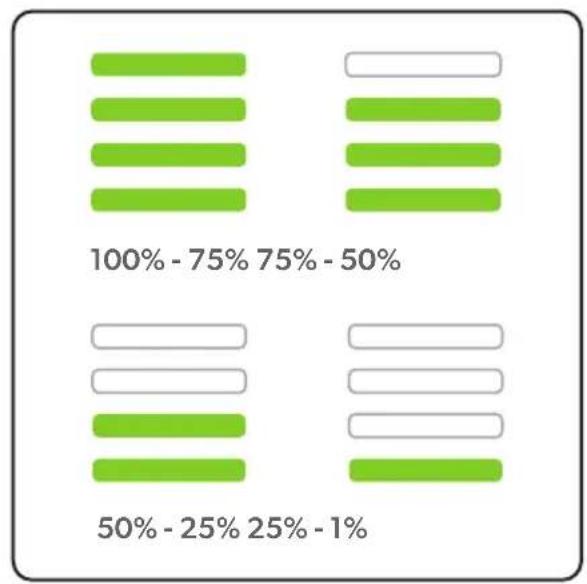

State of Charge

The battery state of charge indicator shows how much charge the AirRAM K9 has. As you use the product, the green lights will turn off in a downwards direction.

Circular diagram with green and black segments, no text or symbols present

While the battery is on charge, the LEDs will pulsate and in turn illuminate. When the battery is fully charged all of the LEDs will be solid green.

Emptying the bin

Illustration of hands using a device to adjust or install a component, with a green arrow indicating the process (no text or symbols present)

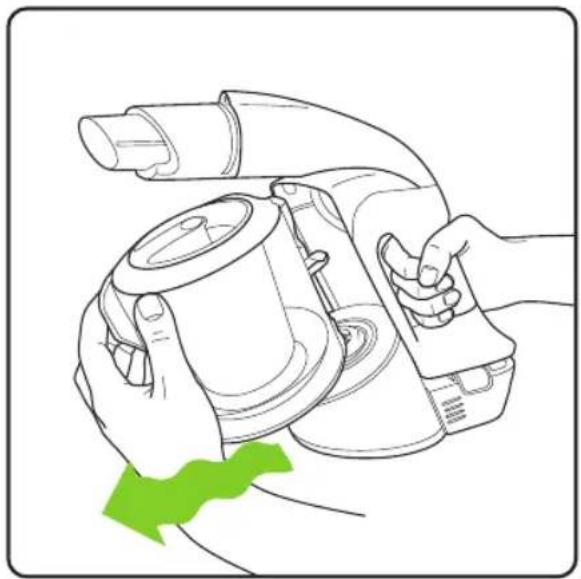

Holding onto the AirRAM K9 with one hand, pull the bin handle and lift the bin out of the AirRAM K9.

Illustration of a hand holding a device with a green arrow indicating rotation (no text or symbols)

Lift and release the latch marked with the green arrow, to pull open the lid.

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Hold the AirRAM K9's bin over a rubbish bin and push the green lever towards the lid to empty the dirt.

Illustration of hands using a tool to adjust or install a mechanical component, with a green arrow indicating the motion (no text or symbols present)

Pull the green lever back towards the bottom of the bin. Close the bin lid and reinsert the bin into the AirRAM K9.

Cleaning the filters - do this once a month or more frequently depending on use.

Illustration of hands using a brush to clean or adjust a mechanical component, with a green arrow indicating the step (no text or symbols present)

Holding onto the AirRAM K9 with one hand, pull the bin handle and lift the bin out of the AirRAM K9.

Illustration of hands installing a green cylindrical component into a plastic housing (no text or symbols)

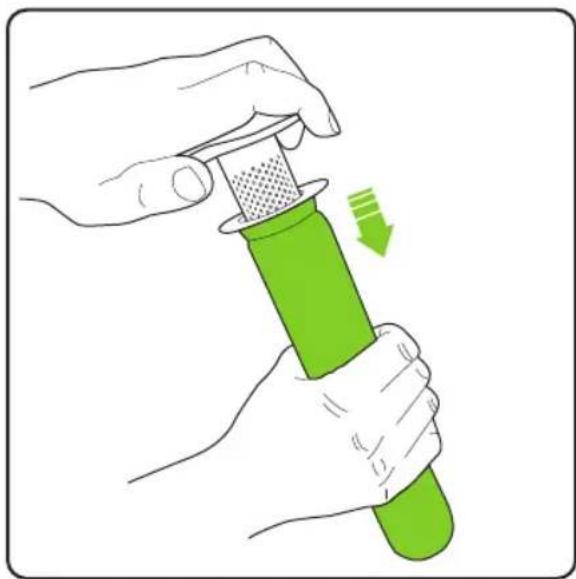

Pull the filter out of the filter housing. Tap the dirt from the filter and tip any dirt from the filter housing. Wash the filter if necessary.

Illustration of hands using a green tool to press or adjust a cylindrical object, with a green arrow indicating the process (no text or symbols present)

Remove the filter from the inner shroud, by twisting and pulling. Tap the inner shroud over a bin to remove any excess dirt.

Illustration showing two hands holding green test tubes, one with a blue cap and the other with a green grip (no text or symbols)

Wash the filter under a tap. Squeeze out any excess water then let it dry completely before reinserting into the AirRAM K9. Recommended water temperature 40°C. Do not use detergent or soaps. Never put the bin back without filter inside. You could damage the motor.

Replacing the filters

Illustration of hands using a green tool to press or install a component, with an arrow indicating motion (no text or symbols present)

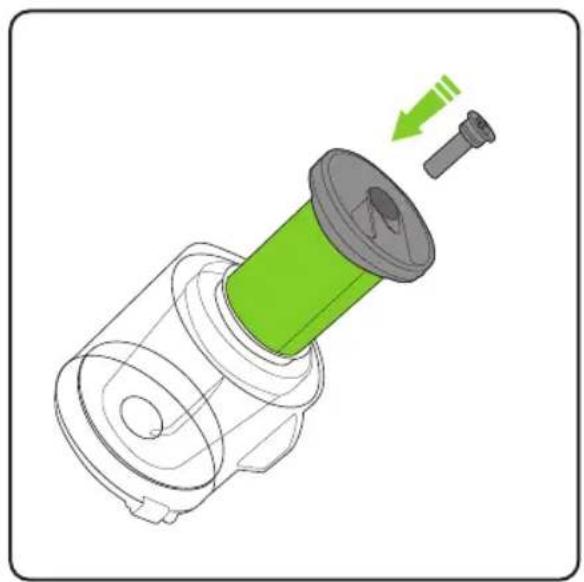

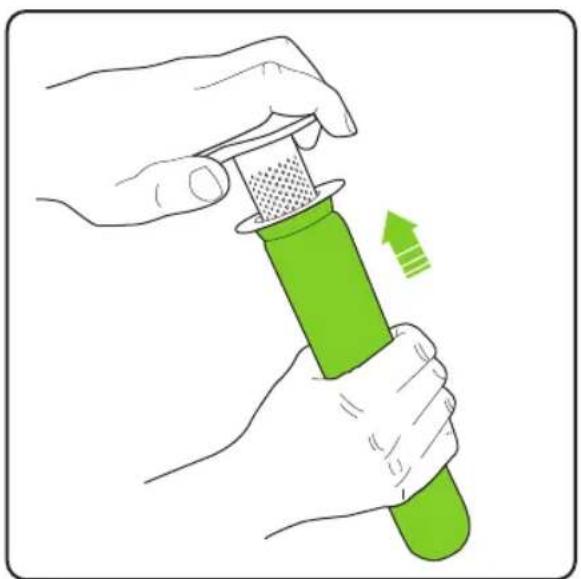

Slide the filter onto the inner shroud. Slide the filter and inner shroud into the filter housing.

Illustration of hands installing a green cylindrical component into a plastic housing (no text or symbols)

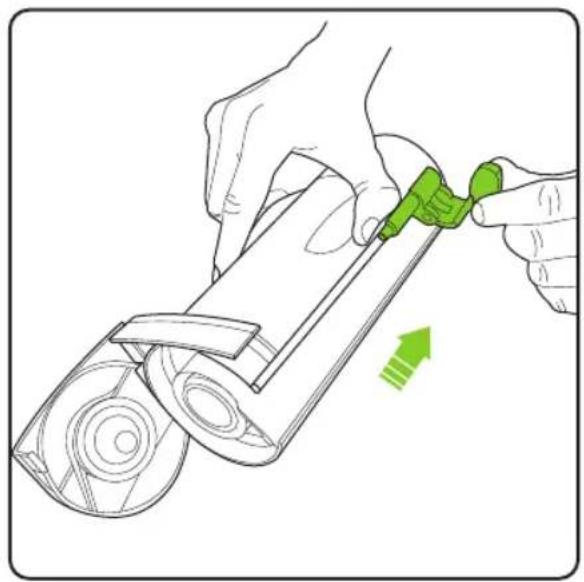

Removing and cleaning the brush bar

Illustration of a hand pressing a button on a vehicle's side panel, with a circular inset showing a red ring (no text or symbols)

If the brush bar jams during use, the AirRAM K9 will stop and the LEDs will appear red. Before checking for a blockage, remove the battery.

Line drawing of a hand using a finger to press or install a device on a device (no text or symbols present)

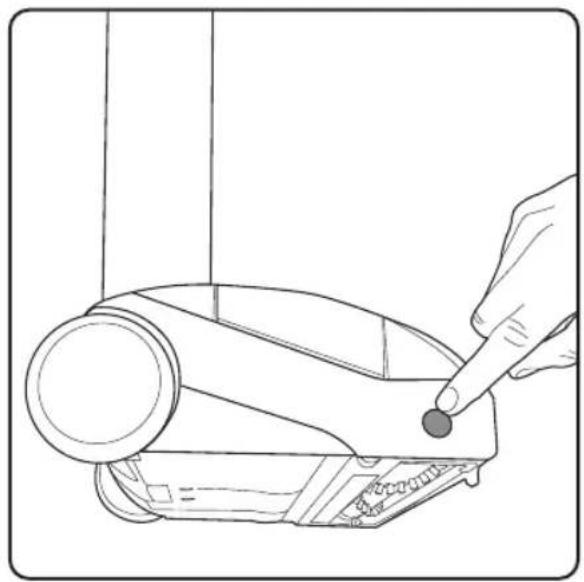

Rest the AirRAM K9 on its side and locate the brush bar button on the right hand side. Press the button inwards and then pull the brush bar out from the bottom of the AirRAM K9.

Line drawing of a hand using a tool to adjust or install a mechanical component, with a green arrow indicating the process (no text or symbols present)

The brush bar can now be removed, starting at the button end.

Illustration of a syringe being cut with scissors, showing blade and ring structure (no text or symbols)

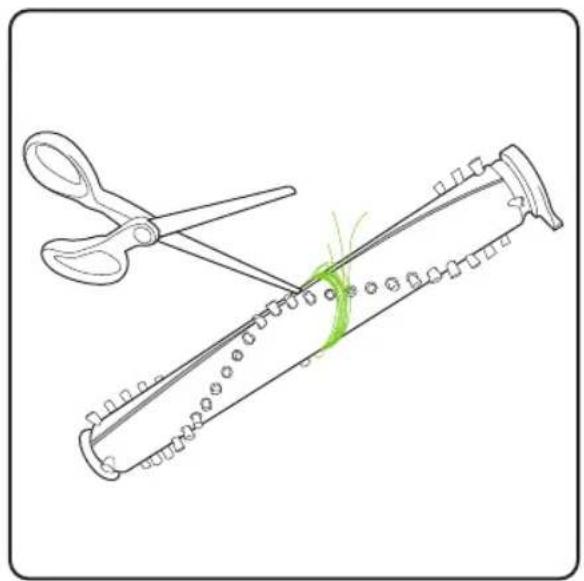

To remove hair from the brush bar, run an open pair of scissors down the groove to cut the hair, then pull it out.

Illustration of a hand using a tool to adjust or install a device component, with no visible text or symbols.

Re-insert the brush bar, starting by the end furthest away from the button. Then line up and push the brush bar into the AirRAM K9 until it clicks into place.

Illustration of hands holding a small mechanical component with a green arrow indicating downward motion (no text or symbols)

Replace the battery by sliding it down into the head assembly. It will click into place.

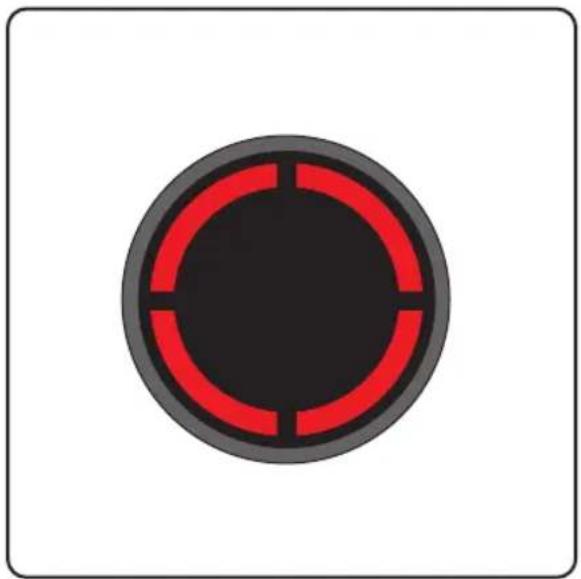

Clearing a jam / fault

Circular mechanical component with red and black segments, no text or symbols visible

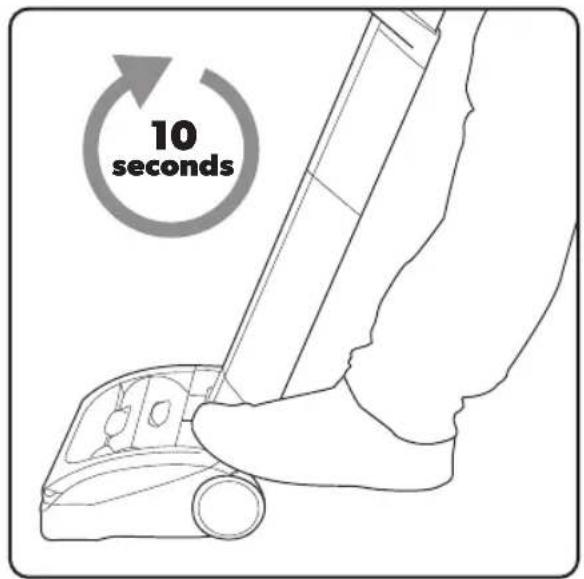

If the brush bar jams during use, the AirRAM K9 will stop and the LEDs will appear red. You will need to remove and clean the brush bar (see page 11).

The AirRAM K9 will not re-start until the red lights go out. This will take ten seconds.
If the problem persists, follow the troubleshooting instructions below.

Product Care

Your Gtech AirRAM K9 doesn't need much maintenance: keep the filters clean, keep the brush bar tangle-free and charge the battery. Wipe it with a dry cloth if it gets dirty, including under the bin.

Troubleshooting

AirRAM K9 is not cleaning well 1. Empty the bin2. Check bin is correctly fitted3. Check filter is correctly fitted4. Clean and/or replace filter5. Check brush bar fitment

AirRAM K9 has stopped or won’t work 1. Charge battery2. Clear debris from brush bar

Battery will not charge 1. Check the charger is correctly connected to the battery and mains supply2. Check wall socket

Product Support

If these initial tips don't solve your problem, we have various other ways to help.

Visit: www.gtech.co.uk/support

[e-mail] chat supportOnline How to Videos

AIRRAM K9

TECHNICAL SPECIFICATION

Battery model 103A022
Battery 22V 2000mAh Li-Ion
Charging period 4 hours
Battery charger output 27V DC 500mA
Weight 3.2kg

Scented Cartridge

Scented cartridge refills: Keep out of the reach of children. People suffering from perfume sensitivities should be cautious when using this product as it may produce an allergic reaction or cause sensitisation by skin contact. If swallowed, seek medical advice immediately and show this container or label. Toxic to aquatic organisms, may cause long-term adverse effects in the aquatic environment. Scented refills contain: Linalyl acetate, Limonene, Linalool, Lilial, Lavender oil, Vanillin, Borneol, Polysorbate 20

Multi K9: Operation

Diagram of a handheld device with green directional arrows indicating movement or force (no text or symbols)

The dusting brush can be slotted onto the active nozzle. The crevice tool is stored on board the product for easy access.

Line drawing of a handheld device with a yellow-orange lever and green arrow indicating motion (no text or symbols)

Press the button above the handle to turn the Multi K9 on and off.

An active nozzle is built into your Multi K9. The power brush, dusting brush, crevice tool and extension tube all attach to the active nozzle.

Power brush

Line drawing of a hand holding a device with an arrow indicating left-hand motion (no text or symbols)

Make sure the terminals on the Power Brush and Active nozzle are correctly lined up and gently push the Power brush onto the Active nozzle. The battery should be removed when changing attachments.

Illustration of a hand holding a handheld device with a green arrow indicating direction (no text or symbols)

Gently pull the Power Brush from the Multi K9 to remove. The battery should be removed when changing attachments.

Diagram of a device with a close-up view showing internal components and directional arrows (no text or symbols)

To clean the brush bar, first remove the power brush. Rotate the latch from the lock to the unlock position and pull out the brush bar.

Line drawing of a tool cutting through a cylindrical mechanical component with a green circular highlight (no text or symbols)

To remove hair from the brush bar, run an open pair of scissors down the groove to cut the hair, then pull it out. Never operate the power brush without the brush bar in.

Battery charging

Simple diagram with three horizontal bars and green arrows, no text or symbols present

When a single green light flashes, recharge the battery.

Line drawing of a Gtech electric shock absorber with connected cable (no text or symbols)

The battery can be charged on or off the main unit

After 4 hours, the LEDs turn solid green and charging is complete.

It is OK to charge for 1 hour for a burst of cleaning.

State of Charge

The battery state of charge indicator shows how much charge the Multi K9 has. As you use the product, the green lights will turn off in a downwards direction.

Line drawing of a car interior with a green indicator line (no text or symbols)

While the battery is on charge, the LEDs will pulsate and in turn illuminate. When the battery is fully charged all of the LEDs will be solid green.

Emptying the bin

Line drawing of hands operating a portable air conditioner with a green arrow indicating the action (no text or symbols present)

There's no latch, the bin just pulls off. It's easier if you wiggle it as you pull it.

Line drawing of hands holding a cylindrical device with a small component, placed on a plate (no text or symbols)

Hold the Multi K9's bin over a rubbish bin and release the latch to empty the dirt. A gentle tap will help. Remove the filter and tap off the excess debris each time you empty the bin.

Cleaning the filter

Illustration of hands holding a green cylindrical object with a black cap, no text or symbols present

Remove the filter by pulling it from the top of the bin. Tap the dirt from the filter and tip any dirt from the filter housing. Wash the filter if necessary.

3D diagram of a mechanical component with green and gray parts, showing a piston and shaft assembly (no text or symbols)

Before washing the filter, you will need to remove the scented cartridge by pulling it out from the scented cartridge housing at the top of the filter.

Illustration of two green plastic cups with liquid dripping from a pipe, no text or symbols present

Wash the filter under a tap, squeeze it out then let it dry completely before using it. Recommended water temperature 40°C. Do not use detergent or soaps. Use your spare filter while it dries.

(You can get more at www.gtech.co.uk) Never operate the Multi K9 without the filter inside the bin. You could damage the motor.

3D diagram of a mechanical component with green and gray parts, showing a shaft and housing assembly (no text or symbols)

Ensure tab is refitted on to filter before using.

Replacing the scented cartridges

Illustration of six cylindrical mechanical components with flanged ends, arranged in a cluster (no text or symbols)

Scented cartridges are available from Gtech: Go to www.gtech.co.uk or call 01905 345 891

Diagram of a test tube with liquid and a downward arrow indicating a decrease (no text or symbols present)

Remove a scented cartridge from the bag then slide the plastic sleeve off. Please refer to page 11 for scented cartridge health warnings.

Illustration of a green cylindrical device with a gray lid and a small mechanical component inserted, showing a green arrow indicating motion (no text or symbols)

Remove the old scented cartridge by pulling it out from the housing at the top of the filter.

3D mechanical assembly diagram showing a green cylindrical component inserted into a housing, with a small pin inserted (no text or symbols)

Place the new scented cartridge into the top of the filter. Never operate the Multi K9 without the scented cartridge fitted.

If the suction is low when the bin is empty and filter is clean...

Line drawing of a handheld device with green arrows indicating directional movement (no text or symbols)

...you have a blockage. Remove the battery & bin and look through both ends of the tube. Remove any blockages.

Technical illustration of a mechanical component with green directional arrows indicating assembly or movement (no text or symbols)

The tools can block too, sometimes.

Removing the battery

Line drawing of a hand holding a green component, no text or symbols present

Press the green buttons and pull to remove the battery. The battery can be charged on or off the main unit. If you want to buy a spare battery go to www.gtech.co.uk or call 01905 345891

22

Product Care

Your Gtech Multi K9 doesn't need much maintenance: keep the filter clean, check for blockages, remove hair from the brushbar and charge the battery. Wipe it with a dry cloth if it gets dirty, including the area under the bin. Never wash it with liquid, run it under a tap or use it without the filter.

Troubleshooting

Multi K9 is not cleaning well 1. Empty the bin2. Clean the holes in the filter housing3. Wash the filter4. Check for blockages5. Remove hair from brushbar

Multi K9 has stopped or won’t work 6. Charge the battery (check the socket works and is turned on)7. It might be blocked– check items 1 to 4 above

4 red lights displayed on battery 8. Brush bar jammed.9. Turn off Multi K9, remove the battery and clear the blockage.

Product Support

If these initial tips don't solve your problem, we have various other ways to help.

Visit: www.gtech.co.uk/support

[e-mail] chat supportOnline How to Videos

GTECH MULTI K9 TECHNICAL SPECIFICATION

Battery model 113A1003
Battery 22V 2000mAh Li-Ion
Charging period 4 hours
Battery charger output 27V DC 500mA
Weight (with standard nozzle) 1.5kg

Scented Cartridge

Scented cartridge refills: Keep out of the reach of children. People suffering from perfume sensitivities should be cautious when using this product as it may produce an allergic reaction or cause sensitisation by skin contact. If swallowed, seek medical advice immediately and show this container or label. Toxic to aquatic organisms, may cause long-term adverse effects in the aquatic environment. Scented refills contain: Linalyl acetate, Limonene, Linalool, Lilial, Lavender oil, Vanillin, Borneol, Polysorbate 20

WARRANTY - REGISTRATION

Visit www.gtech.co.uk/warrantyregistration to register your product to ensure that we have all the information required to provide you with quick and efficient support.

You will need both your product's serial codes.

Technical line drawing of a mechanical component with no visible text or symbols

Front view of a vehicle chassis with no visible text or symbols

If you purchased directly from Gtech your details are already registered and your 2 year warranty will start automatically.

If you purchased from an authorised Gtech retailer, please register your warranty within 3 months and you will need to provide proof of purchase to support any claim against your warranty.

WARRANTY – TERMS AND CONDITIONS

Your Gtech Multi K9 and AirRAM K9 are guaranteed against material or manufacturing faults for 2 years from the date of purchase, subject to the following terms and conditions:

WHAT ISN'T COVERED SUMMARY

Gtech does not guarantee the repair or replacement of a product as a result of:

• Normal wear and tear (e.g. filters & brush bar)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with Gtech operating manual.
- Blockages - please refer to the Gtech operating manual for details of how to unblock your vacuum cleaner.
- Use of the vacuum cleaner for anything other than the normal domestic household purposes.
- Use of parts and accessories which are not Gtech genuine components.
• Repairs or alterations carried out by parties other than Gtech or its authorised agents.
- If you are in doubt as to what is covered by your guarantee, please call the Gtech Customer Care Helpline on 01905 345 891.

• The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery/purchase before any work can be carried out on the vacuum cleaner. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Gtech or its authorised agents.
• Any parts which are replaced will become the property of Gtech.
• The repair or replacement of your vacuum cleaner is under guarantee and will not extend the period of guarantee.

The symbol indicates that this product is covered by legislation for waste electrical and electronic products (EN2002/96/EC)

When the vacuum has reached the end of its life, it and the Li-Ion battery it contains should not be disposed of with general household waste. The battery should be removed from the vacuum and both should be disposed of properly at a recognised recycling facility.

Call your local council, via amenity site, or recycling centre for information on the disposal and recycling of electrical products. Alternatively visit www.recycle-more.co.uk for advice on recycling and to find your nearest recycling facilities.

Grey Technology Limited

Brindley Road, Warndon, Worcester WR4 9FB

email: [e-mail]

telephone: [phone]

www.gtech.co.uk

CPN4122
