USER MANUAL Power Floor ATF038 G-TECHNOLOGY

Do not use outdoors or on wet surfaces.

WARNING: Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury:

Personal Safety:

• Store indoors in a dry place out of the reach of children.
• Always use responsibly. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Don't let children play with the appliance; supervise children using or maintaining the appliance.
• Use only manufacturer's recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those recommended, may present a risk of personal injury.
  • Take extra care when cleaning stairs.
• Keep the appliance and accessories away from hot surfaces.
• Do not block the appliances openings or hinder air flow; keep openings free of any objects including dust, lint, clothing, fingers (and all parts of the body).
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• The Power Floor does not stay upright without constant support. Between uses, lie flat on the floor in a suitable location so that it does not become a trip hazard or can be stepped on.

• The Power Floor can be used for above floor cleaning and hard to reach places. Extra care should be taken when using the Power Floor for above the floor cleaning.

Electrical safety:

- Only use batteries and chargers supplied by Gtech.

- Never modify the charger in any way.

- The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack; never use the charger with another appliance or attempt to charge this product with another charger.

- Before use, check the charger cord for signs of damage or ageing.

A damaged or entangled charger cord increases the risk of fire and electric shock.

- Do not abuse the charger cord.

- Never carry the charger by the cord.

- Do not pull the cord to disconnect from a socket; grasp the plug and pull to disconnect.

- Don't wrap the cord around the charger when storing.

- Keep the charger cord away from hot surfaces and sharp edges.

- The supply cord cannot be replaced. If the cord is damaged the charger should be discarded and replaced.

- Do not handle the charger or the appliance with wet hands.

- Do not store or charge the appliance

outdoors.

- The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.

- Ensure the appliance is off before connecting or disconnecting the motorised brush bar.

Battery safety:

- This appliance includes Li-Ion batteries; do not incinerate batteries or expose to high temperatures, as they may explode.

- Do not incinerate the appliance even if it is severely damaged. The batteries can explode in a fire.

- Liquid ejected from the battery may cause irritation or burns.

• In an emergency situation contact professional help immediately!

- Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets on the skin wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations.

- Shorting the battery terminals may cause burns or fire.

- When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.

- When you dispose of the appliance remove the battery and dispose of the battery safely in accordance with local regulations.

Service:

- CAUTION – To reduce the risk of injury from moving parts, remove battery before servicing.

- Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary.

- Do not use the appliance if any part is damaged or defective.

• Repairs should be carried out by a

service agent or a suitably qualified person in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous.

- Never modify the appliance in any way as this may increase the risk of personal injury.

- Only use replacement parts or accessories provided or recommended by Gtech.

Intended use:

- This appliance has been designed for domestic dry vacuum cleaning only.

- Do not pick up liquids or use on wet surfaces.

- Do not pick up anything that is flammable, burning or smoking.

- Use only as described in this manual.

- Don't use on concrete, tarmacadam or other rough surfaces.

- The brush bar may damage certain floor surfaces. Before vacuuming flooring, rugs or carpets, check the flooring manufacturer's recommended cleaning instructions.

- May damage delicate fabrics or upholstery. Care should be taken on loose-weave fabrics or where there are loose threads. If in doubt please test on an inconspicuous area first.

- The Power Floor has a constantly rotating brush bar. Never leave the Power floor head in one spot for an extended period of time as this may damage the area being cleaned.

WARNING:

- Do not use water, solvents, or polishes to clean the outside of the appliance; wipe clean with a dry cloth.

- Never immerse the unit in water and do not clean in a dish washer.

- Never use the appliance without the filter fitted.

- For household use only.

Thank you for choosing a Gtech Power Floor

"I started Gtech to create sensible, easy to use products, which do a great job. Your opinion is important to us. Please take the time to write a review of the Power Floor either on the website of the store you bought it from or at Trustpilot.co.uk. We will use your feedback to improve our products and services and let other people know what it's like to be part of the Gtech family." Nick Grey – Inventor, Owner of Gtech

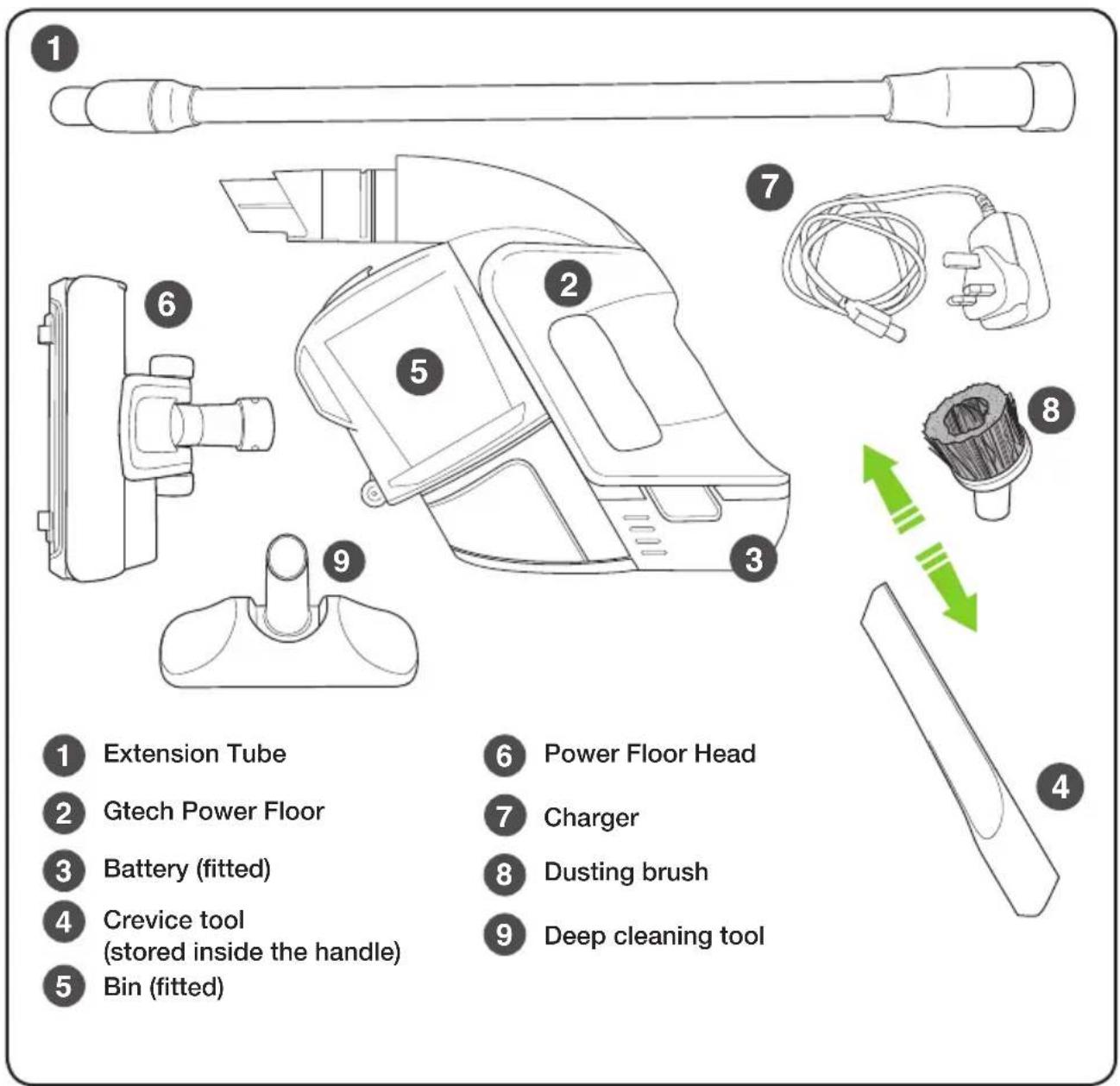

What's in the box

1 2 3 4 5 6 7 8 9 10 Extension Tube Gtech Power Floor Battery (fitted) Crevice tool (stored inside the handle) Bin (fitted) 6 Power Floor Head 7 Charger 8 Dusting brush 9 Deep cleaning tool

PRODUCT SERIAL NUMBER:

You can find this on the underside of your product

Tool configurations

There are many configurations for the Power Floor. Refer to this diagram to see how each tool can be attached and used.

Operation

Line drawing of a handheld device with yellow lever and green arrow indicating direction (no text or symbols)

Press the button above the handle to turn the Power Floor on and off.

Line drawing of a handheld device with a green arrow indicating direction (no text or symbols)

The crevice tool is stored inside the handle.

Power Floor head assembly

Illustration of two hands holding a flashlight, one pointing at it with a green arrow indicating direction (no text or symbols)

The power must be off while changing tools. Take the Power Floor head and attach it to the extension tube.
The battery must be removed when changing attachments.

Diagram illustrating foot positioning technique with labeled parts and directional arrows indicating movement or force direction

Attach the Power Floor to the extension tube, making sure the white dots are aligned. The extension tube will click into place when correctly fitted

Above the floor cleaning

Line drawing of a person using a handheld device (no text or symbols)

For above the floor cleaning you can fit the crevice tool or dusting brush for close-to work...

Line drawing of a person using a handheld vacuum cleaner (no text or symbols present)

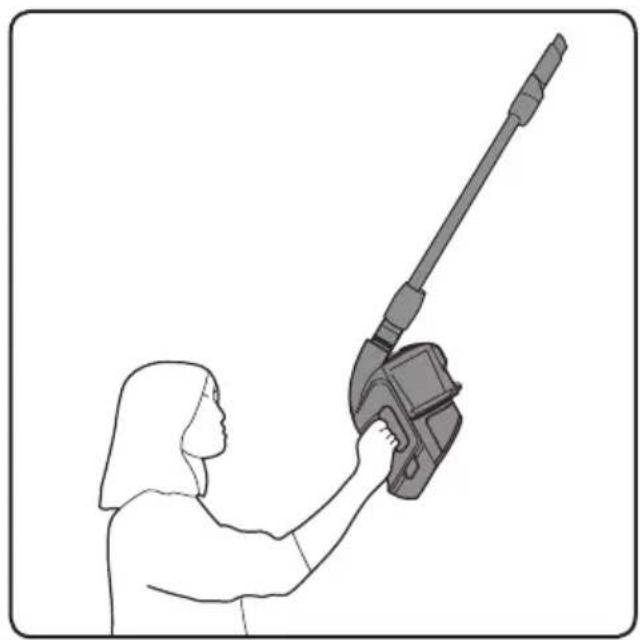

...or fit the extension tube with an accessory for high-up cleaning.

Emptying the bin

Line drawing of hands operating a portable device with a green arrow indicating the motion (no text or symbols)

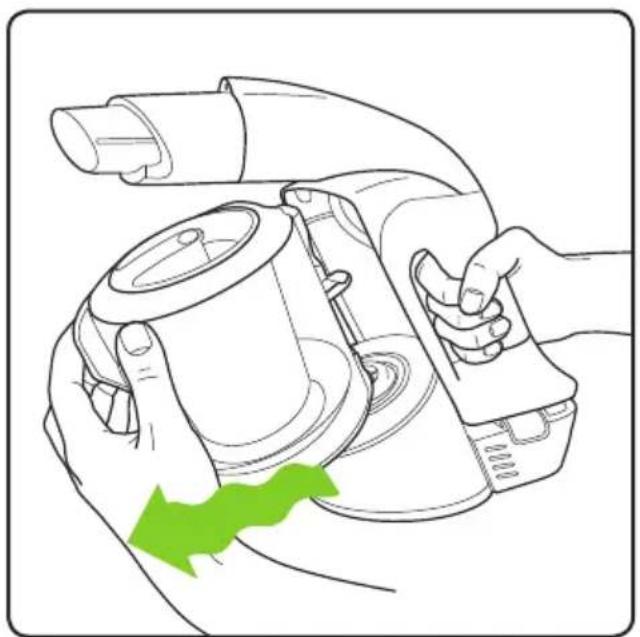

There's no latch, the bin just pulls off. It's easier if you wiggle it as you pull it.

Line drawing of hands holding a camera module with a small screen, placed on a circular surface (no text or symbols)

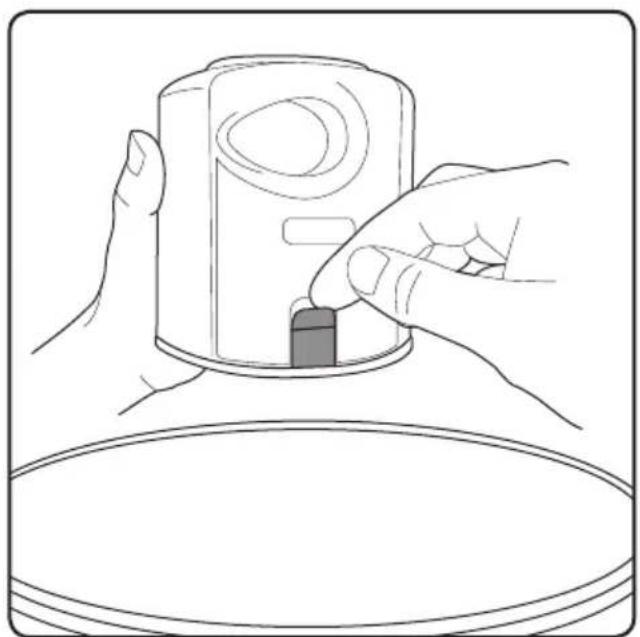

Hold the Power Floor bin over a rubbish bin and release the latch to empty the dirt.

Battery charging

Simple diagram with three horizontal bars and green gradient bars, no text or symbols present

When a single green light flashes, recharge the battery.

Line drawing of a medical device connected to a Gtech device (no text or symbols present)

The battery can be charged on or off the main unit.

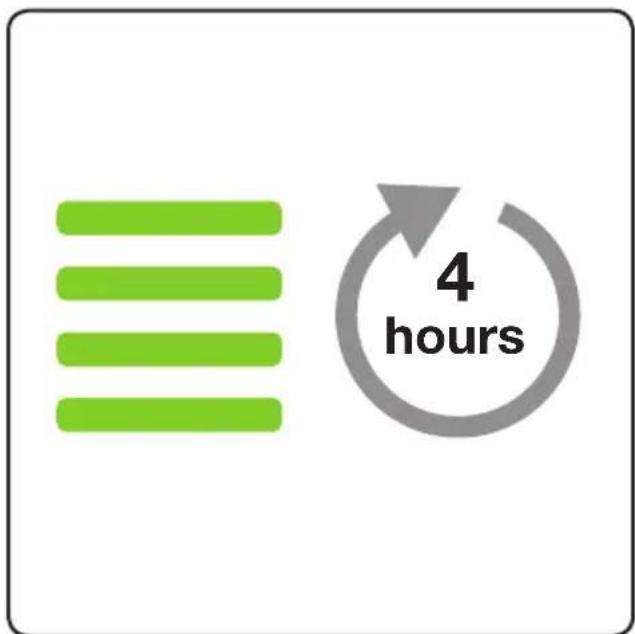

3 4 hours

After 4 hours the LEDs turn solid green and charging is complete.

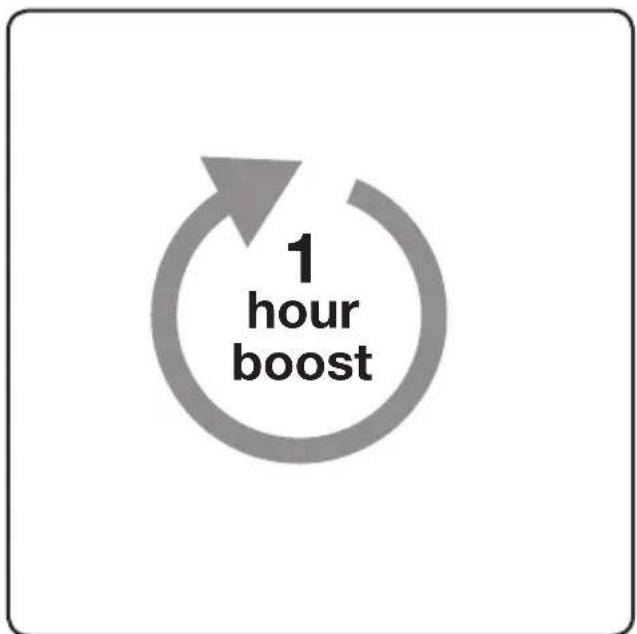

1 hour boost

It is OK to charge for 1 hour for a burst of cleaning.

Removing and cleaning the brush bar

Line drawing of a hand holding a flashlight above a device, with a green arrow indicating the process (no text or symbols present)

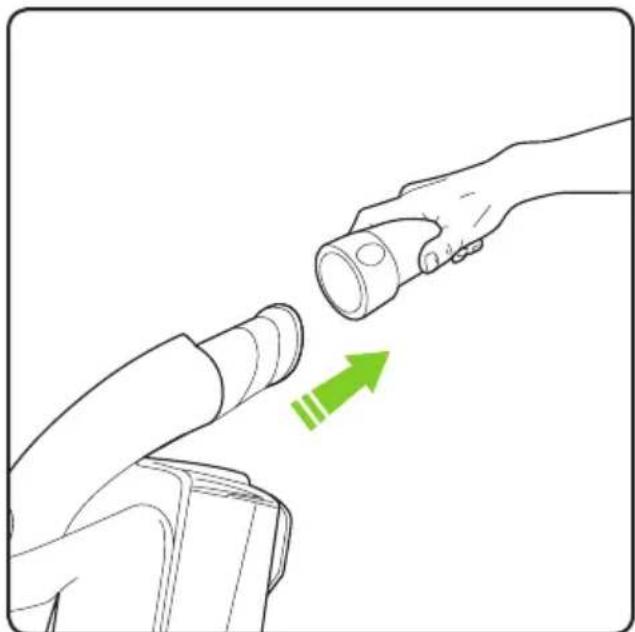

Remove the extension tube from the Power Floor by pulling gently on the green locking ring.

Illustration of a hand holding a tool with a green arrow indicating direction (no text or symbols)

Before you remove the brush bar, you will need to remove the Power Floor head from the extension tube. Gently pull on the green locking ring attached to the Power Head to remove.

Technical illustration of a mechanical component with green directional arrows indicating rotation, plus a close-up view of its internal structure (no text or symbols)

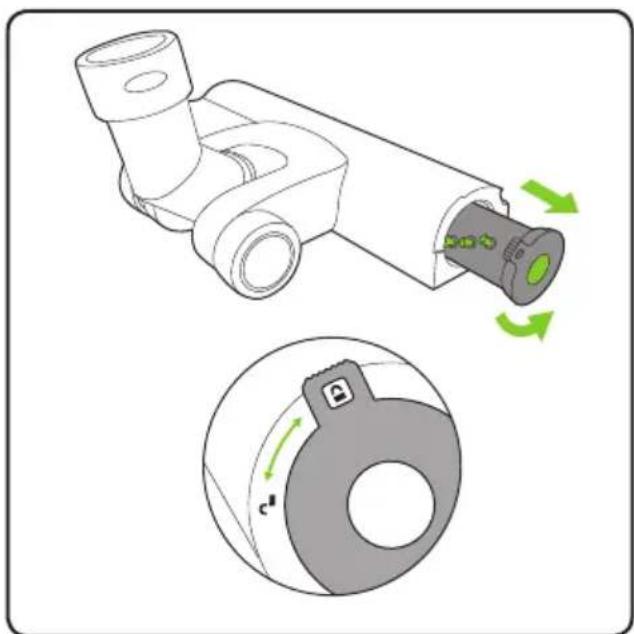

Before you remove the brush bar, you will need to remove both the battery and Power Floor head from the product. Rotate the latch on the side of the Power Floor head to the 'unlock' position and pull out the brush bar.

Line drawing of a syringe with scissors and a green circular mark on its side (no text or symbols)

To remove hair from the brush bar, run an open pair of scissors down the groove to cut the hair, then pull it out. Never operate the Power Floor head without the brush bar in.

Cleaning the filter

Illustration of hands holding a green cylindrical object with a black lid, no text or symbols present

Remove the filter by pulling it from the top of the bin. Tap the dirt from the filter and tip any dirt from the filter housing. Wash the filter if necessary.

Illustration of two green plastic cups with liquid dripping from each other, being handled by a hand (no text or symbols)

Wash the filter under a tap, squeeze it out then let it dry completely before using it. Recommended water temp 40°C do not use any detergent.

(You can get more at www.gtech.co.uk) Never put the bin back without the filter inside. You could damage the motor.

Removing the battery

Line drawing of a hand holding a green component, no text or symbols present

Press the green buttons and pull to remove the battery. The battery can be charged on or off the main unit. If you want to buy a spare battery go to www.gtech.co.uk or call 01905 345 891

State of Charge

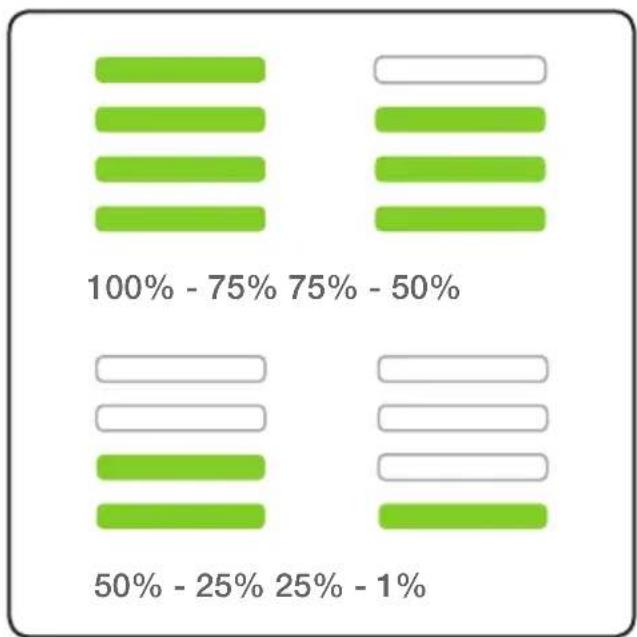

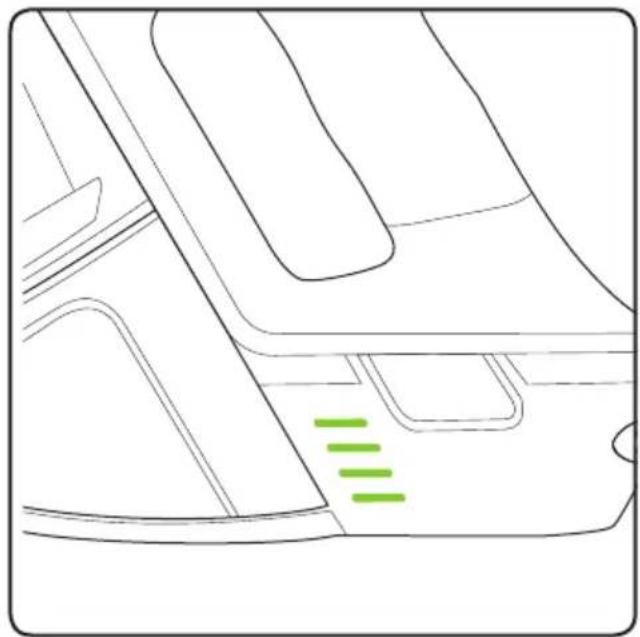

The battery state of charge indicator shows how much charge the Power Floor has. As you use the product, the green lights will turn off in a downwards direction.

Line drawing of a vehicle's front and side views with a green indicator line (no text or symbols)

While the battery is on charge, the LEDs will pulsate and in turn illuminate. When the battery is fully charged all of the LEDs will be solid green.

If the suction is low when the bin is empty and filter is clean... you have a blockage.

Technical line drawing of a handheld device with green arrows indicating directional movement (no text or symbols)

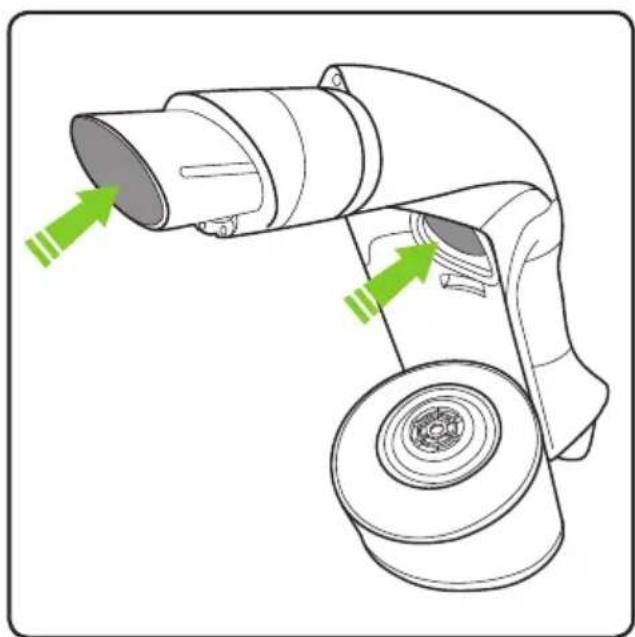

Remove the battery & bin from the body and look through both ends of the tube. Remove any blockages.

Technical illustration of a mechanical component with green arrows indicating parts of motion (no text or symbols)

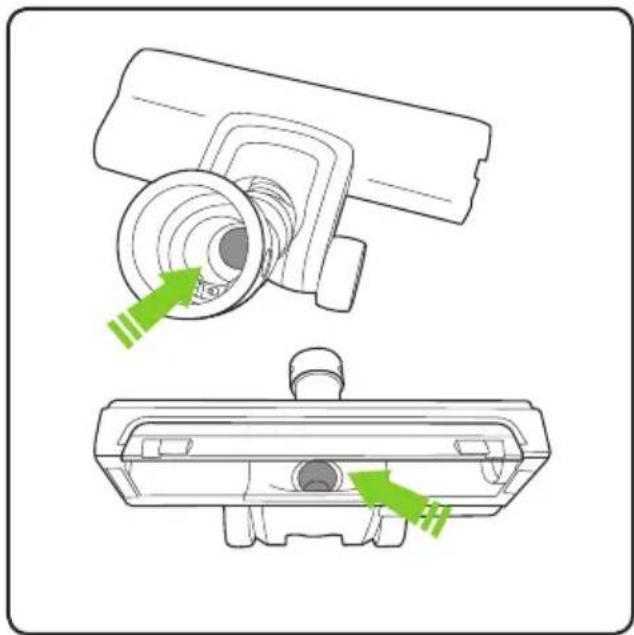

The Power Floor head can also get blocked. To check for blockages thoroughly, remove the brush bar. (See page 9)

Technical line drawing of a mechanical component with two views, one showing a cutaway view and the other a flanged end (no text or symbols)

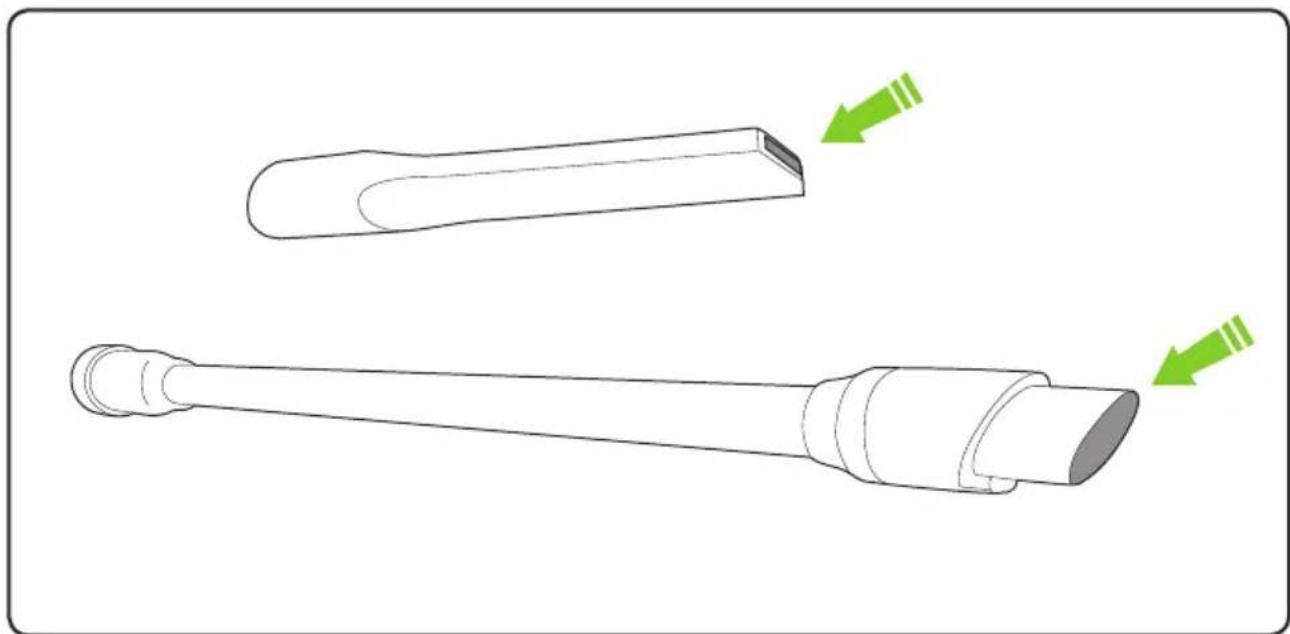

The extension tube and crevice tool can sometimes block too.

Product Care

Your Gtech Power Floor doesn't need much maintenance: keep the filter clean, check for blockages and charge the battery. Wipe it with a dry cloth if it gets dirty, including the area under the bin. Never wash it with liquid, run it under a tap or use it without the filter.

Troubleshooting

Power Floor is not cleaning well 1. Empty the bin2. Clean the holes in the filter housing3. Wash the filter4. Check for blockages5. Remove hair from brushbar

Power Floor has stopped or won’t work6. Charge the battery (check the socket works and is turned on)7. It might be blocked– check items 1 to 4 above

4 Red lights displayed on battery8. Brush bar jammed.9. Turn off Power Floor, remove the battery and clear the blockage.

If this doesn’t solve your problem don’t worry, we will help.Go to www.gtech.co.uk or call 01905 345 891

GTECH POWER FLOOR TECHNICAL SPECIFICATION

Battery model 113A1003
Battery 22V 2000mAh Li-Ion
Charging period 4 hours
Battery charger output 27V DC 500mA
Weight (with active nozzle) 1.6kg

If your Gtech Power Floor breaks, don't worry, we're here to help.

Go to www.gtech.co.uk or call 01905 345 891 for assistance.

To qualify for your 2-year warranty, register your Power Floor within 3 months of purchase at:

www.gtech.co.uk/warrantyregistration or call 08000 518353

WHAT ISN'T COVERED SUMMARY

Gtech does not guarantee the repair or replacement of a product as a result of:

• Normal wear and tear (e.g. filters & brush bar)
• Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with Gtech Power Floor operating manual.
• Blockages - please refer to the Gtech Power Floor operating manual for details of how to unblock your vacuum cleaner.
• Use of the vacuum cleaner for anything other than the normal domestic household purposes.
• Use of parts and accessories which are not Gtech genuine components.
• Faulty installation (except where installed by Gtech)
• Repairs or alterations carried out by parties other than Gtech or its authorised agents.

• If you are in doubt as to what is covered by your guarantee, please call 01905 345 891.

• The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).

• You must provide proof of delivery/purchase before any work can be carried out on the vacuum cleaner. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Gtech or its authorised agents.
• Any parts which are replaced will become the property of Gtech.
• The repair or replacement of your vacuum cleaner is under guarantee and will not extend the period of guarantee.

The symbol indicates that this product is covered by legislation for waste electrical and electronic products (EN2002/96/EC)

When the vacuum has reached the end of its life, it and the Li-Ion battery it contains should not be disposed of with general household waste. The battery should be removed from the vacuum and both should be disposed of properly at a recognised recycling facility.

Call your local council, via amenity site, or recycling centre for information on the disposal and recycling of electrical products. Alternatively visit www.recycle-more.co.uk for advice on recycling and to find your nearest recycling facilities.

CE

Grey Technology Limited

Brindley Road, Warndon, Worcester WR4 9FB

email: [e-mail]

telephone: [phone]

www.gtech.co.uk
