PLSD131BT - Mp3 player Pyle - Free user manual and instructions

Product Type	Portable MP3 Player
Brand	Pyle
Model	PLSD131BT
Dimensions (approx.)	100 x 50 x 12 mm
Weight (approx.)	80 g
Power Source	Built-in rechargeable lithium-ion battery (3.7V, 300mAh)
Charging	Via Micro USB cable (included)
Playback Formats	MP3, WMA, WAV, FLAC
Bluetooth Version	v4.2 with A2DP, AVRCP
FM Radio	Yes, with presets
Memory Card Support	Micro SD up to 32 GB
Display	1.8-inch color LCD display
Controls	Physical buttons: Menu, Play/Pause, Next/Previous, Volume
Audio Output	3.5mm headphone jack
Battery Life	Up to 10 hours continuous playback
Care and Cleaning	Wipe with a soft dry cloth. Avoid liquids and direct sunlight.
Safety	Do not expose to moisture or extreme temperatures. Use only supplied charger.
Spare Parts & Repairability	Battery replacement and USB port repair possible via authorized service centers.
General Information	Comes with earphones, USB cable, user manual. Color: Black.
Warranty	1 year limited warranty

Frequently Asked Questions - PLSD131BT Pyle

How do I turn on the PLSD131BT?

Press and hold the Play/Pause button for 3 seconds until the screen lights up.

How do I pair via Bluetooth?

Turn on Bluetooth on your device, then press the Menu button to enter Bluetooth mode. Select "Pyle PLSD131BT" from the list.

What file types are supported?

It supports MP3, WMA, WAV, and FLAC audio files.

Can I use a micro SD card?

Yes, insert a micro SD card up to 32 GB into the slot on the side.

How do I charge the device?

Use the included Micro USB cable and connect to a USB power source (5V/1A). Charging takes about 3 hours.

How long does the battery last?

The battery lasts up to 10 hours of continuous playback at moderate volume.

How do I reset the player if it freezes?

Press the Reset button (tiny hole) with a paperclip, or press and hold the Power button for 10 seconds.

Can I listen to FM radio?

Yes, press Menu and select FM Radio. Use headphones as antenna. Auto-scan to find stations.

How do I adjust the equalizer?

Go to Settings > EQ and choose from presets like Pop, Rock, Classic, etc.

Does it support playlists?

Yes, you can create .M3U playlists on your computer and copy them to the player's memory or SD card.

USER MANUAL PLSD131BT Pyle

Close-up of a black remote control with blue and red buttons, no visible text or symbols on the device itself.

• Motorized Foldout Monitor Holder 13.3 Inch Million Multi-color Illumination
• TFT Touch Screen
  • Detachable Control Panel
• Remote Control
  • Digital Video Disc Player
  • Control Panel USB Port and AUX Input
  SD/MMC Card Slot
  • AM/FM-RDS Digital PLL Tuning Radio
• BT Compatible

USER MANUAL

To ensure safety while driving

and to comply with laws,

drivers should not watch video or

operate the video device while driving.

Precaution.... 2

Safety Information.... 3

Disc Note...... 4

Installation 5

Electric Connection 10

Remote Control 11

Basic Operation 14

Main Menu Operation.... 14

Setting animation.... 14

Setting disc.... 15

Setting radio.... 15

Setting BT.... 15

Setting wallpaper.... 15

Version about.... 15

Setting time.... 15

Setting audio mode.... 16

Setting video mode.... 16

Setting OSD language.... 16

Setting illumination color.... 16

TFT display calibration. 17

Reset Factory Settings 17

Rear View Camera 17

Alternate Audio Source.... 17

Control Panel 18

Unit keys 18

Radio Operation.... 20

Listening to the radio 20

Storing and Listening to a memory station 20

Automatic Memory Storing & Program Scanning.... 20

RDS function.... 21

Media Operation.... 23

Basic Operation 24

Selecting Play Mode 24

On-Screen Display Function 25

Digital Video Special Function...... 26

Multi-Subtitle Language function...... 26

Multi-audio language Function...... 26

Title menu function 26

BT Operation.... 27

AUX Operation 30

AV Operation.... 31

USB Operation 32

Card Operation 32

SWC Operation.... 33

Specification 34

Troubleshooting.... 35

THANK YOU FOR PURCHASING THIS CAR DIGITAL VIDEO PLAYER.

Before operating the unit, read this manual thoroughly and keep it handy for future reference.

To avoid injury or accident, read the following precautions before installing and operating the unit.

ON INSTALLATION

- DO NOT install any receiver in locations where;

- it may obstruct the steering wheel and gearshift lever operations, as this may result in a traffic accident.

- it may obstruct the operation of safety devices such as air bags, as this may result in a fatal accident.

- it may obstruct visibility.

- DO NOT operate any receiver while manipulating the steering wheel, as this may result in a traffic accident.

- The driver must not watch the monitor while driving.

- IF THE DRIVER watches the monitor while driving, it may lead to carelessness and cause an accident.

- IF YOU NEED to operate the receive while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

- IF THE PARKING BRAKE is not engaged. "ParkingBrake" flashes on the monitor, and no playback picture will be shown.

- This warning appears only when the parking brake wire is connected to the parking brake system built in the car ( refer to the electric connection)

ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL

Do not press on the LCD panel on the unit as doing so can distort the picture or cause a malfunction. The picture may become unclear, or the LCD panel may be damaged.

NOTES ON CLEANING

-Clean the LCD panel with a slightly damp soft cloth.

-Do not use solvents such as benzine, thinner, commercially available cleaners or antistatic spray.

-Do not use alcohol to clean the screen.

If your car was parked in a cold or hot place, the picture may not be clear. The monitor is not damaged. The picture will become clear the temperature in your car becomes normal.

CAUTION:

THIS DIGITAL VIDEO PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DIGITAL VIDEO PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE.

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DIGITAL VIDEO PLAYER CORRECTLY AS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

REGION MANAGEMENT INFORMATION:

This Digital Video Player is designed and manufactured to respond to the Region Management Information that is recorded on a Digital Video disc. If the Region number described on the Digital Video disc does not correspond to the Region number of this Digital Video Player, this Digital Video Player cannot play this disc.

Disc formats supported by this player

Digital Video	Digital Video	Audio and VideoDisc size 12 cm
VCD	VCD	Audio and VideoDisc size 12 cm
CD	CD	AudioDisc size 12 cm
MP3	MP3	AudioDisc size 12 cm

Discs which cannot be played with this player

• Digital Video-RAM
  • CDV
  CDG

Handling and Cleaning

• Dirt, dust, scratches and warping disc will cause misoperation.
• Do not place stickers or make scratches on discs.
• Do not warp discs.
• A disc should always be kept in its case when not in use to prevent from damaging.

• Do not place discs in the following places:

• Direct sunlight

• Dirty, dusty and damp areas
  3.Near car heaters
• On the seats or dashboard

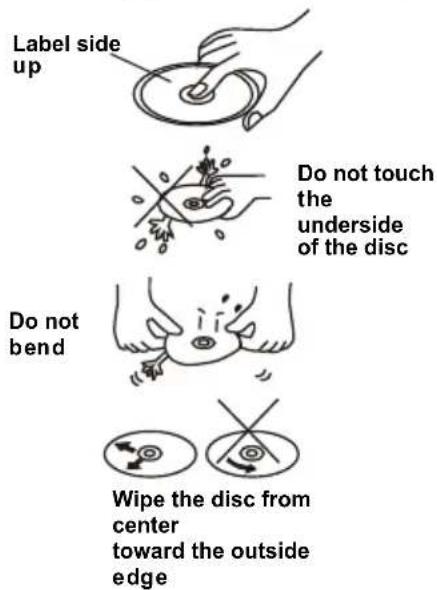

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become somewhat scratched (although not enough to make it

unusable) depending on your handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

Preparing New Discs with Rough Spots

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right. To remove the rough edges, press the side of the pen or pencil against the inside and outside edges of the disc.

NOTES:

Choose the mounting location where the unit will not interfere with the normal driving function of the driver.

Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.

Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.

Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.

If installation angle exceeds 30 from horizontal, the unit might not give its optimum performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front"(conventional DIN Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

INSTALLATION STEPS

1. Remove the chassis from Slide Bracket Housing;

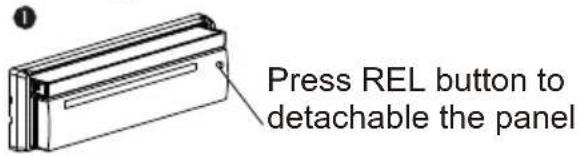

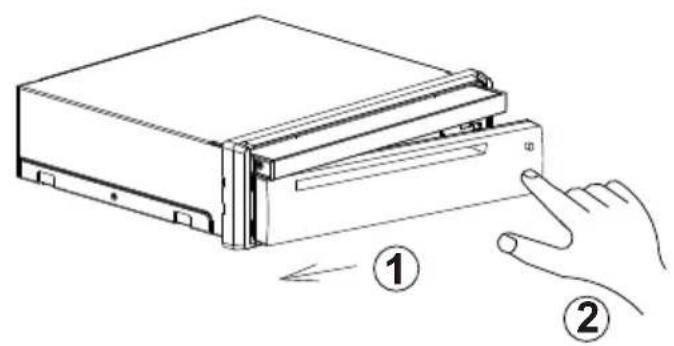

   1) Press the REL button to release the control panel ;

Technical line drawing of a rectangular electronic device with a side panel and mounting bracket (no text or symbols)

REL button

2) Hold the right side of the control panel to pull it rightwards a little and then to you for removing it;

3) Remove the PLASTIC FRAME from the chassis (see the Installation diagram);
4) Insert the 2 KEY PLATES into the grooves at the both sides of the chassis till they click(see the Installation diagram);
5) Pulling the two KEY PLATES to remove the chassis from the Slide Bracket Housing ;

1. Mount the Sliding Bracket Housing in the position of car multi-media system and bend some tabs of Sliding Bracket Housing to fix it.

2. Connecting all wires:

1) Connecting all wires according to the wiring diagram on next page;

2) Attaching the control panel onto the chassis;
(1) Insert the left side of the control panel into the hollow of the chassis. (NOTE: the "bulge" point on the control panel must be attached into the hollow of the chassis.)
(2) Gently push the right side of the control panel till you feel a "Click".

3) Testing it for making sure that it can work properly.

1. Installing chassis according to the installation diagram on next page:

1) Insert the chassis of the car multi-media system into the Sliding Bracket Housing.

2) Use the metal strap to fix the rear part of chassis.

1. Installing the monitor refer to next next page.

* Uninstalling the chassis:

1) removing the monitor refer to next next page

2) Remove the metal strap from the chassis ;

3) Remove the control panel from the chassis;

4) Remove the plastic frame from the chassis;

5) Insert 2 key plates into the left and right sides of the chassis and draw the chassis out of the sliding bracket housing.

Installing the unit

If you want to take CHASSIS out of the SLIDE BRACKET HOUSING, first remove the PLASTIC TRIM OUT of the both sides away, then insert the two KEY PLATE into left and right side of chassis as above illustration.

Installing the monitor.

1) Press the OPEN/MONITOR-ANGLE button to slide the monitor holder out and stand it up.
2) Insert the 2 bulges of the monitor into the 2 hollows of the monitor holder and flip up the monitor, then push the top middle part of the monitor to make the monitor attach onto the monitor holder.

Removing the monitor.

1) Push the MONITOR REL to detach the monitor from the monitor holder;
2) Hold the top part of the monitor to pull away from the monitor holder and lift it up to remove it.

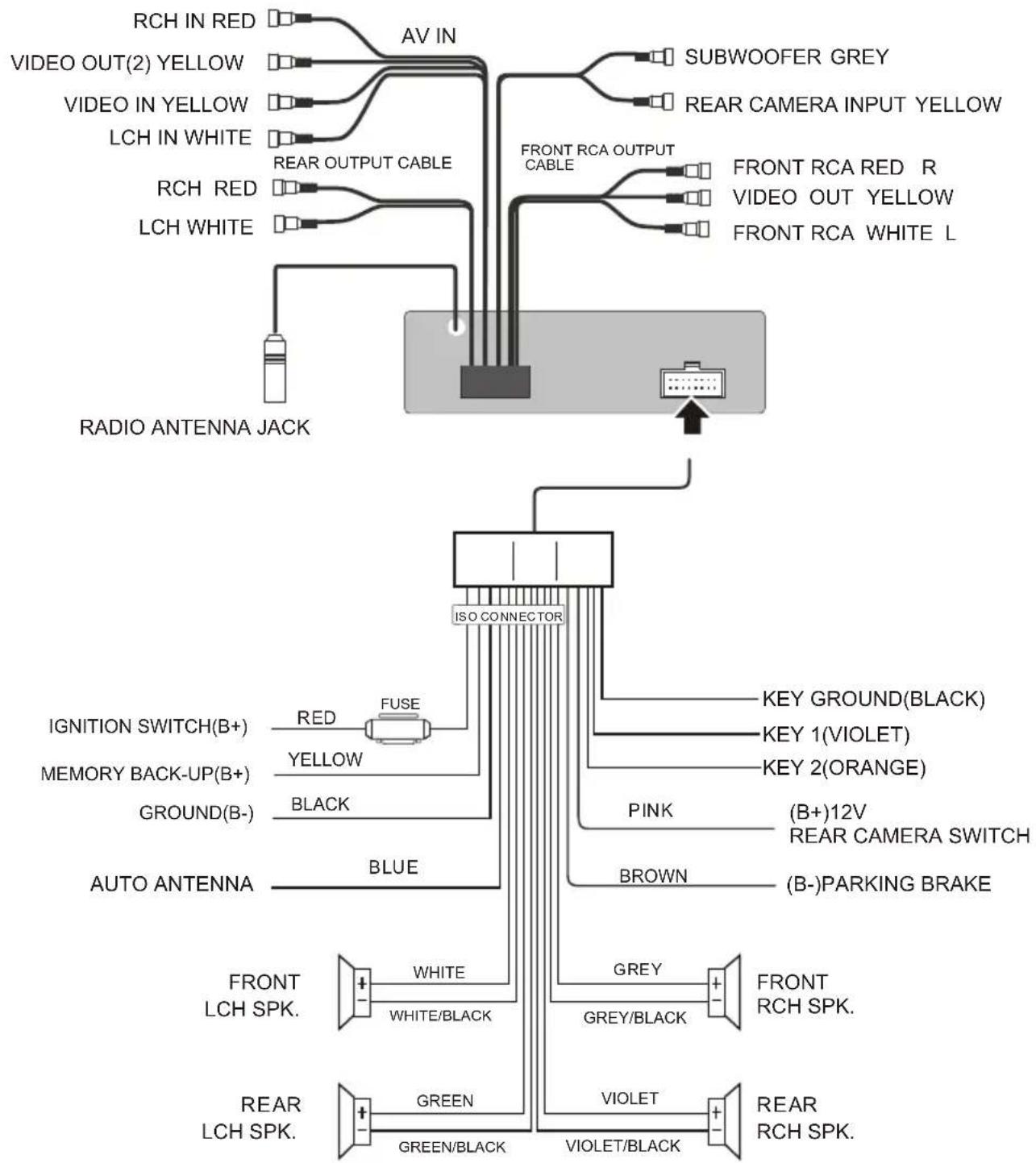

WIRING CONNECTION

Note:

the earth connection cable (parking brake B-) must be connected in order for pictures to be played back to the monitor. If the cable has not been correctly connected, the message "PARKING BRAKE" appears on the monitor.

Ref #	Button	Function
1	CLK	Press it briefly to view the clock time .
2	PAIR/ ↻	Pres s it to us e the BT function , refer to se e BT operation .
3	STOP	Press once to pause playback. Press PLAY/PAUSE to resume playback. Please note: if you press STOP twice, playback will start at the beginning of the disc.
4	SETUP	Press this button to open the SETUP menu.
5	MO/ST (AUDIO)	In Radio mode, press this button to change between Mono and Stereo reception modes (when a station is weak, sometimes switching to Mono will improve sound quality). In Disc Playback mode, pressing this button opens the AUDIO setup menu for making changes to the way the soundtrack is reproduced.
6	SUBTITLE LOCAL/ DISTANT	In Digital Video Disc Playback mode, pressing this button will allow you to change the subtitle language on discs which have this as an option.In Radio mode, press this button to change the radio reception sensitivity in stations are near or far.
7	Redial/ ↻	Pres s it to use the BT funct ion , refer to see BT operation .
8	GOTO ✘	Press it button to begin playback at a moment in the program you designate. Use number buttons to enter the data that is needed. In BT menu, it serves as the asterisk button on your mobile handset.
9	▶/◀	Press these buttons to skip ahead or back one track.
10	SEL	Press the SEL(except radio mode) to switch between BASS,TREBLE, BALANCE, FADE,COLOR,RIGHTNESS, CONTRAST, TINT, BT, REG (in radio mode),PI(in radio mode), TA(in radio mode), AF(in radio mode), LOUD, SWF, EQ, DX/LOCAL(in radio mode),STEREO/MONO(in radio mode), TIME 12H/24H,CLOCK, BEEP, EUR/USA FREQ, ANIMATION. After switching on the desired mode above, rotate VOL knob to set it.
11	VOL+/-	Use these controls to adjust the volume level.
12	◀/◀/▲ ▼	Press to navigate the various menus present in the product.
13	Menu SubWoofer ( ◎w )	Press this button briefly to display the root level directory of a Digital Video disc. Press and hold this button to switch SWF FREQ between 80HZ, 120HZ and 160HZ .
14	BAND (OSD)	In Radio mode, press this button repeatedly to switch between the five radio bands: FM1 > FM2 > FM3 > AM1(MW1) > AM2 (MW2). In Disc Playback modes, Press this button to see information about the disc currently in play.
15	◀/MOD	Press this button to turn the unit ON, press and hold to turn the unit OFF. Press it briefly to select a desired work source.
16	PLAY/ PAUSE	In Disc Playback mode, press to pause playback. Press again to start where playback stopped.
17	MUTE	Press this button to turn off the audio. Press again to restore the sound to its prior volume level.
18	TITLE/ PBC(A/P)	When playing a Digital Video, pressing this button will open the TITLE menu which is recorded on the media. When playing a VCD disc, press this button to create a PBC (Playback Control) menu for the disc to assist in making playback selections. In Radio mode, press and hold this button to start the Auto-Program mode, during which the tuner will scan for all strong stations and assign them to the radio preset buttons.
19	◀	Press this button to Open/Close the operate monitor .Long press it to adjust the angle of monitor Upward/Downward
20	ZOOM	Shortly press it button to increase the picture in size .
21	EQ/LOUD	Press repeatedly to cycle through the different equalizer curve presets you may wish to use for enhanced listening. Press longer to switch the LOUDNESS function between LOW, MIDDLE, HIGH and OFF.
22	▶	In Disc Playback mode, press for fast forward playback.

Remote Control

Ref #	Button	Function
23	ENTER	This button is used to confirm selections and settings within many of the menus in the OSD system.
24		In DISC mode, press it to reverse rapidly
25	0-90/TA9/AF	Use to input numerical values during programming, with the GOTO button, or to directly select a track to play.In Radio mode, (when the RDS engaged,), 0 serves as TA function, 9 serves as the AF function .
26	+10/#	This button is used with the other number buttons for use with two-digit number entries. In BT menu, it serves as the hash button on your mobile handset.
27	1-6	Six numbered preset buttons store and recall stations for each band

Preparing the Remote Control

Inserting the Battery

1. First push to inside as the direction indicated by the arrow (See ①) And then Remove the battery holder as the direction indicated by the arrow (See ②).
2. Replace the battery Set a new battery property with (+)side up as illustrated (See ③).
3. Insert the battery holder. Push in the holder to the original position(See 4).

Using the Remote Control

Face the remote control towards the player front face IR mark (remote control signal receiver).

Operation angle: About 30 degree in each the direction of the front of the IR mark.

Note :

The lithium cell in the battery compartment of remote control has been secured for transport with a foil. Before initial use please remove this foil so that the remote control is ready for operation.

Main Menu Operation

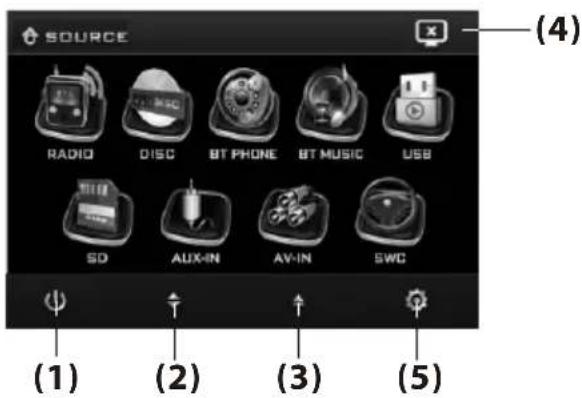

In many modes, touch the ← icon or touch the 🔒 range to enter the main menu, the message like following as below.

1. POWER icon

In any modes, touch the POWER icon to switch the unit off. The monitor will draw in automatically.

1. UP/DOWN icon

Touch this icon to adjust the angle of the monitor upward or downward until your desired angle.

1. EJECT icon

Touch to allow for inserting or ejecting disc.

1. When the unit is power on, tap to turn off the display and the unit still work, tap anywhere of the display to turn on the display again.

2. SETUP icon

Touch to enter the SETTING mode, the message will display as follow :

Touch the " 🔍 " section on the setting menu, touch the " ◀ ranges to select the adjustment item, Touch the " ↩ " icon to return to the previous playback.

Setup interface 1

Setup interface 2

ADJUSTABLE ITEMS:

General setup interface1

General setup interface2

ANIMATION

In RADIO mode, you can change the playing time of animation among of "OFF, 10S, 30S, 1M, 90S, 2M, 3M and 4M".

Note:

Please set the playing time of the animation to "10S" for the first, when you turn the unit on.

KEY BEEP : ON or OFF.

Disc setup as follow:

FORMAT

This player is capable of playing discs recorded in either PAL or NTSC formats. Make the selection based on whether you are connecting the unit to a PAL TV or an NTSC TV. You can also set the unit to AUTO (auto select). The disadvantage to autoselect is that each time you turn the unit on it checks to see what kind of monitor is connected, which causes a small delay and some flickering of the display image which you may find unpleasant.

TV TYPE

This is to select the appropriate TV aspect (4:3 or 16:9) according to the connected TV set.

Normal/PS (For 4:3 TV)

Played back in the PAN & SCAN style. (If connected to wide-screen TV, the left and right edges are cut off.)

Normal/LB (For 4:3 TV)

Played back in LETTER BOX style. (If connected to wide-screen TV, black bands appear at top and bottom of the screen.)

Wide (For 16:9 TV)

Select when a wide-screen TV set is connected.

RATING

Select to turn Parental Control on or off. The factory default password is 0000. (The password must be used to make changes to the Parental Control menu below.)

Key in "0000" and then turn to rating then you can setting as follow:

KID SAFE -> G -> PG -> PG-13

-> PG R -> R ->NC-17 -> ADULT

RADIO

DUAL: touch to select stereo or mono.

LOCAL: touch to select local or distant.

AREA: touch to select radio frequency as USA or EUROPE.

BT

Touch to select BT function on or off.

WALLPAPER

Touch to select wallpaper.

ABOUT

Touch to show the version information.

CLOCK SETUP

Touch the CLOCK to adjust the time and time format.

clock setup interface

AUDIO SETUP

Touch the audio to turn to audio quality adjustment.

audio setup interface1

audio setup interface2

TREBLE: -7 to +7

Adjust treble level.

BASS: -7 to +7

Adjust bass level.

SUBWOOFER: touch to adjust subwoofer volume and frequency.

EQ: touch to select audio mode as follow: USER -> JAZZ -> CLASSIC -> POP -> ROCK

LOUDNESS: touch to select loudness effect as :OFF -> LOW -> MID -> HIGH

FADER/BALANCE:

BALANCE: R 0-10 to L 0-10

Adjust sound balance between left and right speakers.

FADE: F 0-10 to R 0-10

Adjust sound balance between front and rear speakers.

VIDEO SETUP

Video setup interface

COLOR: 0 to 32

Adjust the color for the picture-lighter or darker.

BRIGHTNESS: 0 to 32

Adjust if the picture is too bright or too dark.

CONTRAST: 0 to 32

Adjust the contrast of the bright and dark portion.

TINT: 0 to 32

Adjust the tint if the human skin color is unnatural.

-Adjustable when "NTSC" is selected for "NTSC/PAL".

LANGUAGE

Touch to select OSD language.

ILLUMINATION COLOR

Touch to select the backlight for all buttons. Tap auto icon the backlight change automatically.

CALIBRATION

Touch the arrow as show to calibration the display.

Reset Factory Settings

RESET button is placed on the housing and must be activated with either a ballpoint pen or thin metal object.

The RESET button is to be activated for the following reasons:

A. Initial installation of the unit when all wiring is completed.
B. All the function buttons do not operate.
C. Error symbol on the display.

Rear View Camera

When connecting the rear view camera the mirror image of the rear view is automatically displayed on the monitor when you change the gear to the back position.

(Note: additional monitor can not display the image.)

ALTERNATE AUDIO SOURCE

On the front panel of the unit, there is an AUX IN jack, to connect analogue replay devices. Use this jack to replay sound of other replay equipment such as media players, computers, etc. Via the loudspeakers.

1). Please f ollowing the diagram below, connect the external device with stereo jack plug the AUX IN socket.

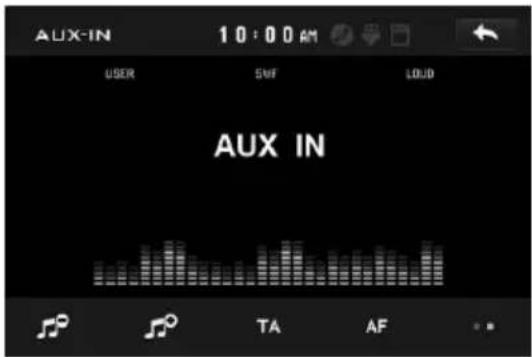

2). Press the MOD button to select the AUX IN connection.
3). Use the buttons on the external device itself to operate it.

UNIT KEYS

Control Panel

Sliding Plate diagram after removing Control Panel

1. OPEN BUTTON
2. |<</ 📞 BUTTON
3. SEL BUTTON and VOL KNOB
4. EJECT BUTTON
5. RODDER/ E BUTTON
6. IR SENSOR WINDOW

7. BUTTON

8. USB PORT and COVER
9. TA/AF BUTTON
10. AUX IN JACK
11. PAIR /BAND BUTTON
12. LCD SREEN
13. MUTE BUTTON
14. SD/MMC CARD SLOT

15. BUCHTION

16. RESET BUTTON
17. REL BUTTON
18. MICROPHONE

Same functions in any work source

1. POWER/MODE button

In power off mode, pressing POWER/MODE button on remote control or pressing POWER/MODE button on control panel powers on main unit.

In power on mode, long pressing POWER/MODE button on control panel or on remote control or touch 📋 icon on source menu powers off main unit.

In power on mode, to switch work source between RADIO, DISC(after inserting a disc), USB(after inserting a USB storage), CARD(after inserting a card), AUX IN, AV IN and BT, press POWER/MODE button on remote control or on control panel continuously.

2. VOL knob & VOL+/VOL- buttons

To adjust volume level, rotate VOL knob on control panel or press or hold VOL+ or VOL-button on remote control.

3. SEL button

In normal mode, km × 10^3 used to increase or decrease the volume.

Press the SEL(except radio mode) to switch between BASS, TREBLE, BALANCE, FADE, COLOR, RIGHTNESS, CONTRAST, TINT, BT, REG (in radio mode), PI(in radio mode), TA(in radio mode), AF(in radio mode), LOUD, SWF, EQ, DMODECAH(24 Radio Mode), STEREO/MONO(in radio mode), BEEP, EUR/USA FREQ, ANIMATION.

After switching on the desired mode above, rotate VOL knob or press VOL+/VOL- buttons to set it.

4. MUTE button

To switch MUTE mode on or off, press MUTE button on remote control or press MUTE button on control panel.

5. To switch between EQ modes

To select a desired preset EQ mode from USER/JAZZ/CLASSIC/POP/ROCK, press EQ/LOUD button on remote control continuously.

6. To switch LOUD mode

To switch LOUD mode between LOW, MIDDLE, HIGH and OFF, long press EQ/LOUD button.

7. SW button

To switch SWF FREQ between 80HZ, 120HZ and 160HZ, long press SW button on remote control.

8. CLK button

Press CLK button on remote control to display clock time.

9. OPEN or ◆ buttons and ⏻ icon

To slide the monitor holder out and stand it up or into the monitor holder slot(after removing the monitor), press OPEN button on control panel or press button on remote control;

To adjust the angle of the monitor, long press ◆ button on remote control or touch 🔒 icon on source menu.

RADIO OPERATION

Listening to Radio

Touch the RADIO ICON in home menu to enter the RADIO mode:

Selecting The Frequency Band

Touch the screen of "BAND" section repeatedly to select the band, the message will show in turn:

When an FM stereo broadcast is hard to receive

Press ST/MO button on the remote control to select the MONO or STEREO mode.

Start Searching For a Station Manual Search

During Radio mode, briefly touch "to increase frequency by one step of channel spacing.

Briefly touch “◀” to decrease frequency by one step of channel spacing.

Automatic Search

During Radio mode, touch and hold (for more than 2 seconds) either “<</>>” ICONS to start search for a radio station automatically.

To tune in strong-signal FM Station only (LO/DX function)

In radio mode, Press button on the remote control to select icon select LOC/DX mode of Local and Long-distance traffic news.

Storing and Listening to a Memory Station

Setting Memory

With this system, a total of 30 stations can be stored in the memory of six buttons. Each band stores up to six preset stations. The stations might be FM1, FM2, FM3, AM1(MW1), and AM2(MW2) band.

The operation is as below :

- Store in Memory

Select the frequency band
Select the station
Press and the station until it show the frequency band your select.

- Retrieve a preset station

Touch the 1-6 ranges briefly to retrieve a station which had been stored in the memory in advance the chose number is shown on display.

Automatic Memory Storing & Program Scanning

Automatic Preset Setup

In Radio Mode, touch and keep (for more than 2 'S) the screen of “☐” range to active automatic station storage.

The radio searches within the current frequency band, e.g. FM, for the stronger signal level until the search cycle has finished. The six strongest stations are then allocated to the corresponding storage locations. Then the station of the first storage location is set.

Scan Function

In Radio mode, briefly touch the “☐” section on the touch screen, the radio briefly plays all the preset stations of the frequency band.

RDS FUNCTION

In home menu, then touch the "ICON to enter the set mode, the message in the display :

Select EUROPE then power off this unit then power on again to turn on RDS function.

ADJUSTABLE ITEMS:

REGION SET

Touch to switch the REGION function ON and OFF.

REG FUNCTION

at certain times some stations divide up their programs into regional programs with varying content.

REG ON : the message "REG ON" will appears in the display for a few seconds. Note :

- the display capacity is limited. It is possible that in the double display mode some segments of the display are deleted. - the function REG ON prevents the radio from switching to alternative frequency which have a different regional program content.

REG OFF : the program identification(PI) of the regional program is ignored during the search for an alternative frequency (AF) or a program identification (PI).

PI SET

Touch to change between PI MUTE and PI SOUND.

PI MUTE / PI SOUND

(only for radio operation)

If you are in an area where two program identifications (PI) overlap, you can select the option PI SOUND and

PI MUTE for playback of the sound.

Alternate switching of the program identification should be avoided.

PI SOUND :

If switching nevertheless occurs the sound of another station is heard for less than one second.

PI MUTE :

the sound of another station is suppressed.

TA Traffic Announcement

(Priority For Traffic Information)

In Radio mode, touch the cursor button to switch the TA function ON and OFF. When the TA function is activated, the TA symbol appears in the display. During radio operation in one FM frequency band the search for a traffic announcement station is started automatically (TA SEEK). If an FM station is being received which transmits the latest traffic announcements from time to time, the TP display lights up.

When the TA function is switched on, the FM traffic automatically interrupt CD operation (the word TRAFFIC appears in the display).

The volume level is increased to the minimum value for the transmission of traffic announcements. After the traffic announcements has finished, the program that was previously running is resumed.

Interruption of the TA Function:

If you would like to interrupt the current traffic announcement, touch the TA section on screen briefly. This does switch off the TA mode.

AF FUNCTION

(Alternative Frequencies)

In Radio mode, touch the cursor button to switch the AF function ON and OFF.

AF is a function that works with the help of RDS (Radio Data System) and can only be used with FM stations. The radio searches in the background for the best frequency reception of the station that has been tuned into.

Touch the AF section on touch screen or swing and keep the SEL knob in the TA/AF direction for about 2 seconds, the AF function is activated. The AF symbol appears in the display.

When the AF function has been switched on, the radio continuously tests the signal strength of the AF frequency. The test interval for each AF frequency depends on the signal strength of the current station and varies from a few minutes in the case of weak signals. Whenever the new AF frequency is stronger than the station that is currently tuned in, the radio switched to this frequency for a short time for a short time and the message "NEW FREQUENCY" is displayed for one or two seconds.

PTY FUNCTION

In Radio mode, touch screen of "PTY" range to select the Program type.

PTY Selection of the program type besides the stations name, some FM stations also transmit information on the type of program. This information can be displayed by your car radio.

Examples of such types of program are : SPORT NEWS POP WEATHER .....

With PTY function you can specifically select stations transmitting a particular type of program. Touch the PTY on screen repeatedly to call up the PTY selection menu. The message “PTY SEEK” then appears briefly in the display. When PTY has been selected the radio start searching for corresponding PTY information and stops when the PTY information has been found, “NO PTY” appears in the display. If the PTY information being searched for no longer exists, the PTY function automatically switches to normal mode.

Media Operation

In audio play mode, the message will display as below :

(When Parking Brake is applied.)

Mute function

To select the Equalizer mode

To search fast forward

To search fast backward

Intro Function

To decrease the volume level

To increase the volume level

Loudness Function

Subwoofer Function

Turning pre-switching for traffic announcements on and off

Switching on and off an Alternative frequency

Play/Pause the playing

To skip the next track

To skip the previous track

Repeat Function

Random Function

Previous menu

Tap to turn to BT PHONE mode. (after pairing and connecting a mobile phone with BT function).

The icons for other mode

(The same icon have the same function in each mode)

In PHOTO playing ,tap to change the photo direction.

ZOOM IN and OUT.

For page turning.

For page turning.

For page turning.

BASIC OPERATION

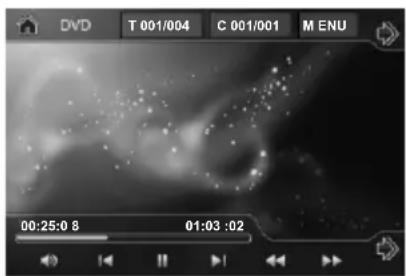

Pause (still picture)

Touch the “▶” section on touch screen during playback will stop play temporary, touch it again to return the normal playback.

Rapid Forward/Rapid Reverse

During DISC playback, touch the screen of “▶/◀” range the speed of rapid forward/reverse changes according to the disc as follow:

Digital Video/VCD/CD/MP3:

Skipping Track

During DISC playback, Touch the ▶/◀ section on the touch screen to skip to next/back one track.

Note :

For some VCD2.0 disc (PBC-playback control), above these buttons may be unavailable.

Zoom Function

Touch the button repeatedly, the displayshow as “zoom 2, zoom 3, zoom 4, zoom 12 , zoom 1/3, zoom 1/4, zoom off.”

Use the direction keys ( ▶ ▼ ◀ ▶ on remote control to move the enlarged picture .

Note:

when the JPEG disc playback, in normal mode, you can use the cursor buttons to rotate the picture. Press UP to invert an image. Press DOWN to mirror an image. Press LEFT to rotate an image to left. Press RIGHT to rotate an image to right

SELECTING PLAY MODES

During the Disc playback, select the "RPT, RDM, INT" to select your favour play mode.

1). REPEAT FUNCTION

FOR Digital Video :

Tap the 📄 icon or press the RPT button on the remote control to select REPEAT mode as follows :

FOR VCD/CD :

Tap the 📄 icon or press the RPT button on the remote control to select REPEAT mode as follows :

FOR MP3 :

Tap the 📄 icon or press the RPT button on the remote control) to select REPEAT mode as follows :

2). INTRO FUNCTION

FOR CD :

Tap the 📄 icon or press the INT button on the remote control to play the previous 10 seconds part of each track/chapter on disc. (Touch it again to cancel this mode)

FOR VCD :

Press the INT button on the remote control. It displays will following menu as below:

Note: when select the INTRO Mode, this player to start to play the previous 15 seconds part of each track/chapter on disc. (Touch it again to cancel this mode.)

FOR Digital Video/MP3 :

For Digital Video/MP3, press the INT button is not available.

3). RDM(RANDOM) FUNCTION

During DISC playback, touch screen of “ ” section ( press the

RDM button on the remote control to play in random. Each play mode the order is different. (Depend on the disc used for VCD).

Touch it again to cancel this function.

Note : in random mode, the button is not available.

ON-SCREEN DISPLAY FUNCTION

During playback, touch the screen or press the OSD on the remote control, it will display the following as below :

Note: touch the screen or press the OSD on the remote control again to cancel the OSD information.

1. Digital Video, when it is on, it will display the information such as:

1. Example for VCD/SVCD, when it is on, it will display the information such as:

1. Example for Movie or PHOTO. When it is on, it will display the information such as:

Nighttime black-and-white photo of a suspension bridge over water, captured in a video editing interface (no text or symbols on the bridge itself)

DISC Search (GOTO)

FOR Digital Video :

Touch the screen as show or press the GOTO button on remote control;

the screen will display the following message :

Touch the <1> to select the your adjustment item, then select the item your favour by touching the numeric buttons, then touch the OK button to confirm.

FOR VCD (With PBC OFF) :

Touch the screen as show or press the GOTO button on remote control;

the screen will display the following message :

Touch the ◀ to select the your adjustment item, then select the item your favour by touching the numeric buttons, then touch the OK button to confirm.

For Movie/Photo:

Touch the screen as show or press the GOTO button on remote control;

the screen will display the following message :

Touch the ◀ to select the your adjustment item, then select the item your favour by touching the numeric buttons, then touch the OK button to confirm.

Digital Video Special Function

1. Multi-subtitle Language Function (for Digital Video Only)

During Digital Video playback. Touch the OFF icon on touch screen(or press the SUBT on the remote).

Each time the button is pressed or touch, number of the subtitle language changes in sequential order.

Notes:

- The language number is different according to the disc.

• Some discs only contain one subtitle language.
• When no different subtitle language are recorded, "INVALID KEY" will be displayed at screen left top corner.

2. Multi-Audio Language Function

For Digital Video:

During Digital Video playback, touch the 1/2 icon on touch screen (or press the LANG

on the remote .) Each time the button is pressed or touch, number of the audio soundtrack language changes on sequential order.

Notes:

• The language number is different according to the disc.
• Some disc only contain one language soundtrack
• When no different language soundtrack are recorded "MINVALID KEY" display at screen left top corner.

For VCD/CD:

during playback, touch the AUDIO section of the touch screen or Press AUDIO on the remote. It is possible to switch the sound between monaural and stereo sound.

3. Title Menu Function

For Digital Video:

If the Digital Video has multiple titles recorded on the disc. It can select preferred title from the title menu to start playback.

• During Digital Video playback, press TITLE button on the remote .The title menu is display.
• Select preferred title by the cursor button and confirmed by press the ENTER button.

For VCD:

Press TITLE/PBC button on the remote control while the disc is playing, you can switch between "PBC ON" and "PBC off" mode.

BT Operation

1. Pairing and Connecting

Prior to using the BT device named BC-HF-V03 as a hands-free system for a BT-enabled mobile phone for the first time, you must pair and connect them as follows:

Press the BT hands-free icon or press the pair button on the remote control to turn to BT standby mode as right:

* Prior to pairing and connecting, when displaying No Video interface of radio, CD, AUX IN or BT music, the logo BT flashes in the touch screen.
* During the use of the BT device named "BC-HF-V03" as a hands-free system for a BT-enabled mobile phone;
Switch on the BT mode of your mobile phone; then select the item to find a BT device and enter it; When it finds the BT device the A/V system, the name BC-HF-V03 will be displayed, select it and enter it; then it will show an interface that asks you to input a password, input 8888 and enter it; then it will pair and connect with the BT device BC-HF-V03 of the car A/V system, Confirm it, then the frame of the BT logo will light all the time.

* Whishing pairing and ing connect , the audio of the mobile phone transfers to the canMobile system whenever a call is made or received plays music .

2. BT PHONE

1) Make a call

(1) Dial with mobile phone directly;
(2) Dial with BT Phone, remote control, or on touch screen;

a. Touch the BT PHONE icon in home menu or touch the 📞 icon during playing to turn to BT PHONE interface as follows:

: Same as MUTE button.

: Same as VOL+ and VOL- or VOL knob.

: Tap to do disconnection.

b. Use the number icons or buttons to input your desired phone number;

* When inputting a wrong digit, use 🔊 icon or < button to delete it.

c. After finishing inputting, touch 📞 icon or press ↻ button on control panel to dial out.

2) Redial last dialed phone number

Touch 📄️ icon or long press redial button on remote control to dial out the last dialed phone number.

3) Answer a call

During an incoming call, the incoming telephone number displays in the BT PHONE interface. If you want to receive it, touch 📊 icon or press ↻ button on remote control; if you want to reject it, touch 📌 icon or press ↻ button on remote control.

4) Ending a call

When ending a call, touch 📤 icon or use ↗ button.

5) Switch the audio between the unit and your device

During phone talking using the BT hands-free system of the car A/V system, touch 📊 icon or press 🌐 button on remote control to switch the audio between the unit and your device.

6) Adjusting the volume during a call

Dtalkinghouse VOL knob or VioH+and VOL- buttons to adjust volume level. ; use 🔒 icon or MUTE button to mute sound

* * / # icons and buttons

they perform as * / # buttons on mobile phone.

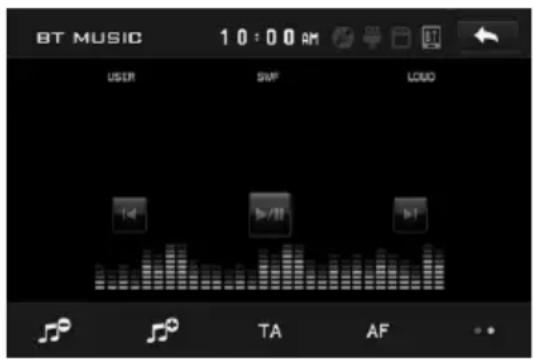

3.BT MUSIC

1) Touch BT MUSIC in home menu or pressing MODE button can pop up BT MUSIC interface as follows:

Mute function

To select the Equalizer mode

To decrease the volume level

To increase the volume level

Loudness Function

Subwoofer Function

Turning pre-switching for traffic announcements on and off

Switching on and off an Alternative frequency

Play/Pause the playing

To skip the next track

To skip the previous track

Tap to turn to BT PHONE mode.(after pairing and connecting a mobile phone with BT function).

2) With your mobile phone with BT function to audio/video if it is paired, also connected to the current will change into the car A/V system

The BT device of the car A/V system support A2DP, which enables the user to stream audio from their device.

3) The device of system so these icons support the AVRCP, BT Music interface except BT Music and their button responding panel or on remote control are available for audio/video playback of your mobile phone during playback. But no fast forward/backward functions for / / icon and / buttons, and the function of resume playback after pausing or stopping is available only for some mobile phone .

* If you don't want to use the BT function of the car A/V system, press SEL button to display BT, then use VOL knob or VOL+ and VOL- buttons switch oBT

AUX Operation

On the front panel of this unit, there is an AUX IN jack, follow the diagram below to connect analogue replay devices(only for the Audio connect, if you want to connect the Video, please plug the

1). Please connect the external device with stereo jack (3.5mm) plug the Aux in socket.

AUX IN JACK FRONT PANEL

2). In radio mode, touch the screen of “◀” ICON to enter the main menu, touch the “AUX” ICON to enter the AUX IN mode.

AUX INTERFACE 1

AUX INTERFACE 2

3). You now hear the sound from the external device played back through the loudspeakers.

The function of the icons as follow:

Tap to mute the sound.

Tap to select EQ as the same on the remote control.

Loudness Function.

Subwoofer Function.

Tap to adjust audio volume.

Turning pre-switching for traffic announcements on and off.

Switching on and off an Alternative frequency.

Tap to turn to BT PHONE mode. (after pairing and connecting a mobile phone with BT function).

AV Operation

Please plug the

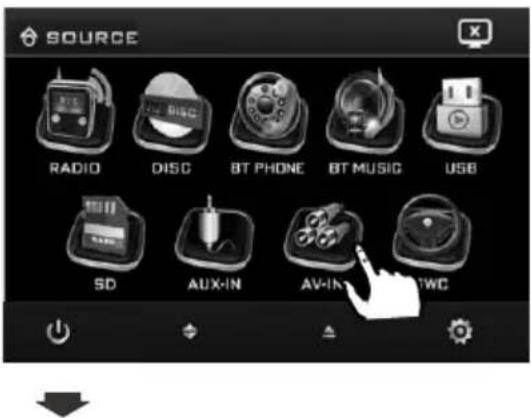

Touch the AV IN icon to enter the AV IN mode.

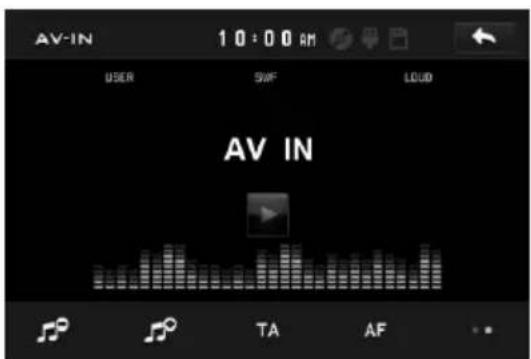

AV INTERFACE 1

AV INTERFACE 2

As the interface show, here is only the audio output, now tap the ▶ icon, the picture of the auxiliary input video show on the display and tap the display again to turn to audio mode.

Now you can watch the video from your External video equipment such as Digital Video players, computers, etc.

The function of the icons as follow:

Tap to mute the sound.
Tap to select EQ as the same on the remote control.
Loudness Function.
Subwoofer Function.

Tap to adjust audio volume.

TA Turning pre-switching for traffic announcements on and off.

AF Switching on and off an Alternative frequency.

Tap to turn to BT PHONE mode. (After pairing and connecting a mobile phone with BT function).

Note: To ensure safety while driving and to comply with lows, drivers should not watch video or operate the video device while driving.

Touch Screen Operation

USB OPERATION

Following the diagram below, connect your USB device to the front panel USB port. If it is properly connected, the device will be mounted and start playing automatically.

Diagram of a device with a USB tag inserted into a slot (no text or symbols present)

1 Current type (highlighted bar).
2 Audio play mode select.
3 Picture play mode select.
4 Movie play mode select,
5 Current play track .

Card OPERATION

The unit can support playback MP3/WMA/JPEG/MP4 and Divx format which are stored on SD memory cards. Please read the following instructions before you start using a memory card. Inserting the card as follow:

1 Current type (highlighted bar).
2 Audio play mode select.
3 Picture play mode select.
4 Movie play mode select,
5 Current play track .

STEERING WHEEL CONTROL

Touch the SWC icon as follow to turn to steering wheel control.

During setting, touch the turn to home menu.

There are 2 KEY for no more than 12 buttons to select.

For first time use this function, input a key (such as 0.38, 0.38 is a magnitude of voltage, according to your car) through the steering remote and show in button 1 position.

Then tap Assign and tap the button 1 and then select the icon as the picture show, the icon show in button 1 position. After selection tap confirm and back to home menu that means select finish.

The function of the icons as follow:

Assign

Touch to begin function save.

Confirm

After selection touch to confirm operation.

Reset

Touch this icon to cancel the input and resume load.

High-z

High-z means high-impedance. Tap to reduce the magnitude of voltage. This key for avoid that voltage is too high that the car system can not differentiate the input key set for some car.

Low-z

Low-z means low-impedance. Tap to increase the magnitude of voltage. This key for avoid that voltage is too low that the car system can not differentiate the input key set for some car.

General :

Supply Voltage:	12V DC (11V-15V)
Current Consumption:	Less than 10 A
Signal System:	Composite video 1.0Vp-p 75 Ω
Discs Played:	(1) DIGITAL-VIDEO Disc5"(12 cm) single-sided, single-layer5"(12 cm) single-sided, double-layer(2) Compact Disc (CD-DA, VIDEO CD)5"(12cm) disc
Audio Signal Output:	2ch&4ch line out
Characteristics:	(1) Frequency Response (2) S/N Ratio (3) Wow and Flutter	20 Hz - 20 KHz90 dB (JIS)Below measurable limits

RADIO Section:

	For 2 Bands(Europe)FM	For 2 Bands(U.S.A.)FM
Frequency Coverage:	87.5 to108 MHz	87.5 to107.9 MHz
IF:	10.7 MHz	10.7 MHz
Sensitivity (S/N = 30 dB):	15 dBuMW	15dBuAM
Frequency Coverage:	522 to1620 KHz	530 to1710 KHz
IF:	450 KHz	450 KHz
Sensitivity (S/N = 20 dB):	40 dBu	40 dBu

TFT Monitor:

Monitor Screen Size:	13.3 Inch Wide
Color System:	NTSC/PAL

TV

TV System	NTSC/PAL/SECAM
TV Sensitivity	45dB uV@CH25 in average

BT:

BT specification:	V1.2 Class 2
BT profile supported:	Headset, Handsfree and A2DP & AVRCP profiles
Range of frequency:	2.4GHz Spectrum

NOTE:

Specifications and design are subject to modification, without notice, due to improvements in technology.

Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer.

SYMPTOM	CAUSE	SOLUTION
No power	The car ignition switch is not on	If the power supply is properly connected to the car accessory terminal,switch the ignition key to "ACC"
	The fuse is blown	Replace the fuse
Disc can not be loaded or ejected	Presence of disc inside the player.	Remove the disc in the player, then put a new one
	Inserting the disc in reverse direction	Insert the compact disc with the label facing upward
	The disc is extremely dirty or defective	Clean the disc or try to play a new one
	Temperature inside the car is too high	Cool off or until the ambient temperature return to normal
Video/image appears black-white	The color system is set incorrectly	Please switch to correct color system from menu
No video/image appears	The unit is not connected to the parking brake detection switch	Make proper connection according to wire connection “”
	The parking brake is not engaged	For safety reasons no video/images are displayed while the vehicle is moving. Engaging the parking brake will cause images to be displayed.
No color in picture	The disc format is not according to the TV-set used (PAL/NTSC)	Please choose a proper color system.
JPEG disc can not be played back	No JPEG files are recorded on the disc.	Change the disc
	JPEG files are not recorded in a compliant format	Change the disc Record JPEG files using a compliant application
The operation keys do not work	The built-in microcomputer is not operating properly due to noise	Press the RESET button. Front panel is not properly fixed into its place
The radio does not work	The antenna cable is not connected	Insert the antenna cable firmly
	The signals are too weak	Select a station manually

PYLE view

Visit us @ pyleaudio.com

IMPORTANT: Pack carefully in original package if possible. We are not responsible for damage incurred in returning items for repair. A letter stating your exact street address, daytime phone number, and the problem you are experiencing should be included. You must also enclose a copy of the original receipt a sproof of date of purchase

Brooklyn, NY 11204

1-800-444-5671

Monday Through Thursday, 9AM to 5PM

Friday 9AM to 1PM Eastern.
