Product Type	Category 5e RJ45 Modular Jack
Brand	Panduit
Model	CJ5E88TBU
Color	Blue
Number of Positions	8
Number of Conductors	8
Wire Gauge Supported	22-24 AWG (solid or stranded)
Conductor Insulation Diameter	Max 0.048 inch (1.2 mm)
Cable Type	PVC or Plenum rated cables
Re-termination Cycles	Minimum 10
Compliance	ANSI/NECA/BICSI-568-2006
Wiring Standard	T568A/T568B compatible
Shielding	Unshielded (UTP)
Application	Ethernet 100BASE-TX, 1000BASE-T
Termination Tool	Panduit modular plug tool (not included)
Safety	Do not install during lightning storm; avoid wet locations
Technical Support	www.panduit.com/resources/install_maintain.asp

Frequently Asked Questions - CJ5E88TBU Panduit

What is the Panduit CJ5E88TBU?

The CJ5E88TBU is a Category 5e unshielded RJ45 modular jack from Panduit, designed for Ethernet networks. It supports 22-24 AWG solid or stranded cables.

What tools are required for termination?

A Panduit modular plug termination tool (e.g., EGJT, TGJT) is recommended. Follow the instructions for proper insertion and crimping.

Can this jack be re-terminated?

Yes, it can be re-terminated a minimum of 10 times. Ensure you follow the correct wiring sequence and do not damage the insulation displacement contacts.

What cable types are compatible?

It works with 22-24 AWG solid or stranded insulated wire cable (IWC) with a maximum conductor insulation diameter of 0.048 inch (1.2 mm). Use PVC or Plenum rated cables.

Does it support T568A and T568B wiring?

Yes, the jack is compatible with both T568A and T568B wiring schemes. Refer to the color codes: Pair 1 (Blue/White-Blue) pairs with the center pins.

Is the CJ5E88TBU shielded?

No, it is an unshielded (UTP) jack. For shielded applications, use Panduit's shielded modular jacks.

What performance category does this jack meet?

It meets Category 5e specifications as per TIA/EIA-568-B.2, suitable for 1000BASE-T and lower speeds.

Can it be used in wet locations?

No, unless the jack is specifically designed for wet locations. Avoid installation in damp areas to prevent electrical hazards.

How do I remove the termination cap?

Use a small flat-head screwdriver to gently pry off the cap. Refer to the manual's diagram for the correct orientation.

Where can I find the full manual or support?

Visit www.panduit.com/resources/install_maintain.asp for instructions in multiple languages. For technical support, email [e-mail] or call [phone].

USER MANUAL CJ5E88TBU Panduit

** Denotes color.

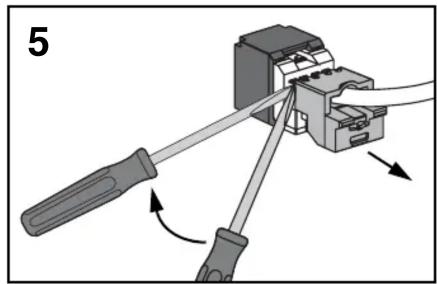

TERMINATION CAP REMOVAL

Diagram of a mechanical device with airflow direction indicated by arrows (no text or symbols)

Mechanical assembly diagram showing a component with a tool inserted, no visible text or symbols

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with directional arrows (no text or labels)

Diagram of a screwdriver connecting to a connector socket (no text or symbols present)

Notes:

1. For specified performance, follow ANSI/NECA/BICSI-568-2006 installation guidelines.
2. Jack Modules can terminate PVC or Plenum rated 22-24 AWG solid or stranded IWC cable with 0.048 inch (1.2 mm) maximum insulated conductor outside diameter.
3. Jack Modules may be re-terminated a minimum of 10 times.
4. For technical and performance information, consult Panduit Technical Support.

As with all Wiring Accessories, the following statements apply:

1. Never install communications wiring during a lightning storm.
2. Never install communications wiring in wet locations unless the jack is specifically designed for use in wet locations.
3. Never touch uninsulated communications wiring or terminals unless the communication line has been disconnected at the network interface.
4. Use caution when installing or modifying communication wiring.

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

www.panduit.com

E-mail:

[e-mail]

Fax:

[phone]
