FEHS19H3A - Television Furrion - Free user manual and instructions

Product Type	LED TV
Screen Size	19 inches (diagonal)
Resolution	1366 x 768 (HD)
Aspect Ratio	16:9
Brightness	200 cd/m²
Contrast Ratio	1000:1
Viewing Angle	178° (horizontal/vertical)
Audio Output	2 x 5W speakers
Power Supply	DC 12V or AC 100-240V, 50/60Hz
Power Consumption	≤30W
Weight	Approx. 3.5 kg (7.7 lbs)
Dimensions (WxHxD)	18.1 x 12.1 x 2.5 inches (460 x 307 x 64 mm)
Wall Mount Pattern	VESA 100x100 mm
Inputs	HDMI, USB, AV, Antenna, VGA
Outputs	Headphone jack
Tuner	DVB-T/T2
Additional Features	PVR ready, sleep timer, multilingual OSD
Cleaning	Use a soft dry cloth; avoid liquid cleaners
Safety	Do not expose to moisture; ensure proper ventilation
Spare Parts & Repairability	Contact Furrion or authorized dealers for parts

Frequently Asked Questions - FEHS19H3A Furrion

How do I scan for channels on the Furrion FEHS19H3A?

Press the Menu button on the remote, go to Channel or Setup, select Auto Scan or Channel Search, and choose DTV or ATV as needed. The TV will automatically find available channels.

What external devices can I connect to this TV?

You can connect devices via HDMI, USB, AV (composite), VGA (for PC), or the RF antenna input. For headphones, use the 3.5mm jack.

Can I mount the Furrion FEHS19H3A on a wall?

Yes, it supports VESA 100x100mm wall mounts. Use appropriate screws and ensure the mount can support the TV's weight.

What power source does this TV require?

It operates on DC 12V or AC 100-240V (50/60Hz). For RV or marine use, the 12V DC input is ideal. Always use the included adapter.

How do I reset the TV to factory settings?

Go to Menu > Settings > Factory Reset (or Reset All). Confirm the action. This will erase all custom settings and channel lists.

Does the TV support USB playback?

Yes, the USB port supports playback of media files (e.g., MP4, AVI, JPEG, MP3). Insert a USB drive and select USB from the source menu.

How should I clean the TV screen?

Use a soft, dry microfiber cloth to gently wipe the screen. Do not spray liquids directly. For stubborn stains, slightly dampen the cloth with water.

Why is there no sound from the TV?

Check if the volume is muted or set too low. Ensure external devices are properly connected. If using headphones, they may be plugged in. Also check audio settings in the menu.

Can I use this TV in a boat or RV?

Yes, it is designed for 12V DC power and is suitable for mobile environments. Ensure proper ventilation and secure mounting to avoid damage from vibrations.

How do I adjust picture settings like brightness and contrast?

Press Menu on the remote, select Picture or Display, then adjust Brightness, Contrast, Color, and Sharpness to your preference.

USER MANUAL FEHS19H3A Furrion

LED HDTV19"

Empty rectangular frame with no text, numbers, or symbols inside the frame (text not legible)

Model: FEHS19H3A

USER'S MANUAL

Safety Information

Warning

To prevent fire and/or electric shock, do not use this plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. Do not expose this appliance to rain or moisture.

AVIS RISQUE DE CHOC ELEC TRIOUE/NE PAS OUVRIR

Important Safety Instructions

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Please, unplug the TV power cord when the following conditions occur:

-When there is a thunderstorm (Please, pull out the power cord and antenna).

-When cleaning the TV set.

-When the TV set is not used for a long time.

Do not use corrosive depurative when cleaning the TV set.

Do not put the TV set under direct sunlight or ne

Do not put a heat source, such as a candle or heater, on top of or near the TV set.

Leave plenty of space (at least 10cm) around the TV set for ventilation

Place the TV set away from where it can be ruined by rain or water (such as near a

window).

Don't put a container with liquid (such as a vase) on top of the TV set.

Do not move the TV set when the power is on.

Do not touch, push or scratch the surface of the TV set with hard materials or items.

When TV surfaces are dirty, please use a wet cotton cloth or soft cloth with non-

corrosive cleaners to clean it carefully. Don't use acetone, toluene or alcohol to

clean the TV set.

Be aware and careful of moisture, which can damage inner electronic components.

When condensed moisture is present, the TV screen may appear blurry or spotty.

It is recommended that a technician install the TV set on a wall, if such placement is

desired

An incorrect wall installation will be unsafe and hazardous.

Do not let children climb on or play around the TV set to avoid falls, collisions.

damages and injuries.

Do not hit the TV panel with hard objects to prevent damages.

Do not cover the TV set with blankets or other objects when it is connected to a

power source to prevent overheating and fire.

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

Mains plug is used as disconnect device from the mains. the disconnect

device shall remain readily operate

Apparatus with class I construction shall be connected to a mains socket

outlet with a protective earthing connection.

Safety

Please, immediately pull out the AC power plug from adapter if there is an abnormal sound or smell or the LED TV has sound but no picture, and contact after sales support.

The LED TV should be kept free from rain, moisture and dust to prevent electrical shock and short circuits. Do not cover the ventilation openings with table clothes, curtains, newspapers, etc.

The LED TV should be kept from high temperature heating sources or direct sunlight. Good ventilation is required. Allow 10 cm. between the LED TV and other appliances or built-in cabinet walls.

When you wipe the front cabinet, please make sure the power plug is pulled out and use a soft, dry, lint-free cloth and handle it with care. Do not repeatedly wipe the panel, nor scrape, tap or strike the panel with a hard object.

Do not wipe the LED TV with any petrol, chemical or alcohol based solvents as it will lead to product damage of the panel and cabinet.

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet. The MAINS plug or an appliance coupler is used as the disconnect device. The disconnect device shall remain readily operable.

Important Safety Precautionslm

Safety

Do not place the LED TV on an unstable surface.

Do not place the power cord or other cables across a walkway in case it is trampled on. Do not overload the power cord or power socket. When the power plug is used to disconnect and connect the device, it should easily into the power source.

Do not disassemble the back cover, as it contains high voltages inside and will cause electric shock. Only qualified professionals should conduct in terms of adjustments, maintenance, and checks.

The TV set should not be subjected to water droplets, vapor, or splash. This equipment should not be placed on objects filled with liquids. Do not place flame sources, such as lit candles, on or near the LED TV. Please, pull out the power plug and contact after sales support if there are abnormal objects or water in the TV.

Pull out the power cord and antenna cable during electrical storms so the LED TV is not damaged by electrical surges. Keep all people away from the antenna cable during electrical storms.

Table of Contents

Introduction

Features 2 Specifications 3

Accessories

General Description 4-7

Overview of front and side panel 4

Overview of back panel 5

Overview of remote control 6

Installing Batteries in the Remote Control 7

Install LED SET 8

External Connection

Connecting VCR 9

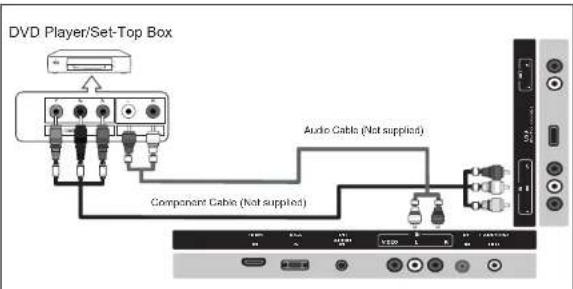

Connecting DVD Player/Set-Top Box 1

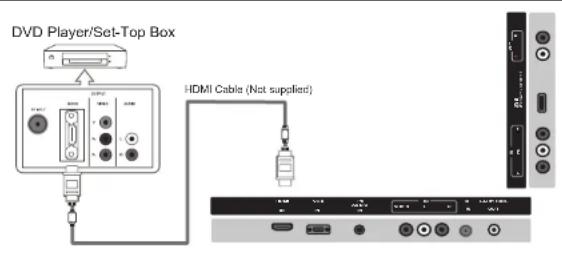

Connecting DVD Player/Set-Top Box via HDMI 1

Connecting Amplifier/DVD Home Theater 1.

Connecting PC 1

Supporting signals

OSD Menu Operations 14

BASIC OPERATION 14

CHANNEL 14

PICTURE 15

AUDIO 15

TIME 16

SETUP 16

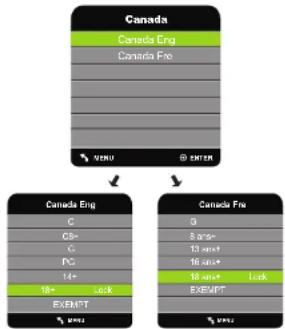

LOCK 17

Troubleshooting

Picture defects and the reason 20

Introduction

Features

• TV adopts TFT LED display screen
HDTV Compatible(480p,720p,1080i,1080p)
● Support American TV Standard 8VSB/Free 64/256QAM, NTSC System, ATSC System
- Connect to computer directly to realize TV/monitor combo
● Zero X radiation complies to green environment protection requirement
- Advanced Chroma Processing
- Closed captioning/PARENTAL LOCK
SAP/STEREO/MONO; ATSC.
HDMI input
• USB input (for factory use only)

Input terminals used for external equipment connection

One computer VGA/PC input t One ANTENNA jack

One AV input One PC Audio input

One L/R output One HDMI input

One Earphone output One USB for factory use only

One Component input

Introduction

Specifications

Display screen type	Color active matrix LED display
Model	FEHS19H3A
The maximum resolution	1366X768
Image control	Fine digital control
Power supply	AC 100-240V 50/60Hz
TV receive system	NTSC System, ATSC System
Frequency range	Antenna: 2~69; Cable: 1~135 (Analog: 1-125, Digital: 1-135)
Video IN	NTSC3.58
Antenna input impedance	75Ω (Unbalance)
Sound output	2 x 5 W
Power supply for remote controller	DC 3V (Two AAA size batteries)
Power consumption	32 W
Dimensions (LXWXH)	18.0 x 1.8 x 11.9 inch
Operation environment temperature	0°C-40°C

Note:

Design and specification modification may be made at any time without prior notice; all data and dimensions are approximations.

Accessories

Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.

Remote Control & Batteries (AAAx 2)

Owner's Instructions

Warranty card

General Description

Overview of front and side panel

① SPEAKER
② REMOTE CONTROL SENSOR Aim the remote control towards this spot on the TV.
3 POWER INDICATOR Green: In power on mode. Red: In standby mode.
4 SOURCE Toggles between all the available input sources (TV, AV, Component, HDMI, PC)
5 MENU Press to see an on-screen menu of your TV's features.

6 CH+/-

Press to change channels.

In the on-screen menu, use the CH +/- buttons as up/down arrow buttons.

⑦ VOL+/-

Press to increase or decrease the volume. In the on-screen menu, use the VOL +/- buttons as left/right arrow buttons.

POWER

Press POWER button to toggle between and standby mode.normal

General Description

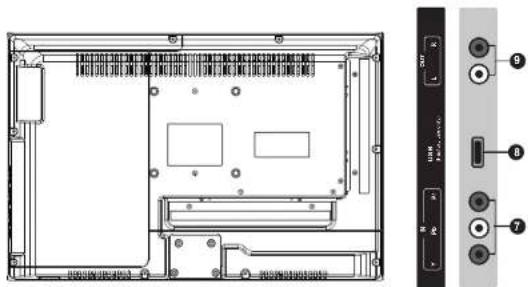

Overview of back panel

1. HDMI input
2. VGA input
3. PC AUDIO input

4. VIDEO input

5. RF input

6. EARPHONE output
7. YPbPr input
8. USB For factory use only
9. LofRput

General Description

Install LED SET

1. Set your LED TV set

Put your LED TV set in a firm place

that can bear its weight.

To avoid danger, please do not expose

the LED TV set to water or heat (such

as a light, candle, or heating machine).

Do not block the ventilation on the

back of the LED TV set.

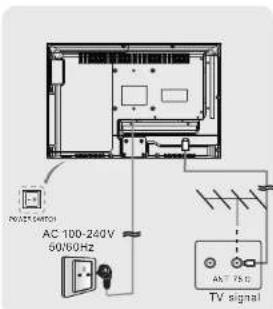

2. Connect antenna and power

a. Connect the antenna cable to the

antenna socket on the back of the

LED TV set and to your antenna socket.

b.Plug in the power cord of the LED

TV set (AC 100-240V 50/60Hz)

c. The TV is turned off when the switch

(AC 100-240V 50/60Hz) is at°0"

and power on the TV when the switch

(AC 100-240V 50/60Hz) is at "I".

3.Turn on the set

If the LED TV set is in standby mode

(the light is red), press the POWER

button on the remote control to turn

on the set.

NOTE

Picture only for reference

General Description

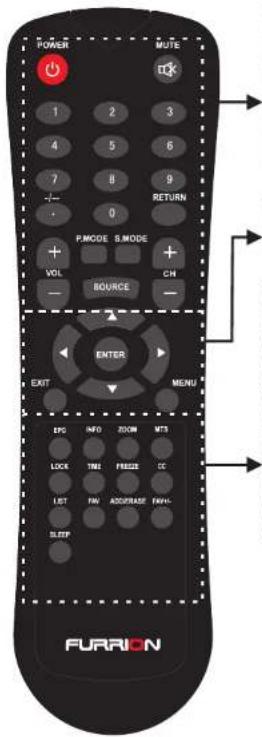

Overview of remote control

POWER: Turn the TV on or off.

MUTE: Press to mute the sound. Press again to regain

0-9: Press 0-9 to select a TV channel directly. The channel will change after 2 seconds. Applicable for entering page number in teletext mode and so on.

- Press this button firstly when the channel to be

selected is two or three figures (only DVD mode).

RETURN: Return to the previously viewed program P.MODE: Select the picture mode.

S.MODE: Select the sound mode

SOURCE: Press to select signal source for TV

VOL+/-: Press these two buttons to increase/decrease the

sound volume.

CH+/-: Press these two buttons to change channels

sequencing

▲▼◀▶enter: Allows you to navigate the on-screen

menus and adjust the system settings to your preferences.

preference

EXIT: Exit from the menu of sub menu.

MENU: Know you to navigate the on-screen menus.

EPG: Press to display EPG (Electronic Program Guide) in

formation.

INFO: Displays the channel in formation.

ZOOM: Press to change the screen scale

MTS: Press to select the audio channels.

LOCK: Press to display the parental menu.

TIME: Press to display Time menu.

FREEZE: Press to freeze the street

SC: Peru la rinitiva, ha pluvial cattia

CC. Press to display the closed caption. LIST: Press to display the TV program list

54V: Price to receive the favorite program

FAV: Press to display the favorable programs.

ADD: Add this program to the favorite language.

ERASE: Delete this program from the favorite channels

FAV+/+: Press this button +/- the favorite program list

SLEEP: Set up the time how long the TV will turn off

General Description

Installing Batteries in the Remote Control

Installing Batteries

1 Open the battery compartment cover on the back side

2 Insert two 1.5V AAA size batteries in correct polarity. Don't mix old or used batteries with new ones.

3 Closed the cover.

Note:

• One loading of batteries will last for 1 year under normal use
- If you do not intend to use the remote controller for a long period of time, remove them to avoid damage due to leakage.
• Do not use old and new batteries together.
- The batteries shall not be eposed to excessive heat such as sunshine fire of the like.

External Connection

Antenna connection

Antenna input impedance of this unit is 75ohm. VHF/UHF 75ohm coaxial cable can be connected to the antenna jack directly, if the antenna cable is 300ohm parallel flat feeder cable, you need to use the 300ohm/75ohm converter to connect the antenna cable to the antenna jack. For details Please refer to the following drawing.

Antennas with 300 ohm flat twins Leads

Antennas with 75 ohm Round Leads

External Connection

Connecting VCR

These instructions assume that you have already connected your TV to an antenna or a cable TV system. Skip step 1 if you have not yet connected to an antenna or a cable system.

Follow the instructions in Viewing a VCR or Camcorder Tape to view your VCR tape. Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable. We recommend the use of cables with a Ferrite Core.

1. Unplug the cable or antenna from the back of the TV.
2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
3. Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.
4. Connect a Video Cable between the VIDEO OUT jack on the VCR and the VIDEO IN jack on the TV.
5. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AUDIO L and AUDIO R jacks on the TV.
6. If you have a mono (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the right and left audio input jacks of the TV. If your VCR is stereo, you must connect two cables.

External Connection

Connecting DVD Player/Set-Top Box

T he rear panel jacks on your TV make it easy to connect a DVD to your TV.

Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) for enhanced video quality.

Be sure to match the component video and audio connections.

For example, if connecting the video cable to COMPONENT IN, connect the audio cable to COMPONENT IN also.

Each DVD player/STB has a different back panel configuration.

When connecting a DVD player/STB, match the color of the connection terminal to the cable.

We recommend the use of cables with a Ferrite Core.

1. Connect a Component Cable between the COMPONENT IN [Y, PB, PR] jacks on the TV and the COMPONENT [Y, PB, PR] jacks on the DVD player.
2. Connect Audio Cables between the COMPONENT IN [R-AUDIO-L] jacks on the ATV and the AUDIO OUT jacks on the DVD player.

External Connection

Connecting DVD Player/Set-Top Box via HDMI

This connection can only be made if there is a HDMI Output connector on the external device.

What is HDMI?

HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital audio and video signals using a single cable without compression.

Multimedia interface is a more accurate name for it especially because it allows multiple channels of digital audio (5.1 channels).

The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP(High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio.

Each DVD player/STB has a different back panel configuration.

We recommend the use of cables with a Ferrite Core.

1. Connect an HDMI Cable between the HDMI connector on the TV and the HDMI connector on the DVD player/Set-Top Box.

External Connection

Connecting Amplifier/DVD Home Theater

Digital Audio System

Each external input source device has a different back panel configuration.

When connecting an external device, match the color of the connection terminal to the cable.

We recommend the use of cables with a Ferrite Core.

1. Connect Audio Cables between the AUDIO L and R OUT on the TV and AUDIO IN [R-AUDIO-L] on the Amplifier.

When an audio amplifier is connected to the AV OUT [R-AUDIO-L] terminals: Decrease the gain (volume) of the TV, and adjust the volume level with the Amplifier's volume can't control.

2.R/L audio out

Audio out: output single from TV, AV, HDMI, PC.

Audio Out can be used to connect to an external Amp.

This volume output is not controlled by the volume control on the TV or Remote Control. To use this function, turn down the volume on the TV and use the volume control from AV Amp / Tuner.

External Connection

Connecting PC

Each PC has a different back panel configuration.

The HDMI jacks do not support PC connection.

We recommend the use of cables with a Ferrite Core.

1. Connect a D-Sub Cable between RGB/PC IN connector on the TV and the PC output connector on your computer.
2. Plug PHONE out connector into PHONE out jack on the TV the TV speaker will be muted.
3. Connect the PC audio input jacks on the TV

Supporting signals

Input	Mode
Air	8VSB
Cable	Free 64/256QAM
CVBS	NTSC 3.58

VGA/PC	Component	HDMI
640x480/60Hz	480i/60Hz	480i/60Hz
800x600/60Hz	480p/60Hz	480p/60Hz
1024x768/60Hz	720p/60Hz	720p/60Hz
1360x768/60Hz	1080i/60Hz	1080i/60Hz

OSD Menu Operations

Adjust the OSD Screen

Press SOURCE button to display the input source list. Press ▼/▲ button to select the input source you want to watch. Press ENTER button to enter the input source.

BASIC OPERATION

CHANNEL

Press MENU button to display the main menu.

Press ◀ / ▶ button to select CHANNEL in the main menu, it will highlight the first option.

Air/Cable

press ENTER button to select it Cable or Air.

AUTO SCAN

Auto Tuning can find out all effective channel automatically.

Press ▼/▲ to select Auto Tuning, then press ENTER to start auto searching.

If you want to stop searching, press EXIT.

OSD Menu Operations

Adjust the OSD Screen


Press MENU button to display the main menu.

Press ◀ / ▶ button to select PICTURE in the main menu, it will highlight the first option.

PICTURE MENU

Press MENU to display the main menu, and press ◀/▶ to select the Picture Menu.

Highlight the item and press ▼/▲ to select corresponding sub-menu.

Picture Mode: Dynamic/Standard/Soft/ Personal

Color mode: This item can adjust the saturation of the color based on your own like.

Zoom mode: Four selectable Zoom Modes, Normal, Zoom, Cinema, Wide

3DNR: Used for the noise reduction adjustment to get a better image effects.

DLC: Dynamic brightness control

AUDIO

Press MENU button to display the main menu.

Press ◀ / ▶ button to select AUDIO in the main menu, it will highlight the first option.

AUDIO MENU

Press MENU to display the main menu, and press ◀/▶ to select the Sound Menu.

Equalizer Standard: Adjust audio frequency band.

Audio Language: Set the language.

Surround Sound: Surround effect on or off.

Audio Only: Audio Only effect on or off.

AVC: When set the AVC on, quick volume change will be smoothed.

OSD Menu Operations

TIME

Press MENU button to display the main menu.

Press ◀ / ▶ button to select TIME in the main menu, it will highlight the first option.

TIME MENU

Press MENU to display the main menu, and press ◀/▶ to select the Time Menu.

Sleep Timer: Select the time in minutes(5min,10min,15min,30min,60min,90min,120min,

180min,240min,Personal) that you want the TV to shut off automatically after you set the

time. Cancel by setting it to Off.

Time Zone: Set to choose the time belt.

Time Format: Set to choose time display format

Auto Sync: Synchronous automatic

Clock:Press ENTER to set time.

Wake Up: Ending the state of sleep

SETUP

Press MENU button to display the main menu.

Press ◀ / ▶ button to select SETUP in the main menu, it will highlight the first option.

SETUPMENU

Press MENU to display the main menu, and press ◀/▶ to select the Seput Menu.

Menu Language: Set the OSD display language. (English/ French/ Spanish)

Transparency: Set transparency of OSD.

Closed Caption: Set to hide the caption

Restore Default: Recall the default setting.

Setup Wizard: Installation guide.

Blue Screen: Set the background color to blue or black when no input signal.

OSD Menu Operations

LOCK

Press MENU button to display the main menu.

Press ◀ / ▶ button to select LOCK in the main menu, it will highlight the first option.

Press MENU button to display the main menu.

Press ← button to select Lock In the main menu. It will highlight the first option.

Enter the code 0000 to enter the parental menu (see the picture below),

or press MENU to cancel.

CHANGE PASSWORD

Press ENTER button and enter a new 4 digit password.

SYSTEM LOCK

Press ENTER to select the system lock on or off.

UNRATED LOCK

Press ENTER to select the Unrated lock on or off.

OSD Menu Operations

Adjust the OSD Screen

INPUT BLOCK

Press ENTER to display the Input Block, Press ▼ / ▲ button to select (TV、AV、

Component、HDMI PC)

press ◀/▶ button to select "UnBlock" or "Block".

US

Press ENTER or right arrow for to enter to US ratings menu, which contains two sub-menus:

Movie Rating and TV Rating. See next page for more details

CANADA

Press ENTER or right arrow for to enter to CANADA ratings menu, which contains two sub-menus: Canada English and Canada French. See next page for more details.

Troubleshooting

If you have any problem, check the countermeasures for each symptom listed below. The following symptoms may have caused by inappropriate adjustment rather than actual malfunction of the unit. If the trouble persists, contact the service center.

Symptoms	Possible solutions
No power	Please check the power cord is plug in. Unplug the power cord and plug it after 60 seconds and restart the TV.
No picture	Please check antenna connection. Station may experience problems, please tune to another station. Please adjust the settings of contrast and brightness.
Good picture but no sound	Please increase the volume. Please check TV is under mute mode, press MUTE button on the remote control. Please check sound settings.
Good sound but abnormal color or no picture	Please check the antenna connection.
No remote control	Batteries of remote control may have exhausted, if necessary, please change the batteries. Clean the remote control lens. The distance between LED TV and remote control should be within 8m.
Full screen flickering under VGA	V-HEIGHT value may be set too big, restart computer and enter safe mode, then set monitor parameters to correct value according to adjustment description.
Horizontal stripes under VGA	Sample phase may be deflected, adjust phase according to picture position.
Colored dots may be present on the screen	This product is the high resolution LED display device and a few cell defects can occur in the manufacture of the LED. Several colored dots visible on the screen would be acceptable. in line with other LED manufacturers and would not mean that the LED is faulty. We hope you will understand that it could not be changed or refunded.

Picture defects and the reason

Snowy Picture

Snowy picture is usually due to weak signal. Adjust antenna or install an antenna amplifier.

Double Image or Ghosts

Double images are usually caused by reflections from tall buildings. Adjust the direction of the antenna or raise it.

Radio Wave Interference

Wave patterns are moving on the screen, which are usually caused by nearby radio transmitters or short-wave receiving equipment.

High Temperature Electrothermal Interference

Diagonal or herringbone patterns appear on the screen or part of picture is missing. This is probably caused by high temperature electrothermal equipment in a nearby hospital.
