DX-LCD26-09 - Television Dynex - Free user manual and instructions

Product Type	LCD Television
Brand	Dynex
Model	DX-LCD26-09
Screen Size	26 inches (diagonal)
Display Resolution	1366 x 768 (HD)
Aspect Ratio	16:9
Refresh Rate	60 Hz
Dimensions (with stand)	25.6 x 17.7 x 7.9 inches (W x H x D)
Weight (with stand)	20.5 lbs
Power Consumption (typical)	80 W
Power Supply	AC 120V, 60Hz
Video Inputs	HDMI, Component, Composite, VGA
Audio Output	Headphone jack, Optical audio
Tuner Type	ATSC / NTSC
Remote Control	Included (IR)
Picture Modes	Standard, Vivid, Movie, Sports
Sound Modes	Standard, Music, Movie, Speech
Built-in Speakers	2 x 10 W
VESA Mount Pattern	100 x 100 mm
Cleaning Instructions	Wipe gently with a soft, dry cloth; do not use liquid cleaners
Safety Notes	Do not expose to rain or moisture; unplug before cleaning; keep away from heat sources
Repairability	Contact Dynex authorized service center; no user-serviceable parts inside

Frequently Asked Questions - DX-LCD26-09 Dynex

Why won't my TV turn on?

Check the power cord connection and ensure the wall outlet is working. Press the power button on the TV or remote. If still no power, try a different outlet or reset the TV by unplugging for 30 seconds.

How do I connect my cable box?

Connect the cable box output (HDMI recommended) to the TV's HDMI input. Use the Source button on the remote to select the corresponding HDMI input.

Why is there no picture but sound?

Press the Input/Source button to ensure the correct source is selected. The screen may be set to a blank input. If using external devices, check cable connections. Try resetting the TV.

How do I clean the screen?

Use a soft, dry microfiber cloth. Do not use water, alcohol, or chemical cleaners. Gently wipe in a circular motion to remove dust.

The remote control is not working. What can I do?

Replace the batteries with fresh ones (check polarity). Ensure no obstacles between remote and TV. Try pressing the power button on the TV itself to isolate the issue. If remote still fails, it may need replacement.

How can I improve the picture quality?

Adjust the picture settings using the Menu button. Select Picture settings and choose a preset like Movie or Standard. You can also manually adjust brightness, contrast, and sharpness.

Can I mount this TV on a wall?

Yes, the TV supports VESA 100x100 mm wall mounts. Use a compatible mount and follow the instructions. Ensure the mount is secured to a wall stud.

No sound comes from the TV speakers.

Check that the volume is not muted (Mute button) and the volume level is turned up. Ensure external speakers/headphones are disconnected. Go to Audio settings and confirm TV speakers are enabled.

How do I perform a factory reset?

Press Menu, navigate to Settings or Setup, look for Factory Reset or Reset All. Enter the PIN (default 0000) if asked. Confirm to restore default settings.

Why does the picture look stretched?

Change the Aspect Ratio using the Screen or Picture menu. Select 16:9 for HD content or 4:3 for standard. Avoid Zoom or Stretch modes that distort.

USER MANUAL DX-LCD26-09 Dynex

Setting up your TV 6

Installing remote control batteries 6

Connecting your TV to a power outlet 6

Connecting an outside antenna 7

Connecting cable TV 7

Connecting to an external signal source 7

Connecting a computer 8

Using your TV 8

Turning your TV on and off. 8

Selecting the TV signal source....8

Setting up the channel list ....8

Changing channels. 9

Selecting a digital sub-channel....9

Adjusting the volume 9

Displaying status information 9

Checking the DTV signal strength 9

Adding a channel label....9

Freezing the picture 9

Setting the clock....9

Setting the sleep timer 10

Viewing closed captions....10

Setting parental controls....10

Using the on-screen menu....11

On-screen menus....11

Maintaining....12

Cleaning your TV 12

Troubleshooting 13

Specifications....14

One-year limited warranty 15

Español....17

CHILD SAFETY

It makes a difference how and where you use your flat panel display

As you enjoy your new product, keep these safety tips in mind

The issue

The home theater entertainment experience is a growing trend, and larger TVs are popular purchases. However, TVs are not always supported on the proper stands or installed according to the manufacturer's recommendations. We and the consumer electronics industry are committed to making home entertainment enjoyable and safe.

TVs that are inappropriately placed on dressers, bookcases, shelves, desks, speakers, chests, or carts may fall over and cause injury.

Tune into safety

• One size of TV stand does not fit all. Use only a TV stand rated for the weight of your TV.
• Carefully read and understand all enclosed instructions for proper use of this product.
• Don't let children to climb on or play with entertainment system furniture and TVs.
• Don't place TVs on furniture that can easily be used as steps, such as a chest of drawers.
• Remember that children can become excited while watching a program, especially on a “larger-than-life” TV. Make sure that you place or install the TV where it cannot be pushed, pulled over, or knocked down.
• Make sure that you route all cords and cables so that they cannot be pulled or grabbed by curious children.

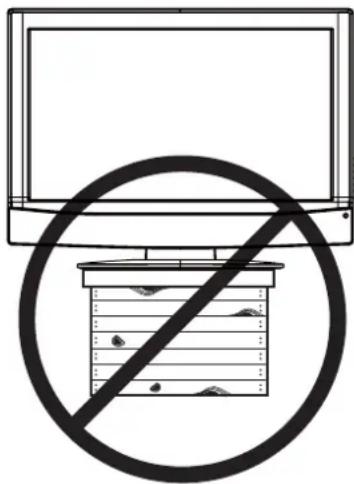

Simple line drawing of a computer monitor with a prohibition symbol below (no text or labels)

Wall mounting

If you decide to wall mount your TV, always:

• One size of wall mount does not fit all. Use only a wall mount rated for the weight of your TV and that has been recommended by this TV manufacturer, listed in this manual, or otherwise listed by an independent laboratory (such as UL, CSA, or ETL) as suitable for your TV.
• Follow all instructions supplied by the TV and wall mount manufacturers.
• If you have any doubts about your ability to safely wall mount your TV, get help from a professional installer.
• Make sure that the wall where you are mounting the TV is appropriate. Some wall mounts are not designed to be mounted to walls backed with steel studs or cinder blocks. If you are unsure, ask a professional installer.
  • TVs can be heavy. At least two people are required for safe wall mount installation.

Consumer Electronics Association

Safety information

Caution

To prevent electric shock, match the wide blade on the power cord plug to the wide slot on an electric outlet. If the plug does not fit, consult a licensed electrician to replace the obsolete outlet. Do not modify the power cord plug, or you will defeat this safety feature.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your TV. This label is located on the back of your TV.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your TV.

Warning: Your TV contains tin-lead solder and a fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated for environmental reasons. For disposal or recycling information, contact your local authorities or the Electronic Industries Alliance at www.eia.org.

Important safety instructions

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use your TV near water.
6 Clean the cabinet with a dry cloth only.

7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from your TV.

11 Only use attachments or accessories specified by the manufacturer.

12 Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer.

13 Unplug your TV during lightning storms or when unused for long periods of time.

14 Refer all servicing to qualified service personnel.

15 Servicing is required when your TV has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into your TV, your TV has been exposed to rain or moisture, does not operate normally, or has been dropped.

16 Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your TV, and if its appearance indicates damage or deterioration, unplug it, discontinue use of your TV, and have the cord replaced with an exact replacement part by an authorized service person. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits your TV.

17 Ensure that you connect the earth ground wire to prevent possible electric shock. If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.

18 The main plug is the disconnecting device. The plug must remain readily operable.

Non-active pixels

The LCD panel contains almost 3 million thin film transistors, which provide exceptionally sharp video quality. Occasionally, a few nonactive pixels may appear on the screen as a fixed blue, green, or red point. These non-active pixels do not adversely affect the performance of your TV, and are not considered defects.

Outdoor antenna grounding

If an outside antenna or cable system is connected to your TV, make sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to correct grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of the antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

1 Electric service equipment
2 Power system	service grounding electrode
	system
3	G	r	o	u	n
4 Grounding conductors
5 Antenna discharge unit
6	G	r	o	u	n
7 Antenna lead-in wire

c l

i n

Note to CATV system installer

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for correct grounding and in particular, specifies that the cable ground must be connected to the grounding system of the building as close to the point of cable entry as practical.

Mobile telephone warning

To avoid interference with your TV picture and sound, operating problems, or even damage, keep your cordless and cellular telephones away from the TV.

Features

Front

# Button	Description
1 VOL+ P	Press to increase	the volume. In Menu mode, functions as the right arrow to go to the next menu or increase a setting.
2 VOL-	Press to decrease	the volume. In Menu mode, functions as the left arrow to go to a previous menu or decrease a setting.
3	CH ▲	Press to go to the next higher channel. In Menu mode, functions as the up arrow.
4	CH ▼	Press to go to the next lower channel. In Menu mode, functions as the down arrow.
5 MENU	Press to show	the on-screen menu.
6 INPUT	Press to open	the input source menu, then press ▲or t cycle through the available video input sources.
7 POWER	Press to turn	on your TV or put it into Standby mode.

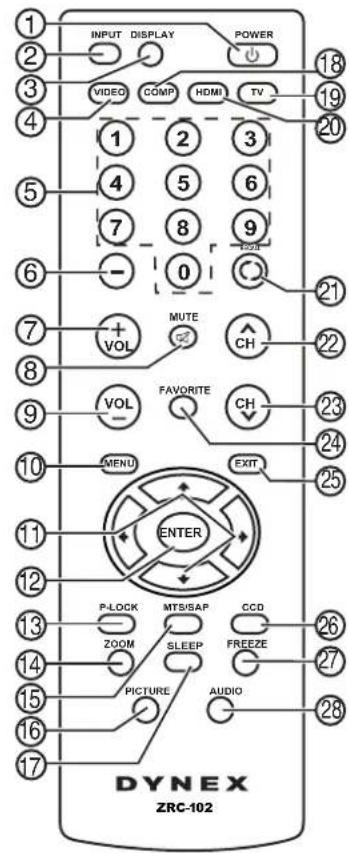

Remote control

# Button	Description
1	POWER ⏻	Press to turn on your TV or put it into Standby mode.
2	I N	Press ▲ or to cycle through the available video input sources.
3 DISPLAY	Press to display status information.
4 VIDEO	Press to toggle between S-Video and composite source modes.
5	N u buttons	Press to enter channels numbersr In the on-screen menu, press to enter your parental control password.
6 -	Use with the 0-9 number buttons and ENTER button to select digital channels.
7 VOL +	Press to increase the volume.
8 MUTE	Press to mute the sound. Press again to restore the sound.
9 VOL -	Press to decrease the volume.
10 MENU	Press to open the on-screen menu.
11	▲▼◀▶	Press to move down, up, left, or right in the on-screen menu.
12 ENTER	Press to confirm changes or to turn options on and off in the on-screen menu.
# Button	Description
13 P.LOCK	Press to activate	or deactivate parental controls. See “Setting parental controls” on page 10 for information on setting up parental controls.
14 ZOOM	Press to select the	display aspect ratio.
15 MTS/SAP	In NTSC mode,	press to select one of the preset audio modes. You can select MONO, STEREO, or SAP (secondary audio program). In ATSC mode, press to select the audio language.
16 PICTURE	Press to select	the Brightness or Contrast setting. You can adjust these settings without opening the on-screen menu.
17 SLEEP	Press to set the	sleep timer. For more information, see “Setting the sleep timer” on page 10.
18 COMP	Press to select the	component source mode.
19 TV Press	to select the ATSC (digital), or NTSC (analog) TV source.
20 HDMI	Press to select the	HDMI mode.
21	○ RECALL	Press to watch the previous channel.
22	CH^	Press to tune to the next higher channel in the channel list.
23	CH√	Press to tune to the next lower channel in the channel list.
24 FAVORITE	Press	to toggle the Favorite/Normal mode. See “Setting up the channel list” on page 8 for more information.
25 EXIT	Press	to close the on-screen menu.
26 CCD	Press	to turn closed captions on and off. For more information, see “Viewing closed captions” on page 10.
27 FREEZE	Press	to freeze the video image. Press again to unfreeze the image. Do not freeze the video image for long periods of time. You may damage the TV screen.
28	AUDIO	Press to select the Bass or Treble setting. You can adjust these settings without opening the on-screen menu.

Using the remote control

To use the remote control:

- Point the remote control towards the remote sensor on the front of your TV.

Notes:

Do not expose the remote control to shock or liquids.

Do not use the remote control in an area with high humidity.

Do not place the remote control in direct sunlight.

Do not place objects, such as furniture, between the remote control and the remote sensor.

The remote control may not work if direct sunlight or bright light shines on the remote sensor. Either move your TV or change the angle at which you use the remote control.

Setting up your TV Installing remote control batteries

To install the remote control batteries:

1 Remove the battery cover.

Simple line drawing of a rectangular device with an arrow indicating direction (no text or symbols)

2 Insert two AAA batteries into the battery compartment. Make sure that you match the + and - symbols on the batteries with the + and - symbols in the battery compartment.

Diagram of a remote control panel with battery pack and internal components (no text or labels)

3 Replace the cover.

Notes:

Do not mix batteries of different types.

Do not mix old and new batteries.

Remove batteries when the charge is depleted.

Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.

If the remote control is not going to be used for an extended period of time, remove the batteries.

Connecting your TV to a power outlet

To connect your TV to a power outlet:

- Plug the power cord into a power outlet.

Notes:

Make sure that you use the correct type of power. See the label on your TV. If you do not intend to use your TV for an extended period of time, unplug the power cord from the power outlet.

Connecting an outside antenna

Antenna cables come in two types: 75 ohm and 300 ohm.

- If your antenna cable has a 75 ohm connector, connect the cable to the coaxial jack on the back of your TV.

- If your antenna cable has a 300 ohm connector, connect the cable to a 300-75 ohm adapter (not included), connect the adapter to a 75 ohm cable, then connect the other end of the 75 ohm connector to the coaxial jack on the back of your TV.

Connecting cable TV

Your TV has a 75 ohm jack for connecting cable TV.

Some cable TV providers scramble the signals for "premium" (pay) channels. To view these channels, you need a converter/descrambler box.

If you do not have a converter/descrambler box, you can connect your cable TV directly to your TV. If you have a converter/descrambler box, you can connect your cable TV using an RF switch (not supplied). For more information about connecting a converter/descrambler box, contact your cable TV provider.

To connect cable TV without a converter/descrambler box:

1 Connect one end of a 75 ohm cable to the coaxial jack on the back of your TV.

2 Connect the other end of the cable to the cable TV wall outlet.

To connect cable TV with a converter/descrambler box:

- Use the following illustration to connect a converter/descrambler box. (The RF switch and the signal splitter are not provided.) Set the RF switch to the A position to tune to unscrambled channels using your TV remote control. Set the RF switch to the B position to watch scrambled channels using the converter/descrambler controls.

Connecting to an external signal source

You can connect a DVD, VCD, VCR, or STB using a variety of methods, including composite cables, component cables, an S-Video cable, or an HDMI cable. The S-Video cable does not carry sound. If you use an S-Video cable, you need to use audio cables to connect the audio output.

Warning: Make sure that you turn off and unplug your TV before connecting devices.

Note: For better video, use the S-Video jack if your device has an S-Video connection. For best video, use the HDMI jack if your device has an HDMI connection.

To connect an external signal source:

1 For composite video —Plug the AUDIO L, AUDIO R (6), and VIDEO (2) jacks on the back of your TV, then connect the other ends to the corresponding jacks on the external signal source.

Or

For S-Video—Plug in the audio cables as described above, then plug one end of an S-Video cable into the S-Video (3) jack on the back of your TV, then plug the other end into the S-Video jack on the external signal source.

Or

For component video—Plug the Y, Pb, and Pr video cables into the COMPONENT (5) jacks and the Audio L and Audio R cables into the AUDIO L and AUDIO R (4) jacks on the back of your TV, then plug the other ends of the cables into the corresponding jacks on the external signal source.

Or

For HDMI—Plug one end of an HDMI cable into the HDMI1 (1) jack on the back of your TV, then plug the other end into an HDMI device.

2 Turn on your TV.
3 Press INPUT repeatedly to select the external signal source you want to watch.
4 Turn on external signal source.
5 Insert a disc or videotape into the external signal source, then press PLAY.

Connecting a computer

You can connect a computer using the HDMI or VGA jack on the back of your TV.

Warning: Make sure that you turn off and unplug your TV before installing devices.

Note: When the computer goes into standby mode, your TV turns off. If your TV does not turn on when you "wake" your computer, press the POWER button on your TV or remote control.

To connect a computer using VGA:

1 Plug a VGA cable from your computer into the VGA jack on the back of your TV.

2 Plug an audio cable from your computer's audio out jack into the AUDIO jack on the back of your TV.
3 Plug in and turn on your TV.
4 Press INPUT repeatedly to select the VGA input source.

To connect a computer using HDMI:

- Plug an HDMI cable into the HDMI INPUT jack on the back of your TV and into the HDMI Out jack on the back of the computer.

Using your TV

Turning your TV on and off

To turn your TV on and off:

1 Make sure that the power cord is connected to your TV and a power outlet.
2 Press to turn on your TV. The power indicator LED turns blue.
3 Press ⏻ again to return your TV to standby. The power indicator LED turns red.

Selecting the TV signal source

To select the TV signal source:

- With the TV on, press INPUT on either the TV or the remote to choose from:

• TV
• Composite
· S - Video
- Component
• VGA
• HDMI

Press VIDEO to choose between Composite and S-Video.

Note: HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Setting up the channel list

After you select your TV source, if you selected antenna or cable you need to set up the channel list. When you set up your channel list, your TV searches for all available channels in your area and stores a list of these channels. When you press CH – or CH +, your TV skips the channels that do not have a signal.

Automatically setting up channels

To automatically set up the channel list:

1 Press MENU. The on-screen display menu opens with Setup highlighted.

2 Press to enter the sub-menu, then press or to highlight Auto Ch Search.
3 Press ENTER or ▶ to start the search.

Note: You can press Exit to stop the search.

Manually adding or deleting channels from the channel list

After you create a channel list using the Auto Ch Search option, you can manually add or delete channels from the channel list.

To add or delete channels:

1 Press MENU. The on-screen display menu opens with Setup highlighted.
2 Press to enter the sub-menu, then press or to highlight Manual Channel Set. The Channel Setup Table opens.
3 Press ▼ or ▲ to select a channel, then press ENTER to toggle between viewable and not viewable.
4 Press MENU or EXIT to close the menu.

Changing channels

To change channels:

- Press CH ∨ or CH ∧ on the remote control to go to the next lower or higher channel.

Or

Press the number buttons to directly select a channel (for example, if you want channel 83, press 8, then press 3).

Or

Press ○ RECALL to go to the last viewed channel.

Selecting a digital sub-channel

Most digital TV channels have more than one channel. The main channel carries the signal for the main TV program. The sub-channels carry signals for additional or alternate programming, such as a radio of news broadcast.

For example, if the main channel number is 8, the sub-channel number might be 8-1, 8-2, or 8-3.

To select a sub-channel:

1 Press the number buttons for the main channel (for example 8).

2 Press -, then press the sub-channel button (for example 1).

Adjusting the volume

To adjust the volume:

- Press VOL – or VOL + to decrease or increase the volume.

- Press MUTE to turn off the sound. Press MUTE again to turn the sound back on.

Displaying status information

To display status information:

- Press DISPLAY. Your TV displays status information, such as the channel number or signal source.

Checking the DTV signal strength

To check the DTV signal strength:

1 Press MENU. The on-screen display menu opens with Setup highlighted.

2 Press to enter the sub-menu, then press or to highlight DTV Signal. The DTV signal meter opens.

3 Press MENU or EXIT to close the menu.

Adding a channel label

To add a label to a channel:

1 Press MENU. The on-screen display menu opens with Setup highlighted.
2 Press to enter the sub-menu, then press or to highlight Channel Labels. The Channel Label menu opens.
3 Press of to move the cursor to the channel field, then press or to select a channel.
4 Press of to move the cursor to the label field, then press or to select the character.
5 Press ENTER to return to the previous menu.

Freezing the picture

You can freeze (still) the screen image.

Caution: To protect your TV, do not freeze the screen image for long periods of time.

To freeze or unfreeze the picture:

- Press FREEZE.

Setting the clock

To set the clock:

1 Press MENU. The on-screen display menu opens with Setup highlighted.
2 Press ▼ or ▲ repeatedly to highlight Feature. The Feature menu opens.

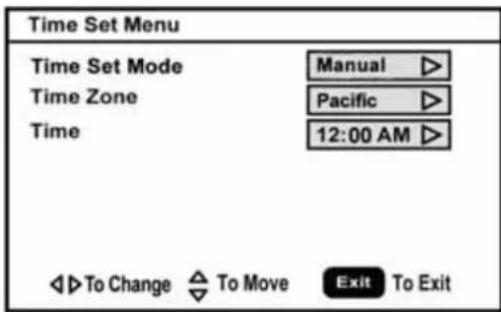

3 Press to enter the sub-menu, then press or to highlight Time Set. The Time Set menu opens.

4 Press or move to the different fields, then press or to change the settings.
5 Press MENU or EXIT to close the menu.

Setting the sleep timer

The sleep timer lets you select the amount of time before your TV turns off automatically.

To set the sleep timer:

1 Press MENU. The on-screen display menu opens with Setup highlighted.
2 Press ▼ or ▲ repeatedly to highlight Feature. The Feature menu opens.
3 Press to enter the sub-menu, then press or to highlight Sleep Timer.
4 Press ◀ or ▶ to select the amount of time (Off, 5 min, 10 min, 15 min, 30 min, 45 min, 60 min, 90 min, 120 min, 180 min, or 240 min). To turn off the timer, select Off.
Note: You can also press SLEEP to set the sleep timer.

Viewing closed captions

Note: To select or customize digital closed captions, use the Digital Captions or Digital Closed Caption sub-menus in the Feature menu.

To view closed captions:

• Press CCD repeatedly to select a closed caption option. You can select:
  • On
• Off
  • On When Mute

Setting parental controls

Your TV has a V-chip that lets you control the type of programs your children can watch. Parental controls include two ratings: MPAA (based on age) and TV Parental Guidelines (based on content and age). A TV program may have an MPAA or TV Parental Guidelines rating, so you should set controls for both ratings.

Before you can select ratings, you need to set up a parental controls password.

To set up a password:

1 Press MENU. The on-screen display menu opens with Setup highlighted.
2 Press ▼ or ▲ repeatedly to highlight Feature. The Feature menu opens.
3 Press to enter the sub-menu, then press or to highlight Password Set.
4 Press the number buttons to enter the old password. If you have not set a password, enter 0000. Press ENTER to continue.

5 Press the number buttons to enter a new password. Press ENTER to continue.

6 Press the number buttons to enter the new password again, to confirm. Press ENTER to continue.

Caution: Write down your password and save it for future use.

Note: If you forget your password, enter 3448 for the old password, then enter a new password. This password always remains valid for resetting your password.

Setting the Parental Control level set the Parental Control level:

1 Press MENU. The on-screen display menu opens with Setup highlighted.
2 Press ▼ or ▲ repeatedly to highlight Feature. The Feature menu opens.
3 Press to enter the sub-menu, then press or to highlight Parental Control. The Password screen opens.

4 Press the number buttons to enter the password. Press ENTER to continue. The Parental Control Menu opens.

5 Press ▼ or ▲ to select USA Parental Locks or Canadian Parental Locks, then press ENTER. The lock menu that you have selected opens.

6 Press ◀ or ▶, or ▼ or ▲ to move to a rating, then press ENTER to select the rating. When you block a rating, that rating and all higher ratings are blocked.

7 Press MENU or EXIT to close the menu.

American MPAA ratings

Rating Description
NONE Not rated.
G General audiences.
PG Parental guidance suggested. Some material may not be suitable for children.
PG-13 Parental guidance strongly suggested. Some material may not be suitable for children under 13 years of age.
R Restricted. Not suitable for children under 17 years of age unless accompanied by a parent or guardian.
NC-17 Not suitable for children under 17 years of age.
X Adults only.

Canadian MPAA Ratings

Rating Description
C Children.
C8+ Children 8 years and above.
G General audience.
PG Parental guidance suggested.
14+	14 years old and above.
18+	Adult programming.
X Adults only.

TV Parental Guidelines ratings

Rating Description
NONE Not rated.
TV-Y	All children.
TV-Y7	Children over seven years.
TV-G	General audiences.
TV-PG	Parental guidance suggested.
TV-14	Parents strongly cautioned.
TV-MA	Mature audiences only.

Some of the age-based TV Parental Guidelines ratings also have content-based ratings.

Rating Description
FV	Fantasy violence.
L	Adult language.
S	Sexual situations.
V	Violence.
D	Sexually suggestive dialog.

Using the on-screen menu

Your TV has an on-screen menu that lets you adjust TV settings, such as video and audio settings.

To use the on-screen menu:

1 Press MENU. The on-screen display menu opens.
2 Press or repeatedly to select a menu item.
3 Press of toenter a sub-menu.

4 Press ENTER or ▶ to confirm an adjustment or toggle a setting.
5 Press MENU or EXIT to close the on-screen display menu.

On-screen menus

On-screen menu	Options

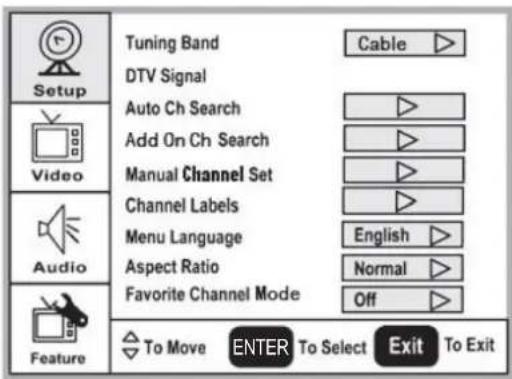

Setup	Tuning Band-Selects the TV antenna source (Air or Cable).DTV Signal-Displays the digital TV signal strength. For more information, see “Checking the DTV signal strength” on page 9.Auto Ch Search-Automatically sets up a list of the channels available in your area. For more information, see “Automatically setting up channels” on page 8.Add On Ch Search-Lets you add new channels without going through the entire list of available channels.Manual Ch Set-Lets you add or delete channels from the channel list. For more information, see “Manually adding or deleting channels from the channel list” on page 8.Channel Labels-Lets you add a label to a channel. For more information, see “Adding a channel label” on page 9.Menu Language-Selects the language for the on-screen menu. You can select English, French, or Spanish.Aspect Ratio-Selects the screen aspect ratio: Normal, Wide1, Wide2, Zoom, or Cinema.You can also press ZOOM to select the aspect ratio.Favorite Channel mode-Lets you edit your favorite channel list. Press FAVORITE on the remote to toggle this mode on or off.
Video (Options may vary in different modes.)	Contrast-Increases the picture level to adjust the white areas of the picture. Decreases the picture level to adjust the black areas of the picture. (0 ~ 100)Brightness-Increases the brightness to add more light to dark areas of the picture. Decreases the brightness to add more dark to light areas of the picture. (0 ~ 100)Sharpness-Increases the sharpness for a cleaner and clearer image. Decreases the sharpness for a smoother picture. (-50 ~ 50)Color-Adjusts the overall color of the picture. (0 ~ 100)Tint-Increases the color level to add more green to skin tones. Decreases the color level to add more purple to skin tones. (R50 ~ G50)Backlight-Adjusts the backlight level (0 ~ 10).Settings-Restores the video settings to factory default.
Audio (Options may vary in different modes.)	Audio Language-Selects an alternate language if the program has more than one language available. Only available in ATSC TV mode.Bass-Adjusts the low sounds (bass).Treble-Adjusts the high sounds (treble).Balance-Adjusts the right and left speaker volumes.Digital Audio Output-Selects the audio mode for the digital audio optical jack. RAW: AC-3 in - AC-3 out/PCM in - PCM out. PCM: AC-3 in - PCM out/PCM in - PCM out.TV Speaker-Turns the internal TV speaker On (default) or Off. Does not affect the digital audio output, the headphone output, and the composite audio output.Settings-Restores the audio settings to factory default.

On-screen menu

Options

Feature Time Set

Sets the clock. For more information, see “Setting the clock” on page 9.Sleep Timer–Sets the sleep timer. For more information, see “Setting the sleep timer” on page 10.Advanced Video Set–Noise Reduction–Select from Low, Mid, High, and Off.Color Temperature–Select from Normal, Warm, and Cool (default).3D Y/C–Choose from On (default) or Off.Setting–Restores the settings to factory default.Dynamic Contrast–Choose from On (default) or Off.Password Set–Lets you set the password for parental control options. The default password is 0000. See “Setting parental controls” on page 10.Parental Control–Accesses V-chip controls. For more information, see “Setting parental controls” on page 10.Digital Caption–Sets the digital caption type. Choose from Service 1-6, Text 1-4, and CC 1-4.Closed Caption Options–Customizes closed captions for digital broadcasting systems. You can adjust Size, Font, Text Color, Text Opacity, Background Color, Background Opacity, Edge Effect, and Edge Color.Component Set–Only available in component mode. Lets you set Horizontal Position (0 ~ 100), Vertical Position (0 ~ 100), Clock (0 ~ 100), and Phase (1 ~ 100). The Settings option restores the settings to factory default.VGA Set–Only available in VGA mode. Lets you set Horizontal Position (0 ~ 100), Vertical Position (0 ~ 100), Clock (0 ~ 100), and Phase (0 ~ 100). You can also select Auto Adjust to automatically adjust the settings.The Settings option restores the settings to factory default.Input Label–Lets you modify the channel label.

Maintaining

• Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction.
• Storage temperatures are 32^irc to 122^ircF (0° to 50°C).
• Working temperatures are 41^irc to 104^ircF (5° to 40°C).
• Do not place your TV in direct sunlight or near a heat source.

Cleaning your TV

Clean the screen and cabinet with a soft, lint-free cloth. If the screen or cabinet is especially dirty, moisten a soft, lint-free cloth in a weak detergent solution, squeeze the excess moisture from the cloth, then wipe the screen or cabinet with the cloth. Use a clean cloth to dry the screen or cabinet.

CautionS:

Avoid the following, because it may cause damage to your TV:

Cleaning your TV with volatile substances, such as insect sprays, solvents, and thinners.

Leaving items made from rubber or PVC in contact with your TV for long periods.

Letting liquids drip into the cabinet.

Troubleshooting

Warning: Do not try to repair your TV yourself. Refer all service to a qualified service technician.

Symptom Possible solution
No power • Make sure that the power cord is connected to your TV and a power outlet. • Unplug the power cord, wait 60 seconds, then plug the cord back in and turn on your TV.
No picture • Make sure that the video cables are connected securely to the back of your TV. • Adjust the contrast and brightness. • Make sure that the correct video mode is selected. • Make sure that the incoming signal is compatible. • Make sure that the antenna is connected correctly. • Check the closed caption settings. Some TEXT modes can block the screen.
Good picture but no sound	• Increase the volume • Make sure that the sound is not muted. • Make sure that the correct audio mode is selected.
Good sound but poor color	• Adjust the contrast, color, and brightness settings.

Symptom Possible solution
Poor picture • Make sure	that the room is not too bright. Light reflecting off the screen can make the picture difficult to see.• If an S-VHS camera or a camcorder is connected while another connected device is turned on, the picture may be poor. Turn off one or more devices.
Horizontal dotted line •	Your TV may be too close to another electrical device, such as a hair dryer or neon light. Turn off the device or move your TV.
“Ghost” or double image	• This may be caused by obstructions to the antenna, such as high-rise buildings or hills. Using a highly directional antenna may improve the picture quality.
Remote control does not work	• Press TV.• Replace the batteries. Make sure that the + and - symbols on the batteries align with the + and - symbols in the battery compartment.• Clean the remote sensor on the front of your TV.• Bright or fluorescent lighting may interfere with the remote control signal. Turn off the light or move your TV.
Snowy picture or noise •	Make sure that the A/V and antenna cables are connected correctly and securely.
VGA picture is not stable or synchronized	• Make sure that you have selected the correct VGA mode on your computer.
No output from one of the speakers	• Adjust the balance in the Sound menu.
Control buttons do not work	• Unplug the power cord, wait a few seconds, then plug the cord back in and turn on your TV.
After images appear • Do	not display a still image, such as a logo, game, or computer image, for an extended period of time. This can cause a permanent after image to be burned into the screen. This type of damage is not covered by your warranty.
Picture has a few bright or dark dots	• A few bright or dark dots on an LCD screen is normal. It does not affect the operation of this TV.

Appendix

To attach a wall mount bracket to your TV:

1 Remove the four M4 screws holding your TV to the stand.
2 Secure the wall mount bracket to the back of your TV using four M4 screws, as indicated in the illustration.

Specifications

Design and specifications are subject to change without notice.

Analog standard NTSC
Digital standard ATSC, 8-VSB, Clear-QAM
Screen 26-inch
Channel coverage VHF: 2-13UHF: 14-69CATV: Mid band - A-8 ~ A-1, A ~ ISuper band - J ~ WHyper band - AA ~ ZZ, AAA, BBBUltra band - 65 ~ 94, 100 ~ 135
Power source AC 100~240 V 50/60 Hz
Power consumption	<120 W<1 W in standby mode
Audio power 5 W + 5 W internal speaker
S-Video input Y:1 V(p-p), 75 ohm, negative syncC:0.286 V(p-p) (burst signal), 75 ohm
Video/audio input Video:1 V(p-p), 75 ohm, negative syncAudio:500 mV(rms)
Component input Y:1 V(p-p), 75 ohm, including syncPr/Cr:±0.35 V(p-p), 75 ohmPb/Cb:±0.35 V(p-p), 75 ohmAudio:500 mV(rms)Suggested resolutions:1080i, 720p, 480p, 480i
HDMI input 1 HDMI input terminalHDCP compliantE-EDID compliantSuggested scan rates:1080i, 720p, 480p, 480i
VGA input D-Sub 15-pin terminalE-EDID compliantSuggested scan rates:640×480 /60 Hz, 800×600 /60 Hz, 1024×768 /60 Hz, 1360×768 /60 Hz,Audio input: Headphone mini-jack for stereo
Dimensions	25.67 × 19.13 × 7.4 inches(65.2 × 48.6 × 18.8 cm)

Weight	19.4 lbs. (8.8 kg)
Accessories Power cord
	User guide
	Remote control
	Batteries (2 AAA)

Legal notices

FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.

FCC warning

Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.

Cables

Connections to this device must be made with shielded cables with metallic RF/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Copyright

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

One-year limited warranty

Dynex Products ("Dynex") warrants to you, the original purchaser of this new DX-LCD26-09 ("Product"), that the Product shall be free of defects in the original manufacture of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period"). This Product must be purchased from an authorized dealer of Dynex brand Products and packaged with this warranty statement. This warranty does not cover refurbished product. If you notify Dynex during the Warranty Period of a defect covered by this warranty that requires service, terms of this warranty apply.

How long does the coverage last?

The Warranty Period lasts for one year (365 days) from the date you purchased the Product. The purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Dynex repair center or store personnel, Dynex will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Dynex and are not returned to you. If service of products and parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Dynex Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a retail store location, take your original receipt and the Product to the store you purchased it from. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from an online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

To obtain in-home warranty service for a television with a screen 25 inches or larger, call 1-888-BESTBUY. Call agents will diagnose and correct the issue over the phone or will have an Dynex-approved repair person dispatched to your home.

Where is the warranty valid?

This warranty is valid only to the original purchaser of the Product in the United States and Canada.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction
  •Installation
• Set up adjustments
  •Cosmetic damage
  •Damage due to acts of God, such as lightning strikes
• Accident
• Misuse
  •Abuse
  •Negligence
• Commercial use
• Modification of any part of the Product

- Plasma display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

This warranty also does not cover:

•Damage due to incorrect operation or maintenance

- Connection to an incorrect voltage supply

- Attempted repair by anyone other than a facility authorized by Dynex to service the Product

- Products sold as is or with all faults

- Consumables, such as fuses or batteries

- Products where the factory applied serial number has been altered or removed

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. DYNEX SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. DYNEX PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Dynex:

For customer service please call 1-800-305-2204

www.dynexproducts.com

DYNEX ^® is a registered trademark of Best Buy Enterprise Services, Inc. Distributed by Best Buy Purchasing, LLC.

Dynex, 7601 Penn Avenue South, Richfield, Minnesota, U.S.A.

Dynex DX-LCD26-09

Control remoto....20

Montaje en pared

Consumer Electronics Association

Simple line drawing of a rectangular device with an arrow indicating direction (no text or symbols)

Diagram of a remote control panel with battery and casing, showing internal components and an arrow indicating assembly (no text or symbols present)

Cross-sectional diagram of a cable or tube with two parallel plates (no text or symbols)

Dynex, 7601 Penn Avenue South, Richfield, Minnesota, E.U.A.

DYNEX™

07-714

www.dynexproducts.com [phone]

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave. South, Richfield, MN 55423 U.S.A.

© 2008 Best Buy Enterprise Services, Inc. All rights reserved.

DYNEX is a trademark of Best Buy Enterprise Services, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.

Distribuido por Best Buy Purchasing, LLC

7601 Penn Ave. South, Richfield, MN 55423 U.S.A.

© 2008 Best Buy Enterprise Services, Inc. Todos los derechos reservados.
