Product Type	Freestanding Washing Machine
Model	WISA106
Brand	Freggia
Rated Capacity	6 kg
Dimensions (H x W x D)	850 x 595 x 600 mm
Net Weight	65 kg
Rated Voltage	220-240 V ~ 50 Hz
Rated Power	2000 W
Water Pressure Range	0.05 - 1.0 MPa (0.5 - 10 bar)
Water Connection	Cold water inlet (3/4" thread)
Maximum Spin Speed	1000 rpm
Drum Material	Stainless steel
Adjustable Feet	Yes (4 feet)
Transport Bolts	4 (must be removed before use)
Filter Type	Cleanable filter (located at bottom front)
Detergent Drawer	3 compartments (pre-wash, main wash, softener)
Drain Hose Height	60 - 90 cm
Number of Programmes	15+ (including cotton, synthetics, delicates, etc.)
Safety Features	Door lock during operation, overheating protection
Installation Requirements	Level surface, water supply, drain, electrical socket with earthing

Frequently Asked Questions - WISA106 Freggia

How do I properly install the washing machine?

Installation must be carried out by qualified personnel. Remove all transport bolts and spacers (4 screws) before use. Level the machine by adjusting the feet, ensuring it is stable. Connect the fill hose to a cold water supply (3/4" thread) with pressure between 0.5 and 10 bar. The drain hose must be positioned at a height of 60-90 cm. Connect the power supply to an earthed socket (220-240 V). Do not use extension leads.

What should I do if the washing machine does not start?

Check that the mains power supply is working, the plug is inserted correctly, and the On/Off button is pressed. Ensure the programme is selected and the door is closed properly. On electronic models, press the Start button. Also check that the water supply valve is open and the filter is not blocked.

Why is my washing machine not filling with water?

Verify that there is water in the supply system, the fill hose is connected, and the water valve is open. Check if the filter between the valve and hose is blocked. If blocked, clean it after unplugging the appliance.

Why does the washing machine vibrate and make noise?

Ensure all transport bolts have been removed. The machine must be perfectly level; adjust the feet if needed. Also, bulky items like sheets or towels should be evenly distributed in the drum to avoid imbalance.

How do I clean the filter?

Before cleaning, make sure the washing machine is empty and disconnected from power. Place a cloth under the filter to catch water. Open the filter door, unscrew the filter anticlockwise, and rinse it under running water. Screw it back clockwise securely.

How do I remove the detergent drawer?

Open the detergent drawer, press on the 'PUSH' area with your right hand, and pull the drawer out with your left hand. Rinse it under running water and replace it after cleaning.

What should I do if the door won't open after a cycle?

Make sure the wash cycle has completely finished. If the 'Stop with water' function is selected (automatic on some models), the door will remain locked until the water is drained. On some models, a flashing start button signals the cycle is not yet finished.

Why is the washing not clean at the end of the cycle?

Check that the drum is not overloaded. Use the correct amount of detergent as per the packaging instructions. Select the appropriate programme for the fabric type. For heavily soiled items, consider a pre-wash or stain removal treatment.

Why does the washing machine continuously fill and drain?

This usually indicates incorrect drain hose installation. Ensure the drain hose is positioned at a height of 60-90 cm and the end is not submerged in water. Also check that the hose is not kinked or blocked.

What maintenance does the washing machine require?

Regularly clean the filter (every few months) and rinse the detergent drawer. Periodically wipe the exterior with a soft damp cloth. Leave the door open after washes to allow rubber seals to dry. Do not use abrasive cleaners. For any technical issues, contact an authorised service centre.

USER MANUAL WISA106 Freggia

Thank you for purchasing Freggia household appliance.

Please carefully read the user manual, as it contains the instructions for the safe installation, operation and maintenance of the household appliance.

Save it for future use.

RU

ALLACCIAMENTO IDRICO....8

COLLEGAMENTO ELETTRICO....9

UTILIZZO DELLA LAVATRICE....9

AVVERTENZE PRIMA DELL'USO....9

USO DEI DETERSIVI....9

COME ELIMINARE ALCUNE MACCHIE....10

SIMBOLI INTERNAZIONALI PER IL TRATTAMENTO DEI VESTITI....11

MANUTENZIONE....12

PULIZIA DELLA LAVATRICE....12

COME ESTRARRE LO SCOMPARTO DETERSIVI....12

PULIZIA DEL FILTRO....12

SOLUZIONE DEI PROBLEMI....13

Illustration of hands using a tool to adjust or install a component, with no visible text or symbols

MESSA IN PIANO DELLA LAVATRICE

Hand holding a small mechanical component with an arrow indicating rotation (no text or symbols)

Hand holding a pipe with a valve, showing a curved arrow indicating direction (no text or symbols present)

Illustration of a hand holding a pipe fitting with a magnified inset showing a cross symbol (no text or labels)

Close-up of a hand adjusting a mechanical component with a hose and lever (no visible text or symbols)

Illustration of a bathroom sink with faucet and shower, no text or symbols present

Diagram showing a device with arrows pointing to a component, no readable text or symbols present

Illustration of a hand pressing down inside a circular pipe with an arrow indicating force (no text or symbols)

UTILIZZO DELLA LAVATRICE

Diagram of a hand inserting a device into a car compartment, showing arrows indicating direction (no text or symbols present)

Illustration of a hand pouring liquid into a device inside a drawer (no text or symbols visible)

Diagram of a computer drawer with internal compartments and a mouse, showing no text or symbols

COME ELIMINARE ALCUNE MACCHIE

Illustration of a hand washing a large washing machine with a hand holding a tool (no text or symbols visible)

Illustration of a hand washing a sink with a tool, no text or symbols present

Hand placing a plastic bag into a drawer with an arrow indicating left-hand rule (no text or symbols)

Illustration of a hand inserting a device into a container with a magnifying glass (no text or symbols visible)

Hand pressing a button into a device with a curved arrow indicating rotation (no text or symbols)

SOLUZIONE DEI PROBLEMI

NOTES AND ADVICE FOR THE USER....16

DESCRIPTION OF THE APPLIANCE....18

INSTALLING THE WASHING MACHINE....19

UNPACKING AND RELEASING MACHINE....19

LEVELLING THE WASHING MACHINE....19

WATER CONNECTION....20

CONNECTING TO THE POWER SUPPLY....21

USING THE WASHING MACHINE....21

INFORMATION BEFORE USE....21

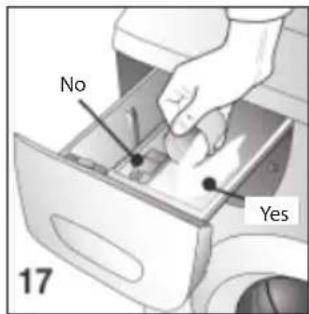

USE OF DETERGENT....21

HOW TO ELIMINATE STAINS....22

INTERNATIONAL SYMBOLS FOR CLOTHING TREATMENT....23

MAINTENANCE....24

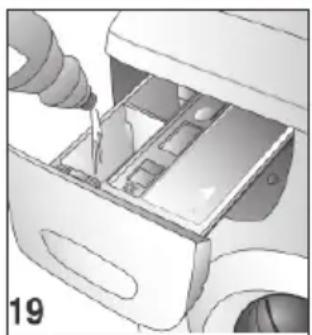

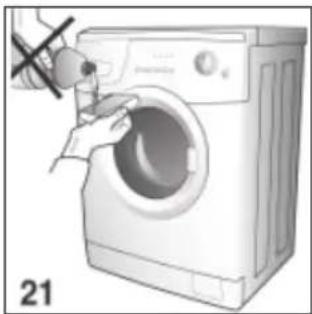

CLEANING THE WASHING MACHINE....24

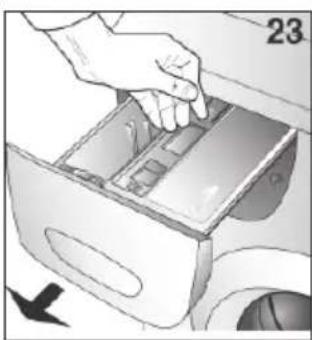

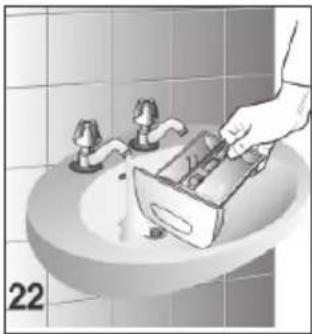

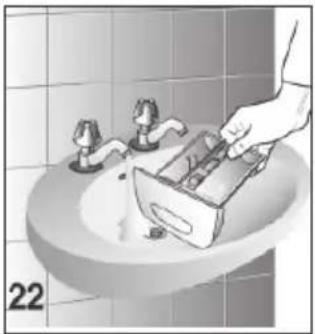

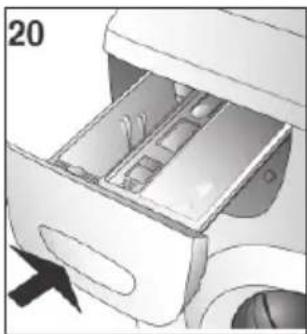

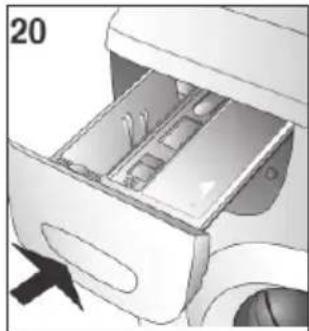

REMOVING THE DETERGENT DRAWER....24

CLEANING THE FILTER....24

PROBLEM SOLVING....25

This appliance is marked as complying with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). Make sure that the product is disposed of in a correct manner. The user is obliged to contribute towards preventing negative consequences for health and the environment.

The symbol affixed to the product or accompanying documents signifies that the product must not be treated as normal domestic refuse, but must be delivered to an authorised collection centre to enable the electric and electronic equipment to be recycled. When disposing of the appliance, comply with local waste disposal regulations. For further information on the treatment, recovery and recycling of this product, refer to the appropriate offices, local domestic waste collection service or the retailer from where the appliance was purchased

Before connecting the appliance read these instructions carefully. Repairing the failure arising from inappropriate connections or use of the appliance is not covered by the guarantee.
LA DITTA PRODUTTRICE DECLINA QUALSIASI RESPONSABILITÀ PER EVENTUALI INCIDENTI PROVOCATI DALLA NON OSSERVANZA DELLE NORME DI SICUREZZA NONCHÉ DELLE ISTRUZIONI D'USO

• This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Children of less than 3 years should be kept away unless continuously supervised.
• The appliance must be properly connected to the system with new hoses provided. Used hoses must never be reused.
• The operating pressure of water (minimum and maximum) must be between 0.5bar (0.05MPa) and 10 bar (1 MPa).
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid a hazard.
• Ventilation opening in the base must not be obstructed by a carpet.

• Observe the maximum volume of dry load as indicated in the section "Program Table".

• Before using the washing machine, remove all the packing and locking devices used for the transport (locking screws). If this is not done, serious damage may be caused to both the appliance and your home.

• This appliance has been designed for use as a domestic washing machine. Any other use is considered as improper and therefore dangerous.
• Any modifications or attempts to interfere with the washing machine can be dangerous for the user and may damage the appliance itself.
• Considering the substantial weight of the washing machine, specific safety standards must be observed during handling.
• When the appliance is in operation, avoid any contact with the water being discharged through the drain hose, as it may be very hot. Do not touch the door glass either, as this will tend to heat up during washing.
• Use the washing machine for machine-washable items only. In the case of any doubts, refer to the manufacturer's instructions on the label attached to the item to wash (see "Clothing care symbols")
• Before placing the washing in the washing machine, make sure that all pockets are empty. Hard or pointed objects such as coins, pins, nails, screws or stones can cause serious damage to the appliance.
• Never wash items that have been soiled with substances containing petrol. In the case where stains have been removed using vaporising products, wait until these substances have fully evaporated from the surface of the material before loading into the washing machine.
• The use and quantities of detergent, softener and bleach must comply with the instructions reported on the packaging.
• Do not use detergents designed for hand washing, in that the excessive suds produced could damage the internal components.
  • After washing mats, blankets or any other longfibre materials, remove the filter and clean it if necessary.
• It is advisable to leave the door open at the end of the wash cycle.
• Do not attempt to repair any appliance faults alone, in that repairs carried out by a nonprofessional may cause serious damage and will invalidate any rights to repairs under guarantee.
• Repairs to the appliance can only be carried out by personnel authorised by the customer service centres. All repairs must make use of original spare parts only.
• Never insert or remove the plug from the mains socket with wet hands.
• The washing machine must be connected to a mains socket fitted with an efficient earth complying with current safety standards.
• Do not use extension leads or multiple plug adapters to connect the washing machine to the mains electricity supply.
• Do not expose the appliance to atmospheric agents.
• The washing machine can only be opened once the led or display indicates that the cycle has finished. On some models, this is signalled by a flashing start button.
• When servicing or cleaning the washing machine, remember to disconnect it from the mains electricity supply.
• Do not pull the power supply cable to unplug the washing machine from the mains supply. Pull the plug only.
• It is advisable to unplug the washing machine from the mains electricity supply and close-off the water supply after each wash.

NOTES AND ADVICE FOR THE USER

FOR WASHER/DRIER VERSIONS:

• Never dry unwashed items.
• Do not dry items that have been washed or had stains removed using chemical products.
• Never dry items that have been soiled with substances such as cooking oil, petroleum, acetone, alcohol, petrol, kerosene, stain removers, turpentine, wax. Remove these substances in a hot wash using an abundant quantity of detergent prior to loading the items in the drier.
• Do not dry items such as foam rubber, latex, raincoats, waterproof fabrics, rubber mats, preformed items, clothes or cushions with foam rubber padding, as these may melt and damage other items in the washing or even the appliance itself.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• Children of less than 3 years should be kept away unless continuously supervised.
• That the appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the appliance, in such a way that a full opening of the appliance door is restricted.

WARNING!!! THE FINAL PART OF A DRYING CYCLE IS THE COOLING DOWN PHASE. CONSEQUENTLY, NEVER SWITCH OFF THE DRIER BEFORE THE CYCLE HAS BEEN COMPLETED. OTHERWISE, THE WASHING MUST BE TAKEN OUT QUICKLY AND HUNG OUT TO ALLOW THE HEAT TO DISSIPATE.

DESCRIPTION OF THE APPLIANCE

• The washing machine has been constructed in steel panels which have been treated and painted to guarantees that its aesthetic qualities remain unaltered over time.
• The motor and all moving parts have been designed and manufactured to guarantee the minimum possible noise levels
• The large easily-accessible stainless steel drum will ensure a better quality wash and help to prolong the life of your washing
• The easy to use control panel will satisfy all washing and drying needs (see control panel and programme table).
• The wide door makes loading and unloading the washing much easier.
• The very high stability of the appliance is the result of constant research by our technicians into the equilibrium of masses in movement.

DESCRIPTION OF THE APPLIANCE

A - DOOR

B - FILTER

C - ADJUSTABLE FEET

D - TOP COVER

E - DRUM

F - CONTROL PANEL

G - DETERGENT DRAWER

INSTALLING THE WASHING MACHINE

Installation must be carried out by qualified personnel in line with the instructions supplied by the manufacturer.

Incorrect installation may result in damage and injury.

The appliance can be installed anywhere providing that the ambient temperature is not less than 3^ C and that the wires or pipes on the rear of the machine are not squashed.

WARNING!! The washer/drier version must not be installed behind a locked door, a sliding door or with a hinged door on the opposite wall to the washer/drier itself.

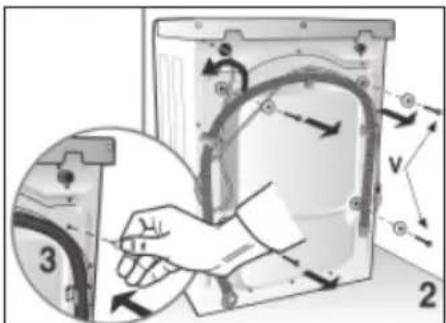

For transport reasons, the washing machine's oscillating group is locked in place by 4 spacers and screws. Before using the machine, remove the spacers and locking screws. Keep the screws and spacers for future use. Close off the holes using the plugs supplied. The plugs can be found in the bag containing the documents.

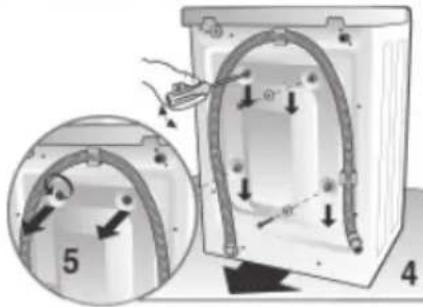

For transport reasons, the washing machine's oscillating group is locked in place by 4 spacers and screws. Before using the machine, remove the locking screws with a suitable tool. Insert a screwdriver in the holes and lever out the 4 plastic spacers as shown in the figure.

LEVELLING THE WASHING MACHINE

After having selected the most suitable location for the appliance, make sure it is level by regulating the adjustable feet (Fig. 6).

Pay particular attention to the positioning and levelling of the washing machine and make sure that the lock nuts are tight.

If the appliance is not levelled correctly, it will be unstable and noisy and may cause damage.

If the washing machine is installed on a carpeted floor, leave sufficient space between the appliance and the floor to guarantee the free circulation of air.

It is not advisable to install the appliance in rooms where the temperature could fall below 0°C.

Illustration of hands using a tool to adjust or install a component, with arrows indicating motion (no text or symbols)

Hand holding a small mechanical component with an arrow indicating rotation (no text or symbols)

INSTALLING THE WASHING MACHINE

In the under-worktop versions, screw in the feet until the spring is fully compressed, thus allowing the appliance to be installed under the worktop (Fig. 6B).

WATER CONNECTION

The mains water pressure must be between 0.05 and 1.00 Mpa (0.5 - 10 bar.)

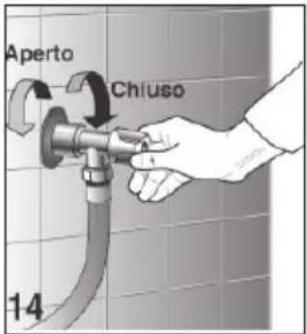

• Before connecting the washing machine, open the valve and allow a certain quantity of water to flow out in order to clean the pipes of any sand or rust. This operation is particularly important in the case where the washing machine has been left standing for a long time or when connecting to a new water supply system.
• The fill hose must be connected to the mains supply using a 3/4'' thread connection.

N.B. On electronic washing machines fitted with a dual solenoid valve (hot and cold water), connect the red hose to the hot water supply valve and the other hose to the cold water supply valve.

If a hot water supply is not available, both hoses must be connected to the cold supply using the fi tting supplied (see fi g. 8)

- Connect the fi ll hose (fi g. 9).

N.B. Washing machines and condensation type washer/driers must be connected to the mains water supply using the new hoses provided with the appliance. The old hoses must not be re-used.

- During the wash, the water supply valve must be fully open.

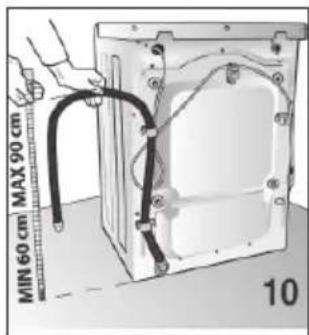

• The drain hose must be positioned at a height of between 60 cm and 90 cm (fi g. 10).
• If the water is drained directly into the drainage system, the free end of the drain hose must be inserted in a pipe of internal diameter not less than 40 mm.
• The drain hose connection to the drainage system must not be hermetically sealed, as this would cause a build up of air in the siphon and allow water to leak out.

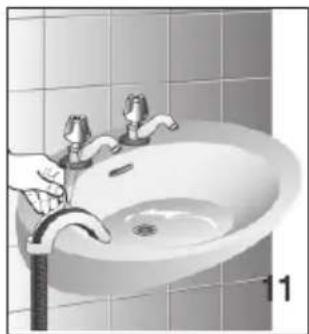

If the wash water is drained into a washbasin, sink or other similar system, the free end of the hose must be reinforced at the bend using the bracket supplied with the washing machine. Place the hose over the edge of the washbasin and anchor the bracket in such as manner that prevents the hose from falling (fi g. 11). The washbasin outlet must be clean and must allow the water to flow freely.

Hand holding a pipe with a valve, no text or symbols visible

Illustration of a hand holding a pipe fitting with a valve, alongside a close-up of a wire being inserted (no text or symbols)

Close-up of a hand adjusting a hose component (no visible text or symbols)

Illustration of a hand washing a sink with faucet, tiled wall background (no text or symbols)

INSTALLING THE WASHING MACHINE

CONNECTING TO THE POWER SUPPLY

Make sure that the voltage indicated on the identification plate attached to the inside of the filter door corresponds to that of the mains supply (fi g. 12).

All cut-outs, electric wiring and mains sockets must have a rating such that enables them to support the maximum load indicated on the identification plate.

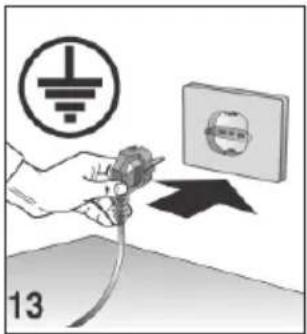

Once the appliance has been installed, it must be connected to the mains supply through a single-pole switch.

The mains supply to which the appliance is connected must be fitted with an earthing system. If this is not the case, the manufacturer will not be held liable for any incidents that may occur (fi g. 13).

If the mains socket to which the appliance is connected is faulty or unsuitable, it must be replaced by a qualified electrician.

The washing machine must not be connected to the mains supply using indirect methods such as extension leads or multiple adapters.

During maintenance work, the washing machine must be disconnected from the mains electricity supply.

Do not insert or remove the plug from the mains socket with wet hands.

If the power supply cable is damaged in any way, contact the appropriate specialised service centre.

The plug used to connect the machine to the power supply must never be fixed behind the machine, but must be in a position easily accessible in an emergency.

USING THE WASHING MACHINE

INFORMATION BEFORE USE

Warning: Before carrying out the first wash, allow the washing machine to effect a short wash cycle without any washing. This will allow the operation of the washing machine to be checked and will clean the drum.

Before each wash make sure that:

• the water connections are correct, the drain hose is properly positioned (see connecting to the water supply) and that the water supply valve is open.
  • with dry hands, insert the plug in the mains socket.
• sort the wash into types of fabric (refer to clothing care symbols).
• check that there are no objects left in any of the pockets of the items to wash, as these may damage the washing, the appliance or the filter.

USE OF DETERGENT

The washing machine is fitted with a three-compartment detergent drawer

1 compartment for pre-wash or soak soap powder (1)
2 compartment for normal wash soap powder (2)

softener compartment (3)

Diagram showing a device with arrows pointing to a component, no readable text or symbols present

Illustration of a hand pressing down inside a circular pipe with a black arrow indicating force (no text or symbols)

USING THE WASHING MACHINE

Use a low-suds detergent and softener (if required) recommended for automatic washing machines. Follow the dosage instructions written on the packet.

N.B. Too much detergent can produce excessive suds and may result in a poor wash. Too little detergent will produce an unsatisfactory wash.
N.B. When adding detergent to the dispenser, remember to avoid any spillage into the softener compartment, in that this would create a soapy rinse and stain the fabrics white. Vice versa, if softener is added to the detergent compartment, the quality of the wash will be compromised.
N.B. When using a liquid detergent (recommended for programmes without pre-wash) proceed as follows: remove the baffle from its housing at the front of compartment 2 and insert it in the guides near the centre of the same compartment.

- close the detergent drawer before starting the wash.

! Warning! Do not attempt to remove the detergent drawer while the washing machine is in operation, as this will cause water to flow out.

Diagram of a hand inserting a device into a car compartment, showing arrows indicating direction (no text or symbols present)

Illustration of a hand pouring liquid into a device drawer (no text or symbols visible)

Diagram of a device drawer with internal compartments and a directional arrow (no text or symbols)

HOW TO ELIMINATE STAINS

Stains exist that cannot be removed by machine washing alone. Before trying to remove any type of stain by hand, first try the removal procedure on a small area of hidden fabric. Start from the edge of the stain and working inwards, this will prevent a dark ring from forming around the site of the stain. A few methods to adopt for removing stains are reported below.

• Wax: Scrape the wax using a rounded point in order not to damage the fabric. Then, with the fabric placed between two pieces of absorbent paper, run a hot iron over the stain.
• Ball point pens and felt-tip pens: clean using a soft cloth soaked in ethyl alcohol. Take care not to spread the stain.

• Damp and mould: if the fabric supports the use of bleach, carry out a wash cycle adding bleach. Otherwise, soak the soiled part in hydrogen peroxide (10 volumes) and leave for 10 to 15 minutes.
  • Light scorch marks left by ironing: follow the instructions for mould and damp.

• Rust: use products specially designed for rust stains, following the manufacturer's instructions written on the packet.

• Chewing gum: rub ice over the fabric, scrape away as much chewing gum as possible and then rub with a piece of cotton soaked in acetone.
• Paint: do not allow the paint to dry. Rub the area with the solvent recommended by the paint manufacturer (e.g. water, turps, trichloroethylene), soap and then rinse.
• Lipstick: stains on cotton or wool can be eliminated using a cloth soaked in ether. Stains on silk require the use of trichloroethylene.
• Nail varnish: place a sheet of absorbent paper on the stained material, then dampen the back of the fabric with acetone, frequently changing the absorbent paper placed over the stain. Continue in this manner until the stain has disappeared.
  • Tar or dirt: spread a little fresh butter over the stain, allow to stand and then wash with oil of turpentine.
• Grass: delicately soap the stain, use diluted bleach. Good results can be obtained on woollen fabrics using 90% alcohol.
• Blood: put into soak in cold water with added salt, then wash with washing soap..

INTERNATIONAL SYMBOLS FOR CLOTHING TREATMENT

Before placing the clothes in the washing machine and selecting the wash programme, examine the symbols on the manufacturer's label. The table reported below will provide a useful guide to reading the symbols.

	Normal wash Bleach in cold water				Dry-clean using ethyl perchlorate, benzine, pure alcohol, R111 and R113
	Delicate wash Do not bleach Do not dry clean
	Wash at max 95°C Iron at up to max 200 °C Dry fl at
	Wash at max 60°C Iron at up to max 150 °C Dry hanging
	Wash at max 40°C Iron at up to max 100 °C Dry on hanger
	Wash at max 30°C Do not iron				Dry in tumble dryer at normal temperature
	Hand wash Dry-clean using solvent				Dry in tumble dryer at low temperature
	Dry-clean only		Dry-clean using benzine, pure alcohol and R113 only		Do not tumble-dry

MAINTENANCE

CLEANING THE WASHING MACHINE

The washing machine has been specifically designed to reduce maintenance to a minimum. Nevertheless, it is important that it is cleaned regularly.

Before cleaning, make sure that the appliance has been disconnected from the power supply and that the water supply valve has been closed.

The external structure and the parts of the washing machine in plastic must be cleaned with a soft damp cloth only.

WARNING!! Never use chemicals, abrasive products, alcohol, soap, petrol or other solvents to clean the appliance as these may cause damage. (fi g. 21)

After washing, leave the door open for a short time to allow rubber parts to dry.

Periodically wash out the detergent compartments. To do this, remove the detergent compartment and rinse it under running water (fi g. 22). Then replace it.

REMOVING THE DETERGENT DRAWER

• open the detergent drawer;
• press on the word "PUSH" with the right hand and pull out the drawer with the left hand (fi g. 23).

CLEANING THE FILTER

WARNING!! Before starting the operations described below, make sure that the washing machine is empty. Do not remove the filter while the washing machine is running, or when full of water.

Place a cloth or tray under the filter to collect any water that may still be inside Open the filter door, unscrew the filter and remove it by turning it in an anticlockwise direction (fig. 24-25).

The filter must be cleaned periodically.

Rinse the filter under running water to eliminate any residues. Replace the filter by screwing it in clockwise, making sure it closes and seals properly.

Illustration of a hand washing a large washing machine with a hand holding a tool (no text or symbols visible)

Illustration of a hand washing a sink with a tool, no text or symbols present

Hand placing a plastic bag into a drawer with an arrow indicating left-hand rule (no text or symbols)

Illustration of a hand inserting a device into a container (no text or symbols visible)

Hand inserting a component into a device, showing a curved arrow and label '25' (no text or symbols on the diagram itself)

PROBLEM SOLVING

If the appliance is not working properly, check through the following troubleshooting guide before calling for technical assistance. In some models malfunctions are indicated by an error code displayed at the end of the cycle.

Code: E:00 Carry out all the checks listed in paragraphs marked with *

E:01 Carry out all the checks listed in paragraphs marked with **

E:02 Technical malfunction "Call Customer Service"

E:03 Technical malfunction "Call Customer Service"

The washing machine does not work (warning lights are off) (Display off)

• Make sure that:

1) The mains power supply is working

2) The plug is inserted correctly in the socket

3) The On/Off button has been pressed, or if not present, check that the programming knob is positioned on a programme.

The washing machine does not work (warning lights are off) (Display lit)\*

• Make sure that:

1) The programme has been selected

2) The door is closed properly

3) The "Start" button has been pressed (electronic models only)

4) Refer to the information provided for "The washing machine does not fill with water"

The washing machine does not fi ll with water\*

- Check that:

1) There is water in the water supply system

2) The water fill pipe is connected to the washing machine

3) The mains water supply valve is open

4) The filter is not blocked If it is, clean the filter after first unplugging the appliance from the power supply

The washing machine continuously fills and drains the water\*\*

- Check that:

1) The drain hose has been installed at the correct height (60-90 cm)

2) The end of the drain hose is not under water

The washing machine does not drain or spin\*\*

- Check that:

1) The drain hose is properly connected

2) The drain hose is not kinked

3) The drain filter is not blocked

4) The no-spin function has not been selected

5) The Stop with water function has not been selected.

The washing machine vibrates and is noisy

- Make sure that:

1) All the locking elements used for transportation have been removed.

2) The washing machine is perfectly level

3) Bulky items such as sheets, tablecloths etc. are not all bundled in one part of the drum

The door will not open

- Make sure that:

1) The wash cycle has finished.

2) The Stop with water function has not been selected (automatic on some models).

The washing has not been spun properly

• Make sure that:

1) The washing is evenly distributed in the drum

2) The correct spin speed has been selected

The washing machine stops during a wash

- Make sure that:

1) The mains power supply is working

There is still a lot of detergent in the compartment

- Make sure that:

1) The mains water supply valve is open

2) The filter between the valve and the supply hose is clean

The washing is not clean at the end of the wash cycle

- Make sure that:

1) The drum has not been overloaded

2) The correct amount of detergent has been used

3) The correct programme has been selected

The washing has shrunk or faded

- Make sure that:

1) The correct washing programme has been selected

2) The correct washing temperature has been selected

MAINTENANCE

The washing machine does not dry (washerdryer models only)

• Make sure that:

1) The mains water supply valve is open
2) The drain filter is clean
3) The washing machine is switched on (indicator light or display lit)
4) The drying program has been selected
5) The drying time has been set

If, after all these checks have been carried out, the appliance still does not work, inform the nearest customer service centre. When contacting the service centre, inform them of the appliance model, serial number and type of fault. The data relating the appliance can be found on the rating plate affixed to the inside of the filter door. This information will help the service centre operator in procuring the necessary spare parts, thus guaranteeing a speedy and efficient repair.

СОДЕРЖАНИЕ

УСТАНОВКА МАШИНЫ

Illustration of hands using a tool to adjust or install a component, with arrows indicating motion (no text or symbols)

Hand holding a small mechanical component with an arrow indicating rotation (no text or symbols)

УСТАНОВКА МАШИНЫ

Hand holding a pipe with a valve, showing a curved arrow indicating motion (no text or symbols)

Illustration of a hand holding a pipe fitting with a magnified inset showing a tool (no text or symbols)

Close-up of a hand adjusting a hose component with a handle (no visible text or symbols)

Illustration of a bathroom sink with faucet and drain, no text or symbols present

УСТАНОВКА МАШИНЫ

Diagram showing a device with arrows pointing to a component, no readable text or symbols present

Illustration of a hand pressing down inside a circular device with an arrow indicating left motion (no text or symbols)

Interior view of a car air conditioner unit with hand inserting arrows (no text or symbols visible)

Illustration of a hand pouring liquid into a device inside a drawer (no text or symbols visible)

Diagram of a device drawer with internal compartments and a black arrow pointing to a component (no text or symbols)

Illustration of a hand washing a large washing machine with a hand holding a tool, labeled '21' (no text or symbols on the machine itself)

Illustration of a hand washing a sink with a tool, no text or symbols present

Hand placing a device into a drawer with an arrow indicating left motion (no text or symbols visible)

ОЧИСТКА ФИЛЬТРА

Illustration of a hand inserting a device into a machine (no text or symbols visible)

Hand inserting a component into a device, showing a curved arrow and label '25' (no text or symbols on the diagram itself)

Illustration of hands using a tool to adjust or install a component near a wall, with arrows indicating motion (no text or symbols)

Hand holding a small mechanical component with an arrow indicating rotation (no text or symbols)

Hand holding a pipe with a valve, showing a curved arrow indicating motion (no text or symbols)

Illustration of a hand holding a tool with a metallic faucet and tubing, next to a small inset showing a hand holding a thin wire (no text or symbols present)

Close-up of a hand adjusting a hose component with a valve, no visible text or symbols

Illustration of a bathroom sink with faucet and drain, no text or symbols present

Diagram showing a device with arrows pointing to a component, no readable text or symbols present

Illustration of a hand pressing down inside a circular device with an arrow indicating downward motion (no text or symbols)

Interior view of a car air conditioner unit with hand placement arrows (no text or symbols)

Illustration of a hand pouring liquid into a car airway drawer (no text or symbols visible)

Diagram of a computer drawer with internal compartments and a mouse, showing no text or symbols

Illustration of a hand washing a large washing machine with a hand holding a tool, labeled '21' (no text or symbols on the machine itself)

Illustration of a hand washing a sink with a tool, no text or symbols present

Hand placing a car interior into a drawer with an arrow indicating left motion (no text or symbols)

Illustration of a hand inserting a device into a device (no text or symbols visible)

Hand inserting a component into a device, showing a curved arrow and label '25' (no text or symbols on the diagram itself)

ROZWIAZYWANIE PROBLEMÓW....61

Illustration of hands using a tool to adjust or install a component, with arrows indicating motion (no text or symbols)

Hand holding a small mechanical component with an arrow indicating rotation (no text or symbols)

Hand holding a pipe with a valve, no text or symbols visible

Illustration of a hand holding a pipe fitting with a valve, alongside a magnified inset showing a wire or cable (no text or symbols present)

Close-up of a hand adjusting a hose component with a handle (no visible text or symbols)

Illustration of a hand washing a sink with faucet, no text or symbols present

Diagram showing a door with arrows pointing to electrical outlets and a device, labeled '12' (no text or symbols on main elements)

EKSPLOATACJA URZĄDZENIA

PRZED ROZPOCZĘCIEM UŻYTKOWANIA

Illustration of a hand pressing down inside a circular device with an arrow indicating left motion (no text or symbols)

EKSPLOATACJA URZĄDZENIA

ŚRODKI PIORĄCE

Close-up of a hand inserting a device into a car's air vent, showing internal components and arrows indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a device with internal compartments (no text or symbols)

Diagram of a refrigerator drawer with internal compartments and a directional arrow (no text or symbols)

WYWABIANIE PLAM

Illustration of a hand washing a large washing machine with a hand holding a tool, labeled '21' (no text or symbols on the machine itself)

Illustration of a hand washing a sink with water and fixtures, no text or symbols present

Hand placing a drawer into a car drawer with an arrow indicating left motion (no text or symbols)

Illustration of a hand inserting a device into a container with a magnified inset (no text or symbols)

Hand pressing down a button into a container with a curved arrow indicating motion (no text or symbols)

ROZWIĄZYWANIE PROBLEMÓW

This manual can be downloaded at www.freggia.com
