Product Type	Freestanding Washing Machine
Brand	Freggia
Model	WTIA107
Dimensions (H x W x D)	85 x 60 x 60 cm
Net Weight	70 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W
Capacity (Wash)	7 kg
Spin Speed	1200 rpm
Energy Efficiency Class	A+++
Water Consumption per Cycle	52 L
Noise Level (Wash/Spin)	55 / 75 dB(A)
Programs	Cotton, Synthetics, Delicates, Quick 15', Wool, Hand Wash, Spin Only, Drain
Additional Functions	Child Lock, Delay Start, Prewash, Rinse Plus, Eco Mode
Display	LED Display with Time Remaining
Drum Material	Stainless Steel
Water Connection	Cold Water Only
Maintenance	Clean detergent drawer, filter, and drum periodically
Safety Features	Overflow protection, unbalanced load detection, child lock
Spare Parts Availability	Belt, pump filter, door seal, inlet hose available
Reparability Index	8.5 / 10

Frequently Asked Questions - WTIA107 Freggia

How do I clean the filter of my Freggia WTIA107 washing machine?

Turn off and unplug the machine. Open the filter cover at the bottom front, place a towel, and slowly unscrew the filter. Remove lint and debris. Rinse the filter under running water and screw it back securely.

What does error code E01 on the display mean?

Error E01 indicates a water supply issue. Check that the water tap is fully open and the inlet hose is not kinked or blocked. If the problem persists, clean the inlet filter.

Can I install the washing machine under a counter?

Yes, the Freggia WTIA107 is designed for freestanding installation but can be placed under a counter if there is adequate ventilation. Ensure the top panel is removed (if applicable) and at least 2 cm clearance on sides.

What is the capacity and maximum spin speed?

The capacity is 7 kg and the maximum spin speed is 1200 rpm. For delicate fabrics, reduce the speed accordingly.

How do I use the child lock?

Press and hold the 'Child Lock' button for 3 seconds to lock the control panel. Repeat to unlock. This prevents accidental changes during a cycle.

Why is the drum not spinning?

Check if the machine is in a pause or soak phase. If not, ensure the load is balanced and not too heavy. Also verify that the door is fully closed. If the issue persists, the belt may be broken.

What detergents should I use?

Use low-suds detergents designed for automatic washers. For best results, follow the dosage instructions on the detergent package. Avoid using too much detergent.

How to clean the detergent drawer?

Pull out the drawer fully until it stops, press the release lever, and remove. Soak in warm water and scrub with a brush. Rinse and dry before reinserting.

What is the energy efficiency class?

The Freggia WTIA107 has an energy efficiency class of A+++, meaning it consumes very little energy compared to older models.

How to resolve excessive vibration?

Ensure the machine is level by adjusting the feet. Remove all transport bolts. Also, avoid washing heavy items alone; mix with lighter ones to balance the load.

USER MANUAL WTIA107 Freggia

Thank you for purchasing Freggia household appliance.

Please carefully read the user manual, as it contains the instructions for the safe installation, operation and maintenance of the household appliance.

Save it for future use.

RU

ALLACCIAMENTO IDRICO....8

UTILIZZO DELLA LAVATRICE......8

AVVERTENZE PRIMA DELL'USO....8

USO DEI DETERSIVI....9

COME ELIMINARE ALCUNE MACCHIE....9

SIMBOLI INTERNAZIONALI PER IL TRATTAMENTO DEI VESTITI....10

MANUTENZIONE....11

PULIZIA DELLA LAVATRICE....11

COME RECUPERARE OGGETTI CADUTI TRA IL CESTELLO E LA VASCA......11

PULIZIA DEL FILTRO....11

SOLUZIONE DEI PROBLEMI....12

3D architectural rendering of a rectangular building with tiered structure and structural elements (no text or symbols visible)

Diagram of a mechanical device with a rotating arrow indicating rotation, no text or symbols present

Diagram showing two views of a device with internal components and connectors, no text or symbols present

Illustration of a hand inserting a paper into a recycling bin with an upward arrow (no text or symbols)

Illustration of a hand inserting a leaf into an open refrigerator with a downward arrow indicating the process (no text or symbols)

Hand inserting a small object into a device (no text or symbols visible)

Illustration of hands holding a small object with directional arrows indicating movement (no text or symbols)

Hand holding a pipe with arrows indicating flow or movement, against a tiled wall background (no text or symbols)

Hand holding a cable with a curved pipe, no visible text or symbols

Illustration of a bathroom sink with faucet and shower, no text or symbols present

UTILIZZO DELLA LAVATRICE

AVVERTENZE PRIMA DELL'USO

Illustration of hands installing or adjusting a mechanical component inside a container (no text or symbols visible)

UTILIZZO DELLA LAVATRICE

COME ELIMINARE ALCUNE MACCHIE

Top-down view of a circular mechanical or architectural component with internal grid pattern and no visible text or symbols

Illustration of a hand placing a key into a trash bin (no text or symbols)

Illustration of hands cleaning a sink with a medical device and no visible text or symbols

Illustration of a hand placing a component into a washing machine (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

CONTENTS

NOTES AND ADVICE FOR THE USER....16

DESCRIPTION OF THE MACHINE....18

INSTALLING THE WASHING MACHINE....19

UNPACKING AND RELEASING MACHINE....19

LEVELLING THE WASHING MACHINE....20

CONNECTING TO THE POWER SUPPLY....20

WATER CONNECTION....21

USING THE WASHING MACHINE....21

INFORMATION BEFORE USE....21

USE OF DETERGENT....22

HOW TO ELIMINATE STAINS....22

INTERNATIONAL SYMBOLS FOR CLOTHING TREATMENT....23

MAINTENANCE....24

CLEANING THE WASHING MACHINE....24

RECOVERING FALLEN ITEMS BETWEEN DRUM AND BASIN....24

CLEANING THE FILTER....24

PROBLEM SOLVING....25

This appliance is marked as complying with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). Make sure that the product is disposed of in a correct manner. The user is obliged to contribute towards preventing negative consequences for health and the environment.

The symbol affixed to the product or accompanying documents signifies that the product must not be treated as normal domestic refuse, but must be delivered to an authorised collection centre to enable the electric and electronic equipment to be recycled. When disposing of the appliance, comply with local waste disposal regulations. For further information on the treatment, recovery and recycling of this product, refer to the appropriate offices, local domestic waste collection service or the retailer from where the appliance was purchased.

Before connecting the appliance read these instructions carefully.

Repairing the failure arising from inappropriate connections or use of the appliance is not covered by the guarantee.

THE MANUFACTURER WILL NOT BE HELD RESPONSIBLE FOR ANY INCIDENTS RESULTING FROM NON-COMPLIANCE WITH SAFETY STANDARDS OR THE REQUIREMENTS OF THIS INSTRUCTION BOOK.

- This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Do not allow children to play with the equipment.

- The appliance must be properly connected to the system with new hoses provided. Used hoses must never be reused.

- The operating pressure of water (minimum and maximum) must be between 0.5bar (0.05MPa) and 10 bar (1 MPa).

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid a hazard.

- Ventilation opening in the base must not be obstructed by a carpet.

- Observe the maximum volume of dry load as indicated in the section "Program Table".

• The washing machine has been designed for domestic use only, and as such any other use is regarded as improper and therefore potentially dangerous.
• Any modifications or attempts to alter the equipment in any way may be dangerous for the user and cause damage to the washing machine.
• Due to the weight of the machine, special safety standards must be observed during handling.
• Before operating the machine, remove all packing materials and the locking device used for protection during transport (protection screws).
• Failure to do this may result in serious damage to the machine and to your home.
• When the machine is in operation, avoid any contact with the water coming out of the drain hose and this may be hot.
• Only wash clothes that are machine washable. In case of doubt, check the manufacturer's instructions found on the label attached to the clothes (see "Clothing care symbols").
• Before loading clothes into the washing machine, check that all the pockets are empty. Hard or pointed objects such as coins, pins, nails, screws or even stones can cause serious damage.
• The use and quantities of detergent, softener and bleach must comply with the instructions reported on the packaging.
• Clothes that have been dirtied with substances containing petroleum cannot be washed in the machine. If stains have been removed using vaporising products, before loading the clothes in the washing machine, wait until the substances have completely evaporated from the material.
• Do not use detergents formulated for hand washing, in that the excessive lather produced could damage the internal components.
• After washing rugs, blankets or any other long file fabrics, remember to check the filter and, if necessary, clean it.
• It is advisable to leave the door open at the end of the wash cycle.
• Under no circumstances should any repairs to the machine be attempted by unqualified persons as this could result in serious damage and will invalidate the guarantee.
• Repairs to the washing machine must only be carried out by persons authorised to do so by the service centres. Only original spare parts may be used for repairs.

NOTES AND ADVICE FOR THE USER

Unplug the washing machine from the power supply before servicing and cleaning.
The washing machine can be opened only after the led or display indicate the end of the cycle. On some models, this is indicated by the start button flashing.
To disconnect the machine from the power supply, pull the plug and not the cable.
After the end of each washing cycle it is advisable to unplug the machine and shut-off the water supply.
Do not expose the appliance to atmospheric agents. Do not plug-in or unplug the machine with wet hands.
The power supply socket must be earthed and must comply with the safety requirements.
! Extension leads or multiple adapters must not be used to connect the washing machine to the mains supply.

DESCRIPTION OF THE APPLIANCE

A - TOP COVER
B - DRUM
C - DETERGENT COMPARTMENT
D - CONTROL PANEL
E - FILTER DOOR
F - FEET

INSTALLING THE WASHING MACHINE

UNPACKING AND RELEASING MACHINE

The machine must be installed by qualified personnel following the manufacturer's instructions. Incorrect installation can lead to injuries for persons and damage to objects.

When deciding where to install the washing machine, consider the following advice:

• The room must have a water and electrical system. (Remember that cables and hoses at the back of the washing machine must not be crushed).
• The washing machine must be placed on a flat and solid surface.
• Do not install the machine in a room where the temperature could go below 3°C.
• Place the machine in the chosen location and remove external packaging (fi g. 2).

- Lift the washing machine and remove the polystyrene base and the plastic spacer (fi g. 3).

3D rendering of a mechanical component with layered structure and mounting base (no text or symbols visible)

Diagram of a mechanical device with a rotating arrow indicating rotation, no text or symbols present

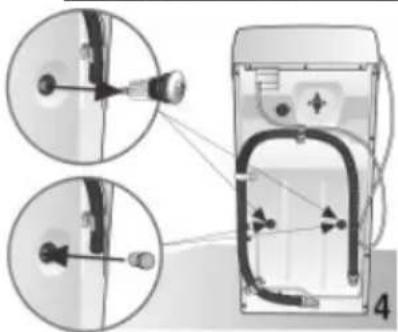

For transportation, the machine's oscillating parts are blocked by two spacers with screws.

Remove these spacers and screws before starting the machine.

Preserve them for any future moves.

Close the holes with the caps provided inside of the document bag.

Diagram showing two views of a device with internal components and connectors, no text or symbols present

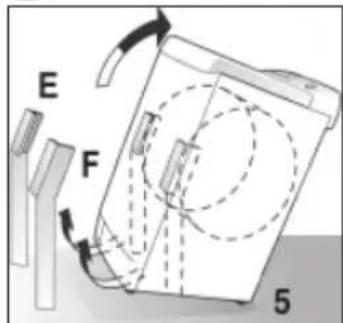

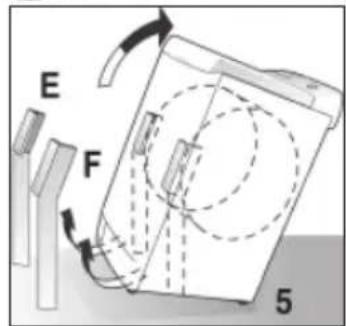

• Incline the washing machine and extract the two internal polystyrene corner
- pieces (if present) by pulling the two cardboard strips, first E and then F (fi g.5).

- Remove the polystyrene spacer (fi g. 6).

Illustration of a hand inserting a paper into an open trash bin with a lightning bolt symbol (no text or labels)

INSTALLING THE WASHING MACHINE

- Remove the polystyrene spacer (fi g. 7).

LEVELLING THE WASHING MACHINE

WHERE PROVIDED, use the handling wheel to help moving. To use it, push the lever on the bottom right moving it to the other side. Move the lever back to the original position after moving (fi g.8).

Having chosen the adapt place, set the adjustable feet well so that the machine is level (fi g. 9).

Pay particular attention to the choice of the position, to levelling the washing machine and to securing the counternuts.

If the washing machine is not levelled correctly, it will be instable and make noise when operating causing damage.

If the machine is placed on a rug, make sure that air circulates freely between the washing machine and the floor.

CONNECTING TO THE POWER SUPPLY

Make sure that the voltage indicated on the identification plate attached to the inside of the filter door corresponds to that of the mains supply (fi g. 10).

All cut-outs, electric wiring and mains sockets must have a rating such that enables them to support the maximum load indicated on the identification plate.

Once the appliance has been installed, it must be connected to the mains supply through a single-pole switch.

The mains supply to which the appliance is connected must be fitted with an earthing system. If this is not the case, the manufacturer will not be held liable for any incidents that may occur (fi g. 11).

If the mains socket to which the appliance is connected is faulty or unsuitable, it must be replaced by a qualified electrician.

The washing machine must not be connected to the mains supply using indirect methods such as extension leads or multiple adapters.

During maintenance work, the washing machine must be disconnected from the mains electricity supply.

Do not insert or remove the plug from the mains socket with wet hands.

If the power supply cable is damaged in any way, contact the appropriate specialised service centre.

The plug used to connect the machine to the power supply must never be fixed behind the machine, but must be in a position easily accessible in an emergency.

Illustration of a hand removing or removing a refrigerator into a slot, with an arrow indicating the process (no text or symbols present)

Hand inserting a small object into a device (no text or symbols visible)

Illustration of hands using a tool to adjust or install a component, with arrows indicating motion (no text or symbols)

WATER CONNECTION

The mains water pressure must be between 0.05 and 1.00 MPa (0,5 - 10 bar.)

• Before connection, open the tap and let the water run in order to clean the pipes from impurities like sand and rust. (This operation is very important when the washing machine has been inactive for a long time or when connected to new piping).
• The water supply hose must be connected to the cold water outlet with a 3/4" threaded opening.

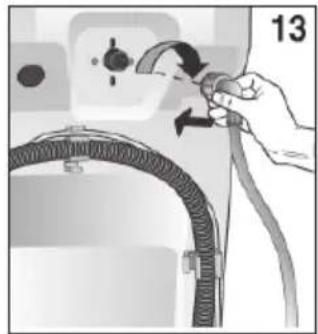

• Connect the supply hose (fi g. 12/13).

N.B. Use the new hose provided with the machine. Do not reuse the old one.

N.B. Clean the fi liter at the free end of the supply hose periodically. Do it more often when there are frequent interruptions from the water mains (fi g.12).

• The water supply tap must be completely open during washing.

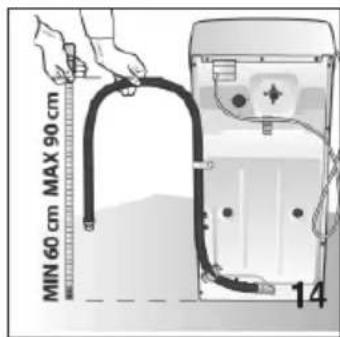

• Connect the drain hose to a drain piping or wall drain between 60 and 90 cm from the ground without squeezing it (fi g.14).
• If the water drains directly into the drain piping, the free end of the machine hose must be inserted in the piping with an inside diameter no smaller than 40 mm.

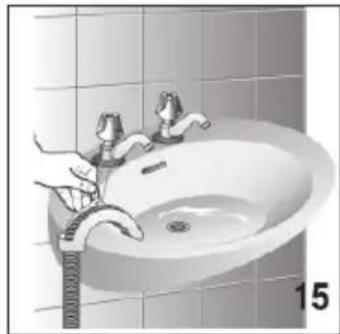

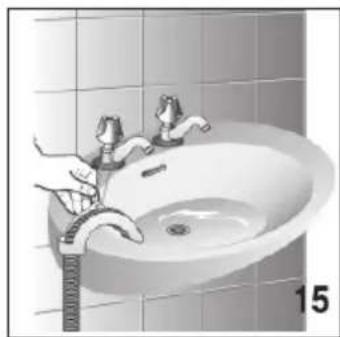

• If water is drained into the washbasin or another drain, the free end of the hose must be previously reinforced at the bending with an appropriate hook, provided with the washing machine. Then place the hose at the edge of the washbasin and fi x the hook to prevent the hose from falling (fig. 15). The washbasin must have its drain clean to allow water to drain freely.

USING THE WASHING MACHINE

INFORMATION BEFORE USE

Attention: there could be a small amount of water inside the machine due to inspection tests. Before washing laundry for the first time, it is advised to run a brief wash cycle without laundry or detergent in order to clean the drum.

Attention: it is important to open and close the drum carefully to avoid damage to the laundry and washing machine

At each wash cycle make sure that:

• Hydraulic connections are correct, the drain hose well positioned, (see hydraulic connection) and the tap is open (fi g. 16).
• Insert the plug in the socket with dry hands.
• Sort the laundry according to the type of fabric (see item labelling).

Hand holding a pipe with arrows indicating flow or movement, against a tiled wall background (no text or symbols)

Hand holding a cable with directional arrows indicating motion (no text or symbols)

Illustration of a hand washing a sink with a measuring tape, no text or symbols present

Illustration of hands installing or adjusting a component inside a container (no text or symbols visible)

USING THE WASHING MACHINE

• Make sure there are no objects in the pockets of the clothing to be washed which could cause damage to laundry, the machine or the filter
• Open the top of the washing machine lightly pressing downwards before lifting it.
• Open the drum doors holding both parts with one hand and pressing the opening button with the other (fi g. 16).
• Put the laundry in the drum being careful not to exceed the maximum program load indicated in the separate program table.

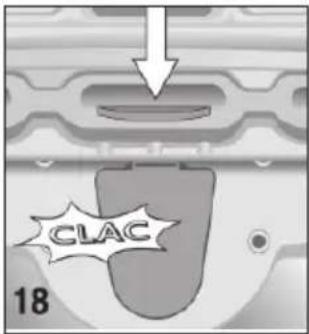

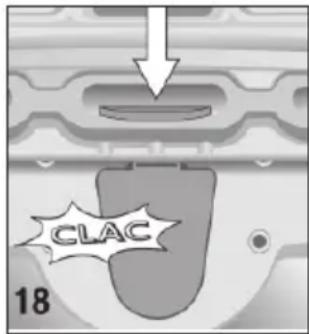

• Close the drum doors making sure they are well hooked.
• Press down first the front half and then the back so that the closing hooks are inserted and locked. The hooking sound confi rms proper closing (fig.18).
• Make sure laundry is not stuck between the doors or between the doors and the drum.

USE OF DETERGENT

The washing machine has a compartment for detergent and additives with four chambers (fi g. 19).

I prewash detergent chamber.

II main wash detergent chamber.

rinsing liquid, softener, fragrance and starch chamber.

△ bleach chamber.

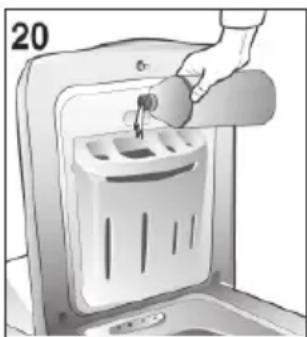

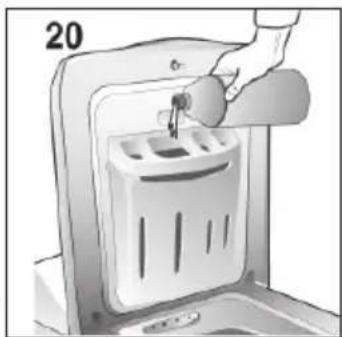

Use reduced foam detergents and softeners (if needed) for automatic washing machines. Follow instructions on the package for dosages. When water is particularly hard, use water softener together with the detergent, preventing scaling from forming on the heat element.

N.B. Use of liquid detergent is possible only for programs without prewash.

• High quantities of detergent can produce too much foam and affect washing results negatively. Too little detergent causes insufficient washing.
• When fllling the chamber with detergent, it is important that is does not go into the softener part since there would be rinsing with foam and fabrics could have white stains. Vice versa, if softener goes into the detergent section it would be less eff ective.

Top-down view of a symmetrical mechanical or architectural component with no visible text or symbols

Illustration of a hand pouring liquid into a trash bin (no text or symbols visible)

HOW TO ELIMINATE STAINS

Stains exist that cannot be removed by machine washing alone. Before trying to remove any type of stain by hand, first try the removal procedure on a small area of hidden fabric. Start from the edge of the stain and working inwards, this will prevent a dark ring from forming around the site of the stain. A few methods to adopt for removing stains are reported below.

• WAX: Scrape the wax using a rounded point in order not to damage the fabric. Then, with the fabric placed between two pieces of absorbent paper, run a hot iron over the stain.
• BALL POINT PENS AND FELT-TIP PENS: clean using a soft cloth soaked in ethyl alcohol. Take care not to spread the stain.

• DAMP AND MOULD: if the fabric supports the use of bleach, carry out a wash cycle adding bleach. Otherwise, soak the soiled part in hydrogen peroxide (10 volumes) and leave for 10 to 15 minutes.

• LIGHT SCORCH MARKS LEFT BY IRONING: follow the instructions for mould and damp.

• RUST: use products specially designed for rust stains, following the manufacturer's instructions written on the packet.
• CHEWING GUM: rub ice over the fabric, scrape away as much chewing gum as possible and then rub with a piece of cotton soaked in acetone.
• PAINT: do not allow the paint to dry. Rub the area with the solvent recommended by the paint manufacturer (e.g. water, turps, trichloroethylene), soap and then rinse.
• LIPSTICK: stains on cotton or wool can be eliminated using a cloth soaked in ether. Stains on silk require the use of trichloroethylene.
• NAIL VARNISH: place a sheet of absorbent paper on the stained material, then dampen the back of the fabric with acetone, frequently changing the absorbent paper placed over the stain. Continue in this manner until the stain has disappeared.
  • TAR OR DIRT: spread a little fresh butter over the stain, allow to stand and then wash with oil of turpentine.
• GRASS: delicately soap the stain, use diluted bleach. Good results can be obtained on woollen fabrics using 90% alcohol.
  • BLOOD: put into soak in cold water with added salt, then wash with washing soap.

INTERNATIONAL SYMBOLS FOR CLOTHING TREATMENT

Before placing the clothes in the washing machine and selecting the wash programme, examine the symbols on the manufacturer's label. The table reported below will provide a useful guide to reading the symbols.

	Normal wash Bleach in cold water				Dry-clean using ethyl perchlorate, benzine, pure alcohol, R111 and R113
	Delicate wash Do not bleach Do not dry/clean
	Wash at max 95°C Iron at up to max 200°C Dry fl at
	Wash at max 60°C Iron at up to max 150°C Dry hanging
	Wash at max 40°C Iron at up to max 100°C Dry on hanger
	Wash at max 30°C Do not iron				Dry in tumble dryer at normal temperature
	Hand wash Dry-clean using solvent				Dry in tumble dryer at low temperature
	Dry-clean only		Dry-clean using benzine, pure alcohol and R113 only		Do not tumble-dry

MAINTENANCE

CLEANING THE WASHING MACHINE

The washing machine has been designed to reduce maintenance to a minimum. It is however important to remember to clean it regularly.

Before cleaning, make sure the appliance is disconnected from the electrical mains and the water supply is closed.

The outer structure and the plastic parts must be cleaned only with a moist cloth.

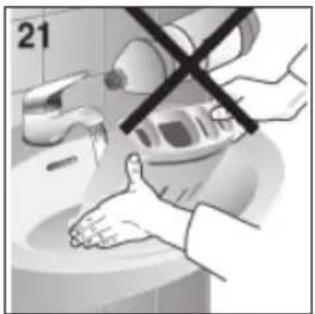

ATTENTION!! Never use chemical agents, abrasive products, alcohol, soap, petrol or other solvents to clean the machine since they could damage it.

After a wash, leave the top open for awhile in order to dry the rubber parts. Wash the detergent chambers periodically. To do this, take out the detergent compartment and rinse it under running water (fi g. 22). Then put it back in.

- To take the detergent compartment out, press "PUSH" with your right hand and with the other hand pull the drawer out pulling it towards you (fi g. 22).

! ATTENTION!! The detergent compartment must always be inserted in its housing for proper machine operation.

RECOVERING FALLEN ITEMS BETWEEN DRUM AND BASIN

If an object falls by accident in between the drum and the basin, it can be recovered by means of an extractable plug on the drum:

1. Disconnect the appliance from the electrical mains.
2. Take the laundry out of the drum.
3. Close the drum doors and rotate it on half turn.

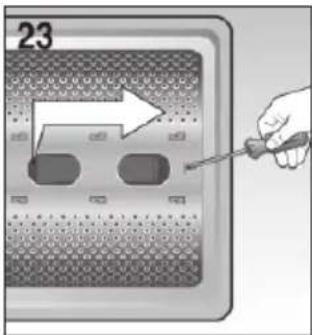

4. Using a tool, press the metal edge while sliding the plug from left to right.
5. The plastic plug will fall into the drum.
6. Open the drum: recover the objects through the holes.
7. Take the plastic plug out of the drum and put it back: Position the plastic plug being careful that the metal tab is on the right.
8. Then slide the plug from right to left until it fi ts into place (it must click). (fi g. 24)
9. Close the drum doors, rotate it a half turn and check the positioning of the plug at all its fixing points.

Illustration of a hand washing a sink with a medical device and a crossed-out X symbol (no text or symbols present)

Illustration of a hand placing a component into a washing machine (no text or symbols visible)

CLEANING THE FILTER

ATTENTION!! Make sure the washing machine is empty before starting the operations described below. Do not remove the filter while the machine is running or when it is full of water.

Place a recipient underneath the fi Iter to gather water remaining inside. Open the fi Iter door. Unscrew it anti-clockwise and remove it.

A tool might be needed to open the door. (fi g. 25).

Rinse the fi Iter under running water and remove any residue.

Put the fi Iter back inversely repeating all the operations.

Illustration of a hand using a tool to adjust or install a mechanical component, no text or symbols visible

PROBLEM SOLVING

If the appliance is not working properly, check through the following troubleshooting list before calling for technical assistance. In some models malfunctions are shown with a code at the end of the cycle.

Code: E:00 Carry out all checks listed in paragraphed marked with *

E:01 Carry out all checks listed in paragraphed marked with **

E:02 Technical malfunction "Call Customer Service"

E:03 Technical malfunction "Call Customer Service"

The washing machine does not work (warning lights are off) (Display off)

- check that:

1) The mains power supply is working
2) The plug is inserted correctly in the socket
3) The On/Off button has been pressed, or if there isn't any, that the programming knob is positioned on a program.

The washing machine does not work (warning lights are off) (Display on)\*

- check that:

1) The program has been selected
2) The Top is closed properly
3) The "Start" button has been pressed (electronic models only)
4) check the indications provided under "The washing machine does not fill with water"

The washing machine does not fill with water\*:

- check that:

1) There is water in the water supply system
2) The water supply hose is connected to the washing machine
3) The water supply tap is open
4) The fi Iter is not blocked. If it is, clean the fi Iter after unplugging the appliance from the power supply

The washing machine continuously fills and drains the water\*\*:

- check that:

1) The drain hose has been installed at the proper height (60-90 cm)
2) The end of the drain hose is not under water

The washing machine does not drain or spin\*\*:

- controllare che:

1) The drain hose is properly connected
2) The drain hose is not bent
3) The drainage fi Iter is not blocked
4) The no-spin function has not been selected
5) The "stop with water" function has not been selected.

The washing machine vibrates and is noisy

- check that:

1) All the blocking elements used for transportation have been removed.
2) the washing machine is level
3) Bulky items such as sheets, tablecloths etc. are not all in one part of the drum

The top does not open

- check that:

1) the wash cycle is finished.
2) the "stop with water" function has not been selected (automatic on some models).

The washing has not been properly spun

- check that:

1) The washing is evenly distributed in the drum
2) The correct spin speed has been selected

The washing machine stops during the wash

- check that:

1) The mains power supply is working

There is still a lot of detergent in the compartment

- check that:

1) The water supply tap is open
2) The fi Iter between the tap and the supply hose is clean

MAINTENANCE

If, after trying the above remedies, the machine still does not work, refer the fault to the nearest authorised service centre. When calling the service centre, inform them of the machine model, the serial number and the type of fault.

This information will allow the technical service staff to select the appropriate spare parts, thus making the repair service quicker and more efficient (fi g. 26).

СОДЕРЖАНИЕ

3D diagram of a mechanical assembly with layered components and a base, labeled with number 2 (no text or symbols on the diagram itself)

Diagram of a mechanical device with a rotating arrow indicating rotation, no text or symbols present

Diagram showing two views of a device with internal components and wiring, no text or symbols present

Illustration of a hand placing a paper into an open trash bin with a downward arrow indicating waste (no text or symbols)

УСТАНОВКА МАШИНЫ

Illustration of a hand removing or removing an open refrigerator into a trash bin (no text or symbols)

Hand inserting a small object into a device inside a container (no text or symbols visible)

Illustration of hands using a tool to interact with a device, showing motion arrows (no text or symbols)

УСТАНОВКА МАШИНЫ

Hand holding a pipe fitting with arrows indicating flow direction (no text or symbols)

Close-up of a hand holding a cable with a knob, showing mechanical components and a numbered label (13), no readable text or symbols present.

Illustration of a hand washing a sink with faucet, no text or symbols present

Illustration of hands installing or adjusting a component inside a vehicle chassis (no text or symbols visible)

Interior view of a cylindrical device with a central panel and open door (no visible text or symbols)

Illustration of a hand using a hand to clean or wash a trash bin (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component, no text or symbols visible

3MICT

3D rendering of a mechanical component with layered structure and mounting base (no text or symbols)

Diagram of a mechanical device with a rotating arrow indicating rotation, no text or symbols present

Diagram showing two views of a device with internal components and connectors, no text or symbols present

Illustration of a hand inserting a paper into an open trash bin with an upward arrow (no text or symbols)

ВСТАНОВЛЕННЯ МАШИНИ

Illustration of a hand opening an open refrigerator with a handle, showing a downward arrow and number 7 (no text or symbols on the main diagram)

Hand inserting a small object into a device (no text or symbols visible)

Illustration of hands holding a small object with directional arrows indicating movement (no text or symbols)

Hand holding a pipe with arrows indicating flow or movement, against a tiled wall background (no text or symbols)

Hand holding a cable with directional arrows indicating motion (no text or symbols)

Illustration of a bathroom sink with faucet and shower, no text or symbols present

Close-up of hands installing or adjusting a mechanical component with no visible text or symbols

Top-down view of a mechanical component with internal structure and textured surface (no visible text or symbols)

Exterior view of a shared waste sorting device with three vertical slats and four circular components (no text or symbols)

Illustration of a hand using a trash bin to lift a trash can into a slotted container (no text or symbols visible)

Illustration of hands cleaning a sink with a medical device and no visible text or symbols

Illustration of a hand placing a component into a washing machine (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

SPIS TREŚCI

UWAGI I WSKAZÓWKI DLA UŻYTKOWNIKA....52

OPIS URZADZENIA....54

INSTALACJA URZĄDZENIA....55

ROZPAKOWANIE I ODBLOKOWANIE URZĄDZENIA....55

POZIOMOWANIE PRALKI....56

WYWAWIANIE PLAM....58

MIĘDZYNARODOWE SYMBOLE DOTYCZĄCE PRANIA ODZIEŻY....59

KONSERWACJA....60

CZYSZCZENIE PRALKI....60

JAK ODZYSKAĆ PRZEDMIOTY, KTÓRE WPADŁY MIĘDZY BĘBEN A ZBIORNIK....60

CZYSZCZENIE FILTRA....60

ROZWIAZYWANIE PROBLEMÓW....61

3D rendering of a mechanical component with layered structure and mounting brackets (no text or symbols)

Diagram of a mechanical device with a rotating arrow indicating rotation, no text or symbols present

Diagram showing two views of a device with internal components and connectors, no text or symbols present

Illustration of a hand inserting a paper into a trash bin with an upward arrow (no text or symbols)

Illustration of a hand removing or removing a refrigerator into a slot, with an arrow indicating the process (no text or symbols present)

Hand inserting a small object into a device (no text or symbols visible)

Illustration of hands holding a small object with directional arrows indicating movement (no text or symbols)

Hand holding a pipe with arrows indicating flow or movement, against a tiled wall background (no text or symbols)

Hand holding a cable with directional arrows indicating motion (no text or symbols)

Illustration of a bathroom sink with faucet and shower, no text or symbols present

Close-up of hands installing or adjusting a mechanical component with no visible text or symbols

EKSPLOATACJA URZĄDZENIA

Interior view of a transparent enclosure with patterned walls and central door (no text or symbols visible)

Exterior view of a shared toilet or shower unit with no visible text or symbols

Illustration of a hand placing a key into a trash bin (no text or symbols visible)

EKSPLOATACJA URZĄDZENIA

Illustration of hands cleaning a sink with a medical device and no visible text or symbols

Illustration of a hand placing a component into a washing machine (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

FOR YEARS TO COME freggia

This manual can be downloaded at www.freggia.com
