| Product Type | Digital Satellite Receiver |
| Brand | Manhattan |
| Model | Plaza ST 300 |
| Dimensions (W x D x H) | 200 x 150 x 50 mm |
| Weight | 0.8 kg |
| Power Supply | AC 100-240V, 50/60Hz, DC 12V / 1A |
| Power Consumption | 12 W max |
| Standby Power Consumption | < 1 W |
| Tuner Type | DVB-S / DVB-S2, DiSEqC 1.2 |
| Input Frequency | 950 – 2150 MHz |
| Input Connector | F-type, 75 Ω |
| Output Connectors | HDMI, SCART, RCA (Composite), Coaxial Audio |
| Supported Video Resolutions | 576i, 576p, 720p, 1080i |
| Supported Audio Formats | MPEG-1/2/4, AAC, Dolby Digital |
| Channel Memory | Up to 5000 channels |

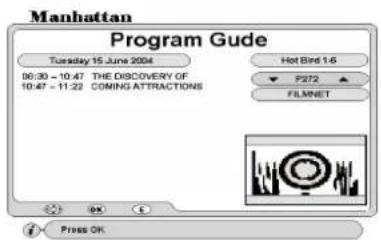

| Electronic Program Guide (EPG) | 7-day EPG support |
| Timer Functions | Wake-up, sleep timer, scheduled recording (if PVR enabled) |
| Parental Control | PIN lock for channels |
| Software Update | Via USB or OTA (if available) |
| Remote Control | Infrared, with batteries (AAA x2) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 50°C |
| Accessories Included | Power adapter, remote control, batteries, user manual |
| Warranty | 1 year limited warranty |
Frequently Asked Questions - Plaza ST 300 MANHATTAN
How do I connect the satellite receiver to my TV?
Connect the HDMI or SCART cable from the receiver to your TV. For audio, use the coaxial or RCA outputs. Ensure the TV is set to the correct input source.
How do I scan for satellite channels?
Go to the Menu > Installation > Antenna Setup. Set your satellite, LNB frequency (e.g., Universal 9750/10600), and DiSEqC settings. Then select Auto Scan to search for channels.
Why is there no signal on my receiver?
Check the coaxial cable connection to the satellite dish. Ensure the dish is correctly aligned and the LNB is powered. Verify in the Signal Meter menu if signal strength and quality are present.
Can I use the receiver with a motorized dish?
Yes, the receiver supports DiSEqC 1.2 for motor control. Go to Antenna Setup, set DiSEqC mode to 1.2, and use the positioner settings to move the dish.
How do I update the firmware?
Download the latest firmware from the Manhattan website. Copy it to a USB flash drive (FAT32). Insert the USB into the receiver, go to Menu > Tools > Software Update, and follow the on-screen instructions.
Why is the remote control not working?
Replace the AAA batteries. Ensure there are no obstacles between the remote and receiver. Point the remote directly at the front panel. If still not working, try re-pairing or resetting the receiver.
How do I set parental control?
Go to Menu > Settings > Parental Control. Enter the default PIN (usually 0000) and set a new PIN. Then you can lock specific channels or content.
What should I do if the receiver freezes or crashes?
Unplug the power cord for 30 seconds and plug it back in to reboot. If the problem persists, check for firmware updates or perform a factory reset via Menu > Tools > Factory Default.
Can I record programs with this receiver?
The Plaza ST 300 is a standard receiver without PVR functionality. To record, you need an external device or a model with USB recording support.
How do I clean and maintain the receiver?
Unplug the receiver before cleaning. Use a soft dry cloth to wipe the exterior. Do not use liquid cleaners. Ensure proper ventilation around the device to avoid overheating.
