RCBR-13030 - Power bank Rosewill - Free user manual and instructions

Product Type	Portable Power Bank
Model	RCBR-13030
Brand	Rosewill
Battery Capacity	13000 mAh
Input Port	Micro USB 5V/2A
Output Port(s)	Dual USB-A 5V/2.1A (each)
Total Output Current	3.1A max
Charging Time	Approximately 6-8 hours with 2A charger
Dimensions	5.6 x 2.8 x 1.0 inches (142 x 71 x 25 mm)
Weight	10.6 oz (300 g)
LED Indicator	4 LED lights for battery level
Protection Features	Overcharge, overdischarge, short circuit, overcurrent protection
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Material	Plastic casing with matte finish
Maintenance	Clean with dry cloth; avoid moisture
Safety	Do not expose to heat or water; use original cables
Spare Parts Availability	Not available; device is sealed
Repairability	Non-repairable; recycle at end of life

Frequently Asked Questions - RCBR-13030 Rosewill

What is the capacity of the Rosewill RCBR-13030 power bank?

The Rosewill RCBR-13030 has a capacity of 13000 mAh, which can charge a typical smartphone 3-4 times.

How long does it take to charge the power bank?

Charging the RCBR-13030 takes approximately 6-8 hours using a 2A input charger.

How many devices can I charge simultaneously?

You can charge up to two devices at the same time using the dual USB output ports.

Does the power bank support fast charging?

No, the RCBR-13030 outputs a standard 5V/2.1A per port and does not support Qualcomm Quick Charge or USB-C PD.

What devices can I charge with this power bank?

It is compatible with smartphones, tablets, Bluetooth headphones, and other devices that charge via USB-A.

How do I check the remaining battery level?

Press the power button; the 4 LED indicators will light up to show the battery level (each LED ≈ 25%).

Is it safe to leave the power bank charging overnight?

Yes, the RCBR-13030 has overcharge protection that stops charging once full, so overnight charging is safe.

Can I take this power bank on an airplane?

Yes, under 100 Wh (13000 mAh ≈ 48 Wh), it is allowed in carry-on luggage per TSA regulations.

What should I do if the power bank gets wet?

Immediately disconnect and dry it thoroughly. Do not charge or use until completely dry to avoid short circuit.

How should I dispose of the power bank?

Do not throw in trash. Recycle it at an electronics recycling center or take it to a designated battery drop-off.

USER MANUAL RCBR-13030 Rosewill

RCBR-13030 Power Pack 13000mAh

User Manual

Box Content

Power Pack	x1
Micro-USB Charging Cable	x1
User Manual	x1

Product Overview

① Micro-USB Input Port
2A USB Output Port
③ LED Flashlight
4 1A USB Output Port
⑤ LED Indicator
⑥ Power Button

RCBR-13030 Power Pack 13000mAh User Manual

LED Flashlight

To use the LED flashlight, press the power button two times in quick succession to turn on. Repeat the action to turn off. The light can run continuously for up to 600 hours on a full charge.

Power Indicator

Press the power button once to check the four LED status lights to show how much charge is left.

Power indicator	One light on Two lights on Three lights	on Four lights on
Battery Charge Left	<25%	25—50%	50—75%

RCBR-13030 Power Pack 13000mAh

User Manual

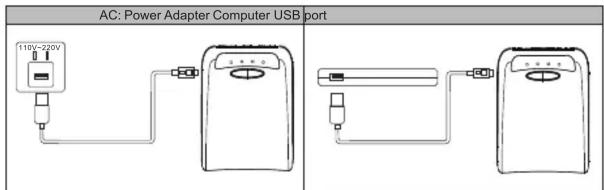

Recharge Power Pack

1. Connect the included USB charging cable to a power supply such as an AC adapter, USB wall charger, or a computer USB port.
2. Connect the other end to the Power Pack's micro-USB input to recharge.

RCBR-13030 Power Pack 13000mAh User Manual

Charging Other Devices

1. Connect the Power Pack's output port to your device's charging port with a USB cable.
2. Press the power button to start charging.
3. 60 seconds after fully charged or disconnecting your charging device, the Power Pack will automatically enter power savings mode and shut off power to the output port.

The Power pack has two USB output ports capable of charging two devices simultaneously.

1A output port is designed for mobile phones and MP4 or GPS devices. The 2A output port is designed for tablet PCs or other devices requiring a higher charging current, such as an iPad. (please refer to your device's manual for required charging current. Samsung Galaxy Tab needs another special charging connector)

If an incompatible device is not charging after connecting to the Power Pack, there will be no damage to your device. As long as your device charges through USB, either port can be used for charging so there is no need to worry about using the wrong USB port.

If you charge through the 2A port, it will take less time to charge your device due to the higher amperage. However, the battery efficiency will be lower. For example: if charging a certain device with the 1A port, the Power Pack can fully charge it four times, and the charging time is about 120 minutes for each full charge. If charging the same device via the 2A port, it can fully charge the device 3.5 times, but a full charge would take roughly only 80 minutes.

RCBR-13030 Power Pack 13000mAh User Manual

Charging Status Indicator

When charging Power Pack:

- The power indicators will light up in the relating positions showing the current charge status.

- If the power indicator lights are continuously on, the recharge is complete.

When charging other devices, press the power button:
- Power indicators will light up in the relating positions
showing available charge capacity.
- If the power indicator does not light up, the Power Pack is out of power and needs to be recharged.

RCBR-13030 Power Pack 13000mAh

User Manual

Technical Specification

Capacity	13000 mAh
Battery	Lithium Ion Samsung Cell
Input	Micro-USB 5V
Output1 / Output2	5V 2A / 5V 1A

Weight	10.86 oz
Dimension	3.07 x 5.00 x 0.94 inch
Input Charging Time	Approx. 10 hours*
Battery Life	>500 cycles

*Depending on power source charging current

Product Caring

• Keep Power Pack dry and away from damp and erosive environments.
• Do not disassemble.
• Do not store Power Pack in extreme temperature environments.

RCBR-13030 Power Pack 13000mAh User Manual

Troubleshooting

Power Pack not charging

• Ensure Power Pack is properly connected to the power source. Check for loose connections.
• Check the USB charge cable. Is it still working?
• Ensure the power source is functioning. Try a different power source.
• If charging through a computer USB port, ensure the computer is powered on and active.

Devices are not charging:

• Press the power button to check LED Status indicator for available charge capacity.
• The power requirement of the device is not compatible with the Power Pack.
• Ensure the Power Pack is properly connected to the device. Check for loose connections.
• The charging cable may no longer be functioning. Please try using a different cable.
• If you accidentally connected the Power Pack's input port to the output port, the short circuit protection will kick-in. To reset a short circuit-protection, please disconnect all cables and then connect the Power Pack to a source to charge.

RCBR-13030 Power Pack 13000mAh

User Manual
