| Product Type | Canister Vacuum Cleaner |
| Model | CV-SU20V |
| Brand | Hitachi |
| Dimensions (approx.) | 400 x 260 x 300 mm |
| Weight | 4.5 kg |
| Power Supply | 220-240 V, 50/60 Hz |
| Power Consumption | 2000 W |
| Dust Capacity | 2.0 L (bagless) |
| Filtration System | HEPA washable filter + pre-motor filter |
| Noise Level | 78 dB(A) |
| Cord Length | 8 m |
| Operating Radius | 12 m |
| Vacuum Type | Cyclonic |
| Suction Control | Electronic slider on handle |
| Includes | Floor nozzle, crevice tool, dusting brush, upholstery tool |
| Maintenance | Empty dust container after each use; wash filter every 3 months |
| Safety Features | Thermal overload protection; automatic cord rewind |
| Spare Parts | Replacement HEPA filter, dust container assembly, accessories |
| Repairability | Modular design; user-replaceable filters and accessories |
Frequently Asked Questions - CV-SU20V HITACHI
User questions about CV-SU20V HITACHI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual CV-SU20V - HITACHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CV-SU20V by HITACHI.
USER MANUAL CV-SU20V HITACHI
After washing, let the cyclone cylinder filter dry up in the shade before use.
The image is too blurry to recognize any text content.
(1) 2014年1月1日
HEPA clean filter is not washable.
- Remove HEPA filter from the unit. Then, remove dust by brushing off or pasting it gently.
follow them correctly
| Caution | This box illustrates actions which may cause injury or damage to property |
| Caution | This box illustrates actions which may cause injury or damage to property |
Do not operate when the cable is torn or damaged.
Use with 220V AC, 10A upwards
Always remove the plug from the socket prior to coating and cleaning, and retain from removing the plug with wet
Do not disassemble, repair or modify the vacuum cleaner unless you are a professional technician, so this may result in damage to the unit and personal injury.
Do not use the unit to vacuum kerosene, benzene, flammable gas or cigarette butix.
consolidation Always remove the plug prior to carrying out repairs
Only use Hitachi carbon brushes.
Always remove the plug after use.
We are doing the cable up, hard the plug, as it may look up causing
Do not use the unit to vacuum water or damp areas as this may damage the unit.
We have been a large number of people who are doing so that there is no need to be able to do.
Do not cover the ventilation outlets, as this may result in the unit become deformed and may cause fire due to excessive heat. Airflow from the ventilation duct may result in personal injury if contact is made with the body for long periods.
Do not plug the vacuum cleaner in the loose outlet as it may melt your plug
The image contains a non-textual graphic and a partial text box. The text is in English, but the OCR result must be empty.
When transporting the vacuum cooler, do not lift the unit, using the vacuum noise, as there may result in the noise becoming too
- Children or persons without sufficient strength should not be allowed to use this electrical appliance without supervisor. - Children should be supervised to ensure that they do not play with this electrical appliance.
complies with standards according to the safety regulations of EC60335-1 and EC60335-2-2
This vacuum cleaner is equipped with a thermal protection device which automatically turns off the unit when the motor is overheating. When thermal protection device works, disconnect the power plug and check whether the dust compartment and filters are full of dust or clogged with dust. Check that no obstacle is in the nose or pipe. After removing the obstacle, leave the unit to cool down until the thermal protection device resets about 60 minutes.
- Put the dust case into large-sized plastic bag and push the open button of the dust case to release dust into provided plastic bag.
- Remove dust on the net filter with brush.
- Fix the dust case cover to the body. Check that the rubber packing is attached to dust case firmly.
- Move the dust removal lever several times.
Open burn on the dust case
- Put the dust case into a large-sized plastic bag and push the open button of the dust case. Then, remove the net filter from paper filter and shake it to let dust drop.
How to remove the paper filter from net filter.
- Fix the dust case cover to the body. Check that the rubber packing is attached to the dust case firmly.
After washing, let the filters dry up in the shade before use.
While cleaning, you can keep the nozzle temporarily by inserting it at the back of the unit as shown in the figure
When it is not in use, the nozzle should be kept as shown in the figure in order to save more space.
- It is helpful for cleaning under the bed.
- The gap between furniture can be cleaned easily by twisting your wrist and adjust nozzle direction.
- It is helpful for cleaning the gap and edge of wall.
- Clearing can be done without moving any furniture.
Crevice nozzle can be used for cleaning the hard-to-reach parts of the sofa.
- Crevice nozzle can be used for cleaning the corner of your house.
- When the orange filter indicator lights on the window completely remove dust in the dust case before using the vacuum cleaner.
To check the filter indicator, adjust to the highest electronic power level and lift nozzle from the floor.
ข้อว่าเรียน
When filter indicator lights on, do not use the vacuum cleaner without dust removal. Doing so may decrease suction power and cause overheating. The motor may be burned out.

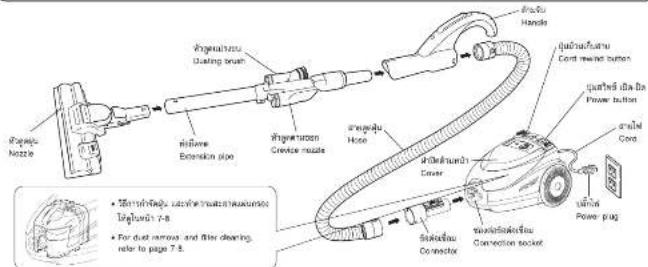

Accessories and preparation before use
How to remove accessories
How to assemble nozzle
How to assemble connector
How to assemble handle
- Align the claw of hose with the handle and push until the "click" sound is heard
- Insert the hose into the connection socket of the unit until the "click" sound is heard
• To remove press the lock button and pull out.
- For blower function, insert the nose into
the back of unit until the "click" sound is
Heard.
• To remove, press the lock button and pull
out
card rewind button of the unit.
If the cord is not reinvinded completely, pull the cord
signlay. Than press the button once
- Hold the handle and grasp the extension pipe with another hand, move it up and down to adjust the length.
ข้อการรับ
Do not touch this area while adjusting the length of extension pipe
The image is too blurry to recognize any text content.
- Cleaning the edge
of wall corners
To clean the wood surface, do not use excessive force. Doing so may scratch the wood
How to control suction power
with handle
- Move up the knob to decrease
suction power.
When setting it to "Flat surface" position, do not use the vacuum cleaner to clean carpets (It requires more force)
