Product Type	Electric Shaver
Brand	Philips
Model	PowerTouch AT928
Dimensions (approx.)	6.5 x 3.5 x 2.5 inches (165 x 90 x 65 mm)
Weight	0.45 kg (1.0 lb)
Power Source	Rechargeable Lithium-Ion battery
Charging Time	8 hours for full charge
Shaving Time	50 minutes of cordless use
Blade Type	CloseCut blades with self-sharpening technology
Pivoting Head	SmartPivot for optimal skin contact
Wet & Dry Use	Yes, can be used with foam or gel
Pop-up Trimmer	Yes, for sideburns and moustache
Display	LED battery indicator
Cleaning	Rinse under running water
Waterproof	Yes, IPX7 rated (immersible up to 1m)
Replacement Heads	Every 2 years (model: HQ4+)
Accessories Included	Charging stand, power cord, protective cap
Warranty	1 year limited warranty

Frequently Asked Questions - PowerTouch AT928 PHILIPS

How long does it take to fully charge the Philips PowerTouch AT928?

The Philips PowerTouch AT928 requires 8 hours for a full charge. A full charge provides up to 50 minutes of cordless shaving.

Can I use the Philips PowerTouch AT928 in the shower?

Yes, the shaver is waterproof (IPX7) and can be used in the shower. It also supports wet & dry use, so you can shave with foam or gel.

How do I clean the PowerTouch AT928?

Rinse the shaver head under running water after each use. For a deeper clean, remove the head and rinse thoroughly. Make sure to dry it before reassembly.

When should I replace the blades on my Philips PowerTouch AT928?

Replace the shaving heads every 2 years for optimal performance. Compatible replacement heads are the Philips HQ4+ series.

Does the PowerTouch AT928 have a pop-up trimmer?

Yes, the shaver features a pop-up trimmer located on the back of the device, ideal for trimming sideburns and moustache.

What does the LED indicator on the shaver mean?

The LED indicator shows the battery level. A green light indicates full charge, orange means low battery, and blinking orange indicates charging is required.

Can I use the shaver while it is charging?

No, the Philips PowerTouch AT928 cannot be used while charging. You must use it cordlessly after disconnecting the charger.

Is the PowerTouch AT928 suitable for sensitive skin?

Yes, the SmartPivot technology and rounded blade tips reduce irritation, making it suitable for sensitive skin. For best results, use with a pre-shave lotion.

What accessories come with the Philips PowerTouch AT928?

The package includes the shaver, a charging stand, a power cord, and a protective cap. Some versions may also include a cleaning brush.

How do I store the shaver when traveling?

Always use the protective cap to prevent damage to the shaving heads. Store the shaver in a dry place. The device can be packed in carry-on luggage as it is cordless.

USER MANUAL PowerTouch AT928 PHILIPS

Close-up of a Philips electric shaver with three circular dials and water droplets (no text or symbols visible)

フィリップス電動シェーバー

品番 AT928

取 扱 說 明 書

保証書付

Line drawing of a pair of electric shakers with three leads and a power button (no text or symbols)

本体

Line drawing of a mechanical component with no text or symbols

保護キャップ

クリーニングブラシ

Line drawing of a power cord with coiled cable and connector (no text or symbols)

充電アダプタ HQ8505)

Guidance in English 18\~34

●困ったとき

故障かな？と思ったら…35……

●保 証

保証とアフターサービス 36

仕様／お客様情報センター 37

無料修理規定 …38……

保証書 ...... 最終ページ

必ずお守り ください

安全上のご注意

Line drawing of a three-ring mechanical component with a crown and mounting bracket (no text or symbols)

ユニットフレーム

内刃

外刃

Symmetrical mechanical component diagram with four circular ports and directional arrows (no text or symbols)

保持板

Line drawing of a plow or electric shaver with internal ridges and a black arrow indicating direction (no text or symbols)

Diagram showing a connector inserted into a device with an arrow indicating direction (no text or symbols present)

Pure diagram of a symmetrical mechanical or electrical component with radiating lines and a central hub (no text or symbols)

充電中充電表示ランプが白色に点滅

充電完了

充電表示ランプが 白色に点灯

Line drawing of a hand holding an electric shaver with no text or symbols

Illustration of a person using flashlights to examine facial features (no text or symbols present)

Line drawing of a person applying facial care to their ear (no text or symbols present)

ほお

Line drawing of a hand holding a device with a circular arrow indicating motion (no text or symbols)

あごの裏側

Illustration of a person performing a medical or therapeutic procedure on a curved object, with no visible text or symbols.

ほおの奥から首筋

Line drawing of a person receiving a neck massage or pressure technique, with no text or symbols present.

鼻の下

Illustration of a person using a handheld device to clean or wear teeth (no text or symbols visible)

Illustration of a rope tied to a container (no text or symbols)

Diagram of a device's internal structure with arrows indicating rotation or movement (no text or symbols)

Illustration of a hand holding a connector with arrows indicating motion (no text or symbols)

Line drawing of a person using a hairbrush (no text or symbols)

Diagram of a hand using a tool to adjust or install electronic components, with no visible text or symbols.

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or labels)

Two technical illustrations of a mechanical component with internal channels and a pipette inserted (no text or symbols)

Illustration of a hand holding a circular object with concentric rings (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and a curved arrow indicating rotation (no text or symbols)

Diagram illustrating the process of a device with labeled parts and directional arrows indicating rotation or assembly.

Diagram illustrating mechanical assembly steps with numbered components and directional arrows

分解掃除の仕方

Technical line drawing of a mechanical gear assembly (top) and its internal spiral mechanism (bottom), no text or symbols present.

Illustration of two hands using a tool to adjust a gear mechanism, showing the top view and bottom view (no text or symbols present)

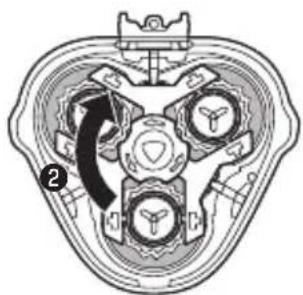

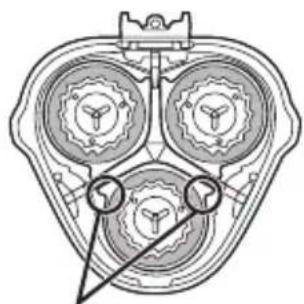

刃の取り付け方

Technical illustration of mechanical gear assembly showing two views and a close-up of the internal gear mechanism (no text or symbols)

Technical diagram of a mechanical gear assembly with three symmetrical components and two circular features (no text or labels)

Cross-sectional anatomical diagram of a brain with labeled region (1), showing internal structures without any text or symbols.

Cross-sectional diagram of a vehicle's internal components, showing no text or symbols

Diagram illustrating two stages of a biological or mechanical process, labeled ① and ②, showing transformation or assembly steps.

Diagram of a mechanical component with an arrow indicating rotation, no visible text or symbols

Diagram of a biological or anatomical structure with numbered annotations and directional arrows indicating flow or movement.

Diagram showing mechanical components and a magnified view of a gear or cam mechanism (no text or symbols)

Diagram showing two stages of a biological or mechanical process, with no visible text or symbols

Diagram of a device component with internal parts and a close-up view showing internal structure (no text or symbols)

Illustration of scissors cutting a piece of paper into a pencil (no text or symbols)

Technical diagram of a plug with directional arrows indicating force or movement (no text or labels)

Technical diagram of a hand-operated electric shaver with labeled parts including handle, socket, and plug

ENGLISH

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Please read this user manual, as it contains information about the wonderful features of this shaver as well as some tips to make shaving easier and more enjoyable.

General description (Fig. 1)

1 Protection cap
2 Shaving unit
3 Shaving unit release button
4 Shaver on/off button
5 Shaving head symbol
6 Charging light
7 Adapter
8 Cleaning brush
9 Trimmer release slide
10 Trimmer

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

Keep the adapter dry. -

- This symbol means: Forbidden to clean under a running tap.

Warning

The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.

ENGLISH

This appliance is not intended for use by persons - (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Always unplug the shaver before you clean it - under the tap.

Caution

Never use water hotter than 80^ C to rinse the - shaver.

Be careful with hot water. Always check if the -water is not too hot, to prevent your hands from getting burnt.

The shaver and the other accessories are not -dishwasher-proof.

Warning: Remove the detachable cord from the - handheld part before cleaning this part in water. Water may leak from the socket at the bottom - of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver. Do not use the shaver, adapter or any other part - if it is damaged, as this may cause injury. Always replace a damaged adapter or part with one of the original type.

-Use, charge and store the appliance at a temperature between 10°C and 35°C.

-Always place and use the shaver on a surface that is fluid-resistant.

-Only use the adapter and accessories supplied. Always put the protection cap on the shaver - to protect the shaving heads when you are travelling.

ENGLISH

If the shaver is subjected to a major change - in temperature, pressure or humidity, let it acclimatise for 30 minutes before you use it.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable - standards and regulations regarding exposure to electromagnetic fields (EMF).

General

- This symbol means: Suitable to be used in the shower.

It is allowed to use this appliance close to a - bathtub, shower or other containers filled with water.

The adapter is equipped with an automatic - voltage selector and is suitable for mains voltages ranging from 100 to 240 volts.

The adapter transforms 100-240 volts to a safe - low voltage of less than 24 volts.

Charging

Note: The shaver cannot be used directly from the mains.

It takes approx. 1 hour to fully charge the shaver.

When you charge the shaver for the first time or after a long period of disuse, let it charge until the charging light lights up continuously.

A fully charged shaver provides up to 50 minutes of shaving time.

The shaving time may be less than 50 minutes as a result of your shaving behaviour, your cleaning habits or your beard type.

ENGLISH

Charge indications

Diagram showing a battery connected to a power source with labeled components and current direction arrows

Battery low

- When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the charging light starts to flash orange.

When you switch off the shaver, the charging light continues to flash orange for a few seconds.

Diagram illustrating battery charging with a lightning bolt and power source, showing charge distribution around a battery.

Quick charging

When you start charging the empty battery, the - charging light alternately flashes orange and green. After approx. 3 minutes the charging light starts flashing green only. The shaver now contains enough energy for a 5-minute shave.

Diagram showing a battery connected to a power source with labeled components and grounding symbols

Charging

- When the shaver is charging, the charging light flashes green.

Battery fully charged

- When the battery is fully charged, the charging light lights up green continuously.

Note: After approx. 30 minutes, the charging light goes out to save energy.

Charging

1 Put the small plug in the shaver.
2 Put the adapter in the wall socket.

The charging light shows the charging status of the shaver (see section 'Charge indications' in this chapter).

ENGLISH

Using the shaver

Note: This shaver can be used in the bath or shower. For safety reasons, It can therefore not be used directly from the mains.

Shaving tips and tricks

This shaver is suitable for both wet and dry use. - Use the shaver with shaving gel or foam for extra skin comfort, or use the shaver dry for extra convenience.

Note: We advise you to use the shaver with shaving gel or foam when you use it for a wet shave. Do not use thick shaving cream or shaving oil with this shaver.

For optimal shaving results, make circular - movements during use.

The shaver is waterproof and can be used in the - bath or shower.

Your skin may need 2 or 3 weeks to get - accustomed to the Philips shaving system.

Wet shaving

Line drawing of a person applying facial massage or pressure to their face (no text or symbols)

Line drawing of a person applying facial care to the ear (no text or symbols)

1 Apply some water to your skin.
2 Apply shaving foam or shaving gel to your skin.
3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.
4 Press the on/off button once to switch on the shaver.

ENGLISH

Illustration of a person using a camera to interact with a rope or cable (no text or symbols visible)

5 Move the shaving heads in circular movements over your skin.

Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.

6 After shaving, press the on/off button once to switch off the shaver and dry your face.
7 Clean the shaver (see chapter ‘Cleaning and maintenance’).

Note: Make sure you rinse all foam or shaving gel off the shaver.

Dry shaving

Illustration of a person using a handheld device to interact with another person (no text or symbols present)

1 Press the on/off button once to switch on the shaver.
2 Move the shaving heads in circular movements over your skin.
3 After shaving, press the on/off button once to switch off the shaver.
4 Clean the shaver (see chapter ‘Cleaning and maintenance’).

Trimming

Diagram of a device with a black arrow pointing to a component, no visible text or symbols

You can use the trimmer to groom your sideburns and moustache.

1 Push the trimmer slide downwards to open the trimmer.
2 Press the on/off button once to switch on the shaver.

You can now start trimming.

ENGLISH

Illustration of a hand holding a tool interacting with a device (no text or symbols visible)

3 After trimming, press the on/off button once to switch off the shaver.
4 Clean the trimmer (see chapter ‘Cleaning and maintenance’).
5 Close the trimmer ('click').

Cleaning and maintenance

Remove the detachable cord from the handheld part before cleaning this part in water.

Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Clean the shaver after every shave for optimal - shaving performance.

Regular cleaning guarantees better shaving - performance.

Be careful with hot water. Always check if the -water is not too hot, to prevent your hands from getting burnt.

Note: Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Cleaning the shaving unit under the tap

1 Switch off the shaver and disconnect it from the mains.

ENGLISH

Illustration of a hand holding an open object with a curved arrow indicating direction (no text or symbols)

Illustration of a medical procedure showing fluid flowing from a bottle into a partially assembled device (no text or symbols present)

Illustration of a medical procedure showing fluid injection into a patient's foot (no text or symbols)

2 Press the release button to open the shaving unit.
3 Rinse the shaving unit and hair chamber under a hot tap for 30 seconds.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

- Rinse the hair chamber and the inside of the shaving unit.

- Rinse the outside of the shaving unit.

4 Close the shaving unit and shake off excess water.

Be careful not to hit the shaving unit against anything while shaking off excess water.

Never dry the shaving unit and the hair chamber with a towel or tissue, as this may damage the shaving unit.

5 Open the shaving unit again and leave it open to let the shaver dry completely.

Cleaning the shaving unit with the cleaning brush

1 Switch off the shaver and disconnect it from the mains.

ENGLISH

Illustration of a human head with arrows indicating movement or force (no text or symbols)

2 Press the release button to open the shaving unit.

Illustration of a biological structure with an arrow pointing to a magnified view of internal components (no text or symbols)

3 Pull the shaving unit off the shaver.

Diagram showing hand positioning of a flower with labeled points A and B, likely illustrating a mechanical or anatomical concept.

4 Turn the lock anticlockwise (A) and remove the retaining frame (B).

Illustration of a hand holding a tray with three circular objects and upward arrows indicating motion (no text or symbols)

5 Remove and clean one shaving head at a time. Each shaving head consists of a cutter and a guard.

Illustration of two mechanical components: a gear and a bowl, with no visible text or symbols.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally mix up the cutters and guards, it may take several weeks before optimal shaving performance is restored.

Remove the cutter from the shaving guard and - clean it with the brush.

- Clean the inside and outside of the shaving guard with the brush.

ENGLISH

Illustration of a hand holding a small object above a divided line, with no visible text or symbols.

6 Put the shaving heads back into the shaving unit.

Note: Make sure that the projections of the shaving heads fit exactly into the recesses.

A B

7 Put the retaining frame back into the shaving unit (A) and turn the lock clockwise (B).

Illustration of two insect puppets with arrows indicating movement or transformation (no text or symbols)

8 Insert the lug of the shaving unit into the slot in the top of the shaver. Then close the shaving unit.

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

Cleaning the trimmer with the cleaning brush

Diagram of a device with internal components and directional arrows, no visible text or symbols

Clean the trimmer every time you have used it.

1 Switch off the shaver and disconnect it from the mains.
2 Push the trimmer slide downwards to open the trimmer.

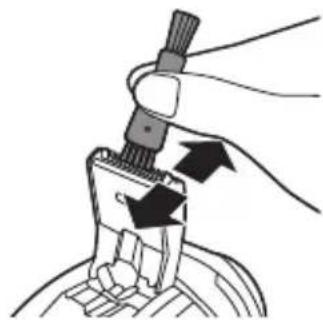

3 Clean the trimmer with the short-bristled side of the cleaning brush. Brush up and down along the trimmer teeth.

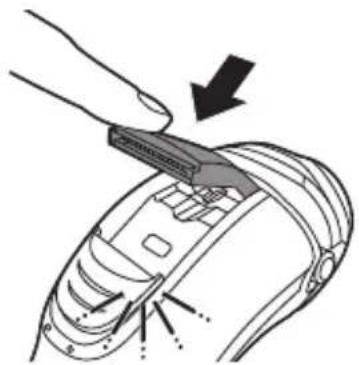

4 Close the trimmer ('click').

ENGLISH

OIL

Tip: For optimal trimming performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Storage

Diagram of a hairbrush with a pointed tip and three circular patterns on the base (no text or symbols)

- Put the protection cap on the shaver to prevent damage.

Replacement

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replacement reminder

The shaving head symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads right away.

Only replace the shaving heads with original HQ9 Philips Shaving Heads.

Diagram showing a device with a magnified view of a face labeled 'f' pointing to it, likely indicating a vision or perception.

1 The shaving head symbol lights up orange continuously.
2 Switch off the shaver. Disconnect the shaver from the mains, remove it from the Jet Clean System or remove it from the charging stand.

ENGLISH

Illustration of a hand holding an anatomical structure with arrows indicating direction (no text or symbols)

Diagram showing hand positioning of a mechanical component with labeled parts A and B, indicating rotational motion.

Illustration of a chemical reaction showing a molecular structure and a hand holding a container (no text or symbols)

A B

Illustration of two mushroom-shaped objects with arrows indicating movement or transformation (no text or symbols)

3 Press the release button to open the shaving unit.
4 Pull the shaving unit off the shaver.
5 Turn the lock anticlockwise (A) and remove the retaining frame (B).
6 Remove the shaving heads and place new ones in the shaving unit.

Note: Make sure that the projections of the shaving heads fit exactly into the recesses.

7 Put the retaining frame back into the shaving unit (A) and turn the lock clockwise (B).

8 Insert the lug of the new shaving unit into the slot in the top of the shaver. Then close the shaving unit.

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

ENGLISH

5 sec. PHESP3 PHESP3

9 Press and hold the on/off button for 5 seconds to reset the replacement reminder on the shaver. The orange light goes out.

Ordering accessories

2yrs

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details). To retain the top performance of your shaver, make sure you clean it regularly and replace its shaving heads at the recommended time.

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace them with HQ9 Philips Shaving Heads.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

- The built-in rechargeable shaver battery contains substances that may pollute the environment. Always remove the battery before you discard or hand in the shaver at an official collection point. Dispose of the battery at an official collection

ENGLISH

point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Make sure the rechargeable battery is completely empty when you remove it.

1 Disconnect the shaver from the mains.
2 Let the shaver operate until it stops.
3 Undo the screws in the back of the shaver and in the hair chamber.
4 Remove the front panel and the back panel.
5 Bend the 6 hooks aside and take out the power unit.

Be careful, the hooks are sharp.

6 Remove the rechargeable battery.

Be careful, the battery strips are sharp.

Do not connect the shaver to the mains again after you have removed the rechargeable battery.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

ENGLISH

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Foam or gel residues clog up the shaving heads.	Rinse the shaving unit under a hot tap (see chapter ‘Cleaning and maintenance’).
	Long hairs obstruct the shaving heads.	Clean the shaving heads one by one (see chapter ‘Cleaning and maintenance’).
	You have not inserted the shaving heads properly.	Make sure that the projections of the shaving heads fit exactly into the recesses (see chapter ‘Cleaning and maintenance’).

ENGLISH

Problem Possible cause Solution

The shaver does not work when I press the on/off button.

The rechargeable battery is empty.

Recharge the battery (see chapter 'Charging').

The temperature of the shaver is too high. In this case, the shaver does not work.

As soon as the temperature of the shaver has dropped sufficiently, you can switch on the shaver again.

The shaver does not work, although it is connected to the mains.

If the shaver does not work when you press the on/off button, the battery is empty.

This shaver is not designed to be used directly from the mains, so you should recharge the battery (see chapter 'Charging').

故障かな？ と思ったら

故障かな？と思ったら、お調べください。

だんだん切れ味が悪くなった

©2013 Philips Electronics Japan, Ltd.
