Product Type	Portable Speaker Dock for iPod + iPhone
Brand	iLive
Model	ISP091B
Dimensions (Approx.)	7 x 5 x 3 inches (178 x 127 x 76 mm)
Weight (Approx.)	1.2 lbs (0.54 kg)
Power Source	AC/DC adapter (included) or 4 x AAA batteries (not included)
Power Input	DC 5V via included adapter
Speaker	Built-in speaker with metal grill
Audio Input	3.5mm line input (cable not included)
Compatibility	Made for iPod and iPhone (30-pin connector)
Controls	Power/Play/Pause button, Volume up/down buttons
App	ISP091 App (free download from App Store) for clock, weather, alarm, slideshow, line in
Charging	Charges docked iPod/iPhone when using AC power
Volume Control	Digital volume control
Safety	Double insulation, polarized plug, FCC compliant
Package Contents	ISP091B speaker dock, AC/DC power adapter, user manual
Maintenance	Clean with a soft dry cloth; do not expose to moisture
Environmental	Recyclable packaging; green initiative by DPI, Inc.

Frequently Asked Questions - ISP091B iLive

How do I power the iLive ISP091B?

You can power the device using the included AC/DC power adapter (plugged into a wall outlet) or use 4 AAA batteries (not included) for portable use.

Can I play music from a non-Apple device?

Yes, you can play music from any device with a 3.5mm headphone jack by connecting it to the Line Input on the back. However, when an iPod or iPhone is docked, the line input is automatically disabled.

Does the ISP091B charge my iPhone while docked?

Yes, when the speaker is connected to AC power via the included adapter, a docked iPod or iPhone will be charged automatically.

What type of batteries does it use?

The device requires 4 AAA batteries (not included). Do not mix old and new batteries or different battery types.

How do I set the alarm on the ISP091B?

The alarm is set using the ISP091 app. Download the app from the App Store, then use the Alarm feature to create alarms with options to wake to iPod music or special sounds like Bell, Cathedral, Cuckoo, School, or Tick.

How do I download the ISP091 app?

You can download it automatically by docking your iPod or iPhone (the device prompts you to download), or manually by searching for 'ISP091' in the App Store and downloading it.

Does the ISP091B come with a remote control?

No, the ISP091B does not include a remote control. All controls are on the unit itself: Power/Play/Pause and Volume buttons.

Can I use the speaker while it is charging?

Yes, you can use the speaker while it is plugged into AC power or running on batteries. The device will charge a docked device only when on AC power.

What should I do if the sound is distorted?

First, check the volume level on both the speaker and the connected device. Lower the volume if too high. Try a different audio source or cable. If distortion persists, ensure the device is not placed on a soft surface that may block the speaker.

How do I clean the ISP091B?

Use a soft, dry cloth to wipe the exterior. Do not use water, cleaning solvents, or abrasive cleaners. Avoid getting moisture into the device.

USER MANUAL ISP091B iLive

Black and white photo of a smartphone with a speaker base, displaying its home screen and app icons (no readable text or symbols on the device body)

ISP091

Portable Speaker Dock for iPod + iPhone

For the most up-to-date version of this User's Guide, go to www.ilive.net

Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• AVERTISSEMENT: Pour réduire le risque d'incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l'humidité.
• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• PRÉCAUTION: Danger d'explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l'équivalent.
• WARNING: The battery, batteries, and battery pack shall not be exposed to excessive heat such as sunshine, fire, or the like.
• WARNING: Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

• WARNING: Shock hazard - Do Not Open.
• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Important Safety Instructions

1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Special note: When placing your unit on a lacquered or natural finish, protect your furniture with a cloth or other protective material.

FCC Warnings

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Portable Speaker Dock for iPod + iPhone

FeaturesIncluded

• Made for iPod and iPhone
- Plays and charges docked iPod and iPhone
- App-enhanced: music, line in, slideshow, alarm and calendar
- 3.5mm audio input
• Digital volume control
• Built-in speaker
- Metal speaker grill
- DC power input: requires an AC/DC power adapter (included)
• DC battery power: requires 4 AAA batteries (not included)

- AC/DC power adapter

Table of Contents

Portable Speaker Dock for iPod + iPhone 4 Features

Table of Contents.... 4 Included

Introduction 5

Setup....6 Power Battery Power

iPod, iPhone, and 3.5mm Audio Input .... 6 Docking an iPod or iPhone Playing a Docked iPod or iPhone 3.5mm Audio Input

App .... 7 Automatically Downloading the App ISP091 App Manually Downloading the App

Company Information 8 International Support Contact Information Green Initiative

Introduction

Dock for iPod and iPhone

Power/Play/Pause

Press to power the speaker on. Press and hold to power off. When powered, press to play or pause a docked iPod or iPhone.

Volume

Press to adjust the volume of the speaker.

Setup

Power

DC power input: requires an AC/DC power adapter (included)

Line drawing of a wall-mounted electrical outlet connected to a device with two switches (no text or symbols)

Battery Power

Requires 4 AAA batteries (not included)

iPod, iPhone, and 3.5mm Audio Input

Docking an iPod or iPhone 3.5mm Audio Input

1. Connect the iPod or iPhone to the connector inside the Dock for iPod and iPhone.
2. When the dock is plugged in, using AC power, the docked iPod or iPhone will charge.

Playing a Docked iPod or iPhone

1. Follow the instructions for Docking an iPod or iPhone.
2. Press the Power/Play/Pause button to begin playing the docked iPod or iPhone.

Requires a 3.5mm line input cable (not included)

1. Connect a line input cable to the 3.5mm Audio Input and an MP3 player.

2. Use the native controls on the connected MP3 player to play audio through the speaker.

The 3.5mm Audio Input will not play audio when an iPod or iPhone is docked to the speaker. Undock an iPod or iPhone when using the 3.5mm Audio Input.

App

Automatically Downloading the App

1. Follow the instructions for Docking an iPod or iPhone.
2. Once the iPod or iPhone is docked a screen will appear prompting you to download the ISP091 app from the App Store.
3. Press Yes to automatically download the ISP091 app.

Manually Downloading the App

1. Go to the App Store on your iPhone or iPod touch.
2. Search for ISP091.
3. Download the App.

ISP091 App

CLOCK & CALENDAR

The clock will automatically sync with the time on the iPod or iPhone, so there's no need to set it. Use the calendar to view upcoming dates.

WEATHER

Type in your location in the settings ("i" icon on the home screen menu) and view your current weather conditions along with the time on the home page of the app.

ALARM

Add as many alarms as you like. You can set them to wake to iPod music or special sounds (Bell, Cathedral, Cuckoo, School, or Tick).

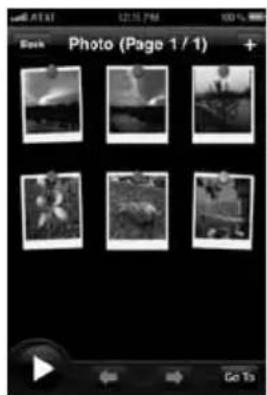

PHOTO SLIDE SHOW

Select photos that are already on your iPod or iPhone and play a slideshow with your music in the background.

LINE IN

Play music from an audio source connected to the 3.5mm audio input on the speaker.

Company Information

To download this User's Guide in English, Spanish, or French, visit the support section at www.ilive.net.

Website: www.ilive.net

Green Initiative International Support

protect for today • sustain for tomorrow

Environmental Commitment to 'Protect for Today and Sustain for Tomorrow'

2009 marked the official launch of DPI, Inc.'s corporate campaign for a greener and cleaner world. DPI is building upon environmental initiatives introduced at all of their facilities to help formulate and sustain significant and important conservation efforts within its manufacturing and marketing communities. In addition to targeting and selecting energy efficient product features, and structuring 'green office' procedures, other initial program efforts include:

• Reduction of all packaging sizes
  • Recyclable plastics for clamshell packages, with a plan to eventually replace plastic with recyclable paper
  • Recycled fiber board in place of the polyfoam in packing boxes
  • Recycled plastics in place of the virgin material in product construction
