IBP301B - Docking Station iLive - Free user manual and instructions

Product Type	Docking Station
Brand	iLive
Model	IBP301B
Color	Black
Dimensions (W x D x H)	10.5 x 8.5 x 5.5 inches
Weight	1.2 lbs
Power Supply	AC Adapter (included)
Power Consumption	15W
Input Voltage	100-240V AC
Speaker Output	2 x 5W
Driver Size	2.5 inches each
Frequency Response	80 Hz - 20 kHz
Impedance	4 ohms
Connectivity	Bluetooth, Aux-in, USB charging
Compatible Devices	iPhones, iPods, iPads, smartphones, tablets
Charging Function	5V/1A USB output for mobile devices
Remote Control	Included
Alarm Clock	Yes, with dual alarms
FM Radio	Yes, with presets
Maintenance	Wipe with dry cloth; avoid liquids
Safety	Do not expose to water; use only supplied adapter
Spare Parts Availability	Contact iLive support for replacement parts

Frequently Asked Questions - IBP301B iLive

What devices are compatible with the iLive IBP301B docking station?

The IBP301B is compatible with most iPhones, iPods, iPads, and other smartphones or tablets via the Bluetooth or auxiliary input. The built-in Lightning/30-pin dock works with older Apple devices.

How do I charge my device using the docking station?

Simply place your device on the dock or connect it via the USB charging port (5V/1A). Ensure the docking station is plugged into AC power.

Can I pair the IBP301B via Bluetooth?

Yes, press the Bluetooth button to enter pairing mode. Select 'iLive IBP301B' from your device's Bluetooth settings. The connection is automatic after initial pairing.

How do I set the alarm clock?

Press the Alarm button, then use the +/- buttons to set the hour and minute. Confirm to save. You can set two separate alarms and choose to wake to radio, buzzer, or your device.

What should I do if there is no sound?

Check that the volume is not muted, the source is selected correctly (Bluetooth/Aux/Dock), and the connected device is playing audio. Also ensure the docking station is powered on.

How do I reset the docking station?

Unplug the AC adapter, wait 30 seconds, then plug it back in. This will reset the internal memory. For Bluetooth issues, delete the device from your phone and re-pair.

Can I use an auxiliary cable?

Yes, connect a 3.5mm audio cable from your device to the Aux-in port on the back. The unit will automatically switch to Aux mode.

How do I clean the docking station?

Unplug the unit and wipe the exterior with a soft, dry cloth. Do not use any liquids, solvents, or abrasive cleaners. Keep the dock connectors free of dust.

What is the warranty period?

The iLive IBP301B comes with a 1-year limited warranty from the date of purchase. Retain your receipt for service.

How to stop the alarm from sounding on weekends?

Press the Alarm button, then press the 'Set' button repeatedly until 'Weekend' appears. You can disable the alarm for Saturday and Sunday by toggling it off. Refer to the manual for details.

USER MANUAL IBP301B iLive

Black electronic device with a smartphone displaying the iLive calling module, no visible text or symbols on the device itself.

IBP301B

Portable Boombox for iPod and iPhone

For the most up-to-date version of this User's Guide, go to www.ilive.net

Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• AVERTISSEMENT: Pour réduire le risque d'incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l'humidité.
• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• PRÉCAUTION: Danger d'explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l'équivalent.
• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.

• WARNING: The remote control's button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste

• WARNING: Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.
  • WARNING: Shock hazard - Do Not Open.
  • AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Important Safety Instructions

1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Warnings

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

- Main plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

- Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Portable Boombox for iPod and iPhone

Features

• Made for iPod and iPhone
- Plays and charges docked iPod and iPhone
• Supports Universal docking brackets
• Digital tune FM stereo radio
• Station memory presets (20 FM)
• Digital volume control
- Last user settings memory
- 3.5mm audio input
- RCA video output
- White backlit LCD display
- Built-in speakers
- Cloth speaker grill
• AC power: built-in AC power cable
- DC power: requires 4, C-size, batteries (not included)

Included

• Remote control: requires 1, CR2025, battery (included)
• Docking brackets for iPod/iPhone (5)

TAble of ConTenTs

Warnings and Precautions . . . . . 2

Important Safety Instructions . . . . 3

• FCC Warnings
  • Additional Warnings

Portable Boombox for iPod and iPhone. . 4

• Features
• Included

Introduction . . . . . . . . . 6

Setup . . . . . . . . . . . 8

• Power
• Battery Power

iPod and iPhone . . . . . . . . 9

• Docking an iPod or iPhone
• Playing a Docked iPod or iPhone

Radio . . . . . . . . . . . . 10

• Tuning the FM Radio
• Saving a Radio Station as a Preset
• Tuning to a Preset Station

Audio Input and Video Output . . . . 11

• Using the 3.5mm Audio Input
• Using the Composite Video Output

Company Information . . . . . . . 12

• International Support
- Contact Information

Introduction

Setup

Power

Plug the built-in AC power cable into a standard AC power outlet to power the unit.

Line drawing of a device with attached power outlet and cable, no text or symbols present

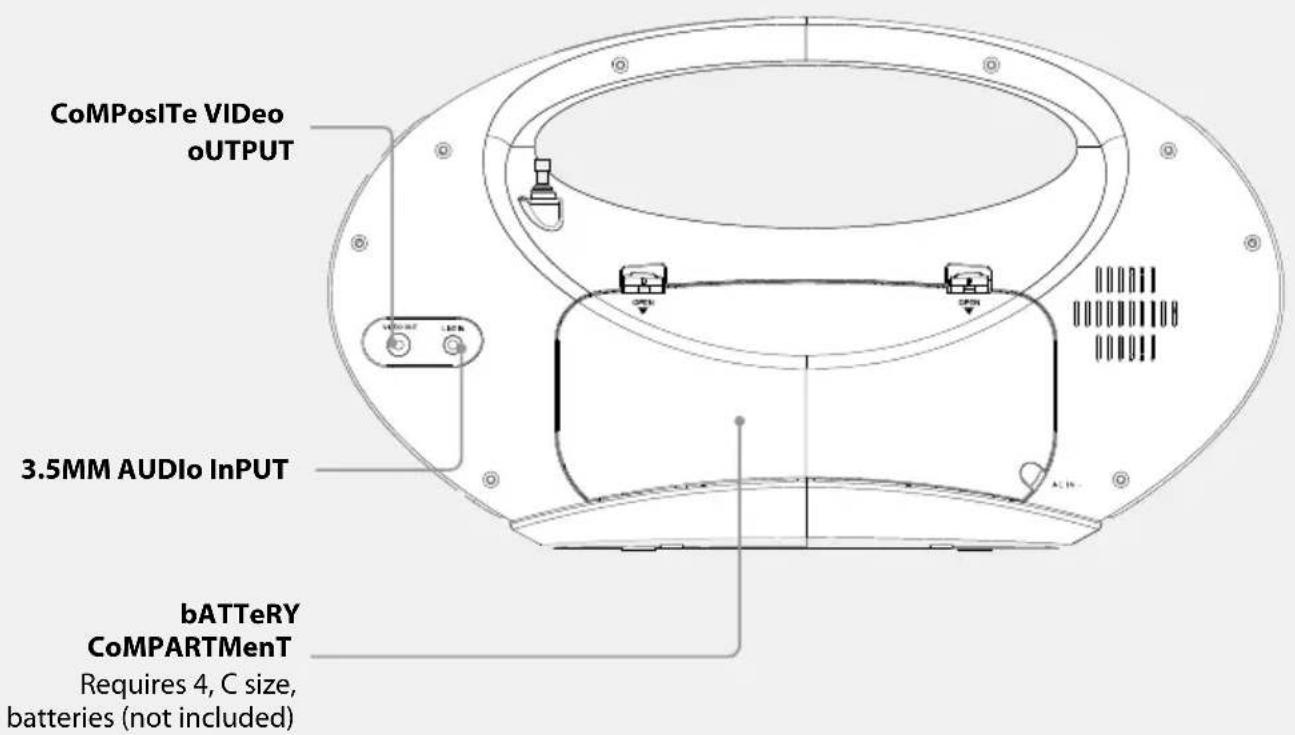

battery Power

Requires 4, C size, batteries (not included)

Technical line drawing of a device with internal components and battery arrangement (no text or symbols)

Diagram of a smart air conditioner unit with control panel and sensor, showing internal components (no text or labels)

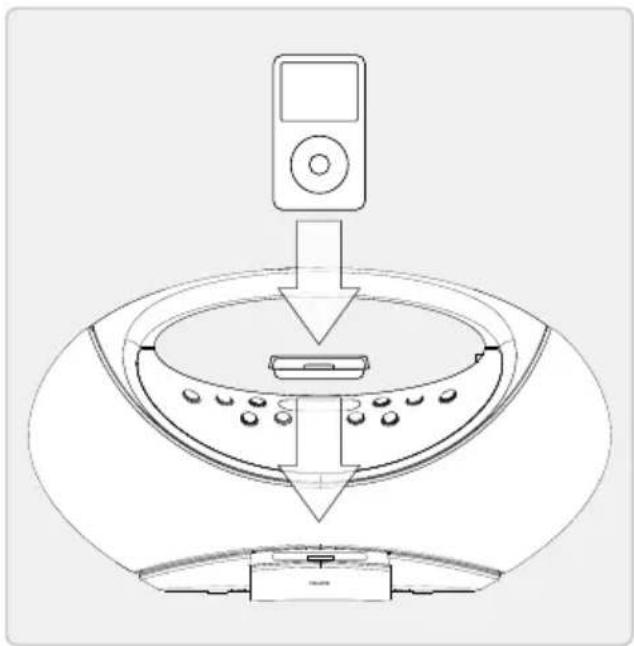

Docking an iPod or iPhone

1. Locate the numbered bracket that fits the iPod or iPhone model that will be docked.
   Each included bracket has a number on it, indicating which iPod or iPhone model that bracket is compatible with. See the separate bracket chart page to identify which bracket is needed.
2. Snap the bracket into place over the iPod and iPhone connector in the dock.
3. Connect the iPod or iPhone to the connector inside the Dock for iPod and iPhone.
4. When the dock is plugged in, using AC power, the docked iPod or iPhone will charge.

Playing a Docked iPod or iPhone

1. Follow the instructions for Docking an iPod or iPhone.
2. Press the SOURCE button to switch to iPod mode.
3. Press the PLAY/PAUSE button to begin playing the docked iPod or iPhone.

Radio

Tuning the FM Radio

1. Press the SOURCE button to switch to FM radio mode.
2. Press the TUNE± buttons to adjust the FM radio station.

Extend the FM ANTENNA to improve FM radio reception.

Saving a Radio Station as a Preset

1. Follow the instructions for Tuning the FM Radio.
2. Tune to the desired station.
3. Press and hold the MEM button for 1-2 seconds.
   The display will begin to flash.
4. Press the TUNE± buttons to select the preset the current station will be set to.
5. Press the MEM button to save the current station to the selected preset.

Tuning to a Preset Station

1. Follow the instructions for Tuning the FM Radio and Saving a Radio Station as a Preset.
2. Press the MEM button repeatedly to cycle through preset radio stations.

Using the 3.5mm Audio Input

Requires a 3.5mm audio cable (not included)

1. Connect a 3.5mm audio cable to the 3.5MM AUDIO INPUT on the boombox and an audio output on an MP3 player or other audio source.
2. Press the SOURCE button to switch to LINE IN mode.
3. Use the native controls on the connected MP3 player or other audio source to play and control audio played through the boombox.

Using the Composite Video Output

Requires an RCA video cable (not included)

1. Connect an RCA video cable to the COMPOSITE VIDEO OUTPUT on the boombox and a video input on a television.
2. Adjust the television to the input mode that matches the connection used in step 1.
3. Video played through a docked iPod or iPhone will now play through the connected television.

Company Information

International Support

To download this User's Guide in English, Spanish, or French, visit the support section at www.ilive.net.

Website: www.ilive.net
