Product Type	Digital Terrestrial Media Player (DVB-T)
Brand	Energy Sistem
Model	T5850
Dimensions (Approx.)	200 x 150 x 40 mm
Weight (Approx.)	0.5 kg
Power Supply	100-240 V ~ 50/60 Hz
Max Power Consumption	8 W
Tuner Input Frequency	VHF: 170-230 MHz; UHF: 470-860 MHz
Modulation	QPSK, 16QAM, 64QAM
Video Decoder	MPEG4 AVC/H.264 HP@L4, MPEG2 [e-mail]
Output Resolution	576p, 720p, 1080i
Output Ports	HDMI, Dual SCART, Coaxial S/PDIF
Audio Decoder	MPEG-1 Layer I&II
Multimedia Playback	Video: MPEG2, DivX, XviD, AVI, MKV, VOB; Audio: MP3, WAV; Photo: JPEG, BMP

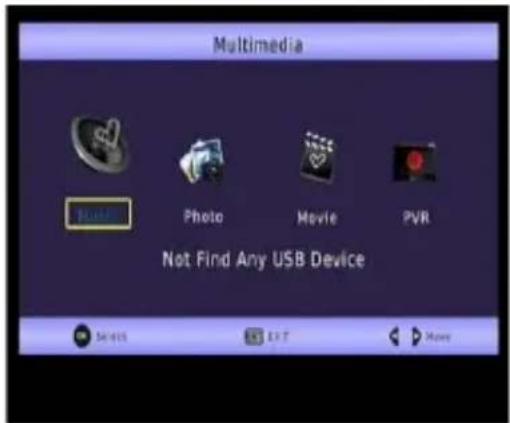

USB Port	USB 2.0 (FAT32) for multimedia playback and PVR recording
PVR Recording	Direct and scheduled recording to USB storage
Remote Control	Infrared, range 7 m, 60° angle, requires 2xAAA batteries

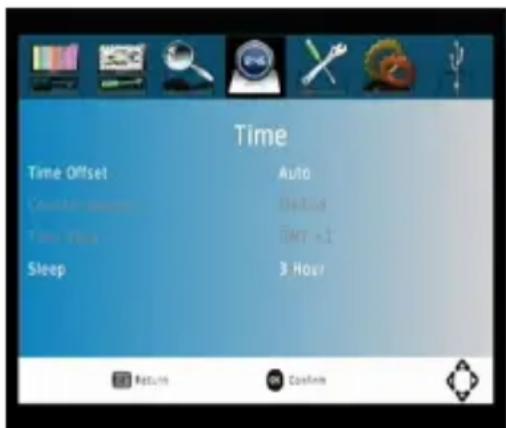

Safety Features	Double insulation, automatic standby after 1-12 hours (sleep timer)
Cleaning	Unplug device; clean with soft, damp (not wet) cloth; no liquid cleaners
Spare Parts & Repairability	No user-serviceable parts inside; batteries for remote replaceable
Warranty	36 months from purchase date

Frequently Asked Questions - T5850 ENERGY SISTEM

How do I set up the Energy Sistem T5850 for the first time?

Connect the antenna to RF IN, HDMI or SCART to your TV, and power. Turn on the device, select OSD Language and Country, then press OK to start Automatic Channel Search. Once complete, you can watch digital TV.

How can I record a TV program?

Insert a USB storage device (FAT32 format). To record live TV, press REC on the remote; press STOP to end. For scheduled recording, press EPG, select a program, set start/end time and frequency, then confirm. Recordings appear in LIST.

What file formats are supported for multimedia playback via USB?

The T5850 supports video formats: MPEG2, DivX, XviD, AVI, MKV, VOB. Audio: MP3, WAV. Photo: JPEG, BMP. Note that not all codecs or container variations are guaranteed.

My remote control is not working. What should I do?

Check if the device is powered on and the remote has fresh 2xAAA batteries. Ensure no obstructions between remote and sensor (range is up to 7 m at 60°). Strong sunlight or IR interference may reduce sensitivity.

How do I change the on-screen display language?

Press MENU, go to OSD Options (icon with gear), select OSD Language, and use LEFT/RIGHT to choose your preferred language. Press EXIT to save.

Can I watch one channel while recording another?

No, the T5850 has a single tuner. You can only record the channel you are currently watching. To record a different program, use the scheduled recording feature via EPG.

How do I lock or restrict certain channels for children?

Press MENU, go to Program Edit (requires password, default 000000). Select a channel, press YELLOW to lock it. Locked channels require the password to view. You can change the password under System > Set Password.

What should I do if there is no signal or picture breaks into blocks?

Check the antenna connection at RF IN. Ensure your aerial is suitable for digital TV and not damaged. Weak signal can cause blockiness; try moving the antenna or using an amplifier. Also verify you are in a digital coverage area.

How do I reset the device to factory settings?

Press MENU, select System icon, then Restore Factory Default. Enter the password (default 000000) and confirm. This will delete all channels and settings.

What is the warranty period and how do I claim?

The T5850 has a 36-month warranty from date of purchase. Visit support.energysistem.com for FAQs, manuals, and driver updates. If unresolved, email [e-mail] or contact your dealer with proof of purchase.

USER MANUAL T5850 ENERGY SISTEM

To ensure your safety and the safety of others, please ensure that you read all the safety information before operating this product.

Keep this information in a safe place for future reference.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Safety Considerations.

• Position the cables so that they cannot be walked on or pinched by items placed on or against them.
  Do not use the set top box in humid or damp conditions.
  Do not allow the set top box to get wet.
  Do not expose the set top box to dripping or splashing.
  Do not place water filled objects such as vases on top of the set top box.
  Do not place naked flame sources, such as candles, on the top of the set top box.

Ventilation

The slots and openings on the set top box are for ventilation. Do not cover or block them as it may cause overheating.

NEVER let children push anything into the holes or slots on the case.

Servicing

There are no user serviceable parts in this set top box.

Battery Disposal

Please ensure batteries are disposed of safely.

Never dispose of batteries in a fire or with other household waste.

Check with your local authority for disposal regulations.

Cleaning

ALWAYS unplug the set top box before you clean it.

Do not use liquid or aerosol cleaners.

Clean the set top box with a soft, damp (not wet) cloth.

t5850 handling and care
Place the product in a well-ventilated area. Don’t install it in the cold or under direct sunlight.

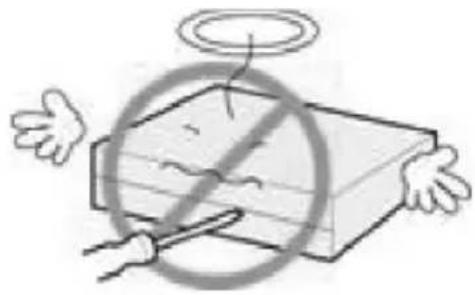

Leave a minimum 10cm gap all around the product	Do not disassemble, repair, or reorganize the product
Don’t place cups with water or other liquids on the top of the product	Don’t place objects on the top of the product

2. Front Panel

1. POWER: Used to turn on/off the main power supply
2. STANDBY INDICATOR: Used to visually show power state of the set top box, the led will turn red if the set top box enters in standby mode:

Green = on

Red = standby

No light = off

1. REMOTE CONTROL SENSOR: Used to receive the signal from the Remote Control.
2. CHANNEL UP/DOWN: Used to change channels without using the Remote Control.
3. USB PORT: Used to attach your external USB hub/card reader/storage device.

3. real Panel

1. RF IN: This socket connects to your external aerial.
2. RF LOOP THROUGH: This socket will bypass the RF signal to either your TV or another video system.
3. COAXIAL: This socket connects to a coaxial socket on your surround sound system.
4. VCR SCART: This socket connects to either a DVD or other video system.
5. TV SCART: This socket connects to your TV.
6. HDMI OUT This socket connects to HDMI in device.
7. MAINS CABLE: This is used to connect to your main power supply.

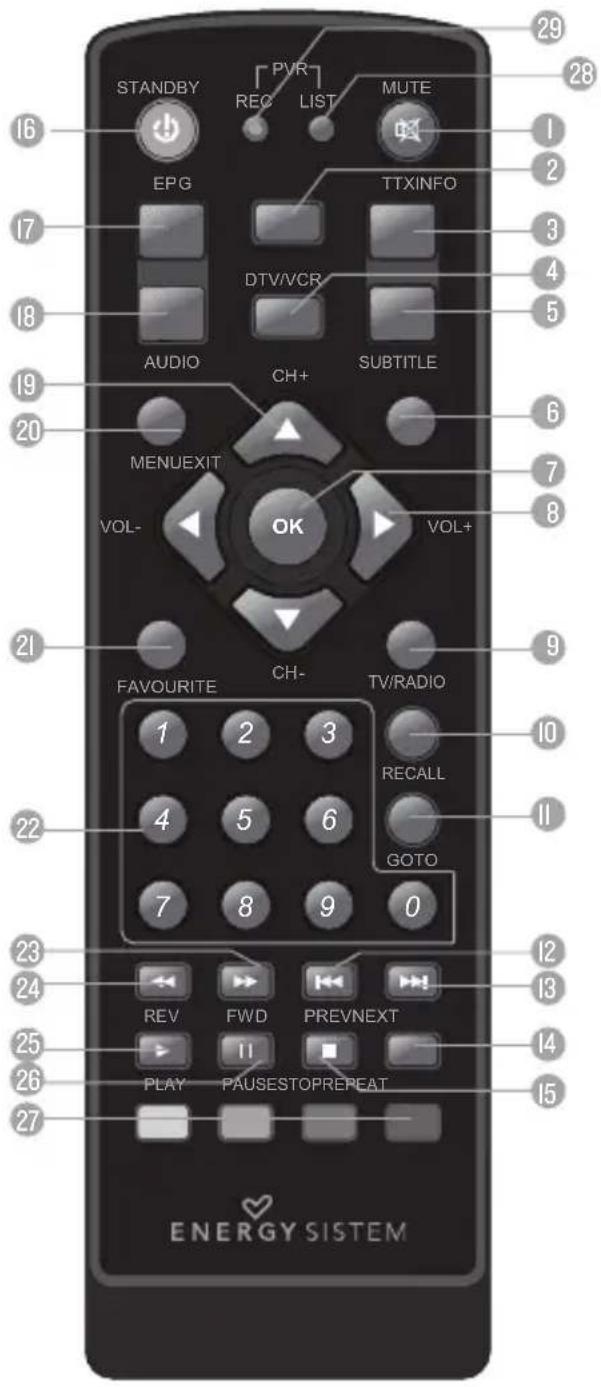

4. reMote control

4.1. Button deScrIPtlonS

Note: The TEXT SUBTITLES, AUDIO availability depends on the available channels.

1. MUTE: Mute/unmute the sound.
2. INFO: Displays additional channel information.
3. TTX: Displays Teletext Information.
4. DTV/VCR: Switches the product to VCR input if it is in DTV state. Switches the product to DTV if it is in VCR state.
5. SUBTITLE: Selects Subtitles Language.
6. EXIT: Exits the current Menu or returns to the previous Menu.
7. OK: Confirms an entry or selection. Displays the list of channels.
8. RIGHT / LEFT: Navigates through the Menus. Increases or decreases volume.
9. TV/RADIO: Switches from TV function to Radio function and from Radio to TV.
10. RECALL: Used to switch between the last two viewed channels.
    II. GOTO: Jumps to a desired playback time.
11. PREV: Skips to the previous track during playing media and skips to the previous channel during playing DTV.
12. NEXT: Skips to the next track during playing media and skips to the next channel during playing DTV.
13. REPEAT: Selects Repeat or turn off Repeat mode.
14. STOP: Stops media playback.
15. STANDBY: Switch the product to on or standby mode.
16. EPG: (Electronic Program Guide): Turns the program guide on.
17. AUDIO: Selects an Audio Language or Audio Mode.
18. UP / DOWN: Navigates through the Menus. Selects the next or previous channel.
19. MENU: Open main menu window.
20. FAVOURITE: Access your Fav. channels menu.
21. 0-9 (Numeric Buttons): Selects a channel or setting.
22. FWD: Searches forwards during media playback.
23. REV: Searches backwards during media playback.
24. PLAY: Starts or resumes media playback.
25. PAUSE: Pauses media playback.
26. COLOUR BUTTONS: Operate different functions in TEXT screen or other menus.
27. LIST: Show the recorded programs list.
28. REC: Record the program manually.

4.2. InStalling the BatterleS

Remove the battery cover from the remote control and put 2xAAA size batteries inside the compartment.

The following diagram shows the correct way to insert batteries.

I. Open the cover

1. Install batteries

2. Close the cover

Simple line drawing of a rectangular object with a curved arrow and label 'c' (no text or symbols beyond the label)

Diagram of a car interior with cylindrical components and directional arrows indicating movement (no text or symbols)

4.3. uSIng the reMote control

To use the remote control, point it towards to the front of the digital receiver.

The remote control has a range of 7 metres from the receiver at an angle of 60 degrees.

The remote control will not work if the way to the receiver is blocked.

Sunlight or other very strong light will decrease the sensitivity of the remote control.

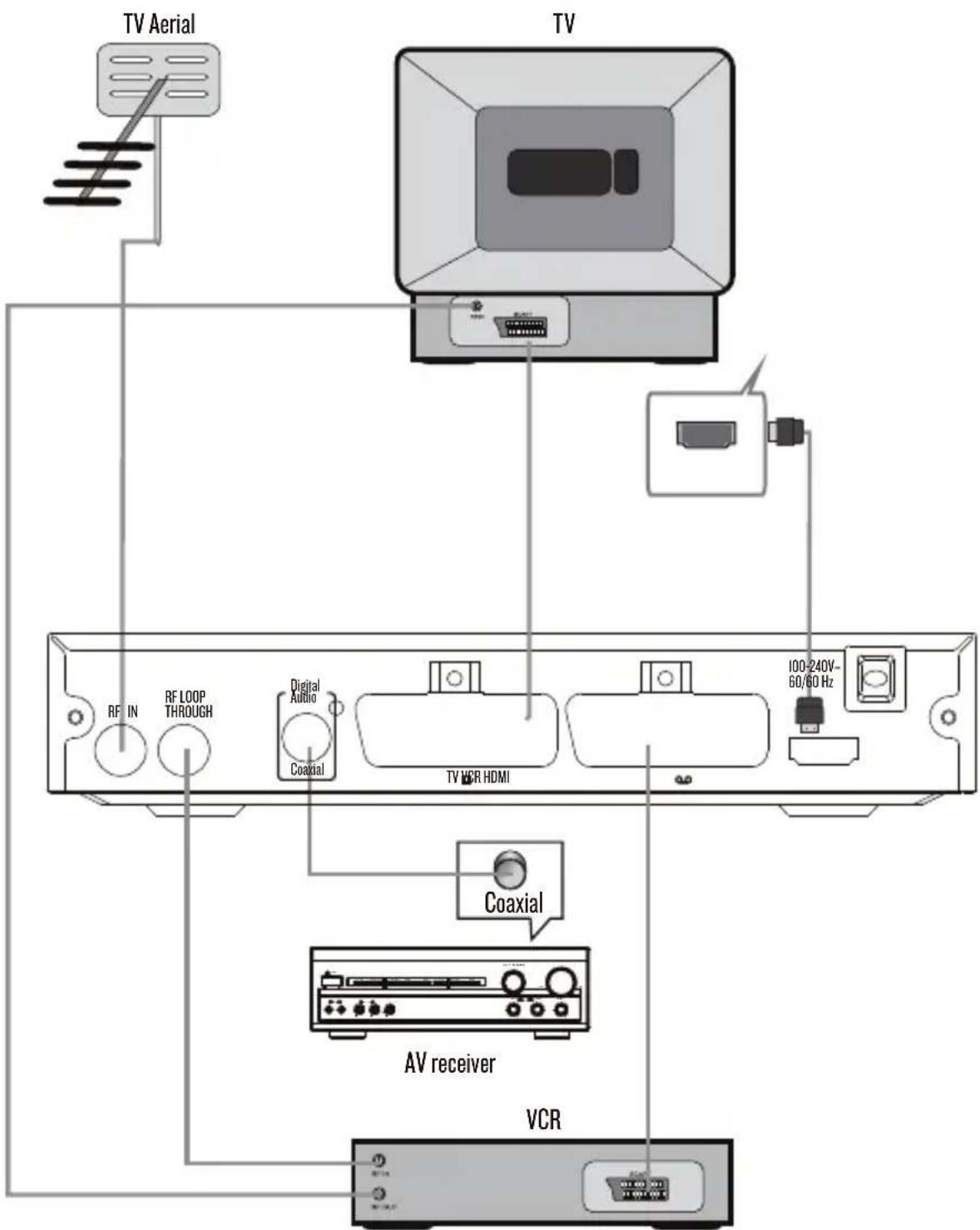

5. convection

Caution: Make sure the outlet voltage is the same as the receiver.

To avoid the risk of electric shock do not open the cover or the back of the receiver.

Note: When connecting the receiver to other equipment, e.g., TV, VCR and amplifier, make sure to refer to relevant user manual for instruction. Also, make sure you disconnect all the equipments from the mains supply before the connection.

6. FlrSt tIMe InStallation

After all connections have been made properly, switch on TV and make sure the receiver is connected to the Main Power. Press Power button to switch receiver on. If you are using the receiver for the first time or restored to Factory Default, the Main Menu will appear on your TV screen.

1. Select [OSD Language] and press RIGHT/LEFT key to select a language.
2. Select [Country] and press RIGHT/LEFT key to select your country of residence.
3. Select [Channel Search] and press RIGHT or OK key to begin Automatic channel search.
4. Once channel tuning is complete, you are now ready to watch digital TV.

7. BaSIc oPeratlon

7.1. PrograM SettingS

To access the Menu, press the MENU button and select [Program]. The Menu provides options to adjust the Program Manage Settings. Select an option and press OK or RIGHT to adjust that setting. Press the EXIT button to exit the Menu.

7.2. PrograM edIt

To edit your program preferences (lock, skip, favourite, move or delete), you will need to enter the Program Edit Menu. This Menu requires a password to access. Enter the default password '000000'.

You can create your favourites list channel easily & accessible.

SET FAVOURITE PROGRAM:

You can create a shortlist of favourite programs that you can easily access.

Set Favourite TV or Radio program:

1. Select the preferred program, and then press the FAVOURITE button. A heart-shaped symbol will appear and the program is marked as a favourite.
2. Repeat the previous step to select more Favourite programs.
3. To confirm and exit the Menu, press the EXIT key.

* Disable favourite TV or Radio Program:

Press the FAVOURITE button on the Remote Control with the heart-shaped symbol.

View Favourite Program

1. Press the Favourite button and the Favourite Menu will appear.
2. Press UP/DOWN to select your Favourite Programs.
3. Press OK to select your favourite program.

Delete a TV or Radio Program

1. Select the Program and then press the BLUE button. A message will appear. Press OK to delete the program.
2. Repeat the previous step to select more programs to delete.

Skip TV or Radio Program

1. Select the program you would like to skip and press the GREEN button. A skip symbol is displayed. The program is marked as a skip.
2. Repeat the previous step to select more programs.
3. To confirm and exit the menu, press EXIT key.

* Disable a skip TV or Radio program:

Press the GREEN button on the skip program with the skip symbol.

Move a TV or Radio Program

1. Select the preferred program then press the RED button. A move symbol will appear.
2. Press UP/DOWN to move the program.
3. Press OK to confirm.
4. Repeat the above steps to move more channels.

Lock Program

You can lock selected programs for restricted view.

Lock a TV or Radio Program:

1. Select the preferred program then press the YELLOW button. A lock shaped symbol is displayed. The program is now marked as locked.
2. Repeat the previous step to select more programs.
3. To confirm and exit the menu, press the EXIT button.
4. Press the YELLOW button to disable the locked program.
5. To view the locked program, you will be required to enter either the default password '000000' or your last set password.

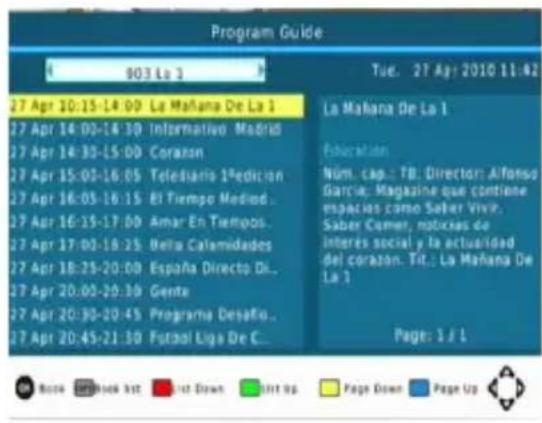

7.3. ePg (electronic PrograM gulde)

The EPG is an on-screen TV guide that shows scheduled programs seven days in advance for every tuned channel. Press the EPG button on the Remote Control to access the guide.

You can use the UP/DOWN key to select the preferred program. If there is more than one page of information, use the BLUE button for page up and the YELLOW button for page down.

7.4. Sort

The T5850 allows you to sort your channels with the following options:

1. [LCN] - Sort the channels in ascending order.
2. [Name] - Sort the channels in alphabetical order.
3. [Service ID] - Sort the channels according to the station.

7.5. Icn (logical channel nuMBer)

LCN adjusts the number that identifies the channel, used in some Europeans countries such as UK or France.

7.6. Video SettingS

To access the video menu, press the menu button and select the icon PICTURE. The menu provides options to adjust the video settings. Click up/down to select an option and press the right/left to adjust the settings. Click EXIT to exit the menu.

Aspect Ratio

The T5850 allows you to set the display format on the screen:

4:3 LB (LetterBox): Typically for wide screen content on convencional 4:3 TV with black bars above and below the picture.
4:3 PS (PanScan): Typically for wide screen content on convencional 4:3 TV with left and right edges cropped.
▶ 16:9: Typically for wide screen 16:9 TV.

Resolution

If the video is not displayed correctly, change the settings. This option is to match the most common configuration for HDMI.

[480i]: For NTSC system TV.
[480p]: For NTSC system TV.
[576i]: For PAL system TV.
[576p]: For PAL system TV.
[720p]: For NTSC or PAL system TV.
[1080i]: For NTSC or PAL system TV.

TV Format

If the video does not appear correctly, you need to change the settings. This should match the most common setting for TVs in your country.

[NTSC]: for NTSC system TV.

[PAL]: for PAL system TV.

Video Output

CVBS or RGB.

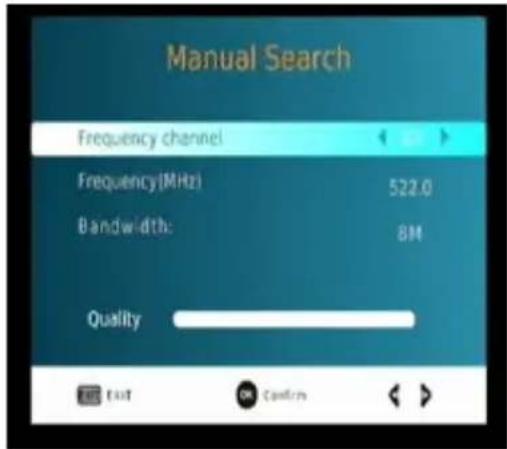

7.7. channel Search

To access the channel search menu, press the menu button and select icon CHANNEL SEARCH. The menu provides options to configure the searching modes. Click the button up/down to select an option and press the right/left to adjust the settings. Click EXIT to exit the menu.

I. Auto Search:

This option allows you to search for channels automatically and overwrites all preset channels.

I. Select [search] and press OK or right button to start the search channel.
2. To abort the search channel, click EXIT.

Automatic channel search takes some time but click EXIT at any time to stop the search.

2. Manual Search:

Install new channels manually. This option adds new channels without changing the current channels list.

I. Select [Manual Search] then press OK or RIGHT. The channel search screen will appear.
2. Press the RIGHT/LEFT key to select the channel frequency.
3. Press OK to start searching channels If a channel is found, it is saved and added to the channels list. If channels can't be found, then exit the menu.

3. Country

Select the country of residence.

4. Antenna power

Enable Antenna Power if an external active antenna is connected.

7.8. tIMe SettIngS

To access the time settings menu, press the menu button and select the image. The menu provides options for adjust the region and GMT time zone. Click the buttons of up/down to select an option and press the right/left to adjust the settings. Click EXIT to exit the menu.

1. Time Offset

Allows you to enable / disable the automatic update of the zone. If you know where you are (with respect to GMT) time zone you select "manual" and the appropriate time zone. If not enabled "Auto" the T5850 automatically update the time zone through the information present in the DVB-T signal.

Note: Some countries are covered by more than one time zone. Spain uses GMT + I (except Canary Islands used GMT)

2. Country Region

Select the Country Region when [Time Offset] is set to Auto.

3. Time Zone

Select the Time Zone Offset when [Time Offset] is set to Manual.

4. Sleep

Automatically turns off the T5850 at intervals that wills 1 - 12 hours.

7.9. oSd oPtlonS

To access the OSD menu, press the menu button and select the OPTION icon. The menu provides options to configure the language, the subtitle and audio language. Click the buttons of up/down to select an option and press the right/left to adjust the settings. Click EXIT to exit the menu.

I. OSD Language

Sets the language texts of the OSD (On Screen Display).

2. Audio Language

Select the preferred audio language for watching TV channels.

If the audio option is not available, the default program audio language will be used.

3. Subtitle Language

Select the preferred subtitle language.

Note: Audio/subtitles availability depends on channel broadcast.

To access the system menu, press the menu button and select the SYSTEM icon. The menu provides options to adjust advanced features of the system. Click the buttons of up/down to select an option and press the right/left to adjust the settings. Click EXIT to exit the menu.

1. Parental Guidance

You can restrict access to channels that are unsuitable for children. To restrict/lock the channel you will need to enter either the default password '000000' or your own password.

2. Set Password

Set or change the password for locked programs. Enter your old password or the default password '000000'. You will then be asked to enter your new password. To confirm re-enter your new password. Once it is confirmed, press EXIT to exit the Menu.

3. Restore Factory Default

Reset your Set Top Box to the Default Factory Settings.

In Main Menu select [Restore Factory Default] and press OK or RIGHT to select. Enter your password or the default password '000000' and press OK to confirm. This option will delete all preset channels and settings.

4. Information

View model, hardware and software information.

7.11.uSB

To access the USB menu, press the menu button and select the USB icon. Click up/down buttons to select an option and press the right/left to adjust the settings. Click EXIT to exit the menu.

8. Multimedia

To use the multimedia menu is necessary connecting an external USB storage device and access from the MENU - USB and select MULTIMEDIA.

Music: Listen to music in MP3 and WAV format. Use the command buttons to move forward/back/play/stop the music.
▶ Photo: View photos in JPEG/BMP. If photos in the root folder of the device display mode thumbnails, otherwise display mode folder structure.
Film: Plays most MPEG2, DivX, XviD, AVI, MKV, VOB.* format video files.

Note: no ensures compatibility with any type of container file and/or audio/video codec.

PVR: Your T5850 allows recording directly DVB-T programs. Insert the USB storage device (pendrive / hard disk) and press REC in the remote control to start the recording, to stop it press STOP button.

You can also schedule a recording, or tune into the channel selected when you set. For recording / viewing of a desired program perform the following steps:

1. Insert the USB storage device (pendrive / hard disk).
2. Press the EPG button on the remote control.
3. Select the type of channel (Radio / TV) to record or view.
4. Press OK to set the recording schedule.
5. Set the time (time - start time - time of completion).
6. Configure the frequency (once-daily-weekly).
7. Select the mode: To select PVR recording, for tuning press VIEW.
8. Click Confirm to save changes.

In both cases (direct/scheduled recording), it will be created a file with the name of the tuned channel, time and starting date of the recording. You can rename the file by clicking the green button. To play recorded programs press LIST in the remote control and select the file with up/down buttons, then press OK to play it.

Note: made recording does not support changing values such as subtitles, languages, EPG, etc. You must have a USB data storage device connected. The playback and recorded multimedia files should be supported with USB devices in FAT/FAT32 format.

9. TROUBLESHOOTING

Problem Possible cause What to do
Standby LED not lit Mains lead unplugged Check mains lead
No signal found Aerial is disconnected	Aerial is damaged/misalignedOut of digital signal area	Check aerial leadCheck aerialCheck with dealer
No picture or sound Viewing incorrect SCART output		Press the DTV/VCR button
	Tuned to digital teletext channel	Change to another channel
Mosaic blocks in picture or picture freezes	Aerial may not be compatible Check aerial
Scrambled channel message Channel is scrambled Select an alternative channel
Forgotten channel lock code Re-install channels to cancel		channel lock
No response to remote control Receiver off Plug in and turn on receiver
After moving the device to another room can’t receive the digital signal	The aerial feed may come through a distribution system which may reduce the digital signal	Try a direct feed from antenna

1. technical SPecIfcation

Item Especificación
Tuner Input Frequency	VHF: I70 - 230 MHz
		UHF: 470 - 860 MHz
	RF Input Level -25 ~ -82 dBm
	IF Bandwidth 7 MHz & 8 MHz
	Modulation QPSK, 16QAM, 64QAM
Video Decoder Format	MPEG4 AVC/H.264 HP@L4	MPEG2 [e-mail]
	Output Format 576p, 720p, 1080i, 4:3 & 16:9
	Output Port HDMI, Dual SCART
Audio Decoder Format	MPEG-I (layer I&2)
	Audio Output Digital audio: S/PDIF
Power Voltage 100~24	0V ~ 50/60Hz
	Power Max. 8 W
Multimedia format Video	eo MPEG2, Divx, Xvid, AVI, MKV, VOB*
	Audio MP3 & WAV
	Photo JPEG/BMP
	USB 2.0 FAT 32 - Multimedia	playback and DVB-T recording

Note: Specifications are subject to change without further notice.
* Energy Sistem do not warrants the support of all video/audio codecs formats.

II. WarrantY

Energy Sistem Soyntec S.A. warrants its products to be free from defects in materials and workmanship at the time of purchase.

The warranty period is 36 months from the date of purchase for DVB-T STB receivers.

Warranty Procedure

Visit the Support section at http://support.energysistem.com and select your product to view the FAQ (Frequently Asked Questions). The solution to your problem is very likely to have been already published there. You will also be able to download user manuals, user guides, drivers and updates.

If you cannot find an appropriate solution in the Support section, you may send us your enquiry or warranty service request by email: [e-mail]

Alternatively, you may prefer to contact the distributor from which you purchased the product, presenting the purchase receipt or invoice.

Specifications are subject to change without notice.

© 2010 by Energy Sistem®. All rights reserved.

tradeMarKS

All company, brand and product names are trademarks or registered trademarks of their respective companies.

declaration of ConForMItY

Manufacturer Name: Energy Sistem Soyntec S. A.

Address: Pol. Ind. Finestrat C/ Calpe esq. C/ Alicante S/N, 03509 Finestrat Alicante

Tel: [phone] · Fax: [phone]

NIF: A53107488

We declare under our own exclusive responsibility that the product:

Energy Sistem® Multimedia DVB-T Recorder Energy™ T5850

Is in compliance with the essential directives, norms and standards of the European Union 89/336/EEC (EMC Directive).

Manufacturing country: China

This symbol on the product or the instructions means that your electrical and electronic equipment should be disposed at the end of life separately from your household waste. For more information, please contact the local authority or dealer where you purchased the product.

Simple heart-shaped outline on black background (no text or symbols)

www.energysistem.com
