TA75A+ - Motherboard BIOSTAR - Free user manual and instructions

Product Type	Motherboard
Brand	Biostar
Model	TA75A+
Socket	FM1
Chipset	AMD A75
Form Factor	ATX
Dimensions	305 x 244 mm
Weight	0.8 kg (approx)
Power Supply	ATX 24-pin
Memory Support	2 x DDR3 DIMM, up to 16 GB, DDR3 1866/1600/1333/1066 MHz
Expansion Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x4, 2 x PCI
Storage	6 x SATA 6 Gb/s, 1 x eSATA
USB Ports	10 x USB 2.0 (4 rear, 6 via headers), 2 x USB 3.0 (rear)
Audio	Realtek ALC892 8-channel HD Audio
LAN	Realtek RTL8111E 10/100/1000 Mbps
Graphics	Integrated AMD Radeon HD 6000 series (when using APU)
Back Panel I/O	PS/2 keyboard/mouse, HDMI, DVI, VGA, USB 2.0/3.0, LAN, audio jacks
Main Functions	Supports AMD A-series APUs, Dual Graphics, USB 3.0, SATA 6 Gb/s
Maintenance	Keep dust-free, ensure proper airflow, update BIOS carefully
Cleaning	Use compressed air for dust; avoid liquid cleaners
Safety	Disconnect power before installation; handle by edges to avoid ESD
Spare Parts	CMOS battery (CR2032), I/O shield, SATA cables
Reparability	Replaceable CPU, RAM, CMOS battery; warranty void if damaged
General Information	Supports Windows 7/8 (64-bit), may work with Windows 10

Frequently Asked Questions - TA75A+ BIOSTAR

How do I install the CPU on the Biostar TA75A+?

First, lift the socket lever fully. Align the gold triangle on the CPU with the triangle on the socket, gently place the CPU, then close the lever. Ensure the CPU is seated correctly before applying thermal paste and attaching the cooler.

How can I update the BIOS on this motherboard?

Download the latest BIOS from the Biostar website. You can update through the BIOS utility 'BIOS Update' or by using a DOS bootable USB. Follow the instructions carefully to avoid bricking the board.

What type of RAM is compatible with the TA75A+?

It supports DDR3 memory, 1.5V, unregistered, non-ECC. Maximum capacity is 16 GB across two slots. Speeds up to 1866 MHz (overclocked) are supported with compatible APUs.

Does the TA75A+ support CrossFire or dual graphics?

It does not support CrossFire because it has only one PCIe x16 slot. However, it supports Dual Graphics when using an AMD A-series APU with a compatible discrete Radeon GPU.

How do I clear the CMOS on the TA75A+?

You can clear CMOS by removing the CMOS battery (CR2032) for a few minutes, or by moving the CMOS jumper (JBAT1) to the clear position for 5 seconds, then moving it back.

What is the maximum CPU power (TDP) supported?

The TA75A+ supports AMD A-series APUs with a maximum TDP of 100W. Processors with higher TDP may not be compatible or may cause overheating.

How can I set up RAID on this motherboard?

Enter the BIOS setup and go to the 'Advanced' tab. Set the SATA mode to RAID. Save and reboot, then press Ctrl+F to enter the RAID configuration utility to create arrays.

Why is there no display output after powering on?

Check that the CPU power connector (4+4 pin) is plugged in, RAM is properly seated, and if using a discrete GPU, the monitor is connected to the GPU, not the motherboard. Also try clearing CMOS.

Can I use Windows 10 on the Biostar TA75A+?

Official driver support is for Windows 7 and 8. However, many users have reported successful operation with Windows 10 using default drivers or those from Windows Update. Some features may not work.

How do I connect the front panel audio header?

Consult the manual for the exact pin layout. Typically, the header supports HD Audio (default) or AC'97. Ensure the audio cable from your case matches the pinout; misalignment may cause no sound.

USER MANUAL TA75A+ BIOSTAR

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor's approval in writing.

The content of this user's manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user's manual. All the brand and product names are trademarks of their respective companies.

2004/108/CE, 2006/95/CE e 1999/05/CE

Short Declaration of conformity

We declare this product is complying with the laws in force and meeting all the essential requirements as specified by the directives

2004/108/CE, 2006/95/CE and 1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction ...... 1

1.1 Before You Start 1
1.2 Package Checklist....1
1.3 Motherboard Features....2
1.4 Rear Panel Connectors 3
1.5 Motherboard Layout....4

Chapter 2: Hardware Installation .... 5

2.1 Installing Central Processing Unit (CPU) 5
2.2 FAN Headers....7
2.3 Installing System Memory 8
2.4 Connectors and Slots 10

Chapter 3: Headers & Jumpers Setup ...... 13

3.1 How to Setup Jumpers 13
3.2 Detail Settings 13

Chapter 4: AMD DUAL Graphics Technology ..... 19

4.1 AMD Dual Graphics Technology Introduction....19
4.2 AMD Dual Graphics Requirement 19
4.3 AMD Dual Graphics Setup....20

Chapter 5: RAID Functions ...... 21

5.1 Operating System....21
5.2 Raid Arrays 21
5.3 How RAID Works 21

Chapter 6: T-Series UEFI BIOS & Software...... 24

6.1 T-Series UEFI BIOS 24
6.2 T-Series Software 27

Chapter 7: Useful Help 37

7.1 Driver Installation Note 37
7.2 Extra Information....38
7.3 AMI BIOS Beep Code 39
7.4 AMI BIOS Post Code 40
7.5 Conversion Of Hexadecimal and Decimal System.... 42
7.6 Troubleshooting....43

Appendix: SPEC In Other Languages 44

German 44
French 46
Italian....48
Spanish 50
Portuguese 52
Polish 54
Russian 56
Arabic....58
Japanese 60

CHAPTER 1: INTRODUCTION

1.1 B EFORE YOU START

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

■ Prepare a dry and stable working environment with sufficient lighting.
■ Always disconnect the computer from power outlet before operation.
■ Before you take the motherboard out from anti-static bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.
■ Avoid touching the components on motherboard or the rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.
■ Do not leave any unfastened small parts inside the case after installation. Loose parts will cause short circuits which may damage the equipment.
- Keep the computer from dangerous area, such as heat source, humid air and water.
■ The operating temperatures of the computer should be 0 to 45 degrees Celsius.

1.2 PACKAGE CHECKLIST

Serial ATA Cable X4
Rear I/O Panel for ATX Case X1
User's Manual X1
Fully Setup Driver DVD X1

Note: The package contents may be different due to area or your motherboard version.

1.3 MOTHERBOARD FEATURES

SPEC
CPU	Socket FM1AMD A-Series / E2-Series processors	AMD 64 Architecture enables 32 and 64 bit computing
Chipset	AMD A75
Super I/O	ITE 8728Provides the most commonly used legacySuper I/O functionalityLow Pin Count Interface	Environment Control initiativesH/W MonitorFan Speed ControllerITE's "S mart Guardian" function
Main Memory	DDR3 DIMM Slots x 4Max Memory Capacity 32GBEach DIMM supports 512MB/1GB/2GB/4GB/8GB DDR3	Dual Channel Mode DDR3 memory moduleSupports DDR3 800/1066/1333/1600/1866
SATA III	Integrated Serial ATA Controller	Data transfer rates up to 6 Gb/s.SATA Version 3.0 s pacification comp liant.RAID 0,1,10 support
LAN	RTL8111E	10 / 100 Mb/s / 1Gb/s auto negotiationHalf / Full duplex capability
Sound	ALC892	7.1channels audio outSupports HD Audio
USB3.0	A75 Data transfer rates up to 600 MB/s
Slots	PCI Express Gen2 x16 Slot x2PCI Express Gen2 x1 Slot x2PCI S lot x2	Supports PCI-E Gen2 x16, x4 expansion cardsSupports PCI-E Gen2 x1 expansion cardsSupports PCI expansion cards
On Board Connectors	SATA Connector x6 Each connector supports 1 SATA deviceFront Panel Connector x1 Supports front panel facilitiesFront Audio Connector x1 Supports front panel audio functionS/PDIF out Connector x1 Supports digital audio out functionConsumer IR Connector x1 Supports infrared functionCPU Fan Header x1 CPU Fan power supply (with Smart Fan function)System Fan Header x2 System Fan Power supply

TA75A+

SPEC
	CMOS clear Header x1 Restore CMOS data to factory defaultUSB2.0 Connector x3 Each connector supports 2 front panel USB2.0 portsUSB3.0 Connector x1 Each connector supports 2 front panel USB3.0 portsSerial Port Connector x1 Connects to RS-232 PortPower Connector (24-Pin) x1 Connects to Power supplyPower Connector (4-Pin) x1 Connects to Power supply
Back Panel I/O	PS/2 Keyboard / Mouse x1HDMI Port x1VGA Port x1DVI-D Port x1LAN port x1USB2.0 Port x4USB3.0 Port x2Audio Jack x6	Connects to PS/2 Keyboard / MouseConnects to HDMI cableConnect to D-SUB monitorConnect to DVI monitorConnect to RJ-45 ethernet cab leConnect to USB2.0 devicesConnect to USB3.0 devicesProvide Audio-In/Out and Mic. connection
Board Size	244 mm (W) x 305 mm (L) ATX
OS Support	Windows XP / Vista / 7	Biostar reserves the right to add or remove support for any OS With or without notice.

1.4 REAR PANEL CONNECTORS

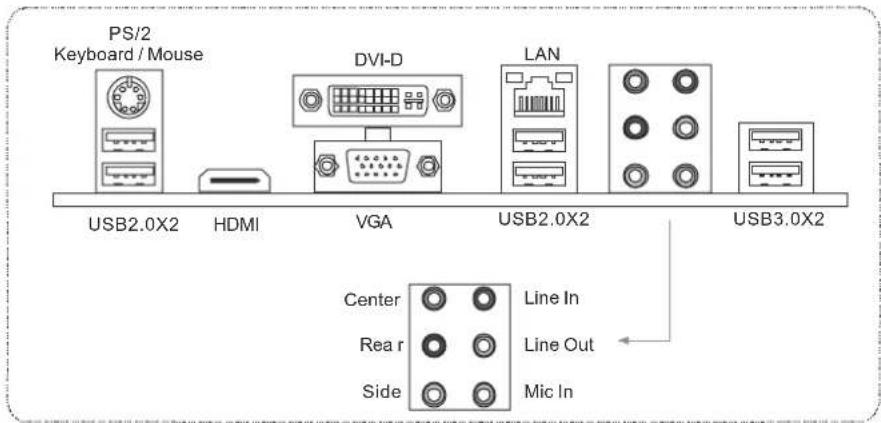

PS/2 Keyboard / Mouse USB2.0X2 HDMI DVI-D VGA LAN USB2.0X2 USB3.0X2 Center Line In Rea r Line Out Side Mic In

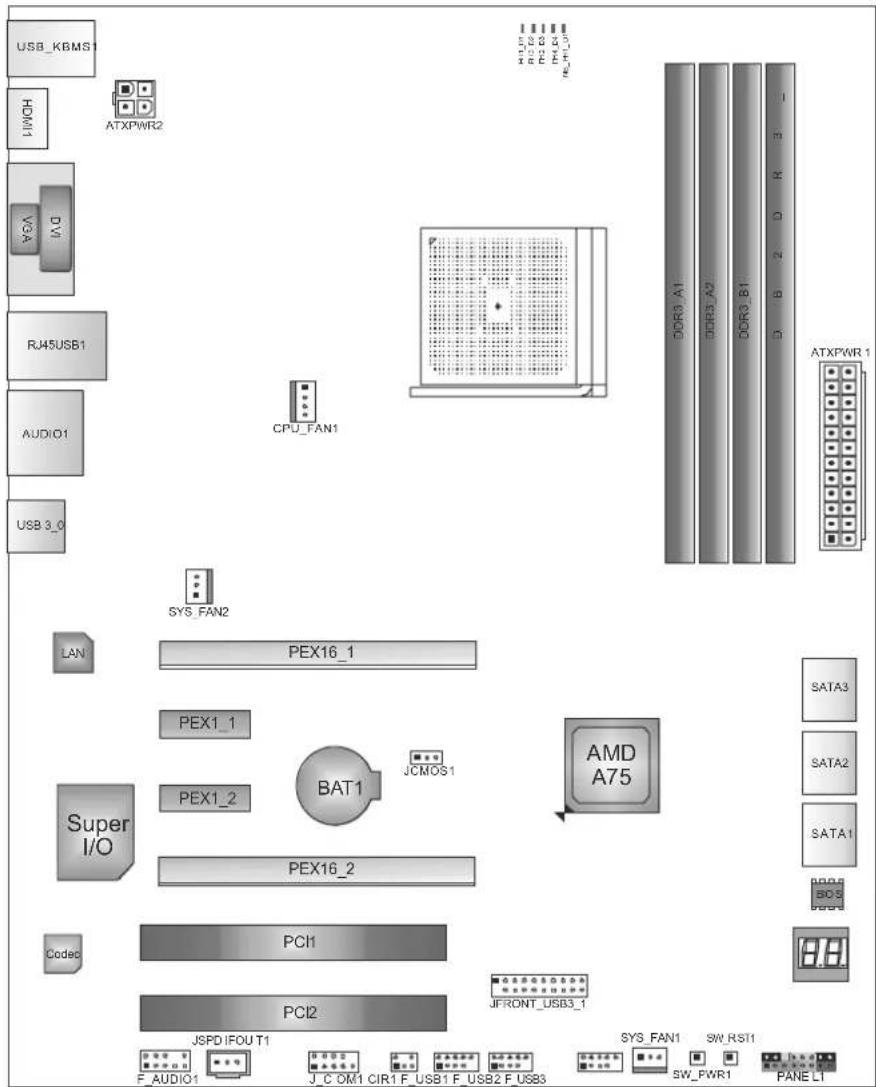

1.5 MOTHERBOARD LAYOUT

Diagram showing a computer motherboard layout with labeled components and an exploded view of the internal grid structure.

Step 1: Pull the lever toward direction A from the socket and then raise the lever up to a 90-degree angle.

Close-up of an AMD 3.0 microprocessor drive with a visible I/O port and antenna (no text or symbols on the device body)

Step 2: Look for the white triangle on socket, and the gold triangle on CPU should point towards this white triangle. The CPU will fit only in the correct orientation.

Close-up of a perforated metal panel with a small dial indicator (no text or symbols visible)

Step 3: Hold the CPU down firmly, and then close the lever toward direct B to complete the installation.

Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU FAN power cable to the CPU_FAN1. This completes the installation.

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer. Connect the fan cable to the connector while matching the black wire to pin#1.

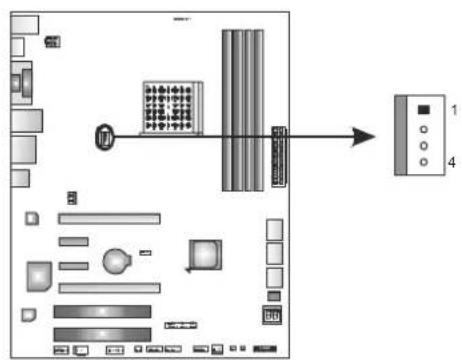

CPU FAN1: CPU Fan Header

Pin	Assignment
1	Ground
2	+12V
3	FAN RPM rate sense
4	Smart Fan Control (By Fan)

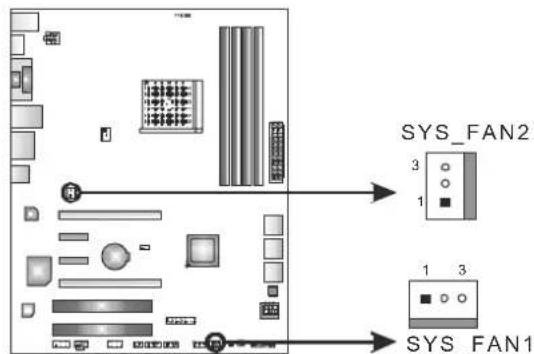

SYS\_FAN1: System Fan Header

SYS_FAN2: NorthBridge Fan Header

Pin	Assignment
1	Ground
2	+12V
3	FAN RPM rate sense

Note:

CPU_FAN1, SYS_FAN1/2 support 4-pin and 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to GND.

2.3 INSTALLING SYSTEM MEMORY

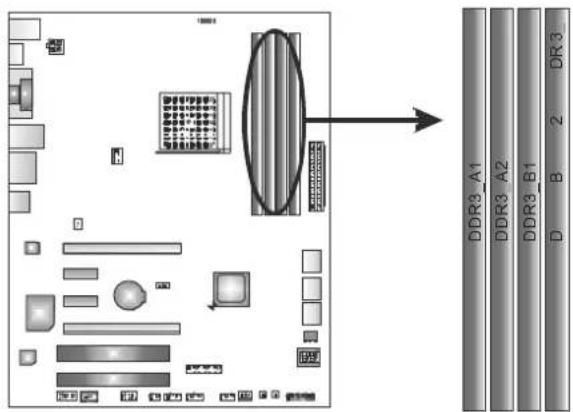

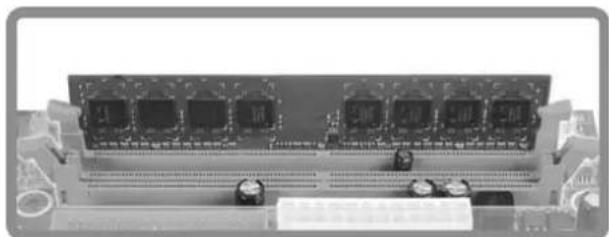

A. DDR3 Modules

Diagram showing a computer motherboard layout with labeled components and an output panel showing DDR3_A1, DDR3_A2, DDR3_B1, and DR3.

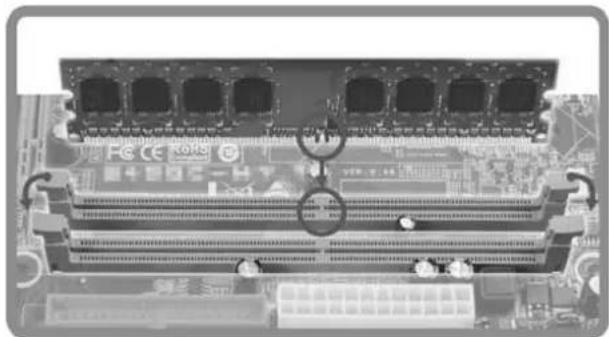

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the Slot.

Close-up of a computer RAM module with multiple slots and connections (no visible text or symbols)

1. Insert the DIMM vertically and firmly into the slot until the retaining chip snap back in place and the DIMM is properly seated.

Close-up of a computer RAM module with multiple drive bays and connectors (no visible text or labels)

B. Memory Capacity

DIMM Socket Location	DDR3 Module	Total Memory Size
DDR3_A1	512MB/1GB/2GB/4GB/8GB	Max is 32GB.
DDR3_A2	512MB/1GB/2GB/4GB/8GB
DDR3_B1	512MB/1GB/2GB/4GB/8GB
DDR3_B2	512MB/1GB/2GB/4GB/8GB

C. Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status	DDR3_A	1 DDR3_A	2 DDR3_B	1 DDR3_B	2
Enabled		O	X	O	X
Enabled		X	O	X	O
Enabled		O	O	O	O

(O means memory installed, X means memory not installed.)

The DRAM bus width of the memory module must be the same (x8 or x16)

D. DDR Speed Support

Please refer to the following table for DDR speed reference: (x = 1 or 2)

# of DIMM per Channel	# of Ranks per DIMM	Max DDR Speed Grade for 1.50V DIMM
1 of 1 UDIMM xR	DDR3-1866
1 of 2 UDIMMs xR, 0	DDR3-1600
2 of 2 UDIMMs 1R, 1R	DDR3-1600
2 of 2 UDIMMs	2R, xR	DDR3-1333

2.4 CONNECTORS AND SLOTS

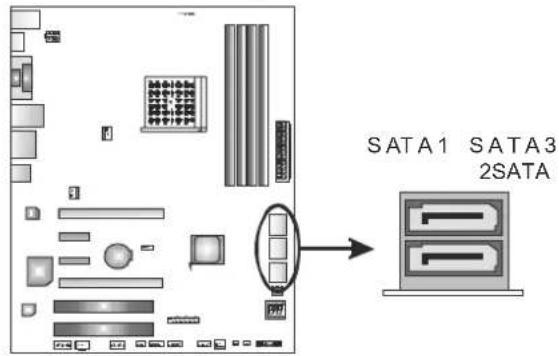

SATA1\~SATA6: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 6 channels SATA interface, it satisfies the SATA 3.0 spec and with transfer rate of 6.0Gb/s.

Pin	Assignment
1	Ground
2	TX+
3	TX-
4	Ground
5	RX-
6	RX+
7	Ground

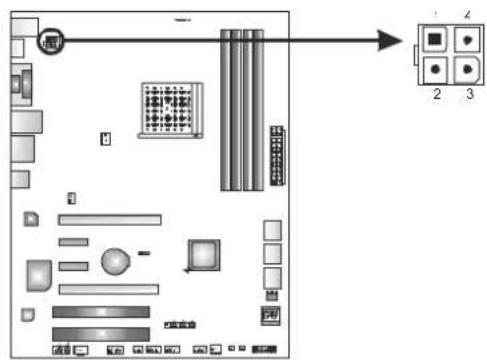

ATXPWR2: ATX Power Source Connector

This connector provides +12V to CPU power circuit.

Pin	Assignment
1	+12V
2	+12V
3	Ground
4	Ground

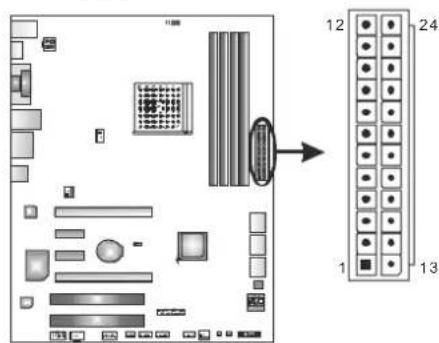

ATXPWR1: ATX Power Source Connector

This connector allows user to connect 24-pin power connector on the ATX power supply.

Diagram of a computer motherboard layout with labeled components and an arrow pointing to a connector panel

Pin	Assignment		Pin	Assignment
13	+3.3V	1	+3.3V
14	-12V	2	+3.3V
15	Ground	3	Ground
16	PS_ON	4	+5V
17	Ground	5	Ground
18	Ground	6	+5V
19	Ground	7	Ground
20	NC	8	PW_OK
21	+5V	9	Standby Voltage+5V
22	+5V		10	+12V
23	+5V		11	+12V
24	Ground		12	+3.3V

Note:

Before you power on the system, please make sure that both ATXPWR1 and ATXPWR2 connectors have been plugged-in.

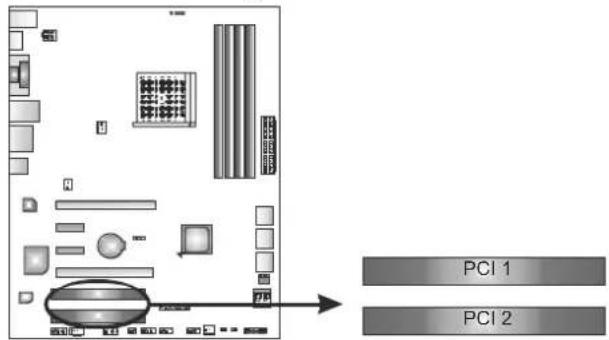

PCI1/PCI2: Peripheral Component Interconnect Slots

This motherboard is equipped with 2 standard PCI slots. PCI stands for Peripheral Component Interconnect, and it is a bus standard for expansion cards. This PCI slot is designated as 32 bits.

PCI 1 PCI 2

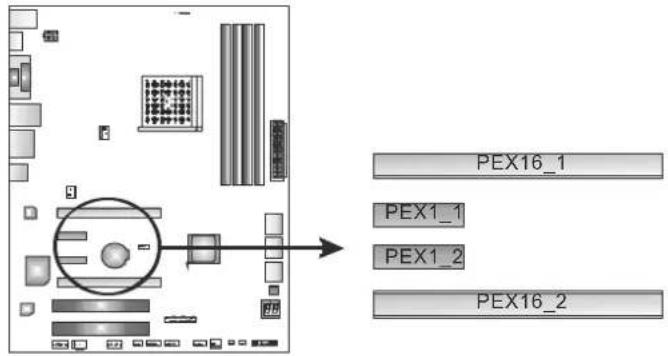

PEX16\_1: PCI-Express Gen2 x16 Slot

• PCI-Express 2.0 compliant.
• Maximum theoretical realized bandwidth of 8GB/s simultaneously per direction, for an aggregate of 16GB/s totally.
• PCI-Express Gen2 supports a raw bit-rate of 5.0Gb/s on the data pins.
• 2X bandwidth over the PCI-Express 1.1 architecture.

PEX1\_1/PEX1\_2: PCI-Express Gen2 x1 Slots

• PCI-Express 2.0 compliant.
• Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.
• PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.

PEX16\_2: PCI-Express Gen2 x4 Slot

• PCI-Express 2.0 compliant.
• Data transfer bandwidth up to 2GB/s per direction; 4GB/s in total.
• PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 HOW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is "close", if not, that means the jumper is "open".

Pin
opened

Pin
closed

Pin1-2
closed

3.2 DETAIL SETTINGS

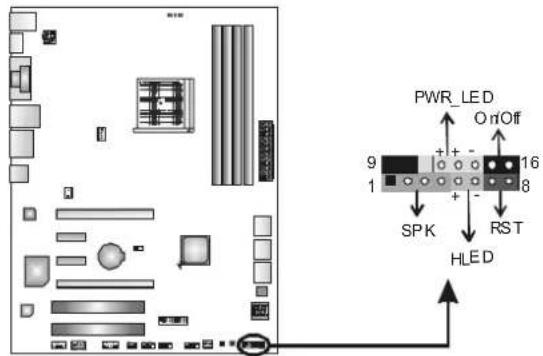

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and speaker connection. It allows user to connect the PC case's front panel switch functions.

PWR_LED On/Off 9 16 8 SPK RST HLED

Pin	Assignment	Function	Pin	Assignment	Function
1	+5V	Speaker Connector	9	N/A	N/A
2	N/A		10	N/A
3	N/A		11	N/A	N/A
4	Speaker		12	Power LED (+)	Power LED
5	HDD LED (+)	Hard drive LED	13	Power LED (+)
6	HDD LED (-)		14	Power LED (-)
7	Ground	Reset button	15	Power button	Power-on button
8	Reset control		16	Ground

JCMOS1: Clear CMOS Header

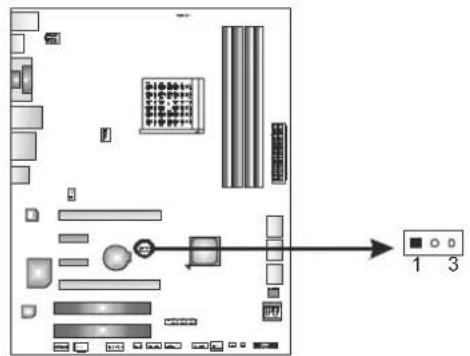

Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and the CMOS data. Please carefully follow the procedures to avoid damaging the motherboard.

Diagram of a computer motherboard with labeled components and connection arrows

Pin 1-2 Close: Normal Operation (default).

Pin 2-3 Close: Clear CMOS data.

1. Remove AC power line.
2. Set the jumper to "Pin 2-3 close".
3. Wait for five seconds.
4. Set the jumper to "Pin 1-2 close".
5. Power on the AC.
6. Load Optimal Defaults and save settings in CMOS.

J\_COM1: Serial port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

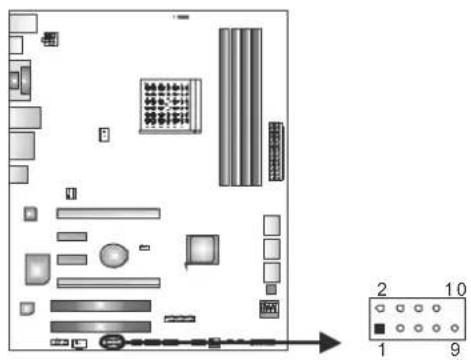

Diagram of a computer motherboard layout with labeled components and a numbered indicator box for data or status.

Pin Assignment

1	Carrier	detect
2	Received	data
3	Transmitted	data
4	Data terminal ready
5	Signal	ground
6	Data	set ready
7	Request to send
8	Clear to send
9	Ring	indicator
10	NC

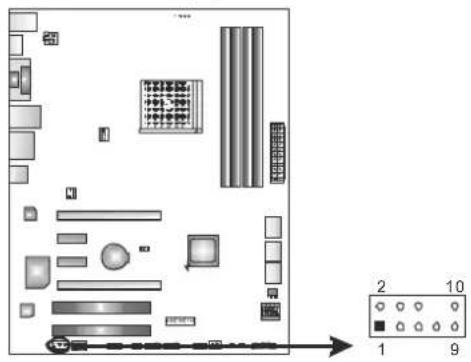

F AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front panel. This header supports HD and AC'97 audio front panel connector.

Diagram of a computer room layout with labeled components and a numbered indicator box showing 1, 2, 9.

Pin Assignment

1	Mic Left in
2	Ground
3	Mic Right in
4	GPIO
5	Right line in
6	Jack	Sense
7	Front	Sense
8	Key
9	Left line in
10	Jack	Sense

JSPDIFOUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

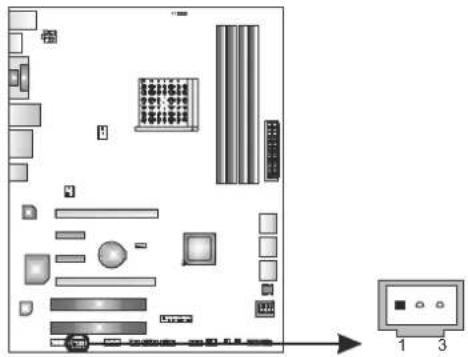

Diagram of a computer system layout with labeled components and directional arrow indicating connection to a control panel.

Pin Assignment

1	+5V
2	SPDIF_OUT
3	Ground

CIR1: Consumer IR Connector

This header is for infrared remote control and communication.

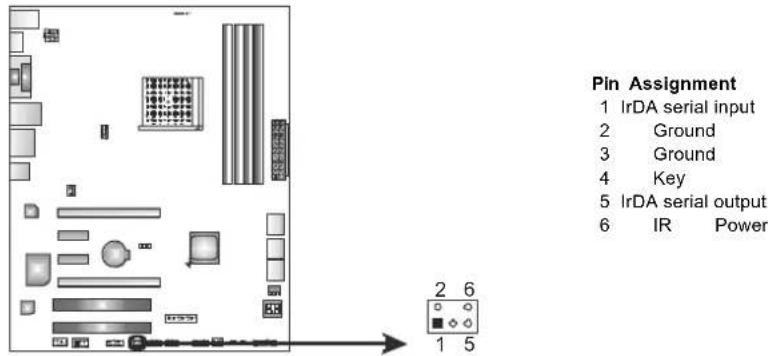

Pin Assignment 1 IrDA serial input 2 Ground 3 Ground 4 Key 5 IrDA serial output 6 IR Power 2 6 1 5

JFRONT\_USB3\_1: Header for USB 3.0 Ports at Front Panel

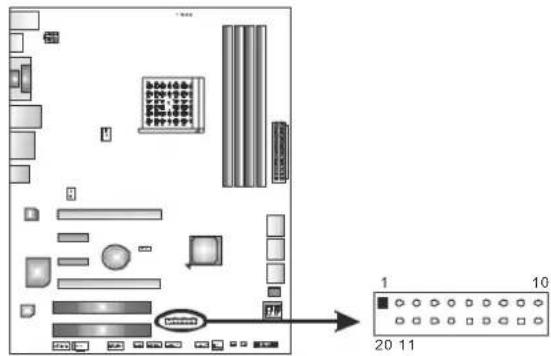

This header allows user to connect additional USB cable on the PC front panel, and also can be connected with internal USB devices, like USB card reader.

Diagram of a computer motherboard layout with labeled components and numbered indicators

Pin	Assignment		Pin	Assignment
1	VBUS0	11	D2+
2	SSRX1-	12	D2-
3	SSRX1+	13	Ground
4	Ground	14	SSTX2+
5	SSTX1-	15	SSTX2-
6	SSTX1+	16	Ground
7	Ground	17	SSRX2+
8	D1-	18	SSRX2-
9	D1+		19	VBUS1
10	ID		20	Key

F\_USB1/F\_USB2/F\_USB3: Headers for USB 2.0 Ports at Front Panel

These headers allow user to connect additional USB cable on the PC front panel, and also can be connected with internal USB devices, like USB card reader.

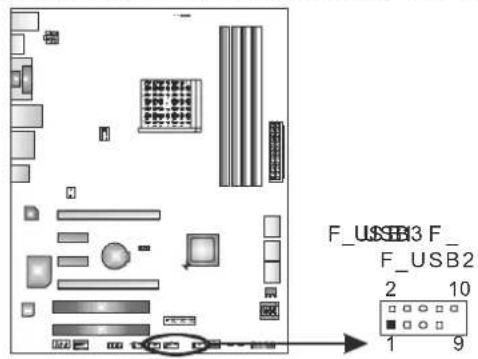

F_USSB3 F_ F_USB2 2 10 1 9

Pin	Assignment
1	+5V (fused)
2	+5V (fused)
3	USB-
4	USB-
5	USB+
6	USB+
7	Ground
8	Ground
9	Key
10	NC

BIOS POST Code/CPU Temperature Indicator

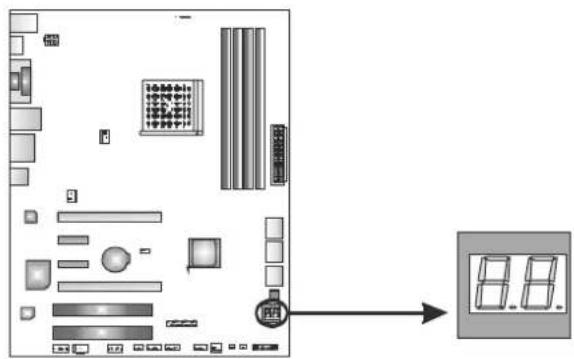

This indicator will show POST code while booting. After the booting sequence, it will show current CPU temperature through hexadecimal figure. Please refer to Chapter 7.4 for all the BIOS POST codes, and Chapter 7.5 for conversion of hexadecimal and decimal system.

Diagram showing a computer motherboard layout with labeled components and an LCD display showing 8.8 units.

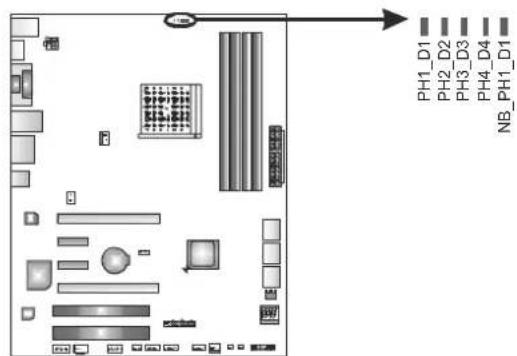

On-Board LED Indicators

There are 5 LED indicators showing system status.

PH1_D1 PH2_D2 PH3_D3 PH4_D4 NB_PH1_D1

NB_PH1_D1: NB Power Status Indicators

PH1_D1/PH2_D2/PH3_D3/PH4_D4: CPU Power Status Indicators

Please refer to the tables below for specific messages:

LED Phase Indicator
ON	Phase	Active
OFF	Phase	Disable

On-Board Buttons

There are 2 on-board buttons.

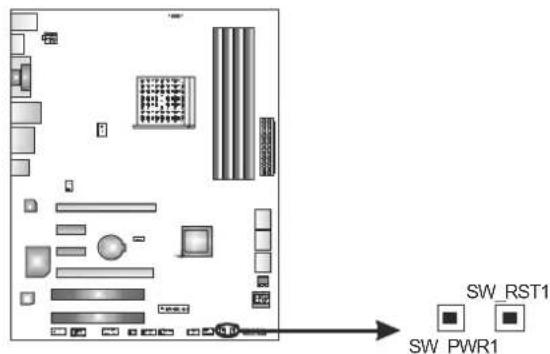

SW_RST1 SW_PWR1

SW_RST1: Reset button.

SW_PWR1: Power Switch button.

CHAPTER 4: AMD DUAL GRAPHICS TECHNOLOGY

4.1 AMD DUAL GRAPHICS TECHNOLOGY INTRODUCTION

When user adds a PCIE display adapter, it can be integrated with IGD to show better performance. To make the two video devices work simultaneously and normally, please refer to the following setting.

4.2 AMD DUAL GRAPHICS REQUIREMENT

Operating System: Windows Vista / Windows 7
■ Supported DUAL Graphics Combinations:

GFX\APU	A4-SeriesHD 6410D	A6-SeriesHD 6530D	A8-Series”HD 6550D
HD 6670 Attach Only (No DG)		Y Y
HD 6570 Attach Only (No DG)		Y Y
HD 6450	Y	Y Y
HD 6350	Y	Attach Only (No DG)	Attach Only (No DG)

Note:

“Attach Only (No DG)” indicates supported discrete graphics attachment without Dual Graphics.
E-Series CPU do not support Dual Graphics.

NOTE

The information described above in this manual is for your reference only and the actual information and settings on board may be different from this manual. For further AMD Dual Graphics information, please visit the following website:

http://www.amd.com

4.3 AMD DUAL GRAPHICS SETUP

Step 1: Insert Dual Graphics-Ready graphics card into PEX16_1 slot.

Step 2: Set the BIOS setting as follows: [Chipset] >[North Bridge] >[Surround View] >[Enabled]

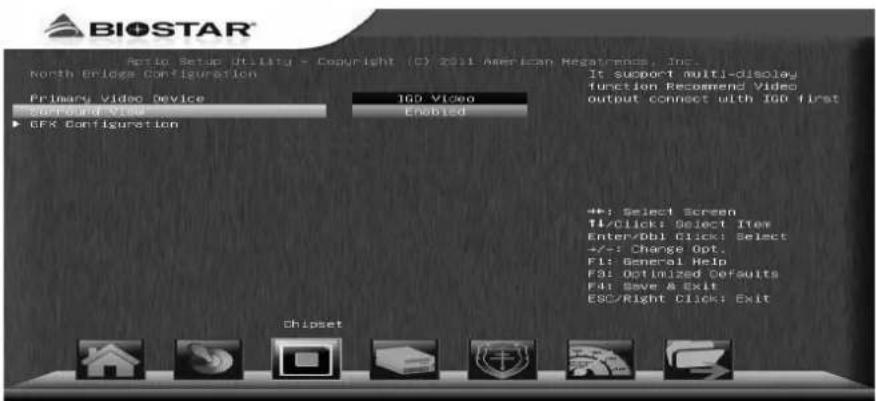

BIOSTAR® Active Setup Utility - Copyright (C) 2011 American Regatments, Inc. North Bridge Configuration Primary Video Device Surround View ▶ CFX Configuration 10D Video Enabled It support multi-display function Recommend Video output connect with 10D first +/-: Select Screen T1/Click: Select Item Enter/DBI Click: Select +/-: Change Opt. F1: General Help F3: Optimized Consults F4: Save & Exit ESC/Right Click: Exit Chipset

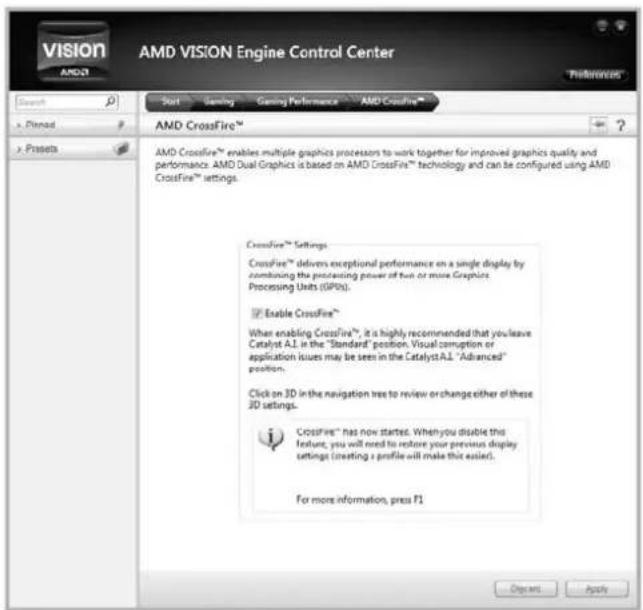

Step 3: Install Driver CD Chipset Driver, and reboot the system. Activate AMD VISION Engine Control Center to make sure CrossFire has been enabled.

Vision AMD VISION Engine Control Center Search Start Gaming Gaming Performance AMD Creative™ Present AMD Creative™ AMD Creative™ enables multiple graphics processors to work together for improved graphics quality and performance. AMD Dual Graphics is based on AMD Creative™ technology and can be configured using AMD Creative™ settings. Creative™ Settings Creative™ delivers exceptional performance on a single display by combining the processing power of fun or more Graphics Processing Units (IIPUs). Enable Creative™ When enabling Creative™, it is highly recommended that you leave Catalyst A.I. in the "Standard" position. Visual corruption or application issues may be seen in the Catalyst A.I. "Advanced" position. Click on 3D in the navigation tree to review or change either of these 3D settings. Creative™ has now started. When you disable this feature, you will need to restore your previous display settings (creating a profile will make this easier). For more information, press F1

CHAPTER 5: RAID FUNCTIONS

Supports Windows Vista and Windows 7.

5.2 RAID ARRAYS

RAID supports the following types of RAID arrays:

RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write times for many applications.

RAID 1: RAID 1 defines techniques for mirroring data.

RAID 10: RAID 10 combines the techniques used in RAID 0 and RAID 1.

5.3 How RAID WORKS

RAID 0:

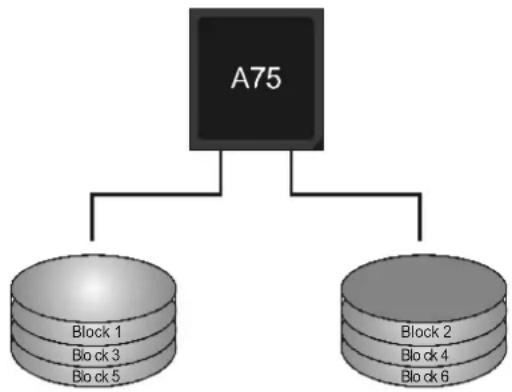

The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks up a large file into smaller blocks and performs disk reads and writes across multiple drives in parallel. The size of each block is determined by the stripe size parameter, which you set during the creation of the RAID set based on the system environment. This technique reduces overall disk access time and offers high bandwidth.

Features and Benefits

• Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the platform.
• Uses: Intended for non-critical data requiring high data throughput, or any environment that does not require fault tolerance.
• Benefits: provides increased data throughput, especially for large files. No capacity loss penalty for parity.
• Drawbacks: Does not deliver any fault tolerance. If any drive in the array fails, all data is lost.
• Fault Tolerance: No.

RAID 1:

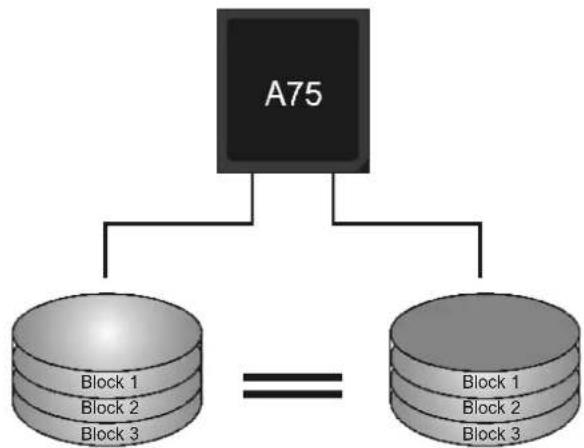

Every read and write is actually carried out in parallel across 2 disk drives in a RAID 1 array system. The mirrored (backup) copy of the data can reside on the same disk or on a second redundant drive in the array. RAID 1 provides a hot-standby copy of data if the active volume or drive is corrupted or becomes unavailable because of a hardware failure.

RAID techniques can be applied for high-availability solutions, or as a form of automatic backup that eliminates tedious manual backups to more expensive and less reliable media.

Features and Benefits

• Drives: Minimum 2, and maximum is 2.
• Uses: RAID 1 is ideal for small databases or any other application that requires fault tolerance and minimal capacity.
• Benefits: Provides 100% data redundancy. Should one drive fail, the controller switches to the other drive.
• Drawbacks: Requires 2 drives for the storage space of one drive. Performance is impaired during drive rebuilds.
• Fault Tolerance: Yes.

RAID 10:

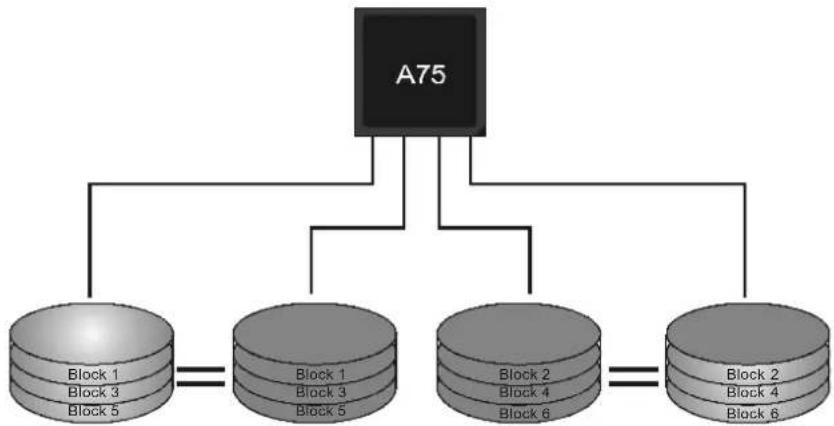

RAID 1 drives can be stripped using RAID 0 techniques. Resulting in a RAID 10 solution for improved resiliency, performance and rebuild performance.

Features and Benefits

• Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
• Benefits: Optimizes for both fault tolerance and performance, allowing for automatic redundancy. May be simultaneously used with other RAID levels in an array, and allows for spare disks.
• Drawbacks: Requires twice the available disk space for data redundancy, the same as RAID level 1.
• Fault Tolerance: Yes.

CHAPTER 6: T-SERIES UEFI BIOS & SOFTWARE

6.1 T-SERIES UEFI BIOS

T-Series UEFI BIOS Features

■ Overclocking Navigator Engine (O.N.E.)
■ Self Recovery System (S.R.S)
Smart Fan Function
BIO-Flasher: Update UEFI BIOS file from USB Flash Drive

!! WARNING !!

For better system performance, the UEFI BIOS firmware is being continuously updated. The UEFI BIOS information described below in this manual is for your reference only and the actual UEFI BIOS information and settings on board may be different from this manual. For further information of setting up the UEFI BIOS, please refer to the UEFI BIOS Manual in the Setup CD.

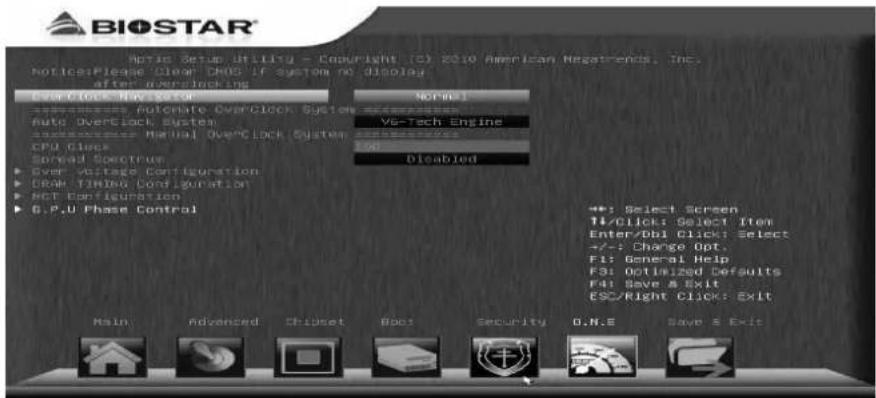

A. Overclocking Navigator Engine (O.N.E.)

O.N.E provides 4 systems allowing users to customize personal overclock settings: Manual Voltage System, Manual Memory System, Manual MCT System, and Manual G.P.U System.

BioSTAR Aptie Setup Utility - Copyright (S) 2010 American Magatrons, Inc. Notice: Please Clear DNOs if system no display after overclocking OverClock Navigator Auto Overclock System CPU Clock Spread Secure Ever Voltage Configuration CRAW TIMER Configuration HCT Configuration G.P.U Phase Control Normal Vis-Tech Engine USB Disabled +: Select Screen T4/Click: Select Item Enter/DBI Click: Select +/-: Change Opt. F1: General Help F3: Utilized defaults F4: Save & Exit ESC/Right Click: Exit Main Advanced Chipset Boot Security O.N.E Save & Exit

Notice:
Not all types of Intel CPU perform above overclock setting ideally; the difference will be based on the selected CPU model.

NOTE

Overclock is an optional process, but not a "must-do" process; it is not recommended for inexperienced users. Therefore, we will not be responsible for any hardware damage which may be caused by overclocking. We also would not guarantee any overclocking performance.

B. Self Recovery System (S.R.S.)

This function can't be seen under UEFI BIOS setup, and is always on whenever the system starts up.

However, it can prevent system hang-up due to inappropriate overclock actions.

When the system hangs up, S.R.S. will automatically log in the default UEFI BIOS setting, and all overclock settings will be re-configured.

C. Smart Fan Function

Smart Fan Function is under "Smart Fan Control" in "Advanced Menu".

This is a brilliant feature to control CPU/System Temperature vs. Fan speed. When enabling Smart Fan function, Fan speed is controlled automatically by CPU/System temperature.

This function will protect CPU/System from overheat problem and maintain the system temperature at a safe level.

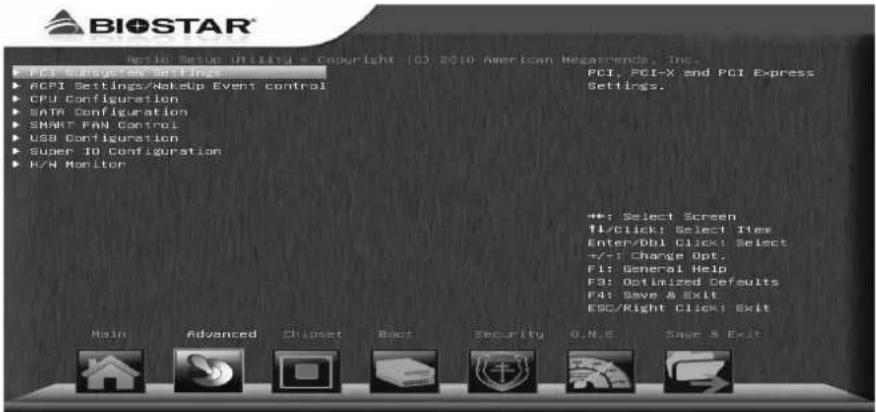

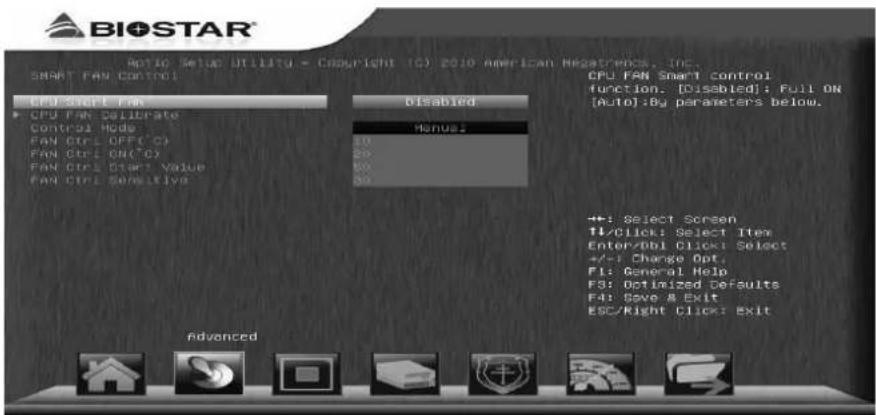

File Setup Utility - Copyright (C) 2010 American MegaTrends, Inc. PCI: PCI-System Setup PCI: PCI-System Settings PCI: PCI-Settings/NetUp Event control CPU Configuration SATA Configuration SMART FAN Control USB Configuration Super 10 Configuration H/N Monitor PCI, PCI-X and PCI E-express Settings. ++: Select Screen ↑/Click: Select Item Enter/Ob! Click: Select +/-: Change Opt. F1: General Help F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit Main Advanced Chipset Boot Security O.N.E Save & Exit

BIOSTAR® Optio Setup UTILITY - Copyright (C) 2010 AMERICAN HESATROC, INC. SMART FAN CONTROL CPU FAN Smart control function. [Disabled]; Full ON [Auto]:By parameters below. CPU FAN Delibrate Control Mode: FAN Ctrl: OFF(°C) FAN Ctrl: CM(°C) FAN Ctrl Star: Value FAN Ctrl Sensitive Disabled Manual: 10 20 30 30 +: Select Screen ↑/Click: Select Item Enter/Obi Click: Select +/-: Change Opt. F1: General Help F3: Optimized Defaults F4: Save & Exit ESC/Right Click: Exit advanced

CPU Smart FAN

This item allows you to control the CPU Smart Fan function.

CPU FAN Calibrate

Press [ENTER] to calibrate CPU FAN.

Control Mode

This item provides several operation modes of the fan.

Fan Ctrl OFF(°C)

When CPU temperature is lower than this value, the CPU fan will keep lowest RPM. The range is from 0\~127, with an interval of 1.

Fan Ctrl On(°C)

When CPU temperature is higher than this value, the CPU fan controller will turn on. The range is from 0\~127, with an interval of 1.

Fan Ctrl Start Value

This item sets CPU FAN Start Speed Value. The range is from 0\~127, with an interval of 1.

Fan Ctrl Sensitive

The bigger the numeral is, the higher the FAN speed is. The range is from 0\~127, with an interval of 1.

6.2 T-SERIES SOFTWARE

Installing T-Series Software

1. Insert the Setup CD to the optical drive. The drivers installation program would appear if the Auto-run function has been enabled.
2. Select Software Installation, and then click on the respective software title.
3. Follow the on-screen instructions to complete the installation.

Launching T-Series Software

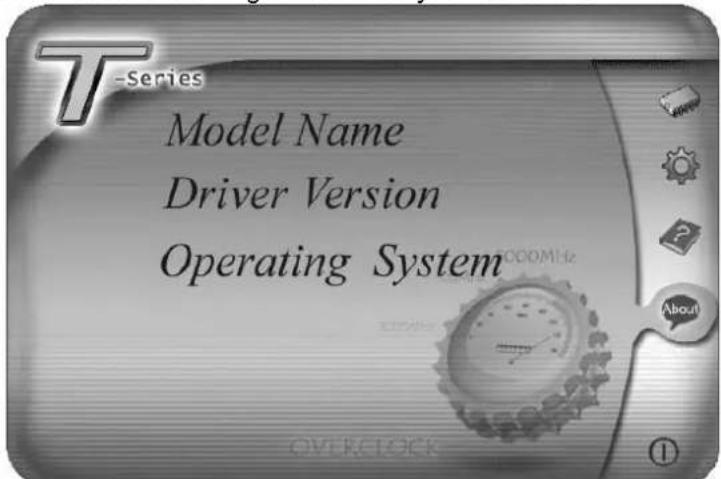

After the installation process is completed, you will see the software icon showing on the desktop. Double-click the icon to launch it.

TOverclocker

TOverclocker presents a simple Windows-based system performance enhancement and manageability utility. It features several powerful and easy to use tools such as Overclocking for enhancing system performance, also for special enhancement on CPU and Memory. Smart-Fan management and PC health are for monitoring system status. This utility also allows you to make overclocking profiles saving unlimitedly, and pre-set OC modes are for easy OC. (The screenshot below is for reference only)

CPU MEMORY OC TWEAKER H/W MONITOR Clocks Core Speed: 2600.5 MHz Multiplier: x 26.0 Bus Speed: 100.0 MHz MotherBoard Model: TA75M+ BIOS: AMI BIOS BIOS Date: 05/24/11 BIOS File Name: A75AT524.BST Processor Name: AMD Processor Specification: AMD A6-3650 APU with Radestam HD Graphics Instructions: MMX(+).3DNowf(+).SSE,SSE2,SSE3,SSE4A,X86-64 Code Name: Linao L1-D Cache: 4 x 64 KBytes Technology: 32nm L1-I Cache: 4 x 64 KBytes Voltage: 0.456V L2 Cache: 4 x 1024 KBytes Package: Socket FM1 Family: F Ext. Family: 12 Model: 1 Ext. Model: 1 Stepping: 0 Revision: B0 AMD 1

Motherboard Manual

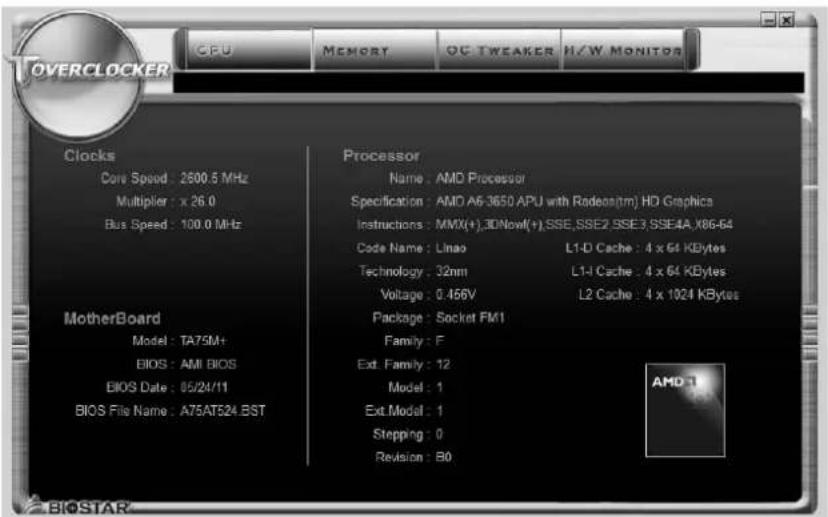

The CPU tab provides information on the CPU and motherboard.

The Memory tab provides information on the memory module(s).

You can select memory module on a specific slot to see its information.

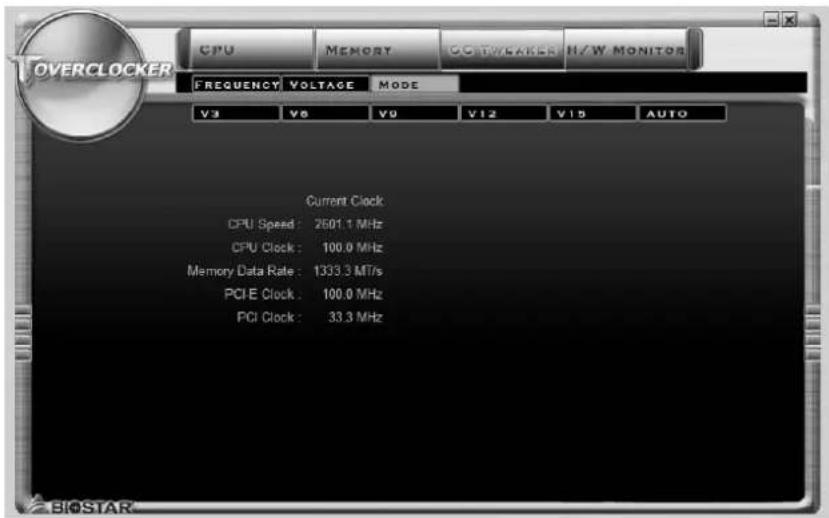

The OC Tweaker tab allows you to change system clock settings and voltages settings. It also provides six pre-set modes for you: (The screenshot below is for reference only)

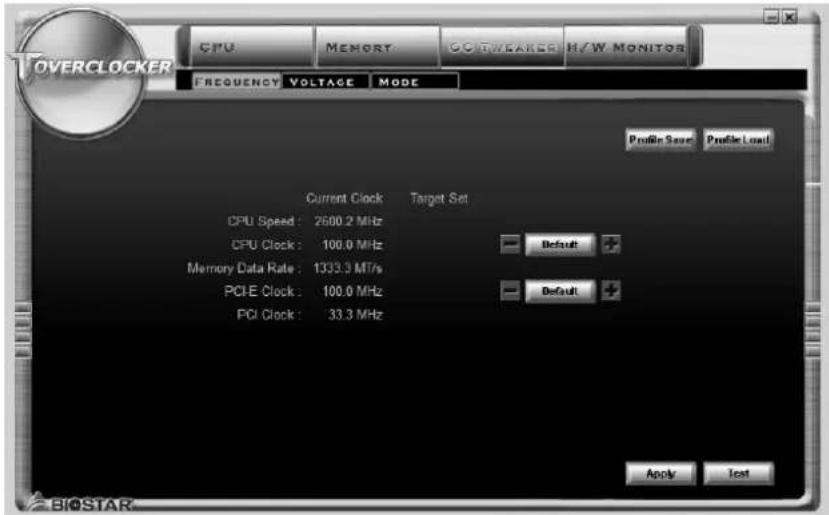

OVERCLOCKER CPU MEMORY GO/TWEAKER H/W MONITOR FREQUENCY VOLTAGE MODE Profile Save Profile Load Current Clock Target Set CPU Speed: 2600.2 MHz CPU Clock: 100.0 MHz Default Memory Data Rate: 1333.3 MT/s PCIe Clock: 100.0 MHz Default PCI Clock: 33.3 MHz Apply Test BIOSTAR

Six Pre-set Modes: V3, V6, V9, V12, V15, AUTO for different overclocking experience. (The screenshot below is for reference only)

OVERCLOCKER CPU MEMORY CCRTWEAKER H/W MONITOR FREQUENCY VOLTAGE MODE V3 V6 V0 V12 V15 AUTO Current Clock CPU Speed: 2501.1 MHz CPU Clock: 100.0 MHz Memory Data Rate: 1333.3 MT/s PCI E Clock: 100.0 MHz PCI Clock: 33.3 MHz

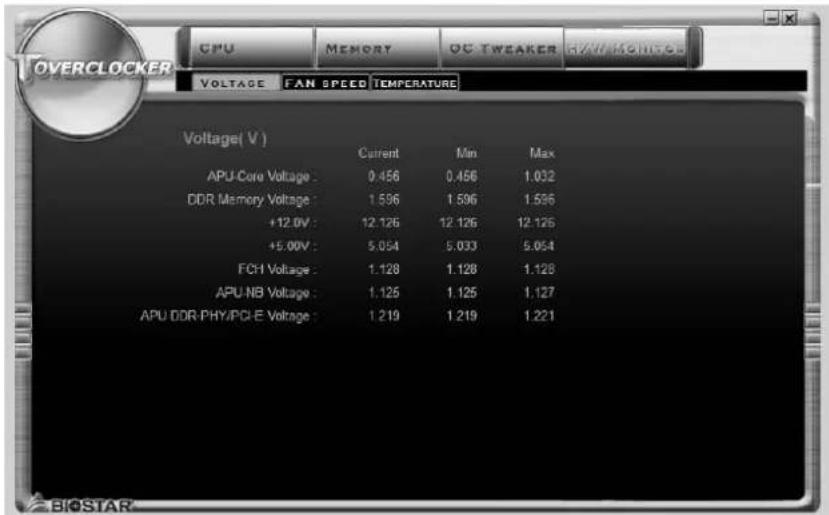

The HW Monitor tab allows you to monitor hardware voltage, fan speed, and temperature. Besides, you also can set related values for CPU Smart Fan. (The screenshot below is for reference only)

OVERCLOCKER CPU MEMORY OC TWEAKER R/W/MONI-CD VOLTAGE FAN SPEED TEMPERATURE Voltage(V) Current Min Max APU-Core Voltage : 0.456 0.456 1.032 DDR Memory Voltage : 1.596 1.596 1.596 +12.0V : 12.126 12.126 12.126 +5.00V : 5.054 5.033 5.054 FCH Voltage : 1.128 1.128 1.128 APU-NB Voltage : 1.125 1.125 1.127 APU DDR-PHY/PCI-E Voltage : 1.219 1.219 1.221

Pressing TOVERCLOCKER logo will display information about manufacturer and software version. You can update cummet version by clicking the button "Live Update."

Version BICSTAR MICROTECH INT'L CORP. TOVERCLOCKER Utility Version : 0.9.1.4 Live Update Live Update

Green Power II Utility

BIOSTAR G.P.U II (Green Power Utility) is a new function. The utility enhances energy efficiency by disabling extra phases while CPU is on light loading; it features 4+1 power phases, current power saving, and toal power saving. This tool integrates a friendly GUI to monitor your CPU Usage, CPU Watt, and CPU Temperature. Moreover, it optimizes power saving and best power efficiency on your system. (The illustration below is for reference only)

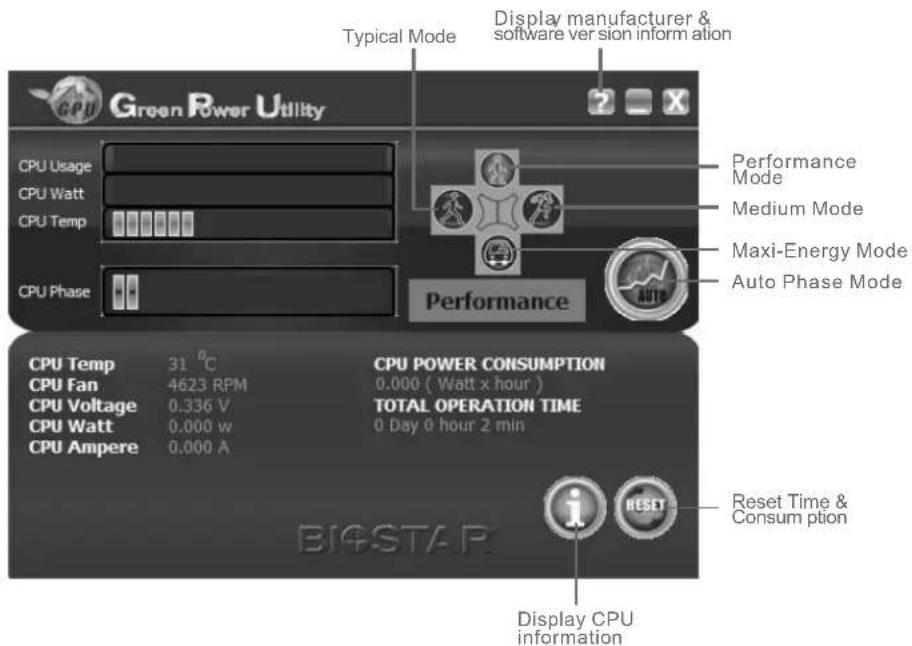

Typical Mode Display manufacturer & software version information Green Power Utility CPU Usage CPU Watt CPU Temp CPU Phase Performance Performance Mode Medium Mode Maxi-Energy Mode Auto Phase Mode CPU Temp 31 °C CPU Fan 4623 RPM CPU Voltage 0.336 V CPU Watt 0.000 w CPU Ampere 0.000 A CPU POWER CONSUMPTION 0.000 ( Watt x hour ) TOTAL OPERATION TIME 0 Day 0 hour 2 min Reset Time & Consumption Display CPU information BIGSTAR

G.P.U Mode Setting

This utility provides five modes, upon your requirements, to improve system performance or to save power consumption.

Note: Even if the modes saving more power consumption are chosen, the system still can keep excellent performance.

■ Auto Phase Mode

System switches the mode automatically according to current system loading condition.

■ Performance Mode

This is the mode saving power consumption most. Least energy will be used in the system.

■ Typical Mode

Compared with that in Performance Mode, energy consumption in this mode is a little bit more.

■ Medium Mode

This is the standard system power saving mode.

■ Maxi-Energy Mode

This is the best system performance mode.

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our Tech-Support system. This utility will collect the system information which is useful for analyzing the problem you may have encountered, and then send these information to our tech-support department to help you fix the problem.

Before you use this utility, please set Outlook Express as your default e-mail client application program.

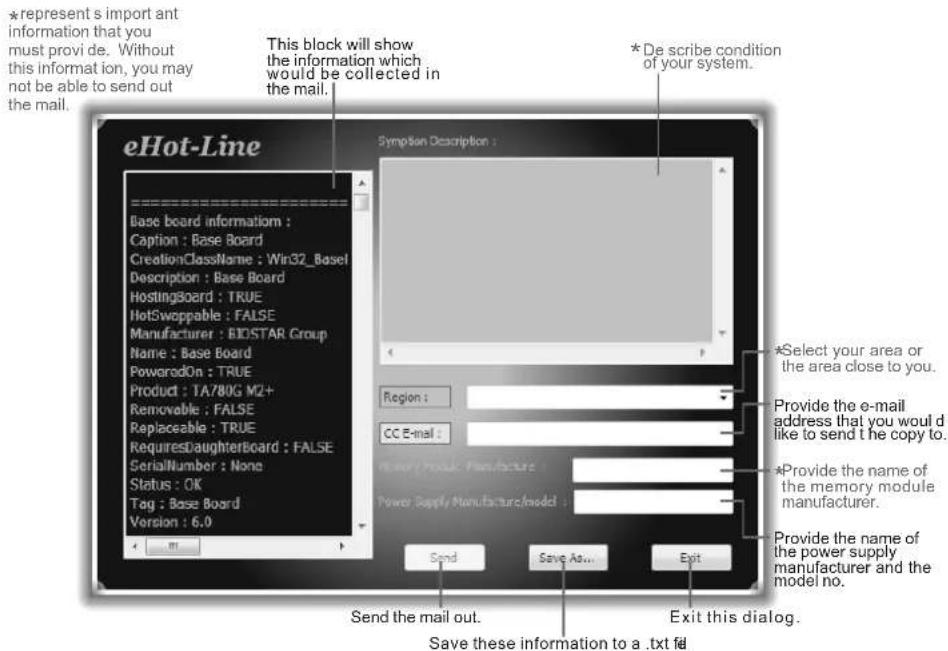

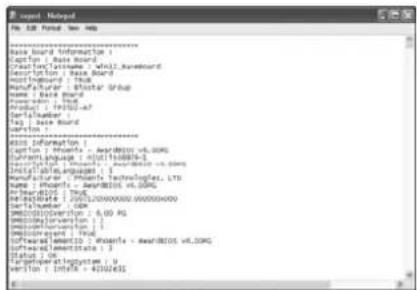

eHot-Line Base board information : Caption : Base Board CreationClassName : Win32_Basel Description : Base Board HostingBoard : TRUE HotSwappable : FALSE Manufacturer : BIOSTAR Group Name : Base Board PowerodOn : TRUE Product : TA780G M2+ Removable : FALSE Replaceable : TRUE RequiresDaughterBoard : FALSE SerialNumber : None Status : OK Tag : Base Board Version : 6.0 Symptom Description : Region : CC E-mail : Send Save As... Exit *Represent s import an information that you must provi de. Without this inforat ion, you may not be able to send out the mail. This block will show the information which would be collected in the mail. *De scribe condition of your system. *Select your area or the area close to you. Provide the e-mail address that you would like to send t he copy to. *Provide the name of the memory module manufacturer. Provide the name of the power supply manufacturer and the model no. Send the mail out. Save these information to a .txt fil Exit this dialog.

After filling up this information, click "Send" to send the mail out. A warning dialog would appear asking for your confirmation; click "Send" to confirm or "Do Not Send" to cancel.

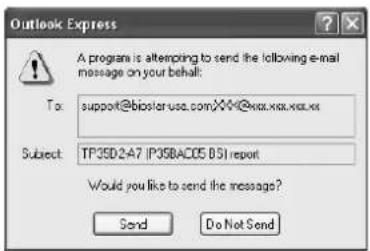

Outlook Express A program is attempting to send the following e-mail message on your behalf: To: [e-mail]/XX-XX-XX-XX-XX Subject: TP35D2A7 (P35BAC05 BSI) report Would you like to send the message? Send Do Not Send

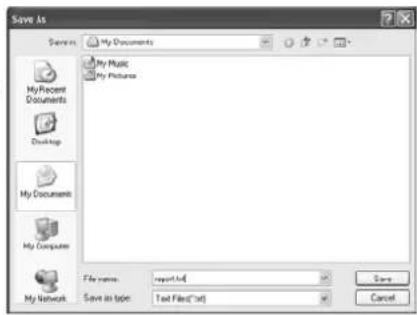

If you want to save this information to a .txt file, click "Save As..." and then you will see a saving dialog appears asking you to enter file name.

Enter the file name and then click "Save". Your system information will be saved to a .txt file.

base sound information Caption : Base Sound Creation: TamaName, wkl2_Ravebound Description : Base Award Wingboard : Test Manufacturer : B10star U4bd Name : Base Board Production : Test Product : 19350-67 Contact Number : Tag : Base Sound Version : BIOS Information Caption : Phants = warBIOS vL.COMG Subtranslation : 0.00000000000000000000 SystemType: Software - warBIOS vL.COMG Initiate: https://www.iob.org/ Manufacturer : Phants TechnologyHub, LTD Name : Phants = warBIOS vL.COMG Release: 2005/2006/2006/2006/2006 File Number : 1234 IMEIISI/Version : 6.00 AG ModellingProvision : 1234 ModellingReport : 1234 Software Version 1 - Phants = warBIOS vL.COMG Software Implementation : 1234 Status : 08 Telephone /regsystem : 1234 Version : Intels : 42326351

Save As My Documents My Music My Pictures My Recent Documents Desktop My Documents My Computer My Network File name: report.txt Save as type: Text Files(*.txt) Save Cancel

Open the saved .txt file, you will see your system information including motherboard/BIOS/CPU/video/device/OS information. This information is also concluded in the sent mail.

We will not share customer's data with any other third parties, so please feel free to provide your system information while using eHot-Line service.

If you are not using Outlook Express as your default e-mail client application, you may need to save the system information to a .txt file and send the file to our tech support with other e-mail application. Go to the following web http://www.biostar.com.tw/app/en-us/about/contact.php for getting our contact information.

BIOS Update

BIOS Update is a convenient utility which allows you to update your motherboard BIOS under Windows system.

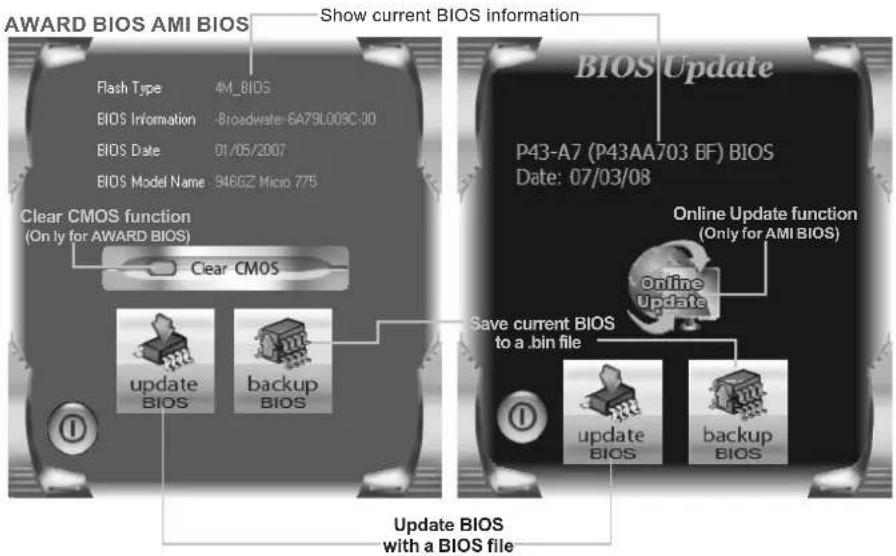

AWARD BIOS AMI BIOS Show current BIOS information Flash Type 4M_BIOS BIOS Information Broadwate 6A79L003C-00 BIOS Date 01/05/2007 BIOS Model Name 946GZ Micro 775 Clear CMOS function (Only for AWARD BIOS) Clear CMOS P43-A7 (P43AA703 BF) BIOS Date: 07/03/08 Online Update function (Only for AMI BIOS) online Update Save current BIOS to a .bin file Update BIOS with a BIOS file

Once click on this button, the saving dialog will show. Choose the position to save file and enter file name. (We recommend that the file name should be English/number and no longer than 7 characters.) Then click Save.

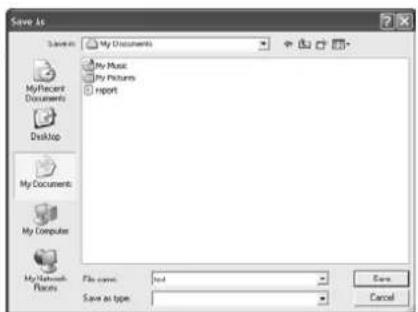

Save As Documents My Documents My Music My Pictures Import My Historic Documents Desktop My Documents My Computer My Network Places File name: unt Save as type: Save As Cancel

Before doing this, please download the proper BIOS file from the website.

For AWARD BIOS, update BIOS procedure should be run with Clear CMOS function, so please check on Clear CMOS first.

INFORMATION Do you want to save " Current BIOS " data ! Yes No

Then click Update BIOS button, a dialog will show for asking you backup current BIOS. Click Yes for BIOS backup and refer to the Backup BIOS procedure; or click No to skip this procedure.

After the BIOS Backup procedure, the open dialog will show for requesting the BIOS file which is going to be updated. Please choose the proper BIOS file for updating, then click on Open.

Figure Look in: My Documents My Music My Pictures Report Text My Documents My Computer My Network Files File name: Open File of type: Cancel

BIOS 35% Programming Main Block

The utility will update BIOS with the proper BIOS file, and this process may take minutes. Please do not open any other applications during this process.

After the BIOS Update process, click on OK to restart the system.

Information BIOS Update to your computer, you must restart your computer. OK

While the system boots up and the full screen logo shows, press key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and Exit Setup to exit BIOS setup. BIOS Update is completed.

(for AMI BIOS only)

Automatically download and update the latest BIOS via internet; make sure that the computer is connected to the internet before using this function.

After clicking on the Onlinr Update button, the utility will search for the latest BIOS from internet. If there is a new BIOS version, the utility will ask you to download it. Click Yes to proceed.

INformation Your BIOS is latest version ! OK

Download completes; the utility will ask you to program (update) the BIOS. Click Yes to proceed.

Information Do you want to download P43AA715.EFS BIOS via Internet ? Yes No

If there is no other newer BIOS version, the utility will also tell you that your BIOS has been the latest version.

Information P43AA715.BFS Download Finish! Do you want to program ? Yes No

The programing procedure may take minutes, please do not make any operation during the programing process.

Information Update BIOS Finish ! Please Reboot System ! OK

After the updating process, the utility will ask you to reboot the system. Click OK to reboot.

While the system boots up and the full screen logo shows, press Del key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and Exit Setup to exit BIOS setup. Online Update is completed.

All the information and content above about the T-Series software are subject to be changed without notice. For better performance, the software is being continuously updated. The information and pictures described above are for your reference only. The actual information and settings on board may be slightly different from this manual.

CHAPTER 7: USEFUL HELP

7.1 DRIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup Driver CD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the CD

T-Series Model Name Driver Version Operating System

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn't show up after you insert the Driver CD, please use file browser to locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver CD. Click on the Manual icon to browse for available manual.

Note:

You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader software from http://www.adobe.com/products/acrobat/readstep2.html

7.2 EXTRA INFORMATION

CPU Overheated

If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.
   (See "Close CMOS Header: JCMOS1" section)
2. Wait for seconds.
3. Power on the system again.

7.3 AMI BIOS BEEP CODE

Boot Block Beep Codes

Number of Beeps	Description
1 No media present. (Insert diskette in floppy drive A:)
2	“AMIBOOT.ROM” file not found in root directory of diskette in A:
3 Insert next diskette if multiple diskettes are used for recovery
4 Flash Programming successful
5 File read error
7 No Flash EPROM detected
10 Flash Erase error
11 Flash Program error
12 “AMIBOOT.ROM” file size error
13	BIOS ROM image mismatch (file layout does not match image present in flash device)

POST BIOS Beep Codes

Number of Beeps	Description
1 Memory	refresh timer error
3 Base memory	read/write test error
6 Keyboard controller BAT command failed
7 General exception error (processor exception interrupt error)
8 Display memory error (system video adapter)

Troubleshooting POST BIOS Beep Codes

Number of Beeps	Troubleshooting Action
1, 3 Reseat	the memory, or replace with known good modules.
6, 7	Fatal error indicating a serious problem with the system. Consult your system manufacturer. Before declaring the motherboard beyond all hope, eliminate the possibility of interference by a malfunctioning add-in card. Remove all expansion cards except the video adapter.If beep codes are generated when all other expansion cards are absent, consult your system manufacturer's technical support.If beep codes are not generated when all other expansion cards are absent, one of the add-in cards is causing the malfunction. Insert the cards back into the system one at a time until the problem happens again. This will reveal the malfunctioning card.
8	If the system video adapter is an add-in card, replace or reseat the video adapter. If the video adapter is an integrated part of the system board, the board may be faulty.

7.4 AMI BIOS POST CODE

Checkpoint	Description
03	Disable NMI, Parity, video for EGA, and DMA controllers. Initialize BIOS, POST, Runtime data area. Also initiali ze B IOS mod ules on POST entry and GPNV area. Initialized CMOS as mentioned in the Kernel Variable "wCMOSFlags."
04	Check CMOS diagnostic byte to determine if battery power is OK and CMOS checksum is OK. Verify CMOS checksum manually by reading storage area. If the CMOS checksum is bad, update CMOS with power-on default values and clear passwords. Initialize status register A. Initializes data variables that are based on CMOS setup questions. Initializes both the 8259 compatible PICs in the system
05	Initializes the interrupt controlling hardware (generally PIC) and interrupt vector table.
06	Do R/W test to C H-2 count reg. Initiali ze CH-0 as system timer. Install the POSTINT1C h handler. E nable IRQ-0 in P IC for system timer interrupt. Traps INT1Ch vector to "POSTINT1ChHandlerBlock."
07 Fixes	CPU POST interface calling pointer.
08	Initiali zes the CPU. The BAT test is being done on KBC. Program the keyboard controller command byte is being done after Auto detection of KB/MS using AMI KB-5.
C0 Early CPU Init Start -- Disable Cache - Init Local APIC.
C1 Set up boot strap processor Information.
C2 Set up boot strap processor for POST.
C5 Enumerate and set up application processors.
C6 Re-enable cache for boot strap processor.
C7 Early CPU Init Exit.
0A Initializes the 8042 compatible Key Board Controller.
0B Detects the presence of PS/2 mouse.
0C Detects the presence of Keyboard in KBC port.
0E	Testing and initialization of different Input Devices. Also, update the Kernel Variables. Traps the INT09h vector, so that the POST INT09h handler ge ts control for IRQ1. Uncompress all available language, BIOS logo, and Silent logo modules.
13 Early POST initialization of chipset registers.
20 Relocate System Management Interrupt vector for all CPU in the system.
24	Uncompress a nd i initialize a ny platform specific B IOS mod ules. GPNV is initialized at this checkpoint.
2A	Initializes different devices through DIM. See DIM Code Checkpoints section of document for more information.
2C	Initializes different devices. Detects and initializes the video adapter installed in the system that have optional ROMs.
2E Initializes all the output devices.
31	Allocate memory for ADM module and uncompress it. Give control to ADM module for initialization. Initialize language and font modules for ADM. Activate ADM module.
33	Initializes the silent boot module. Set the window for displaying text information.

TA75A+

Checkpoint	Description
37	Displaying sign-on message, CPU information, setup key message, and any OEM specific information.
38	Initializes different devices through DIM. See DIM Code Checkpoints section of document for more information. USB controllers are initialized at this point.
39	Initializes DMAC-1 & DMAC-2.
3A	Initialize RTC date/time.
3B	Test for total memory installed in the system. Also, Check for DEL or ESC keys to limit memory test. Display total memory in the system.
3C Mid	POST initialization of chipset registers.
40	Detect different devices (Parallel ports, serial ports, and coprocessor in CPU, etc.) successfully installed in the system and update the BDA, EBDA...etc.
52	Updates CMOS memory size from memory found in memory test. Allocates memory for Extended BIOS Data Area from base memory. Programming the memory hole or any kind of implementation that needs an adjustment in system RAM size if needed.
60	Initializes NUM-LOCK status and programs the KBD typematic rate.
75	Initialize Int-13 and prepare for IPL detection.
78	Initializes IPL devices controlled by BIOS and option ROMs.
7C	Genera te a nd write contents of ESCD in NVRam.
84	Log errors encountered during POST.
85	Display errors to the user and gets the user response for error.
87	Execute BIOS setup if needed / requested. Check boot password if installed.
8C	Late POST initialization of chipset registers.
8D	Build ACPI tables (if ACPI is supported).
8E	Program the peripheral parameters. Enable/Disable NMI as selected.
90	Initialization of system management interrupt by invoking all handlers. Please note this checkpoint comes right after checkpoint 20h.
A1	Clean-up work needed before booting to OS.
A2	Takes care of runtime image preparation for different BIOS modules. Fill the free area in F000h segment with 0FFh. Initializes the Microsoft IRQ Routing Table. Prepares the runtime language module. Disables the system configuration display if needed.
A4	Initialize runtime language module. Display boot option popup menu.
A7	Displays the system configuration screen if enabled. Initialize the CPU's before boot, which includes the programming of the MTRR's.
A9	Wait for user input at config display if needed.
AA	Uninstall POST INT1Ch vector and INT09h vector.
AB	Prepare BBS for Int 19 boot. Init MP tables.
AC	End of POST initialization of chipset registers. De-initializes the ADM module.
B1	Save system context for ACPI. Prepare CPU for OS boot including final MTRR values.
00	Passes control to OS Loader (typically INT19h).

7.5 CONVERSION OF HEXADECIMAL AND DECIMAL SYSTEM

Hex		Dec		Hex		Dec		Hex	Dec	Hex	Dec
1	1	1A	26	33	51	4C	76
2	2	1B	27	34	52	4D	77
3	3	1C	28	35	53	4E	78
4	4	1D	29	36	54	4F	79
5	5	1E	30	37	55	50	80
6	6	1F	31	38	56	51	81
7	7	20	32	39	57	52	82
8	8	21	33	3A	58	53	83
9	9	22	34	3B	59	54	84
A	10	23	35	3C	60	55	85
B	11	24	36	3D	61	56	86
C	12	25	37	3E	62	57	87
D	13	26	38	3F	63	58	88
E	14	27	39	40	64	59	89
F	15	28	40	41	65	5A	90
10	16	29	41	42	66	5B	91
11	17	2A	42	43	67	5C	92
12	18	2B	43	44	68	5D	93
13	19	2C	44	45	69	5E	94
14	20	2D	45	46	70	5F	95
15	21	2E	46	47	71	60	96
16	22	2F	47	48	72	61	97
17	23	30	48	49	73	62	98
18	24	31	49	4A	74	63	99
19	25	32	50	4B	75	64	100

7.6 TROUBLESHOOTING

Probable	Solution
1. There is no power in the system.Power LED does not shine; the fan of the power supply does not work2. Indicator light on keyboard does not shine.	1. Make sure power cable is securely plugged in.2. Replace cable.3. Contact technical support.
System is inoperative. Keyboard lights are on, power indicator lights are lit, and hard drives are running.	Using even pressure on both ends of the DIMM, press down firmly until the module snaps into place.
System does not boot from a hard disk drive, but can be booted from optical drive.	1. Check cable running from disk to disk controller board. Make sure both ends are securely plugged in; check the drive type in the standard CMOS setup.2. Backing up the hard drive is extremely important. All hard disks are capable of breaking down at any time.
System only boots from an optical drive. Hard disks can be read, applications can be used, but system fails to boot from a hard disk.	1. Back up data and applications files.2. Reformat the hard drive.Re-install applications and data using backup disks.
Screen message shows “Invalid Configuration” or “CMOS Failure.”	Review system’s equipment. Make sure correct information is in setup.
System cannot boot after user installs a second hard drive.	1. Set master/slave jumpers correctly.2. Run SETUP program and select correct drive types. Call the drive manufacturers for compatibility with other drives.

APPENDIX: SPEC IN OTHER LANGUAGES

GERMAN
