Product type	Wireless printer adapter
Wireless standard	802.11b/g (2.4 GHz)
Power supply	Host-powered via USB port (5 V)
Power consumption (standby)	85.4 mA
Power consumption (11g transmission)	242 mA
Power consumption (11b transmission)	302.3 mA
Radio range	100 m (in open field)
Antenna	Internal, 0 dBi gain, linear polarization
Operating temperature	0 °C to 40 °C
Storage temperature	-40 °C to 70 °C
Interface	Standard USB Type-A
Main features	Wireless connection of a compatible HP printer via USB host, printing over a wireless network
Safety and certifications	FCC Class B, CE, Industry Canada RSS-210, RSS-GEN, Low Voltage Directive 73/23/EEC, EMC Directive 2006/95/EC
Intended use	Indoor use only
Minimum safety distance (RF exposure)	20 cm
General information	Brand HP, regulatory model SDCAB-0704, product number Q6274

Frequently Asked Questions - 802.11 B/G WIRELESS PRINTER HP

How to install the HP wireless adapter on my printer?

Insert the adapter into the printer's USB host port. Insert the printer installation CD into the computer, select the option Install wireless device and follow the instructions. You will need a USB cable for a temporary connection during initial setup.

Why does my computer not find the printer on the network after installation?

Make sure your computer is connected to the same wireless network. If the computer does not find the printer, click Next and temporarily use a USB cable to complete the network configuration.

What is the maximum range of the wireless adapter?

The nominal range is 100 meters in open field, according to the 802.11b/g standard. In an indoor environment, the range may be reduced by obstacles.

Can I use the adapter with any printer?

The adapter is designed for compatible HP printers with a USB host port. Check compatibility in your printer's documentation.

How to set up wireless printing after initial installation?

Once installation is complete, print normally from your applications. Consult your printer's user documentation for wireless features.

What to do if the adapter is not recognized by the printer?

Check that the adapter is firmly inserted into the USB host port. Make sure the printer is powered on. Try removing and reinserting the adapter.

Does the adapter require external power?

No, the adapter is powered directly by the printer via the USB host port (5 V). No external power supply is needed.

What are the allowed operating temperatures?

The adapter operates between 0 °C and 40 °C. For storage, the range is -40 °C to 70 °C.

Is the adapter compliant with safety standards?

Yes, it is certified FCC Class B, CE and compliant with Industry Canada RSS-210 and RSS-GEN standards. For outdoor use in some countries, frequency restrictions may apply.

How to recycle the adapter at end of life?

Do not dispose of the adapter with household waste. Take it to a collection center for electrical and electronic equipment. HP offers recycling programs in many countries.

USER MANUAL 802.11 B/G WIRELESS PRINTER HP

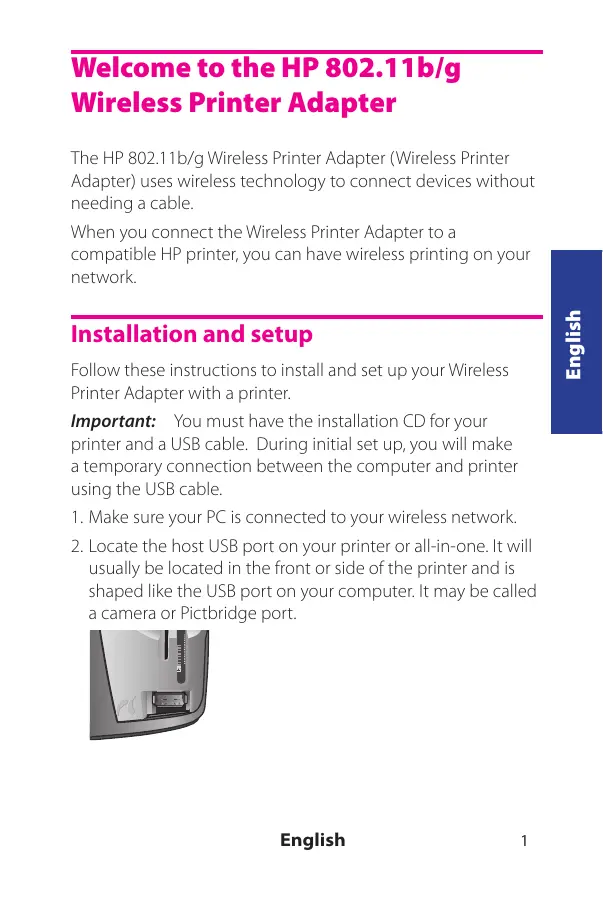

Welcome to the HP 802.11b/g Wireless Printer Adapter

The HP 802.11b/g Wireless Printer Adapter (Wireless Printer Adapter) uses wireless technology to connect devices without needing a cable.

When you connect the Wireless Printer Adapter to a compatible HP printer, you can have wireless printing on your network.

Installation and setup

Follow these instructions to install and set up your Wireless Printer Adapter with a printer.

Important: You must have the installation CD for your printer and a USB cable. During initial set up, you will make a temporary connection between the computer and printer using the USB cable.

1. Make sure your PC is connected to your wireless network.
2. Locate the host USB port on your printer or all-in-one. It will usually be located in the front or side of the printer and is shaped like the USB port on your computer. It may be called a camera or Pictbridge port.

1. Remove the cap from the Wireless Printer Adapter and insert it in the port.

1. Insert the installation CD for your printer into your computer.
2. Select the option Install Wireless Connected Device. Follow the directions on the screen.
3. When asked for the Connection Type, choose Through the Network.

The computer will search for printers already on the network.

1. When it cannot find the printer already on the network, click Next and follow the directions to temporarily use the USB cable to establish the network connection to the printer.
2. Follow the directions on the screen to complete the installation of your Wireless Printer Adapter.

Printing

Print to your printer as you would normally. The user documentation for your printer contains detailed information on using its wireless capabilities.

Technical specifications

General

802.11b/g Power Requirement: Provided by the host Power Consumption at 5V

• Standby: 85.4 mA (typical)
• Tx 11g: 242 mA (typical) Tx 11b: 302.3 mA (typical)

Radio

Range: 100m (per Standard)

Antenna

Internal Antenna Peak Gain: +0dBi VSWR: < 2.0:1 - Polarization: Linear

Temperature

• Operating temperature: 0° to 40°C Storage temperature: -40°C to 70°C

Interface

Standard USB male Type A connector

Environmental product stewardship program

This section provides information on protecting the environment; ozone production; energy consumption; paper use; plastics; material safety data sheets; and recycling programs.

Protecting the environment

Hewlett-Packard is committed to providing quality products in an environmentally sound manner. This product has been designed with several attributes to minimize impacts on our environment. For more information, visit HP's Commitment to the Environment website at:

www.hp.com/hpinfo/globalcitizenship/environment/index.html

Plastics

Plastic parts over 25 grams are marked according to international standards that enhance the ability to identify plastics for recycling purposes at the end of the

product's life.

Material safety data sheets

Material safety data sheets (MSDS) can be obtained from the HP website at: www.hp.com/go/msds

Customers without Internet access should contact their local HP Customer Care Center.

Recycling program

HP offers an increasing number of product return and recycling programs in many countries/regions, as well as partnering with some of the largest electronic recycling centers throughout the world. HP also conserves resources by refurbishing and reselling some of its most popular products. For more information regarding return and recycling of HP products generally, please visit: http://www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

Disposal of waste equipment by users in private households in the European Union

Disposal of Waste Equipment by Users in Private Households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handling it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Limited Warranty Statement

A. Extent of Limited Warranty

1. Hewlett-Packard ("HP") warrants to the end-user customer ("Customer") that each HP accessory product ("Product") shall be free from defects in material and workmanship for twelve months after the date of purchase.
2. For each software Product, HP's limited warranty applies only to a failure to execute programming instructions. HP does not warrant that the operation of any Product shall be uninterrupted or error free.
3. HP's limited warranty covers only those defects which arise as a result of normal use of a Product, and does not cover any other problems, including those which arise as a result of:

a. Improper use, maintenance, or modification;

b. Software, media, parts, accessories, or supplies not provided or supported by HP; or, c. Operation outside a Product's specifications.

1. If HP receives, during the applicable warranty period, notice of a defect in a Product, HP shall at its option either repair or replace the defective Product.
2. If HP cannot repair or replace a defective Product that is covered by HP's limited warranty, HP shall, within a reasonable time after being notified of the defect, refund the purchase price for the Product.
3. HP shall have no obligation to repair, replace, or refund until Customer returns the defective Product to HP.
4. Any replacement product may be new or like-new, provided it has functionality at least equal to that of the Product being replaced.
5. A Product may contain remanufactured parts, components, or materials equivalent to new in performance.
6. HP's limited warranty for a Product is valid in any country or locality where HP has a support presence for the Product and has marketed the Product. The level of warranty service may vary according to local standards. Upgraded warranty services, such as next day exchange, on-site service, and accident protection, may be available from HP if separately documented by HP and on additional terms or conditions designated by HP.

B. Limitations of Warranty

1. TO THE EXTENT ALLOWED BY LOCAL LAW, NEITHER HP NOR ITS THIRD PARTY SUPPLIERS MAKE ANY OTHER WARRANTY OR CONDITION OF ANY KIND, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO A PRODUCT, AND SPECIFICALLY DISCLAIM THE IMPLIED WARRANTY OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE.

C. Limitations of Liability

1. To the extent allowed by local law, the remedies provided in this Limited Warranty Statement ("LWS") are Customer's sole and exclusive remedies.
2. TO THE EXTENT ALLOWED BY LOCAL LAW, EXCEPT FOR THE OBLIGATIONS SET FORTH IN THIS LWS, IN NO EVENT SHALL HP OR ITS THIRD PARTY SUPPLIERS BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY AND WHETHER ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

D. Local Law

1. This LWS gives Customer specific legal rights. Customer may also have other rights that vary from state to state in the United States, from province to province in Canada, and from country to country elsewhere in the world.
2. To the extent this LWS is inconsistent with local law, this LWS shall be deemed modified to be consistent with local law. Under local law, certain disclaimers and limitations of this LWS may not apply to Customer. For example, the federal government of the United States, some states in the United States, and some governments outside the United States (including provinces in Canada) may:

a. Grant Customer additional warranty rights; b. Preclude the disclaimers and limitations in this LWS from limiting the statutory rights of a consumer (e.g. the United Kingdom); c. Otherwise restrict the ability of a manufacturer to enforce such disclaimers or limitations; d. Specify the duration of implied warranties that the manufacturer cannot disclaim; or, e. Disallow limitations on the duration of implied warranties.

1. For consumer transactions in the United States, any implied warranties imposed by law are limited in duration to the express warranty period.
2. FOR CONSUMER TRANSACTIONS IN AUSTRALIA AND NEW ZEALAND, THE TERMS IN THIS LWS, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT, OR MODIFY, AND ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF A PRODUCT TO SUCH CUSTOMERS.

Regulatory notices

The HP Wireless 802.11 b/g Printer Adapter meets product requirements from regulatory agencies in your country/region.

Regulatory model identification number

For regulatory identification purposes, your product is assigned a Regulatory Model Number. The Regulatory Model Number for your product is SDCAB-0704. This regulatory number should not be confused with the marketing name (HP Wireless 802.11b/g Printer Adapter) or product number (Q6274).

FCC Statement

The United States Federal Communications Commission (in 47 CFR 15.105) has specified that the following notice be brought to the attention of users of this product.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient the receiving antenna. - Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

For further information, contact:

Manager of Corporate Product Regulations

Hewlett-Packard Company

3000 Hanover Street

Palo Alto, CA 94304

[phone]

Modifications (part 15.21)

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by HP may void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Wireless regulatory information

This section contains regulatory information pertaining to wireless products.

Exposure to radio frequency radiation

Caution: The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device shall be used in such a manner that the potential for human contact during normal operation is minimized. This product and any attached external antenna, if supported, shall be placed in such a manner to minimize the potential for human contact during normal operation. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.

European Union Regulatory Notice

Products bearing the CE marking comply with the following EU Directives:

Low Voltage Directive 2006/95/EEC, EMC Directive 2006/95/EEC

CE compliance of this product is valid only if powered with the correct CE-marked AC adapter provided by HP.

If this product has telecommunications functionality, it also complies with the essential requirements of the following EU Directive:

R&TTE Directive 1999/5/EC

Compliance with these directives implies conformity to harmonized European standards (European Norms) that are listed in the EU Declaration of Conformity

issued by HP for this product or product family. This compliance is indicated by the following conformity marking placed on the product.

The wireless telecommunications functionality of this product may be used in the following EU and EFTA countries:

Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain, Sweden, Switzerland, and United Kingdom.

Products with 2.4-GHz wireless LAN devices

France

For 2.4 GHz Wireless LAN operation of this product certain restrictions apply: This product may be used indoor for the entire 2400-2483.5 MHz frequency band (channels 1-13). For outdoor use, only 2400-2454 MHz frequency band (channels 1-9) may be used. For the latest requirements, see http://www.artelecom.fr.

Italy

License required for use. Verify with your dealer or directly with the General Direction for Frequency Planning and Management (Direzione Generale Pianificazione e Gestione Frequenze).

Notice to users in Canada

For Indoor Use. This digital apparatus does not exceed the Class B limits for radio noise emissions from the digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. The internal wireless radio complies with RSS 210 and RSS GEN of Industry Canada.

Notice to users in Pakistan

Notice to users in South Africa

www.hp.com/hpinfo/globalcitizenship/environment/index.html

Plastics

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

Manager of Corporate Product Regulations

Hewlett-Packard Company

3000 Hanover Street

Palo Alto, CA 94304

[phone]

Directive RTTE 1999/5/CE

For Indoor Use. This digital apparatus does not exceed the Class B limits for radio noise emissions from the digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. The internal wireless radio complies with RSS 210 and RSS GEN of Industry Canada.

www.hp.com/hpinfo/globalcitizenship/environment/index.html

Plastics

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

Manager of Corporate Product Regulations

Hewlett-Packard Company

3000 Hanover Street

Palo Alto, CA 94304

[phone]

www.hp.com/hpinfo/globalcitizenship/environment/index.html

Plastics

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

www.hp.com/hpinfo/globalcitizenship/environment/index.html

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

Disposal of waste equipment by users in private households in the European Union

Material Safety Data Sheets (MSDS) are available on the HP website at:

www.hp.com/go/msds

For product access to the Internet, contact your local HP Technical Support Center.

Recycling program

HP offers a product return and recycling program in many countries/regions, as well as partnerships with some major electronic recycling centers worldwide. HP also helps conserve natural resources through the reuse of some of the most popular products. For additional information on HP product recycling, see the HP website at

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

Limited warranty

A. Duration of limited warranty

1. Hewlett-Packard Company ("HP Company") warrants to the end user ("User") that the HP Product is free of defects in materials and workmanship for the duration specified in the product documentation.
2. With respect to any software product, HP's limited warranty applies only to defects that arise as a result of following the software instructions. HP does not warrant that the operation of any product will be uninterrupted or error-free.
3. HP's limited warranty applies only to defects that arise during normal use of the product and does not cover any other defects, including defects caused by:

A. use of the product other than as specified in the user documentation, or unauthorized modification or alteration of the product; b. use of software, media, parts, supplies, or consumables not supplied or supported by HP; or c. use of the product without regard to its technical specifications.

4. Upon receipt of the defective product, HP, at its option, will either repair or replace it. 5. If HP is unable to repair or replace the defective product covered by HP's Limited Warranty, HP will, within a reasonable time after receiving notification of the defect, refund the purchase price of the product. 6. HP is not obligated to repair, replace, or refund the product until the user returns the defective product to HP. 7. Any replacement product may be new or like-new, provided that its functionality is equivalent to that of the replaced product. 8. The product may contain remanufactured parts, components, or materials equivalent to new ones in performance. 9. HP's Limited Warranty applies in all countries/regions where HP provides support for the product and where HP has marketed the product. The warranty service level may vary according to local standards. Additional warranty services, such as on-site service, may be provided by HP if such services are separately documented and included in the warranty obligation.

6. Warranty limitations

1. To the extent permitted by local law, HP and its suppliers do not provide any additional warranties or conditions, express or implied, regarding the product, and disclaim any implied warranties or conditions of merchantability, satisfactory quality, or fitness for a particular purpose.

B. Limitation of liability

1. To the extent permitted by local law, the remedy provided in this Limited Warranty is the sole and exclusive remedy available to the user. 2. To the extent permitted by local law, except for liability expressly stated in this Limited Warranty, neither HP nor its independent suppliers shall be liable for any direct, indirect, special, incidental, or consequential damages arising from contractual, tort, or other legal relationships, regardless of whether HP was advised of the possibility of such damages.

C. Local law

1. This Limited Warranty gives the user specific legal rights. The user may also have other rights that vary by state in the United States, by province in Canada, or by country/region.
2. If any provision of this Limited Warranty does not conform to local law, such provision shall be deemed amended to conform to local law. In accordance with local law, some limitations of liability and limitations of conditions of this Limited Warranty may not apply to the user. For example, the U.S. federal government, the governments of some U.S. states, and some other governments outside the U.S. (including provincial governments) may:

a. grant the user additional warranty service rights; b. nullify the disclaimers and limitations mentioned in this Limited Warranty as restricting consumer rights (for example, in the United Kingdom); c. otherwise restrict the manufacturer's right to apply such disclaimers or limitations; d. establish implied warranties, compliance with which is mandatory for the manufacturer; or e. prohibit limitation of the duration of implied warranties.

3. When making purchases in the USA, the duration of implied warranties is limited to the duration of this Limited Warranty. 4. For purchases in Australia and New Zealand, the terms of this Limited Warranty, except as provided by applicable law, do not exclude, restrict, or modify the legal rights of consumers, and are in addition to such rights arising from the purchase of the product.

Regulatory notices

The HP 802.11 b/g wireless adapter complies with the requirements of the national regulatory authorities in the countries of use.

Regulatory identification number

For regulatory identification purposes, this product is assigned a regulatory model number.

—SDCAB-0704. This regulatory number is not to be confused with the marketing name (HP 802.11b/g Wireless Printer Adapter) or the product number (Q6274).

Regulatory information for wireless devices

This section contains regulatory information for devices operating based on wireless technologies.

Radio frequency radiation

Warning! The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a way as to minimize the potential for human contact during normal operation. The device and its external antenna, if any, should be placed to minimize the exposure to human beings during operation. To avoid exceeding the FCC radio frequency exposure limits, the device should not be operated closer than 20 cm from the user.

Welcome to the HP 802.11b/g Wireless Printer Adapter

www.hp.com/hpinfo/globalcitizenship/environment/index.html

Plastic

Complies with IDA Standards DB100427

www.hp.com/hpinfo/globalcitizenship/environment/index.html

74

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html

Limited Warranty Statement

A. Scope of Limited Warranty

www.hp.com/hpinfo/globalcitizenship/environment/index.html

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html

Return and Recycling

A. Various Forms of Similar Nature

www.hp.com/hpinfo/globalcitizenship/environment/index.html

1

www.hp.com/go/msds

HP

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html

April 29, 2015

1. Hewlett-Packard ("HP") 2. 2017 National Volume II, Period I Volume I, Question 15 (2017·Shandong) 3. 3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3.3

a. mkiy mkiy yin yin yin yin yin yin yin yin b. 10000000000000000000000000000000000000000000000000000000000000000000

9

C. m5n7n7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7nn7

1. 4.1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100
2. wH HP 111111111111111111111111111111111111
3. HP laiaonwulag lunranaeaoaowu wauanwnnna nai aounuun unuiuianenrtaaannnnnne nnne HHP uun

ii.

1. 10000000000000000 HP 2000000000000000 HP 2000000000000000 HP 2000000000000000 HP 2000000000000000 HP 2000000000000000 HP 2000000000

A. 甲组的n

www.hp.com/hpinfo/globalcitizenship/environment/index.html

塑

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html

有限保固聲明

A. 有限保固範圍

Product Name and Model: HP 802.11 b/g Wireless Printer Adapter

Regulatory Model Number: 1) SDCAB-0704

Product Options:

All

Conforms to the following Product Specifications and Regulations:

EMC: Class B

EN 301 489-1 V1.4.1

EN 301 489-17 V1.2.1

FCC CFR 47 Part 15 / ICES-003 Issue 4: 2004

Safety:

EN 60950-1:2001

IEC 60950-1:2001

EU: 1999/519/EC (Health)

Telecom:

EN 300 328 V1.7.1

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The product herewith complies with the requirements of the Low Voltage Directive 2006/95/EC, the EMC

Directive 2004/108/EC and the R&TTE Directive 99/5/EC, and carries the CE-marking accordingly.

Additional Information:

1) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports. This number should not be confused with the marketing name or the product numbers.

Roseville CA, USA

June 12, 2007

Steve Ortmann, Manager

Connectivity

Local contact for regulatory topics only:

EMEA: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany

www.hp.com/go/certificates

U.S.: Hewlett-Packard, 3000 Hanover St., Palo Alto 94304, U.S.A. 650-857-1501

Printed in China

Printed in China

Printed in China

Printed in China
