Product Type	Video Projector
Brand	Hitachi
Model	CP-X4021NGF
Display Technology	3LCD
Native Resolution	XGA (1024 x 768)
Brightness	4000 ANSI Lumens
Contrast Ratio	2000:1
Lamp Life	Up to 5000 hours (Normal Mode)
Projection Size	30 – 300 inches
Keystone Correction	Vertical and Horizontal
Built-in Speaker	16W Mono
Input Terminals	HDMI, VGA, Composite, S-Video, Audio
Output Terminals	VGA, Audio, USB (Service)
Dimensions (W x H x D)	317 x 98 x 243 mm
Weight	3.2 kg
Power Consumption	310W (Normal Mode)
Power Supply	AC 100-240V, 50/60Hz
Security	Kensington Lock Slot
Filter Cleaning	Every 100 hours (user-replaceable)
Lamp Replacement	User-accessible, model DT01271

Frequently Asked Questions - CP-X4021NGF HITACHI

How do I turn on the Hitachi CP-X4021NGF projector?

Plug in the power cord, press the Power button on the projector or remote control. Wait for the lamp to warm up.

What is the native resolution of the CP-X4021NGF?

The native resolution is XGA (1024 x 768).

How often should I clean the air filter?

Clean the air filter every 100 hours of use. Remove the filter cover, wash the filter with water, dry thoroughly, and reinstall.

How do I replace the lamp?

Turn off and unplug the projector. Open the lamp cover, loosen the lamp screws, replace with a new DT01271 lamp module, tighten screws, and close the cover.

What types of inputs does the projector support?

It supports HDMI, VGA, Composite video, S-Video, and audio inputs.

Can I mount this projector on the ceiling?

Yes, it is designed for ceiling mounting. Use a compatible mounting bracket and secure it properly.

Why is the projector not displaying any image?

Check if the lens cap is removed, the source is selected correctly, and the lamp is working. Ensure all cables are securely connected.

What is the maximum projection size?

The maximum projection size is 300 inches diagonally.

How do I adjust the keystone distortion?

Press the Keystone button on the remote or use the menu to adjust vertical and horizontal keystone correction.

Where can I find the serial number?

The serial number is located on the bottom label of the projector.

USER MANUAL CP-X4021NGF HITACHI

CP-X4021N/CP-X5021N/

CP-WX4021N

Line drawing of a projector with a circular lens and ventilation grille (no text or symbols)

VOLUME, LUIDSPREKER, AUDIOBRON,

HDMI AUDIO, MIC NIVEAU, MIC VOLUME

SCHERM menu 48

TAAL, POSITIE MENU, BLANK, OPSTARTEN, Mijn Scherm, Mijn Sch. VAST, M ELDING, NAAM VAN BRON, PATROON, G.B.

OPTIE menu 54

AUTOM. ZOEKEN, AUTO KEYSTONE, DIRECT AAN, AUTOM. UIT, USB TYPE B, LAMPTIJD, FILTERTIJD, MIJN KNOP, SIGNAALBRON, SERVICE

NETWERK menu 64

INSTELLEN, PROJECTORNAAM, MIJN BEELD, AMX D.D., PRESENTATIE, INFORMATIE, SERVICE

VEILIGHEID menu .....7 1

VEILIGH. PASW. VERANDEREN, Mijn Scherm PASWOORD, P IN LOCK, TRANSITIE DETECTOR, WACHTW. MIJN TEKST, MIJN TEKST WEERG., MIJN TEKST BIJW. VEILIGHEID.INDICAT, O VERLAP VERGRENDEL

Interior view of a room with two lighting fixtures and a battery, no text or symbols visible

Opstellen

T-1: CP-X4021N, CP-X5021N
(1024X768) (±10%)

CP-X4021N, CP-X5021N: 4:3 (fixed)

CP-WX4021N: 16:10 (fixed)

Line drawing of a projector with a mounted screen (no text or symbols)

CP-X4021N, CP-X5021N: 1700

CP-WX4021N: 0100

CP-X4021N, CP-X5021N: 1024X768 (XGA)

CP-WX4021N: 1280 x 800

Line drawing of a projector with ventilation slots and a label (no text or symbols on the device itself)

Line drawing of a projector with ventilation slots and a blue laser beam (no text or symbols)

Line drawing of a projector with a screen and lens, showing internal components and a hand inserting a cable (no text or symbols)

Technical line drawing of a mechanical component with a grid-patterned base and mounting bracket (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Illustration of three steps to remove a component: adding a grid, removing a heat sink, and removing a heat sink (no text or symbols present)

CP-X4021N/CP-X5021N/ CP-WX4021N

Line drawing of a projector with a circular lens and ventilation grille (no text or symbols)

CP-X4021N, CP-X5021N: 1024 x 768 (XGA)

CP-WX4021N: 1280 x 800

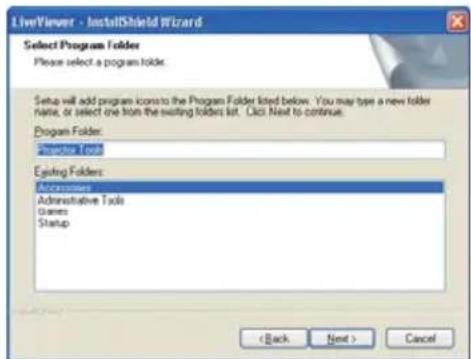

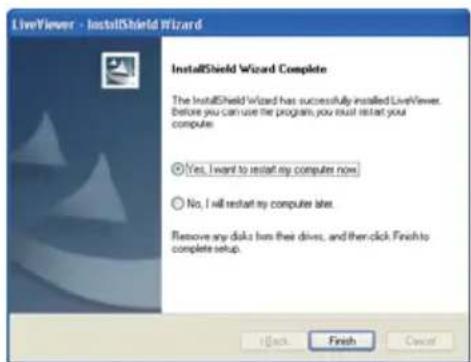

1.2.2 "LiveViewer" updaten

■ Are you sure that you want to turn on the network adapter? (Weet u zeker dat u de netwerkadaptor in wilt schakelen?)

Enter PassCode (Voer de Passcode in)

Diagram showing a projector connected to a laptop via a cable, with a lightning bolt symbol indicating power (no text or labels)

3) Klik op [Connect].

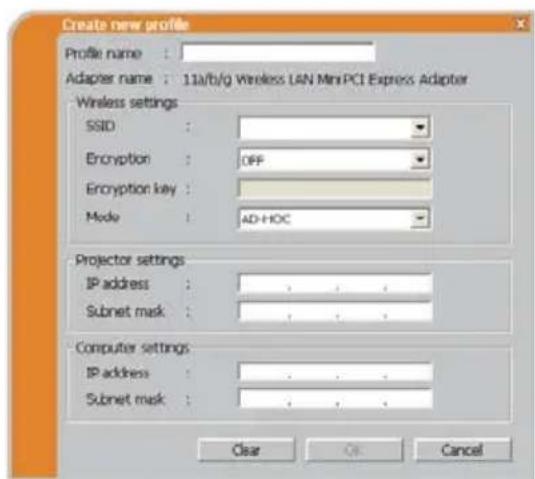

1.6.1 Profielverbinding

Diagram showing a projector connected to a laptop via a power cord, with a lightning bolt symbol indicating connection (no text or labels)

Mode (modus): INFRASTRUCTURE

2) Klik op [Next].

4) Klik op [Connect].

2) Klik op [Connect].

De verbinding is verbroken

Niet aangesloten

Hold

① “Not displaying confirmation dialog for adding Network settings”

N.B. • Internet Explorer 6.0 of later is vereist.

Date
Time
IP	Address	<Projector
MAC	Address	<Projector

IP-adres> MAC-ac

7.2 Projectorbeheer m.b.v. SNMP

CP-X4021N/CP-X5021N/

CP-WX4021N

Model nummer CP-X4021N, CP-X5021N, CP-WX4021N

Interior view of a room with two lighting fixtures and a battery, no text or symbols visible

Diagram of a vehicle with a 12° angle indicator and side-mounted panel array (no text or symbols)

Line drawing of a projector with ventilation slots and a blue arrow indicating a component (no text or symbols present)

Line drawing of a projector with a label pointing to the front panel (no text or symbols on the device itself)

Line drawing of a projector with a lens and screen, showing internal components (no text or symbols)

Technical line drawing of a mechanical component with a grid-patterned base and mounting bracket (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Line drawing of a hand inserting a grid into a device (no text or symbols)

Two hand-drawn diagrams showing a mechanical component being inserted into a housing (no text or symbols)

CP-X4021N/CP-X5021N/

CP-WX4021N

User's Manual (detailed)

Operating Guide – Technical

Example of computer signal

Resolution (H x V)	H. frequency (kHz)	V. frequency (Hz)	Rating Signal	mode
720 x 400	37.9 85.0 VESA TEXT
640 x 480 31.5	59.9 VESA VGA (60Hz)
640 x 480 37.9	72.8 VESA VGA (72Hz)
640 x 480 37.5	75.0 VESA VGA (75Hz)
640 x 480 43.3	85.0 VESA VGA (85Hz)
800 x 600 35.2	56.3 VESA SVGA (56Hz)
800 x 600 37.9	60.3 VESA SVGA (60Hz)
800 x 600 48.1	72.2 VESA SVGA (72Hz)
800 x 600 46.9	75.0 VESA SVGA (75Hz)
800 x 600 53.7	85.1 VESA SVGA (85Hz)
832 x 624 49.7	74.5 Mac 16" mode
1024 x 768 48.4	60.0 VESA XGA (60Hz)
1024 x 768 56.5	70.1 VESA XGA (70Hz)
1024 x 768 60.0	75.0 VESA XGA (75Hz)
1024 x 768 68.7	85.0 VESA XGA (85Hz)
1152 x 864 67.5	75.0 VESA			1152 x 864 (75Hz)
1280 x 768 47.7	60.0 VESA W-XGA (60Hz)
1280 x 800 49.7	60.0 VESA			1280 x 800 (60Hz)
1280 x 960 60.0	60.0 VESA			1280 x 960 (60Hz)
1280 x 1024	64.0 60.0 VESA SXGA (60Hz)
1280 x 1024	80.0 75.0 VESA SXGA (75Hz)
1280 x 1024	91.1 85.0 VESA SXGA (85Hz)
1400 x 1050	65.2 60.0 VESA SXGA+ (60Hz)
1600 x 1200	75.0 60.0 VESA UXGA (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a PC.

• Some PCs may have multiple display screen modes. Use of some of these modes will not be possible with this projector.
• Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.
• Although the projector can display signals with resolution up to UXGA (1600x1200), the signal will be converted to the projector's panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and projector panel are identical.
  • Automatic adjustment may not function correctly with some input signals.
• The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.

Initial set signals

The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, adjust the items V POSITION and H POSITION in the IMAGE menu.

Resolution (H x V)	Horizontal signal timing (μs)				Vertical signal timing (lines)				Signal mode
	(A)	(B)	(C)	(D)	(a)	(b)	(c)	(d)
720 x 400	2.0	3.0	20.3	1.0	3	42	400	1	TEXT
640 x 480	3.8	1.9	25.4	0.6	2	33	480	10	VGA (60Hz)
640 x 480	1.3	4.1	20.3	0.8	3	28	480	9	VGA (72Hz)
640 x 480	2.0	3.8	20.3	0.5	3	16	480	1	VGA (75Hz)
640 x 480	1.6	2.2	17.8	1.6	3	25	480	1	VGA (85Hz)
800 x 600	2.0	3.6	22.2	0.7	2	22	600	1	SVGA (56Hz)
800 x 600	3.2	2.2	20.0	1.0	4	23	600	1	SVGA (60Hz)
800 x 600	2.4	1.3	16.0	1.1	6	23	600	37	SVGA (72Hz)
800 x 600	1.6	3.2	16.2	0.3	3	21	600	1	SVGA (75Hz)
800 x 600	1.1	2.7	14.2	0.6	3	27	600	1	SVGA (85Hz)
832 x 624	1.1	3.9	14.5	0.6	3	39	624	1	Mac 16" mode
1024 x 768	2.1	2.5	15.8	0.4	6	29	768	3	XGA (60Hz)
1024 x 768	1.8	1.9	13.7	0.3	6	29	768	3	XGA (70Hz)
1024 x 768	1.2	2.2	13.0	0.2	3	28	768	1	XGA (75Hz)
1024 x 768	1.0	2.2	10.8	0.5	3	36	768	1	XGA (85Hz)
1152 x 864	1.2	2.4	10.7	0.6	3	32	864	1	1152 x 864 (75Hz)
1280 x 768	1.7	2.5	16.0	0.8	3	23	768	1	W-XGA (60Hz)
1280 x 800	1.6	2.4	15.3	0.8	3	24	800	1	1280 x 800 (60Hz)
1280 x 960	1.0	2.9	11.9	0.9	3	36	960	1	1280 x 960 (60Hz)
1280 x 1024	1.0	2.3	11.9	0.4	3	38	1024	1	SXGA (60Hz)
1280 x 1024	1.1	1.8	9.5	0.1	3	38	1024	1	SXGA (75Hz)
1280 x 1024	1.0	1.4	8.1	0.4	3	44	1024	1	SXGA (85Hz)
1400 x 1050	1.2	2.0	11.4	0.7	3	33	1050	1	SXGA+ (60Hz)
1600 x 1200	1.2	1.9	9.9	0.4	3	46	1200	1	UXGA (60Hz)

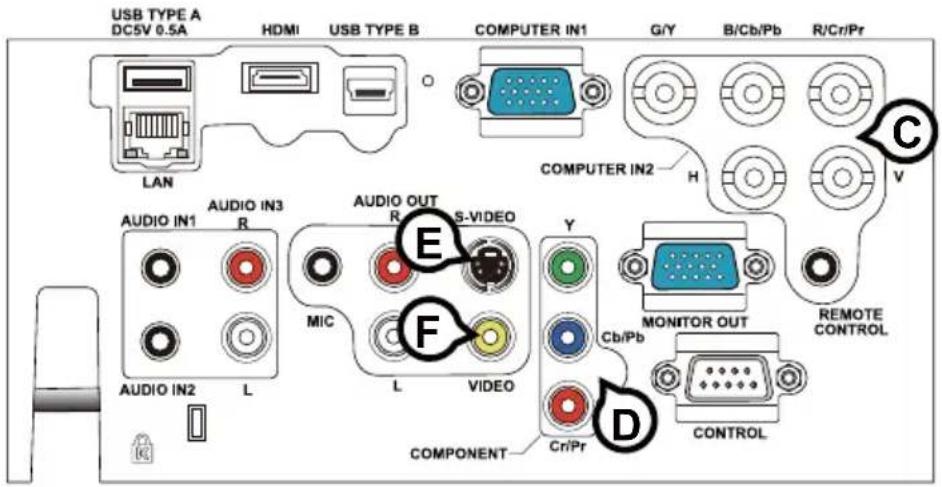

Connection to the ports

NOTICE ▶ Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed.

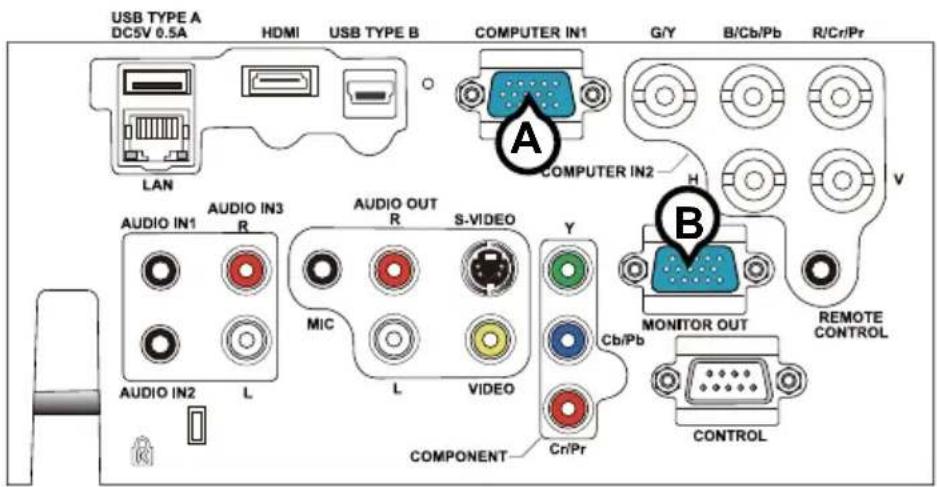

ⒶCOMPUTER IN1, ⒷMONITOR OUT

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. signal: TTL level (positive/negative)
- Composite sync. signal: TTL level

- Video signal:

-Y, Analog, 1.0±0.1Vp-p with composite sync, 75Ω terminated

-Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated

-Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated

- System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60

Pin	Signal Pin Signal
1	Video Red, Cr/Pr	9	(No connection)
2	Video Green, Y 10 Ground
3	Video Blue, Cb/Pb	11	(No connection)
4	(No connection)	12	A: SDA (DDC data), (No connection)B: (No connection)
5	Ground
6	Ground Red, Ground Cr/Pr	13	H. sync / Composite sync., (No connection)
7	Ground Green, Ground Y 14 V. sync., (No connection)
8	Ground Blue, Ground Cb/Pb	15	A: SCL (DDC clock), (No connection)B: (No connection)

©COMPUTER IN2 (G/Y, B/Cb/Pb, R/Cr/Pr, H, V)

• BNC jack x 5
  • Video : Analog 0.7Vp-p, 75Ω terminator
  • H/V, sync, : TTL level (positive/negative)
  • Composite sync, : TTL level

(D)COMPONENT (Y, Cb/Pb, Cr/Pr)

RCA jack x3

- System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60, 1080p@50/60

Port Signal
Y	Component video Y, 1.0±0.1Vp-p with composite sync, 75Ω terminator
Cb/Pb	Component video Cb/Pb, 0.7±0.1Vp-p, 75Ω terminator
Cr/Pr	Component video Cr/Pr, 0.7±0.1Vp-p, 75Ω terminator

ES-VIDEO

Mini DIN 4pin jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

Pin Signal
1	Color signal 0.286Vp-p (NTSC, burst), 75Ω terminatorColor signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2 Brightness signal, 1.0Vp-p, 75Ω terminator
3 Ground
4 Ground

FVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)
  • 1.0±0.1Vp-p, 75Ω terminator

©GHDMI

• Type :Digital audio/video connector
  • Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)

Pin	Signal Pin Signal Pin Signal
1	T.M.D.S. Data2 +	8	T.M.D.S. Data0 Shield	15	SCL
2 T	M.D.S. Data2 Shield 9 T.M.D.S. D	Data0 - 16 SDA
3	T.M.D.S. Data2 -	10	T.M.D.S. Clock +	17	DDC/CEC Ground
4	T.M.D.S. Data1 +	11	T.M.D.S. Clock Shield	18	+5V Power
5	T.M.D.S. Data1 Shield	12	T.M.D.S. Clock -	19	Hot Plug Detect
6 T	M.D.S. Data1 - 13 CEC
7 T	M.D.S. Data0 +	14 Reserved(N.C. on device)

①AUDIO IN1, ①AUDIO IN2

MREMOTE CONTROL K IN L OUT

• To be connected with the remote control that came with the projector.

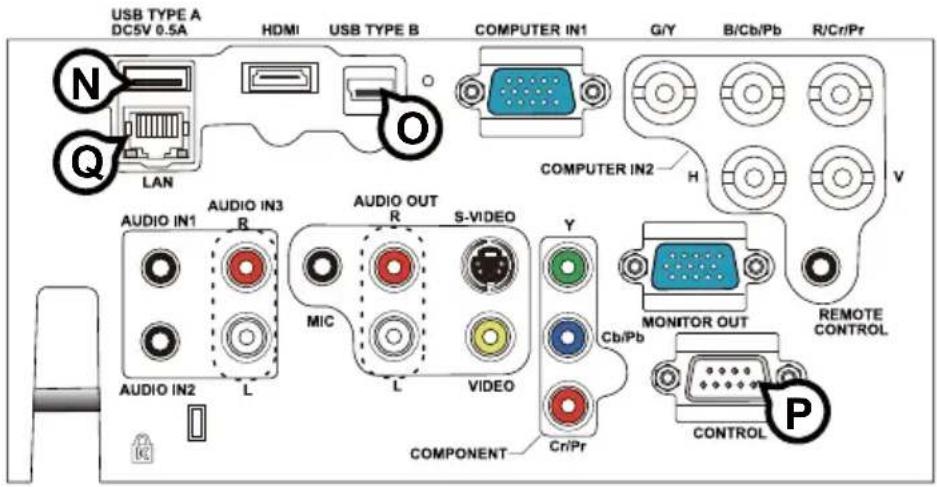

NUSB TYPE A

USB A type jack

Pin	Signal
1 +5V
2 - Data
3 + Data
4 Ground

©USB TYPE B

USB B type jack

Pin $ignal

1 +5V

2 - Data

3 + Data

4 Ground

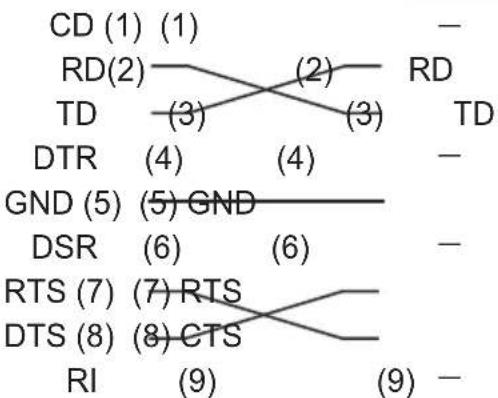

©CONTROL

D-sub 9pin plug

- About the details of RS-232C communication, please refer to the section "RS-232C Communication".

Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2	RD	5	Ground	8	CTS
3 TD 6 (No connection) 9 (No connection)

©LAN

RJ-45 jack

Pin	Signal Pin	Signal Pin	Signal
1	TX+	4	-	7
2	TX-	5	-	8
3	RX+	6	RX-

To input SCART RGB signal;

ex.

To input SCART RGB signal to the projector, use a SCART to RCA cable. Connect the plugs refer to above ex.. For more reference, please consult your dealer.

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the projector can be controlled with RS-232C commands from the computer. For details of RS-232C commands, refer to RS-232C Communication / Network command table (17).

Connection

1. Turn off the projector and the computer.
2. Connect the projector's CONTROL port and the computer's RS-232C port with a RS-232C cable (cross). Use the cable that fulfills the specification shown in figure
3. Turn the computer on, and after the computer has started up turn the projector on.
4. Set the COMMUNICATION TYPE to OFF. (OPTION menu - SERVICE - COMMUNICATION in the User's Manual - Operating Guide)

RS-232C Cable (cross)

RS-232C port of the computer

CONTROL port of the projector

Communication settings

1. Protocol

19200bps,8N1

2. Command format ("h" shows hexadecimal)

Byte Number

0 1

2 3 4

5 6

7

8

9

1

0

1

1 1

2

CommandAction

Header Data

Header code

Packet L

Data size

CRC flag

Action Type

Setting code

L

H

L

H

L

H

L

H

L

H

L

H

L

H

Change setting to desired value [(cL)(cH)] by [(eL)(eH)].

BEh

EFh 03h 06h

00h

(aL)

(aH)

01h

00h

(bL)

(bH)

(cL)

(cH)

Read projector internal setup value [(bL) (bH)].

(aL)

(aH)

02h

00h

(bL)

(bH)

00h

00h

Increment setup value [(bL)(bH)] by 1.

(aL)

(aH)

04h

00h

(bL)

(bH)

00h

00h

Decrement setup value [(bL)(bH)] by 1.

(aL)

(aH)

05h

00h

(bL)

(bH)

00h

00h

Run a command [(bL)(bH)].

(aL)

(aH)

06h

00h

(bL)

(bH)

00h

00h

[Header code] [Packet] [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0\~4.

[CRC flag]

For byte number 5, 6, refer to RS-232C Communication / Network command table (17).

[Action]

Set functional code to byte number 7, 8.

= [01h, 00h], = [02h, 00h], = [04h, 00h]

= [05h, 00h], = [06h, 00h]

Refer to the Communication command table (above).

[Type] [Setting code]

For byte number 9\~12, refer to RS-232C Communication / Network command table (17).

3. Response code / Error code ("h" shows hexadecimal)

(1) ACK reply : 06h

When the projector receives the Set, Increment, Decrement or Execute command correctly, the projector changes the setting data for the specified item by [Type], and it returns the code.

(2) NAK reply : 15h

When the projector cannot understand the received command, the projector returns the error code. In such a case, check the sending code and send the same command again

(3) Error reply : 1Ch + 0000h

When the projector cannot execute the received command for any reasons, the projector returns the error code. In such a case, check the sending code and the setting status of the projector.

(4) Data reply : 1Dh + xxxxh

When the projector receives the GET command correctly, the projector returns the response code and 2 bytes of data.

NOTE • For connecting the projector to your devices, please read the manual for each device and connect them correctly with suitable cables.

• Operation cannot be guaranteed when the projector receives an undefined command or data.
• Provide an interval of at least 40ms between the response code and any other code.
• The projector outputs test data when the power supply is switched ON and when the lamp is lit. Ignore this data.
• Commands are not accepted during warm-up.
• When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, the projector returns the error code to the computer.

Command Control via the Network

When the projector connects network, the projector can be controlled with RS-232C commands from the computer with web browser.

For details of RS-232C commands, refer to RS-232C Communication / Network command table (17).

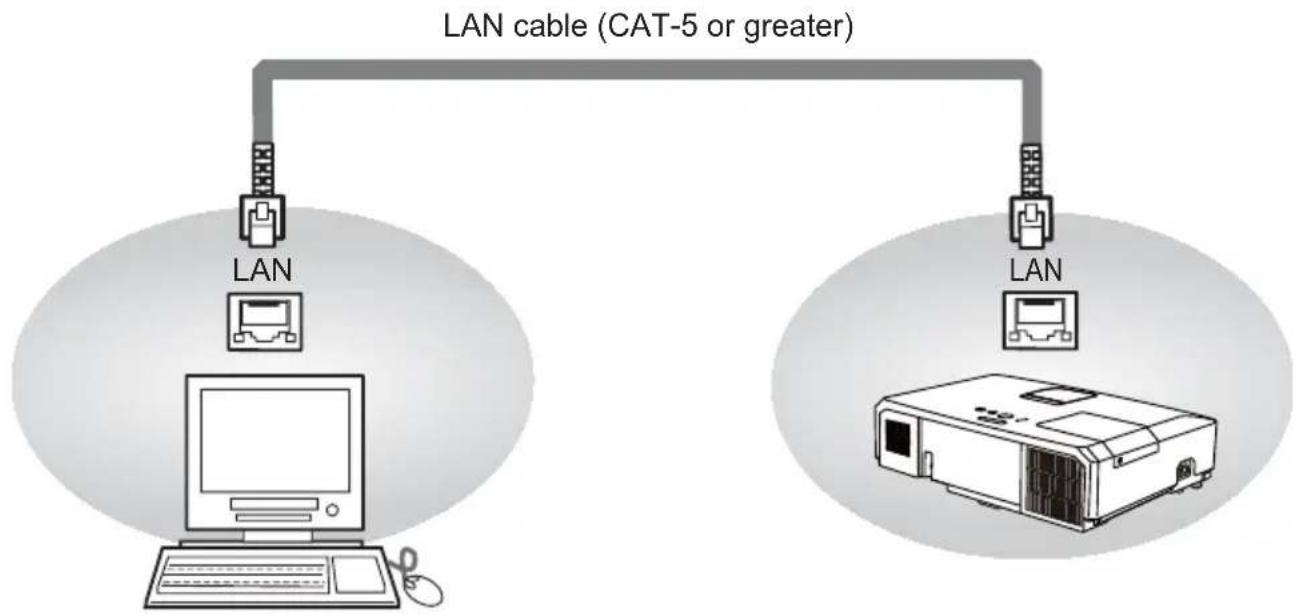

Connection

1. Turn off the projector and the computer.
2. Connect the projector's LAN port and the computer's LAN port with a LAN cable. Use the cable that fulfills the specification shown in figure (Use CAT-5 or greater LAN Cable when LAN ports are used)
3. Turn the computer on and after the computer has started up turn the projector on.

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

Configure the following items form a web browser when command control is used.

Port Settings
Network Control Port1 (Port: 23)	Port open	Click the [Enable] check box to open [Network Control Port1 (Port: 23)] to use TCP #23. Default setting is “Enable”.
	Authentication	Click the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Disable”.
Network Control Port2 (Port: 9715)	Port open	Click the [Enable] check box to open [Network Control Port2 (Port: 9715)] to use TCP #9715. Default setting is “Enable”.
	Authentication	Click the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Enable”.

When the authentication setting is enabled, the following settings are required.

Security Settings
Network Control	Authentication Password	Enter the desired authentication password. This setting will be the same for [Network Control Port1 (Port: 23)] and [Network Control Port2 (Port: 9715)]. Default setting is blank.
	Re-enter Authentication Password

Command control settings

[TCP #23]

1. Command format

Same as RS-232C communication, refer to RS-232C Communicaton command format.

2. Response code / Error code ("h" shows hexadecimal)

Four of the response / error code used for TCP#23 are the same as RS-232C Communication (1)\~(4). One authentication error reply (5) is added.

(1) ACK reply : 06h

Refer to RS-232C communication (10).

(2) NAK reply : 15h

Refer to RS-232C communication (10).

(3) Error reply : 1Ch + 0000h

Refer to RS-232C communication (10).

(4) Data reply : 1Dh + xxxxh

Refer to RS-232C communication (10).

(5) Authentication error reply : 1Fh + 0400h

When authentication error occurred, the projector returns the error code.

[TCP #9715]

1. Command format

The commands some datum are added to the head and the end of the ones of TCP#9715 are used.

Header Data	length RS-232	C command Check sum	Connection ID
0×02 0×0D	13 bytes 1 byte	1 byte

[Header]

02, Fixed

[Data Length]

RS-232C commands byte length (0×0D, Fixed)

[RS-232C commands]

Refer to RS-232C Communication command format (10).

[Check Sum]

This is the value to make zero on the addition of the lower 8 bits from the header to the checksum.

[Connection ID]

Random value from 0 to 255 (This value is attached to the reply data).

NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data.

- Provide an interval of at least 40ms between the response code and any other code.

- Commands are not accepted during warm-up.

2. Response code / Error code ("h" shows hexadecimal)

The connection ID is attached for the TCP#23's response / error codes are used. The connection ID is same as the sending command format.

(××h : connection ID)

(1) ACK reply : 06h + xxh
(2) NAK reply : 15h + xxh
(3) Error reply : 1Ch + 0000h + xxh
(4) Data reply : 1Dh + xxxxh + xxh
(5) Authentication error reply : 1Fh + 0400h + xxh
(6) Projector busy reply: 1Fh + xxxxh + xxh

When the projector is too busy to receive the command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

Automatic Connection Break

The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established.

Authentication

The projector does not accept commands without authentication success when authentication is enabled. The projector uses a challenge response type authentication with an MD5 (Message Digest 5) algorithm. When the projector is using a LAN, a random 8 bytes will be returned if authentication is enabled. Bind this received 8 bytes and the authentication password and digest this data with the MD5 algorithm and add this in front of the commands to send.

Following is a sample if the authentication password is set to “password” and the random 8 bytes are “a572f60c”.

1) Select the projector.
2) Receive the random 8 bytes "a572f60c" from the projector.
3) Bind the random 8 bytes "a572f60c" and the authentication password "password" and it becomes "a572f60cpassword".
4) Digest this bind "a572f60cpassword" with MD5 algorithm.

It will be "e3d97429adffa11bce1f7275813d4bde".

5) Add this "e3d97429adffa11bce1f7275813d4bde" in front of the commands and send the data.

Send “e3d97429adffa11bce1f7275813d4bde”+command.

6) When the sending data is correct, the command will be performed and the reply data will be returned. Otherwise, an authentication error will be returned.

NOTE • As for the transmission of the second or subsequent commands, the authentication data can be omitted when the same connection.

Network Bridge Communication

This projector is equipped with NETWORK BRIDGE function.

When the projector connects to the computer by LAN communicaton, an external device that is connected with this projector by RS-232C communication can be controlled from the computer as a network terminal.

For details, see the 3.7 Controlling the external device via the projector(using the NETWORK BRIDGE function) - Network Guide.

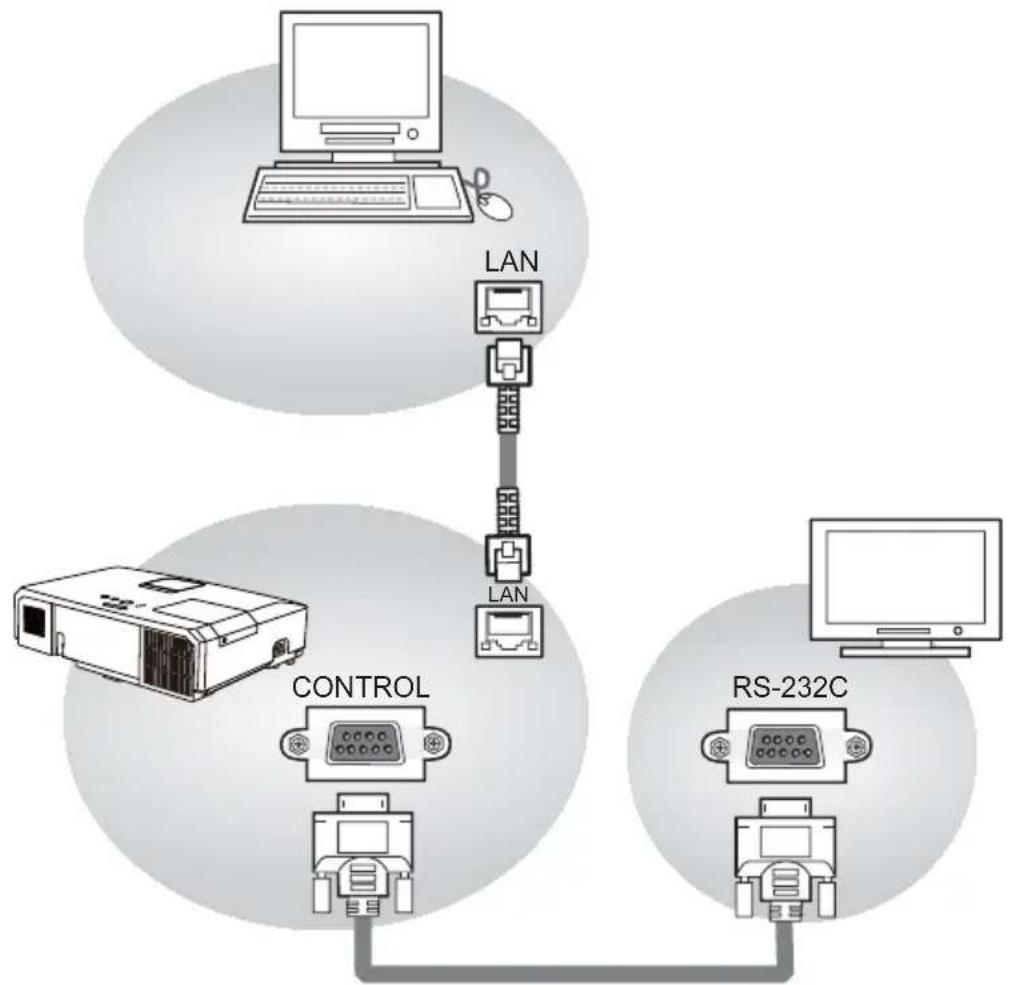

Connection

1. Connect the computer's LAN port and the projector's LAN port with a LAN cable.
2. Connect the projector's CONTROL port and the RS-232C port of the devices that you want to control with a RS-232C cable.
3. Turn the computer on and after the computer has started up turn the projector on.
4. Set the COMMUNICATION TYPE to NETWORK BRIDGE. (OPTION menu - SERVICE - COMMUNICATION in the User's Manual - Operating Guide)

Communication settings

For communication setting, use the OPTION - SERVICE - COMMUNICATION menu. (OPTION menu - SERVICE - COMMUNICATION in the User's Manual - Operating Guide)

Item Condition
BAUD RATE 4800bps / 9600bps / 19200bps / 38400bps
Data length 8 bit (fixed)
PARITY NONE/ODD/EVEN
Start bit 1 bit (fixed)
Stop bit 1 bit (fixed)
Transmission method HALF-DUPLEX/FULL-DUPLEX

NOTE • For connecting the projector to your devices, please read the manual for each device and connect them correctly with suitable cables.

• Turn off (the power of) both the projector and other devices and unplug before connecting them.
• For details of Transmission method, refer to 3.8.4 Transmission method-Network Guide.

RS-232C Communication / Network command table

Names Operation Type Header								Command Data
								CRC A	action Type	Setting code
Power	Set	Turn off BE EF 03 06 00 2A D3 01 00 00 60 00 00
		Turn on BE EF 03 06 00 BA D2 01 00 00 60 01 00
	Get		BE EF 03 06 00 19 D3 02 00 00 60 00 00
			[Example return]00 00 01 00 02 00[Off] [On] [Cool down]
Input Source	Set	COMPUTER IN1 BE EF 03 06 00 FE D2 01 00 00 20 00 00
		COMPUTER IN2 BE EF 03 06 00 3E D0 01 00 00 20 04 00
		HDMI BE EF 03 06 00 0E D2 01 00 00 20 03 00
		COMPONENT BE EF 03 06 00 AE D1 01 00 00 20 05 00
		S-VIDEO BE EF 03 06 00 9E D3 01 00 00 20 02 00
		VIDEO BE EF 03 06 00 6E D3 01 00 00 20 01 00
		USB TYPE A BE EF 03 06 00 5E D1 01 00 00 20 06 00
		LAN BE EF 03 06 00 CE D5 01 00 00 20 0B 00
		USB TYPE B BE EF 03 06 00 FE D7 01 00 00 20 0C 00
	Get		BE EF 03 06 06 00 CD D2 02 00 00 20 00 00
Error Status	Get		BE EF 03 06 00 D9 D8 02 00 20 60 00 00
			[Example return]00 00 01 00 02 00 03 00[Normal] [Cover error] [Fan error] [Lamp error]04 00 05 00 07 00 08 00[Temp error] [Air flow error] [Cold error] [Filter error]
MAGNIFY	Get		BE EF 03 06 00 7C D2 02 00 07 30 00 00
	Increment BE EF		03 06 00 1A D2 04 00 07 30 00 00
	Decrement		BE EF 03 06 00 CB D3 05 00 07 30 00 00
FREEZE	Set	NORMAL	BE EF 03 06 00 83 D2 01 00 02 30 00 00
		FREEZE	BE EF 03 06 00 13 D3 01 00 02 30 01 00
	Get		BE EF 03 06 00 B0 D2 02 00 02 30 00 00
PICTURE MODE	Set	NORMAL	BE EF 03 06 00 23 F6 01 00 BA 30 00 00
		CINEMA	BE EF 03 06 00 B3 F7 01 00 BA 30 01 00
		DYNAMIC	BE EF 03 06 00 E3 F4 01 00 BA 30 04 00
		BOARD(BLACK)	BE EF 03 06 00 E3 EF 01 00 BA 30 20 00
		BOARD(GREEN)	BE EF 03 06 00 73 EE 01 00 BA 30 21 00
		WHITEBOARD	BE EF 03 06 00 83 EE 01 00 BA 30 22 00
		DAYTIME	BE EF 03 06 00 E3 C7 01 00 BA 30 40 00
	Get		BE EF 03 06 00 10 F6 02 00 BA 30 00 00
			[Example return]00 00 01 00 04 00 10 00[Normal] [Cinema] [Dynamic] [Custom]20 00 21 00 22 00 40 00[BOARD(BLACK)][BOARD(GREEN)][WHITEBOARD][DAY TIME]
BRIGHTNESS	Get		BE EF 03 06 00 89 D2 02 00 03 20 00 00
	Increment BE EF		03 06 00 EF D2 04 00 03 20 00 00
	Decrement		BE EF 03 06 00 3E D3 05 00 03 20 00 00
BRIGHTNESS Reset	Execute BE EF		03 06 00 58 D3 06 00 00 70 00 00
CONTRAST	Get		BE EF 03 06 00 FD D3 02 00 04 20 00 00
	Increment BE EF		03 06 00 9B D3 04 00 04 20 00 00
	Decrement		BE EF 03 06 00 4A D2 05 00 04 20 00 00
CONTRAST Reset	Execute BE EF		03 06 00	A4 D2	06 00 01	70 00 00
GAMMA	Set	1 DEFAULT BE	EF 03 06	00 07	E9 01 00	A1 30 20	00
		1 CUSTOM BE	EF 03 06	00 07	FD 01 00	A1 30 10	00
		2 DEFAULT BE	EF 03 06	00 97	E8 01 00	A1 30 21	00
		2 CUSTOM BE	EF 03 06	00 97	FC 01 00	A1 30 11	00
		3 DEFAULT BE	EF 03 06	00 67	E8 01 00	A1 30 22	00
		3 CUSTOM BE	EF 03 06	00 67	FC 01 00	A1 30 12	00
		4 DEFAULT BE	EF 03 06	00 F7	E9 01 00	A1 30 23	00
		4 CUSTOM BE	EF 03 06	00 F7	FD 01 00	A1 30 13	00
		5 DEFAULT BE	EF 03 06	00 C7	EB 01 00	A1 30 24	00
		5 CUSTOM BE	EF 03 06	00 C7	FF 01 00	A1 30 14	00
		6 DEFAULT BE	EF 03 06	00 57	EA 01 00	A1 30 25	00
		6 CUSTOM BE	EF 03 06	00 57	FE 01 00	A1 30 15	00
	Get BE EF 03		06 00 F4	F0 02	00 A1 30	00 00
User Gamma Pattern	Set	Off BE EF	03 06 00	FB FA	01 00 80	30 00 00
		9 steps gray scale	BE EF 03	06 00	6B FB 01	00 80 30	01 00
		15 steps gray scale	BE EF 03	06 00	00 9B FB	01 00 80	30 02 00
		Ramp	BE EF 03	06 00	00 0B FA	01 00 80	30 03 00
	Get BE EF 03		06 00 C8	FA	02 00 80	30 00 00
User Gamma Point 1	Get BE EF		03 06 00	08 FE	02 00 90	30 00 00
	Increment		BE EF	03	06 00	6E FE	04 00	90 30	00 00
	Decrement		BE EF	03	06 00	BF FF	05 00	90 30	00 00
User Gamma Point 1 Reset	Execute BE EF		03 06 00	58 C2	06 00 50	70 00 00
User Gamma Point 2	Get BE EF		03 06 00	F4 FF	02 00 91	30 00 00
	Increment		BE EF	03 06	00 92	FF 04 00	91 30 00	00
	Decrement		BE EF	03 06	00 43	FE 05 00	91 30 00	00
User Gamma Point 2 Reset	Execute BE EF		03 06 00	A4 C3	06 00 51	70 00 00
User Gamma Point 3	Get BE EF		03 06 00	B0 FF	02 00 92	30 00 00
	Increment		BE EF	03	06 00	D6 FF	04 00	92 30	00 00
	Decrement		BE EF	03 06	00 07	FE 05 00	92 30 00	00
User Gamma Point 3 Reset	Execute BE EF		03 06 00	E0 C3	06 00 52	70 00 00
User Gamma Point 4	Get BE EF		03 06 00	4C FE	02 00 93	30 00 00
	Increment		BE EF	03 06	00 2A	FE 04 00	93 30 00	00
	Decrement		BE EF	03	06 00	FB FF	05 00	93 30	00 00
User Gamma Point 4 Reset	Execute BE EF		03 06 00	1C	C2 06 00	53 70 00	00
User Gamma Point 5	Get BE EF		03 06 00	38 FF	02 00 94	30 00 00
	Increment		BE EF	03 06	00 5E	FF 04 00	94 30 00	00
	Decrement		BE EF	03 06	00 8F	FE 05 00	94 30 00	00
User Gamma Point 5 Reset	Execute BE EF		03 06 00	68 C3	06 00 54	70 00 00
User Gamma Point 6	Get BE EF		03 06 00	C4 FE	02 00 95	30 00 00
	Increment		BE EF	03	06 00	A2 FE	04 00	95 30	00 00
	Decrement		BE EF	03 06	00 73	FF 05 00	95 30 00	00
User Gamma Point 6 Reset	Execute BE EF		03 06 00	94 C2	06 00 55	70 00 00

RS-232C Communication / Network command table (continued)

Names Operation Type Header									Command Data
									CRC A	Action Type	Setting code
User Gamma Point 7	Get BE EF 03	06 00 80	FE 02	00 96	3	0 00 00
	Increment BE EF	03 06 00	E6 FE	04 00 96	6	30 00 00
	Decrement BE EF	03 06 00	37 FF	05 00 96	6	30 00 00
User Gamma Point 7 Reset	Execute BE EF	03 06 00	D0 C2	06 00 56	7	00 00
User Gamma Point 8	Get BE EF 03	06 00 70	FF 02	00 97	3	00 00
	Increment BE EF	03 06 00	1A FF	04 00 97	3	00 00
	Decrement BE EF	03 06 00	CB FE	05 00 97	3	00 00
User Gamma Point 8 Reset	Execute BE EF	03 06 00	2C C3	06 00 57	7	00 00
COLOR TEMP	Set	1 HIGH BE EF	03 06 00	0B F5	01 00	B0 30 03	00
		1 CUSTOM	BE EF 03 06	00 CB F8	01 00 B0	30 13 00
		2 MID BE EF	03 06 00	9B F4	01 00 B0	30 02 00
		2 CUSTOM	BE EF 03 06	00 5B F9	01 00 B0	30 12 00
		3 LOW	BE EF 03 06	00 6B F4	01 00 B0	30 01 00
		3 CUSTOM	BE EF 03 06	00 AB F9	01 00 B0	30 11 00
		4 Hi-BRIGHT-1	BE EF 03 06	00 3B F2	01 00 B0	30 08 00
		4 CUSTOM	BE EF 03 06	00 FB FF	01 00 B0	30 18 00
		5 Hi-BRIGHT-2	BE EF 03 06	00 AB F3	01 00 B0	30 09 00
		5 CUSTOM	BE EF 03 06	00 6B FE	01 00 B0	30 19 00
		6 Hi-BRIGHT-3	BE EF 03 06	00 5B F3	01 00 B0	30 0A 00
		6 CUSTOM	BE EF	03	06 00	9B FE	01 00	B0 30	1A 00
	Get BE EF 03	06 00 C8	F5 02	00 B0	30 00	00
COLOR TEMP GAIN R	Get BE EF 03	06 00 34	F4 02	00 B1	30 00 00
	Increment BE EF	03 06 00	52 F4	04 00 B1	30 00 00
	Decrement BE EF	03 06 00	83 F5	05 00 B1	30 00 00
COLOR TEMP GAIN R Reset	Execute BE EF	03 06 00	10 C6	06 00 46	70 00 00
COLOR TEMP GAIN G	Get BE EF 03	06 00 70	F4 02	00 B2	30 00 00
	Increment BE EF	03 06 00	16 F4	04 00 B2	30 00 00
	Decrement BE EF	03 06 00	C7 F5	05 00 B2	30	00 00
COLOR TEMP GAIN G Reset	Execute BE EF	03 06 00	EC C7	06 00 47	70 00 00
COLOR TEMP GAIN B	Get BE EF 03	06 00 8C	F5 02	00 B3	30 00	00
	Increment BE EF	03 06 00	EA F5	04 00 B3	30	00 00
	Decrement BE EF	03 06 00	3B F4	05 00 B3	30 00	00
COLOR TEMP GAIN B Reset	Execute BE EF	03 06 00	F8 C4	06 00	48 70 00	00
COLOR TEMP OFFSET R	Get BE EF 03	06 00 04	F5 02	00 B5	30 00 00
	Increment BE EF	03 06 00	62 F5	04 00 B5	30 00 00
	Decrement BE EF	03 06 00	B3 F4	05 00 B5	30 00 00
COLOR TEMP OFFSET R Reset	Execute BE EF	03 06 00	40 C5	06 00 4A	70 00 00
COLOR TEMP OFFSET G	Get BE EF 03	06 00 40	F5 02	00 B6	30 00 00
	Increment BE EF	03 06 00	26 F5	04 00 B6	30 00 00
	Decrement BE EF	03 06 00	F7 F4	05 00 B6	30 00 00
COLOR TEMP OFFSET G Reset	Execute BE EF	03 06 00	BC C4	06 00 4B	70	00 00
COLOR TEMP OFFSET B	Get BE EF 03	06 00 BC	F4 02	00 B7	30 00 00
	Increment BE EF	03 06 00	DA F4	04 00 B7	30 00 00
	Decrement BE EF	03 06 00	0B F5	05 00 B7	30 00 00
COLOR TEMP OFFSET B Reset	Execute BE EF	03 06 00	C8 C5	06 00 4C	70 00 00
COLOR	Get BE EF 03	06 00 B5	72 02	00 02	22 00 00
	Increment BE EF	03 06 00	D3	72 04 00	02 22 00	00
	Decrement BE EF	03 06 00	02 73	05 00 02	22 00 00
COLOR Reset	Execute BE EF	03 06 00	80	D0 06	00 0A 70	00 00
TINT	Get BE EF 03	06 00 49	73 02	00 03	22 00 00
	Increment BE EF	03 06 00	2F 73	04 00 03	22 00 00
	Decrement BE EF	03 06 00	FE 72	05	00 03	22 00 00
TINT Reset	Execute BE EF	03 06 00	7C D1	06 00 0B	70 00 00
SHARPNESS	Get BE EF 03	06 00 F1	72 02	00 01	22 00 00
	Increment BE EF	03 06 00	97 72	04 00 01	22 00 00
	Decrement BE EF	03 06 00	46 73	05 00 01	22 00 00
SHARPNESS Reset	Execute BE EF	03 06 00	C4 D0	06 00 09	70 00 00
ACTIVE IRIS	Set	OFF	BE EF	03 06	00 0B	22 01 00	04 33 00	00
		THEATER	BE EF	03 06	00 CB 2F	01 00 04	33	10 00
		PRESENTATION	BE EF	03	06 00	5B 2E	01 00	04 33	11 00
	Get BE EF 03	06 00 38	22 02	00 04	33 00	00
MY MEMORY Load	Set	1	BE EF	03	06 00	0E D7	01 00	14 20	00 00
		2	BE EF	03 06	00 9E D6	01 00 14	20	01 00
		3	BE EF	03	06 00	6E D6	01 00	14 20	02 00
		4	BE EF	03 06	00 FE D7	01 00 14	20	03 00
MY MEMORY Save	Set	1	BE EF	03	06 00	F2 D6	01 00	15 20	00 00
		2	BE EF	03	06 00	62 D7	01 00	15 20	01 00
		3	BE EF	03	06 00	92 D7	01 00	15 20	02 00
		4	BE EF	03	06 00	02 D6	01 00	15 20	03 00
ASPECT	Set	4:3 BE EF	03 06 00	9E D0	01 00 08	20	00 00
		16:9	BE EF	03 06	00 0E D1	01 00 08	20 01 00
		16:10	BE EF	03 06	00 3E D6	01 00 08	20 0A 00
		14:9	BE EF	03 06	00 CE D6	01 00 08	20 09 00
		(*) NATIVE	BE EF	03	06 00	5E D7	01 00	08 20	08 00
		NORMAL	BE EF	03 06	00 5E DD	01 00 08	20	10 00
	Get BE EF 03		06 00 AD	D0 02	00 08	20 00	00
OVER SCAN	Get BE EF 03		06 00 91	70 02	00 09	22 00	00
	Increment BE EF		03 06 00	F7 70	04 00 09	22	00 00
	Decrement BE EF		03 06 00	26 71	05 00 09	22	00 00
OVER SCAN Reset	Execute BE EF		03 06 00	EC D9	06 00 27	70 00 00
V POSITION	Get BE EF 03		06 00	0D 83	02 00 00	21	00 00
	Increment BE EF		03 06 00	6B	83 04 00	00 21	00 00
	Decrement BE EF		03 06 00	BA	82 05 00	00 21	00 00
V POSITION Reset	Execute BE EF		03 06 00	E0 D2	06 00 02	70	00 00

(*) only for CP-WX4021N

RS-232C Communication / Network command table (continued)

Names Operation Type Header								Command Data
								CRC Action Type	Setting code
H POSITION	Get BE EF 03		06 00 F1	82 02	00 01 2	1 00 00
	Increment BE EF		03 06 00	97 82	04 00 01	21 00 00
	Decrement BE EF		03 06 00	46 83	05 00 01	21 00 00
H POSITION Reset	Execute BE EF		03 06 00	1C D3	06 00 03	70 00 00
H PHASE	Get BE EF 03		06 00 49	83 02	00 03 2	1 00 00
	Increment BE EF		03 06 00	2F 83	04 00 03	21 00 00
	Decrement BE EF		03 06 00	FE 82	05 00 03	21 00 00
H SIZE	Get BE EF 03		06 00 B5	82 02	00 02 2	1 00 00
	Increment BE EF		03 06 00	D3 82	04 00 02	21 00 00
	Decrement BE EF		03 06 00	02 83	05 00 02	21 00 00
H SIZE Reset	Execute BE EF		03 06 00	68 D2	06 00 04	70 00 00
AUTO ADJUST EXECUTE	Execute BE EF		03 06 00	91 D0	06 00 0A	20 00 00
PROGRESSIVE	Set	OFF BE EF	03 06 00	4A 72	01 00 07	22 00 00
		TV	BE EF	03 06	00 DA 73	01 00 07	22 01 00
		FILM BE EF	03 06 00	2A 73	01 00 07	22 02 00
	Get BE EF 03		06 00 79	72 02	00 07 2	20 00 00
VIDEO NR	Set	LOW BE EF	03 06 00	26 72	01 00 06	22 01 00
		MID	BE EF	03 06	00 D6 72	01 00 06	22 02 00
		HIGH	BE EF	03 06	00 46 73	01 00 06	22 03 00
	Get BE EF 03		06 00 85	73 02	00 06 2	20 00 00
COLOR SPACE	Set	AUTO	BE EF	03 06	00 0E 72	01 00 04	22 00 00
		RGB BE EF	03 06 00	9E 73	01 00 04	22 01 00
		SMPTE240	BE EF	03 06	00 6E 73	01 00 04	22 02 00
		REC709	BE EF	03 06	00 FE 72	01 00 04	22 03 00
		REC601	BE EF	03 06	00 CE 70	01 00 04	22 04 00
	Get BE EF 03		06 00 3D	72 02	00 04 2	20 00 00
COMPONENT	Set	COMPONENT BE	EF 03 06	00 4A	D7 01	00 17 20	00 00
		SCART RGB	BE EF	03 06	00 DA D6	01 00 17	20 01 00
	Get BE EF 03		06 00 79	D7 02	00 17 2	20 00 00
S-VIDEO FORMAT	Set	AUTO	BE EF	03 06	00 E6 70	01 00 12	22 0A 00
		NTSC BE EF	03 06 00	86 74	01 00 12	22 04 00
		PAL	BE EF	03 06	00 16 75	01 00 12	22 05 00
		SECAM	BE EF	03 06	00 16 70	01 00 12	22 09 00
		NTSC4.43	BE EF	03 06	00 26 77	01 00 12	22 02 00
		M-PAL	BE EF	03 06	00 86 71	01 00 12	22 08 00
		N-PAL	BE EF	03 06	00 76 74	01 00 12	22 07 00
	Get BE EF 03		06 00 75	76 02	00 12 2	20 00 00
C-VIDEO FORMAT	Set	AUTO	BE EF	03	06 00	A2 70	01 00	11 22	OA 00
		NTSC BE EF	03 06 00	C2 74	01 00 11	22 04 00
		PAL	BE EF	03	06 00	52 75	01 00	11 22	05 00
		SECAM	BE EF	03 06	00 52 70	01 00 11	22 09 00
		NTSC4.43	BE EF	03 06	00 62 77	01 00 11	22 02 00
		M-PAL	BE EF	03	06 00	C2 71	01 00	11 22	08 00
		N-PAL	BE EF	03	06 00	32 74	01 00	11 22	07 00
	Get BE EF 03		06 00 31	76 02	00 11 22	20 00 00

RS-232C Communication / Network command table (continued)

Names Operation Type Header									Command Data
									CRC A	Action Type	Setting code
HDMI FORMAT	Set	AUTO BE EF 03 06 00 BA 77 01 00 13 22 00 00
		VIDEO BE EF 03 06 00 2A 76 01 00 13 22 01 00
		COMPUTER BE EF 03 06 00 D A 76 01 00 13 22 02 00
	Get BE EF 03 06 00 89 77 02 00 13 22 00 00
HDMI RANGE	Set	AUTO BE EF 03 06 00 86 D 8 01 00 2 20 00 00
		NORMAL	BE EF 03 06 00 16 D 9 01 00 22 20 01 00
		ENHANCED	BE EF 03 06 00 E 6 D 9 01 00 22 20 02 00
	Get BE EF 03 06 00 B 5 D 8 02 00 22 20 00 00
COMPUTER IN1	Set	AUTO BE EF 03 06 00 CE D 6 01 00 10 20 03 00
		SYNC ON G OFF	BE EF 03 06 00 5E D 7 01 00 10 20 02 00
	Get BE EF 03 06 00 0D D 6 02 00 10 20 00 00
COMPUTER IN2	Set	AUTO BE EF 03 06 00 32 D 7 01 00 1 1 20 03 00
		SYNC ON G OFF	BE EF 03 06 00 A 2 D 6 01 00 11 20 02 00
	Get BE EF 03 06 00 F 1 D 7 02 00 1 1 20 00 00
FRAME LOCK - COMPUTER IN1	Set	OFF	BE EF 03 06 00 3B C 2 01 00 50 30 00 00
		ON	BE EF 03 06 00 AB C 3 01 00 50 30 01 00
	Get BE EF 03 06 00 08 C 2 02 00 50 30 00 00
FRAME LOCK - COMPUTER IN2	Set	OFF	BE EF 03 06 00 0B C 3 01 00 54 30 00 00
		ON	BE EF 03 06 00 9B C 2 01 00 54 30 01 00
	Get BE EF 03 06 00 38 C 3 02 00 54 30 00 00
FRAME LOCK - HDMI	Set	OFF	BE EF 03 06 00 7F C 2 01 00 53 30 00 00
		ON	BE EF 03 06 00 EF C 3 01 00 53 30 01 00
	Get BE EF 03 06 00 4C C 2 02 00 53 30 00 00
AUTO KEYSTONE V EXECUTE	Execute BE EF 03 06 00 E 5 D 1 06 00 0D 20 00 00
KEYSTONE V	Get BE EF 03 06 00 B 9 D 3 02 00 07 20 00 00
	Increment	BE EF 03 06 00 DF D 3 04 00 07 20 00 00
	Decrement	BE EF 03 06 00 0E D 2 05 00 07 20 00 00
KEYSTONE V Reset	Execute BE EF 03 06 00 08 D 0 06 00 0C 70 00 00
KEYSTONE H	Get BE EF 03 06 00 E 9 D 0 02 00 0B 20 00 00
	Increment	BE EF 03 06 00 00 8F D 0 04 00 0B 20 00 00
	Decrement	BE EF 03 06 00 06 00 5E D 1 05 00 0B 20 00 00
KEYSTONE H Reset	Execute BE EF 03 06 00 98 D 8 06 00 20 70 00 00
PERFECT FIT	Set	Disable	BE EF 03 06 00 FE 88 01 00 20 21 00 00
		Enable BE EF 03 06 00 6E 89 01 00 20 21 00 00
	Get BE EF 03 06 00 CD 88 02 00 20 21 00 00
PERFECT FIT Left Top -H	Get BE EF 03 06 00 31 89 02 00 21 21 00 00
	Increment	BE EF 03 06 00 57 89 04 00 21 21 00 00
	Decrement	BE EF 03 06 00 86 88 05 00 21 21 00 00
PERFECT FIT Left Top -V	Get BE EF 03 06 00 75 89 02 00 22 21 00 00
	Increment	BE EF 03 06 00 13 89 04 00 22 21 00 00
	Decrement	BE EF 03 06 00 C 2 88 05 00 22 21 00 00
PERFECT FIT Right Top -H	Get BE EF 03 06 00 89 88 02 00 23 21 00 00
	Increment	BE EF 03 06 00 EF 88 04 00 23 21 00 00
	Decrement	BE EF 03 06 00 3E 89 05 00 23 21 00 00
PERFECT FIT Right Top -V	Get BE EF 03 06 00 FD 89 02 00 24 21 00 00
	Increment	BE EF 03 06 00 9B 89 04 00 24 21 00 00
	Decrement	BE EF 03 06 00 4A 88 05 00 24 21 00 00
PERFECT FIT Left Bottom -H	Get BE EF 03	06 00 01	88 02	00 25	21	00 00
	Increment BE EF	03 06 00	67 88	04 00	25	21 00 00
	Decrement BE EF	03 06 00	B6	89	05 00	25	21 00 00
PERFECT FIT Left Bottom -V	Get BE EF 03	06 00 45	88 02	00 26	21	00 00
	Increment BE EF	03 06 00	23 88	04 00	26	21 00 00
	Decrement BE EF	03 06 00	F2	89	05 00	26	21 00 00
PERFECT FIT Right Bottom -H	Get BE EF 03	06 00 B9	89 02	00 27	21	00 00
	Increment BE EF	03 06 00	DF	89	04 00	27	21 00 00
	Decrement BE EF	03 06 00	OE	88	05 00	27	21 00 00
PERFECT FIT Right Bottom -V	Get BE EF 03	06 00 AD	8A	02	00 28	21	00 00
	Increment BE EF	03 06 00	CB	8A	04 00	28	21 00 00
	Decrement BE EF	03 06 00	1A	8B	05 00	28	21 00 00
PERFECT FIT Reset	Execute BE EF	03 06 00	D5	8A	06 00	29	21 00 00
PERFECT FIT Left Side Distortion	Get BE EF 03	06 00 31	97	02	00 41	21	00 00
	Increment BE EF	03 06 00	57	97	04 00	41	21 00 00
	Decrement BE EF	03 06 00	86	96	05 00	41	21 00 00
PERFECT FIT Right Side Distortion	Get BE EF 03	06 00 75	97	02	00 42	21	00 00
	Increment BE EF	03 06 00	13	97	04 00	42	21 00 00
	Decrement BE EF	03 06 00	C2	96	05 00	42	21 00 00
PERFECT FIT Distortion Position V	Get BE EF 03	06 00 89	96	02	00 43	21	00 00
	Increment BE EF	03 06 00	EF	96	04 00	43	21 00 00
	Decrement BE EF	03 06 00	3E	97	05 00	43	21 00 00
PERFECT FIT Top Side Distortion	Get BE EF 03	06 00 FD	97	02	00 44	21	00 00
	Increment BE EF	03 06 00	9B	97	04 00	44	21 00 00
	Decrement BE EF	03 06 00	4A	96	05 00	44	21 00 00
PERFECT FIT Bottom Side Distortion	Get BE EF 03	06 00 01	96	02	00 45	21	00 00
	Increment BE EF	03 06 00	67	96	04 00	45	21 00 00
	Decrement BE EF	03 06 00	B6	97	05 00	45	21 00 00
PERFECT FIT Distortion Position H	Get BE EF 03	06 00 45	96	02	00 46	21	00 00
	Increment BE EF	03 06 00	23	96	04 00	46	21 00 00
	Decrement BE EF	03 06 00	F2	97	05 00	46	21 00 00
PERFECT FIT All Sides Reset	Execute BE EF	03 06 00	3D	96	06 00	47	21 00 00
AUTO ECO MODE	Set	OFF BE EF	03 06 00	FB	27	01 00	10	33 00 00
		ON	BE EF	03 06	00 6B	26	01 00 10	33 01 00
	Get BE EF 03		06 00 C8	27	02	00 10	33 00 00
ECO MODE	Set	NORMAL	BE EF	03 06	00 3B	23	01 00 00	33 00 00
		ECO BE EF	03 06 00	AB	22	01 00	00	33 01 00
	Get BE EF 03		06 00 08	23	02	00 00	33 00 00
MIRROR	Set	NORMAL	BE EF	03 06	00 C7	D2	01 00 01	30 00 00
		H:INVERT	BE EF	03 06	00 57	D3	01 00 01	30 01 00
		V:INVERT	BE EF	03 06	00 A7	D3	01 00 01	30 02 00
		H&V:INVERT	BE EF	03 06	00 37	D2	01 00 01	30 03 00
	Get BE EF 03		06 00 F4	D2	02	00 01	30 00 00
STANDBY MODE	Set	NORMAL	BE EF	03 06	00 D6	D2	01 00 01	60 00 00
		SAVING	BE EF	03 06	00 46	D3	01 00 01	60 01 00
	Get BE EF 03		06 00 E5	D2	02	00 01	60 00 00
MONITOR OUT - COMPUTER IN1	Set	COMPUTER IN1 BE EF 03	06 00	3E F4 01	00 B0 20	00 00
		OFF BE EF	03 06 00	CE B5 01 00 B	0 20 FF	00
	Get BE EF 03	06 00 0D	F4 02	00 B0 20	00 00
MONITOR OUT - COMPUTER IN2	Set	COMPUTER IN2 BE EF 03	06 00	CE F7 01	00 B4 20	04 00
		OFF BE EF	03 06 00	FE B4 01 00 B	20 FF	00
	Get BE EF 03	06 00 3D	F5 02	00 B4 20	00 00
MONITOR OUT - COMPONENT	Set	COMPUTER IN1 BE EF 03	06 00	F2 F4 01	00 B5 20	00 00
		COMPUTER IN2 BE EF 03	06 00	32 F6 01	00 B5 20	04 00
		OFF BE EF	03 06 00	02 B5 01 00 B	20 FF	00
	Get BE EF 03	06 00 C1	F4 02	00 B5 20	00 00
MONITOR OUT - S-VIDEO	Set	COMPUTER IN1 BE EF 03	06 00	86 F5 01	00 B2 20	00 00
		COMPUTER IN2 BE EF 03	06 00	46 F7 01	00 B2 20	04 00
		OFF BE EF	03 06 00	76 B4 01 00 B	20 FF	00
	Get BE EF 03	06 00 B5	F5 02	00 B2 20	00 00
MONITOR OUT - VIDEO	Set	COMPUTER IN1 BE EF 03	06 00	C2 F5 01	00 B1 20	00 00
		COMPUTER IN2 BE EF 03	06 00	02 F7 01	00 B1 20	04 00
		OFF BE EF	03 06 00	32 B4 01 00 B	20 FF	00
	Get BE EF 03	06 00 F1	F5 02	00 B1 20	00 00
MONITOR OUT - HDMI	Set	COMPUTER1 BE EF 03 06	00 7A	F4 01	00 B3 20	00 00
		COMPUTER2 BE EF 03 06	00 BA	F6 01	00 B3 20	04 00
		OFF BE EF	03 06 00	8A B5 01 00 B	20 FF	00
	Get BE EF 03	06 00 49	F4 02	00 B3 20	00 00
MONITOR OUT - LAN	Set	COMPUTER1 BE EF 03 06	00 1A	F6 01	00 BB 20	00 00
		COMPUTER2 BE EF 03 06	00 DA	F4 01	00 BB 20	04 00
		OFF BE EF	03 06 00	EA B7 01 00 B	B 20	FF 00
	Get BE EF 03	06 00 29	F6 02	00 BB 20	00 00
MONITOR OUT - USB TYPE A	Set	COMPUTER1 BE EF 03 06	00 B6	F4 01	00 B6 20	00 00
		COMPUTER2 BE EF 03 06	00 76	F6 01	00 B6 20	04 00
		OFF BE EF	03 06 00	46 B5 01 00 B	20 FF	00
	Get BE EF 03	06 00 85	F4 02	00 B6 20	00 00
MONITOR OUT - USB TYPE B	Set	COMPUTER1 BE EF 03 06	00 6E	F7 01	00 BC 20	00 00
		COMPUTER2 BE EF 03 06	00 AE	F5 01	00 BC 20	04 00
		OFF BE EF	03 06 00	9E B6 01 00 B	C 20	FF 00
	Get BE EF 03	06 00 5D	F7 02	00 BC 20	00	00
MONITOR OUT - STANDBY	Set	COMPUTER IN1 BE EF 03	06 00	2A F7 01	00 BF 20	00 00
		COMPUTER IN2 BE EF 03	06 00	EA F5 01	00 BF 20	04 00
		OFF BE EF	03 06 00	DA B6 01 00 B	F 20 FF	00
	Get BE EF 03	06 00 19	F7 02	00 BF 20	00 00
VOLUME - COMPUTER IN1	Get		BE EF	03	06 00	CD CC	02 00	60 20	00 00
	Increment		BE EF	03 06	00 AB CC	04 00	60 20 00	00
	Decrement		BE EF	03 06	00 7A CD	05 00 60	20 00 00
VOLUME - COMPUTER IN2	Get BE EF 03		06 00 FD	CD	02 00 64	20 00 00
	Increment		BE EF	03 06	00 9B CD	04 00 64	20	00 00
	Decrement		BE EF	03 06	00 4A CC	05 00 64	20 00 00
VOLUME - COMPONENT	Get BE EF 03		06 00 01	CC 02	00 65 20	00	00
	Increment		BE EF	03 06	00 67 CC	04 00 65	20	00 00
	Decrement		BE EF	03 06	00 B6 CD	05 00 65	20	00 00
VOLUME - S-VIDEO	Get BE EF 03		06 00 75	CD 02	00 62 20	00	00
	Increment		BE EF	03 06	00 13 CD	04 00 62	20	00 00
	Decrement		BE EF	03 06	00 C2 CC	05 00 62	20	00 00
VOLUME -VIDEO	Get BE EF 03	06 00 31	CD 02	00 61	20 00 00
	Increment BE EF	03 06 00	57 CD	04 00 61	20 00 00
	Decrement BE EF	03 06 00	86 CC	05 00 61	20 00 00
VOLUME - HDMI	Get BE EF 03	06 00 89	CC 02	00 63	20 00 00
	Increment BE EF	03 06 00	EF CC	04 00 63	20 00 00
	Decrement BE EF	03 06 00	3E CD	05 00 63	20 00 00
VOLUME - LAN	Get BE EF 03	06 00 E9	CE 02	00 6B	20 00 00
	Increment BE EF	03 06 00	8F CE	04 00 6B	20 00 00
	Decrement BE EF	03 06 00	5E CF	05 00 6B	20 00 00
VOLUME - USB TYPE A	Get BE EF 03	06 00 45	CC 02	00 66	20 00 00
	Increment BE EF	03 06 00	23 CC	04 00 66	20 00 00
	Decrement BE EF	03 06 00	F2 CD	05 00 66	20 00 00
VOLUME - USB TYPE B	Get BE EF 03	06 00 9D	CF 02	00 6C	20 00 00
	Increment BE EF	03 06 00	FB CF	04 00 6C	20 00 00
	Decrement BE EF	03 06 00	2A CE	05 00 6C	20 00 00
VOLUME - STANDBY	Get BE EF 03	06 00 D9	CF 02	00 6F	20 00 00
	Increment BE EF	03 06 00	BF CF	04 00 6F	20 00 00
	Decrement BE EF	03 06 00	6E CE	05 00 6F	20 00 00
MUTE	Set	OFF	BE EF	03 06	00 46 D3	01 00	02 20 00	00
		ON	BE EF	03 06	00 D6 D2	01 00 02	20 01 00
	Get BE EF 03		06 00	75 D3	02 00 02	20 00 00
SPEAKER	Set	ON	BE EF	03 06	00 FE D4	01 00	1C 20 01	00
		OFF	BE EF	03	06 00	6E D5	01 00	1C 20	00 00
	Get BE EF 03		06 00 5D	D5 02	00 1C	20 00 00
AUDIO SOURCE - COMPUTER IN1	Set	AUDIO IN1	BE EF	03 06	00 6E DC	01 00 30	20 01 00
		AUDIO IN2	BE EF	03 06	00 9E DC	01 00 30	20 02 00
		AUDIO IN3	BE EF	03 06	00 0E DD	01 00 30	20 03 00
		OFF	BE EF	03 06	00 FE DD	01 00 30	20 00 00
	Get BE EF 03		06 00	CD DD	02 00	30 20 00	00
AUDIO SOURCE - COMPUTER IN2	Set	AUDIO IN1	BE EF	03 06	00 5E DD	01 00 34	20 01 00
		AUDIO IN2	BE EF	03	06 00	AE DD	01 00	34 20	02 00
		AUDIO IN3	BE EF	03 06	00 3E DC	01 00 34	20 03 00
		OFF	BE EF	03	06 00	CE DC	01 00	34 20	00 00
	Get BE EF 03		06 00	FD DC	02 00	34 20 00	00
AUDIO SOURCE LAN	Set	OFF	BE EF	03 06	00 DA DF	01 00 3B	20 00 00
		AUDIO1	BE EF	03	06 00	4A DE	01 00	3B 20	01 00
		AUDIO2	BE EF	03 06	00 BA DE	01 00 3B	20 02 00
		AUDIO3	BE EF	03 06	00 2A DF	01 00 3B	20 03 00
	Get BE EF 03		06 00 E9	DF 02	00 3B	20 00 00
AUDIO SOURCE - USB TYPE A	Set	OFF	BE EF	03 06	00 76 DD	01 00 36	20 00 00
		AUDIO1	BE EF	03 06	00 E6 DC	01 00 36	20 01 00
		AUDIO2	BE EF	03 06	00 16 DC	01 00 36	20 02 00
		AUDIO3	BE EF	03 06	00 86 DD	01 00 36	20 03 00
	Get BE EF 03		06 00 45	DD 02	00 36	20 00 00
AUDIO SOURCE USB TYPE B	Set	OFF	BE EF	03	06 00	AE DE	01 00	3C 20	00 00
		AUDIO1	BE EF	03 06	00 3E DF	01 00		3C 20	01 00
		AUDIO2	BE EF	03	06 00	CE DF	01 00	3C 20	02 00
		AUDIO3	BE EF	03 06	00 5E DE	01 00 3C	20	03 00
	Get BE EF 03		06 00 9D	DE 02	00 3C	20 00 00
AUDIO SOURCE - HDMI	Set	OFF BE EF	03 06 00	BA D	D 01 00 33	20 00 00
		AUDIO1 BE EF	03 06 00	DA 2A	DC 01 00	33 20 01	00
		AUDIO2 BE EF	03 06 00	DA	DC 01 00	33 20 02	00
		AUDIO3 BE EF	03 06 00	DA	DD 01 00	33 20 03	00
		AUDIO_HDMI BE	EF 03 06 00		7A C4	01 00 33	20 20 00
	Get		BE EF 03 06		00 89 DD	02 00 33	20 00 00
AUDIO SOURCE - COMPONENT	Set	AUDIO IN1	BE EF 03 06		00 A2 DC	01 00 35	20 01 00
		AUDIO IN2	BE EF 03 06		00 52 DC	01 00 35	20 02 00
		AUDIO IN3	BE EF 03 06		00 C2 DD	01 00 35	20 03 00
		OFF BE EF	03 06 00	32 D	D 01 00 35	20 00 00
	Get		BE EF 03 06		00 01 DD	02 00 35	20 00 00
AUDIO SOURCE - S-VIDEO	Set	AUDIO IN1	BE EF 03 06		00 D6 DD	01 00 32	20 01 00
		AUDIO IN2	BE EF 03 06		00 26 DD	01 00 32	20 02 00
		AUDIO IN3	BE EF 03 06		00 B6 DC	01 00 32	20 03 00
		OFF BE EF	03 06 00	46 D	C 01 00 32	20 00 00
	Get		BE EF 03 06		00 75 DC	02 00 32	20 00 00
AUDIO SOURCE - VIDEO	Set	AUDIO IN1	BE EF 03 06		00 92 DD	01 00 31	20 01 00
		AUDIO IN2	BE EF 03 06		00 62 DD	01 00 31	20 02 00
		AUDIO IN3	BE EF 03 06		00 F2 DC	01 00 31	20 03 00
		OFF BE EF	03 06 00	02 D	C 01 00 31	20 00 00
	Get		BE EF 03 06		00 31 DC	02 00 31	20 00 00
AUDIO SOURCE STANDBY	Set	AUDIO IN1	BE EF 03 06		00 7A DF	01 00 3F	20 01 00
		AUDIO IN2	BE EF 03 06		00 8A DF	01 00 3F	20 02 00
		AUDIO IN3	BE EF 03 06		00 1A DE	01 00 3F	20 03 00
		OFF BE EF	03 06 00	EA DE	01 00 3F	20 00 00
	Get		BE EF 03 06		00 D9 DE	02 00 3F	20 00 00
HDMI AUDIO	Set	1	BE EF	03	06 00	AE C6	01 00	40 20	01 00
		2	BE EF	03 06	00 5E C6	01 00	40 20 02	00
	Get		BE EF	03 06	00 0D C7	02 00 40	20 00 00
MIC LEVEL	Set	LOW	BE EF	03	06 00	02 F1	01 00	A1 20	00 00
		HIGH	BE EF	03	06 00	92 F0	01 00	A1 20	01 00
	Get		BE EF	03	06 00	31 F1	02 00	A1 20	00 00
MIC VOLUME	Get		BE EF	03	06 00	75 F1	02 00	A2 20	00 00
	Increment		BE EF	03	06 00	13 F1	04 00	A2 20	00 00
	Decrement		BE EF	03	06 00	C2 F0	05 00	A2 20	00 00
LANGUAGE	Set	ENGLISH	BE EF	03	06 00	F7 D3	01 00	05 30	00 00
		FRANÇAIS	BE EF	03	06 00	67 D2	01 00	05 30	01 00
		DEUTSCH	BE EF	03	06 00	97 D2	01 00	05 30	02 00
		ESPAÑOL	BE EF	03	06 00	07 D3	01 00	05 30	03 00
		ITALIANO	BE EF	03	06 00	37 D1	01 00	05 30	04 00
		NORSK	BE EF	03 06	00 A7 D0	01 00	05 30 05	00
		NEDERLANDS	BE EF	03	06 00	57 D0	01 00	05 30	06 00
		PORTUGUÊS	BE EF	03 06	00 C7 D1	01 00 05	30 07 00
		日本語	BE EF	03 06	00 37 D4	01 00	05 30 08 00
		简体中文	BE EF	03 06	00 A7 D5	01 00	05 30 09	00
		繁體中文	BE EF	03 06	00 37 DE	01 00	05 30 10	00
		한글	BE EF	03 06	00 57 D5	01 00	05 30 0A 00
		SVENSKA	BE EF	03 06	00 C7 D4	01 00 05	30 OB 00
		PYCCKIЙ	BE EF	03	06 00	F7 D6	01 00	05 30	OC 00
		SUOMI	BE EF	03	06 00	67 D7	01 00	05 30	OD 00
	NOTE) Not all of the languages in this table are supported.
LANGUAGE	Set	POLSKI BE EF 03 06 00 97 D7 01 00 05 30 0E						00
		TÜRKÇE BE EF 03 06 00 07 D6 01 00 05 30 0F						00
		DANSK BE EF 03 06 00 A7 DF 01 00 05 30 11						00
		ČESKY BE EF 03 06 00 57 DF 01 00 05 30 12						00
		MAGYAR BE EF 03 06 00 C7 DE 01 00 05 30 13 00
		ROMÂNĂ BE EF 03 06 00 F7 DC 01 00 05 30 14 00
		SLOVENSKI BE EF 03 06 00 67 DD 01 00 05 30 15 00
		HRVATSKI BE EF 03 06 00 00 97 DD 01 00 05 30 16 00
		ΕΛΛΗΝΙΚΑ BE EF 03 06 00 00 07 DC 01 00 05 30 17 00
		LIETUVIŲ BE EF 03 06 00 00 F7 D9 01 00 05 30 18 00
		EESTI BE EF 03 06 00 67 D8 01 00 05 30 19 00
		LATVIEŠU BE EF 03 06 00 00 97 D8 01 00 05 30 1A 00
		Inu BE EF 03 06 00 07 D9 01 00 05 30 1B 00
		قىب رەلا قىللا BE EF 03 06 00 37 DB 01 00 05 30 1C 00
		كىسراف BE EF 03 06 00 A7 DA 01 00 05 30 1D 00
		PORTUGUÊS BRA BE EF 03 06 00 57 DA 01 00 05 30 1E 00
	Get		BE EF 03 06 00 C4 D3 02 00 05 30 00 00
	NOTE) Not all of the languages in this table are supported.
MENU POSITION H	Get		BE EF 03 06 00 04 D7 02 00 15 30 00 00
	Increment		BE EF 03 06 00 62 D7 04 00 15 30 00 00
	Decrement		BE EF 03 06 00 B3 D6 05 00 15 30 00 00
MENU POSITION H Reset	Execute BE EF 03 06 00 DC C6 06 00 43 70 00 00
MENU POSITION V	Get		BE EF 03 06 00 40 D7 02 00 16 30 00 00
	Increment		BE EF 03 06 00 26 D7 04 00 16 30 00 00
	Decrement		BE EF 03 06 00 F7 D6 05 00 16 30 00 00
MENU POSITION V Reset	Execute BE EF 03 06 00 A8 C7 06 00 44 70 00 00
BLANK	Set	MyScreen	BE EF 03 06 00 FB CA 01 00 00 30 20 00
		ORIGINAL	BE EF 03 06 00 FB E2 01 00 00 30 30 40 00
		BLUE	BE EF 03 06 00 CB D3 01 00 00 30 03 00
		WHITE	BE EF 03 06 00 6B D0 01 00 00 30 05 00
		BLACK	BE EF 03 06 00 9B D0 01 00 00 30 06 00
	Get		BE EF 03 06 00 08 D3 02 00 00 30 00 00
BLANK On/Off	Set	OFF	BE EF 03 06 00 FB D8 01 00 20 30 00 00
		ON	BE EF 03 06 00 6B D9 01 00 20 30 01 00
	Get		BE EF 03 06 00 C8 D8 02 00 20 30 00 00
START UP	Set	MyScreen	BE EF 03 06 00 6B CB 01 00 04 30 20 00
		ORIGINAL	BE EF 03 06 00 6B D2 01 00 04 30 00 00
		OFF	BE EF 03 06 00 9B D3 01 00 04 30 01 00
	Get		BE EF 03 06 00 38 D2 02 00 04 30 00 00
MyScreen Lock	Set	OFF	BE EF 03 06 00 3B EF 01 00 C0 30 00 00
		ON	BE EF 03 06 00 AB EE 01 00 C0 30 01 00
	Get		BE EF 03 06 00 08 EF 02 00 C0 30 00 00
MESSAGE	Set	OFF	BE EF 03 06 00 6B D6 01 00 17 30 00 00
		ON	BE EF 03 06 00 1F D7 01 00 17 30 01 00
	Get		BE EF 03 06 00 BC D6 02 00 17 30 00 00
TEMPLATE	Set	TEST PATTERN BE EF 03 06 00 43 D9 01 00 22 30 00 00
		DOT-LINE1 BE EF 03 06 00 D3 D8 01 00 22 30 01 00
		DOT-LINE2 BE EF 03 06 00 23 D8 01 00 22 30 02 00
		DOT-LINE3 BE EF 03 06 00 B3 D9 01 00 22 30 03 00
		DOT-LINE4 BE EF 03 06 00 83 DB 01 00 22 30 04 00
		CIRCLE 1 BE EF 03 06 00 13 DA 01 00 22 30 05 00
		CIRCLE 2 BE EF 03 06 00 E3 DA 01 00 22 30 06 00
		MAP 1 BE EF 03 06 00 83 D4 01 00 22 30 10 00
		MAP 2 BE EF 03 06 00 13 D5 01 00 22 30 11 00
		STACK BE EF 03 06 00 83 C0 01 00 22 30 20 00
	Get		BE EF 03 06 00 70 D9 02 00 22 30 00 00
TEMPLATE On/Off	Set	OFF	BE EF 03 06 00 BF D8 01 00 23 30 00 00
		ON	BE EF 03 06 00 2F D9 01 00 23 30 01 00
	Get		BE EF 03 06 00 8C D8 02 00 23 30 00 00
C. C. - DISPLAY	Set	OFF	BE EF 03 06 00 FA 62 01 00 00 37 00 00
		ON	BE EF 03 06 00 6A 63 01 00 00 37 01 00
		AUTO	BE EF 03 06 00 9A 63 01 00 00 37 02 00
	Get		BE EF 03 06 00 C9 62 02 00 00 37 00 00
C. C. - MODE	Set	CAPTIONS BE EF 03 06 00 06 63 01 00 01 37 00 00
		TEXT	BE EF 03 06 00 96 62 01 00 01 37 01 00
	Get		BE EF 03 06 00 35 63 02 00 01 37 00 00
C. C. - CHANNEL	Set	1	BE EF 03 06 00 62 01 00 02 37 01 00
		2	BE EF 03 06 00 22 62 01 00 02 37 02 00
		3	BE EF 03 06 00 B2 63 01 00 02 37 03 00
		4	BE EF 03 06 00 82 61 01 00 02 37 04 00
	Get		BE EF 03 06 00 71 63 02 00 02 37 00 00
AUTO SEARCH	Set	OFF	BE EF 03 06 00 B6 D6 01 00 16 20 00 00
		ON	BE EF 03 06 00 26 D7 01 00 16 20 01 00
	Get		BE EF 03 06 00 85 D6 02 00 16 20 00 00
AUTO KEYSTONE	Set	OFF	BE EF 03 06 00 EA D1 01 00 0F 20 00 00
		ON	BE EF 03 06 00 7A D0 01 00 0F 20 01 00
	Get		BE EF 03 06 00 D9 D1 02 00 0F 20 00 00
DIRECT POWER ON	Set	OFF	BE EF 03 06 00 00 89 3B 89 01 00 20 31 00 00
		ON	BE EF 03 06 00 AB 88 01 00 20 31 01 00
	Get		BE EF 03 06 00 89 02 00 20 31 00 00
AUTO POWER OFF	Get		BE EF 03 06 00 86 02 00 10 31 00 00
	Increment		BE EF 03 06 00 6E 86 04 00 10 31 00 00
	Decrement		BE EF 03 06 00 BF 87 05 00 10 31 00 00
USB TYPE B	Set	MOUSE	BE EF 03 06 00 FF 23 01 00 50 26 00 00
		USB DISPLAY	BE EF 03 06 00 6F 22 01 00 50 26 01 00
	Get		BE EF 03 06 00 CC 23 02 00 50 26 00 00
LAMP TIME	Get		BE EF 03 06 00 C2 FF 02 00 90 10 00 00
LAMP TIME Reset	Execute BE EF		03 06 00 58 DC 06 00 30 70 00 00
FILTER TIME	Get		BE EF 03 06 00 C2 F0 02 00 A0 10 00 00
FILTER TIME Reset	Execute BE EF		03 06 00 98 C6 06 00 40 70 00 00

RS-232C Communication / Network command table (continued)

Names Operation Type Header							Command Data
							CRC Action Type	Setting code
MY BUTTON-1	Set	COMPUTER IN1 BE EF 03 06 00 3A 33 01 00 00 36 00 00
		COMPUTER IN2 BE EF 03 06 00 FA 31 01 00 00 36 04 00
		LAN BE EF 03 06 00 0A 34 01 00 00 36 0B 00
		USB TYPE A BE EF 03 06 00 9A 30 01 00 00 36 06 00
		USB TYPE B BE EF 03 06 00 3A 36 01 00 00 36 0C 00
		HDMI BE EF 03 06 00 CA 33 01 00 00 36 03 00
		COMPONENT BE EF 03 06 00 6A 30 01 00 00 36 05 00
		S-VIDEO BE EF 03 06 00 5A 32 01 00 00 36 02 00
		VIDEO BE EF 03 06 00 AA 32 01 00 00 36 01 00
		SLIDESHOW BE EF 03 06 00 9A 2B 01 00 00 36 22 00
		MY IMAGE BE EF 03 06 00 5A 3D 01 00 00 36 16 00
		MESSENGER BE EF 03 06 00 AA 29 01 00 00 36 25 00
		INFORMATION BE EF 03 06 00 06 00 FA 3E 01 00 00 36 11 00
		AUTO KEYSTONE V BE EF 03 06 00 6A 3F 01 00 00 36 11 00
		MY MEMORY BE EF 03 06 00 9A 3F 01 00 00 36 12 00
		ACTIVE IRIS BE EF 03 06 00 06 00 AA 3D 01 00 00 36 15 00
		PICTURE MODE BE EF 03 06 00 00 0A 3E 01 00 00 36 13 00
		FILTER RESET BE EF 03 06 00 3A 3C 01 00 00 36 14 00
		AV MUTE BE EF 03 06 00 06 00 AA 38 01 00 00 36 19 00
		TEMPLATE BE EF 03 06 00 06 00 CA 39 01 00 00 36 19 00
		RESOLUTION BE EF 03 06 00 9A 3A 01 00 00 36 1E 00
		MIC VOLUME BE EF 03 06 00 9A 24 01 00 00 36 36 00
		ECO MODE BE EF 03 06 00 0A 25 01 00 00 36 37 00
	Get		BE EF 03 06 00 09 33 02 00 00 36 00 00
MY BUTTON-2	Set	COMPUTER IN1 BE EF 03 06 00 C6 32 01 00 01 36 00 00
		COMPUTER IN2 BE EF 03 06 00 06 30 01 00 01 36 04 00
		LAN BE EF 03 06 00 F6 35 01 00 01 36 0B 00
		USB TYPE A BE EF 03 06 00 06 00 66 31 01 00 01 36 06 00
		USB TYPE B BE EF 03 06 00 C6 37 01 00 01 36 0C 00
		HDMI BE EF 03 06 00 36 32 01 00 01 36 03 00
		COMPONENT BE EF 03 06 00 96 31 01 00 01 36 05 00
		S-VIDEO BE EF 03 06 00 A6 33 01 00 01 36 02 00
		VIDEO BE EF 03 06 00 56 33 01 00 01 36 01 00
		SLIDESHOW BE EF 03 06 00 66 2A 01 00 01 36 22 00
		MY IMAGE, BE EF 03 06 00 A6 3C 01 00 01 36 16 00
		MESSENGER BE EF 03 06 00 06 00 56 28 01 00 01 36 16 00
		INFORMATION BE EF 03 06 00 06 3F 01 00 01 36 10 00
		AUTO KEYSTONE V BE EF 03 06 00 96 3E 01 00 01 36 11 00
		MY MEMORY BE EF 03 06 00 66 3E 01 00 01 36 12 00
		ACTIVE IRIS BE EF 03 06 00 06 00 56 3C 01 00 01 36 12 00
		PICTURE MODE BE EF 03 06 00 F6 3F 01 00 01 36 13 00
		FILTER RESET BE EF 03 06 00 C6 3D 01 00 01 36 14 00
		AV MUTE BE EF 03 06 00 56 39 01 00 01 36 19 00
		TEMPLATE BE EF 03 06 00 36 38 01 00 01 36 1B 00
		RESOLUTION BE EF 03 06 00 66 3B 01 00 01 36 1E 00
		MIC VOLUME BE EF 03 06 00 66 25 01 00 01 36 36 00
		ECO MODE BE EF 03 06 00 F6 24 01 00 01 36 37 00
	Get		BE EF 03 06 00 F5 32 02 00 01 36 00 00

RS-232C Communication / Network command table (continued)

Names Operation Type Header								Command Data
								CRC Action Type	Setting code
MY SOURCE	Set	COMPUTER IN1 BE EF 03	06 00	FA 38 01	00 20 36	00 00
		COMPUTER IN2 BE EF 03	06 00	3A 3A 01	00 20 36	04 00
		LAN BE EF	03 06 00	CA 3F 01 00 2	0 36 0B 00
		USB TYPE A BE	EF 03 06	00 5A 3B 01	00 20 36	06 00
		USB TYPE B BE	EF 03 06	00 F A 3D 01	00 20 36	0C 00
		HDMI	BE EF	03 06	00 0A 38	01 00 20	36 03 00
		COMPONENT BE	EF 03 06	00 AA 3B 01	00 20 36	05 00
		S-VIDEO	BE EF	03 06	00 9A 39	01 00 20	36 02 00
		VIDEO	BE EF	03 06	00 6A 39	01 00 20	36 01 00
	Get		BE EF	03 06	00 C9 38	02 00 20	36 00 00
Magnify Position H	Get		BE EF	03 06	00 C8 D7	02 00 10	30 00 00
	Increment		BE EF	03 06	00 AE D7	04 00 10	30 00 00
	Decrement		BE EF	03 06	00 7F D6	05 00 10	30 00 00
Magnify Position V	Get		BE EF	03	06 00	34 D6	02 00	11 30	00 00
	Increment		BE EF	03	06 00	52 D6	04 00	11 30	00 00
	Decrement		BE EF	03	06 00	83 D7	05 00	11 30	00 00
REMOTE FREQ. NORMAL	Set	OFF BE EF	03 06 00	FF 3D	01 00 3	26 00 00
		ON	BE EF	03 06	00 6F 3C	01 00 30	26 01 00
	Get		BE EF	03 06	00 CC 3D	02 00 30	26 00 00
REMOTE FREQ. HIGH	Set	OFF BE EF	03 06 00	03 3C	01 00 3	26 00 00
		ON	BE EF	03 06	00 93 3D	01 00 31	26 01 00
	Get		BE EF	03 06	00 30 3C	02 00 31	26 00 00
MY IMAGE	Set	OFF BE EF	03 06 00	3A C3	01 00 0	35 00 00
		IMAGE-1	BE EF	03 06	00 AA C2	01 00 00	35 01 00
		IMAGE-2	BE EF	03 06	00 5A C2	01 00 00	35 02 00
		IMAGE-3	BE EF	03 06	00 CA C3	01 00 00	35 03 00
		IMAGE-4	BE EF	03 06	00 FA C1	01 00 00	35 04 00
	Get		BE EF	03 06	00 09 C3	02 00 00	35 00 00
MY IMAGE IMAGE-1 Delete	Execute BE EF		03 06 00	71 C3	06 00 01	35 00 00
MY IMAGE IMAGE-2 Delete	Execute BE EF		03 06 00	35 C3	06 00 02	35 00 00
MY IMAGE IMAGE-3 Delete	Execute BE EF		03 06 00	C9 C2	06 00 03	35 00 00
MY IMAGE IMAGE-4 Delete	Execute BE EF		03 06 00	BD C3	06 00 04	35 00 00

PJLink command

Commands	Control Description Parameter or Response
POWR Power Control	Power Contorol	0 = Standby
		1 = Power On
POWR ? Power Status inquiry	Power Status inquiry	0 = Standby
		1 = Power On
		2 = Cool Down
INPT Input Source selection	Source selection	11 = COMPUTER IN 1
		12 = COMPUTER IN 2
		21 = COMPONENT
		22 = S-VIDEO
		23 = VIDEO
		31 = HDMI
		41 = USB TYPE A
		51 = LAN
		52 = USB TYPE B
INPT ? Input Source inquiry	Source inquiry	11 = COMPUTER IN 1
		12 = COMPUTER IN 2
		21 = COMPONENT
		22 = S-VIDEO
		23 = VIDEO
		31 = HDMI
		41 = USB TYPE A
		51 = LAN
		52 = USB TYPE B
AVMT AV	Mute	10 = BLANK off
		11 = BLANK on
		20 = Mute off
		21 = Mute on
		30 = AV Mute off
		31 = AV Mute on
AVMT ? AV	Mute inquiry	10 = BLANK off
		11 = BLANK on
		20 = Mute off
		21 = Mute on
		30 = AV Mute off
		31 = AV Mute on
ERST ? Error Status inquiry		1st byte: Refers to Fan error; one of 0 to 2
		2nd byte: Refers to Lamp error; one of 0 to 2
		3rd byte: Refers to Temptrature error; one of 0 to 2
		4th byte: Refers to Cover error; one of 0 to 2
		5th byte: Refers to Filter error; one of 0 to 2
		6th byte: Refers to Other error; one of 0 to 2
		The meaning of 0 to 2 is as given below
		0 = Error is not detected; 1 = Warning; 2 = Error
LAMP ? Lamp Status inquiry		1st number (digits 1 to 5): Lamp Time
		2nd number : 0 = Lamp off, 1 = Lamp on
INST ? Input Source List inquiry 11 12		21 22 23 31 41 51 52
NAME ? Projector Name inquiry		Responds with the name set in "PROJECTOR NAME" of "NETWORK"
INF1 ?	Manufacturer's Name inquiry	HITACHI
INF2 ? Model Name inquiry		Your model name, "CP-X4021N", "CP-X5021N" or "CP-WX4021N".
INFO ? Other Information inquiry		Responds with the factory information and so on
CLSS ? Class Information inquiry 1

NOTE • The password used in PJLink™ is the same as the password set in the Web Browser Control. To use PJLink™ without authentication, do not set any password in Web Browser Control.

- For specifications of PJLink™, see the web site of the Japan Business Machine and Information System Industries Association.

End User License Agreement for the Projector Software

Software in the projector consists of the plural number of independent software modules and there exist our copyright or/and third party copyrights for each of such software modules. The projector also uses software modules that we have developed or/and produced. And there exist our copyright and intellectual property for each of such software and related items including but not limited to the software related documents.

These rights above are protected by copyright law and other applicable laws. And the projector uses software modules licensed as Freeware upon GNU GENERAL PUBLIC LICENSE Version 2 and GNU LESSER GENERAL PUBLIC LICENSE Version 2.1 established by Free Software Foundation, Inc. (U.S.) or license agreements for each software.

Refer following web page for license agreements for such software modules and other software.

web page address: http://av.hitachi.com/projector/index.html

Contact dealer in your region for inquiry regarding licensed software. Refer to license agreement of each software in following pages (15 -) and license agreements of each software on the web page for detail of the license conditions and so on. (The original in English is carried since the license agreement following is established by third party other than us.)

Because the program (the software module) is licensed free of charge, the program is provided "as is" without warranty of any kind, either expressed or implied, to the extent permitted by applicable law. And we do not take any responsibility or compensate for loss of any kind (including but not limited to loss of data, loss of accuracy or loss of compatibility with interface between other programs) by the software concerned or/and use of the software concerned to the extent permitted by applicable law.

URL: http://av.hitachi.com/projector/index.html

GNU GENERAL PUBLIC LICENSE Version 2, June 1991

Copyright © 1989, 1991 Free Software Foundation, Inc.

51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software—to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language.

(Hereinafter, translation is included without limitation in the term

"modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the

other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machinereadable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
3. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.
4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you

cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all.

For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright ©

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston,

MA 02110-1301 USA

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright © year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type 'show w'. This is free software, and you are welcome to redistribute it under certain conditions; type 'show c' for details.

The hypothetical commands 'show w' and 'show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than 'show w' and 'show c'; they could even be mouse-clicks or menu items—whatever suits your program.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the

program `Gnomovision' (which makes passes at compilers) written by James Hacker.

, 1 April 1989 Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Library General Public License instead of this License.

GNU LESSER GENERAL PUBLIC LICENSE Version 2.1, February 1999

Copyright © 1991, 1999 Free Software Foundation, Inc. 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software—to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages—typically libraries—of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a "work based on the library" and a "work that uses the library". The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as "you".

A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The "Library", below, refers to any such software library or work which has been distributed under these terms. A "work based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modification".)

"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code

means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If dentifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may opt to apply the terms of the ordinary GNU General

Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

1. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

1. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a "work that uses the Library" uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

1. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things:

a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

1. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.

1. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

3. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.
4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
2. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.
3. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For

software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by

permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright ©

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA

Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the library 'Frob' (a library for tweaking knobs) written by James Random Hacker.

, 1 April 1990 Ty Coon, President of Vice

That's all there is to it!

About the OpenSSL Toolkit

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/). Copyright© 1998-2008 The OpenSSL Project. All rights reserved.

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes cryptographic software written by Eric Young ([e-mail]). Copyright (C) 1995-1998 Eric Young ([e-mail]) All rights reserved.

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes software written by Tim Hudson ([e-mail]).

HITACHI

Inspire the Next

Hitachi America, Ltd.

Digital Media Division

900 Hitachi way, Chula Vista

CA 91914-3556 USA CANADA

Tel: [phone]

Fax: [phone]

http://www.hitachi-america.us/digitalmedia

Hitachi Europe Ltd., Consumer Affairs Department

PO'Box 3007

Maidenhead

Berkshire SL6 8ZE UNITED KINGDOM

Tel: [phone]

Email: [e-mail]

Hitachi Europe S.A.S., Digital Media Group

Level 3, 82 Waterloo Road

North Ryde N.S.W 2113 AUSTRALIA

Tel: [phone]

Fax: [phone]

http://www.hitachi.com.au

Hitachi (Hong Kong), Ltd.

18/F., Ever Gain Centre, 28 On Muk Street.,

Shatin, N.T. HONG KONG

Tel: [phone]

Fax: [phone]

http://www.hitachi-hk.com.hk

Hitachi Sales (Malaysia) Sdn. Bhd.

Lot 12, Jalan Kamajuan, Bangi Industrial Estate,

43650 Bandar Baru Bangi, Selangor Darul Ehsan

MALAYSIA

Tel: [phone]

Fax: [phone]

http://www.hitachiconsumer.com.my

Hitachi Home Electronics Asia, (S) Pte Ltd.

438A Alexandra Road #01-01/02/03

Alexandra Technopark, 119967 SINGAPORE

Tel: [phone]

Fax: [phone]

http://www.hitachiconsumer.com.sg

Hitachi Sales Corp. of Taiwan

2^nd Floor, No.65, Nanking East Road, Section 3,

Taipei 104 TAIWAN

Tel: [phone]

Fax: [phone]

http://www.hsct.com.tw

Hitachi Sales (Thailand), Ltd.

994, Soi Thonglor, Sukhumvit 55 Road,

Klongtonnua, Vadhana, Bangkok 10110

THAILAND

Tel: [phone]

Fax: [phone]-0021

http://www.hitachi-th.com

Hitachi Consumer Electronics Co., Ltd.

292 Yoshida-cho, Totsuka-ku

Yokohama 244-0817 JAPAN

Tel: [phone]

Fax: [phone]
