Name: CP-D27WNEF
Brand: HITACHI
Rating: 8.5 (101 reviews)

Find the device manual for free CP-D27WNEF HITACHI in PDF.

📄 256 pages

EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs

View the manual :

Pick your language and provide your email: we'll send you a specifically translated version.

This manual is not available in your language

Desired language Your email address

Type	Video Projector
Brand	Hitachi
Model	CP-D27WNEF
Native Resolution	1024 x 768 (XGA)
Maximum Resolution	Up to UXGA (1600 x 1200) - converted to panel resolution
Supported Computer Signals	VGA, SVGA, XGA, WXGA, SXGA, UXGA, etc. (see manual)
Color Systems	NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

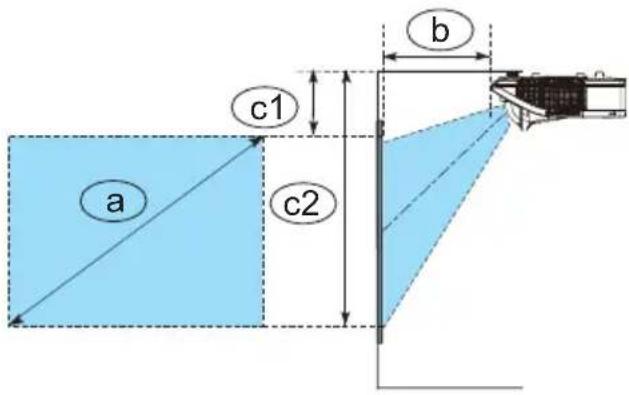

Projection Distance	1.5 m (60") to 2.5 m (100") diagonally
Screen Size	60" to 100" diagonal
Aspect Ratio	4:3, 16:9, 14:9, 16:10, Native, Normal
Light Source	Lamp
Audio	Built-in speaker, microphone input (MIC Level/Volume)
Connectivity	2x Computer In (D-sub 15), 1x HDMI, 1x S-Video, 1x Video RCA, 2x Audio In, 1x Monitor Out, 1x Control (RS-232C), 1x LAN (RJ-45), 1x USB Type A, 1x USB Type B
Network	Wired (Ethernet) and Wireless LAN (via USB adapter)
Keystone Correction	Vertical (manual adjustment)
Digital Zoom	Yes (D-Zoom)
Picture Modes	Normal, Cinema, Dynamic, Board, Whiteboard, Daytime, Photo
Security	Password, PIN lock, Transition Detector, My Text password
Standby Mode	Normal or Saving
Power Supply	AC 100-240V (automatic), 50/60Hz (assumed)
Operating Temperature	5°C to 35°C (assumed)
Languages Supported	Multiple including English, French, German, Spanish, Italian, etc.

Frequently Asked Questions - CP-D27WNEF HITACHI

How do I connect my laptop to the Hitachi CP-D27WNEF projector?

Use a VGA or HDMI cable to connect your laptop to the projector's COMPUTER IN1/IN2 or HDMI port. For audio, connect a 3.5mm cable to the AUDIO IN1 or IN2 port. Then select the appropriate input source via the remote or menu.

How can I adjust keystone correction?

Go to the IMAGE menu, select KEYSTONE V, then use the arrow keys to adjust vertical keystone until the image is rectangular. You can also reset to default.

How do I clean the air filter?

Turn off the projector and unplug it. Open the filter cover, remove the filter, and gently vacuum or wash with mild detergent. Allow it to dry completely before reinstalling. Reset the filter timer in the OPTION menu after cleaning.

How to reset the lamp timer after replacing the lamp?

Go to OPTION menu, select LAMP TIME, then choose 'Reset'. Confirm the reset. This should be done only after replacing the lamp to ensure accurate lamp usage tracking.

How do I use the network control function?

Connect the projector to your network via wired LAN or wireless USB adapter. Access the projector's web interface using its IP address. You can then send RS-232C commands or use PJLink for control. Authentication may be required.

What is the native resolution of the CP-D27WNEF?

The native resolution is 1024 x 768 (XGA). It can display higher resolutions up to UXGA (1600x1200) but will scale them to the panel's native resolution.

How can I change the picture mode?

Press the PICTURE MODE button on the remote or navigate to the IMAGE menu. Choose from Normal, Cinema, Dynamic, Board (Black/Green), Whiteboard, Daytime, or Photo to suit your content.

How to set up a wireless network connection?

Insert a USB wireless adapter into the USB TYPE A port. Go to NETWORK menu, select WIRELESS SETTING, and configure the SSID and security key. Ensure the computer is on the same network.

How do I enable security features like a password?

Go to SECURITY menu. You can set a password for power-on, My Screen, PIN lock, and transition detector. Use the remote to enter numbers. Remember the password; otherwise, contact support.

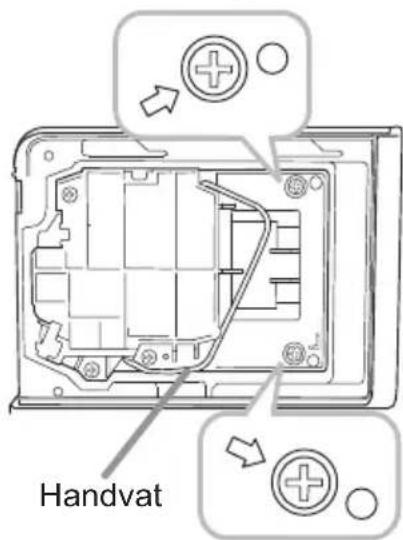

How do I replace the lamp?

Turn off the projector and allow it to cool. Unplug the power cord. Remove the lamp cover screws, then carefully pull out the lamp module. Insert the new lamp securely, replace the cover, and plug in the power. Reset the lamp timer.

User questions about CP-D27WNEF HITACHI

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Video projector in PDF format for free! Find your manual CP-D27WNEF - HITACHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CP-D27WNEF by HITACHI.

USER MANUAL CP-D27WNEF HITACHI

CP-D27WN/CP-D32WN/CP-DW25WN

VOLUME, LUIDSPREKER, AUDIOBRON, MIC NIVEAU, MIC VOLUME

TAAL, POSITIE MENU, BLANK, OPSTARTEN, Mijn Scherm, Mijn Sch. Vast, M ELDING, NAAM VAN BRON, PATROON, G.B.

AUTOM. ZOEKEN, DIRECT AAN, AUTOM. UIT, USB TYPE B, LAMPTIJD, FILTERTIJD, MIJN KNOP, SIGNAALBRON, SERVICE

DRAADLOZE INSTELLING, DRAADLOZE INFORMATIE, BEDRADE INSTELLING, BEDRADE INFORMATIE, PROJECTORNAAM, MIJN BEELD, AMX D.D., PRESENTATIE, SERVICE

VEILIGH. PASW. VERANDEREN, Mijn Scherm PASWOORD, PIN LOCK, TRANSITIE DETECTOR, WACHTW. MIJN TEKST, MIJN TEKST WEERG., MIJN TEKST BIJW., KLOONVERGRENDELING


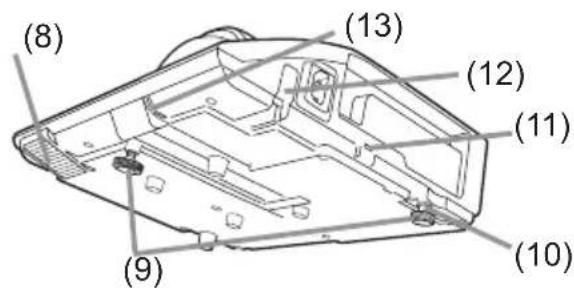

Namen onderdelen

Projector

(8) (13) (12) (11) (10) (9)

(14) (15) (16)

AC IN
Stroomdraad

GEHEUGEN_OPENEN-4 TIJDELIJKE CONDITIE WEET U ZEKER DAT U VILT DOORGAAN MET LADEN? ●NEE ▶JA

CP-D27WN, CP-D32WN: 7220 CP-DW25WN: 5620

Transmission speed (Overbrengingsnelheid)

CP-D27WN, CP-D32WN: 1024 x 768 (XGA)

CP-DW25WN: 1280 x 800 (WXGA)

Transmission speed (Overbrengingsnelheid)

CP-D27WN, CP-D32WN: 1024 x 768 (XGA)

CP-DW25WN: 1280 x 800 (WXGA)

CP-D27WN/CP-D32WN/CP-DW25WN

Windows Vista ^® Home Basic /Home Premium /Business /Ultimate /Enterprise (Service Pack 1 of later )

Windows ^® 7 Starter /Home Basic /Home Premium /Professional /Ultimate /Enterprise

√ CPU: Pentium 4 (2,8 GHz of hoger)
√ Grafische kaart: 16 bit, XGA of hoger

(z.o.z.)

1.3 Handmatige netwerkverbinding installatie - draadloze LAN -

3) Selecteer "Internet Protocol version 4 (TCP/IPv4)" en klik op [Eigenschappen].

(z.o.z.)

[Over het IP-adres]

(Network address: 192.168.10 in dit geval)

N.B. • Internet Explorer® 6.0 of later is vereist.

IP Address <Projector

MAC Address <Projector

IP-adres>

MAC-ad

7.2 Projectorbeheer m.b.v. SNMP

CP-D27WN/CP-D32WN/CP-DW25WN

User's Manual (detailed) Operating Guide – Technical

Example of computer signal

Resolution (H x V)	H. frequency (kHz)	V. frequency (Hz)	Rating Signal mode
720 x 400	37.9 85.0 VESA TEXT
640 x 480 31.5	59.9 VESA VGA (60Hz)
640 x 480 37.9	72.8 VESA VGA (72Hz)
640 x 480 37.5	75.0 VESA VGA (75Hz)
640 x 480 43.3	85.0 VESA VGA (85Hz)
800 x 600 35.2	56.3 VESA SVGA (56Hz)
800 x 600 37.9	60.3 VESA SVGA (60Hz)
800 x 600 48.1	72.2 VESA SVGA (72Hz)
800 x 600 46.9	75.0 VESA SVGA (75Hz)
800 x 600 53.7	85.1 VESA SVGA (85Hz)
832 x 624 49.7	74.5 Mac 16" mode
1024 x 768 48.4	60.0 VESA XGA (60Hz)
1024 x 768 56.5	70.1 VESA XGA (70Hz)
1024 x 768 60.0	75.0 VESA XGA (75Hz)
1024 x 768 68.7	85.0 VESA XGA (85Hz)
1152 x 864	67.5 75.0 VESA			1152 x 864 (75Hz)
1280 x 768 47.7	60.0 VESA W-XGA (60Hz)
1280 x 800 49.7	60.0 VESA			1280 x 800 (60Hz)
1280 x 960 60.0	60.0 VESA			1280 x 960 (60Hz)
1280 x 1024	64.0 60.0 VESA SXGA (60Hz)
1280 x 1024	80.0 75.0 VESA SXGA (75Hz)
*1 1280 x 1024	91.1 85.0 VESA SXGA (85Hz)
1440 x 900 55.9	59.9 VESA WXGA+ (60Hz)
*2 1400 x 1050	65.2 60.0 VESA SXGA+ (60Hz)
*3 1680 x 1050	65.3	60.0	VESA	WSXGA+ (60Hz)
*1 1600 x 1200	75.0 60.0 VESA UXGA (60Hz)

*1) Supported except for HDMI™ input. *2) Only for CP-D27WN/CP-D32WN
*3) Only for CP-DW25WN

NOTE • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a PC.

Some PCs may have multiple display screen modes. Use of some of these modes will not be possible with this projector.
Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.
Although the projector can display signals with resolution up to UXGA (1600x1200), the signal will be converted to the projector's panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and projector panel are identical.
• Automatic adjustment may not function correctly with some input signals.
The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.

Initial set signals

The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, adjust the items V POSITION and H POSITION in the IMAGE menu.

Active video (c)

Resolution (H x V)	Horizontal signal timing (μs)				Vertical signal timing (lines)				Signal mode
Resolution (H x V)	(A) (B)	(C) (D)	(a) (b)	(c) (d)					Signal mode
720 x 400	2.0	3.0	20.3	1.0	3	42	400	1	TEXT
640 x 480	3.8	1.9	25.4	0.6	2	33	480	10	VGA (60Hz)
640 x 480	1.3	4.1	20.3	0.8	3	28	480	9	VGA (72Hz)
640 x 480	2.0	3.8	20.3	0.5	3	16	480	1	VGA (75Hz)
640 x 480	1.6	2.2	17.8	1.6	3	25	480	1	VGA (85Hz)
800 x 600	2.0	3.6	22.2	0.7	2	22	600	1	SVGA (56Hz)
800 x 600	3.2	2.2	20.0	1.0	4	23	600	1	SVGA (60Hz)
800 x 600	2.4	1.3	16.0	1.1	6	23	600	37	SVGA (72Hz)
800 x 600	1.6	3.2	16.2	0.3	3	21	600	1	SVGA (75Hz)
800 x 600	1.1	2.7	14.2	0.6	3	27	600	1	SVGA (85Hz)
832 x 624	1.1	3.9	14.5	0.6	3	39	624	1	Mac 16" mode
1024 x 768	2.1	2.5	15.8	0.4	6	29	768	3	XGA (60Hz)
1024 x 768	1.8	1.9	13.7	0.3	6	29	768	3	XGA (70Hz)
1024 x 768	1.2	2.2	13.0	0.2	3	28	768	1	XGA (75Hz)
1024 x 768	1.0	2.2	10.8	0.5	3	36	768	1	XGA (85Hz)
1152 x 864	1.2	2.4	10.7	0.6	3	32	864	1	1152 x 864 (75Hz)
1280 x 768	1.7	2.5	16.0	0.8	3	23	768	1	W-XGA (60Hz)
1280 x 800	1.6	2.4	15.3	0.8	3	24	800	1	1280 x 800 (60Hz)
1280 x 960	1.0	2.9	11.9	0.9	3	36	960	1	1280 x 960 (60Hz)
1280 x 1024	1.0	2.3	11.9	0.4	3	38	1024	1	SXGA (60Hz)
1280 x 1024	1.1	1.8	9.5	0.1	3	38	1024	1	SXGA (75Hz)
1280 x 1024	1.0	1.4	8.1	0.4	3	44	1024	1	SXGA (85Hz)
1440 x 900	1.4	2.2	13.5	0.8	6	25	900	3	WXGA+ (60Hz)
1400 x 1050	1.2	2.0	11.4	0.7	3	33	1050	1	SXGA+ (60Hz)
1680 x 1050	1.2	1.9	11.5	0.7	6	30	1050	3	WSXGA+ (60Hz)
1600 x 1200	1.2	1.9	9.9	0.4	3	46	1200	1	UXGA (60Hz)

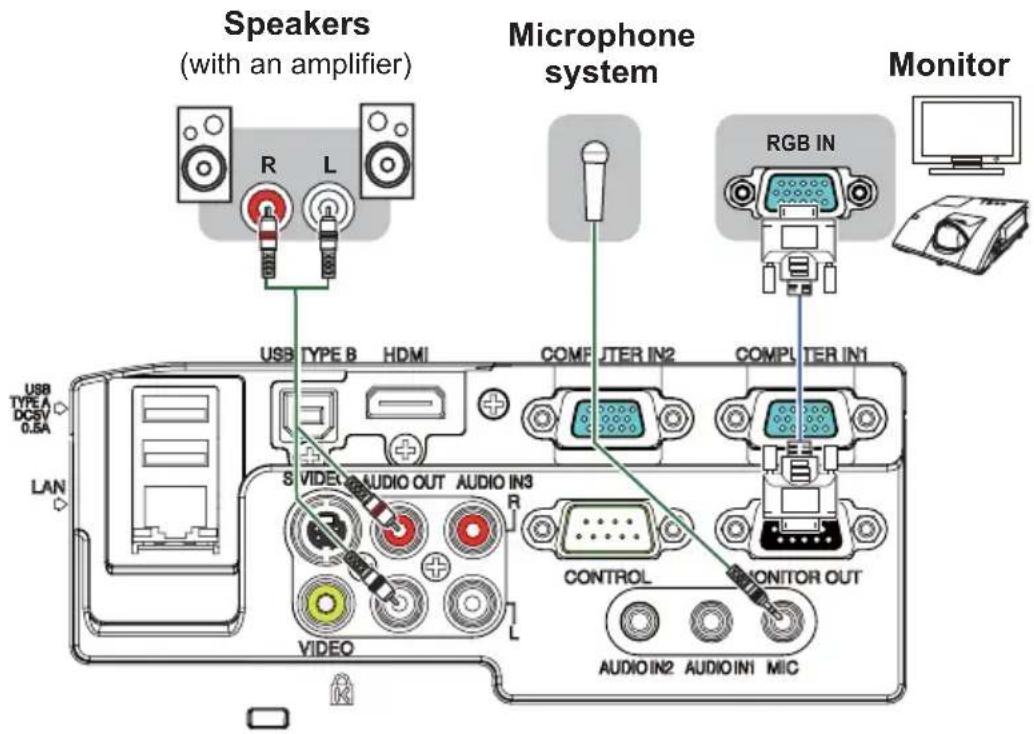

Connection to the ports

NOTICE ▶ Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed.

▶ Only the signal that is input from the COMPUTER IN1 or IN2 can be output from the MONITOR OUT port.

USB TYPE B HDMI USB TYPE A DCN 0.5A LAN S-VIDEO AUDIO OUT AUDIO IN3 R VIDEO CONTROL MONITOR OUT AUDIO IN2 AUDIO IN1 MIC

□

ⒶCOMPUTER IN1, ⒷCOMPUTER IN2, ⒶMONITOR OUT

(1) for PC signal

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. Signal: TTL level (positive/negative)
- Composite sync. Signal: TTL level

Pin Signal Pin Signal
1	Video Red 10 Ground
2 Video Green 11 (No connection)
3 Video Blue		12	A: SDA (DDC data)B, C: (No connection)
4 (No connection)
5 Ground 13 H. sync / Composite sync.
6 Ground Red 14 V. sync.
7 Ground Green		15	A: SCL (DDC clock)B, C: (No connection)
8 Ground Blue
9 (No connection) --

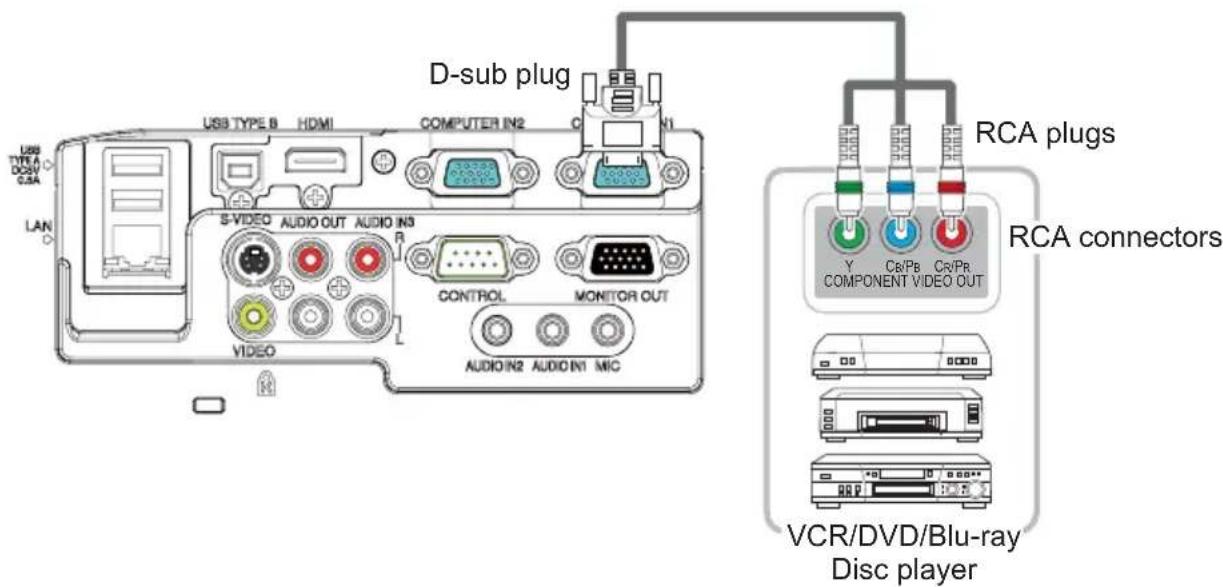

(2) for Component signal

Y: Component video Y with composite sync, 1.0±0.1 Vp-p, 75 Ω terminator
Cr/Pr : Component video Cr/Pr, 0.7±0.1 Vp-p, 75 Ω terminator
Cb/Pb : Component video Cb/Pb, 0.7±0.1 Vp-p, 75 Ω terminator

System:480i@60,480p@60,576i@50,576p@50,720p@50/60,1080i@50/60,1080p@50/60

Pin	Signal Pin Signal
1	Cr/Pr	9 (No connection)
2 Y		10 Ground
3	Cb/Pb	11	(No connection)
4 (No connection)		12 (No connection)
5 Ground 13 (No connection)
6 Ground Cr/Pr		14 (No connection)
7	Ground Y	15	(No connection)
8 Ground Cb/Pb		--

USB TYPE B HDMI COMPUTER IN2 COMPUTER IN1 USB TYPE A DC5V 0.5A LAN S-VIDEO AUDIO OUT AUDIO IN3 D E VIDEO CONTROL MONITOR OUT AUDIO IN2 AUDIO IN1 MIC

DS-VIDEO

Mini DIN 4pin jack

HITACHI CP-D27WNEF - DS-VIDEO - 1

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

Pin Signal
1	Color signal 0.286Vp-p (NTSC, burst), 75Ω terminatorColor signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2 Brightness signal, 1.0Vp-p, 75Ω terminator
3 Ground
4 Ground

©VIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)
• 1.0±0.1Vp-p, 75Ω terminator

USB TYPE B HDM1 COMPUTER IN2 COMPUTER IN1 USB TYPE A DC5V 0.5A LAN S-VIDEO AU OUT I D IN3 R VIDEO L J CONT1 H G MC M AUDIO IN2 AUDIO IN1 MIC

FHDMI

Type :Digital audio/video connector
• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)

2 4 6 8 10 12 14 16 18 1 3 5 7 9 11 13 15 17 19

Pin	Signal Pin Signal Pin Signal
1	T.M.D.S. Data2 +	8	T.M.D.S. Data0 Shield	15	SCL
2 T	M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA
3	T.M.D.S. Data2 -	10	T.M.D.S. Clock +	17	DDC/CEC Ground
4	T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield			18	+5V Power
5	T.M.D.S. Data1 Shield	12	T.M.D.S. Clock -	19	Hot Plug Detect
6 T	M.D.S. Data1 - 13 CEC
7 T	M.D.S. Data0 +	14 Reserved(N.C. on device)

©AUDIO IN1, ⒽAUDIO IN2

- About the details of RS-232C communication, please refer to the section "RS-232C Communication".

⑨ ⑧ ⑦ ⑥ ⑤ ④ ③ ② ①

Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2	RD	5	Ground	8	CTS
3 TD 6 (No connection) 9 (No connection)

©LAN

RJ-45 jack

Pin	Signal Pin	Signal Pin	Signal
1	TX+	4	-	7
2	TX-	5	-	8
3	RX+	6	RX-

2 3 8 654

To input component video signal to COMPUTER IN ports

ex.

D-sub plug USB TYPE B HDMI COMPUTER IN2 C N1 USB TYPE A DC2V GSA LAN S-VIDEO AUDIO OUT AUDIO IN3 CONTROL MONITOR OUT VIDEO AUDIO IN2 AUDIO IN1 MIC RCA plugs Y Cr/Pb Cr/Pr COMPONENT VIDEO OUT RCA connectors VCR/DVD/Blu-ray Disc player

To input component video signal to the COMPUTER IN1 or IN2 port of the projector, use a RCA to D-sub cable or adapter.

For about the pin description of the required cable or adapter, refer to the descriptions about COMPUTER IN1 and IN2 port (3).

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the projector can be controlled with RS-232C commands from the computer. For details of RS-232C commands, refer to RS-232C Communication / Network command table (17).

Connection

Turn off the projector and the computer.
Connect the projector's CONTROL port and the computer's RS-232C port with a RS-232C cable (cross). Use the cable that fulfills the specification shown in figure
Turn the computer on, and after the computer has started up turn the projector on.
Set the COMMUNICATION TYPE to OFF. OPTION menu - SERVICE - COMMUNICATION in the User's Manual - Operating Guide)

HITACHI CP-D27WNEF - Connection - 1

RS-232C port of the computer
HITACHI CP-D27WNEF - Connection - 2

CONTROL port of the projector
HITACHI CP-D27WNEF - Connection - 3

HITACHI CP-D27WNEF - Connection - 4

Communication settings

1. Protocol

19200bps,8N1

Command format ("h" shows hexadecimal)

Byte Number

0 1

2 3 4

5 6

CommandAction

Header Data

Header code

Packet

Data size

CRC flag

Action Type

Setting code

BEh

EFh 03h

06h 00h

(aL)

(aH)

01h

00h

(bL)

(bH)

(cL)

(cH)

(aL)

(aH)

02h

00h

(bL)

(bH)

00h

(aL)

(aH)

04h

00h

(bL)

(bH)

00h

(aL)

(aH)

05h

00h

(bL)

(bH)

00h

(aL)

(aH)

06h

00h

(bL)

(bH)

00h

[Header code] [Packet] [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0\~4.

[CRC flag]

For byte number 5, 6, refer to RS-232C Communication / Network command table (17).

[Action]

Set functional code to byte number 7, 8.

= [01h, 00h], = [02h, 00h], = [04h, 00h]

= [05h, 00h], = [06h, 00h]

Refer to the Communication command table (above).

[Type] [Setting code]

For byte number 9 \~ 12, refer to RS-232C Communication / Network command table (17).

3. Response code / Error code ("h" shows hexadecimal)

(1) ACK reply : 06h

When the projector receives the Set, Increment, Decrement or Execute command correctly, the projector changes the setting data for the specified item by [Type], and it returns the code.

(2) NAK reply : 15h

When the projector cannot understand the received command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

(3) Error reply : 1Ch + 0000h

When the projector cannot execute the received command for any reasons, the projector returns the error code.

In such a case, check the sending code and the setting status of the projector.

(4) Data reply : 1Dh + xxxxh

When the projector receives the GET command correctly, the projector returns the response code and 2 bytes of data.

NOTE • For connecting the projector to your devices, please read the manual for each devices, and connect them correctly with suitable cables.

Operation cannot be guaranteed when the projector receives an undefined command or data.
Provide an interval of at least 40ms between the response code and any other code.
The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data.
Commands are not accepted during warm-up.
When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, the projector returns the error code to the computer.

Command Control via the Network

When the projector connects network, the projector can be controlled with RS-232C commands from the computer with web browser.

For details of RS-232C commands, refer to RS-232C Communication / Network command table (17).

NOTE • If data is transferred via wireless and wired LAN at the same time, the projector may not be able to process the data correctly.

Connection

Turn off the projector and the computer.
If you use wired LAN, connect the projector's LAN port to the computer's LAN port with a LAN cable. Use the cable that fulfills the specification shown in figure. If you use wireless LAN, insert the USB wireless adapter into the projector's USB TYPE A port.
Turn the computer on, and after the computer has started up turn the projector on.

HITACHI CP-D27WNEF - Connection - 1

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

Configure the following items form a web browser when command control is used.

Port Settings
Network Control Port1 (Port: 23)	Port open	Click the [Enable] check box to open [Network Control Port1 (Port: 23)] to use TCP #23. Default setting is “Enable”.
Network Control Port1 (Port: 23)	Authentication	Click the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Disable”.
Network Control Port2 (Port: 9715)	Port open	Click the [Enable] check box to open [Network Control Port2 (Port: 9715)] to use TCP #9715. Default setting is “Enable”.
Network Control Port2 (Port: 9715)	Authentication	Click the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Enable”.

When the authentication setting is enabled, the following settings are required.

Security Settings
Network Control	Authentication Password	Enter the desired authentication password. This setting will be the same for [Network Control Port1 (Port: 23)] and [Network Control Port2 (Port: 9715)]. Default setting is blank.
	Re-enter Authentication Password

Command control settings

[TCP #23]

1. Command format

Same as RS-232C communication, refer to RS-232C Communicaton command format.

2. Response code / Error code ("h" shows hexadecimal)

Four of the response / error code used for TCP#23 are the same as RS-232C

Communication (1)\~(4). One authentication error reply (5) is added.

(1) ACK reply : 06h

Refer to RS-232C communication (10).

(2) NAK reply : 15h

Refer to RS-232C communication (10).

(3) Error reply : 1Ch + 0000h

Refer to RS-232C communication (10).

(4) Data reply : 1Dh + xxxxh

Refer to RS-232C communication (10).

(5) Authentication error reply : 1Fh + 0400h

When authentication error occurred, the projector returns the error code.

[TCP #9715]

1. Command format

The commands some datum are added to the head and the end of the ones of TCP#9715 are used.

Header Data length RS-232C command Check sum Connection ID
0×02 0×0D	13 bytes 1 byte	1 byte

02, Fixed

[Data Length]

RS-232C commands byte length (0×0D, Fixed)

[RS-232C commands]

Refer to RS-232C Communication command format (9).

[Check Sum]

This is the value to make zero on the addition of the lower 8 bits from the header to the checksum.

[Connection ID]

Random value from 0 to 255 (This value is attached to the reply data).

NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data.

- Provide an interval of at least 40ms between the response code and any other code.

- Commands are not accepted during warm-up.

2. Response code / Error code ("h" shows hexadecimal)

The connection ID is attached for the TCP#23's response / error codes are used. The connection ID is same as the sending command format.

(1) ACK reply : 06h + xxh
(××h : connection ID)
(2) NAK reply : 15h + xxh
(3) Error reply : 1Ch + 0000h + xxh
(4) Data reply : 1Dh + xxxxh + xxh
(5) Authentication error reply : 1Fh + 0400h + xxh
(6) Projector busy reply: 1Fh + xxxxh + xxh

When the projector is too busy to receive the command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

Automatic Connection Break

The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established.

Authentication

The projector does not accept commands without authentication success when authentication is enabled. The projector uses a challenge response type authentication with an MD5 (Message Digest 5) algorithm. When the projector is using a LAN, a random 8 bytes will be returned if authentication is enabled. Bind this received 8 bytes and the authentication password and digest this data with the MD5 algorithm and add this in front of the commands to send.

Following is a sample if the authentication password is set to "password" and the random 8 bytes are "a572f60c".

1) Select the projector.
2) Receive the random 8 bytes "a572f60c" from the projector.
3) Bind the random 8 bytes "a572f60c" and the authentication password "password" and it becomes "a572f60cpassword".
4) Digest this bind "a572f60cpassword" with MD5 algorithm.

It will be "e3d97429adffa11bce1f7275813d4bde".

5) Add this "e3d97429adffa11bce1f7275813d4bde" in front of the commands and send the data.

Send “e3d97429adffa11bce1f7275813d4bde”+command.

6) When the sending data is correct, the command will be performed and the reply data will be returned. Otherwise, an authentication error will be returned.

NOTE • As for the transmission of the second or subsequent commands, the authentication data can be omitted when the same connection.

Network Bridge Communication

This projector is equipped with NETWORK BRIDGE function.

When the projector connects to the computer by LAN communicaton, an external device that is connected with this projector by RS-232C communication can be controlled from the computer as a network terminal.

For details, see the 6. Network Bridge Function - Network Guide.

NOTE • If data is transferred via wireless and wired LAN at the same time, the projector may not be able to process the data correctly.

Connection

If you use wired LAN, connect the computer's LAN port and the projector's LAN port with a LAN cable. Use the cable that fulfills the specification shown in figure. If you use wireless LAN, insert the USB wireless adapter into the projector's USB TYPE A port.
Connect the projector's CONTROL port and the RS-232C port of the devices that you want to control with a RS-232C cable.
Turn the computer on, and after the computer has started up turn the projector on.
Set the COMMUNICATION TYPE to NETWORK BRIDGE. (OPTION menu - SERVICE - COMMUNICATION in the User's Manual - Operating Guide)

HITACHI CP-D27WNEF - Connection - 1

Communication settings

For communication setting, use the OPTION - SERVICE - COMMUNICATION menu. (OPTION menu - SERVICE - COMMUNICATION in the User's Manual - Operating Guide)

Item Condition
BAUD RATE 4800bps / 9600bps / 19200bps / 38400bps
Data length 8 bit (fixed)
PARITY NONE/ODD/EVEN
Start bit 1 bit (fixed)
Stop bit 1 bit (fixed)
Transmission method HALF-DUPLEX/FULL-DUPLEX

NOTE • For connecting the projector to your devices, please read the manual for each devices, and connect them correctly with suitable cables.

- Turn off (the power of) both the projector and other devices and unplug, beore connecting them.

- For details of Transmission method, refer to 6.4 Transmission method - Network Guide.

RS-232C Communication / Network command table

Names Operation Type Header								Command Data
Names Operation Type Header								CRC Action Type	Setting code
Power	Set	Turn off BE EF 03 06 00 2A D3 01 00 00 60 00 00
	Set	Turn on BE EF 03 06 00 BA D2 01 00 00 60 01 00
	Get		BE EF 03 06 00 19 D3 02 00 00 60 00 00
	Get		[Example return]00 00 01 00 02 00[Off] [On] [Cool down]
Input Source	Set	COMPUTER IN1 BE EF 03 06 00 FE D2 01 00 00 20 00 00
		COMPUTER IN2 BE EF 03 06 00 3E D0 01 00 00 20 04 00
		HDMI	BE EF	03	06 00	0E D2	01 00	00 20	03 00
		S-VIDEO	BE EF	03 06	00 9E D3	01 00 00	20 02 00
		VIDEO	BE EF	03 06	00 6E D3	01 00 00	20 01 00
		USB TYPE A	BE EF	03	06 00	5E D1	01 00	00 20	06 00
		LAN	BE EF	03	06 00	CE D5	01 00	00 20	0B 00
		USB TYPE B	BE EF	03	06 00	FE D7	01 00	00 20	0C 00
	Get		BE EF	03 06	00 CD D2	02 00	00 20 00	00
Error Status	Get		BE EF	03 06	00 D9 D8	02 00 20	60 00 00
Error Status	Get		[Example return]00 00 01 00 02 00 03 00[Normal] [Cover error] [Fan error] [Lamp error]04 00 05 00 07 00 08 00[Temp error] [Air flow error] [Cold error] [Filter error]
MAGNIFY	Get		BE EF	03 06	00 7C D2	02 00 07	30 00 00
	Increment BE EF		03 06 00	1A D2	04 00 07	30 00 00
	Decrement		BE EF	03 06	00 CB D3	05 00	07 30 00	00
FREEZE	Set	NORMAL	BE EF	03 06	00 83 D2	01 00	02 30 00	00
	Set	FREEZE	BE EF	03	06 00	13 D3	01 00	02 30	01 00
	Get		BE EF	03	06 00	B0 D2	02 00	02 30	00 00
PICTURE MODE	Set	NORMAL	BE EF	03	06 00	23 F6	01 00	BA 30	00 00
		CINEMA	BE EF	03 06	00 B3 F7	01 00 BA	30 01 00
		DYNAMIC	BE EF	03 06	00 E3 F4	01 00 BA	30 04 00
		BOARD(BLACK)	BE EF	03	06 00	E3 EF	01 00	BA 30	20 00
		BOARD(GREEN)	BE EF	03	06 00	73 EE	01 00	BA 30	21 00
		WHITEBOARD	BE EF	03	06 00	83 EE	01 00	BA 30	22 00
		DAYTIME	BE EF	03 06	00 E3 C7	01 00 BA	30 40 00
		PHOTO	BE EF	03	06 00	73 F5	01 00	BA 30	05 00
	Get		BE EF	03 06	00 10 F6	02 00 BA 30	00 00
	Get		[Example return]00 00 01 00 04 00 05 00 10 00[Normal] [Cinema] [Dynamic] [PHOTO] [Custom]20 00 21 00 22 00 40 00[BOARD(BLACK)][BOARD(GREEN)][WHITEBOARD][DAY TIME]
BRIGHTNESS	Get		BE EF	03 06	00 89 D2	02 00	03 20 00	00
	Increment BE EF		03 06 00	EF D2	04 00 03	20	00 00
	Decrement		BE EF	03	06 00	3E D3	05 00	03 20	00 00
BRIGHTNESS Reset	Execute		BE EF	03	06 00	58 D3	06 00	00 70	00 00
CONTRAST	Get		BE EF	03 06	00 FD D3	02 00	04 20 00	00
	Increment BE EF		03 06 00	9B D3	04 00 04	20 00 00
	Decrement		BE EF	03	06 00	4A D2	05 00	04 20	00 00
CONTRAST Reset	Execute BE EF		03 06 00	A4 D2	06 00 01	70 00 00
GAMMA	Set	1 DEFAULT BE	EF 03 06	00 07	E9 01 00	A1 30 20	00
		1 CUSTOM BE	EF 03 06	00 07	FD 01 00	A1 30 10	00
		2 DEFAULT BE	EF 03 06	00 97	E8 01 00	A1 30 21	00
		2 CUSTOM BE	EF 03 06	00 97	FC 01 00	A1 30 11	00
		3 DEFAULT BE	EF 03 06	00 67	E8 01 00	A1 30 22	00
		3 CUSTOM BE	EF 03 06	00 67	FC 01 00	A1 30 12	00
		4 DEFAULT BE	EF 03 06	00 F7	E9 01 00	A1 30 23	00
		4 CUSTOM BE	EF 03 06	00 F7	FD 01 00	A1 30 13	00
		5 DEFAULT BE	EF 03 06	00 C7	EB 01 00	A1 30 24	00
		5 CUSTOM BE	EF 03 06	00 C7	FF 01 00	A1 30 14	00
		6 DEFAULT BE	EF 03 06	00 57	EA 01 00	A1 30 25	00
		6 CUSTOM BE	EF 03 06	00 57	FE 01 00	A1 30 15	00
		7 DEFAULT BE	EF 03 06	00 A7	EA 01 00	A1 30 26	00
		7 CUSTOM BE	EF 03 06	00 A7	FE 01 00	A1 30 16	00
	Get BE EF 03		06 00 F4	F0 02	00 A1 30	00 00
User Gamma Pattern	Set	Off BE EF	03 06 00	FB FA	01 00 80	30 00 00
		9 steps gray scale	BE EF 03	06 00	6B FB 01	00 80	30 01 00
		15 steps gray scale	BE EF	03 06	00 9B FB	01 00 80	30 02 00
		Ramp	BE EF	03 06	00 0B FA	01 00 80	30 03 00
	Get BE EF 03		06 00 C8	FA	02 00 80	30 00 00
User Gamma Point 1	Get BE EF		03 06 00	08 FE	02 00 90	30 00 00
	Increment		BE EF	03	06 00	6E FE	04 00	90 30	00 00
	Decrement		BE EF	03	06 00	BF FF	05 00	90 30	00 00
User Gamma Point 1 Reset	Execute BE EF		03 06 00	58 C2	06 00 50	70 00 00
User Gamma Point 2	Get BE EF		03 06 00	F4 FF	02 00 91	30 00 00
	Increment		BE EF	03 06	00 92 FF	04 00 91	30 00 00
	Decrement		BE EF	03 06	00 43 FE	05 00 91	30 00 00
User Gamma Point 2 Reset	Execute BE EF		03 06 00	A4 C3	06 00 51	70 00 00
User Gamma Point 3	Get BE EF		03 06 00	B0 FF	02 00 92	30 00 00
	Increment		BE EF	03	06 00	D6 FF	04 00	92 30	00 00
	Decrement		BE EF	03 06	00 07 FE	05 00 92	30 00 00
User Gamma Point 3 Reset	Execute BE EF		03 06 00	E0 C3	06 00 52	70 00 00
User Gamma Point 4	Get BE EF		03 06 00	4C FE	02 00 93	30 00 00
	Increment		BE EF	03 06	00 2A FE	04 00 93	30 00 00
	Decrement		BE EF	03	06 00	FB FF	05 00	93 30	00 00
User Gamma Point 4 Reset	Execute BE EF		03 06 00	1C	C2 06 00	53 70 00	00
User Gamma Point 5	Get BE EF		03 06 00	38 FF	02 00 94	30 00 00
	Increment		BE EF	03	06 00	5E FF	04 00	94 30	00 00
	Decrement		BE EF	03	06 00	8F FE	05 00	94 30	00 00
User Gamma Point 5 Reset	Execute BE EF		03 06 00	68 C3	06 00 54	70 00 00
User Gamma Point 6	Get BE EF		03 06 00	C4 FE	02 00 95	30 00 00
	Increment		BE EF	03	06 00	A2 FE	04 00	95 30	00 00
	Decrement		BE EF	03	06 00	73 FF	05 00	95 30	00 00
User Gamma Point 6 Reset	Execute BE EF	03 06 00	94 C2	06 00 55	70 00 00
User Gamma Point 7	Get BE EF 03	06 00 80	FE 02	00 96 30	00 00
	Increment BE EF	03 06 00	E6 FE	04 00 96	30 00 00
	Decrement BE EF	03 06 00	37 FF	05 00 96	30 00 00
User Gamma Point 7 Reset	Execute BE EF	03 06 00	D0 C2	06 00 56	70 00 00
User Gamma Point 8	Get BE EF 03	06 00 7C	FF 02	00 97 30	00 00
	Increment BE EF	03 06 00	1A FF	04 00 97	30 00 00
	Decrement BE EF	03 06 00	CB FE	05 00 97	30 00 00
User Gamma Point 8 Reset	Execute BE EF	03 06 00	2C C3	06 00 57	70 00 00
COLOR TEMP	Set	1 HIGH	BE EF	03 06	00 0B F5	01 00 B0	30 03 00
		1 CUSTOM	BE EF	03 06	00 CB F8	01 00 B0	30 13 00
		2 MID BE EF	03 06 00	9B F4	01 00 B0	30 30	02 00
		2 CUSTOM	BE EF	03 06	00 5B F9	01 00 B0	30 12 00
		3 LOW	BE EF	03 06	00 6B F4	01 00 B0	30 01 00
		3 CUSTOM	BE EF	03 06	00 AB F9	01 00 B0	30 11 00
		4 Hi-BRIGHT-1	BE EF	03	06 00	3B F2	01 00	B0 30	08 00
		4 CUSTOM	BE EF	03 06	00 FB FF	01 00 B0	30 18 00
		5 Hi-BRIGHT-2	BE EF	03	06 00	AB F3	01 00	B0 30	09 00
		5 CUSTOM	BE EF	03 06	00 6B FE	01 00 B0	30 19 00
		6 Hi-BRIGHT-3	BE EF	03	06 00	5B F3	01 00	B0 30	0A 00
		6 CUSTOM	BE EF	03	06 00	9B FE	01 00	B0 30	1A 00
		7 Hi-BRIGHT-4	BE EF	03	06 00	CB F2	01 00	B0 30	0B 00
		7 CUSTOM	BE EF	03 06	00 0B FF	01 00 B0	30 1B 00
	Get BE EF 03		06 00 C8	F5 02	00 B0 30	00
COLOR TEMP GAIN R	Get BE EF 03		06 00 34	F4 02	00 B1 30	00 00
	Increment BE EF		03 06 00	52 F4	04 00 B1	30 00 00
	Decrement BE EF		03 06 00	83 F5	05 00 B1	30 00 00
COLOR TEMP GAIN R Reset	Execute BE EF		03 06 00	10 C6	06 00 46	70 00 00
COLOR TEMP GAIN G	Get BE EF 03		06 00 70	F4 02	00 B2 30	00 00
	Increment BE EF		03 06 00	16 F4	04 00 B2	30 00 00
	Decrement BE EF		03 06 00	C7 F5	05 00 B2 30	00 00
COLOR TEMP GAIN G Reset	Execute BE EF		03 06 00	EC C7	06 00 47	70 00 00
COLOR TEMP GAIN B	Get BE EF 03		06 00 8C	F5 02	00 B3 30	00
	Increment		BE EF	03	06 00	EA F5	04 00	B3 30	00 00
	Decrement BE EF		03 06 00	3B F4	05 00 B3 30	00 00
COLOR TEMP GAIN B Reset	Execute BE EF		03 06 00	F8 C4	06 00 48	70 00 00
COLOR TEMP OFFSET R	Get BE EF 03		06 00 04	F5 02	00 B5 30	00 00
	Increment BE EF		03 06 00	62 F5	04 00 B5	30 00 00
	Decrement BE EF		03 06 00	B3 F4	05 00 B5 30	00 00
COLOR TEMP OFFSET R Reset	Execute BE EF		03 06 00	40 C5	06 00 4A	70 00 00
COLOR TEMP OFFSET G	Get BE EF 03		06 00 40	F5 02	00 B6 30	00 00
	Increment BE EF		03 06 00	26 F5	04 00 B6	30 00 00
	Decrement BE EF		03 06 00	F7 F4	05 00 B6 30	00 00
COLOR TEMPOFFSET GReset	Execute BE EF	03 06 00	BC C4	06 00 4B	70 00 00
COLOR TEMPOFFSET B	Get BE EF 03	06 00 BC	F4 02	00 B7	30 00 00
	Increment BE EF	03 06 00	DA F	4 04 00 B	7 30 00	00
	Decrement BE EF	03 06 00	0B F	5 05 00 B	7 30 00	00
COLOR TEMPOFFSET BReset	Execute BE EF	03 06 00	C8 C5	06 00 4C	70 00 00
COLOR	Get BE EF 03	06 00 B5	72 02	00 02 22	20 00
	Increment BE EF	03 06 00	D3 72	04 00 02	22 00 00
	Decrement BE EF	03 06 00	02 73	05 00 02	22 00 00
COLOR Reset	Execute BE EF	03 06 00	80 D0	06 00 0A	70 00 00
TINT	Get BE EF 03	06 00 49	73 02	00 03 22	20 00
	Increment BE EF	03 06 00	2F 73	04 00 03	22 00 00
	Decrement BE EF	03 06 00	FE 72	05 00 03	22 00 00
TINT Reset	Execute BE EF	03 06 00	7C D1	06 00 0B	70 00 00
SHARPNESS	Get BE EF 03	06 00 F1	72 02	00 01 22	20 00
	Increment BE EF	03 06 00	97 72	04 00 01	22 00 00
	Decrement BE EF	03 06 00	46 73	05 00 01	22 00 00
SHARPNESSReset	Execute BE EF	03 06 00	C4 D0	06 00 09	70 00 00
ACTIVE IRIS	Set	OFF	BE EF	03 06	00 0B 22	01 00 04	33 00 00
		THEATER	BE EF	03 06	00 CB 2F	01 00 04	33 10 00
		PRESENTATION	BE EF	03 06	00 5B 2E	01 00 04	33 11 00
	Get BE EF 03		06 00 38	22 02	00 04 38	00 00
MY MEMORYLoad	Set	1	BE EF	03 06	00 0E D7	01 00 14	20 00 00
		2	BE EF	03 06	00 9E D6	01 00 14	20 01 00
		3	BE EF	03 06	00 6E D6	01 00 14	20 02 00
		4	BE EF	03 06	00 FE D7	01 00 14	20 03 00
MY MEMORYSave	Set	1	BE EF	03 06	00 F2 D6	01 00 15	20 00 00
		2	BE EF	03 06	00 62 D7	01 00 15	20 01 00
		3	BE EF	03 06	00 92 D7	01 00 15	20 02 00
		4	BE EF	03 06	00 02 D6	01 00 15	20 03 00
ASPECT	Set	4:3 BE EF	03 06 00	9E D0	01 00 08	20 00 00
		16:9	BE EF	03 06	00 0E D1	01 00 08	20 01 00
		NATIVE	BE EF	03	06 00	5E D7	01 00	08 20	08 00
		14:9	BE EF	03 06	00 CE D6	01 00	08 20 09	00
		16:10	BE EF	03	06 00	3E D6	01 00	08 20	0A 00
		NORMAL	BE EF	03	06 00	5E DD	01 00	08 20	10 00
	Get		BE EF	03	06 00	AD D0	02 00	08 20	00 00
OVER SCAN	Get BE EF		03 06 00	91 70	02 00 09	22	00 00
	Increment BE EF		03 06	00 F7	70 04 00	09 22	00 00
	Decrement BE EF		03 06	00 26	71 05 00	09 22	00 00
OVER SCANReset	Execute BE EF		03 06 00	EC D9	06 00 27	70	00 00
V POSITION	Get BE EF		03 06 00	0D 83	02 00 00	21	00 00
	Increment BE EF		03 06	00 6B	83 04 00	00 21	00 00
	Decrement BE EF		03 06	00 BA	82 05 00	00 21 00	00
V POSITION Reset	Execute BE EF	03 06 00	E0 D2	06 00 02	70 00 00
H POSITION	Get BE EF 03	06 00 F1	82 02	00 01 21	100 00
	Increment BE EF	03 06 00	97 82	04 00 01	21 00 00
	Decrement BE EF	03 06 00	46 83	05 00 01	21 00 00
H POSITION Reset	Execute BE EF	03 06 00	1C D3	06 00 03	70 00 00
H PHASE	Get BE EF 03	06 00 49	83 02	00 03 21	100 00
	Increment BE EF	03 06 00	2F 83	04 00 03	21 00 00
	Decrement BE EF	03 06 00	FE 82	05 00 03	21 00 00
H SIZE	Get BE EF 03	06 00 B5	82 02	00 02 21	100 00
	Increment BE EF	03 06 00	D3 82	04 00 02	21 00 00
	Decrement BE EF	03 06 00	02 83	05 00 02	21 00 00
H SIZE Reset	Execute BE EF	03 06 00	68 D2	06 00 04	70 00 00
AUTO ADJUST EXECUTE	Execute BE EF	03 06 00	91 D0	06 00 0A	20 00 00
PROGRESSIVE	Set	OFF BE EF	03 06 00	4A 72	01 00 07	22 00 00
		TV	BE EF	03 06	00 DA 73	01 00 07	22 01 00
		FILM BE EF	03 06	00 2A	73 01 00	07 22 02	00
	Get BE EF	03 06 00	79 72	02 00 07	22 00 00
VIDEO NR	Set	LOW BE EF	03 06	00 26	72 01 00	06 22 01	00
		MID	BE EF	03 06	00 D6	72 01 00	06 22 02	00
		HIGH	BE EF	03 06	00 46	73 01 00	06 22 03	00
	Get		BE EF	03	06 00	85 73	02 00	06 22
COLOR SPACE	Set	AUTO	BE EF	03 06	00 0E	72 01 00	04 22 00	00
		RGB BE EF	03 06 00	9E 73	01 00 04	22 01 00
		SMPTE240	BE EF	03 06	00 6E	73 01 00	04 22 02	00
		REC709	BE EF	03 06	00 FE	72 01 00	04 22 03	00
		REC601	BE EF	03 06	00 CE	70 01 00	04 22 04	00
	Get BE EF		03 06 00	3D 72	02 00 04	22 00 00
S-VIDEO FORMAT	Set	AUTO	BE EF	03	06 00	E6 70	01 00	12 22
		NTSC BE EF	03 06	00 86	74 01 00	12 22 04	00
		PAL	BE EF	03 06	00 16	75 01 00	12 22 05	00
		SECAM	BE EF	03 06	00 16	70 01 00	12 22 09	00
		NTSC4.43	BE EF	03 06	00 26	77 01 00	12 22 02	00
		M-PAL	BE EF	03 06	00 86	71 01 00	12 22 08	00
		N-PAL	BE EF	03 06	00 76	74 01 00	12 22 07	00
	Get BE EF		03 06 00	75 76	02 00 12	22 00 00
C-VIDEO FORMAT	Set	AUTO	BE EF	03 06	00 A2	70 01 00	11 22 0A	00
		NTSC BE EF	03 06	00 C2	74 01 00	11 22	04 00
		PAL	BE EF	03 06	00 52	75 01 00	11 22 05	00
		SECAM	BE EF	03 06	00 52	70 01 00	11 22 09	00
		NTSC4.43	BE EF	03 06	00 62	77 01 00	11 22 02	00
		M-PAL	BE EF	03	06 00	C2 71	01 00	11 22
		N-PAL	BE EF	03 06	00 32	74 01 00	11 22 07	00
	Get BE EF		03 06 00	31 76	02 00 11	22 00 00
HDMI FORMAT	Set	AUTO	BE EF	03	06 00	BA 77	01 00	13 22
		VIDEO	BE EF	03	06 00	2A 76	01 00	13 22
		COMPUTER	BE EF	03	06 00	DA 76	01 00	13 22
	Get		BE EF	03	06 00	89 77	02 00	13 22

RS-232C Communication / Network command table (continued)

Names Operation Type Header								Command Data
Names Operation Type Header								CRC Action Type	Setting code
HDMI RANGE	Set	AUTO BE EF	03 06 00	86 D8	01 00 22	20 00 00
		NORMAL BE EF	03 06 00	16 D9	01 00 22	20 01 00
		ENHANCED BE	EF 03 06	00 E6	D9 01 00	22 20 02 00
	Get BE EF 03		06 00 B5	D8 02	00 22 20 00	00 00
COMPUTER IN1	Set	AUTO	BE EF	03	06 00	CE D6	01 00	10 20	03 00
	Set	SYNC ON G OFF	BE EF	03	06 00	5E D7	01 00	10 20	02 00
	Get		BE EF	03	06 00	0D D6	02 00	10 20	00 00
COMPUTER IN2	Set	AUTO	BE EF	03	06 00	32 D7	01 00	11 20	03 00
	Set	SYNC ON G OFF	BE EF	03	06 00	A2 D6	01 00	11 20	02 00
	Get		BE EF	03	06 00	F1 D7	02 00	11 20	00 00
FRAME LOCK - COMPUTER IN1	Set	OFF	BE EF	03	06 00	3B C2	01 00	50 30	00 00
	Set	ON	BE EF	03	06 00	AB C3	01 00	50 30	01 00
	Get		BE EF	03	06 00	08 C2	02 00	50 30	00 00
FRAME LOCK - COMPUTER IN2	Set	OFF	BE EF	03	06 00	0B C3	01 00	54 30	00 00
	Set	ON	BE EF	03	06 00	9B C2	01 00	54 30	01 00
	Get		BE EF	03	06 00	38 C3	02 00	54 30	00 00
FRAME LOCK - HDMI	Set	OFF	BE EF	03 06 00	7F C2 01	100 53 30	00 00
	Set	ON	BE EF	03 06 00	0EF C3 01	100 53 30	01 00
	Get BE EF 03		06 00 4C	C2 02	00 53	30 00 00
D-ZOOM	Get		BE EF	03	06 00	D0 D0	02 00	0A 30	00 00
	Increment		BE EF	03	06 00	B6 D0	04 00	0A 30	00 00
	Decrement		BE EF	03	06 00	67 D1	05 00	0A 30	00 00
D-ZOOM Reset	Execute		BE EF	03	06 00	98 C9	06 00	70 70	00 00
D-SHIFT V	Get		BE EF	03	06 00	2C D1	02 00	0B 30	00 00
	Increment		BE EF	03	06 00	4A D1	04 00	0B 30	00 00
	Decrement		BE EF	03	06 00	9B D0	05 00	0B 30	00 00
D-SHIFT V Reset	Execute		BE EF	03	06 00	A8 C8	06 00	74 70	00 00
D-SHIFT H	Get		BE EF	03	06 00	58 D0	02 00	0C 30	00 00
	Increment		BE EF	03	06 00	3E D0	04 00	0C 30	00 00
	Decrement		BE EF	03	06 00	EF D1	05 00	0C 30	00 00
D-SHIFT H Reset	Execute		BE EF	03	06 00	54 C9	06 00	75 70	00 00
PICTURE POSITION (CP-D27WN, CP-D32WN)	Set	TOP	BE EF	03	06 00	02 D0	01 00	09 20	02 00
		MIDDLE	BE EF	03	06 00	62 D1	01 00	09 20	00 00
		BOTTOM	BE EF	03	06 00	F2 D0	01 00	09 20	01 00
	Get		BE EF	03	06 00	51 D1	02 00	09 20	00 00
PICT.POSIT.H (CP-DW25WN)	Set	RIGHT	BE EF	03	06 00	46 D5	01 00	1E 20	01 00
		MIDDLE	BE EF	03	06 00	D6 D4	01 00	1E 20	00 00
		LEFT	BE EF	03	06 00	B6 D5	01 00	1E 20	02 00
	Get		BE EF	03	06 00	E5 D4	02 00	1E 20	00 00
KEYSTONE V	Get		BE EF	03	06 00	B9 D3	02 00	07 20	00 00
	Increment		BE EF	03	06 00	DF D3	04 00	07 20	00 00
	Decrement		BE EF	03	06 00	OE D2	05 00	07 20	00 00
KEYSTONE V Reset	Execute		BE EF	03	06 00	08 D0	06 00	0C 70	00 00
AUTO ECO MODE	Set	OFF	BE EF	03	06 00	FB 27	01 00	10 33	00 00
	Set	ON	BE EF	03	06 00	6B 26	01 00	10 33	01 00
	Get		BE EF	03	06 00	C8 27	02 00	10 33	00 00
ECO MODE	Set	NORMAL BE EF 03 06	00 3B	23 01 00	00 33 00	00
		ECO BE EF	03 06 00	AB 22 01 00 00	33 01 00
		INTELLIGENT ECO	BE EF 03 06	00 FB 2E	01 00 00	33 10 00
		SAVER BE EF	03 06 00 FB	3A 01 00	00 33 20	00
	Get BE EF 03		06 00 08	23 02 00 00 33	00 00
INSTALLATION	Set	FRONT / DESKTOP	BE EF 03 06	00 C7 D2	01 00 01	30 00 00
		REAR / DESKTOP	BE EF 03 06	00 57 D3	01 00 01	30 01 00
		REAR / CEILING	BE EF 03 06	00 A7 D3	01 00 01	30 02 00
		FRONT / CEILING	BE EF 03 06	00 37 D2	01 00 01	30 03 00
	Get BE EF 03		06 00 F4	D2 02 00 01 3	00 00
STANDBY MODE	Set	NORMAL BE EF 03 06	00 D6	D2 01 00	01 60 00	00
	Set	SAVING	BE EF 03 06	00 46 D3	01 00 01	60 01 00
	Get BE EF 03		06 00 E5	D2 02 00 01 6	00 00 00
MONITOR OUT - COMPUTER IN1	Set	COMPUTER IN1	BE EF 03 06	00 3E F4	01 00 B0	20 00 00
	Set	OFF	BE EF 03 06	00 CE B5	01 00 B0	20 FF 00
	Get BE EF 03		06 00 0D	F4 02 00 B0 20	00	00
MONITOR OUT - COMPUTER IN2	Set	COMPUTER IN2	BE EF 03 06	00 CE F7	01 00 B4	20 04 00
	Set	OFF	BE EF 03 06	00 FE B4	01 00 B4	20 FF 00
	Get BE EF 03		06 00 3D	F5 02 00 B4 20	00	00
MONITOR OUT - S-VIDEO	Set	COMPUTER IN1	BE EF 03 06	00 86 F5	01 00 B2	20 00 00
		COMPUTER IN2	BE EF 03 06	00 46 F7	01 00 B2	20 04 00
		OFF	BE EF 03 06	00 76 B4	01 00 B2	20 FF 00
	Get BE EF 03		06 00 B5	F5 02 00 B2 20	00	00
MONITOR OUT - VIDEO	Set	COMPUTER IN1	BE EF 03 06	00 C2 F5	01 00 B1	20 00 00
		COMPUTER IN2	BE EF 03 06	00 02 F7	01 00 B1	20 04 00
		OFF	BE EF 03 06	00 32 B4	01 00 B1	20 FF 00
	Get BE EF 03		06 00 F1	F5 02 00 B1 20	00 00
MONITOR OUT - HDMI	Set	COMPUTER IN1	BE EF	03	06 00	7A F4	01 00	B3 20	00 00
		COMPUTER IN2	BE EF	03	06 00	BA F6	01 00	B3 20	04 00
		OFF	BE EF	03	06 00	8A B5	01 00	B3 20	FF 00
	Get		BE EF	03	06 00	49 F4	02 00	B3 20	00 00
MONITOR OUT - LAN	Set	COMPUTER IN1	BE EF	03	06 00	1A F6	01 00	BB 20	00 00
		COMPUTER IN2	BE EF	03	06 00	DA F4	01 00	BB 20	04 00
		OFF	BE EF	03	06 00	EA B7	01 00	BB 20	FF 00
	Get		BE EF	03	06 00	29 F6	02 00	BB 20	00 00
MONITOR OUT - USB TYPE A	Set	COMPUTER IN1	BE EF	03	06 00	B6 F4	01 00	B6 20	00 00
		COMPUTER IN2	BE EF	03	06 00	76 F6	01 00	B6 20	04 00
		OFF	BE EF	03	06 00	46 B5	01 00	B6 20	FF 00
	Get		BE EF	03	06 00	85 F4	02 00	B6 20	00 00
MONITOR OUT - USB TYPE B	Set	COMPUTER IN1	BE EF	03	06 00	6E F7	01 00	BC 20	00 00
		COMPUTER IN2	BE EF	03	06 00	AE F5	01 00	BC 20	04 00
		OFF	BE EF	03	06 00	9E B6	01 00	BC 20	FF 00
	Get		BE EF	03	06 00	5D F7	02 00	BC 20	00 00
MONITOR OUT - STANDBY	Set	COMPUTER IN1	BE EF 03 06	00 2A F7	01 00 BF	20 00 00
		COMPUTER IN2	BE EF	03	06 00	EA F5	01 00	BF 20	04 00
		OFF	BE EF 03 06	00 DA B6	01 00 BF	20 FF 00
	Get BE EF 03		06 00 19	F7 02 00 BF 20	00	00
VOLUME - COMPUTER IN1	Get BE EF 03		06 00 CD CC	02 00 60	20 00 00	00
	Increment BE EF		03 06 00 AB	CC 04 00 60	20 00 00	00
	Decrement		BE EF 03 06	00 7A CD	05 00	60 20 00	00
VOLUME - COMPUTER IN2	Get BE EF 03	06 00 FD	CD 02	00 64	20 00 00
	Increment BE EF	03 06 00	9B CD	04 00 64	20 00 00
	Decrement BE EF	03 06 00	4A CC	05 00 64	20 00 00
VOLUME - S-VIDEO	Get BE EF 03	06 00 75	CD 02	00 62	20 00 00
	Increment BE EF	03 06 00	13 CD	04 00 62	20 00 00
	Decrement BE EF	03 06 00	C2 CC	05 00 62	20 00 00
VOLUME - VIDEO	Get BE EF 03	06 00 31	CD 02	00 61	20 00 00
	Increment BE EF	03 06 00	57 CD	04 00 61	20 00 00
	Decrement BE EF	03 06 00	86 CC	05 00 61	20 00 00
VOLUME - HDMI	Get	BE EF	03	06 00	89 CC	02 00	63 20	00 00
	Increment	BE EF	03	06 00	EF CC	04 00	63 20	00 00
	Decrement	BE EF	03	06 00	3E CD	05 00	63 20	00 00
VOLUME - LAN	Get	BE EF	03	06 00	E9 CE	02 00	6B 20	00 00
	Increment	BE EF	03	06 00	8F CE	04 00	6B 20	00 00
	Decrement	BE EF	03	06 00	5E CF	05 00	6B 20	00 00
VOLUME - USB TYPE A	Get	BE EF	03	06 00	45 CC	02 00	66 20	00 00
	Increment	BE EF	03	06 00	23 CC	04 00	66 20	00 00
	Decrement	BE EF	03	06 00	F2 CD	05 00	66 20	00 00
VOLUME - USB TYPE B	Get	BE EF	03	06 00	9D CF	02 00	6C 20	00 00
	Increment	BE EF	03	06 00	FB CF	04 00	6C 20	00 00
	Decrement	BE EF	03	06 00	2A CE	05 00	6C 20	00 00
VOLUME - STANDBY	Get BE EF 03	06 00 D9	CF 02	00 6F	20 00 00
	Increment BE EF	03 06 00	BF CF	04 00 6F	20 00 00
	Decrement BE EF	03 06 00	6E CE	05 00 6F	20 00 00
MUTE	Set	OFF	BE EF	03	06 00	46 D3	01 00	02 20	00 00
	Set	ON	BE EF	03 06	00 D6 D2	01 00 02	20 01 00
	Get BE EF 03	06 00	75 D3	02 00	02 20 00	00
SPEAKER	Set	ON	BE EF	03 06	00 FE D4	01 00	1C 20 01	00
	Set	OFF	BE EF	03	06 00	6E D5	01 00	1C 20	00 00
	Get BE EF 03	06 00 5D	D5 02	00 1C	20 00 00
AUDIO SOURCE - COMPUTER IN1	Set	AUDIO IN1	BE EF	03 06	00 6E DC	01 00 30	20 01 00
		AUDIO IN2	BE EF	03 06	00 9E DC	01 00 30	20 02 00
		AUDIO IN3	BE EF	03 06	00 0E DD	01 00 30	20 03 00
		OFF	BE EF	03 06	00 FE DD	01 00 30	20 00 00
	Get BE EF 03	06 00	CD DD	02 00	30 20 00	00
AUDIO SOURCE - COMPUTER IN2	Set	AUDIO IN1	BE EF	03 06	00 5E DD	01 00 34	20 01 00
		AUDIO IN2	BE EF	03 06	00 AE DD	01 00 34	20 02 00
		AUDIO IN3	BE EF	03 06	00 3E DC	01 00 34	20 03 00
		OFF	BE EF	03 06	00 CE DC	01 00	34 20 00	00
	Get BE EF 03	06 00 FD	DC 02	00 34	20 00 00
AUDIO SOURCE - LAN	Set	OFF	BE EF	03	06 00	DA DF	01 00	3B 20	00 00
		AUDIO IN1	BE EF	03	06 00	4A DE	01 00	3B 20	01 00
		AUDIO IN2	BE EF	03	06 00	BA DE	01 00	3B 20	02 00
		AUDIO IN3	BE EF	03	06 00	2A DF	01 00	3B 20	03 00
		LAN	BE EF	03	06 00	8A D3	01 00	3B 20	11 00
	Get		BE EF	03	06 00	E9 DF	02 00	3B 20	00 00
AUDIO SOURCE - USB TYPE A	Set	OFF BE EF 03 06 00 76 DD 01 00 36 20 00 00
		AUDIO IN1 BE EF 03 06 00 E6 DC 01 00 36 20 01 00
		AUDIO IN2 BE EF 03 06 00 16 DC 01 00 36 20 02 00
		AUDIO IN3 BE EF 03 06 00 86 DD 01 00 36 20 03 00
		USB TYPE A	BE EF 03 06 00 B6 D0 01 00 36 20 10 00
	Get BE EF 03 06 00 45 DD 02 00 36 20 00 00
AUDIO SOURCE - USB TYPE B	Set	OFF BE EF 03 06 00 AE DE 01 00 3C 20 00 00
		AUDIO IN1 BE EF 03 06 00 3E DF 01 00 3C 20 01 00
		AUDIO IN2 BE EF 03 06 00 CE DF 01 00 3C 20 02 00
		AUDIO IN3 BE EF 03 06 00 5E DE 01 00 3C 20 03 00
		USB TYPE B	BE EF 03 06 00 0E D2 01 00 3C 20 12 00
	Get BE EF 03 06 00 9D DE 02 00 3C 20 00 00
AUDIO SOURCE - HDMI	Set	OFF BE EF 03 06 00 BA DD 01 00 33 20 00 00
		AUDIO IN1 BE EF 03 06 00 2A DC 01 00 33 20 01 00
		AUDIO IN2 BE EF 03 06 00 DA DC 01 00 33 20 02 00
		AUDIO IN3 BE EF 03 06 00 4A DD 01 00 33 20 03 00
		HDMI	BE EF 03 06 00 7A C4 01 00 33 20 20 00
	Get BE EF 03 06 00 89 DD 02 00 33 20 00 00
AUDIO SOURCE - S-VIDEO	Set	AUDIO IN1	BE EF	03	06 00	D6 DD	01 00	32 20	01 00
		AUDIO IN2	BE EF	03	06 00	26 DD	01 00	32 20	02 00
		AUDIO IN3	BE EF	03	06 00	B6 DC	01 00	32 20	03 00
		OFF	BE EF	03	06 00	46 DC	01 00	32 20	00 00
	Get		BE EF	03	06 00	75 DC	02 00	32 20	00 00
AUDIO SOURCE - VIDEO	Set	AUDIO IN1	BE EF	03	06 00	92 DD	01 00	31 20	01 00
		AUDIO IN2	BE EF	03	06 00	62 DD	01 00	31 20	02 00
		AUDIO IN3	BE EF	03	06 00	F2 DC	01 00	31 20	03 00
		OFF	BE EF	03	06 00	02 DC	01 00	31 20	00 00
	Get		BE EF	03	06 00	31 DC	02 00	31 20	00 00
AUDIO SOURCE - STANDBY	Set	AUDIO IN1	BE EF	03	06 00	7A DF	01 00	3F 20	01 00
		AUDIO IN2	BE EF	03	06 00	8A DF	01 00	3F 20	02 00
		AUDIO IN3	BE EF	03	06 00	1A DE	01 00	3F 20	03 00
		OFF	BE EF	03	06 00	EA DE	01 00	3F 20	00 00
	Get		BE EF	03	06 00	D9 DE	02 00	3F 20	00 00
MIC LEVEL	Set	LOW	BE EF 03 06 00 02 F1 01 00 A1 20 00 00
	Set	HIGH	BE EF 03 06 00 92 F0 01 00 A1 20 01 00
	Get BE EF 03 06 00 31 F1 02 00 A1 20 00 00
MIC VOLUME	Get BE EF 03 06 00 75 F1 02 00 A2 20 00 00
	Increment		BE EF 03 06 00 13 F1 04 00 A2 20 00 00
	Decrement		BE EF 03 06 00 C2 F0 05 00 A2 20 00 00
LANGUAGE	Set	ENGLISH BE	EF 03 06	00 F7	D3 01 00	05 30 00	00
		FRANÇAIS BE	EF 03 06	00 67	D2 01 00	05 30 01	00
		DEUTSCH BE	EF 03 06	00 97	D2 01 00	05 30 02	00
		ESPAÑOL BE	EF 03 06	00 07	D3 01 00	05 30 03	00
		ITALIANO	BE EF	03 06	00 37 D1	01 00 05	30 04 00
		NORSK	BE EF	03 06	00 A7 D0	01 00 05	30 05 00
		NEDERLANDS	BE EF	03 06	00 57 D0	01 00 05	30 06 00
		PORTUGUÊS	BE EF	03 06	00 C7 D1	01 00 05	30 07 00
		日本語	BE EF	03 06	00 37 D4	01 00 05	30 08 00
		简体中文	BE EF	03 06	00 A7 D5	01 00 05	30 09 00
		繁體中文	BE EF	03 06	00 37 DE	01 00 05	30 10 00
		한글	BE EF	03 06	00 57 D5	01 00 05	30 0A 00
		SVENSKA BE	EF 03 06	00 C7	D4 01 00	05 30 0B	00
		PYCCKIЙ	BE EF	03	06 00	F7 D6	01 00	05 30	0C 00
		SUOMI	BE EF	03 06	00 67 D7	01 00 05	30 0D 00
		POLSKI	BE EF	03 06	00 97 D7	01 00 05	30 0E 00
		TÜRKÇE	BE EF	03 06	00 07 D6	01 00 05	30 0F 00
		DANSK	BE EF	03 06	00 A7 DF	01 00 05	30 11 00
		ČESKY	BE EF	03 06	00 57 DF	01 00 05	30 12 00
		MAGYAR	BE EF	03 06	00 C7 DE	01 00 05	30 13 00
		ROMÂNĂ BE	EF 03 06	00 F7	DC 01	00 05 30	14 00
		SLOVENSKI	BE EF	03 06	00 67 DD	01 00 05	30 15 00
		HRVATSKI BE	EF 03 06	00 97	DD 01 00	05 30 16	00
		ΕΛΛΗΝΙΚΑ BE	EF 03 06	00 07	DC 01	00 05	30 17 00
		LIETUVIU	BE EF	03	06 00	F7 D9	01 00	05 30	18 00
		EESTI	BE EF	03	06 00	67 D8	01 00	05 30	19 00
		LATVIEŠU BE	EF 03 06	00 97	D8 01 00	05 30	1A 00
		ไทย	BE EF	03 06	00 07 D9	01 00	05 30 1B	00
		قَيْبِرْعَةٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌٌِ	BE EF	03 06	00 37 DB	01 00	05 30	1C 00
		كَسْرَاف	BE EF	03 06	00 A7 DA	01 00	05 30	1D 00
		PORTUGUÊS BRA	BE EF	03	06 00	57 DA	01 00	05 30	1E 00
		BAHASA IND	BE EF	03 06	00 C7 DB	01 00 05	30 1F 00
		TIENG VIET	BE EF	03	06 00	37 CA	01 00	05 30	20 00
	Get		BE EF	03	06 00	C4 D3	02 00	05 30	00 00
	NOTE) Not all of the languages in this table are supported.
MENU POSITION H	Get		BE EF	03	06 00	04 D7	02 00	15 30	00 00
	Increment		BE EF	03	06 00	62 D7	04 00	15 30	00 00
	Decrement		BE EF	03	06 00	B3 D6	05 00	15 30	00 00
MENU POSITION H Reset	Execute BE EF		03 06 00	DC C6	06 00	43 70 00	00
MENU POSITION V	Get		BE EF	03	06 00	40 D7	02 00	16 30	00 00
	Increment		BE EF	03	06 00	26 D7	04 00	16 30	00 00
	Decrement		BE EF	03	06 00	F7 D6	05 00	16 30	00 00
MENU POSITION V Reset	Execute		BE EF	03	06 00	A8 C7	06 00	44 70	00 00

RS-232C Communication / Network command table (continued)

Names Operation Type Header									Command Data
Names Operation Type Header									CRC Action Type	Setting code
BLANK	Set	MyScreen BE	EF 03 06	00 FB	CA 01 00	00 30 20	00
		ORIGINAL BE	EF 03 06	00 FB	E2 01 00	00 30 40	00
		BLUE BE EF	03 06 00	CB	D3 01 00	00 30 03	00
		WHITE BE EF	03 06 00	6B	D0 01 00	00 30 05	00
		BLACK BE EF	03 06 00	9B	D0 01 00	00 30 06	00
	Get BE EF 03		06 00 08	D3 02	00 00 30	00 00
BLANK On/Off	Set	OFF	BE EF	03 06	00 FB D8	01 00 20	30 00 00
	Set	ON	BE EF	03 06	00 6B D9	01 00 20	30 01 00
	Get BE EF 03		06 00 C8	D8 02	00 20 30	00 00
START UP	Set	MyScreen BE	EF 03 06	00	CB CB	01 00 04	30 20 00
		ORIGINAL BE	EF 03 06	00 0B	D2 01 00	00 04 30 00	00
		OFF	BE EF	03 06	00 9B D3	01 00 04	30 01 00
	Get BE EF 03		06 00 38	D2 02	00 04 30	00 00
MyScreen Lock	Set	OFF	BE EF	03 06	00 3B EF	01 00 C0	30	00 00
	Set	ON	BE EF	03 06	00 AB EE	01 00 C0	30	01 00
	Get BE EF 03		06 00 08	EF 02	00 C0 30	00	00
MESSAGE	Set	OFF	BE EF	03 06	00 8F D6	01 00 17	30 00 00
	Set	ON	BE EF	03 06	00 1F D7	01 00 17	30 01 00
	Get BE EF 03		06 00 BC	D6 02	00 17	30 00 00
TEMPLATE	Set	TEST PATTERN BE	EF 03	06 00	43 D9 01	00 22 30	00 00
		DOT-LINE1	BE EF	03 06	00 D3 D8	01 00 22	30 01 00
		DOT-LINE2	BE EF	03 06	00 23 D8	01 00 22	30 02 00
		DOT-LINE3	BE EF	03 06	00 B3 D9	01 00 22	30 03 00
		DOT-LINE4	BE EF	03 06	00 83 DB	01 00 22	30 04 00
		CIRCLE 1	BE EF	03	06 00	13 DA	01 00	22 30	05 00
		CIRCLE 2	BE EF	03	06 00	E3 DA	01 00	22 30	06 00
		MAP 1	BE EF	03	06 00	83 D4	01 00	22 30	10 00
		MAP 2	BE EF	03	06 00	13 D5	01 00	22 30	11 00
	Get BE EF 03		06 00 70	D9 02	00 22 30	00 00
TEMPLATE On/Off	Set	OFF	BE EF	03 06	00 BF D8	01 00 23	30 00 00
	Set	ON	BE EF	03 06	00 2F D9	01 00 23	30 01 00
	Get BE EF 03		06 00 8C	D8 02	00 23 30	00 00
C. C. - DISPLAY	Set	OFF	BE EF	03 06	00 FA 62	01 00 00	37 00 00
		ON	BE EF	03 06	00 6A 63	01 00 00	37 01 00
		AUTO	BE EF	03 06	00 9A 63	01 00 00	37 02 00
	Get BE EF 03		06 00 C9	62 02	00 00 37	00 00
C. C. - MODE	Set	CAPTIONS	BE EF	03 06	00 06 63	01 00 01	37 00 00
	Set	TEXT BE EF	03 06 00	96 62	01 00 01	37 01 00
	Get BE EF 03		06 00 35	63 02	00 01 37	00 00
C. C. - CHANNEL	Set	1	BE EF	03 06	00 D2 62	01 00 02	37 01 00
		2	BE EF	03 06	00 22 62	01 00 02	37 02 00
		3	BE EF	03 06	00 B2 63	01 00 02	37 03 00
		4	BE EF	03 06	00 82 61	01 00 02	37 04 00
	Get BE EF 03		06 00 71	63 02	00 02 37	00 00
AUTO SEARCH	Set	OFF	BE EF	03 06	00 B6 D6	01 00 16	20 00 00
	Set	ON	BE EF	03 06	00 26 D7	01 00 16	20 01 00
	Get BE EF 03		06 00 85	D6 02	00 16 20	00 00
DIRECT POWER ON	Set	OFF	BE EF	03 06	00 3B 89	01 00 20	31 00 00
	Set	ON	BE EF	03 06	00 AB 88	01 00 20	31 01 00
	Get BE EF 03		06 00 08	89 02	00 20 31	00 00
AUTO POWER OFF		Get BE EF 03		06 00 08	86 02	00 10	31	00 00
		Increment BE EF		03 06 00	6E 86	04 00	10	31 00 00
		Decrement BE EF		03 06 00	BF 87	05 00	10	31 00 00
USB TYPE B	Set	MOUSE BE EF	03 06 00	FF	23 01	00	50 26 00	00
	Set	USB DISPLAY BE	EF 03 06	00 6F	22 01	00	50 26	01 00
	Get BE EF 03		06 00 CC	23 02	00 50	26	00 00
LAMP TIME		Get BE EF 03		06 00 C2	FF 02	00 90	10	00 00
LAMP TIME Reset		Execute BE EF		03 06 00	58 DC	06 00	30	70 00 00
FILTER TIME		Get BE EF 03		06 00 C2	F0 02	00 A0	10	00	00
FILTER TIME Reset		Execute BE EF		03 06 00	98 C6	06 00	40	70 00 00
MY BUTTON-1	Set	COMPUTER IN1	BE EF	03	06 00	3A 33	01 00	00 36	00 00
		COMPUTER IN2 BE	BE EF 03	06 00	FA 31 01	00 00 36	04 00
		LAN	BE EF	03	06 00	0A 34	01 00	00 36	0B 00
		USB TYPE A	BE EF	03	06 00	9A 30	01 00	00 36	06 00
		USB TYPE B	BE EF	03	06 00	3A 36	01 00	00 36	0C 00
		HDMI	BE EF	03	06 00	CA 33	01 00	00 36	03 00
		S-VIDEO	BE EF 03	06	00 5A	32	01 00 00	36 02 00
		VIDEO	BE EF 03	06	00 AA	32	01 00 00	36 01 00
		SLIDESHOW	BE EF	03	06 00	9A 2B	01 00	00 36	22 00
		MY IMAGE	BE EF	03	06 00	5A 3D	01 00	00 36	16 00
		MESSENGER	BE EF	03	06 00	AA 29	01 00	00 36	25 00
		INFORMATION	BE EF	03	06 00	FA 3E	01 00	00 36	10 00
		MY MEMORY	BE EF 03	06	00 9A	3F	01 00 00	36 12 00
		ACTIVE IRIS	BE EF	03	06 00	AA 3D	01 00	00 36	15 00
		PICTURE MODE	BE EF 03	06	00 0A	3E	01 00 00	36 13 00
		FILTER RESET BE	EF 03 06	00 3A	3C 01	00 00 36	14 00
		AV MUTE	BE EF	03	06 00	AA 38	01 00	00 36	19 00
		TEMPLATE	BE EF	03	06 00	CA 39	01 00	00 36	1B 00
		D-ZOOM	BE EF	03	06 00	FA 3B	01 00	00 36	1C 00
		D-SHIFT	BE EF 03	06	00 6A	3A	01 00 00	36 1D 00
		RESOLUTION BE	EF 03 06	00 9A	3A 01	00 00 36	1E 00
		MIC VOLUME	BE EF 03	06	00 9A	24	01 00 00	36 36 00
		ECO MODE	BE EF 03	06	00 0A	25	01 00 00	36 37 00
		SAVER MODE BE	EF 03 06	00 6A	21 01	00 00 36	39 00
	Get BE EF 03		06 00 09	33 02	00 00	36 00 00
MY BUTTON-2	Set	COMPUTER IN1 BE EF 03 06 00 C6 32 01 00 01 36 00 00
		COMPUTER IN2 BE EF 03 06 00 06 30 01 00 01 36 04 00
		LAN BE EF 03 06 00 F6 35 01 00 01 36 0B 00
		USB TYPE A	BE EF 03 06 00 06 63 01 00 01 36					06 00
		USB TYPE B	BE EF	03	06 00	C6 37		01 00	01 36	0C 00
		HDMI	BE EF 03 06 00 06 32 01 00 01 36					03 00
		S-VIDEO	BE EF 03 06 00 A6 33 01 00 01 36 02 00
		VIDEO	BE EF 03 06 00 56 33 01 00 01 36 01 00
		SLIDESHOW	BE EF 03 06 00 66 2A					01 00 01 36 22 00
		MY IMAGE	BE EF 03 06 00 A6 3C 01 00 01 36 16 00
		MESSENGER BE	EF 03 06 00 56 28 01 00 01 36 25 00
		INFORMATION BE	BE EF 03 06 00 06 3F 01 00 01 36 10 00
		MY MEMORY	BE EF 03 06 00 66 3E 01 00 01 36 12 00
		ACTIVE IRIS	BE EF 03 06 00 56 3C 01 00 01 36 15 00
		PICTURE MODE	BE EF 03 06 00 F6 3F 01 00 01 36 13 00
		FILTER RESET BE	BE EF 03 06 00 C6 3D 01 00 01 36 14 00
		AV MUTE	BE EF 03 06 00 56 39 01 00 01 36 19 00
		TEMPLATE BE	EF 03 06 00 36 38 01 00 01 36 1B 00
		D-ZOOM	BE EF	03	06 00	06 3A		01 00	01 36	1C 00
		D-SHIFT	BE EF 03 06 00 96 3B 01 00 01 36 1D 00
		RESOLUTION	BE EF 03 06 00 66 3B 01 00 01 36 1E 00
		MIC VOLUME	BE EF 03 06 00 66 25 01 00 01 36 36 00
		ECO MODE	BE EF 03 06 00 F6 24 01 00 01 36 37 00
		SAVER MODE BE	BE EF 03 06 00 96 20 01 00 01 36 39 00
	Get		BE EF 03 06 00 F5 32 02 00 01 36 00 00
MY SOURCE	Set	COMPUTER IN1 BE	BE EF 03 06 00 FA 38 01 00 20 36 00 00
		COMPUTER IN2 BE	BE EF 03 06 00 3A 3A
		LAN BE EF	03 06 00 CA 3F
		USB TYPE A	BE EF	03	06 00	5A 3B		01 00	20 36	06 00
		USB TYPE B	BE EF	03	06 00	FA 3D		01 00	20 36	0C 00
		HDMI	BE EF 03 06 00 0A 38 01 00 20 36 03 00
		S-VIDEO	BE EF 03 06 00 9A 39 01 00 20 36 02 00
		VIDEO	BE EF 03 06 00 6A 39 01 00 20 36 01 00
	Get		BE EF 03 06 00 C9 38 02 00 20 36 00 00
Magnify Position H	Get		BE EF	03	06 00	C8 D7		02 00	10 30	00 00
	Increment		BE EF	03	06 00	AE D7		04 00	10 30	00 00
	Decrement		BE EF	03 06 00 7F D6 05 00 10 30 00 00
Magnify Position V	Get		BE EF	03	06 00	34 D6		02 00	11 30	00 00
	Increment		BE EF	03	06 00	52 D6		04 00	11 30	00 00
	Decrement		BE EF	03	06 00	83 D7		05 00	11 30	00 00
REMOTE FREQ. NORMAL	Set	OFF	BE EF	03 06	00 FF	3D 01 00		30 26 00	00
	Set	ON	BE EF	03 06	00 6F 3C	01 00		30 26 01	00
	Get		BE EF	03 06	00 CC 3D	02 00 30		26 00 00
REMOTE FREQ. HIGH	Set	OFF	BE EF	03 06	00 03 3C	01 00 31		26 00 00
	Set	ON	BE EF	03 06	00 93 3D	01 00 31		26 01 00
	Get		BE EF	03 06	00 30 3C	02 00 31		26 00 00
MY IMAGE	Set	OFF BE EF 03 06 00 3A C3 01 00 00 35 00 00
		IMAGE-1 BE EF 03 06 00 AA C2 01 00 00 35 01 00
		IMAGE-2 BE EF 03 06 00 5A C2 01 00 00 35 02 00
		IMAGE-3 BE EF 03 06 00 CA C3 01 00 00 35 03 00
		IMAGE-4 BE EF 03 06 00 FA C1 01 00 00 35 04 00
	Get BE EF 03 06 00 09 C3 02 00 00 35 00 00
MY IMAGE IMAGE-1 Delete	Execute		BE EF 03 06 00 71 C3 06 00 01 35 00 00
MY IMAGE IMAGE-2 Delete	Execute		BE EF 03 06 00 35 C3 06 00 02 35 00 00
MY IMAGE IMAGE-3 Delete	Execute		BE EF 03 06 00 C9 C2 06 00 03 35 00 00
MY IMAGE IMAGE-4 Delete	Execute		BE EF 03 06 00 06 00 BD C3 06 00 04 35 00 00
VOLUME - ALL	Get BE EF 03 06 00 CD C3 02 00 50 20 00 00
	Increment		BE EF 03 06 00 AB C3 04 00 50 20 00 00
	Decrement		BE EF 03 06 00 7A C2 05 00 50 20 00 00
LAN SOUND ENABLE	Set	Disable	BE EF 03 06 00 BA F0 01 00 A3 20 00 00
	Set	Enable	BE EF 03 06 00 2A F1 01 00 A3 20 01 00
	Get BE EF 03 06 00 89 F0 02 00 A3 20 00 00
USB TYPE A SOUND ENABLE	Set	Disable	BE EF 03 06 00 CE F1 01 00 A4 20 00 00
	Set	Enable	BE EF 03 06 00 5E F0 01 00 A4 20 01 00
	Get BE EF 03 06 00 FD F1 02 00 A4 20 00 00
USB TYPE B SOUND ENABLE	Set	Disable	BE EF 03 06 00 32 F0 01 00 A5 20 00 00
	Set	Enable	BE EF 03 06 00 A2 F1 01 00 A5 20 01 00
	Get BE EF 03 06 00 01 F0 02 00 A5 20 00 00

PJLink command

Commands	Control Description Parameter or Response
POWR Power Control	Power Control	0 = Standby
POWR Power Control	Power Control	1 = Power On
POWR ? Power Status inquiry	Power Status inquiry	0 = Standby
		1 = Power On
		2 = Cool Down
INPT Input Source selection	Source selection	11 = COMPUTER IN 1
		12 = COMPUTER IN 2
		22 = S-VIDEO
		23 = VIDEO
		31 = HDMI
		41 = USB TYPE A
		51 = LAN
		52 = USB TYPE B
INPT ? Input Source inquiry	Source inquiry	11 = COMPUTER IN 1
		12 = COMPUTER IN 2
		22 = S-VIDEO
		23 = VIDEO
		31 = HDMI
		41 = USB TYPE A
		51 = LAN
		52 = USB TYPE B
AVMT AV	Mute	10 = BLANK off
		11 = BLANK on
		20 = Mute off
		21 = Mute on
		30 = AV Mute off
		31 = AV Mute on
AVMT ? AV	Mute inquiry	10 = BLANK off
		11 = BLANK on
		20 = Mute off
		21 = Mute on
		30 = AV Mute off
		31 = AV Mute on
ERST ? Error Status inquiry		1st byte: Refers to Fan error; one of 0 to 2
		2nd byte: Refers to Lamp error; one of 0 to 2
		3rd byte: Refers to Temptrature error; one of 0 to 2
		4th byte: Refers to Cover error; one of 0 to 2
		5th byte: Refers to Filter error; one of 0 to 2
		6th byte: Refers to Other error; one of 0 to 2

		The meaning of 0 to 2 is as given below
		0 = Error is not detected; 1 = Warning; 2 = Error
LAMP ? Lamp Status inquiry		1st number (digits 1 to 5): Lamp Time
LAMP ? Lamp Status inquiry		2nd number : 0 = Lamp off, 1 = Lamp on
INST ? Input Source List inquiry 11 12		22 23 31 41 51 52
NAME ? Projector Name inquiry		Responds with the name set in "PROJECTOR NAME" of "NETWORK"
INF1 ?	Manufacturer's Name inquiry	HITACHI
INF2 ? Model Name inquiry		CP-D27WN
		CP-D32WN
		CP-DW25WN
INFO ? Other Information inquiry		Responds with the factory information and so on
CLSS ? Class Information inquiry 1

NOTE • The password used in PJLink™ is the same as the password set in the Projector Web Control. To use PJLink™ without authentication, do not set any password in Projector Web Control.

- For specifications of PJLink™, see the web site of the Japan Business Machine and Information System Industries Association.

CP-D27WN/CP-D32WN/CP-DW25WN

Model nummer CP-D27WN, CP-D32WN, CP-DW25WN

HITACHI CP-D27WNEF - CP-D27WN/CP-D32WN/CP-DW25WN - 1

Handvat

- Suspended from the ceiling

a c1 c2 b

T-1 CP-D27WN, CP-D32WN

(1024 × 768) (±8%)

a Screen size (diagonal)		b Projection distance		c1 Screen height	c2 Screen height
type(inch)	m m inch	m inch m	inch
60 1.5	0.510 20.1 0.	155 6.1 1.06	9 42.1
70 1.8	0.610 24.0 0.	171 6.7 1.23	7 48.7
80 2.0	0.711 28.0 0.	186 7.3 1.40	5 55.3
90 2.3	0.812 32.0 0.	202 7.9 1.57	3 61.9
100 2.5	0.913 35.9 0.	217 8.6 1.74	1 68.6

T-2 CP-DW25WN

(1280 × 800) (±8%)

a Screen size (diagonal)		b Projection distance		c1 Screen height	c2 Screen height
type(inch)	m m inch	m inch m inch
60 1.5	0.547 21.5 0	242 9.5 1.05	0 41.3
70 1.8	0.653 25.7 0	272 10.7 1.2	14 47.8
80 2.0	0.760 29.9 0	302 11.9 1.3	79 54.3
90 2.3	0.866 34.1 0	331 13.0 1.5	43 60.7
100 2.5	0.972 38.3 0	361 14.2 1.7	07 67.2

F-3

HITACHI CP-D27WNEF - F-3 - 1
F-4

Speakers (with an amplifier) Microphone system Monitor USB TYPE B HDMI COMP JTER IN2 COMPL TER IN1 S VIDEO AUDIO OUT AUDIO IN3 CONTROL MONITOR OUT AUDIO IN2 AUDIO IN1 MIC LAN VICO

F-5 Access point LAN USB TYPE A RS-232C Computer RS-232C USB wireless adapter (optional) USB storage device USB TYPE A DC5V 0.5A LAN USB TYPE B HDMI COMPUTER IN2 COMPUTER IN1 S-VIDEO AUDIO OUT AUDIO IN3 R CONTROL MONITOR OUT AUDIO IN2 AUDIO IN1 MIC

F-6

345 303 130 85 132 [unit: mm]

NOTE • The information in this manual is subject to change without notice. • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

HITACHI Inspire the Next

Hitachi America, Ltd.

Business Solutions Group

900 Hitachi way, Chula Vista

CA 91914-3556 USA CANADA

Tel: +1 -800-448-2244

http://www.hitachi-america.us/projectors

Hitachi Europe Ltd., Digital Media Group Consumer Affairs Department

Whitebrook Park, Lower Cookham Road, Maidenhead

Berkshire SL6 8YA UNITED KINGDOM

Tel: 0844 481 0297

Email: consumer.mail@hitachi-eu.com

Hitachi Europe S.A.S., Digital Media Group

Email: customerservice.italy@hitachi-eu.com

Hitachi Europe S.A.

Gran Via Carles III, 86 Planta 5 ^a

Denmark Tel: +46 8 562 711 00

http://www.hitachidigitalmedia.com

Hitachi Australia Pty Ltd.

Suite 801, Level 8, 123 Epping Road

North Ryde N.S.W 2113 AUSTRALIA

Tel: +61 -2-9888-4100

http://www.hitachi.com.au

Hitachi (Hong Kong), Ltd.

18/F., Ever Gain Centre, 28 On Muk Street., Shatin, N.T. HONG KONG

Tel: +852 -2113-8883

http://www.hitachi-hk.com.hk

Hitachi Sales (Malaysia) Sdn. Bhd.

Lot 12, Jalan Kamajuan, Bangi Industrial Estate, 43650 Bandar Baru Bangi, Selangor Darul Ehsan

MALAYSIA

Tel: +60 -3-8911-2670

http://www.hitachiconsumer.com.my

Hitachi Home Electronics Asia (S) Pte. Ltd.

438A Alexandra Road #01-01/02/03

Alexandra Technopark, 119967 SINGAPORE

Tel: +65 -6536-2520

http://www.hitachiconsumer.com.sg

Hitachi Sales Corp. of Taiwan

2nd Floor, No.65, Nanking East Road, Section 3,

Taipei 104 TAIWAN

Tel: +886-2-2516-0500

http://www.hsct.com.tw

Hitachi Sales (Thailand), Ltd.

994, 996 Soi Thonglor, Sukhumvit 55 Rd.,

Klongtonnua, Vadhana, Bangkok 10110

THAILAND

Tel: +66 -2381-8381-98

http://www.hitachi-th.com

Hitachi Consumer Electronics Co., Ltd.

292 Yoshida-cho, Totsuka-ku

Yokohama 244-0817 JAPAN

CP-D27WNEF - Video projector HITACHI - Free user manual and instructions

Frequently Asked Questions - CP-D27WNEF HITACHI

User questions about CP-D27WNEF HITACHI

USER MANUAL CP-D27WNEF HITACHI

CP-D27WN/CP-D32WN/CP-DW25WN

SCHERM menu 50

OPTIE menu 56

NETWERK menu 68

VEILIGHEID menu .....7 9

Namen onderdelen

Projector

Transmission speed (Overbrengingsnelheid)

Transmission speed (Overbrengingsnelheid)

CP-D27WN/CP-D32WN/CP-DW25WN

1.3 Handmatige netwerkverbinding installatie - draadloze LAN -

[Over het IP-adres]

N.B. • Internet Explorer® 6.0 of later is vereist.

7.2 Projectorbeheer m.b.v. SNMP

CP-D27WN/CP-D32WN/CP-DW25WN

User's Manual (detailed) Operating Guide – Technical

Initial set signals

Connection to the ports

ⒶCOMPUTER IN1, ⒷCOMPUTER IN2, ⒶMONITOR OUT

(1) for PC signal

(2) for Component signal

DS-VIDEO

©VIDEO

FHDMI

©AUDIO IN1, ⒽAUDIO IN2

©LAN

To input component video signal to COMPUTER IN ports

RS-232C Communication

Connection

Communication settings

1. Protocol

[Header code] [Packet] [Data size]

[CRC flag]

[Action]

[Type] [Setting code]

3. Response code / Error code ("h" shows hexadecimal)

(1) ACK reply : 06h

(2) NAK reply : 15h

(3) Error reply : 1Ch + 0000h

(4) Data reply : 1Dh + xxxxh

Command Control via the Network

Connection

Communication Port

Command control settings

[TCP #23]

1. Command format

2. Response code / Error code ("h" shows hexadecimal)

[TCP #9715]

1. Command format

[Header]

[Data Length]

[RS-232C commands]

[Check Sum]

[Connection ID]

2. Response code / Error code ("h" shows hexadecimal)

Automatic Connection Break

Authentication

Network Bridge Communication

Connection

Communication settings

CP-D27WN/CP-D32WN/CP-DW25WN

T-1 CP-D27WN, CP-D32WN

T-2 CP-DW25WN

F-3

F-4

HITACHI Inspire the Next

Hitachi America, Ltd.

Hitachi Europe Ltd., Digital Media Group Consumer Affairs Department

Hitachi Europe S.A.S., Digital Media Group

Hitachi Europe S.A.

Hitachi Australia Pty Ltd.

Hitachi (Hong Kong), Ltd.

Hitachi Sales (Malaysia) Sdn. Bhd.

MALAYSIA

Hitachi Home Electronics Asia (S) Pte. Ltd.

Hitachi Sales Corp. of Taiwan
