| Product Type | Digital Video Recorder (DVR) |
| Brand | Toshiba |
| Model | XVS4-120-2T |
| Recording Capacity | 2 TB (approx. 120 hours of HD recording) |
| Video Inputs | 4 x BNC (analog), 1 x HDMI (digital) |
| Video Outputs | 1 x HDMI, 1 x VGA, 1 x CVBS |
| Audio | 1 x RCA line in, 1 x RCA line out, bi-directional audio |
| Network | Ethernet (10/100/1000), Wi-Fi (optional USB dongle) |
| Storage | Built-in 2 TB hard drive, eSATA port for expansion |
| Power Consumption | 30W (max) |
| Power Supply | AC 100-240V, 50/60Hz, DC 12V/3A adapter |
| Dimensions (W x D x H) | 300 mm x 230 mm x 48 mm (1U rackmount) |
| Weight | 2.5 kg |
| Operating Temperature | 0°C to 40°C |
| Remote Access | Via mobile app (iOS/Android) and web browser |
| Motion Detection | Yes, with customizable zones and sensitivity |
| Recording Modes | Continuous, motion, scheduled, alarm |
| Compression Format | H.265+/H.264 |
| Max Recording Resolution | 4MP (2560x1440) per channel |
| Warranty | 1 year limited |
Frequently Asked Questions - XVS4-120-2T TOSHIBA
How do I set up the Toshiba XVS4-120-2T for the first time?
Connect the DVR to a monitor via HDMI or VGA, plug in the power, and follow the on-screen wizard. You will need to set the date/time, configure network settings, and create a password for secure access.
What is the maximum storage capacity supported?
The built-in drive is 2 TB. You can expand storage via an eSATA port, supporting additional drives up to 8 TB, for a total of up to 10 TB.
Can I view the camera feed remotely?
Yes, after connecting the DVR to your network, you can use the Toshiba View app (iOS/Android) or a web browser by entering the DVR's IP address. Ensure port forwarding is configured on your router.
How do I perform a factory reset?
Go to Menu > System > Factory Reset. Enter your admin password (default: admin). The DVR will reboot and erase all settings. For a physical reset, press and hold the reset button on the back for 10 seconds.

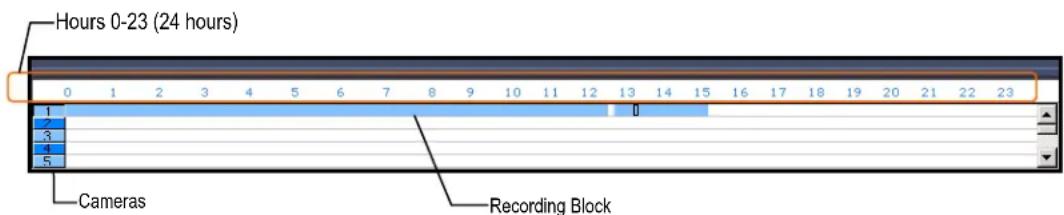

What recording modes are available?
The DVR supports Continuous, Motion Detection, Scheduled, and Alarm recording. You can customize each mode per channel via the Recording Schedule menu.

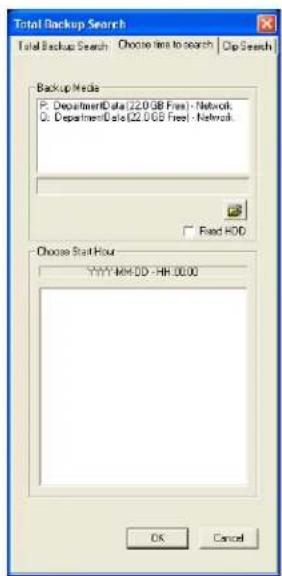

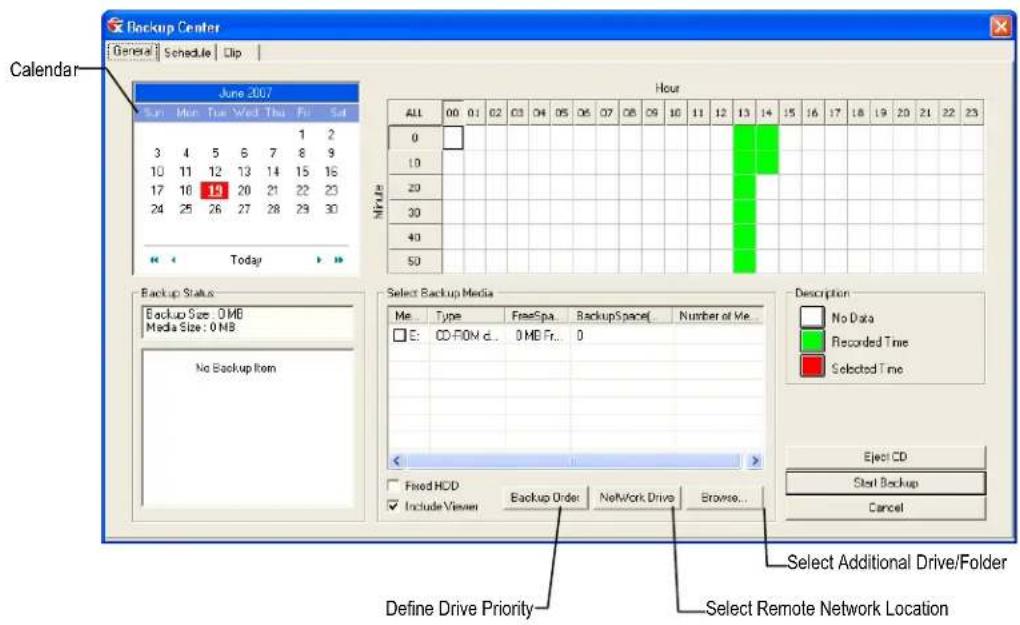

How do I back up recorded footage?
Insert a USB drive into the front USB port, go to Playback, select the desired clip, and click Backup. You can also back up via network to a NAS or FTP server.
Which hard drive types are compatible for replacement?
The DVR uses a 3.5-inch SATA III hard drive, 7200 RPM, designed for surveillance use (e.g., WD Purple or Seagate SkyHawk). Maximum height is 26mm.
Why is the DVR not detecting my camera?
Check that the camera is powered and connected properly to the BNC input. Verify the camera's protocol (e.g., PAL/NTSC) matches DVR settings. Also test with a known working camera.
How do I update the firmware?
Download the latest firmware from Toshiba's support site onto a USB drive. Insert the drive into the DVR, go to Menu > System > Upgrade, and select the firmware file. Do not power off during update.
What maintenance is required?
Clean the DVR's vents with a soft brush monthly to prevent overheating. Check hard drive health via the S.M.A.R.T. status in Menu > Storage. Replace the hard drive every 3-5 years for reliability.
