DVS16-480-3T - Video recorder TOSHIBA - Free user manual and instructions
Find the device manual for free DVS16-480-3T TOSHIBA in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Digital Video Recorder (DVR) |
| Brand | Toshiba |
| Model | DVS16-480-3T |

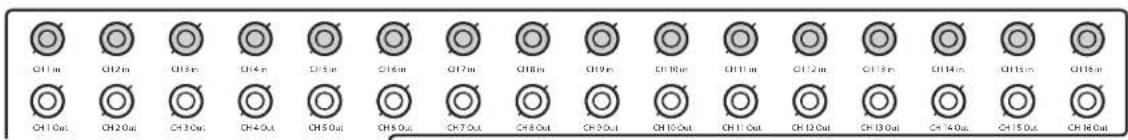

| Video Input | 16 BNC channels |
| Recording Resolution | Up to 1080p (1920x1080) per channel |
| Recording Frame Rate | 480 fps total (30 fps per channel at 1080p) |
| Compression | H.264/H.265 |
| Internal Storage | 3TB HDD (pre-installed) |
| Max Storage Capacity | Up to 12TB (4 SATA bays, each up to 3TB) |
| Dimensions (W x H x D) | 430 x 88 x 350 mm (rackmount 2U) |
| Weight | Approx. 5.5 kg (12.1 lbs) |
| Power Supply | DC 12V / 5A (external adapter) |
| Power Consumption | ≤ 60W (without HDDs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Network Interface | 10/100/1000 Mbps Ethernet (RJ-45) |
| USB Ports | 2x USB 2.0, 1x USB 3.0 |
| Video Output | HDMI, VGA, CVBS (BNC) |

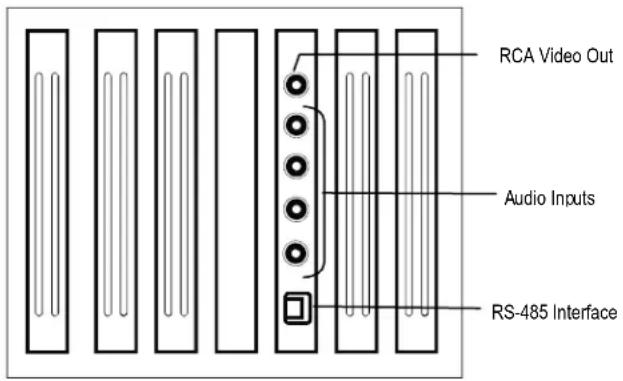

| Audio | 1-channel audio input, 1-channel audio output (RCA) |

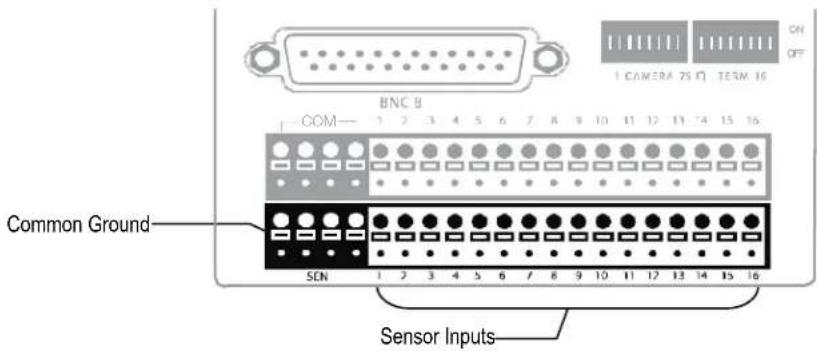

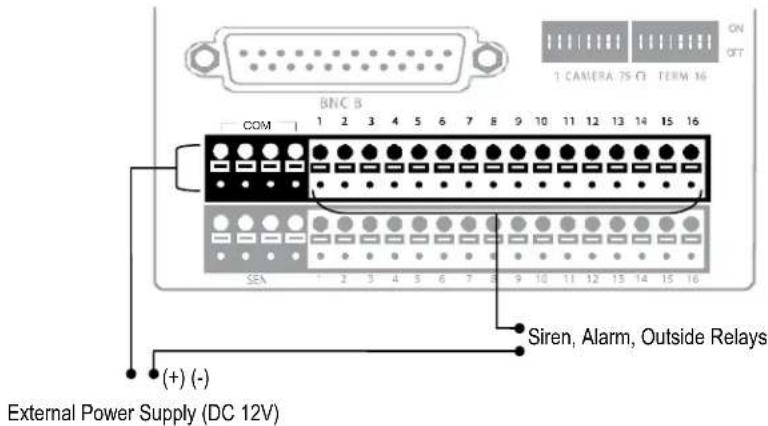

| Alarm I/O | 16 alarm inputs, 4 relay outputs |
| Supported Hard Drives | 3.5" SATA HDDs |
| Maintenance | Clean with soft dry cloth; avoid liquid; ensure ventilation |
| Safety | CE, FCC, RoHS compliant; use only supplied adapter |
| Part Number / Spare Parts | Contact Toshiba support; power adapter P/N: AD1205000P |
| Remote Access | Supported via web browser or smartphone app (iOS/Android) |
Frequently Asked Questions - DVS16-480-3T TOSHIBA
How do I set up the Toshiba DVS16-480-3T for first use?
Connect the power adapter, Ethernet cable, and monitor. Install a hard drive if not pre-installed. Power on and follow the Setup Wizard to configure network, date/time, and recording settings.
What is the maximum recording resolution and frame rate?
The DVR supports up to 1080p resolution per channel with a total frame rate of 480 fps. At 1080p, each channel records at 30 fps (16 channels).
How can I access the DVR remotely?
Enable remote access via the network settings. Use the DDNS service or static IP. Download the official app (e.g., Remote Viewer) on your smartphone, or log in through a web browser using the device's IP address.
What hard drives are compatible?
The DVS16-480-3T supports 3.5-inch SATA III hard drives. Maximum capacity per bay is 3TB (total up to 12TB). Use surveillance-grade drives for 24/7 operation.
How do I perform a factory reset?
Go to Menu > System > Factory Default or press and hold the reset button (if available) on the rear panel for 10 seconds. Note: This erases all settings but keeps recorded video.
What should I do if the DVR doesn't detect cameras?
Check that cameras are powered and connected via BNC cables. Ensure video standard is set correctly (PAL/NTSC). Try different channels or test with a known working camera.
How often should I clean the DVR?
Clean the exterior monthly with a soft dry cloth. Avoid liquids. Vacuum ventilation slots to prevent overheating. Do not use compressed air inside the unit.
Can I use this DVR with IP cameras?
No, this model is designed for analog CCTV cameras (BNC input). For IP cameras, consider a hybrid or NVR model.
What does the '3T' in the model name mean?
The '3T' indicates the DVR comes with a 3TB hard drive pre-installed. This storage capacity provides ample recording time depending on resolution and frame rate.

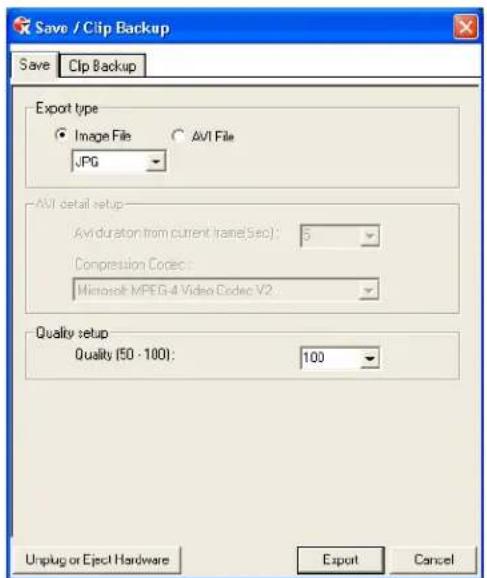

How do I export recorded video?

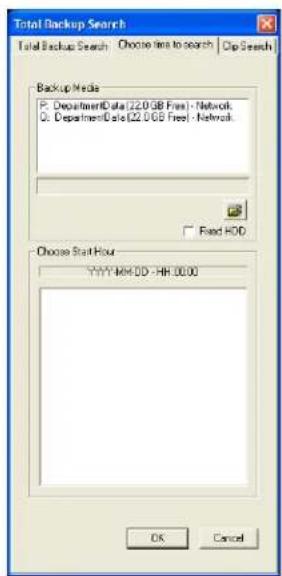

Connect a USB flash drive or external HDD to the USB port. Go to Playback > Export, select the time range, and choose format (AVI or proprietary). Backup also possible via network.
