SQ3170042 - Tumble drier OMEGA - Free user manual and instructions

Product Type	Freestanding Tumble Dryer
Energy Class	C
Capacity	7 kg
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	40 kg
Power Consumption	2000 W
Annual Energy Consumption	560 kWh
Drying System	Condenser
Number of Programs	12
Key Functions	Cotton, Synthetics, Delicates, Time Dry, Anti-Crease, Delay Start
Drum Type	Stainless Steel
Drum Volume	100 L
Noise Level	65 dB(A)
Lint Filter	Clean after each use
Water Tank Capacity	3.5 L
Condenser Cleaning	Monthly recommended
Child Lock	Yes
Overload Protection	Yes
Spare Parts Availability	7 years
Repairability Index	8.0 / 10
Brand	Omega
Model	SQ3170042
User Manual Included	Yes (PDF)

Frequently Asked Questions - SQ3170042 OMEGA

How do I install the tumble dryer?

Place the dryer on a level floor, leave at least 5 cm of ventilation space on all sides, and ensure the drain hose is properly connected to a sink or drain. For condenser models, no external venting is required.

How often should I clean the lint filter?

Clean the lint filter after every drying cycle. A clogged filter reduces efficiency and can be a fire hazard.

What should I do if the dryer stops mid-cycle?

Check if the water tank is full (condenser models), the lint filter is clean, or the overload protection has tripped. Also verify that the drum is not overloaded and the door is fully closed.

How much electricity does the dryer use?

The annual energy consumption is approximately 560 kWh, based on standard use. Actual consumption varies by program and load size.

Is the dryer noisy?

The noise level is rated at 65 dB(A), which is typical for a tumble dryer. Ensure it is level on the floor to minimize vibrations.

What is the maximum load capacity?

The maximum dry load capacity is 7 kg. Overloading can cause poor drying performance and increase wear on the appliance.

How many drying programs are available?

There are 12 programs, including Cotton, Synthetics, Delicates, Time Dry, and an Anti-Crease function. Refer to the manual for detailed descriptions.

Does the dryer have a child lock?

Yes, it includes a child lock feature. To activate, press and hold the Child Lock button for 3 seconds. This prevents accidental changes during operation.

Where can I buy spare parts?

Spare parts are available through authorized Omega service centers or online retailers. The model SQ3170042 is supported for 7 years after purchase.

What is the warranty period?

The standard warranty is 2 years from the date of purchase. Registration may extend coverage. Keep your receipt and model number for service requests.

USER MANUAL SQ3170042 OMEGA

Installation + User Manual

OVD7

Vented Dryer

7kg

Contents

03	Welcome
04	Safety Information
07	Your Vented Dryer
08	Accessory Kit Components
09	Installation Instructions
11	Quick Start Guide
12	Your Control Panel
13	Operating Instructions
16	Care & Maintenance
17	Troubleshooting
19	Technical Specifications
20	Purchase Details
22	Warranty Information

Welcome

Residentia Group

Office 165 Barkly Avenue Burnley Victoria Australia 3121

ACN 70 600 546 656

Online residentia.group omegaappliances.com.au

Post PO BOX 5177 Burnley Victoria Australia 3121

Phone [phone]

Email [e-mail]

Congratulations on purchasing your new Vented Dryer.

Omega appliances are proudly owned and distributed within Australia by Residentia Group Pty Ltd.

Please refer to the warranty chapter at the rear of this manual for information regarding your product's parts and labour warranty, or visit us online at:

→ residentiagroup.com.au

Here at Residentia Group, we are customer obsessed and our Support Team are there to ensure you get the most out of your appliance. Should you want to learn more about your unit, and importantly, taking care of the appliance, our Support Team are here to help. You can use our online Support Centre at any time by visiting:

→ support.residentiagroup.com.au

Or you can contact us by dialling: 1300 11 HELP (4357)

It is important that you read through the following user manual thoroughly, in order to familiarise yourself with the installation and operation requirements of your appliance, and to ensure optimum performance.

Again, thank you for choosing an Omega appliance and we look forward to being of service to you.

Kind Regards,

The Residentia Team

Customer Care

At Residentia Group, we strongly encourage the use of authentic spare parts to guarantee the best results. When contacting our spare parts team through 1300 11 HELP, or by emailing [e-mail], ensure that you have the model and serial numbers on hand, which are found on your appliances' rating plate.

Safety Information

Dryer Saftey

- WARNING: Failure to follow these safety instructions could damage the clothes dryer or your clothes. You may then not be covered by warranty for this damage.

- Only plug this appliance directly into an AC power supply which is properly earthed and had the correct voltage. Refer to the appliance rating plate (located on the rear of your clothes dryer) for the voltage information.

- CAUTION! If this appliance is supplied from an extension cord, power-board or other power adapter, the extension cord/power-board must be positioned so that it is not subject to moisture or risk of moisture. For safety reasons, we strongly advise against the use of double adaptors, power-boards, extension leads or other similar devices.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Important Safety Instructions

- If the electrical cord of this appliance is damaged, it must be replaced by the Manufacturer, Authorised Service Agent or similarly qualified person in order to avoid a hazard. Damage to the appliance, including the power cord, is not covered under the manufacturer's warranty and a fee for service may be payable.

- These dryers are for drying clothes, towels and linen at home. They are not designed or intended for use in Commercial environments. Do not use them for any other purpose.

- The dryer is not to be used with any clothing articles which have had industrial chemicals used for cleaning.

- This appliance is only intended for use indoors only within a domestic environment.

- The lint trap must be cleaned frequently- we strongly recommend this is done after each use.

- Adequate ventilation must be provided.

- Never dry unwashed items with your clothes dryer.

- Never use your clothes dryer to dry items such as latex, foam rubber, waterproof textiles, rubber backed articles, or pillows fitted with foam.

- Ensure all objects are removed from pockets.

- Lint must not be allowed to accumulate around the tumble dryer.

- Do not dry unwashed items in the tumble dryer.

- Always check your clothing items care labels to ensure they are suitable for use within your dryer.

- WARNING: The final cycle of your clothes dryer programs is a cool down cycle to reduce the temperature of your clothes. This is incredibly important to ensure that your clothing items won't be damaged. Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Fire Hazards

Some fabrics are not suitable for tumble drying.

The following MUST NOT be placed in your dryer due to the risk of a fire or an explosion:

- Item(s) that have been spotted or soaked with vegetable oil, cooking oil, suntan oil, linseed oil, salad oil, lubrication oil or grease. Oil affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing as oxidation reaction in the oil. Oxidation creates heat. If heat cannot escape, the items can become hot enough to ignite. Pilling, stacking or storing oil-affected items can prevent heat from escaping and create a fire hazard. If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer, they should first be washed is hot water with extra detergent - this will reduce, but not eliminate the hazard. The final part of tumble dryer cycle occurs without heat (Cooling cycle) to ensure that the items are left at the temperature that ensures that the items will not be damage.

- Item(s) that have previously been cleaned in, washed in, or spotted with petrol/gasoline, industrial chemicals used only for cleaning, dry-cleaning solvents or other flammable or explosive substances are highly flammable. Highly flammable or explosive commonly found around the house include acetone, (nail polish remover) denatured alcohol, petrol/gasoline, kerosene, some spot removers, turpentine, waxes and wax removers should not be put in the dryer. Items containing foam rubber (also known as latex foam) or similarly textured rubber-like materials. Foam rubber materials can produce fire by spontaneous combustion when heated.

Safety Information

- Rubber-backed articles, clothes fitted with foam rubber pads, pillows, rubber boots and rubber-coated sports shoes.

For your safety, and to reduce the risk of fire or an explosion, DO NOT store or use petrol or other inflammable vapours and liquids near your dryer.

Cleaning the Lint Filter

- WARNING! LINT BUILD-UP IS A FIRE HAZARD.

- A clean lint filter greatly improves your dryers efficiency and reduces drying times, saves energy and avoids overheating. Overheating may also damage your clothes.

- TIP! If your lint filter isn't emptied between drying loads, we estimate the drying time can double after 4-5 cycles and triple after 8 cycles. Aside from creating a risk of fire, this results in a significant increase in energy consumption to dry your clothes.

- You must empty your lint filter after each and every load.

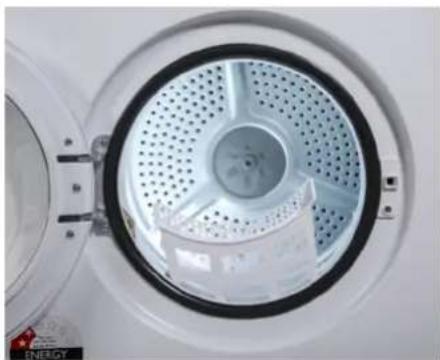

- The lint filter is located on the inside of the door- shown below (Figure 1).

Close-up view of a white washing machine vent with perforated lid and ventilation slots (no text or symbols visible)

Figure 1: Lint filter location within your vented dryer.

To remove the lint filter, open the dryer door and simply lift the plastic filter out from its housing. You can click the lint filter open to allow easy access to remove the lint. Ensure that the plastic filter is clicked closed again before replacing into your clothes dryer.

TIP! The lint filter can only be inserted into its housing in one way.

IMPORTANT!

- Never operate your dryer without the lint filter in its correct position.

- Do not allow lint to build up around the dryer (on the door itself, inside the drum, around the lint filter itself, etc).

- A torn or damaged lint filter must be replaced immediately-cease use until this is replaced.

- Do not overload your dryer. Overloading can increase lint build-up because the airflow is reduced.

- TIP! To avoid potential fire hazards, we recommend that you pay for a qualified appliance technician to inspect and clean your dryer periodically.

Operating your Dryer

- Your dryer is rated to 7kg of dry clothing. Loads must not exceed this rated capacity.

- IMPORTANT! Always check your clothing's care label information to ensure they are suitable for use within dryers.

- Excessive drying is one of the most damaging things we do to our laundry. International drying symbols (Figure 2 below) help you select a dryer cycle and a temperature.

Figure 2: International drying symbols used on your clothing care labels.

- If the care label has a circle inside a square, your item can be tumble dried.

- The more dots on the iron symbol suggests the temperature of heat that can be applied:

- 1 dot = low temperature

- 2 dots = medium temperature

- 3 dots = high temperature

- If there is a cross over the tumble dry symbol, you should not tumble dry the item. It's recommended for air-drying only.

Safety Information

Some guidelines for various fabric types:

• Permanent press and synthetics - take out as soon as the dryer stops to reduce wrinkles.
• Woollen articles - not recommended. Pull them to their original shape, then dry them flat. Vented dryers can shrink woollen articles.
• Woven and loop knit materials - may shrink, by varying amount, depending on their quality. Do not use the "Max" Dryness setting for these fabrics, Always stretch them out immediately after drying.
• Fibre or leather materials - always check the manufacturer's instructions.
• Baby clothes and night gowns - acrylic clothing or sleepwear use only on the "Low" Dryness setting.
• Rubber and plastics - Do not dry any items made from or containing rubber or plastics, such as aprons, bibs, babies' water proof napkins, curtains, tablecloths, shower caps, clothes fitted with foam rubber pads, pillows, galoshes, or rubber coated tennis shoes.
• Fibreglass - not recommended, glass particles left in the dryer could be picked up by your clothes the next time you use the dryer and irritate your skin.
• CAUTION! Fabric softeners or similar products should not be used in a tumble dryer to eliminate the effects of static electricity unless this practice is specifically recommended by the manufacturer of the fabric softener or product.
• NOTE: We strongly advise against the use of fabric conditioners of the sheet type that are added to the clothes in the drum. These products may lead to rapid blockage of the lint filter and inefficient operation of your dryer.

Unpacking

- During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol. Check with your local council on which packaging elements can be recycled kerbside and which may need to be disposed of at your local recycling drop off centre.

- TIP! Soft plastics can be recycled at most major grocery retailers. Polystyrene (EPS) foam may not be accepted by your local council for recycling- check http://epsa.org.au/ for details of your local EPS recycler.

- CAUTION! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept out of reach of children.

Disposal

• Old appliances should not simply be disposed of with normal household waste but should be delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or the packaging shows that it is suitable for recycling.
• Materials used to manufacture the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you are making a significant contribution to the protection of our environment.
  • Information on appropriate disposal centres for used devices can be provided by your local council or authority.

Your Vented Dryer

Product Overview

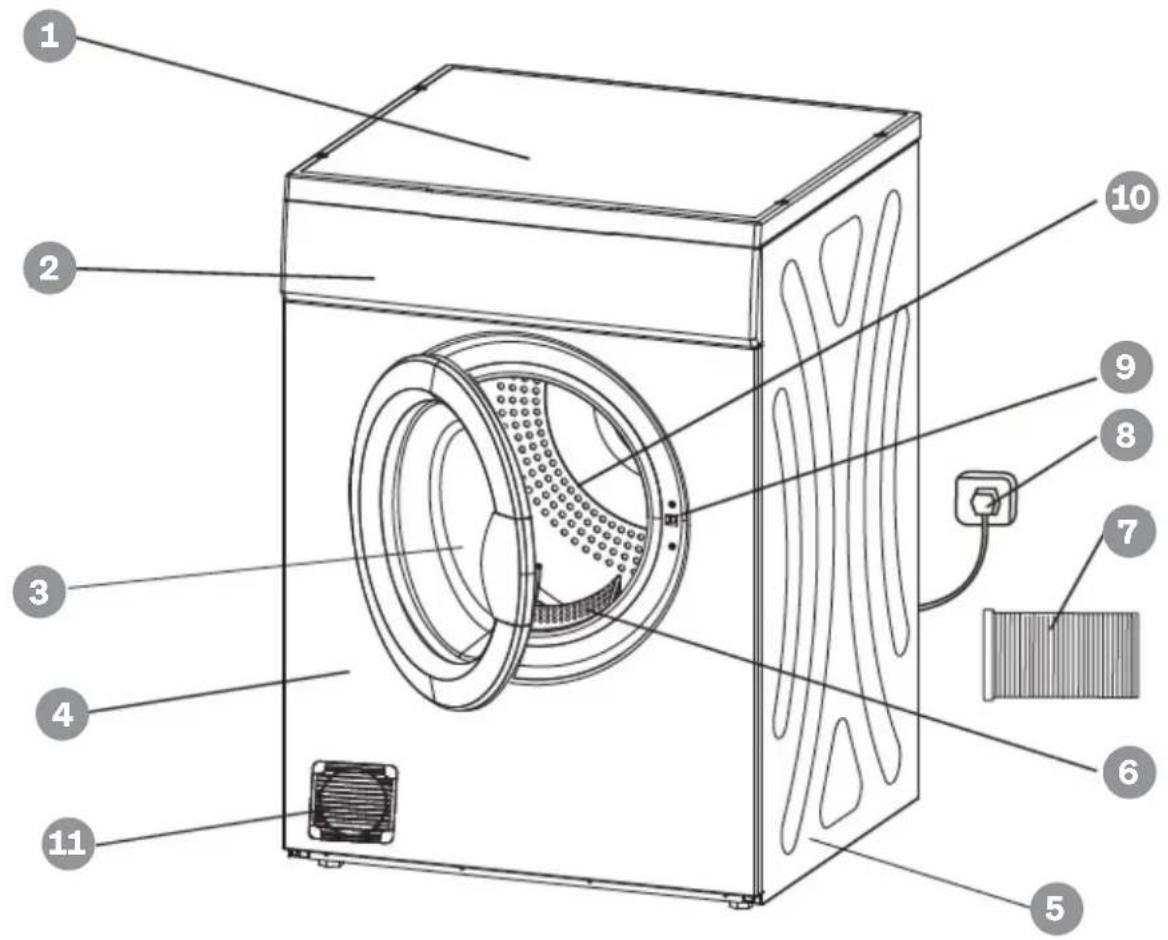

Technical diagram of a washing machine with numbered parts for identification

Figure 3: A diagram showing the main components of your vented dryer.

Images in this manual are for reference only, your appliance may appear differently.

Controls Key

1. Top Board
2. Control Panel
3. Door

4. Front Panel

5. Side Panel

6. Filter
7. Flex Tube (for rear vent only)

8. Power plug

9. Door Lock / Switch

10. Stainless Steel Drum
11. Front Vent

Accessory Kit Components

Product Overview

Part Name Quantity Image/Diagram
Horizontal Screw Position Template 1
Expansion Screw Bolt 4
Hanging Bracket 2
Plastic Cover 2
Inverted Control Panel Decal 1

Figure 5: Contents of the Accessory Kit included with your vented dryer for wall hanging installation.

Images in this manual are for reference only, your appliance may appear differently.

Installation Instructions

Important Safety Instructions

• Make sure to check the condition of the appliance after unpacking it. Do not continue with installation if it has been damaged during transport.
• Safe operation of this appliance can only guaranteed if it has been professionally assembled and installed in accordance with these instructions by a qualified technician.
• The individual who assembled and installed the appliance is liable for damages or faults resulting from an incorrect assembly or installation.
• Installation and maintenance must be carried out by an authorised service agent or similarly qualified technician.
• Ensure power to the appliance has been shut off before carrying out any installation or maintenance.
• IMPORTANT: If the power cord is damaged, it must be replaced by Residentia Group or one of its authorised service representatives. Please contact 1300 11 HELP (4357) and ensure the appliance is completely disconnected from the power supply.

Power Source and Grounding

• It's recommended to use the dryer on its own dedicated power outlet for both convenience and safety. The power outlet must be grounded.
• IMPORTANT! If the power cord is damaged, it must be replaced by your local distributor or one of its authorised service representatives. Please contact your local Customer Care team and ensure the appliance is completely disconnected from the power supply.

Installation Steps

• Refer to the diagram on page 7 of this manual.
• Your Dryer should be placed in a ventilated area with a minimum of 80mm between the top of the dryer and ceiling and with no less than 10cm distance from the wall or cabinetry. It is also recommended that there are no obstacles within 1.5m of the dryers' front, to ensure ease of operation and ventilation.

Wall Mounting Installation

- Step 1: Confirm the following components are all within the included accessories:

• 2×Hooks
• 2 × Holders
• 4 × Expansion bolts
• 1 × Installation positioning paper

Hook

Holder

Expansion Bolt

Installation Positioning Paper

- Step 2: Determine a location to mount the dryer and confirm that the construction type of the wall and location is suitable for installation.

• Do not hang the dryer on the wall if the wall is not solid.
• The distance in front of the wall must be more than 150cm .
• TIP! Ensure power cord and plug is accessible and reaches a power source.

- Step 3: Paste the installation positioning paper to the solid wall.

- Draw a line with a level, and paste the positioning paper based on the line.

Note: Ensure the screw holes will not overlap with the power outlets or taps nearby.

- The bottom edge of the positioning paper must be 45cm+ higher than the floor.

Remove the adhesive paper behind the positioning paper, and paste the positioning paper to the wall horizontally.

Close-up of hands holding a black cylindrical object with yellow circular markings and a pen, against a plain white background (no text or symbols visible)

Person in blue uniform pointing at a whiteboard with handwritten label 'BAN' and number '2'

Installation Instructions

- Step 4: Drill holes for expansion bolts. The drill diameter is 14mm. Drill 4 holes according to the positioning paper drawing (hole depth 60mm). Find the hole mark on the positioning paper. Drill 4 holes orderly at the positioning paper hole mark with a ∅ 14 drill bit (use specially-made ∅ 14 drill bit to pre-drill for the walls with tiles).

206 ###

Close-up of a hand using a power tool to apply paint on a tiled wall (no text or symbols visible)

- Step 5: Fix the hook to wall. Fix the hook with an expansion bolt to the wall.

- Take out the expansion bolt from the accessories. Insert the bolt and expansion tubular into the drilled holes. Insert one nut into the bolt. To prevent the thread being damaged, don't expose the end-thread of the bolt. Then hammer the 4 bolts into the holes orderly;

Close-up of a hand holding a small white object with blue liquid, against a plain white background (no text or symbols visible)

Close-up of a hand holding a small tool with a pink handle, next to a simple mechanical component (no visible text or symbols)

- After the bolts are hammered into the wall, screw off the nuts and expose the bolts. Then insert one auxiliary tube to the bolt, and hammer the tube until the expansion tubular is flush with the wall surface. The expansion tubular is totally expanded then, and the expansion tubular installation is finished.

Simple diagram with a vertical line and two dots, no text or symbols present

Close-up of a hand using a power tool to apply material (no visible text or symbols)

- After finishing the expansion procedure, take out the hook and insert it to the bolt. Fasten the hook with a socket or a wrench.

Close-up of a wall-mounted electrical outlet with wires extending upward (no visible text or symbols)

Two dark, folded paper-like objects on a plain white background (no text or symbols visible)

- Step 6: Fix the holder to the dryer machine. Place the unpackaged dryer machine on the floor. Unscrew the two screws at the back of the machine with a cross screwdriver. Take out the holder in the kit. Press the screws into the holes on the holder and then fasten them into the original screw holes. When hang upside down, Fix the holder at the position of the two screws.

Caution! Weight Hazard.

Two or more people required to lift and install the dryer.

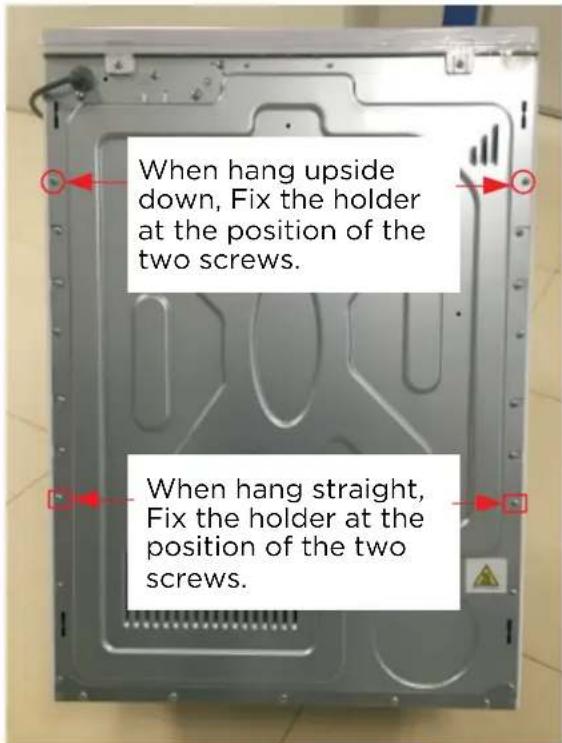

When hang upside down, Fix the holder at the position of the two screws. When hang straight, Fix the holder at the position of the two screws.

Figure 6: Placement for the dryer holders.

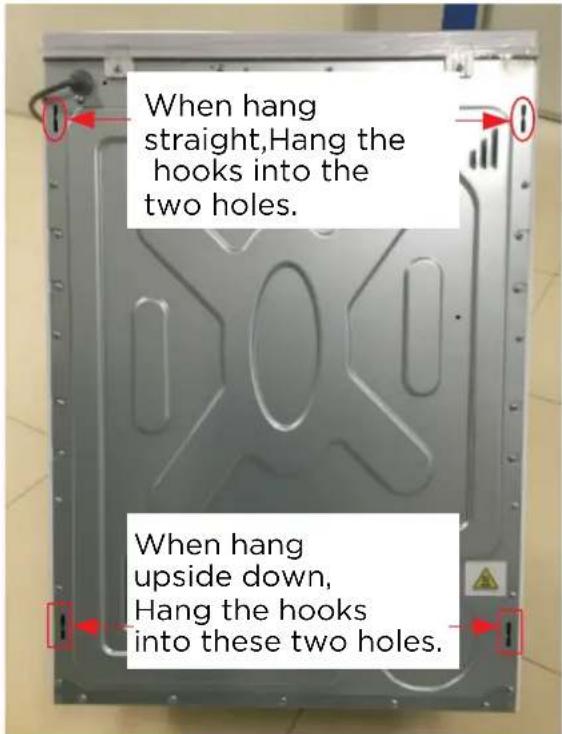

- Step 7: Lift the dryer machine with two persons and direct the slots at the back of the washing machine to the hooks. Then insert the hooks with some force to the slots.

Interior view of a modern kitchen or bathroom with a hanging door and wall-mounted fixtures (no visible text or symbols)

Close-up of a metallic mechanical component with slots and a green handle (no visible text or symbols)

Figure 7: Placement for the dryer hooks.

Installation Instructions

- Step 8: When all installation procedures are finished, test the machine by powering it on.

When hang straight,Hang the hooks into the two holes. When hang upside down, Hang the hooks into these two holes.

- Important! Please ensure that the dyer is only ever installed in an internal environment only (and not outside), or an environment where the dryer could become wet. Never place the dryer near combustible surfaces (such as curtains) and ensure the dryer isn't operating near gas or other flammable materials. Refer to Safety Instructions within this user manual.

Quick Start Guide

1. Ensure the dryer is switched on at the power outlet and add your wet clothes into the tumble drum.
2. Press the "On/Off" button to switch the dryer on.
3. Press the "Program Selection" button to select your desired drying program. The LED indicator lights will display which program you select.
4. Press the "Dryness Level" button to select your desired level of dryness for your clothes.
5. Press the "Anti Crease" button to add this optional mode.
6. Press the "Start/Pause" button to begin your selected drying program.
7. If you would like to activate the Child Lock safety feature, simply press both the "Program Selection" and "Dryness Level" button simultaneously for 3 seconds. The LED indicator next to the lock symbol will alight.
8. When your dryer completes its last heating cycle, an alert will sound for 1 second and then begin the cooling cycle. Once this cooling cycle is complete, the dryer's alert will sound once more.
9. Remove your clothes from the dryer, Press the "On/Off" button to turn the dryer off and for safety reasons, remove the power cord from the power outlet.
10. Clean the filter and inner tumble drum.

Your Control Panel

Control Overview

Figure 4- The control panel for your vented dryer

Controls Key

1. On / Off

Used to power the appliance on and off.

2. Start / Pause

Press this button to start or pause drying at any time during the cycle.

3. Anti Crease

Minimise creases that can be formed when laundry is not unloaded promptly at the end of a drying cycle.

4. Dryness Level

The adjustable dryness control is a convenient way to protect fabrics and achieve consistent drying results without over-drying or remaining damp.

5. Child Lock

Your dryer has the ability to lock the controls to prevent accidental operation or changing of settings. If you would like to activate the Child Lock safety feature, simply press both the "Program Selection" and "Dryness Level" buttons simultaneously for 3 seconds. The LED indicator will alight to indicate that the Child Lock is active.

6. Drying Programs

Choose from four tailored drying programs: Mix for varied fabrics, Cotton for durable loads, Synthetic for delicate care and 1 Hour for quick drying convenience.

7. LED Indicator Lights

Various indicator lights will display showing any relevant status or additional functions.

Operating Instructions

Before First Use

Step 1. Power source and grounding

- The dryer employs alternative current with the rated voltage and frequency. When the voltage fluctuates between 6% of rated voltage, the dryer can work normally. Your clothes dryer should be on a dedicated power socket for both convenience and safety. Refer to safety notes in section 1.1 of this manual.

Step 2. Precautions

• Ensure all packaging, user manuals, paper and plastic are removed from within the clothes dryer before operation.
• Ensure the vents aren't blocked and adequate airflow exists with your chosen location.
• Always check your clothing articles care instructions to ensure they are suitable for use within a clothes dryer. Not all fabric types/clothing articles are suitable for use within vented clothes dryers.

Preparation Before Drying

• Before starting the appliance ensure the power plug has been inserted into the socket. Next place your laundry gently inside the drum, ensuring it weighs below the 7kg limit.
• Clothes should be washed before use within the dryer.
• Always ensure the same types of clothes are dried together.
• Try to sort your clothes to be dried into load that take a similar time to dry (for example heavier items separate from light items).
• Make sure any decorations or buttons on your clothing items are safe for high temperatures and well protected.
• It is recommended to turn your clothes inside-out.
• Please ensure that the power cord is in perfect condition before use. Should there be any damage to the power cord or plug, please immediately isolate the dryer from power and contact our After Sales Service Team.

Check the Filter

• Make sure that the filter is always clean and in the correct position.
• The filter must be cleaned regularly, after each use.

Loading Suggestions

• For faster drying results, load the dryer to 12 - 23 capacity of the drum. This will allow the clothes and air to circulate evenly.
• When drying a small load of clothes or even expensive clothes, it's best to add some towels that won't lose fibres, as this will help the wet clothes to dry more evenly.
• To avoid creases or static charges on your clothes, it's important to ensure you don't over-dry your items.
• TIP! Refer to the Reference weights of clothing articles (when dry) in the table below, to assist with avoiding overloading your dryer.

	Sweater (800g)
	Jacket (cotton 800g)
	Jeans (800g)
	Bath Towels (cotton 900g)
	Single Bedsheet (cotton 600g)
	Pyjamas (200g)
	Shirt (cotton 300g)
	T-Shirt (cotton 180g)
	Underwear (cotton 70g)
	Socks (mixed-weave 50g)

Figure 8: Reference weights for various clothing articles when they are dry

Operating Instructions

Operating Your Dryer

1. Close the door carefully, taking care to avoid trapping any items in the door. You can now switch the machine on. The LED display will light up, and you can then select the desired drying program.
2. For additional options you can select the 'Dryness Level' and 'Anti-Crease' functions.
3. Finally, press the 'Start / Pause' button and your program will begin.
4. When your dryer completes its last heating cycle, an alert will sound for 1 second and then begin the cooling cycle. Once this cooling cycle is complete, the dryer's alert will sound once more.
5. After unloading the dryer, press the 'On / Off' button to power off the appliance. It is also recommended that after finishing you turn off the appliance via the power point.

Drying Programs Table

Anti Crease Function

The Anti Crease function adds a short amount of time at the end of your drying program to shake the clothes and reduce creasing. Press this button to add the function to your selected drying program/settings. The LED light above the Anti Crease button will alight to indicate that it's active.

Activating the Child Lock

The child safety lock is used to prevent unwanted operation.

1. To activate the child safety lock, hold "Program Selection" and "Dryness Level" buttons at the same time for 3 seconds. A small lock icon will display indicating the lock has been set. All buttons will be deactivated except for the 'On / Off' button.
2. To deactivate the lock function, hold "Program Selection" and "Dryness Level" buttons at the same time for 3 seconds.

IMPORTANT! Always ensure the dryer is switched off and unplugged before cleaning.

Program	Recommended Dryness Level	Max Load Clothing Type/Application
Cotton	Max	For single or multi-layer cotton laundry to be dried completely for direct storage
	Regular
	Low For single layer cotton laundry to remain damp for ironing
Mix	Max	For thick or multi-layer mixed fabrics to be dried completely
	Regular For mixed fabrics from cotton and synthetics
Synthetic	Max	For thick or multi-layer mixed fabrics to be dried completely
	Regular
		To dry thin synthetic textiles, which are not irons, such as easy care shirts, baby clothes or socks
1 Hour — 1.0kg To dry individual items

NOTE: Maximum capacity for loads is based on the clothing when dry.

TIP! At the completion of a drying program, the clothes dryer will circulate cold air.

This ensures that your clothing is left at a temperature and that your clothes aren't damaged.

NOTE: The energy rating was calculated using the Cotton program and Extra dryness level.

Operating Instructions

General Advice

• Never tumble dry the following: Delicate items such as net curtains, woollen, silk, fabric with metal trim, nylon tights, bulky materials such as blankets, eiderdown, sleeping bags, feather quilts and any item containing rubber foam or materials similar to foam rubber.
• Do not directly place undergarments such as bras and corsets that contain metal reinforcements, into your dryer. Your dryer may be damaged if a metal part were to come loose from the garment. Place such items in a bag designed for this purpose.
• Check and empty pockets. Clip, pens, nails and pins can damage both the dryer and your clothes. Other item such as matches or cigarette lighters will cause a fire.
• Close all press studs, hooks, eyes and zips that may catch on something else. Tie all belts and aprons string to prevent tangling.
• Drying time will depend on fabric type and construction, load size and wetness. Save time and money and always spin the load as dry as possible your washing machine.
• Always clean the lint filter-this will reduce drying time and save you money.
• The laundry must be thoroughly spun before tumble drying. Do not place hand washed items that have not been spun, into the dryer.
• To avoid static charge when drying is completed, use either a fabric softener when you are washing the laundry or a fabric conditioner specifically for tumble dryers.
• Remove the laundry when the dryer has finished drying.
• Do not over-dry laundry, this avoids creasing and saves energy.
• Clothing or towels containing sand or grit should be washed first.
• Due to variations in dryer load fabric texture and thickness it is possible that not all items will be dried evenly. If you experience uneven dryness on the Standard program please use the Extra Program but be mindful of the type of fabric being dried to avoid over drying certain types of fabric. Always follow drying instructions attached to the items intended to be dried in a clothes dryer.

• Drying time will also be effected by voltage fluctuations, room temperature and humidity. Clothes will dry more slowly on a cool or humid day.

• For best results, sort the load according to fabric. Such as heavy items which may take longer to dry (i.e. towels, flannelette sheets, etc) than ones which dry quickly (i.e. cotton shirts and sheets).

• Avoid drying dark clothes with light coloured items such as towels as lint will show on the dark clothes.
• Some fabrics will collect lint from other clothes and items. Separate those articles prone to causing lint and those prone to collecting lint, to minimise this problem. Clothes that give lint include towels, nappies, chenille. Clothes that collect lint include corduroy, synthetics and permanent press garments.
• If individual items are still damp after drying, you may need to run another program, or allow the items to finish drying naturally outside the dryer. This will be necessary particularly for multi-layered items (i.e. collars, pockets, etc).

Care & Maintenance

By ensuring proper cleaning and maintenance of your Esatto Vented Dryer, you can ensure that it will have a long and fault free operation.

WARNING! To avoid an electric shock, always unplug your dryer before cleaning.

Tips for Cleaning Your Dryer

Clean the dryer with a clean, damp cloth only. Do not use any solvent, abrasive cleaners, glass or all-purpose cleaners, as these sprays can damage plastic surfaces and other parts. Always wear gloves while cleaning to maintain safety.

For best results prepare a clean, damp cloth. Clean the door, especially the inside window. Next clean the sealing around the door opening, followed by the humidity sensor inside the drum. Following the guide included on this page, remove the lint filter and clean it as instructed. Finally, before starting the dryer ensure you dry all parts using a separate, soft and dry cloth.

Cleaning the Lint Filter

IMPORTANT! CLEAN THE FILTER AFTER EACH USE.

1. To clean the lint filter, first open the dryer door. You will notice the built in lint filter at the base of the opening, which can be easily lifted up.

Close-up of a white circular device with a perforated interior and ventilation slots (no text or symbols visible)

1. Next open up the filter gently, and using your hands, a damp cloth, a soft brush or a small vacuum remove the lint on the filters. If the lint is particularly dusty, you can use water to help.
2. Once dry, re-fit the lint filter into the door opening.
3. Take extra notice of the correct orientation of the filter before reinserting. Ensure the filter is dry before reinstalling.

WARNING: The lint accumulated on the filter will block air circulation inside the dryer. Not cleaning the filter regularly will increase the time it takes for clothes to dry, and increase energy consumption. Ensure you clean the filter at least once a week.

WARNING: Never under any circumstances should you operate the dryer without the lint filter equipped.

Cleaning the Inner Drum

• Use a soft damp cloth to wipe the inner drum and cabinet.
• Ensure that the cloth is only slightly damp and never use excessive amounts of water.
• Do not use scouring pads or other abrasives as these will cause damage to your dryer.
• Do not use alcohol wipes or harsh cleaning chemicals.

Troubleshooting

For Minor Faults

Problem Solution
The display is not turning on.	Check if the mains power plug has been properly inserted and the power is on.Check if there is a power outage in your home or area. If the problem persists contact our Support Team for guidance.
The drying program is not starting.	Check if the mains power plug has been properly inserted and the power is on.Ensure that the dryer door is properly closed, and no garments are snagged.Restart the dryer, however if the problem persists contact our Support Team.
The drying program either took too long or the clothes were not dry enough.	See if the lint filter is clean.Consider using a higher dryness level.A longer time may be needed when the room temperature is 12°C or less.Check that the lint filter is not blocked.Check to see that you have read all the instructions carefully.Contact your local Customer Care team if you are still having problems. Write down the model and serial numbers and the date of purchase before you callYou may be attempting to dry over the appliance's maximum capacity.

IMPORTANT! To operate all vented clothes dryers efficiently, the clothes dryer must have an unrestricted air supply and exhaust ventilation. Service calls resulting from installation where ventilation is restricted are not covered by warranty. The cost of this type of service call will be charged to the customer. Should you require further instructions in the use and care of your clothes dryer please contact your local Customer Care team.

Troubleshooting

Drying Fault Codes

Indication Possible	Cause Solution
Low Dryness Level Indicator is flashing	NTC or PCB failure	Remove the power plug from the wall immediately.Please call our Support Team by dialling 1300 11 4357 or email at [e-mail] avoid any damage to the appliance, risk of bodily harm or property damage, do not attempt to carry out any repairs yourself, instead wait for a service agent.
Low & Regular Dryness Level Indicator are flashing	Temperature sensor or PCB failure
Max Dryness Level Indicator is flashing

Note: These fault codes will only appear if an abnormality or fault occurs. In such an occurrence, the appliance will enter a protective state and display one of the relevant fault codes as listed above. Do not ignore these codes if they appear.

Possible Failures

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out a service technician. Before contacting your local Customer Care team, please check possible cause of malfunction and solution listed below. Once the problem has been eliminated, press the Start/Pause button to restart the program. If after all checks, the problem persists, contact your local Customer Care team.

For Serious Faults:

- If you experience one of the listed faults shown in the table above, or if another emergency or serious fault occurs, immediately power off the dryer using the controls, and then disconnect the power from the source.

- If a serious fault occurs, DO NOT attempt any repairs yourself, instead wait for a service agent to do so.

- For assistance or to organize an authorised service agent contact our After Sales Support by calling 1300 11 4357, or by emailing [e-mail].

- Please note that if a service agent is asked to attend whilst the product is under warranty and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.

- The appliance must be accessible for the service agent to perform any necessary repair. If your appliance is installed in such a way that a service agent is concerned that damage will be caused to the appliance or your home, then they will not complete a repair.

- Please refer to the Warranty Information to learn more.

Technical Specifications

Specifications Chart

Model No. OVD7
Rated Capacity 7.0kg
Rated Input Power 2000W
Rated Voltage 220–240V ~
Rated Frequency 50Hz
Grade of Waterproof IPX4
Net Weight 35kg
Size (W, D, H) 595 × 555 × 840mm

Purchase Details

Attach your receipt to this page

For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice.

Store Details

Store Name

Address

Telephone | Purchase Date

Product Details

Model No.

Serial No.

Notes

Warranty Information

WARRANTY TERMS AND CONDITIONS LAUNDRY APPLIANCES

This document sets out the terms and conditions of the product warranties for Residentia Group Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance.

1. In this warranty
   (a) ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL;
   (b) 'ACL' means Trade Practices Amendment (Australian Consumer Law) Act (No.2) 2010;
   (c) 'Appliance' means any Residentia Group product purchased by you accompanied by this document;
   (d) 'ASR' means Residentia Group authorised service representative;
   (e) 'Residentia Group' means Residentia Group Pty Ltd of 165 Barkly Ave, Burnley VIC 3121, ACN 70 600 546 656 in respect of Appliances purchased in Australia;
   (f) ‘major failure’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for Residentia Group, at its discretion, to repair an Appliance during the Warranty Period;
   (g) 'Warranty Period' means:
   (i) where the Appliance is used for personal, domestic or household use (i.e. normal single family use) as set out in the instruction manual, the Appliance is warranted against manufacturing defects for 36 months, following the date of original purchase of the Appliance;
   (h) 'you' means the purchaser of the Appliance not having purchased the Appliance for re-sale, and 'your' has a corresponding meaning.
2. This warranty only applies to Appliances purchased and used in Australia and is in addition to (and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia.
3. During the Warranty Period Residentia Group or its ASR will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Residentia Group or its ASR may use remanufactured parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Residentia Group. This warranty does not apply to light globes, batteries, seals, filters or similar perishable parts.
4. Parts and Appliances not supplied by Residentia Group are not covered by this warranty.

Warranty Information

1. You will bear the cost of transportation, travel and delivery of the Appliance to and from Residentia Group or its ASR. If you reside outside of the service area, you will bear the cost of:

(a) travel of an authorised representative;

(b) transportation and delivery of the Appliance to and from Residentia Group or its ASR, in all instances, unless the Appliance is transported by Residentia Group or its ASR, the Appliance is transported at the owner's cost and risk while in transit to and from Residentia Group or its ASR.

1. Proof of purchase is required before you can make a claim under this warranty.

2. You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. Residentia Group is not liable in the following situations (which are not exhaustive):

(a) the Appliance is damaged by:

(i) accident

(ii) misuse or abuse, including failure to properly maintain or service

(iii) normal wear and tear

(iv) power surges, electrical storm damage or incorrect power supply

(v) incomplete or improper installation

(vi) incorrect, improper or inappropriate operation

(vii) insect or vermin infestation

(viii) failure to comply with any additional instructions supplied with the Appliance;

(b) the Appliance is modified without authority from Residential Group in writing;

(c) the Appliance's serial number or warranty seal has been removed or defaced;

(d) the Appliance was serviced or repaired by anyone other than Residentia Group, an authorised repairer or ASR.

1. This warranty, the contract to which it relates and the relationship between you and Residentia Group are governed by the law applicable where the Appliance was purchased.

2. To the extent permitted by law, Residentia Group excludes all warranties and liabilities (other than as contained in this document) including liability for any loss or damage whether direct or indirect arising from your purchase, use or non use of the Appliance.

3. For Appliances and services provided by Residentia Group in Australia, the Appliances come with a guarantee by Residentia Group that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. The benefits to you given by this warranty are in addition to your other rights and remedies under a law in relation to the Appliances or services to which the warranty relates.

4. At all times during the Warranty Period, Residentia Group shall, at its discretion, determine whether repair, replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.

5. Missing parts are not covered by warranty. Residentia Group reserves the right to assess each request for missing parts in a case by case basis. Any parts that are not reported missing in the first week after purchase will not provide free of charge.

6. To enquire about claiming under this warranty, please follow these steps:

(a) carefully check the operating instructions, user manual and the terms of this warranty;

(b) have the model and serial number of the Appliance available;

(c) have the proof of purchase (e.g. an invoice) available;

(d) telephone the numbers shown below.

1. You accept that if you make a warranty claim, Residentia Group and its ASR may exchange information in relation to you, in order to enable Residentia Group to meet its obligations under this warranty.

IMPORTANT

Before calling for service, please ensure the steps in point 13 have been followed.

CONTACT SERVICE

1300 11 HELP (4357)

[e-mail]

EST. 1981

Designed to Enhance

omega

Omega is proudly owned in Australia by Residentia Group Pty. Ltd.

@residentia.group

www.residentia.group
